Hayward TriStar XE Ultra Single Speed Pump Replacement Parts Diagram
Having a problem? Pick one to see the parts that usually fix it (optional)
-
Most common fix SPX3200T | Hayward Housing O-Ring For TriStar and EcoStar$13.99
-
Most common fix SPX3021R | Hayward Impeller Ring For TriStar and EcoStar$6.99
-
$27.99
-
Most common fix SPX3200UNKIT | Hayward Union Connector Kit$59.99
-
Most common fix SPX3200A | Hayward Tristar & EcoStar Pump Housing$349.99
-
Most common fix SPX3200S | Hayward Strainer Cover O-Ring For TriStar and EcoStar$17.99
-
Most common fix SPX3200DLS | Hayward Strainer Cover For TriStar and EcoStar$94.99
-
Most common fix SPX3200M | Hayward Strainer Basket For TriStar and EcoStar$21.99
-
Most common fix SPX3210C | Hayward Impeller With Screw For TriStar | 1HP$49.99
-
$59.99
-
Most common fix SPX3200E | Hayward Seal Plate For TriStar and EcoStar Pumps$62.99
-
Most common fix SPX3200B3 | Hayward Diffuser For TriStar and EcoStar Pumps$59.99
-
$3.99
-
$9.99
-
Most common fix Hayward Union Gasket For Hayward Pumps and Filters | 2 Pack$12.99
-
Most common fix U.S. Seal Premium Mechanical Shaft Seal | R0479400$21.99
No parts match.
Pinch or scroll to zoom, drag to move. Tap a dot to see the part.
View another parts diagram
Sticker on the pump body (the part with the basket), not on the motor. Motor labels from Century, A.O. Smith or Regal won't match parts.
Label on the side of the tank near the base. Size is in sq ft, e.g. 420 sq ft = C4030 or CCP420.
Rating plate inside the front access panel. Note the BTU and gas type (NG or LP).
Molded into the body or printed on top. Robotic cleaners: on the power supply.
Still not sure? Call (818) 818-6559 and we'll find it for you.
Recently viewed

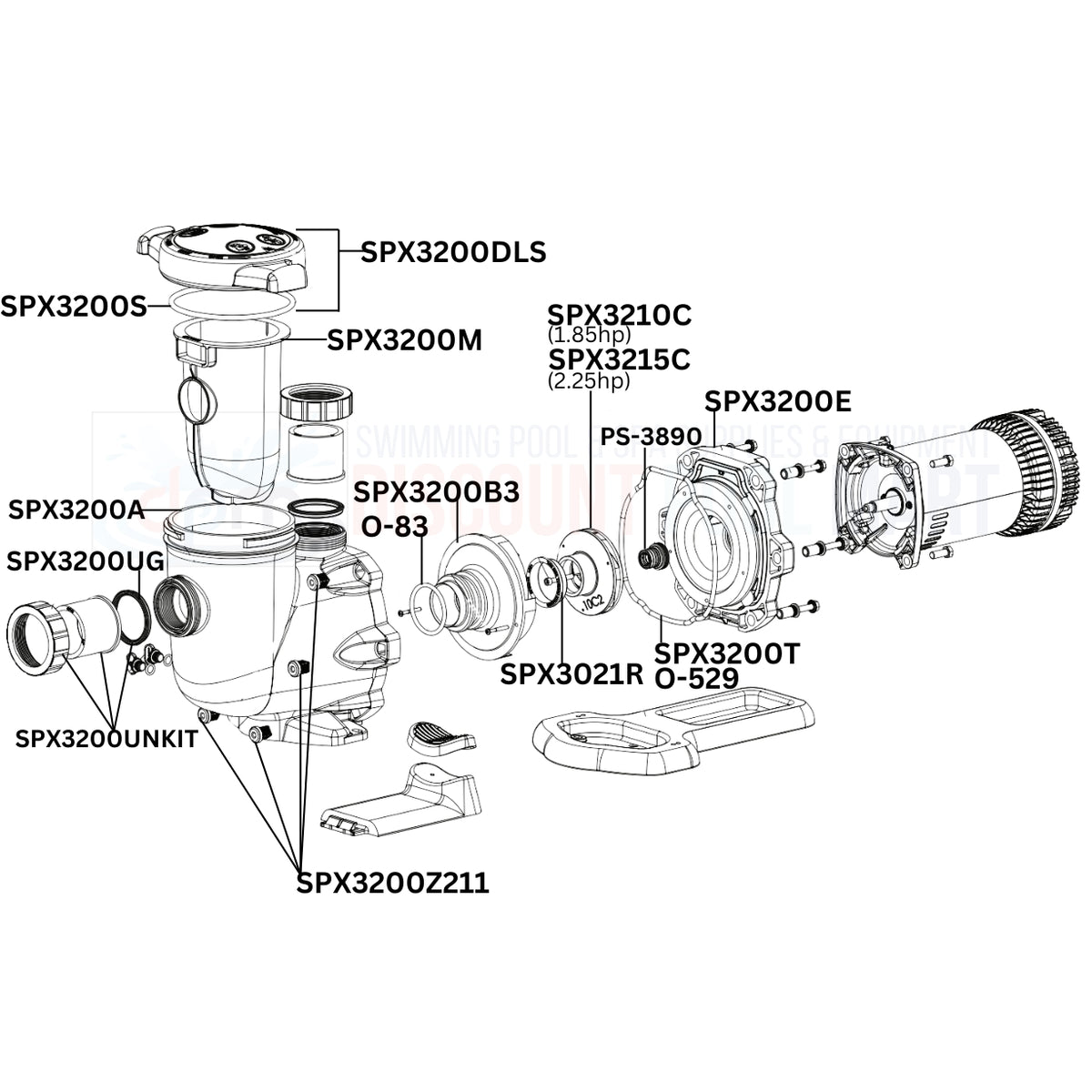

Hayward TriStar XE Ultra Single Speed Pump Replacement Parts Diagram with Clickable Hotspots for Identifying Impellers, O-Rings, Diffusers, and More
Use the interactive diagram above to locate and identify TriStar XE Ultra single speed pump components, then explore the listings below for details and in-store availability.
Boost flow performance in 1.5HP to 2HP Hayward TriStar models with the SPX3215C Impeller and Screw Kit, designed for high-efficiency circulation.
Prevent water leaks and improve sealing with the Aladdin SPX3200T O-Ring, compatible with both TriStar and EcoStar housing assemblies.
The SPX3210C Impeller with Screw is a reliable replacement for 1HP Hayward TriStar XE Ultra pump models.
Maintain proper spacing and efficiency between components using the SPX3021R Impeller Ring for both TriStar and EcoStar systems.
Enhance priming and flow distribution with the SPX3200B3 Diffuser, made to fit TriStar XE Ultra and EcoStar pump housings.
All TriStar XE Ultra single speed pump replacement parts are available in-store with expert support and dependable local inventory for fast pickup or service.
