SPX3200SA | Hayward Pump Shaft Seal Assembly
Fits these models (7)
+3 more models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
On the Hayward EcoStar VS Variable Speed Pump diagram
Open the full interactive diagram →
Other parts on the same Hayward EcoStar VS Variable Speed Pump
The Hayward SPX3200SA Shaft Seal Assembly is a genuine OEM replacement kit engineered to maintain watertight integrity in select Hayward pool pumps including the TriStar, EcoStar, and NorthStar lines. This assembly replaces the mechanical seal located at the motor shaft — a critical barrier that keeps water from leaking into the motor and pump housing. By installing SPX3200SA, you restore proper sealing, protect motor bearings and internal components from water intrusion, and extend the service life of your pump, especially under regular chlorinated or salt-pool conditions.
-
OEM-Grade Shaft Seal: Delivers a precise fit for compatible Hayward pumps, ensuring reliable sealing against shaft leaks often caused by worn or damaged original seals.
-

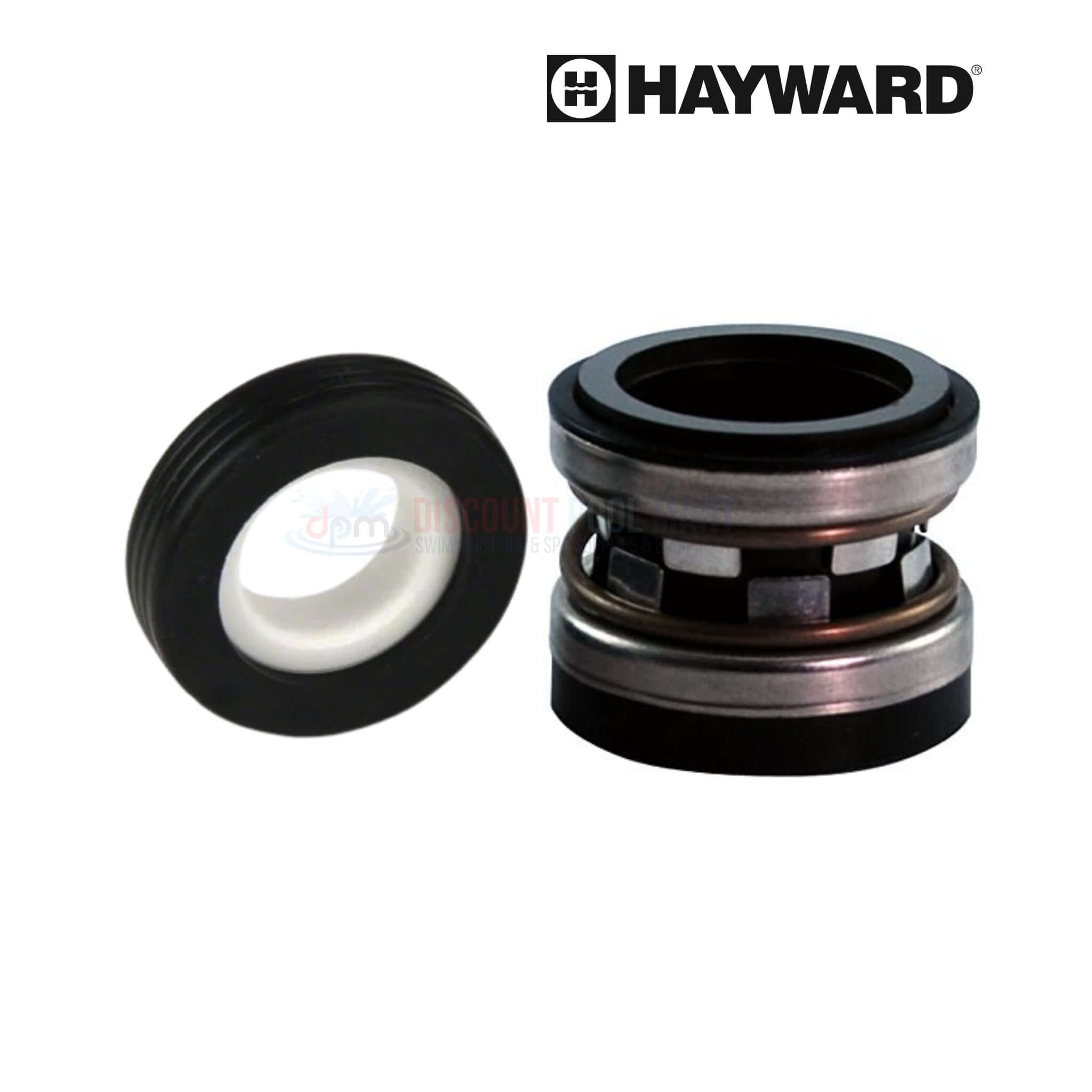

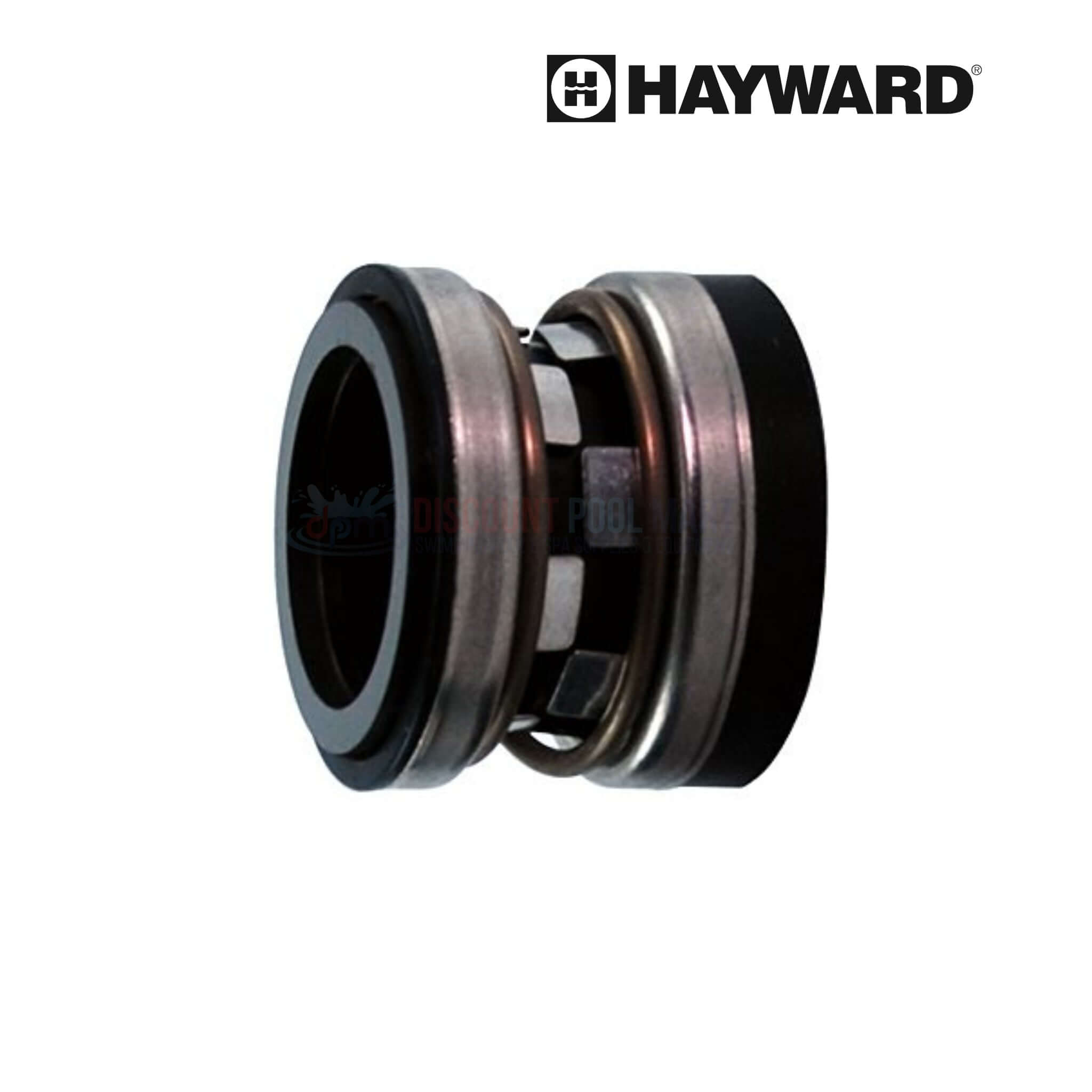

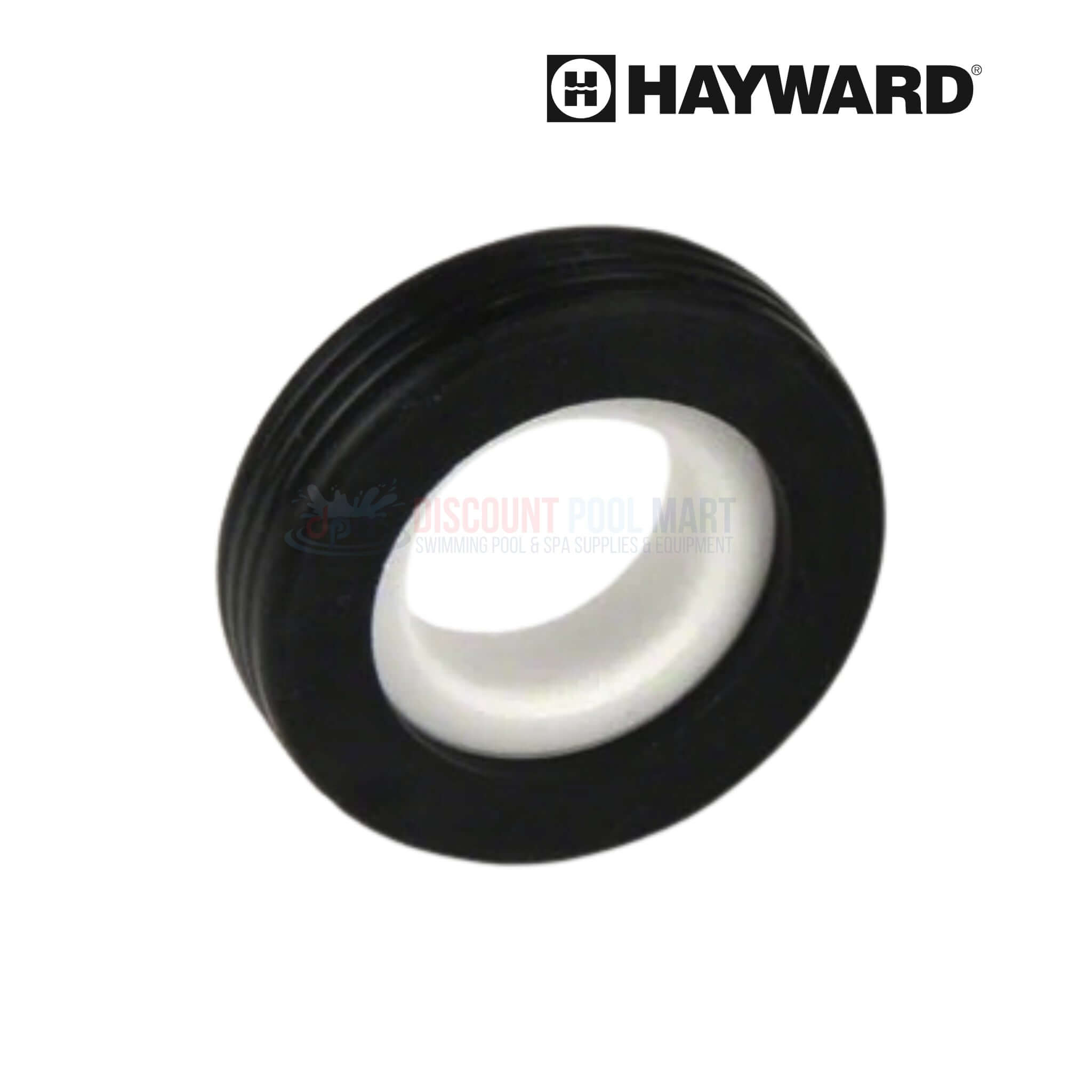

Includes Full Seal Components: Comes with both the rotating and stationary seal faces, elastomer bellows, and other needed internal parts for a complete rebuild of the pump’s wet-end seal area.
-
Resists Chlorine, Salt & Pool Chemicals: Designed for durability under typical pool water chemistry — including pools with elevated salt levels — to reduce corrosion and seal degradation over time.
-
Prevents Motor Damage & Leaks: By blocking water intrusion at the shaft, it helps safeguard the motor and internals from rust, electrical failures, or premature wear.
-
Ideal for Maintenance or Pump Rebuilds: Recommended as a routine maintenance item when rebuilding or replacing the motor on a compatible Hayward pump, helping restore factory-seal integrity and performance.
- Hayward TriStar Pump Models: SP3200EE, SPX3200X, SP3600
- Hayward NorthStar Pump Models: SP4000, SP4000X
- Hayward EcoStar Pump Models SP3400VSP, SP3400VSPVR
