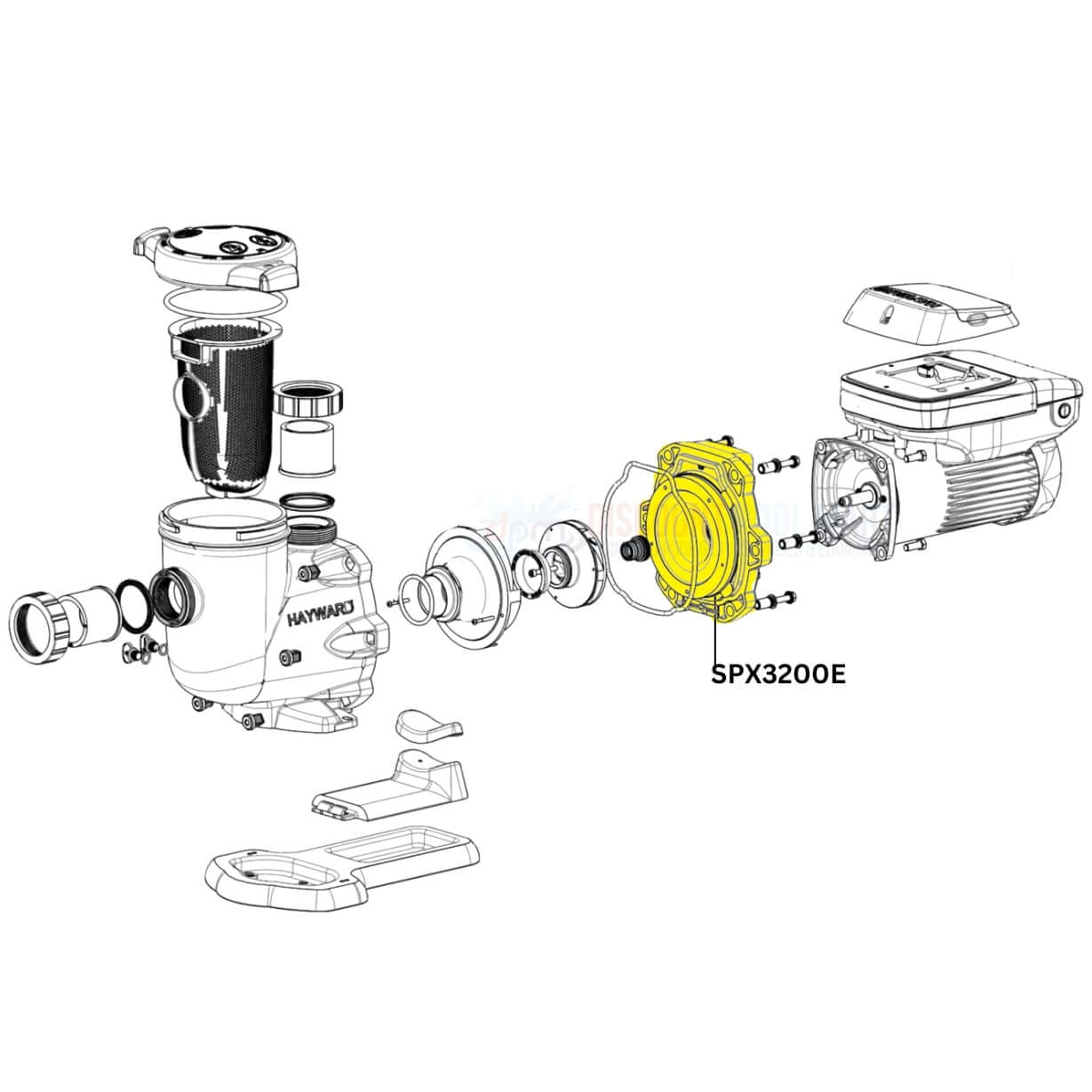

On the Hayward EcoStar VS Variable Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward EcoStar VS Variable Speed Pump

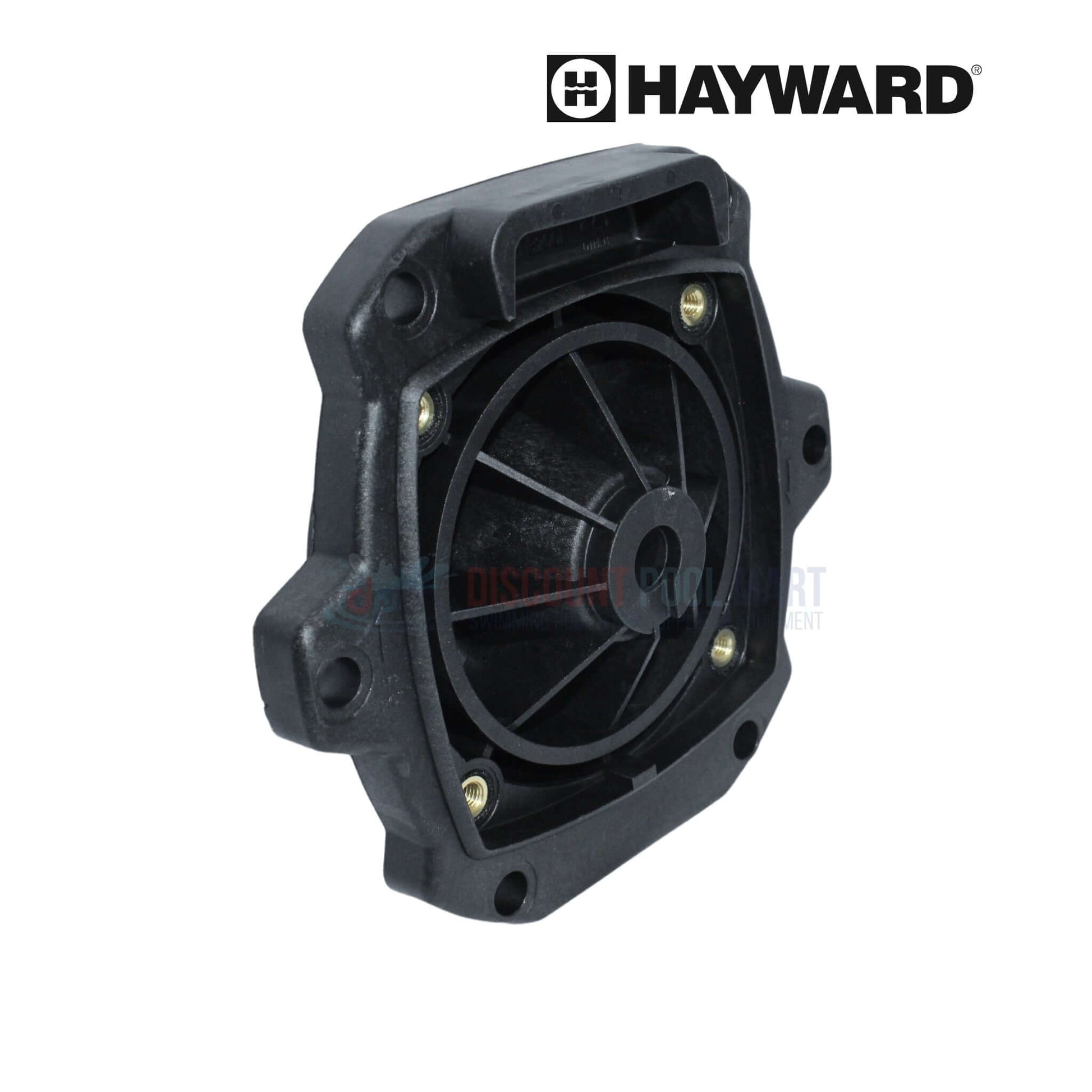

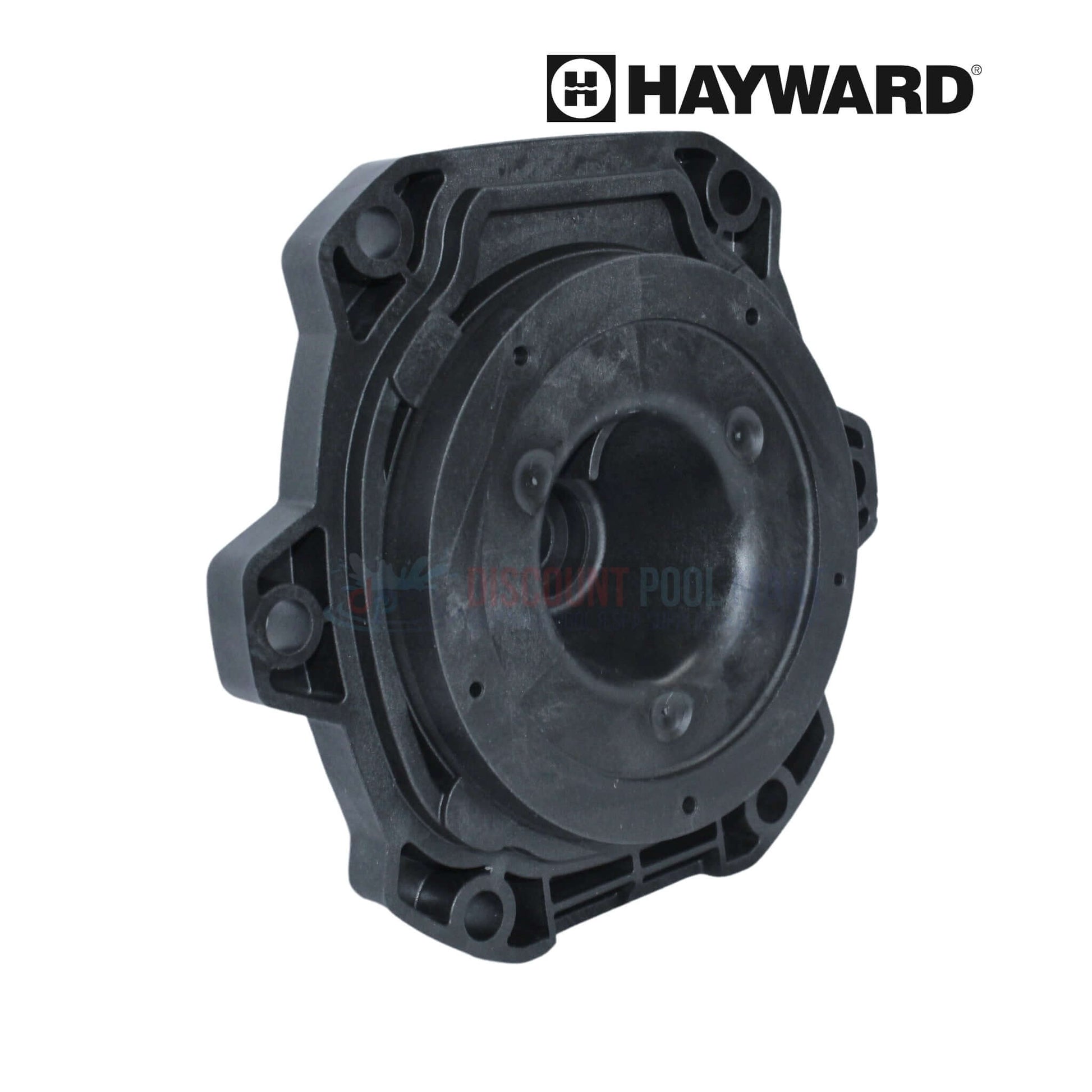

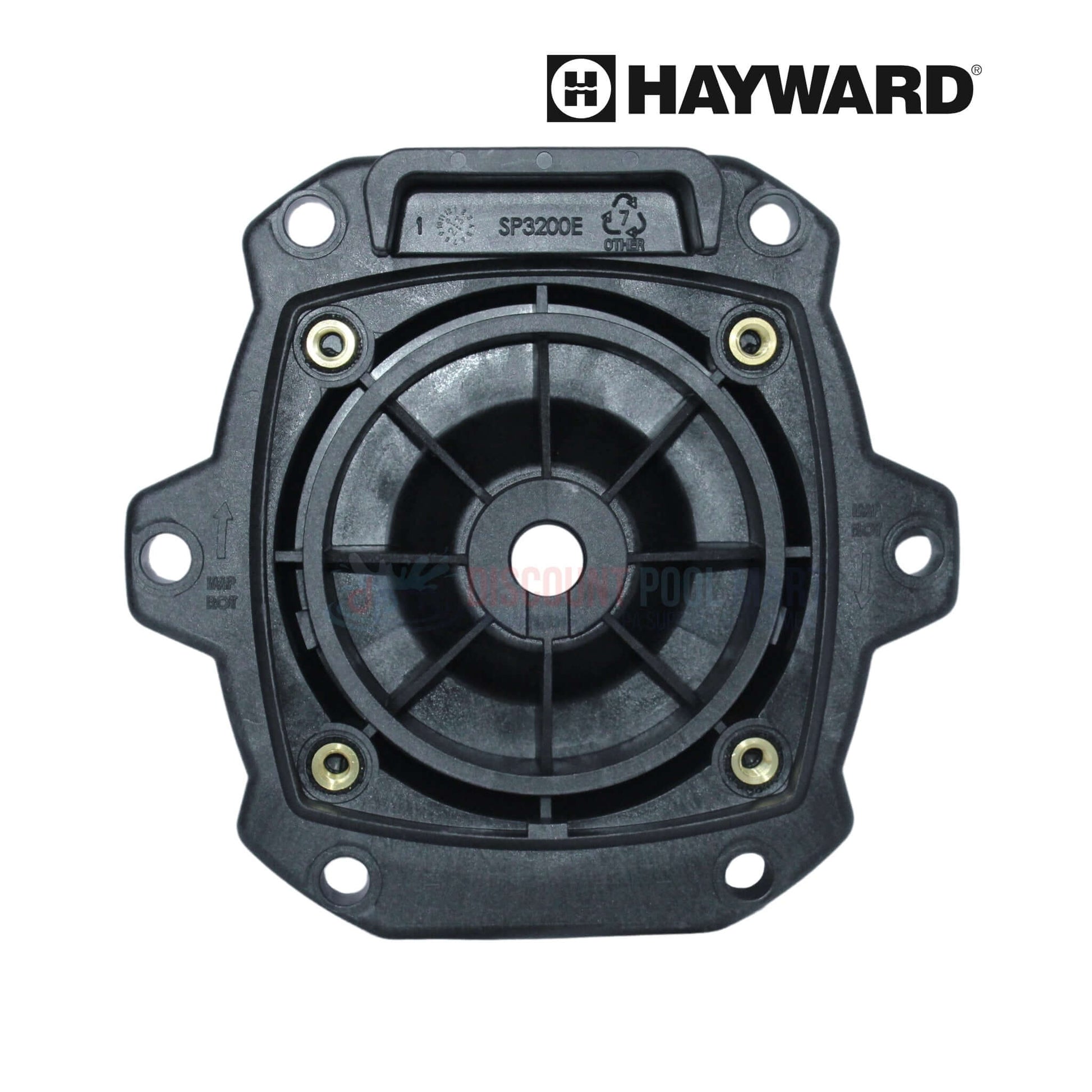

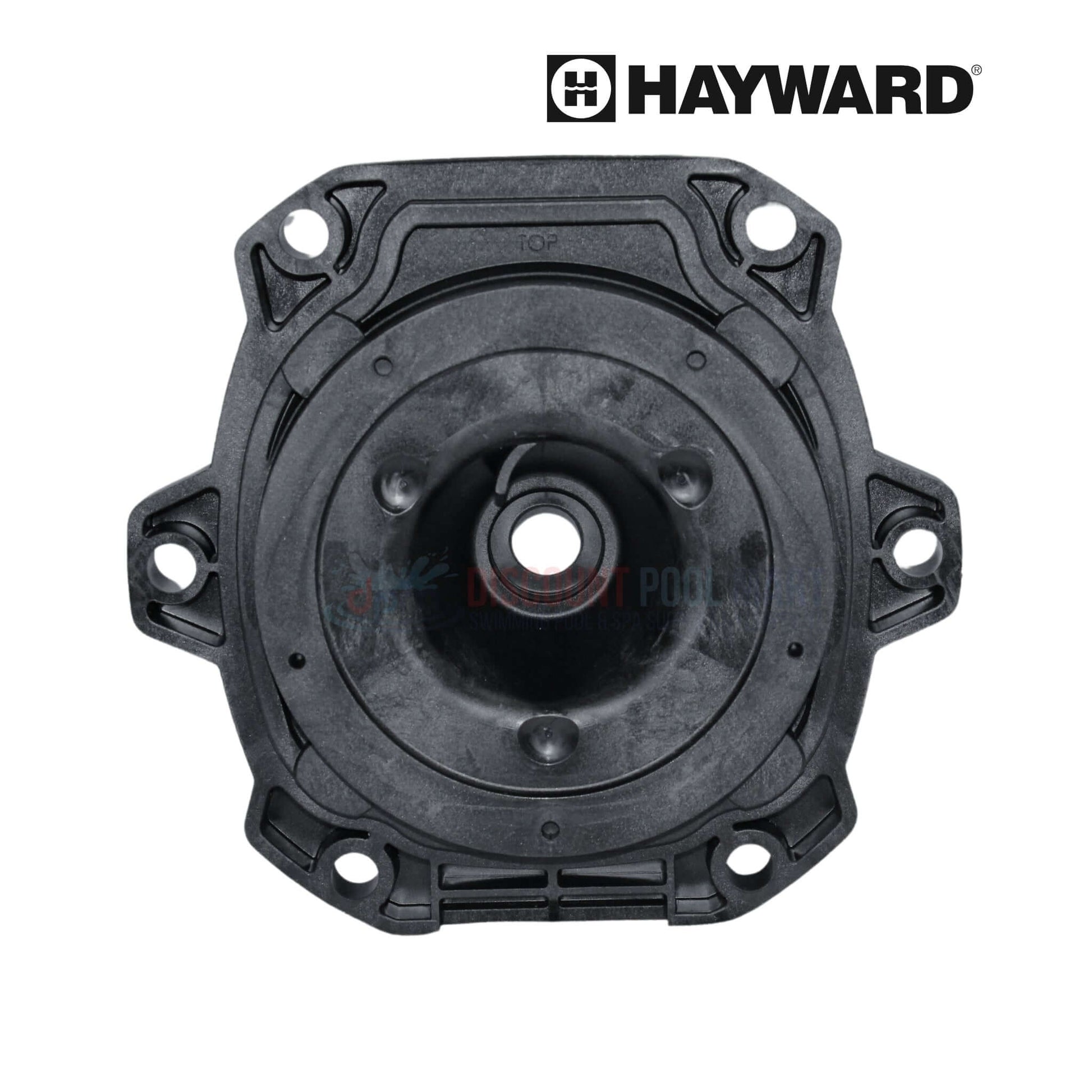

OEM Hayward Seal Plate SPX3200E is a vital replacement component for maintaining proper sealing and performance in Hayward TriStar and EcoStar pool pumps. Positioned between the motor and the wet end of the pump, this plate supports the mechanical seal and helps prevent leaks that could affect pump operation. Built from durable materials, it withstands the demanding conditions of pool environments. Compatible with models in the SP3200EE, SP3200X, SP3600, and SP3400VSP series, this seal plate ensures continued pump efficiency and structural integrity.
-
Fits TriStar and EcoStar Models: Compatible with SP3200EE, SP3200X, SP3600, SP3400VSP, and VS 900 and 950 series for wide coverage
-
Protects Motor from Moisture: Creates a barrier between the wet end and the motor to preserve motor life and system efficiency
-
Prevents Internal Leaks: Ensures a tight seal around the pump shaft to avoid water intrusion and performance issues
-
Engineered for Harsh Use: Made with high-strength materials to resist heat, pressure, and chemical exposure from pool environments
-
Supports Long-Term Pump Health: Helps maintain optimal pump operation and reliability during routine use and maintenance
- (1) Hayward SPX3200E Seal Plate
- Hayward Tristar Pump: SP3200EE Series Models: SP3205EE, SP3207EE, SP3210EE, SP3215EE, SP3220EE, SP322063EEV, SP3230EE, SP3250EE, SP323063EE
- Hayward Tristar Pump SP3200X Series Models: SP3205X7, SP3207X10, SP3210X15, SP3215X20, SP3220X25, SP3225X30, SP36075EE, SP36120EE
-
Hayward EcoStar Pump Models: SP3400VSPVR, SP3400VSP
- Hayward TriStar VS 900 Pumps
- Hayward TriStar VS 950 Pumps
Note: This seal plate may be compatible with your pump, please refer to your systems owners manual to ensure compatibility.
