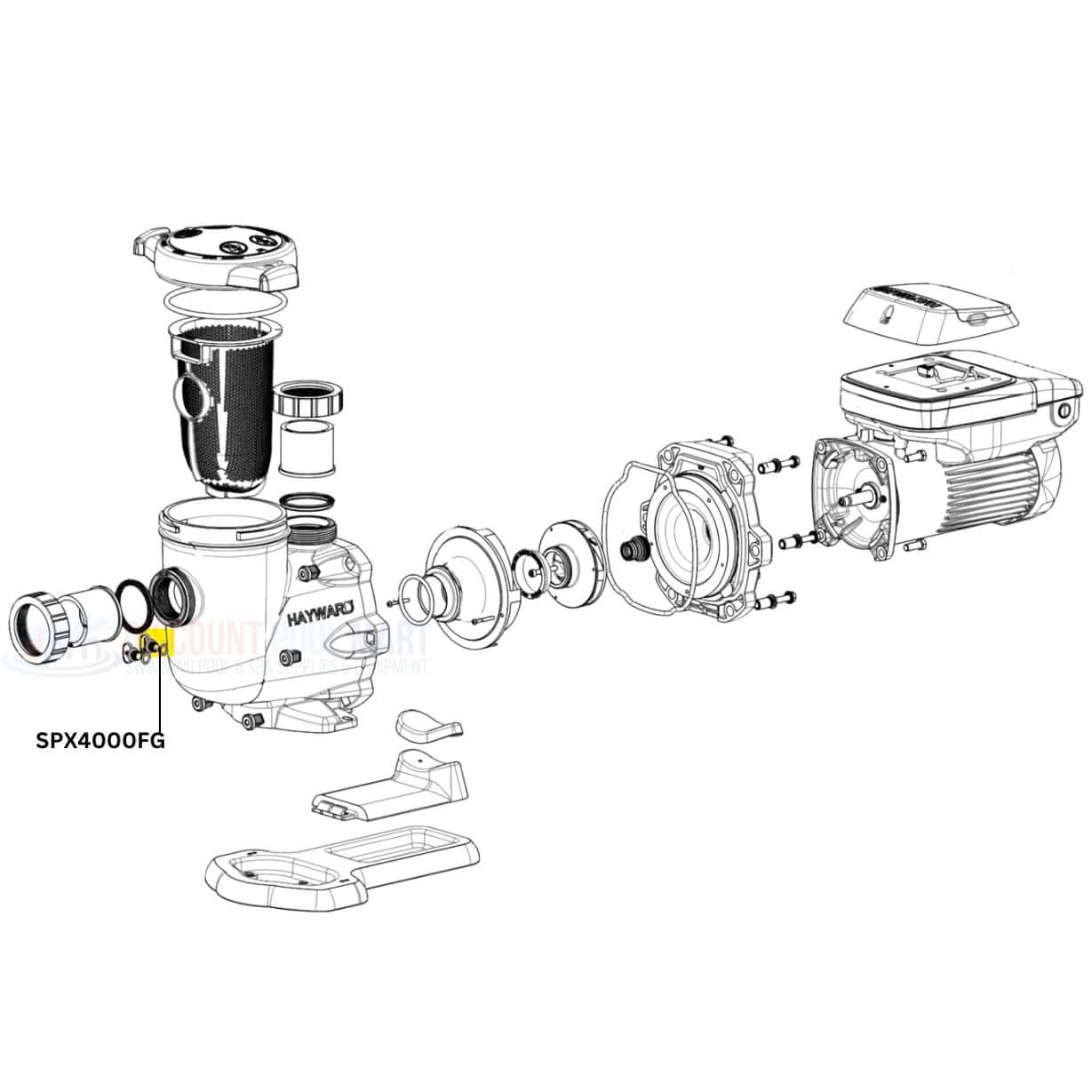

On the Hayward EcoStar VS Variable Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward EcoStar VS Variable Speed Pump

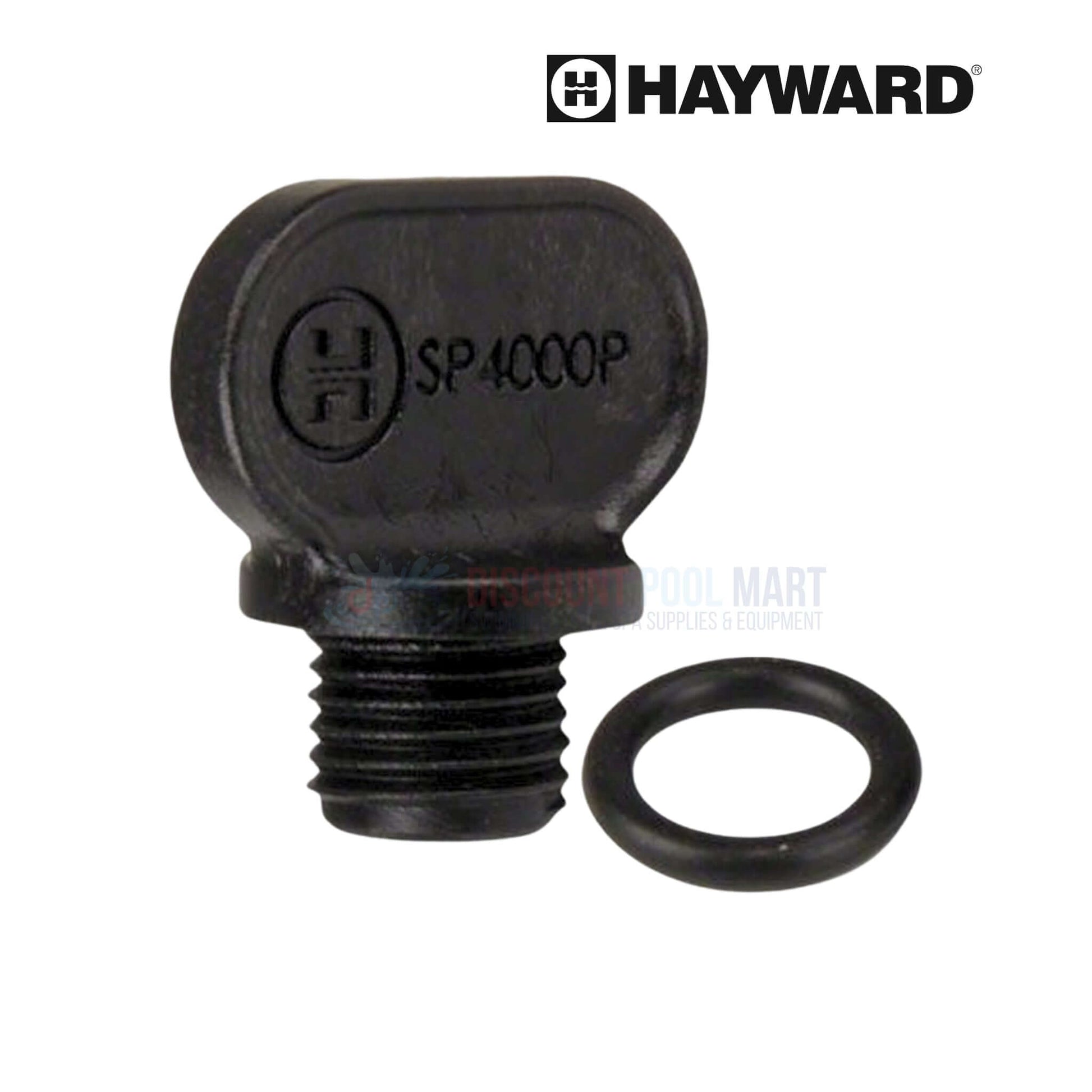

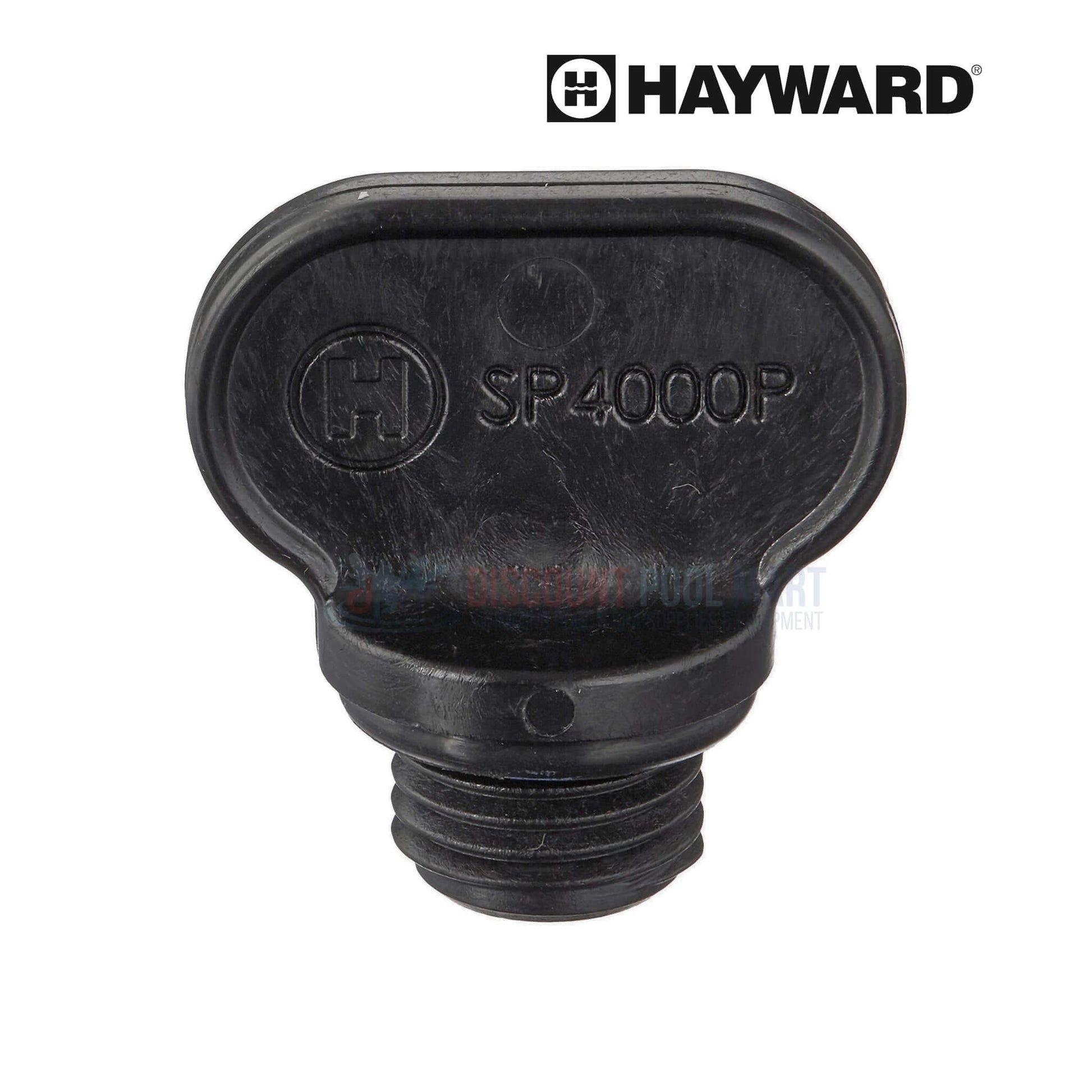

OEM Hayward Drain Plug with O-Ring SPX4000FG is a durable replacement part designed for Hayward pumps and heaters, including Universal H-Series Low NOx models and pump lines such as EcoStar, TriStar, NorthStar, Max-Flo II, and HeatPro. This plug ensures a secure seal with its integrated O-ring, helping to prevent leaks during system operation or winterization. Built for long-term reliability, this plug supports efficient drainage and is essential for maintaining your pool equipment’s integrity during routine maintenance.
-
OEM Fit for Hayward Systems: Designed for compatibility with H150FDN to H500FD heaters and a wide range of Hayward pump models
-
Sealed with O-Ring Gasket: Includes an O-ring for secure sealing that prevents leakage at the drain port during regular use or service
-
Supports Multiple Pumps and Heaters: Compatible with EcoStar, TriStar, Max-Flo II, NorthStar, HeatPro, and booster pump systems
-
Durable Pool-Grade Construction: Made to withstand pressure, heat, and chemicals commonly present in pool environments
-
Crucial for Maintenance Tasks: Helps ensure proper draining during seasonal shutdowns or repairs, protecting internal components
- (1) Drain Plug
- (1) O-Ring
- Hayward H-Series Heaters Models: H150FDN, H150FDP, H200FDN, H200FDP, H250FDN, H250FDP, H300FDN, H300FDP, H350FDN, H350FDP, H400FDN, H400FDP, H500FD
- Hayward Super Pump VS 700 Omni Pump
- Hayward EcoStar Pump
- Hayward TriStar XL Pump
- Hayward TriStar VS Pump
- Hayward TriStar VS 900 Omni Pump
- Hayward TriStar VS 950 Omni Pump
- Hayward TriStar XE Pump
- Hayward TriStar Pump
- Hayward MaxFlo VS 500 Omni Pump
- Hayward MaxFlo VS Pump
- Hayward MaxFlo XE Pump
- Hayward MaxFlo XL Pump
- Hayward Booster Pump 6060 Pump
- Hayward Booster Pump W36060 Pump
- Hayward Max-Flo II Pump
- Hayward HCP 3000 Series Pump
- Hayward HCP 2500 Series Pump
- Hayward NorthStar Pump
- Hayward Universal HC HDF275 Heater
- Hayward Universal HC HDF400 Heater
Note: This part may be compatible with your system, please refer to your owners manual to ensure compatibility.
