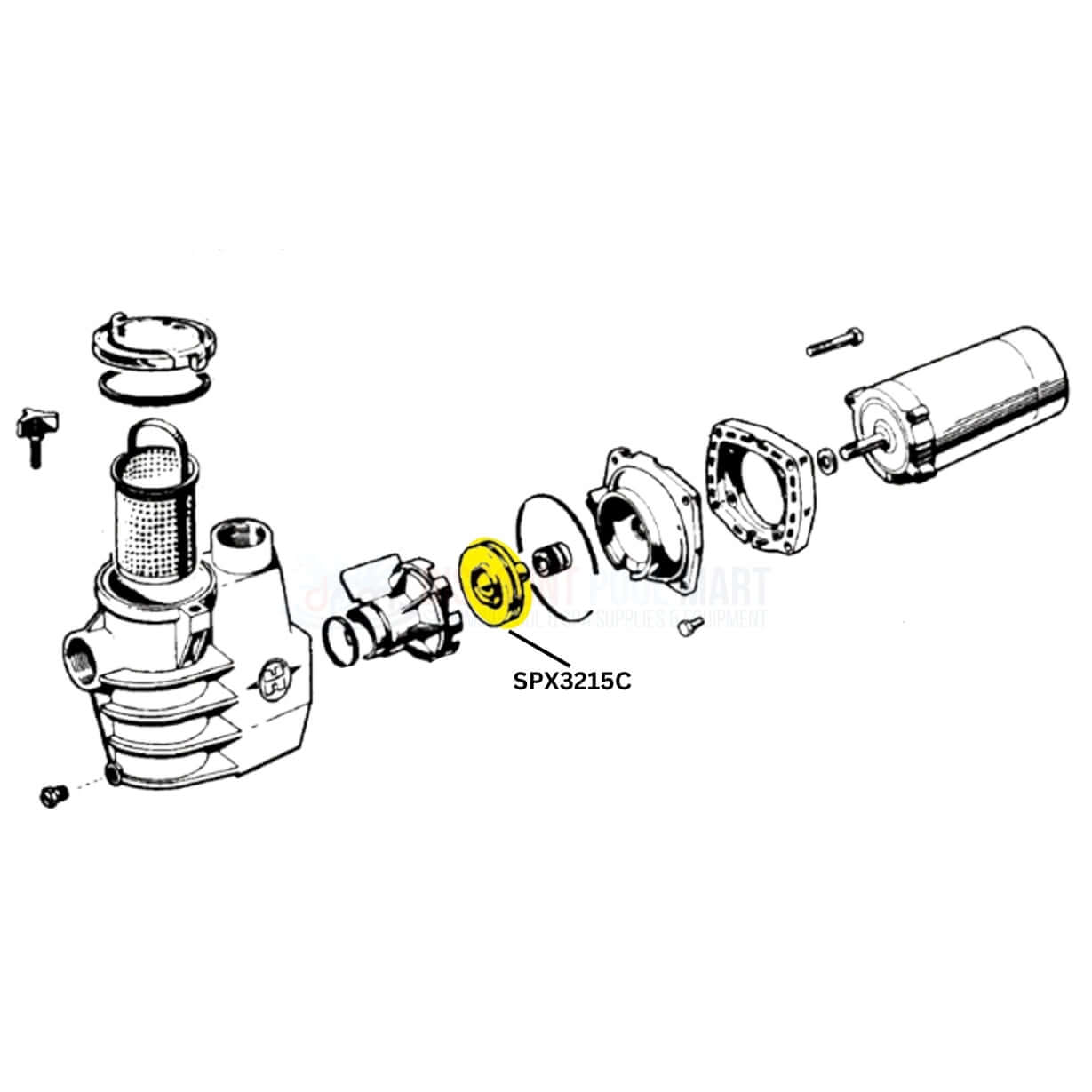

On the Hayward TriStar Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward TriStar Single Speed Pump

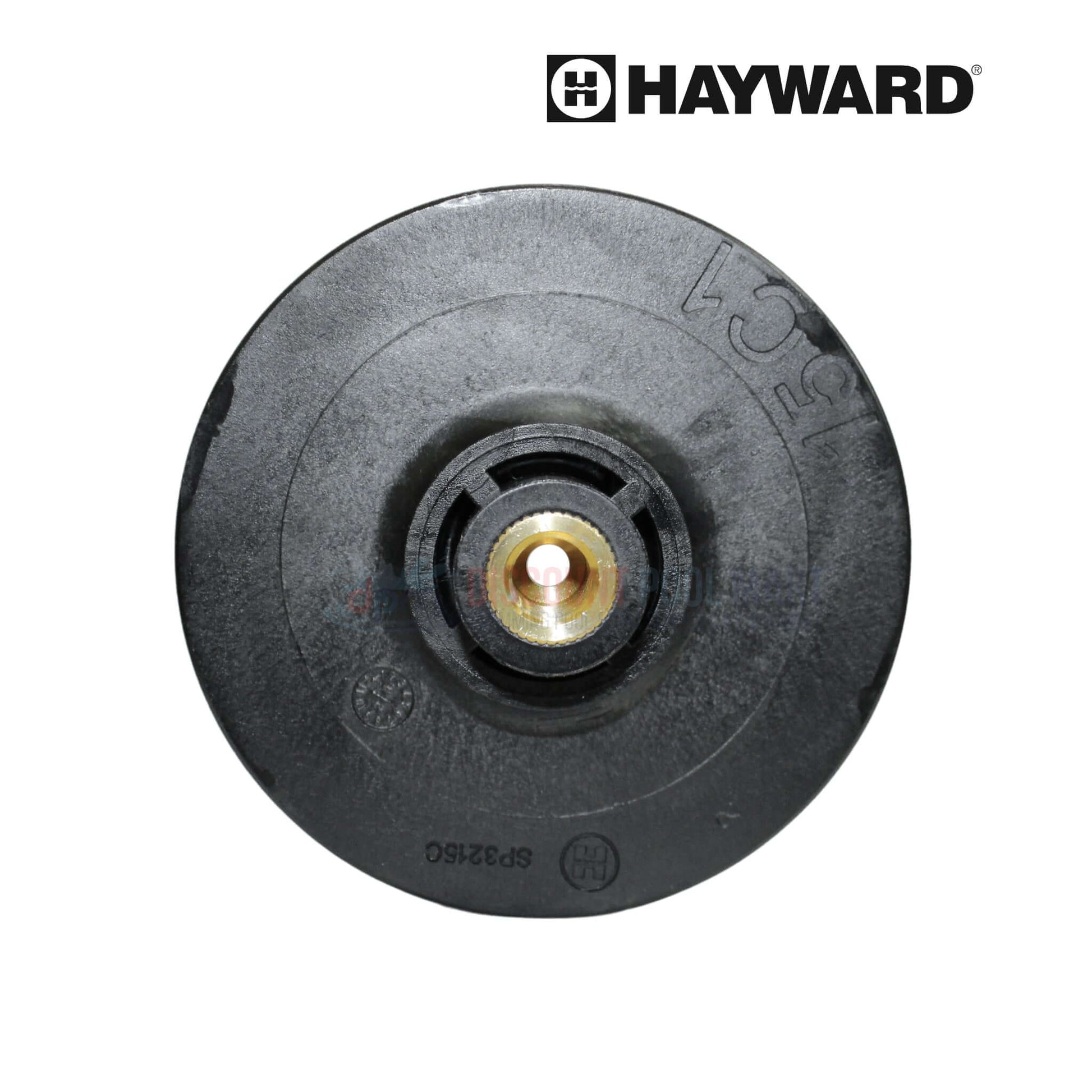

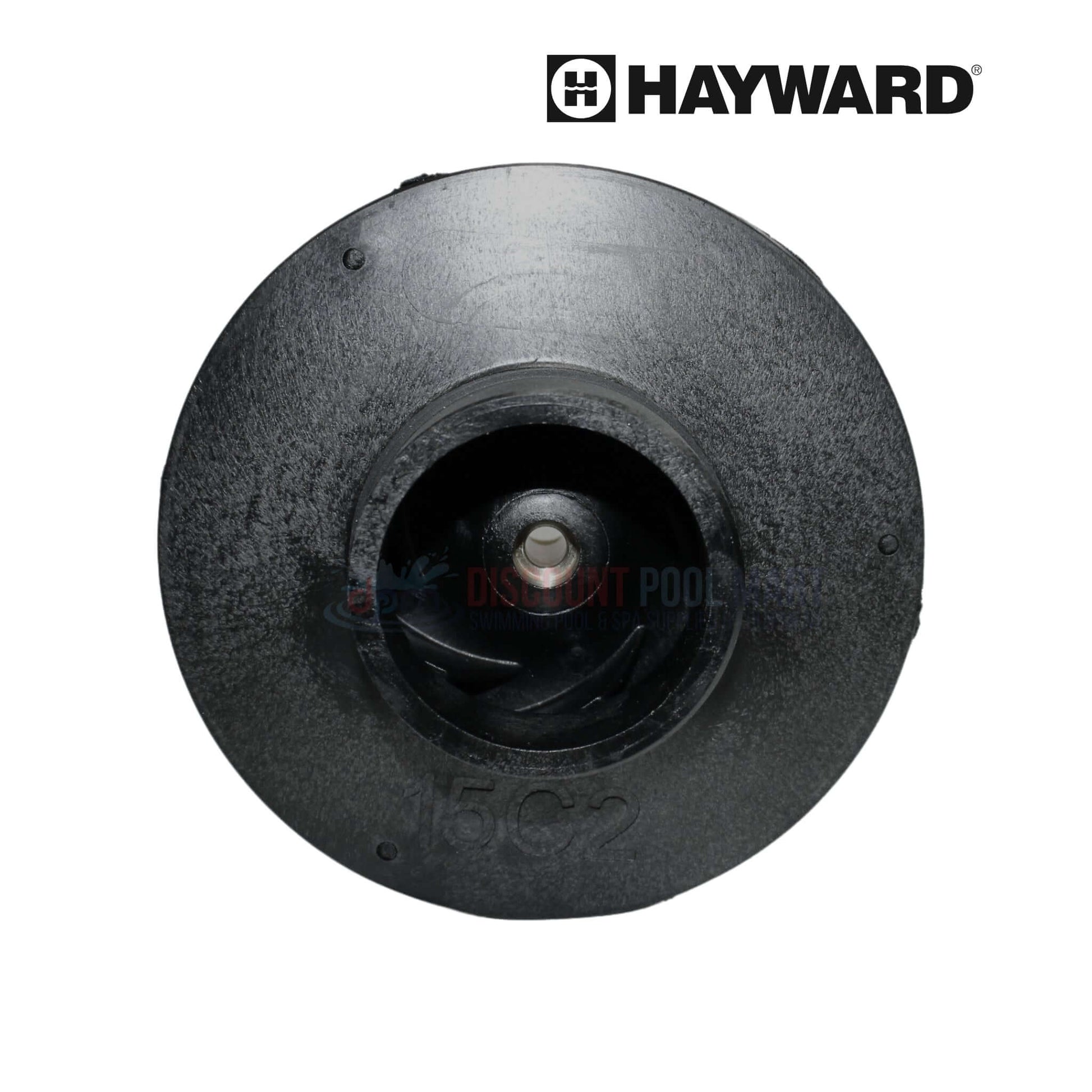

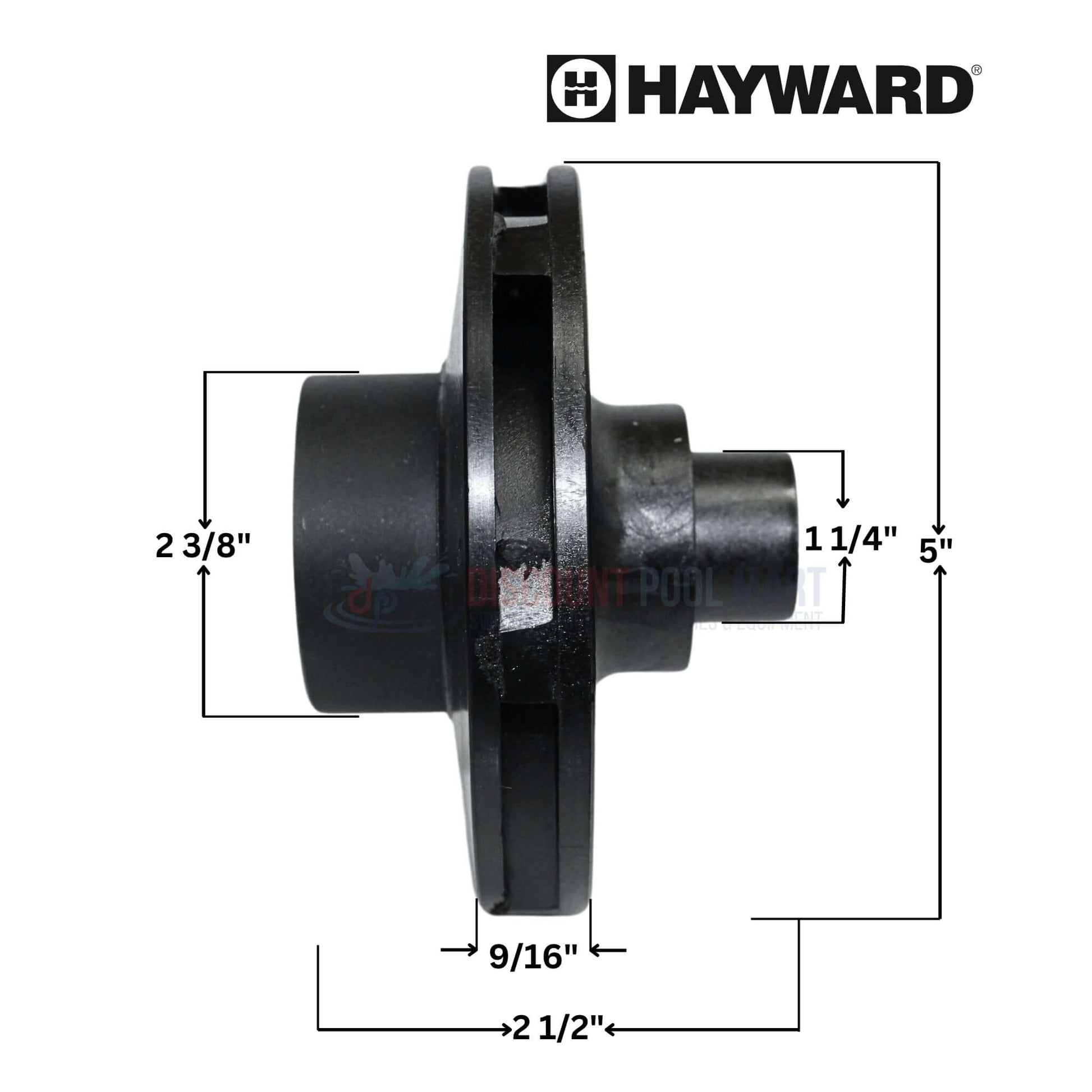

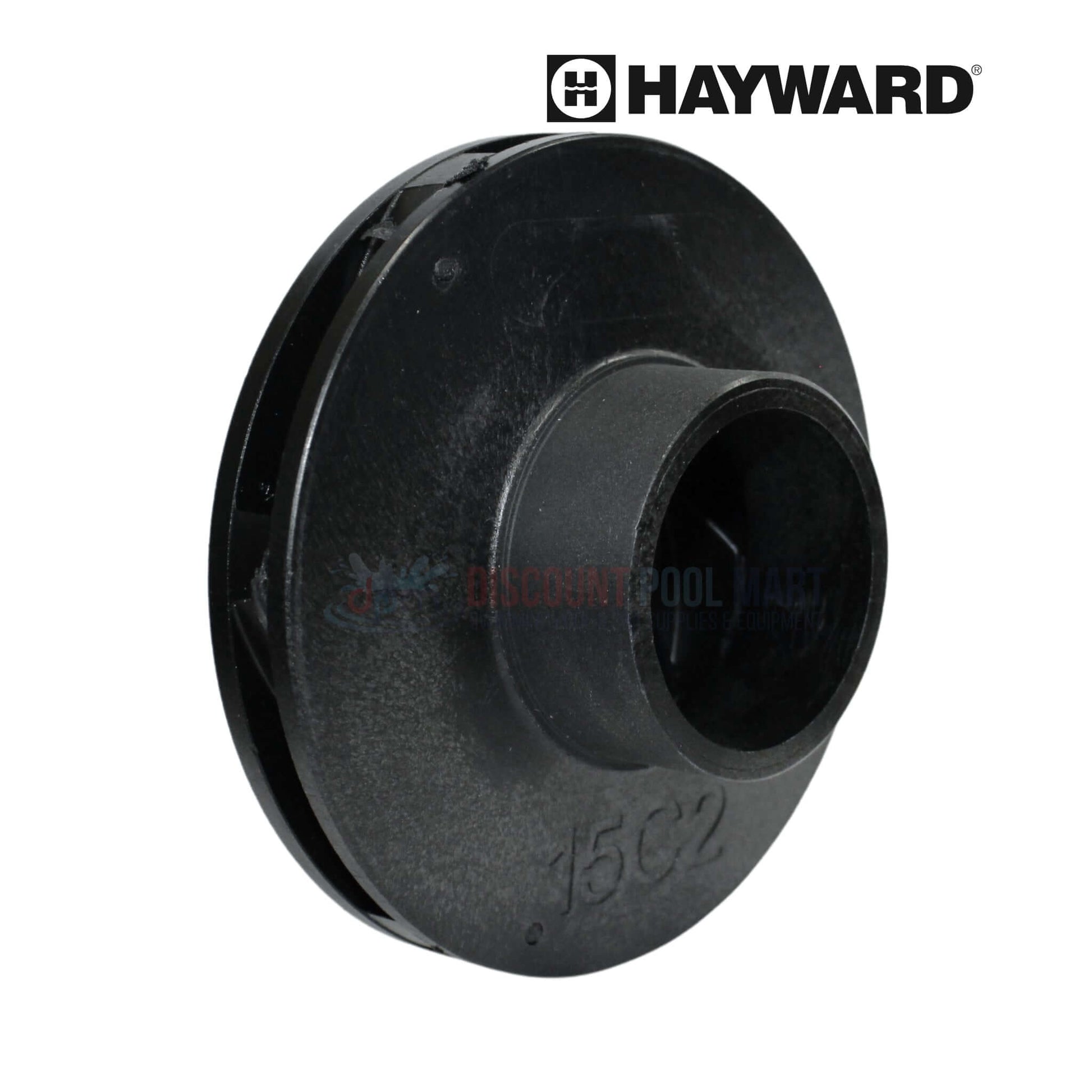

OEM Hayward SPX3215C Impeller with Screw is a genuine replacement part designed for Hayward TriStar pool pumps rated between 1.5HP and 2HP. Compatible with SP3200 and SP3200EE series models, this impeller features a closed-face design that improves water flow and boosts hydraulic performance while reducing energy usage. Its precision engineering helps restore proper circulation and maintain the overall efficiency of your filtration system. Constructed from high-quality materials and packaged with the required installation screw, this OEM impeller offers a dependable solution for restoring your pump’s original functionality and extending its operational life.
-
Designed for Hayward TriStar Pumps: Specifically fits 1.5HP to 2HP models in the SP3200 and SP3200EE series, ensuring seamless integration and reliable pump operation
-
Closed-Face Design for Efficiency: Maximizes water movement and hydraulic efficiency while lowering energy consumption during circulation cycles
-
Essential for Pump Performance: Restores proper water flow and supports consistent filtration, helping maintain a clean and well-balanced pool environment
-

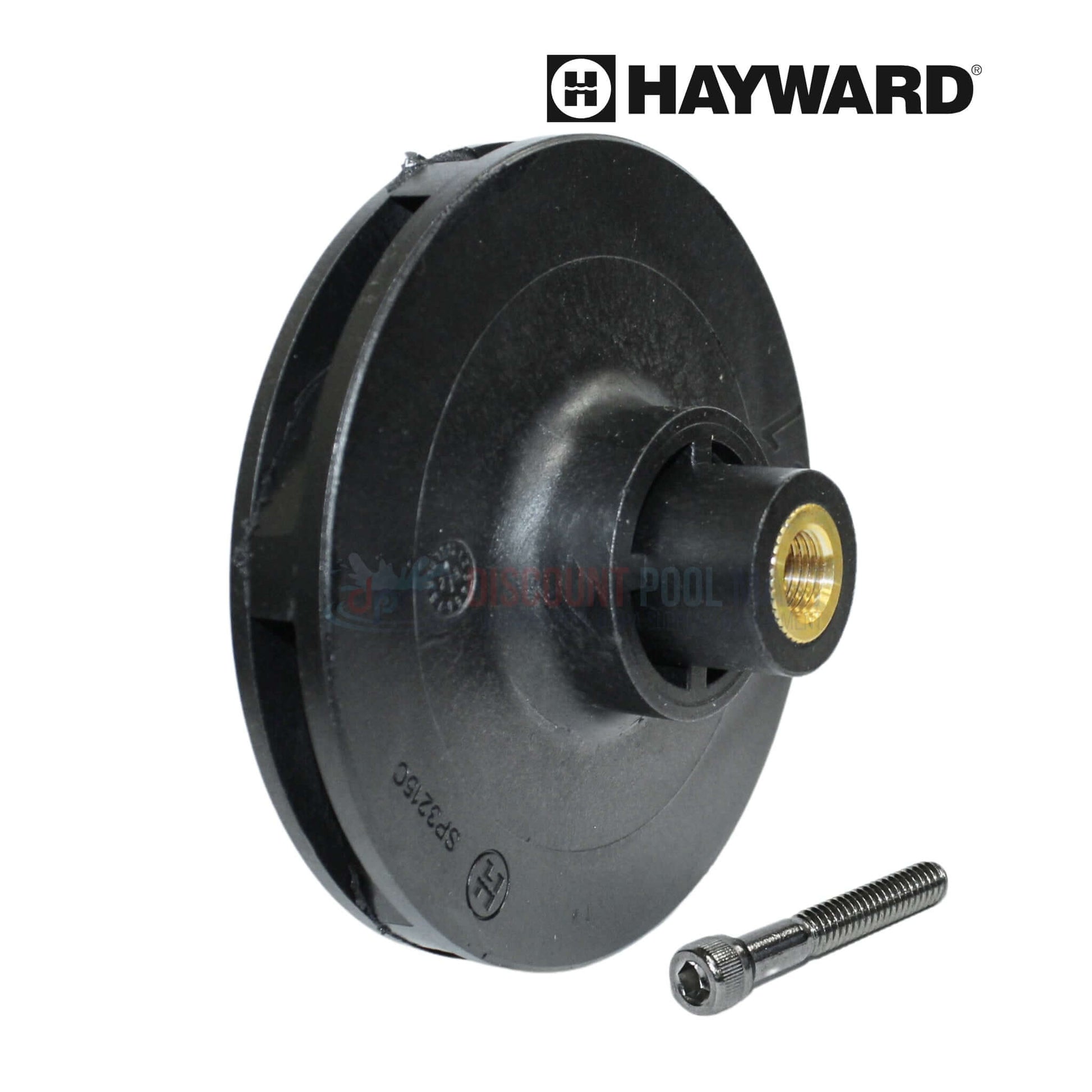

Includes Installation Screw: Comes with the correct screw for direct replacement, reducing installation time and simplifying pump maintenance
-
Built for Long-Term Use: Manufactured from durable materials to withstand daily use and exposure to pool chemicals, enhancing overall pump longevity
- (1) Impeller
- (1) Screw
- Hayward Tristar 1.5 Horsepower SP3200EE Pumps
- Hayward Tristar 2 Horsepower SP3200 Pumps
