Find your parts diagram

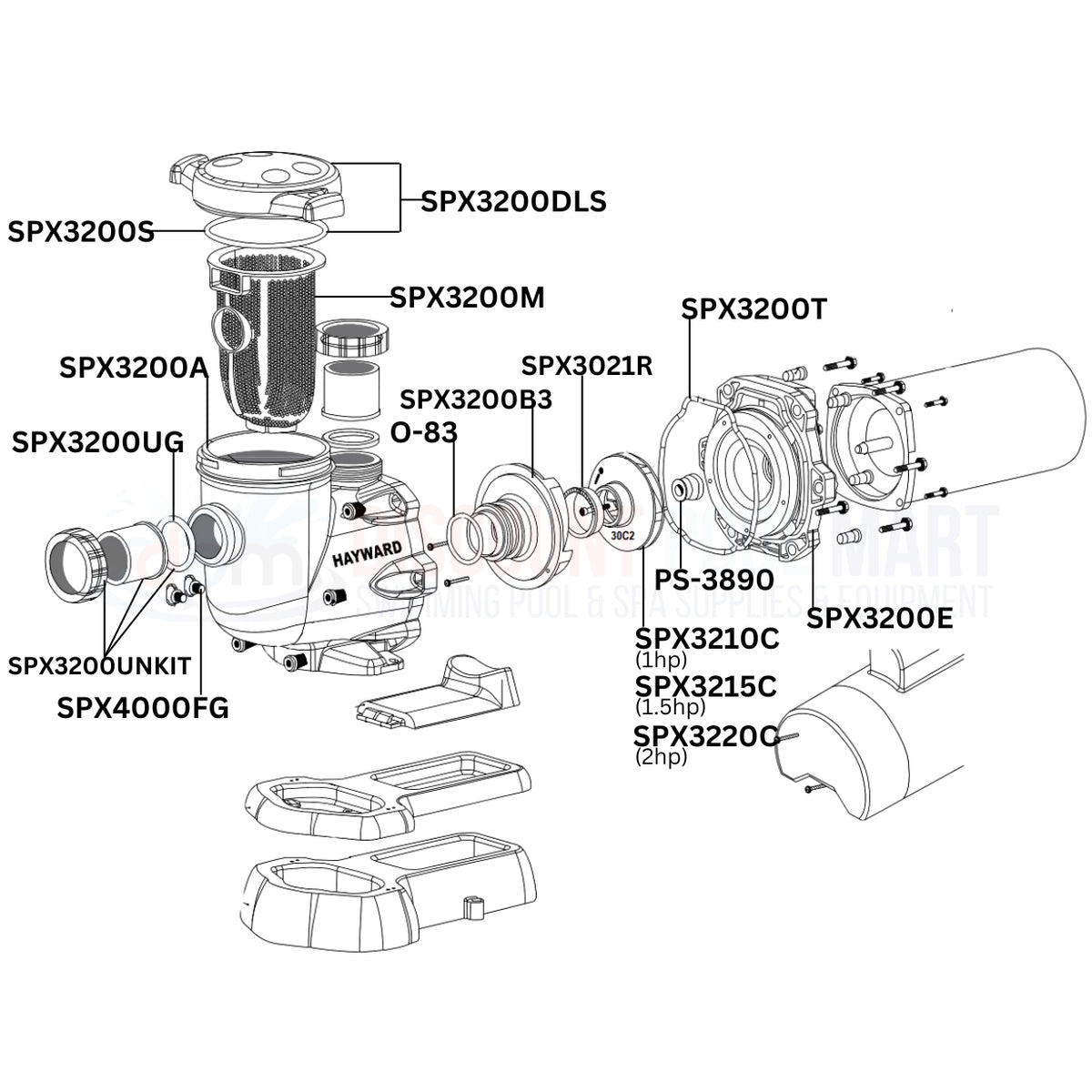

Hayward TriStar Single Speed Pump Replacement Parts Diagram

Interactive parts diagram

22 parts · 2 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

    • Not sold online Hayward diffuser screw, SPX3200Z8 SPX3200Z8Call us and we'll get it for you.
  1. Horsepower
    • Not sold online Hayward housing bolt, SPX3200Z3 SPX3200Z3Call us and we'll get it for you.
    • Not sold online Hayward motor bolt, SPX3200Z5 SPX3200Z5Call us and we'll get it for you.
    • Not sold online Hayward motor support bracket for TriStar, SPX3200GA SPX3200GACall us and we'll get it for you.
    • Not sold online Hayward short riser base for TriStar, SPX3200WF SPX3200WFCall us and we'll get it for you.
    • Not sold online Hayward tall riser base for TriStar, SPX3200SR SPX3200SRCall us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Also fits your Hayward TriStar Single Speed Pump

Not shown on the diagram, but made for this pump.

Fit guide

Which TriStar part fits your pump?

Find the model number on your pump's data label (for example SP3210EE or SP3215X20). Part numbers come from Hayward's TriStar owner's manual parts listing.

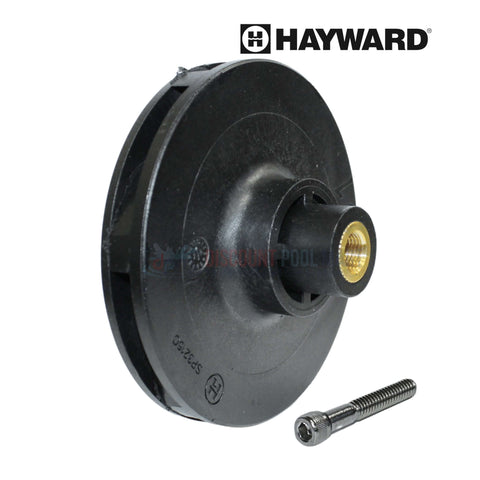

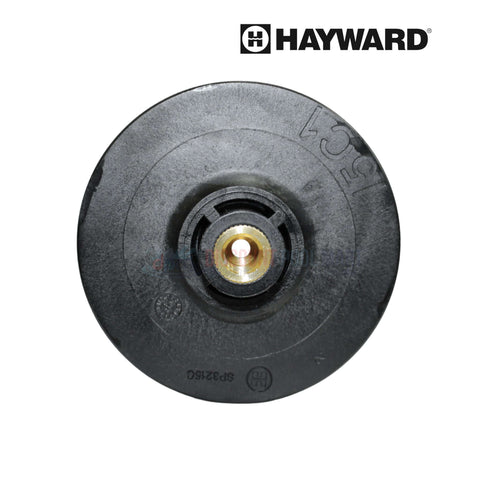

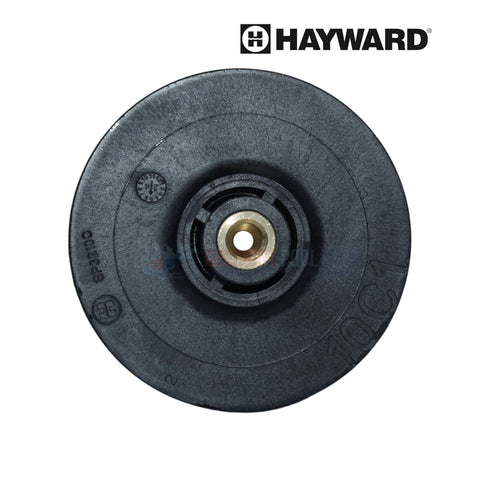

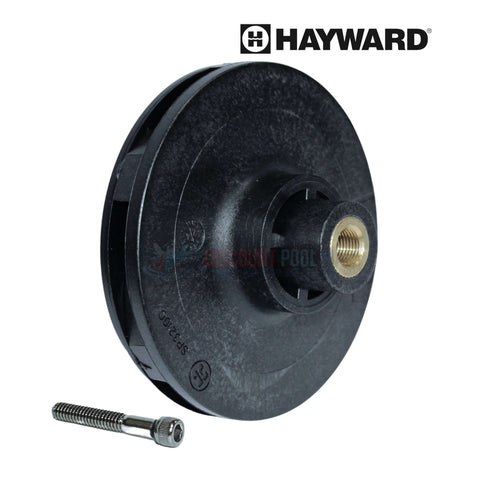

Impeller by pump model

50 Hz models use a different impeller than the 60 Hz pump of the same size; check the manual's pump SKU table.

Seal & O-rings

Shaft seal all models
SPX3200SA

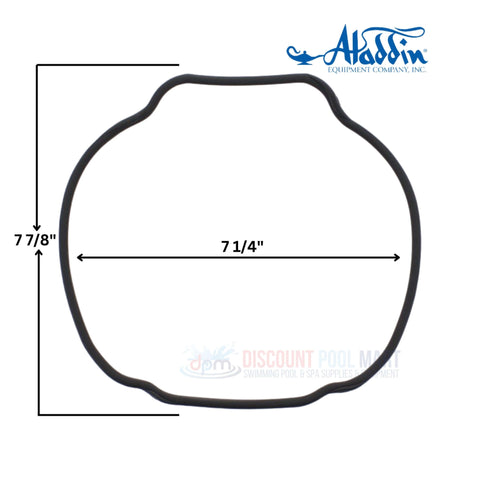

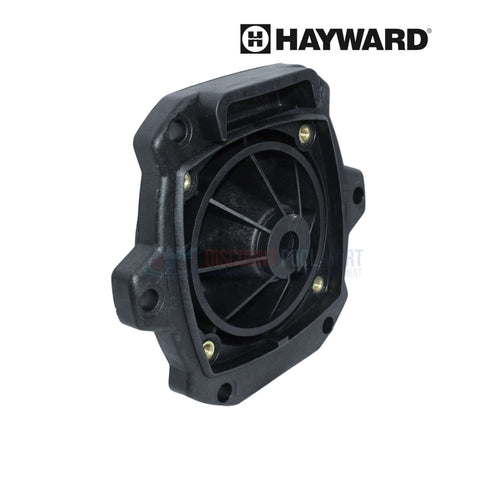

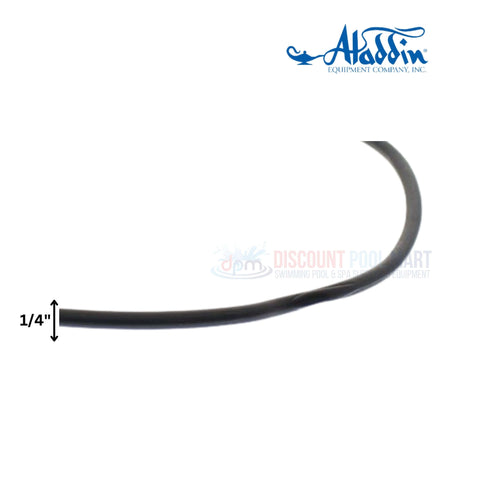

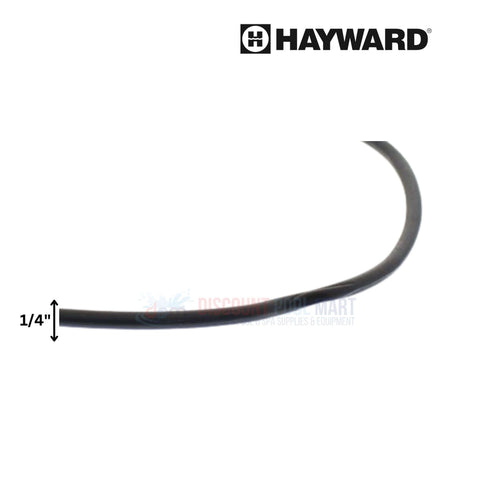

Housing O-ring seal plate to housing
SPX3200T Aladdin O-529

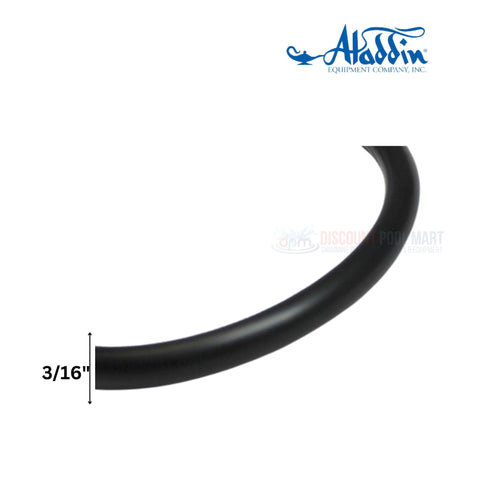

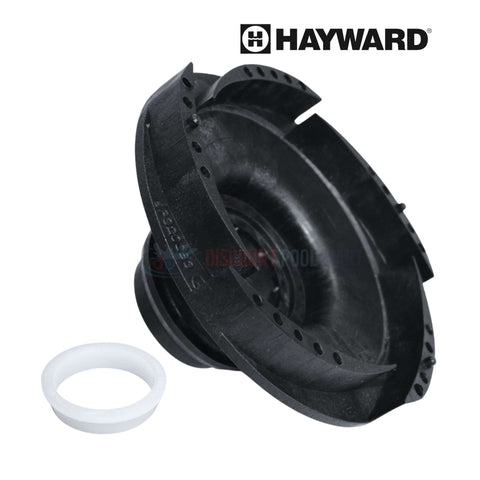

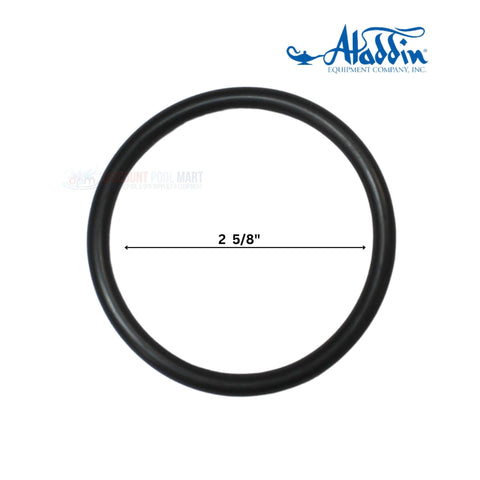

Diffuser O-ring
SPX4000Z1 Aladdin O-83

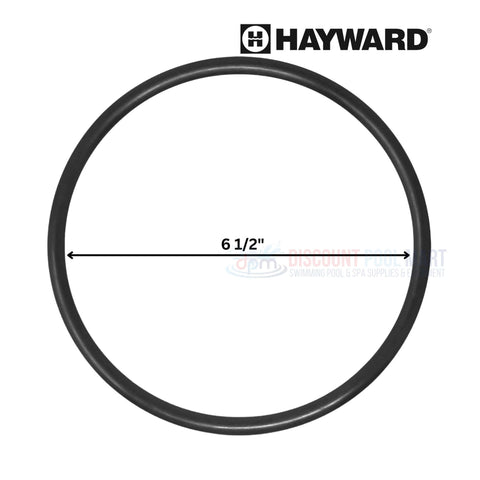

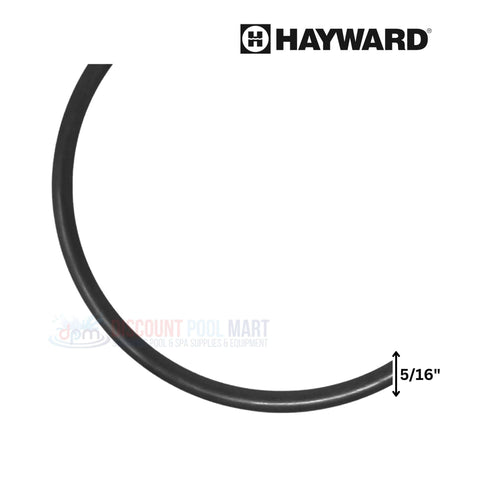

Strainer cover O-ring
SPX3200S

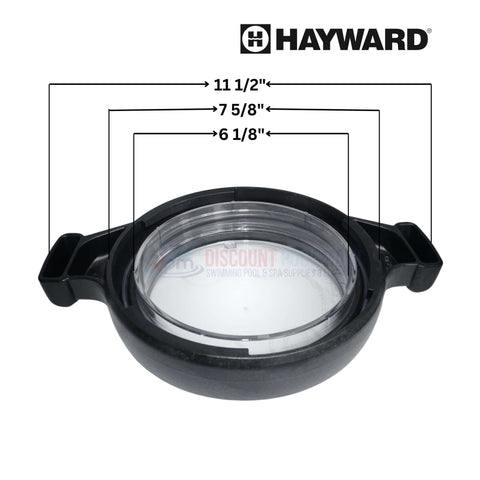

Strainer cover kit

Standard cover, lock ring, O-ring
SPX3200DLS
Biguanide pools only not pressure testable
SPX3200DLSB

Hayward's power end assembly includes items 7 to 18 and the motor.
