On the Hayward EcoStar VS Variable Speed Pump diagram
Open the full interactive diagram →
Other parts on the same Hayward EcoStar VS Variable Speed Pump

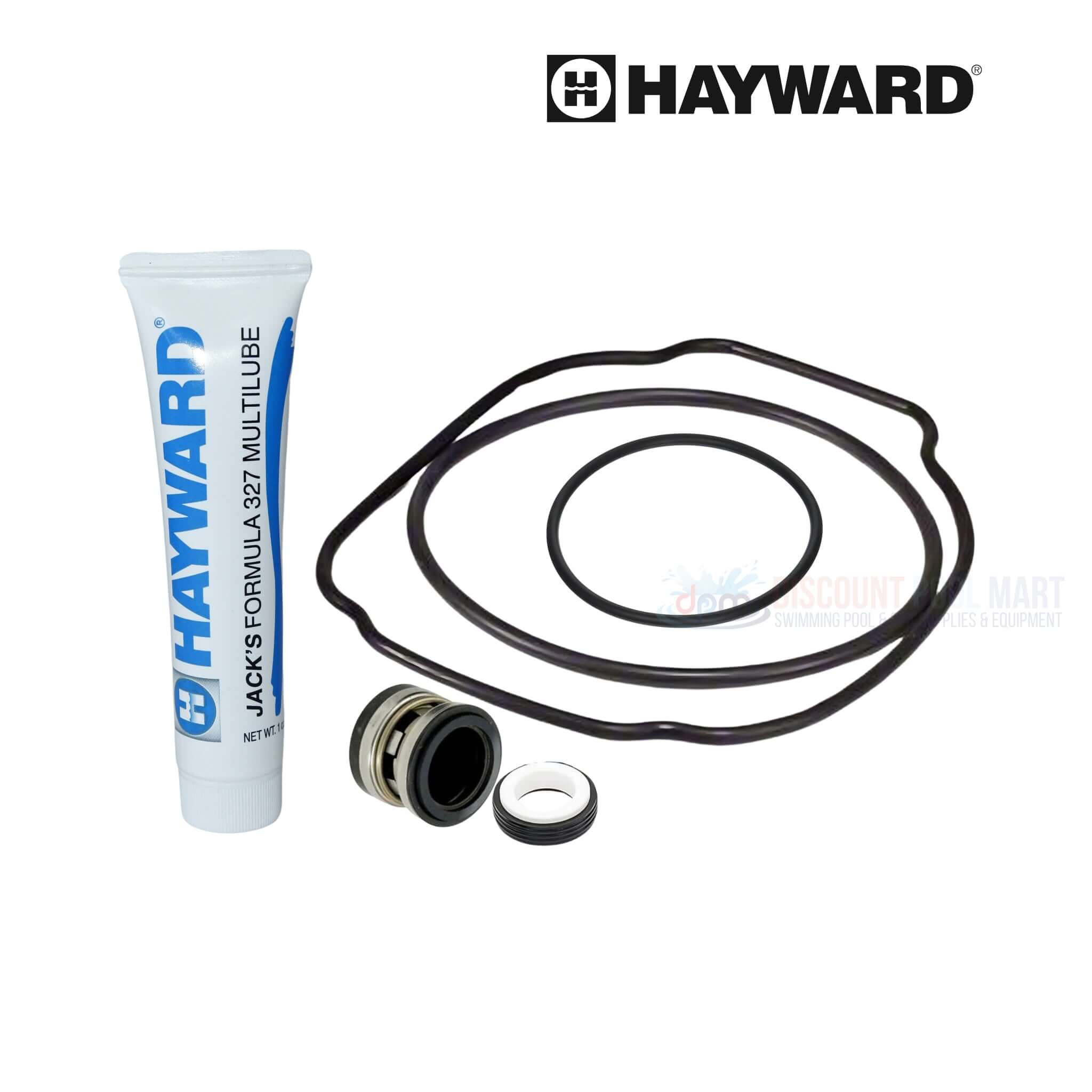

OEM Hayward Quick Fix Kit for TriStar and EcoStar Pumps SPXHKIT100RS is a genuine maintenance solution designed to restore peak performance for Hayward TriStar SP3200EE and EcoStar SP3400VSP series pumps, featuring essential replacement parts including a shaft seal assembly, strainer cover lid O-ring, diffuser O-ring, housing O-ring, and a 1-ounce packet of lubricant. Built for a precise fit, this kit helps maintain optimal water circulation, supports system reliability, and simplifies routine maintenance. Regular use of the SPXHKIT100RS ensures efficient pump operation while minimizing downtime.
-
Genuine Hayward Quick Fix Kit: Designed for TriStar SP3200EE and EcoStar SP3400VSP pump series for secure fit and reliable restoration
-
Complete Set of Key Maintenance Parts: Includes shaft seal assembly, strainer cover lid O-ring, diffuser O-ring, housing O-ring, and lubricant
-
Supports Efficient Water Circulation: Helps prevent leaks and maintain strong filtration system performance
-
Built from Durable, Pool-Grade Materials: Engineered to withstand chemical exposure and frequent pump operation
-
Simplifies Regular Pump Servicing: Offers a convenient, cost-effective way to maintain optimal performance and extend equipment life

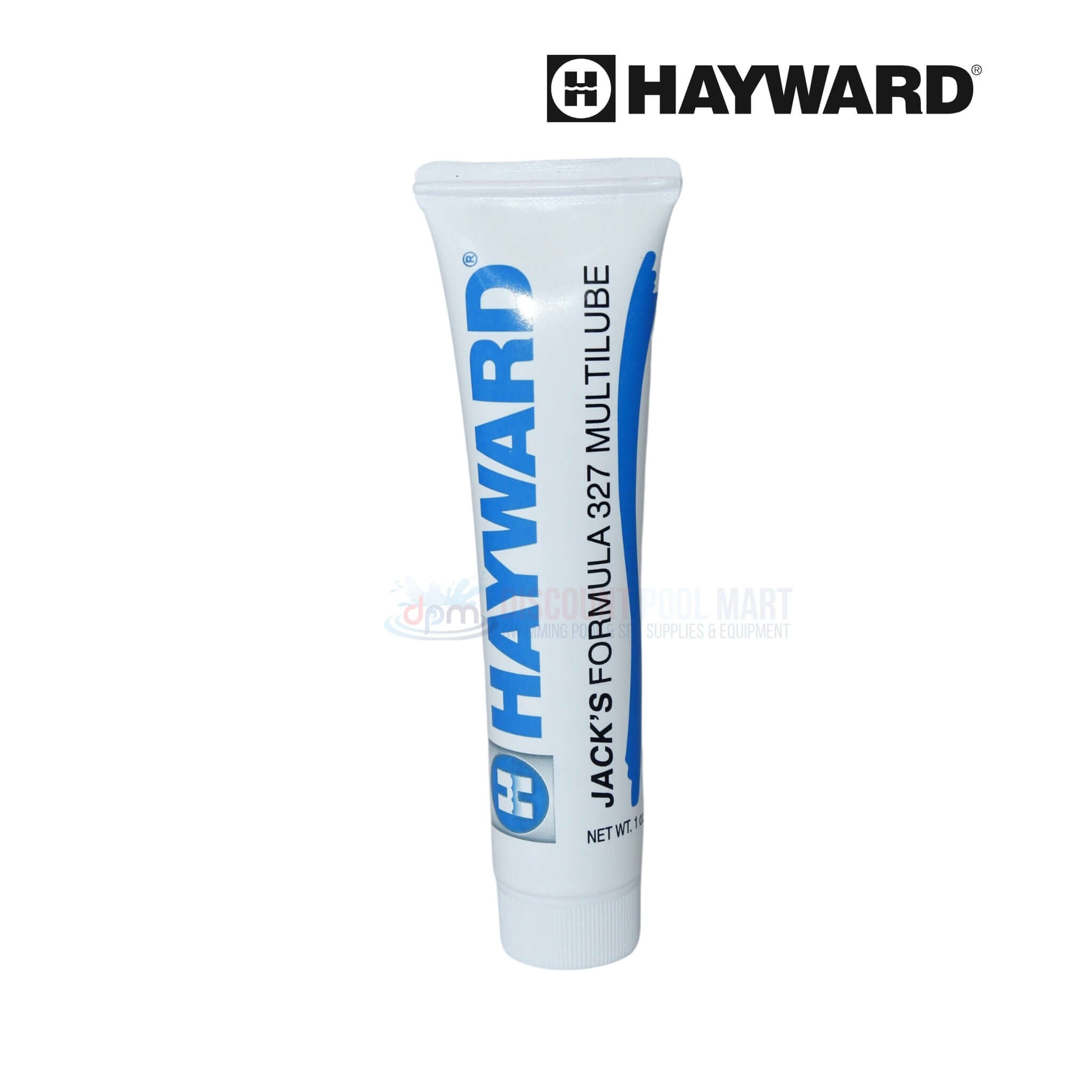

- (1) 1oz Lube
- (1) Shaft Seal Assembly

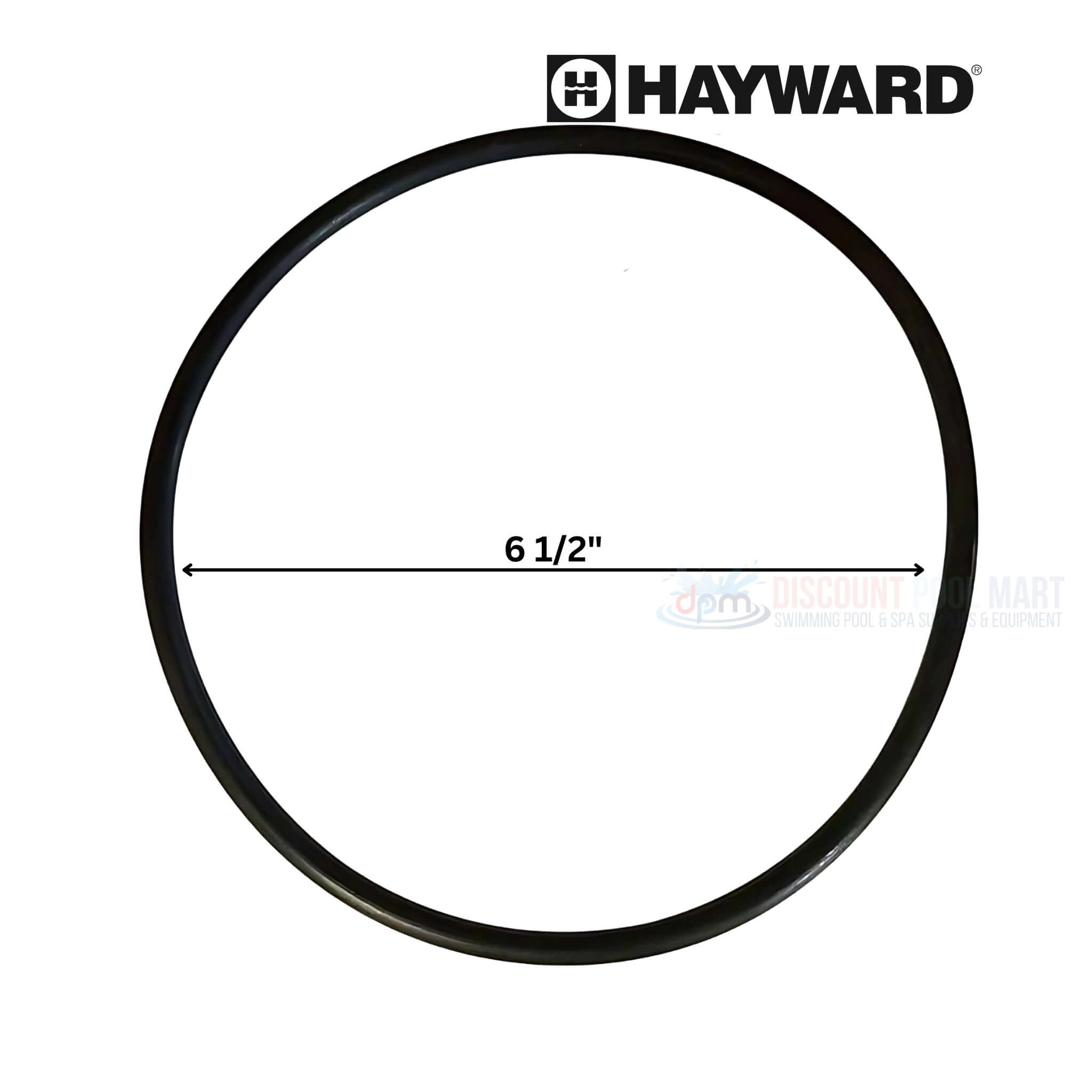

- (1) Strainer Cover Lid O-Ring

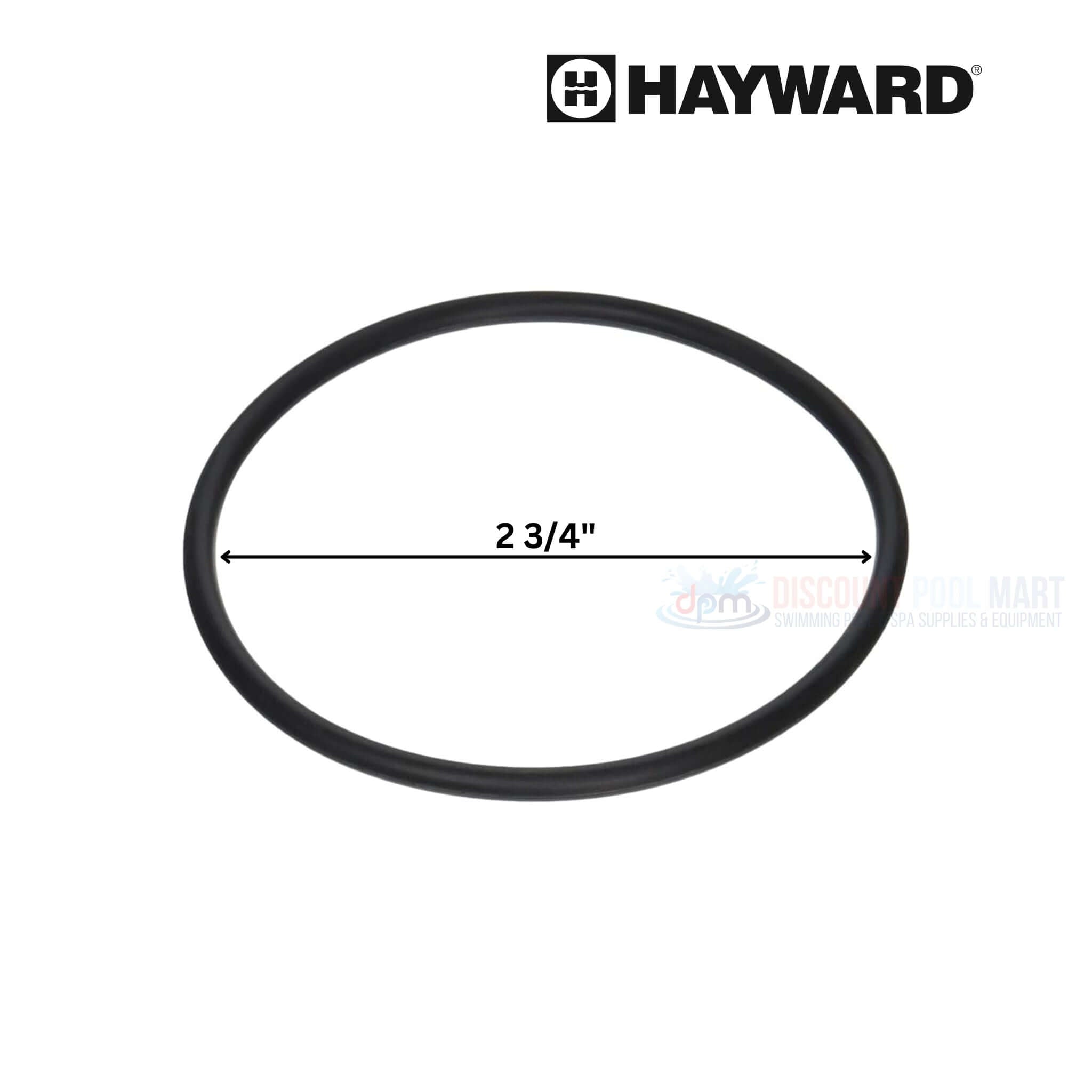

- (1) Diffuser O-Ring

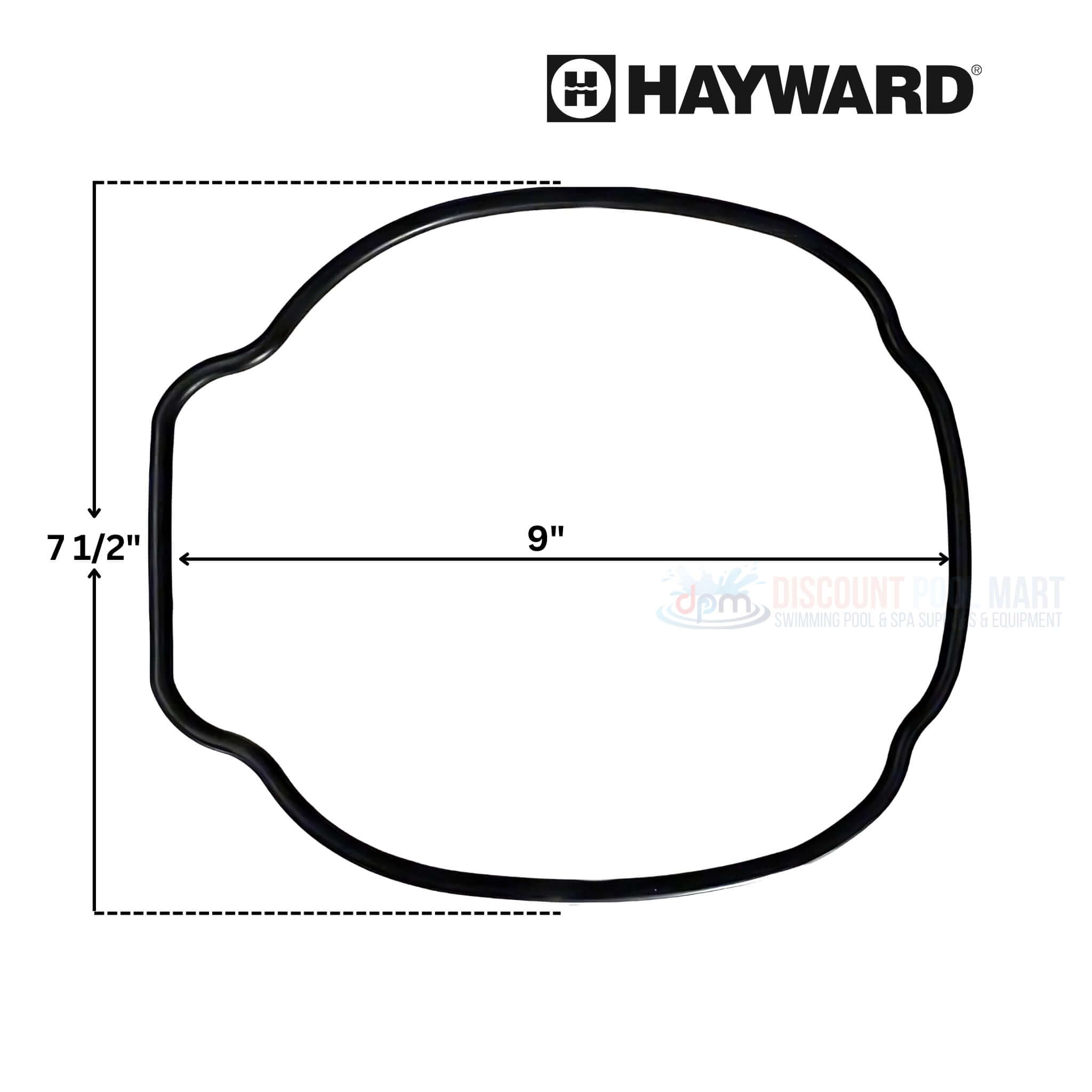

- (1) Housing O-Ring
- Hayward TriStar SP3200EE Series Pumps
- Hayward EcoStar SP3400VSP Series Pumps
