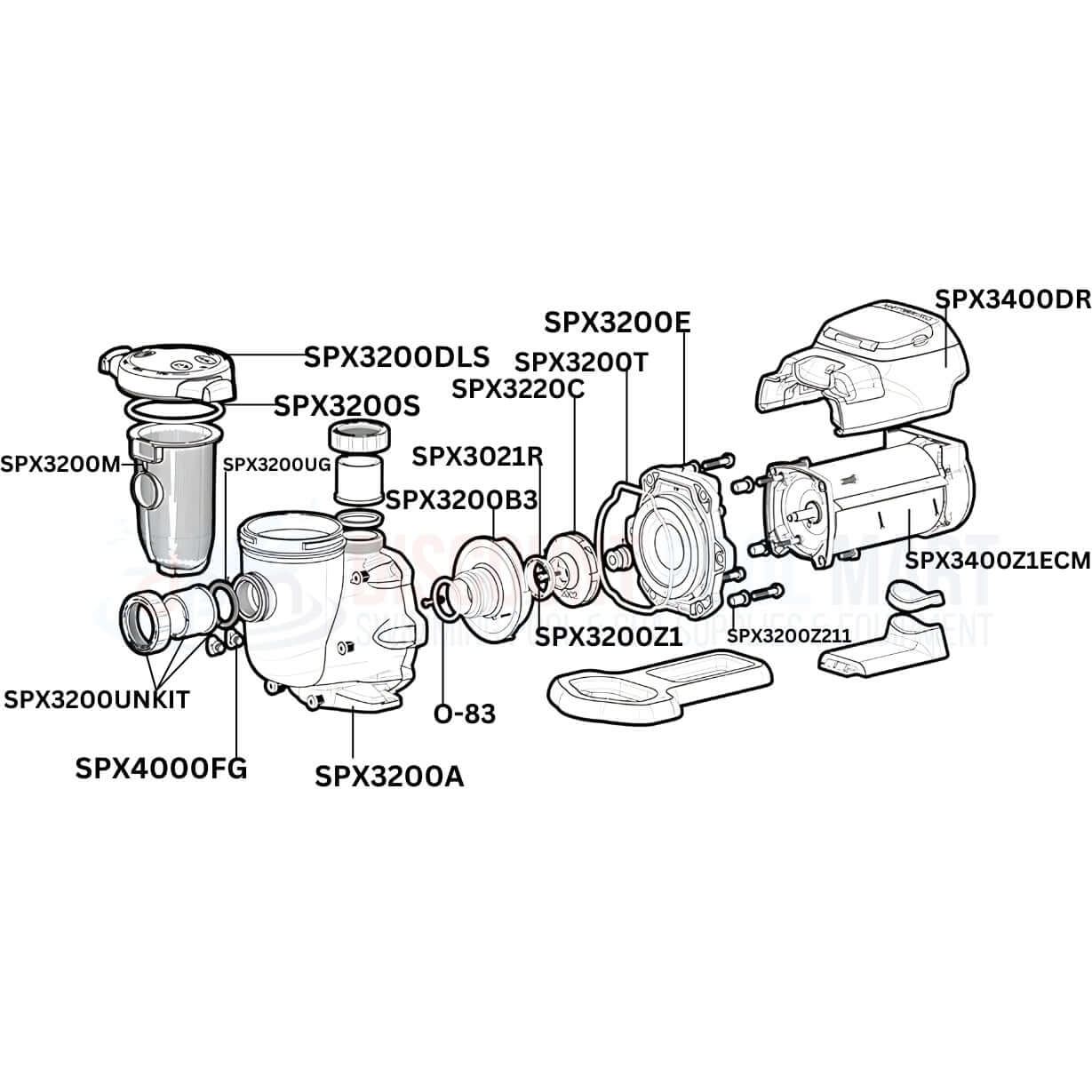

On the Hayward EcoStar VS Variable Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward EcoStar VS Variable Speed Pump

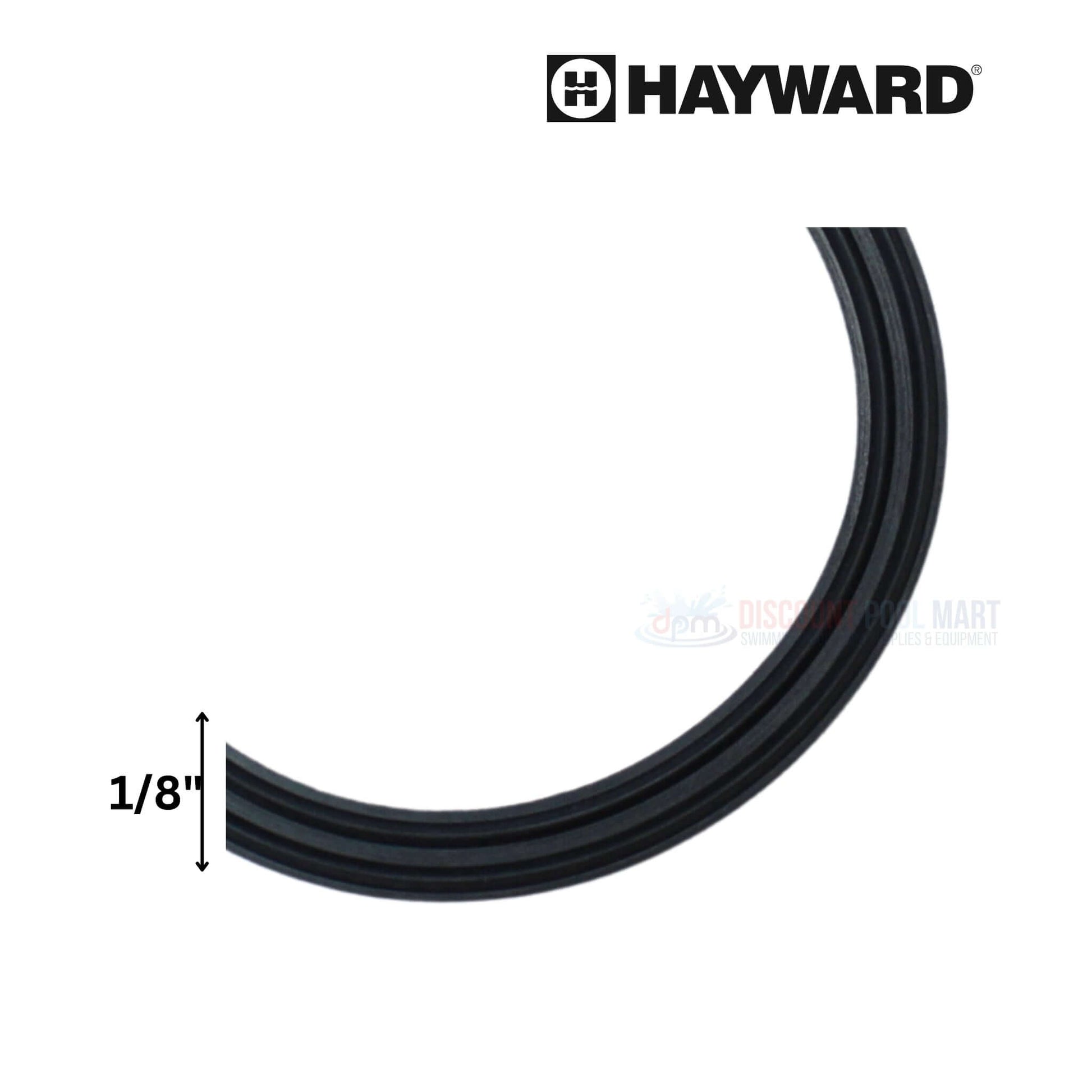

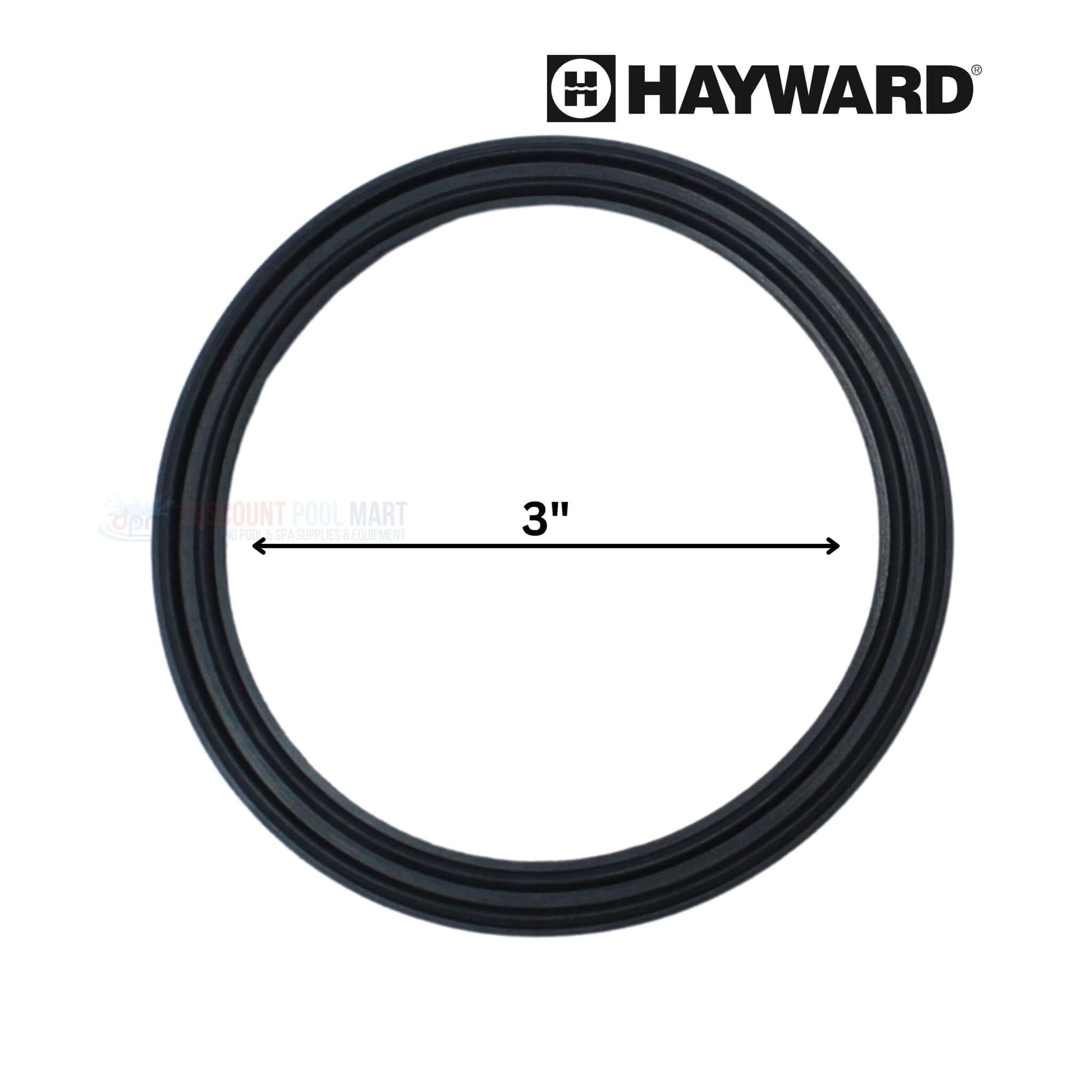

The Hayward Union Gasket SPX3200UG is a crucial component for ensuring a secure and leak-free connection in H-Series Heater Hayward Pumps and Filters. This gasket is specifically designed to maintain a tight seal between union connections, crucial for the optimal performance of your pool's heating and filtration systems. Made from high-quality materials resistant to wear and the corrosive effects of pool chemicals, the SPX3200UG gasket is both durable and reliable. It's an essential piece for routine maintenance or when repairing your Hayward equipment, providing the peace of mind that comes from knowing your system is sealed and operating efficiently.
- Leak-Prevention Expert: Fundamental in creating a secure, leak-resistant union for H-Series Heater Hayward Pumps and Filters.
- Seal Preservation: Custom-tailored to enforce strong, tight seals essential for your pool's peak heating and filtration function.
- Durable Material Composition: Crafted from superior materials that offer excellent resistance to wear and harsh pool chemicals.
- Maintenance Ally: An indispensable asset for regular upkeep and repair, ensuring your equipment operates with ultimate efficiency.

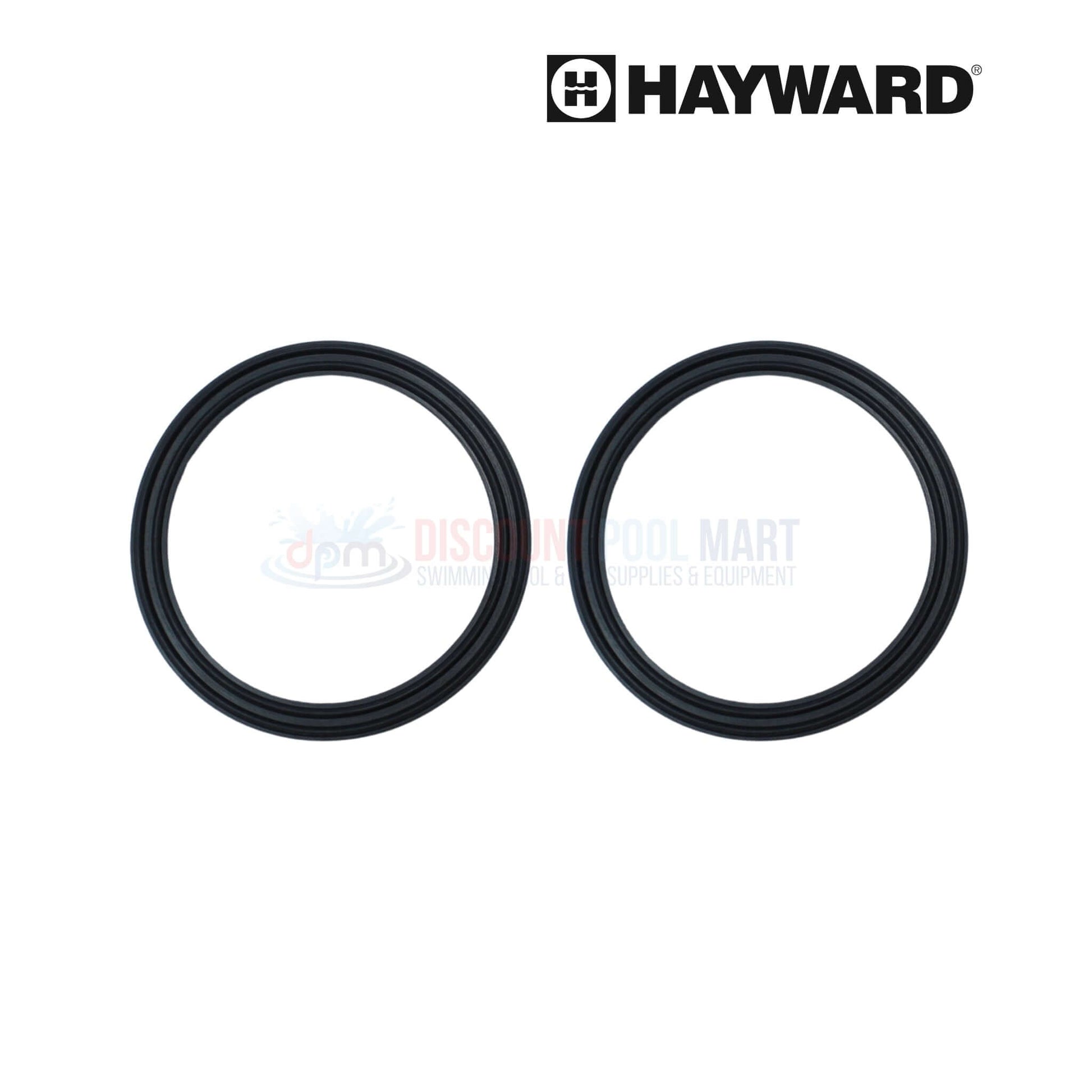

- (2) Hayward SPX3200UG Union Gasket

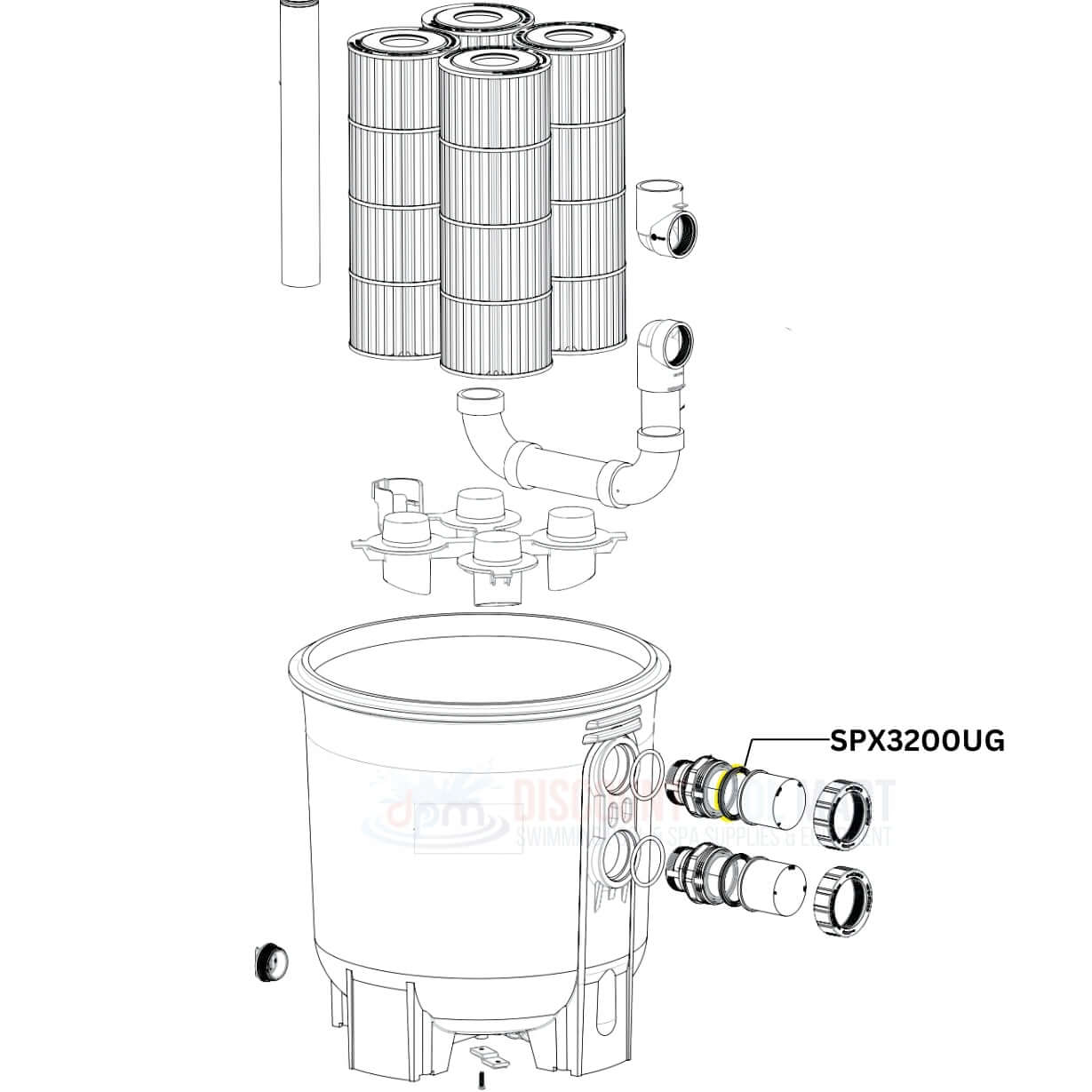

- Hayward SwimClear Cartridge Filters: C2030, C3030, C4030, C5030, C7030.
- Hayward Max-Flo II, EcoStar pump and cartridge filter models: SP2705X7(EE), SP2707X10/2, SP2710X15/2, SP2715X20/2, SP3400VSPVR, C5030

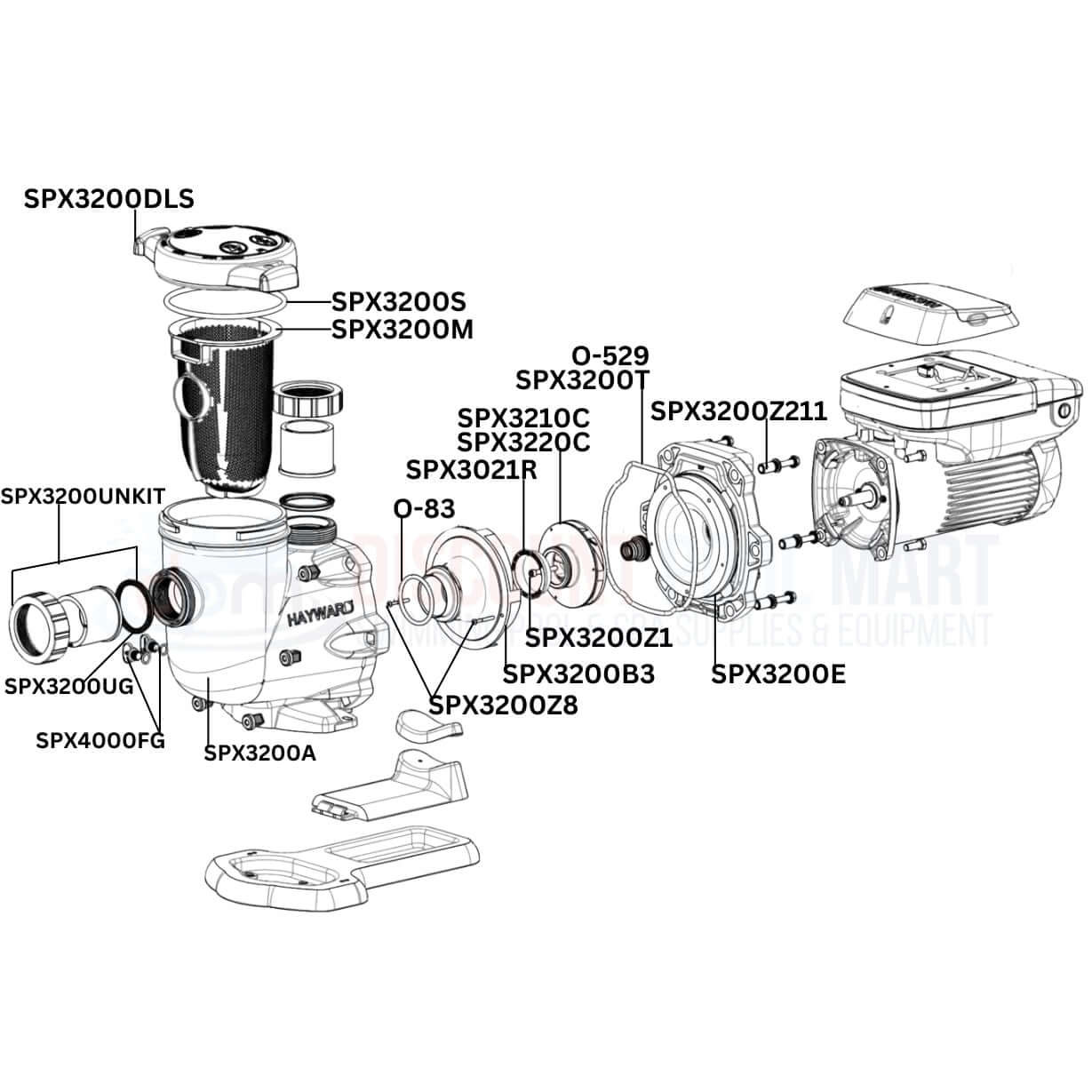

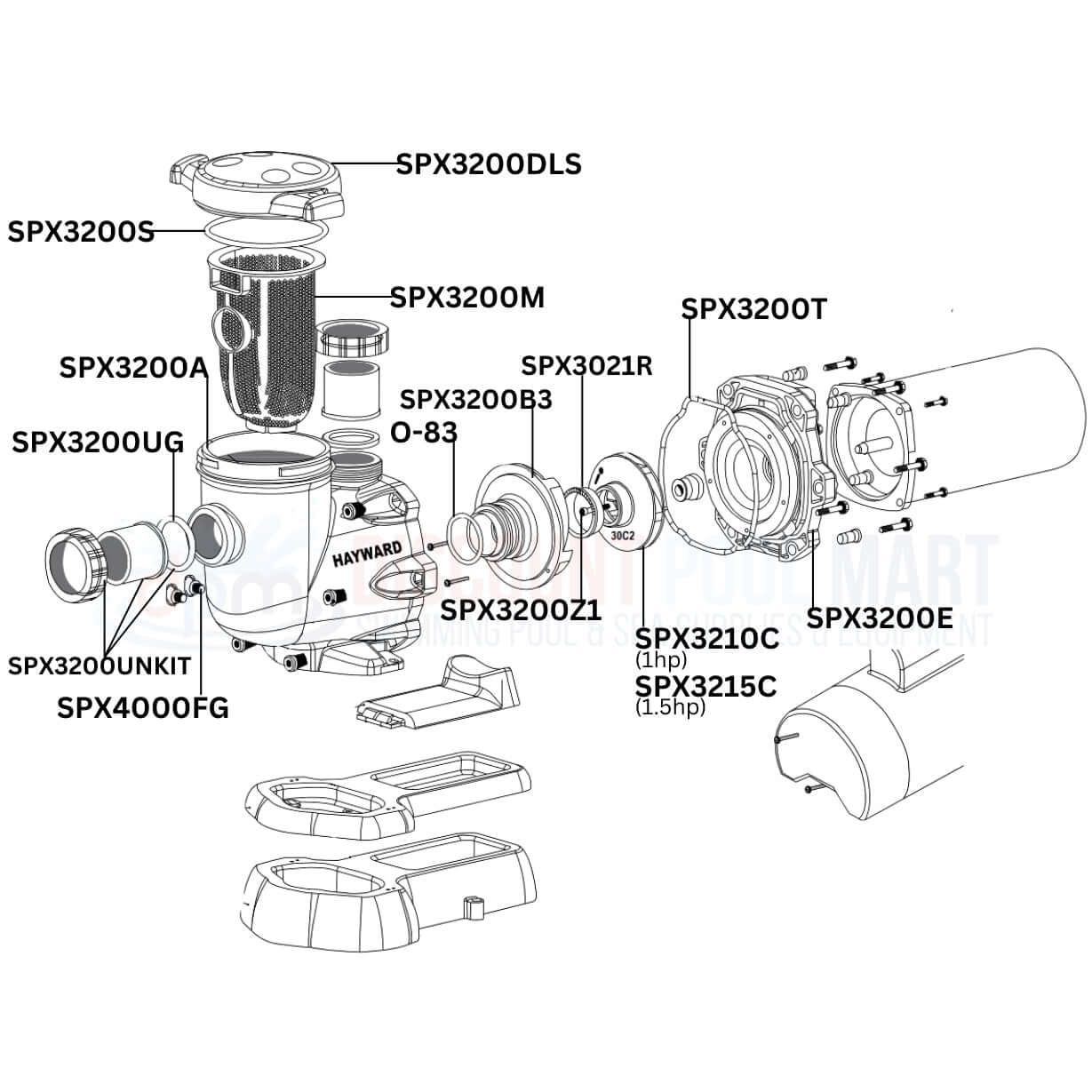

- Hayward Tristar Pump Series: SP3200ee, SP3200X, SP3600, 900, 950
- Hayward Northstar Pump Series: SP4000, SP4000X
Note: This may be compatible with your Hayward products, please check owners manual to ensure compatibility.
