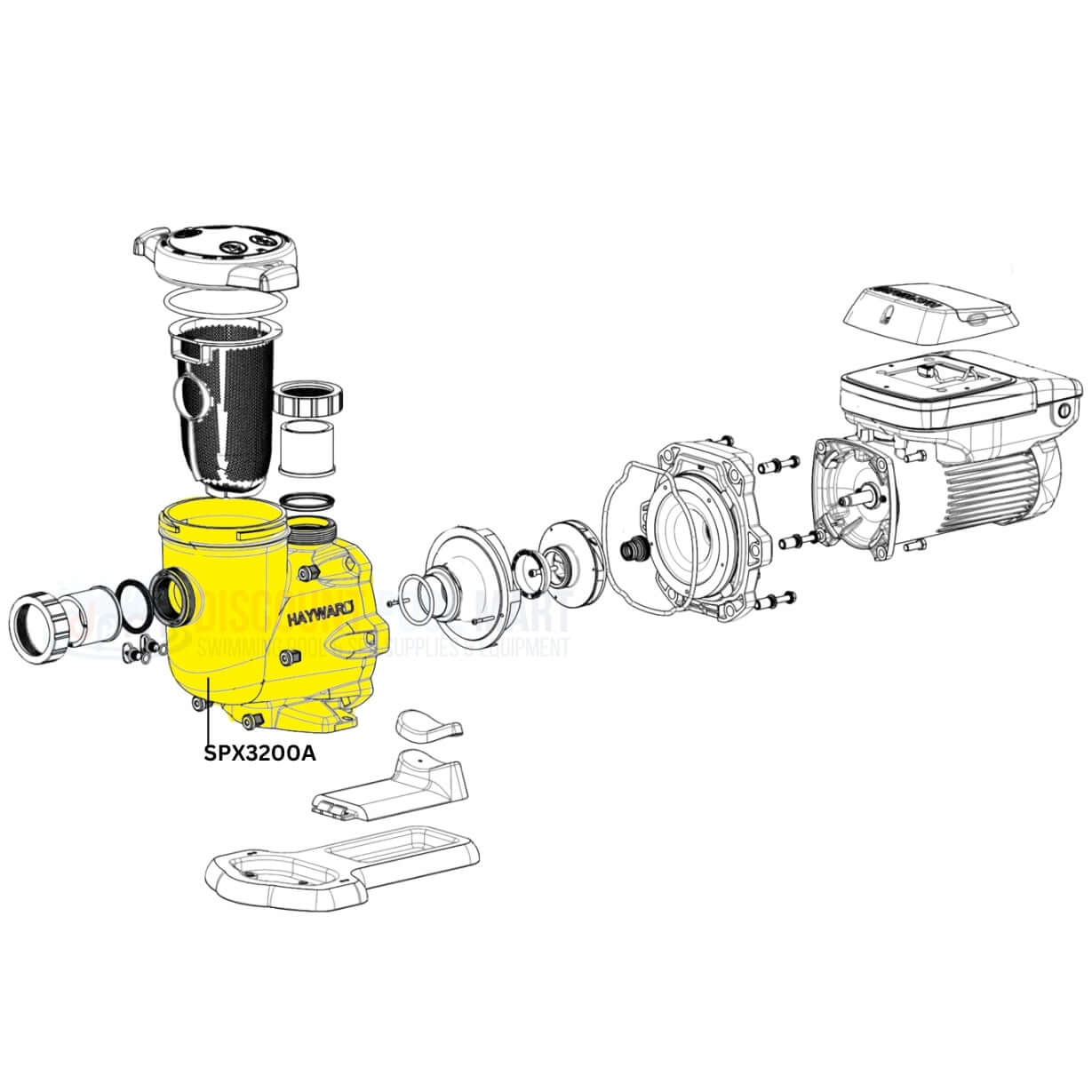

On the Hayward EcoStar VS Variable Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward EcoStar VS Variable Speed Pump

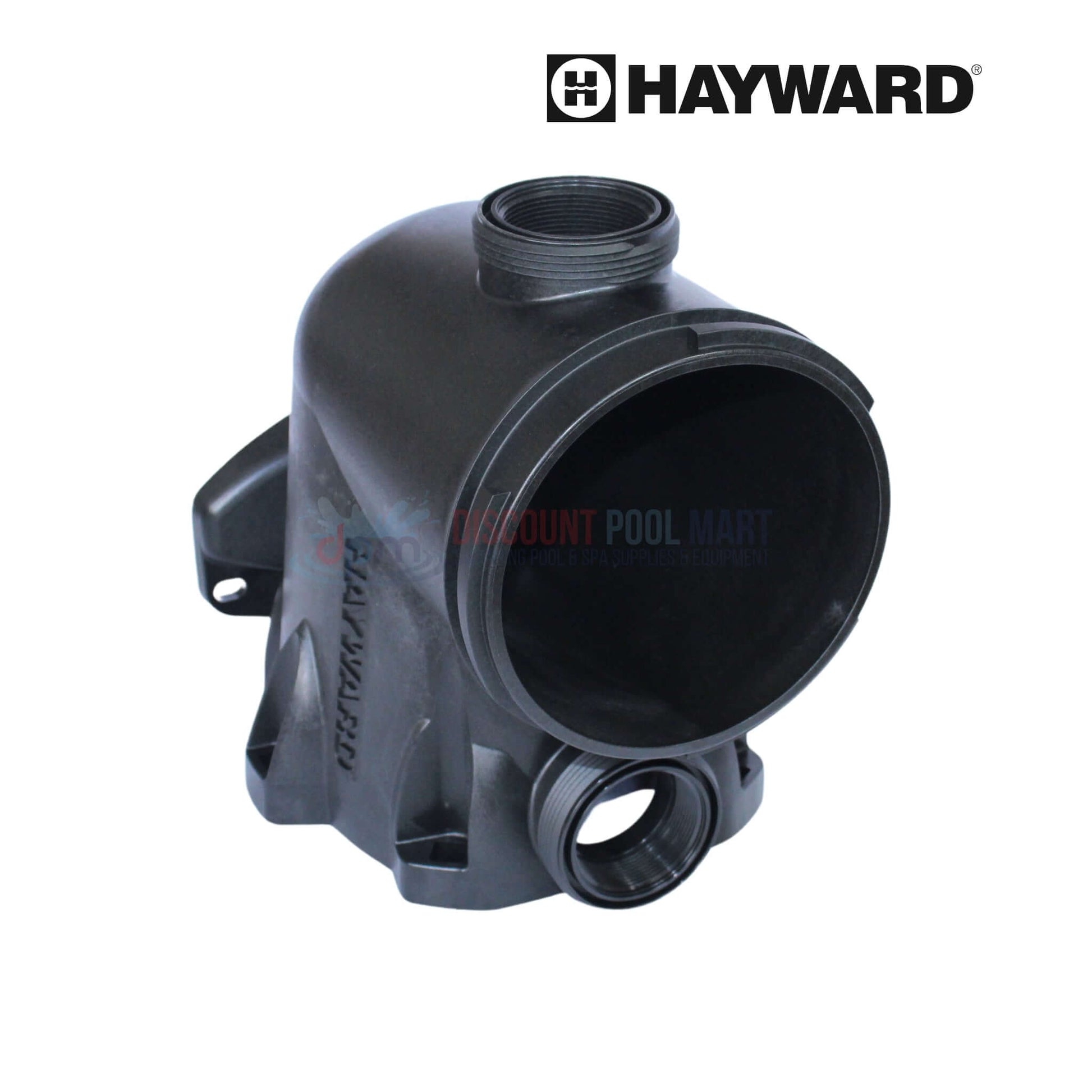

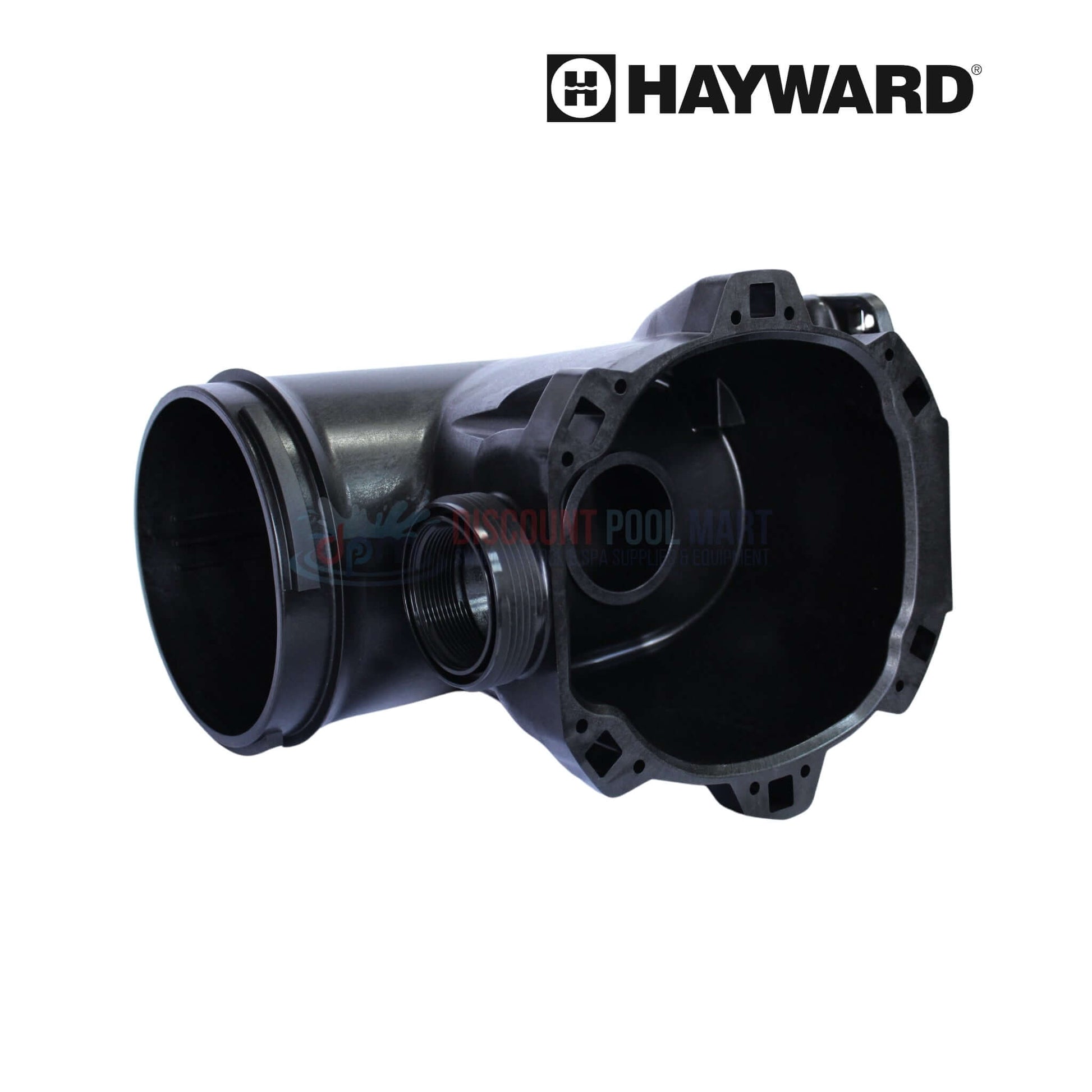

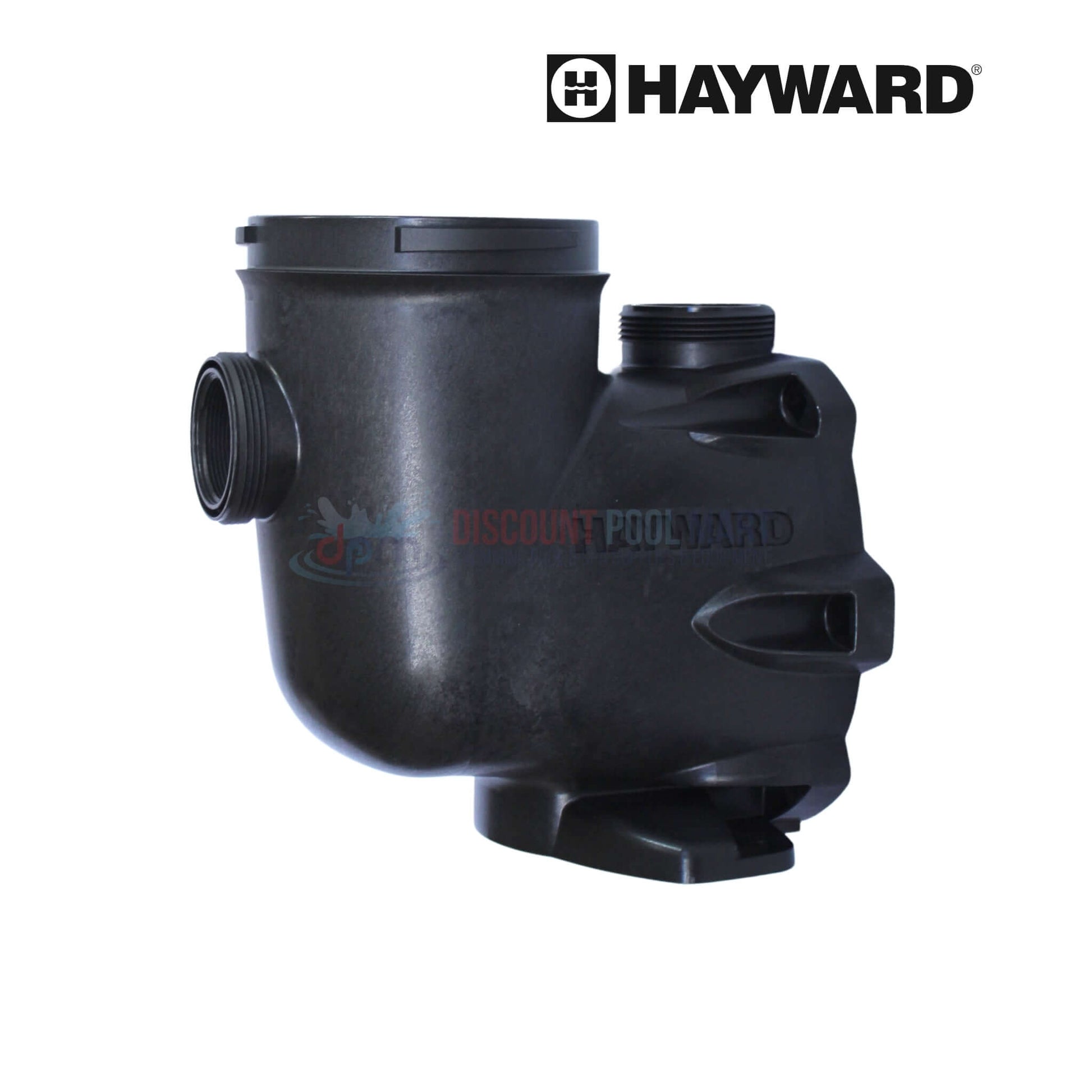

OEM Hayward SPX3200A Pump Strainer Housing is a direct replacement for TriStar and EcoStar pool pumps, including models SP3200EE, SP3200X, SP3200VSP, SP3400VSP, and SP3600. Designed with 2 x 2½-inch threaded ports and integrated drain plugs, this housing provides consistent flow and simplifies maintenance access. Built from heavy-duty, chemical-resistant materials, it stands up to the demands of both residential and commercial pool systems. Replacing a damaged or cracked housing with the SPX3200A helps maintain efficient pump performance and prevents water loss, extending your pump’s lifespan.
-
OEM Housing for Hayward Pumps: Built specifically for TriStar and EcoStar pump models for guaranteed fit and reliable operation
-

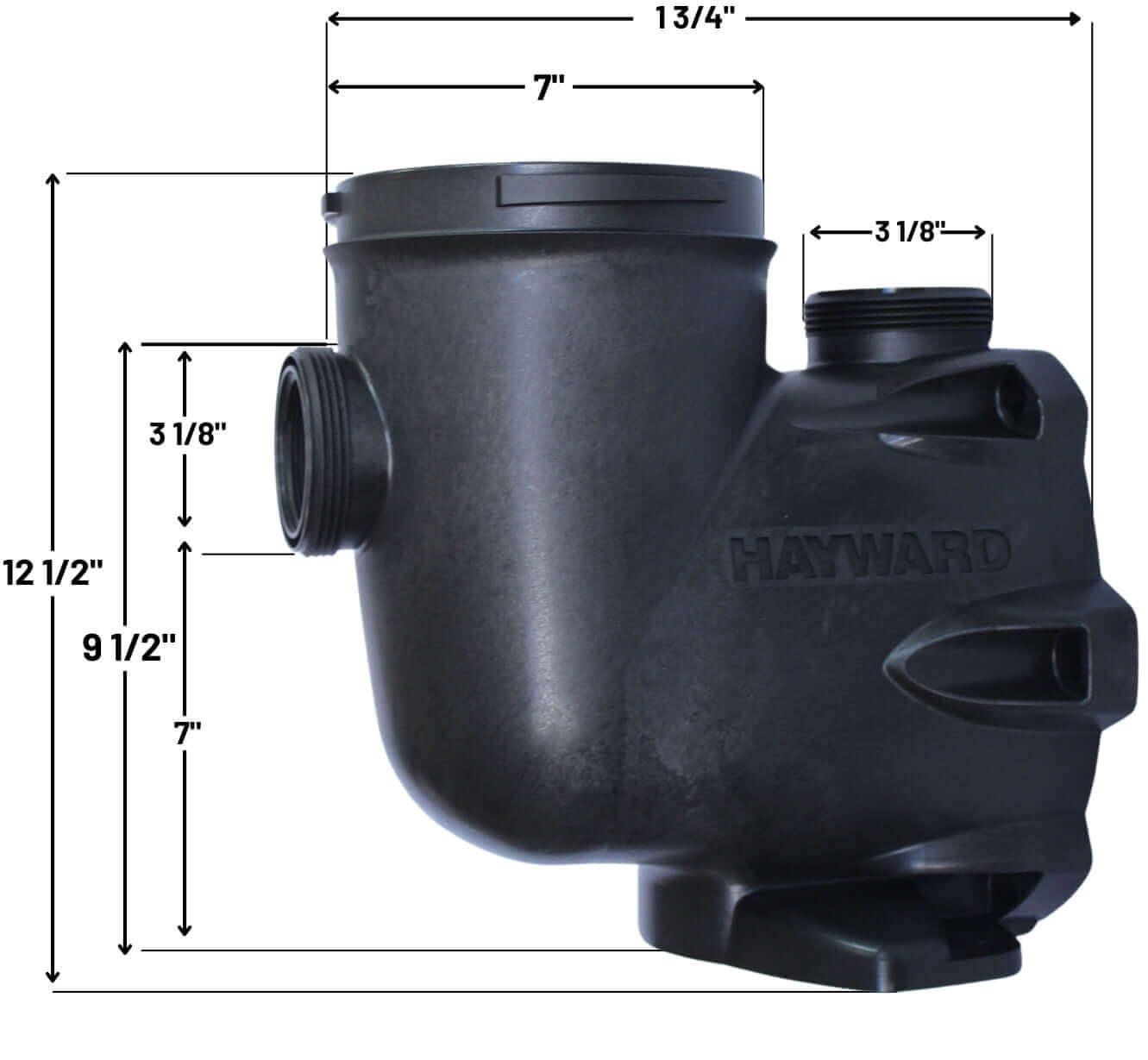

Threaded 2" x 2½" Ports: Standard connections allow efficient water flow and easy installation with compatible plumbing setups
-

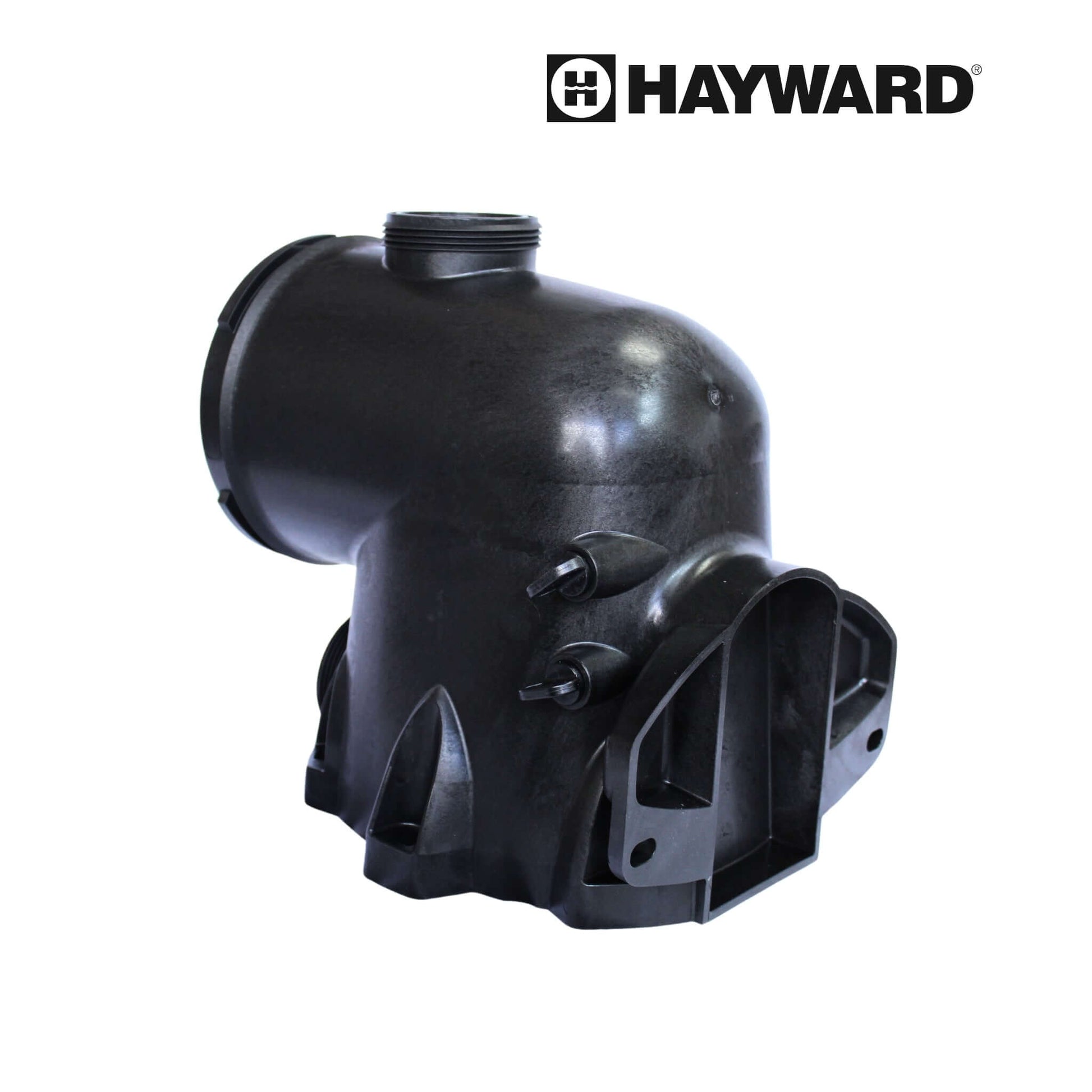

Integrated Drain Plug Design: Simplifies servicing and winterization by offering quick-access drainage points
-
Built to Withstand Harsh Conditions: Constructed with materials that resist corrosion, UV, and pool chemical exposure
-
Restores Pump Efficiency: Replacing worn or leaking housings helps preserve water pressure and prolong system life
- Hayward Tristar Pump Models: 900, 950, SP3205X7, SP3207X10, SP3210X15, SP3215X20, SP3220X25, SP3225X30, SP36075EE, SP36120EE, SP3200EE, SP3205EE, SP3207EE, SP3210EE, SP3215EE, SP3220EE, SP322063EEV, SP3230EE, SP3250EE, SP323063EE
- Hayward EcoStar Pump Models: SP3400VSPVR, SP3400VSP
