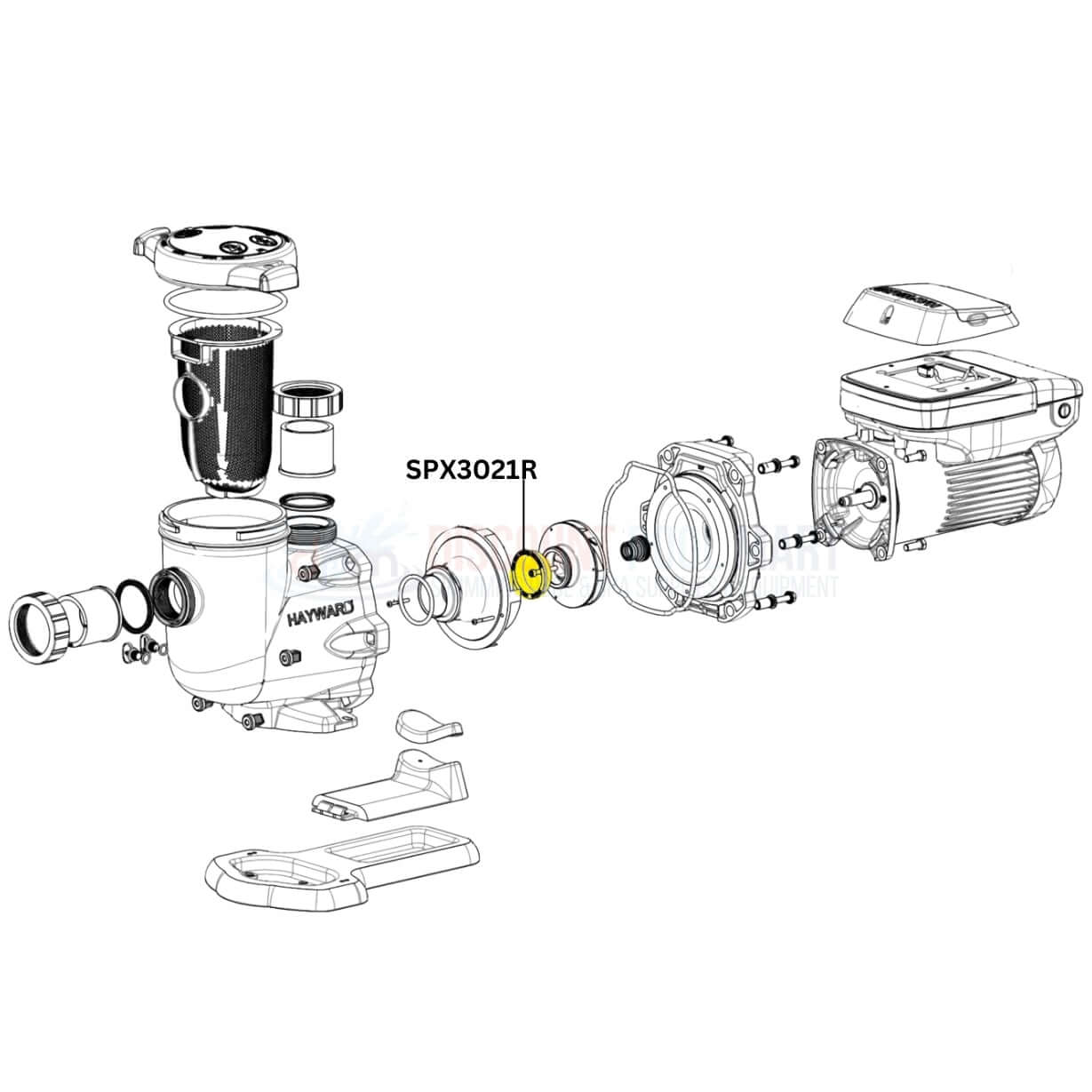

On the Hayward EcoStar VS Variable Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward EcoStar VS Variable Speed Pump

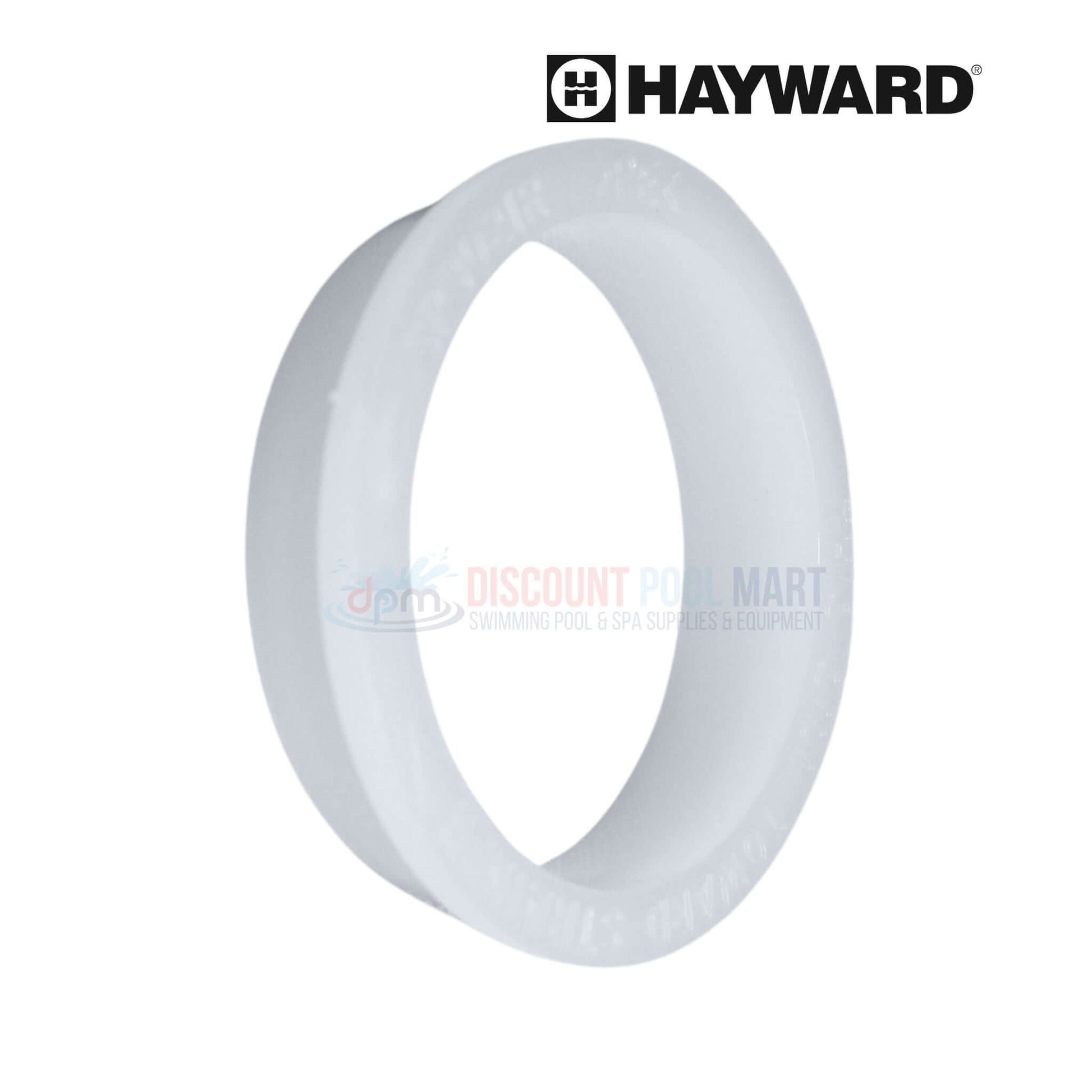

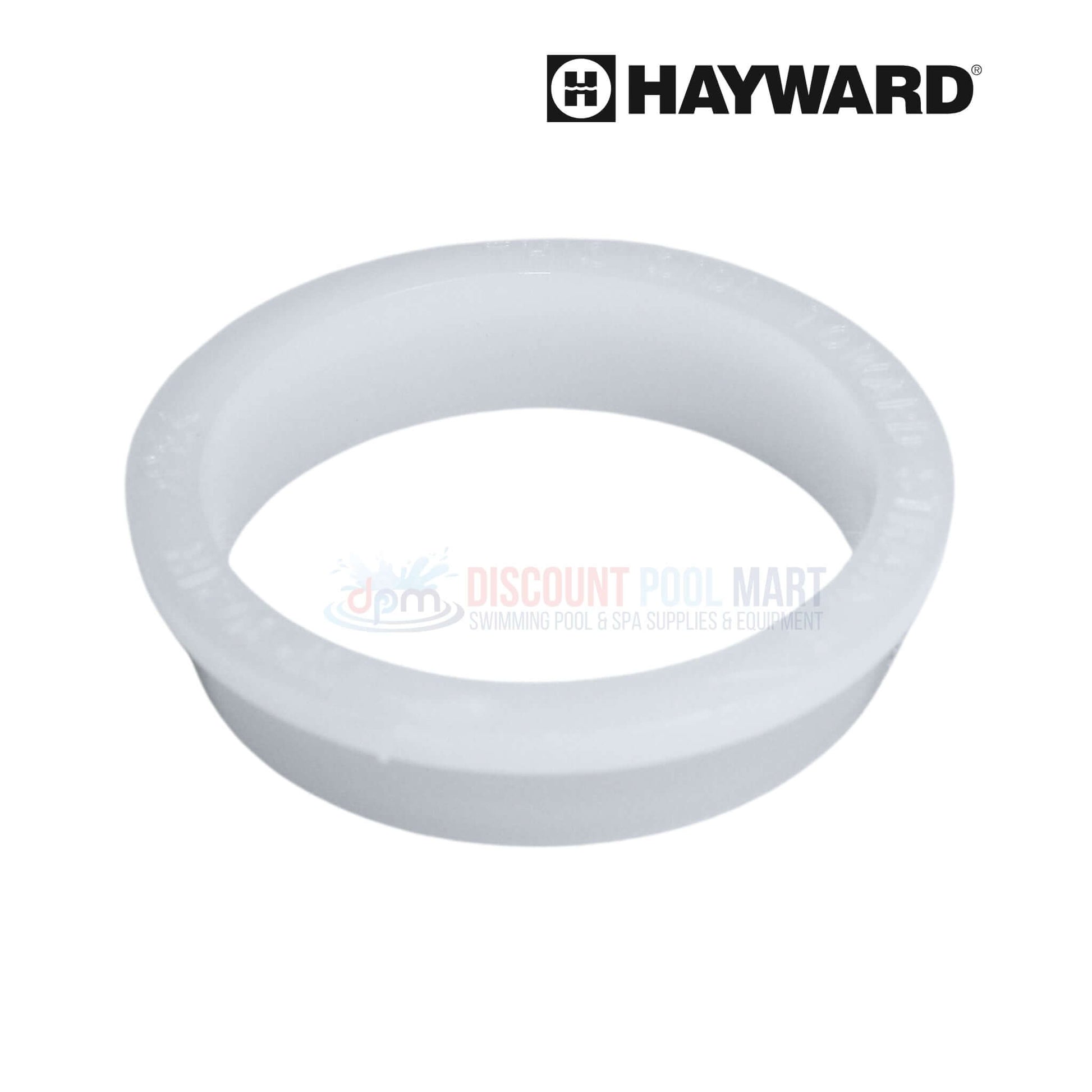

OEM Hayward Impeller Ring SPX3021R is an essential sealing component for Hayward TriStar, EcoStar, NorthStar, and Super II pool pumps. Positioned between the impeller and diffuser, it forms a tight seal that prevents water from bypassing the impeller, maintaining proper pressure and maximizing pump efficiency. This durable ring is constructed to withstand the wear and tear of pool environments, helping preserve pump performance. Compatible with a wide range of Hayward models, the SPX3021R is a key maintenance part for ensuring long-term pump reliability.
-
Fits Multiple Hayward Pumps: Compatible with TriStar, EcoStar, NorthStar, Super II, and TriStar VS 900 and VS 950 models
-
Seals Between Impeller and Diffuser: Maintains critical separation to prevent internal water bypass and pressure loss
-
Improves Circulation Efficiency: Supports consistent water flow by keeping the impeller chamber sealed and functioning at full capacity
-
Long-Lasting Material Quality: Made from pool-grade materials designed to resist wear, chemicals, and heat over extended use
-
Essential for Preventive Maintenance: Regular replacement helps sustain pump performance and reduces the risk of system inefficiencies
- (1) Hayward SPX3021R Impeller Ring
- Hayward TriStar Pumps
- Hayward TriStar VS 900 Pumps
- Hayward TriStar VS 950 Pumps
- Hayward EcoStar Pumps
- Hayward Super II Pumps
- Hayward NorthStar Pumps
Note: This screw may be compatible with your pump, please refer to your systems owners manual to ensure compatibility.
