SPX3200UNKIT | Hayward Union Connector Kit
Fits these models (10)
+6 more models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 41 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

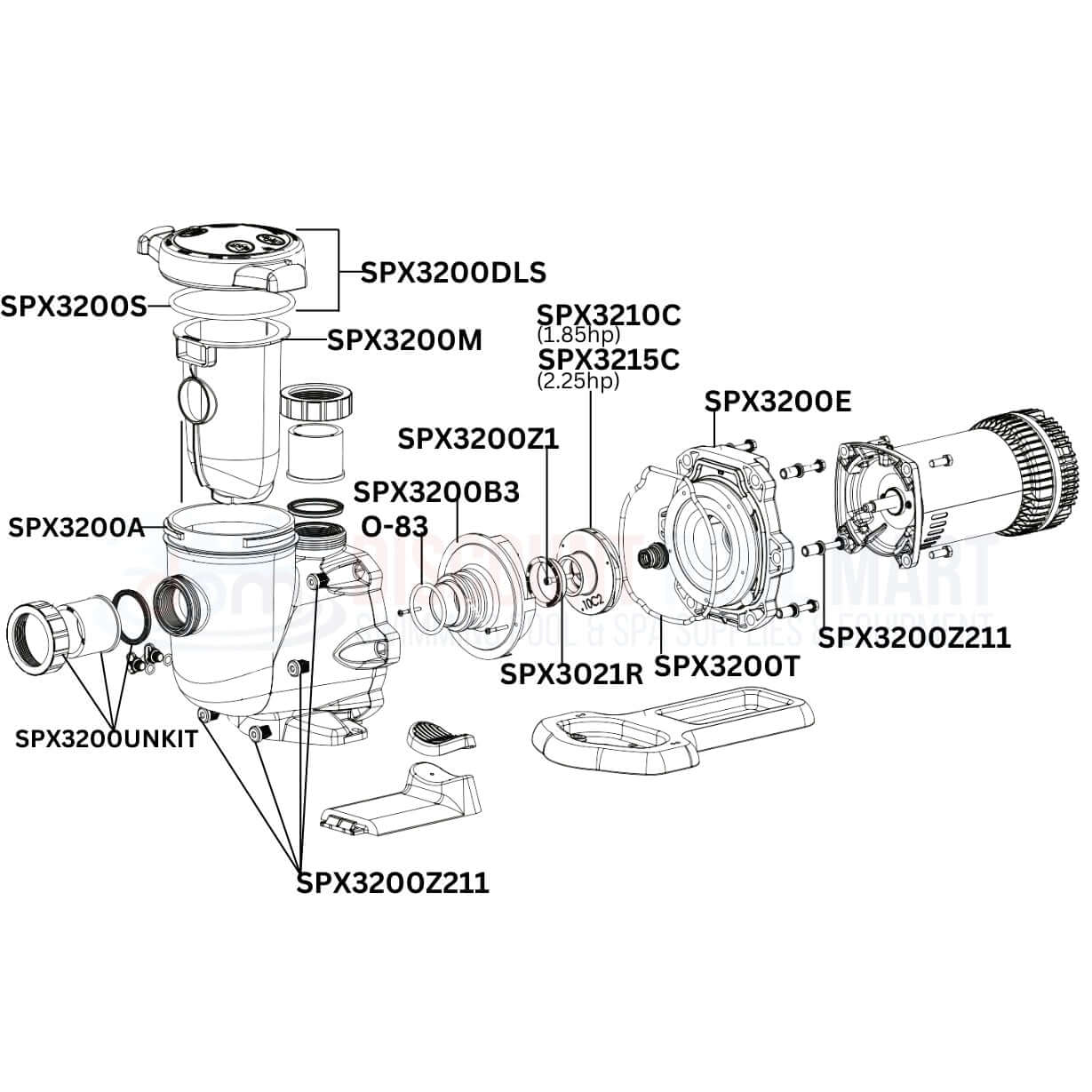

On the Hayward EcoStar VS Variable Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward EcoStar VS Variable Speed Pump
OEM Hayward Union Connector Kit SPX3200UNKIT is designed to simplify and secure the plumbing connection between Hayward pumps, filters, heaters, and heat pumps. This kit includes two union nuts, two connectors, and two gaskets to form a complete, watertight seal that prevents leaks and promotes efficient system operation. Ideal for both installation and repair, these components are built from high-strength materials to withstand daily wear, high flow rates, and chemical exposure. Compatible with a wide range of Hayward equipment, the SPX3200UNKIT helps ensure long-term reliability across your pool’s circulation system.
-
Streamlined Pump-to-Filter Connection: Designed to provide a secure and leak-free union between Hayward circulation components for hassle-free plumbing
-
Includes Complete Union Set: Comes with two nuts, two connectors, and two gaskets to ensure a full and proper seal within your pool setup
-
Versatile Equipment Compatibility: Works with various Hayward pumps, filters, heaters, and sanitizers, reducing setup complexity across product lines
-
Built for Long-Term Reliability: Constructed from materials that endure pool chemicals, pressure fluctuations, and daily operational strain
-
Ideal for Repairs or Installations: Simplifies plumbing work by allowing quick and secure part replacement or new equipment integration

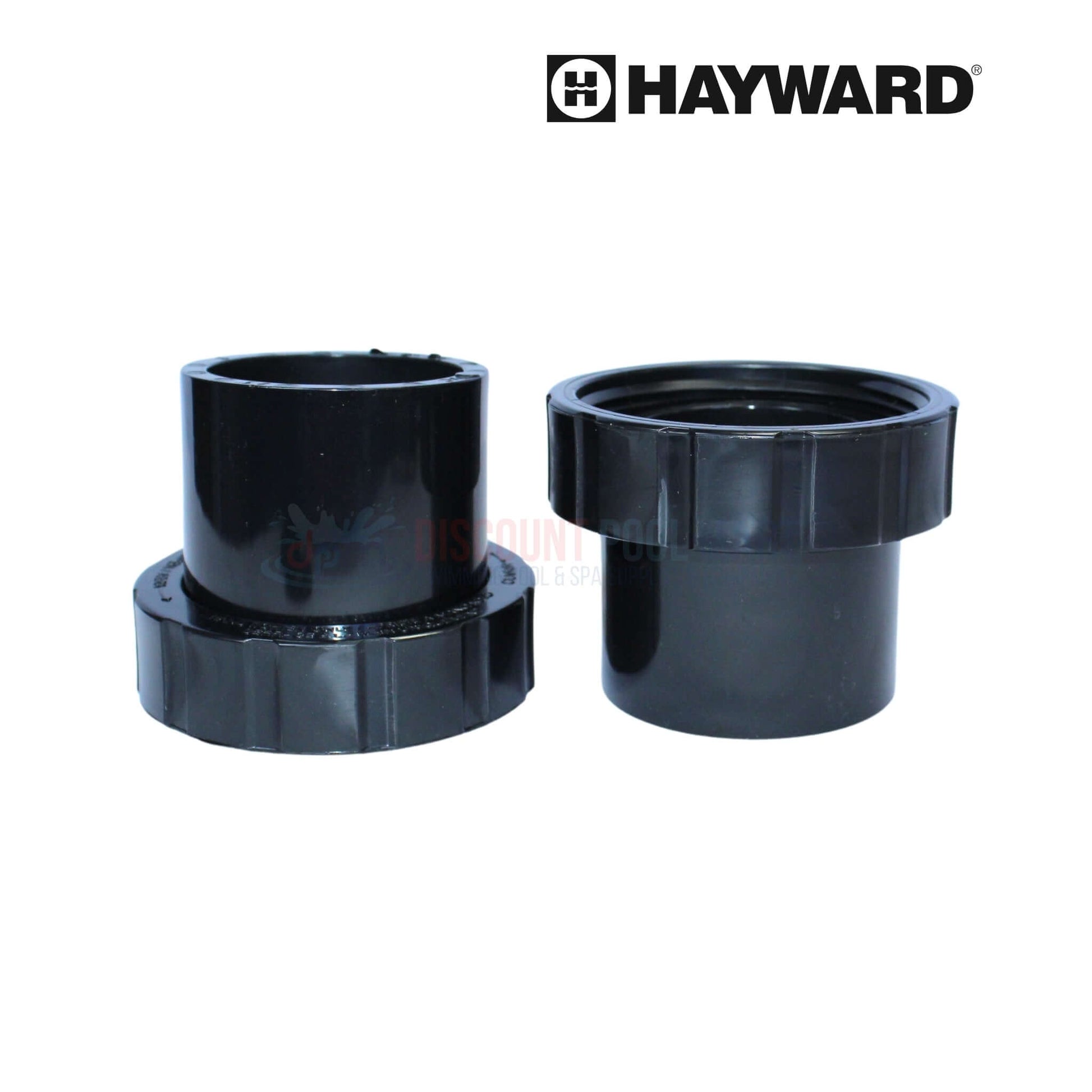

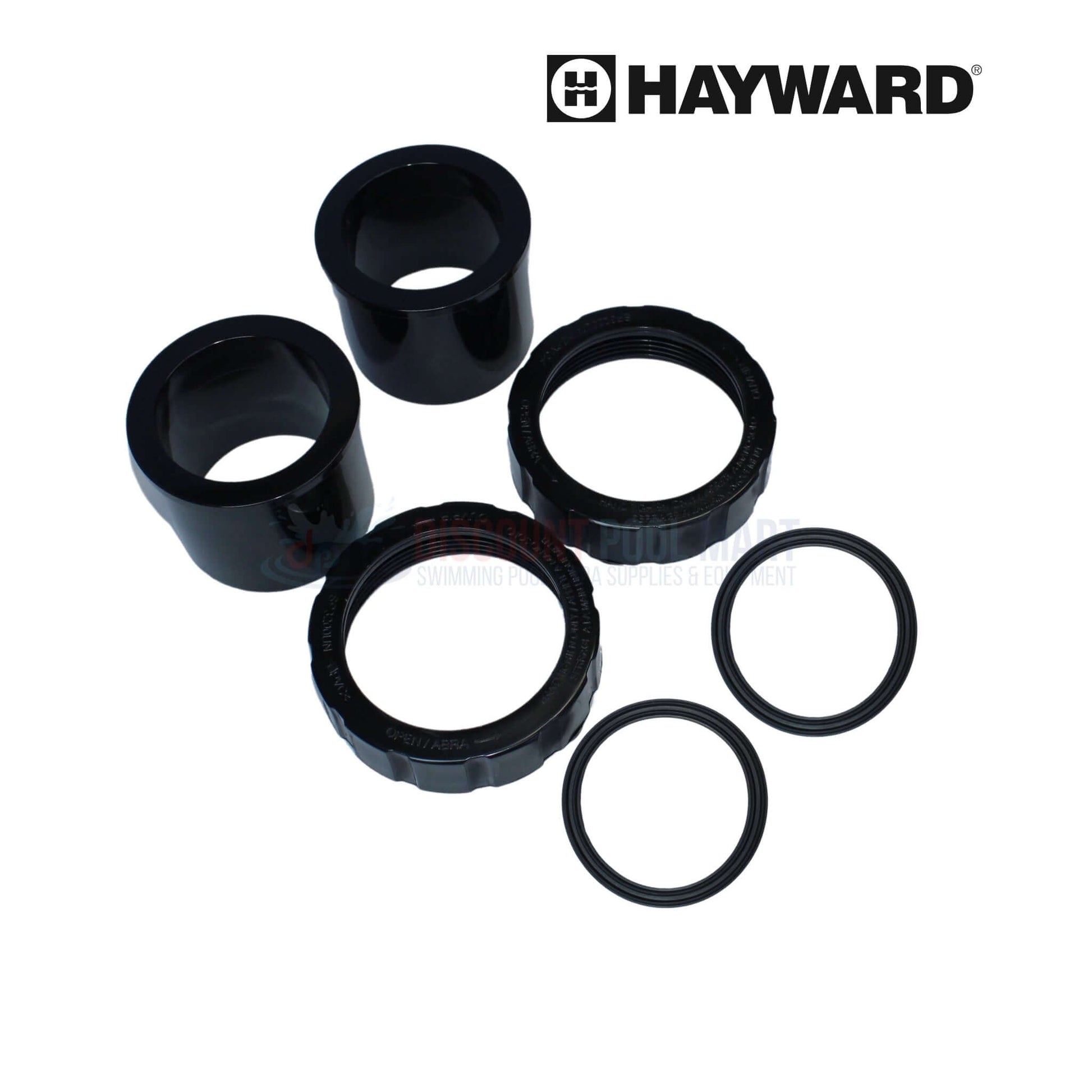

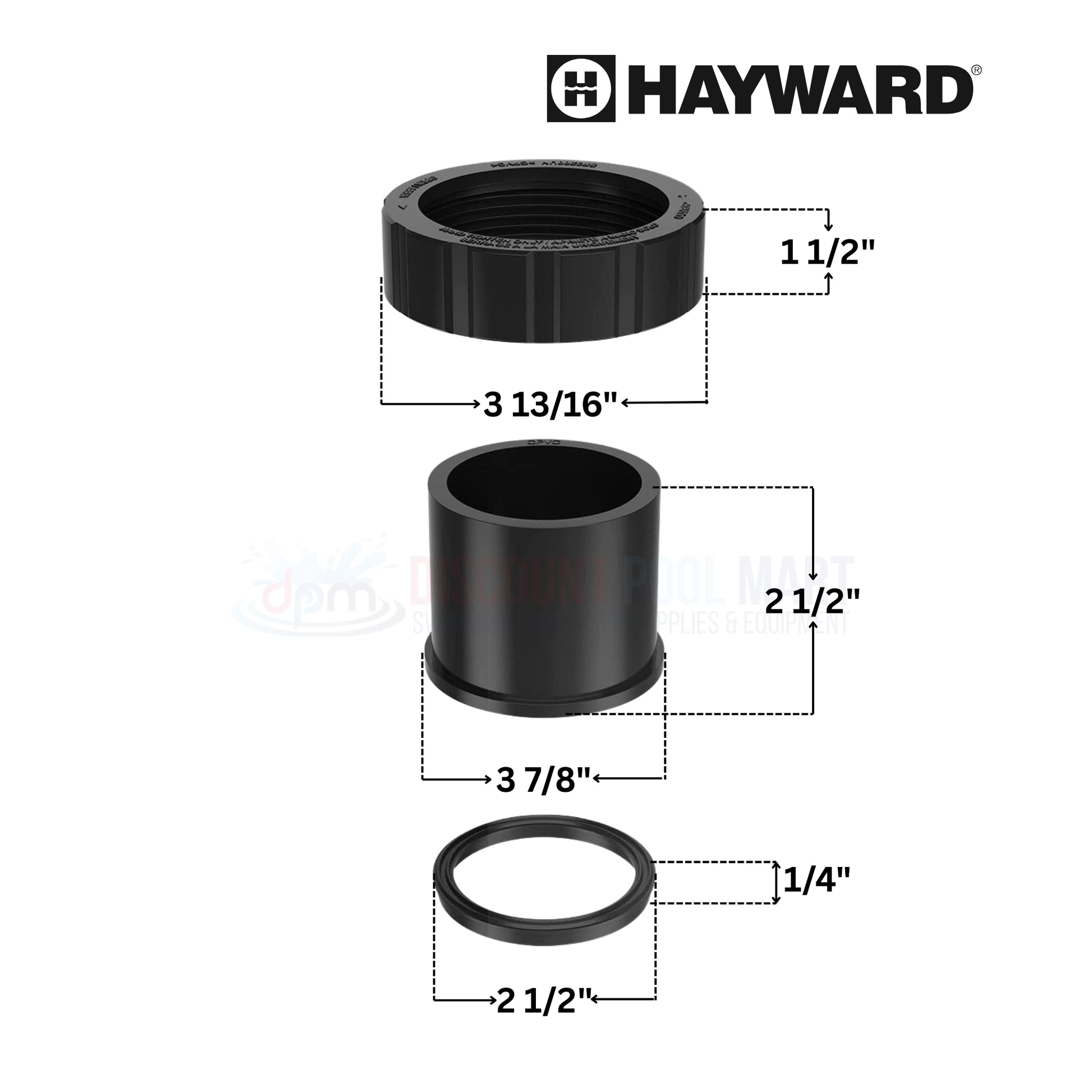

- (2) Union Nuts
- (2) Union Connectors

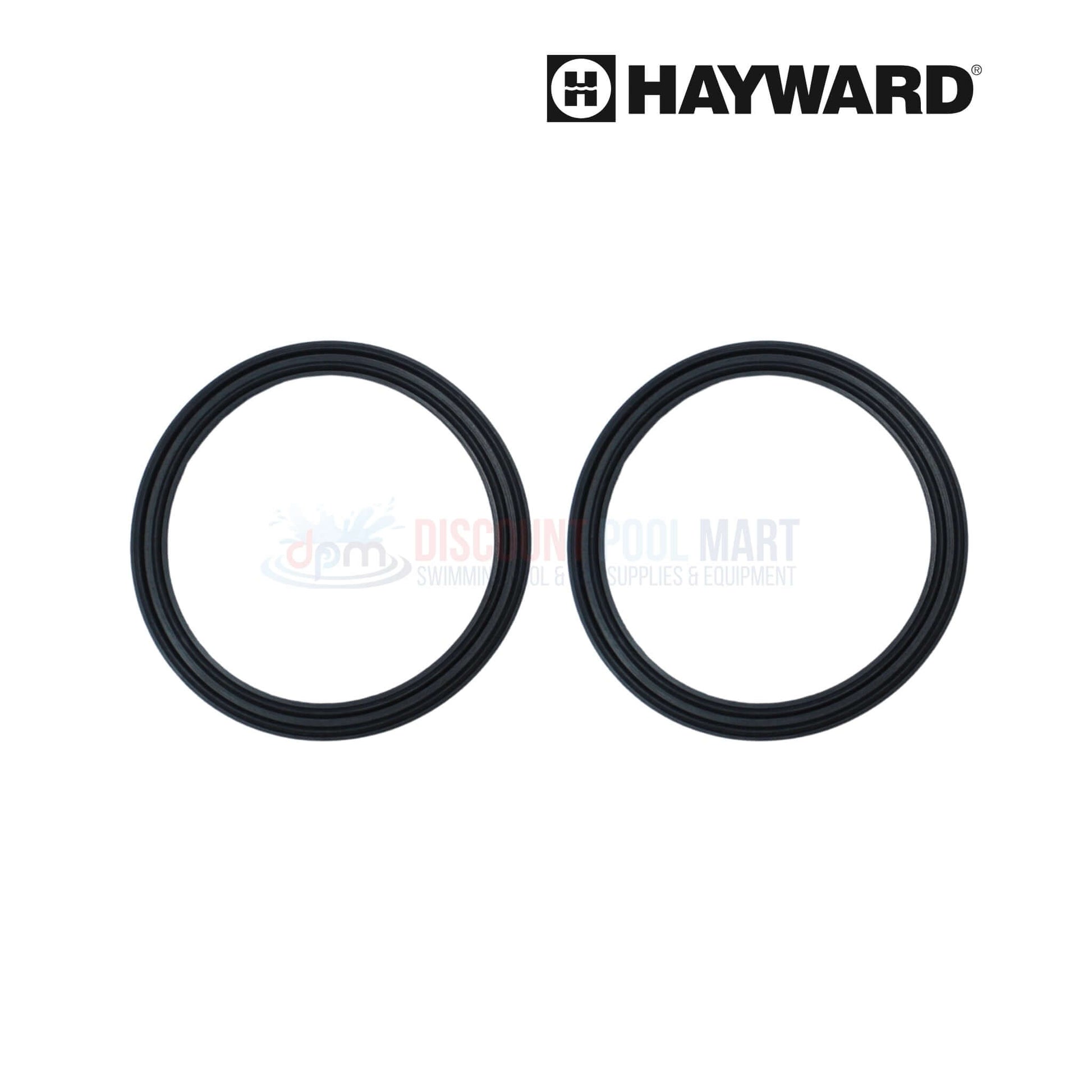

- (2) Union Gaskets

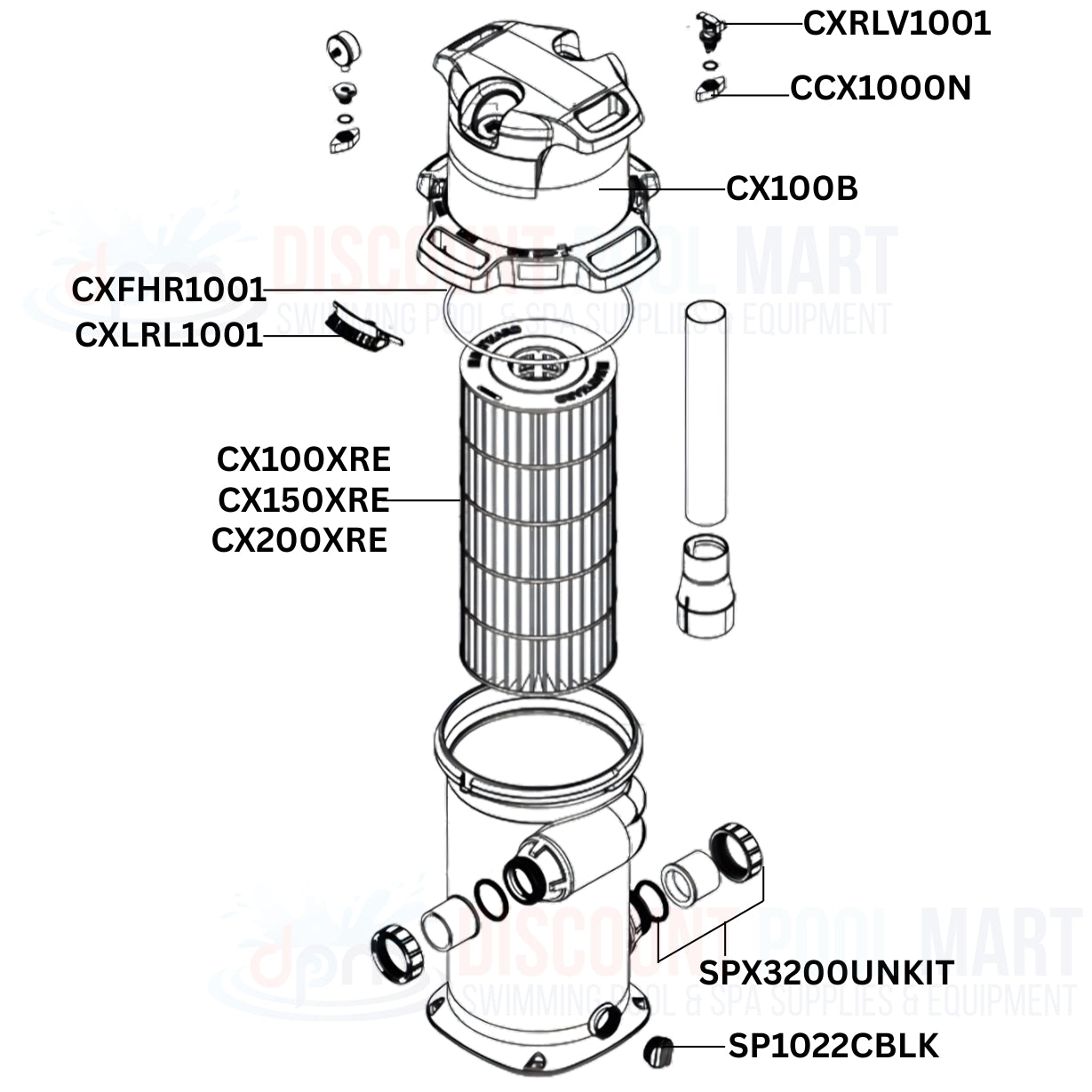

- Hayward SwimClear Cartridge Filters: C2030, C3030, C4030, C5030, C7030
- Hayward Tristar Pump Series: SP3200EE, SP3200X, SP3600, 900, 950
- Hayward Northstar Pump Series: SP4000, SP4000X
- Hayward HeatPro Heat Pump Models: HP21404T, HP21004T, HP21254T, HP31154T, HP31204T
-

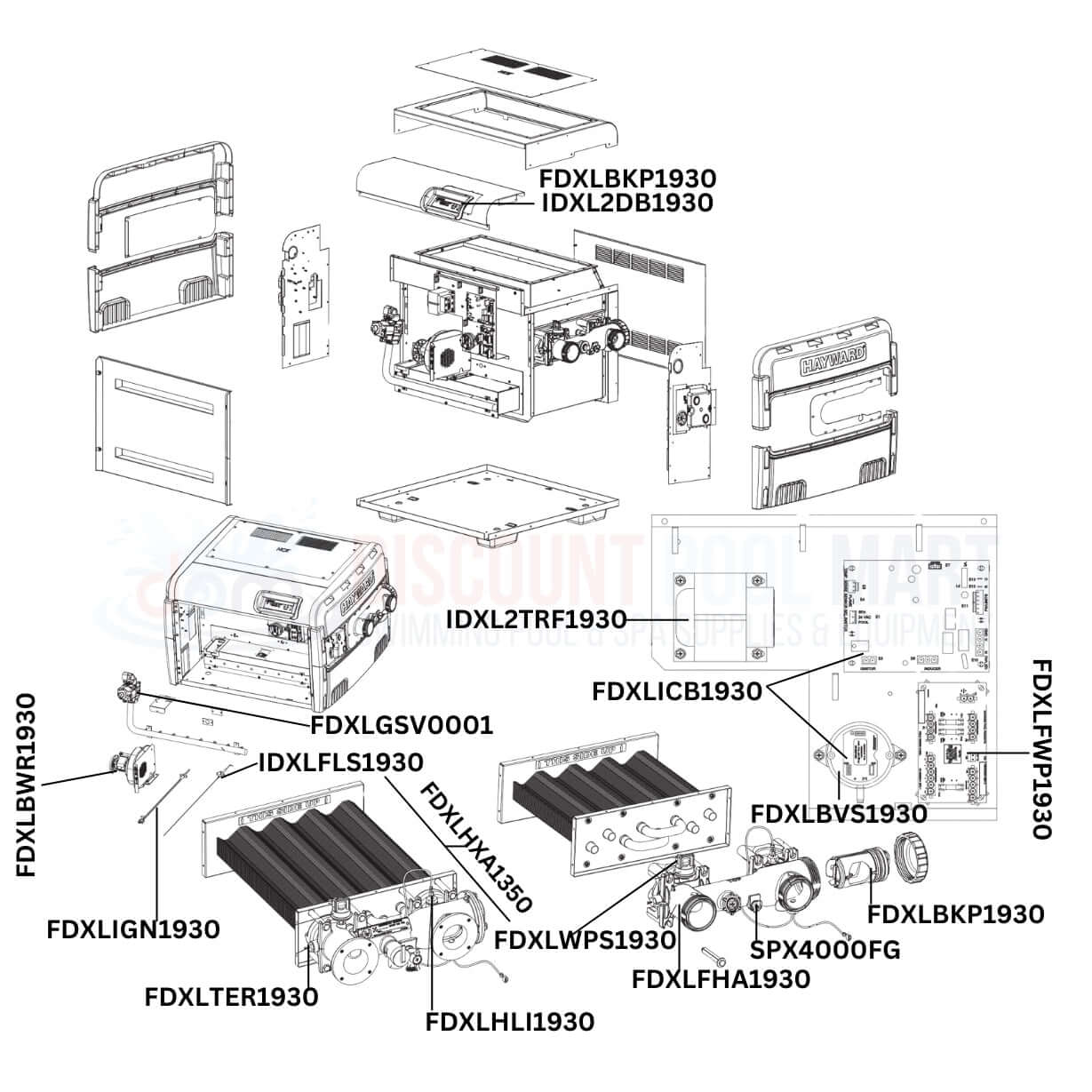

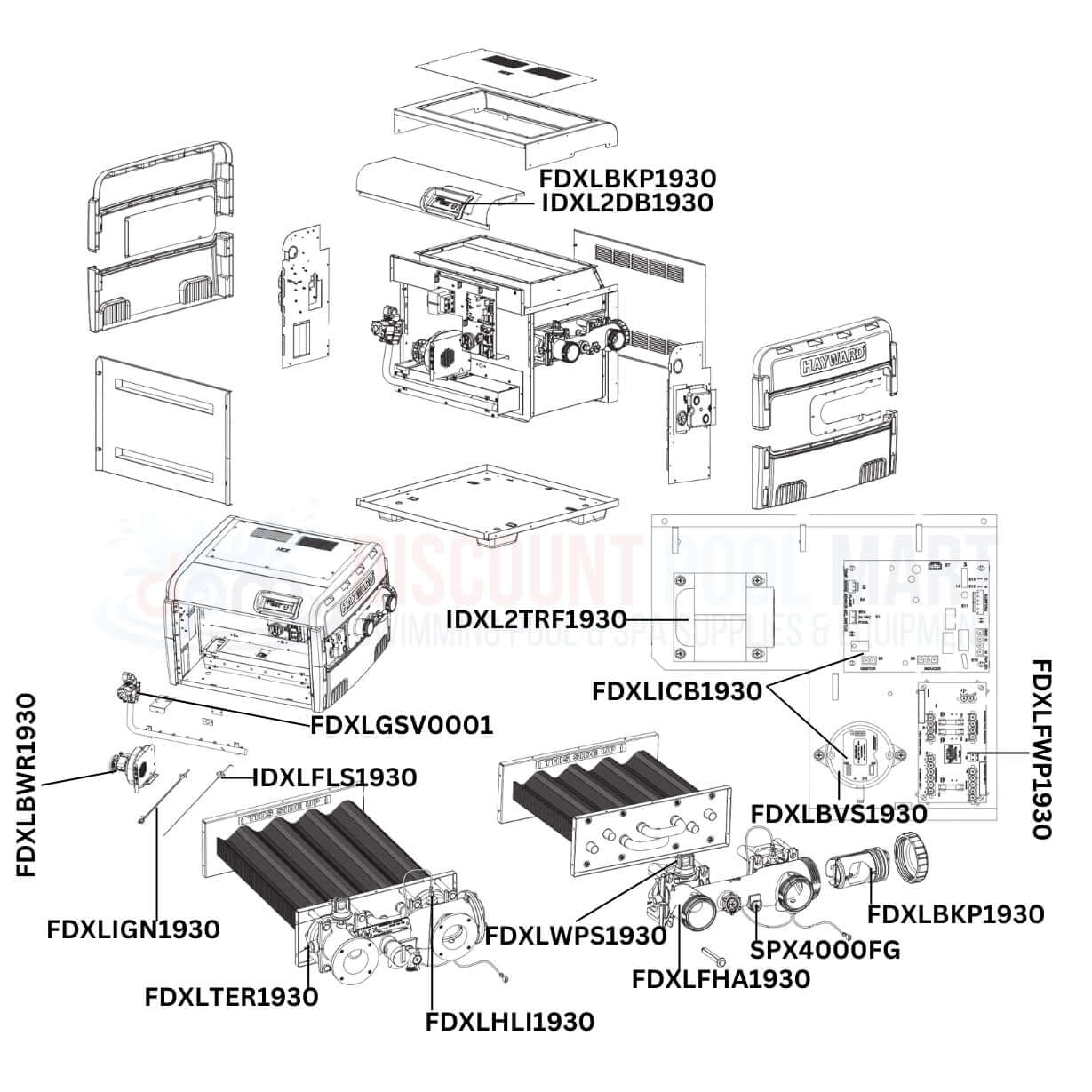

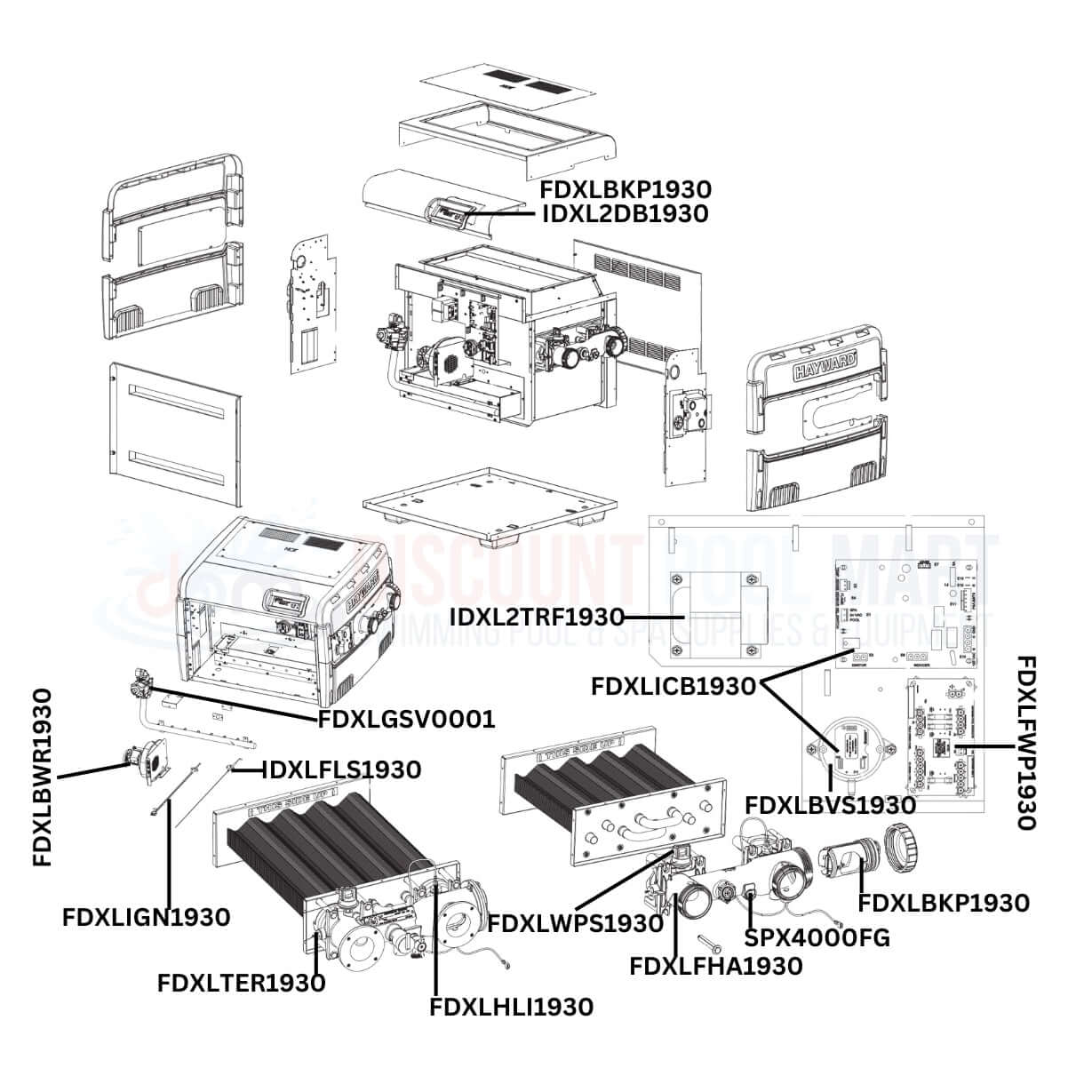

Hayward H-Series Heaters Models: H150FDN, H150FDP, H200FDN, H200FDP, H250FDN, H250FDP, H300FDN, H300FDP, H350FDN, H350FDP, H400FDN, H400FDP, H500FD
- Hayward HydraPure UV and Ozone Sanitization System
Note: This may be compatible with your Hayward Product, please check owners manual to ensure compatibility.
