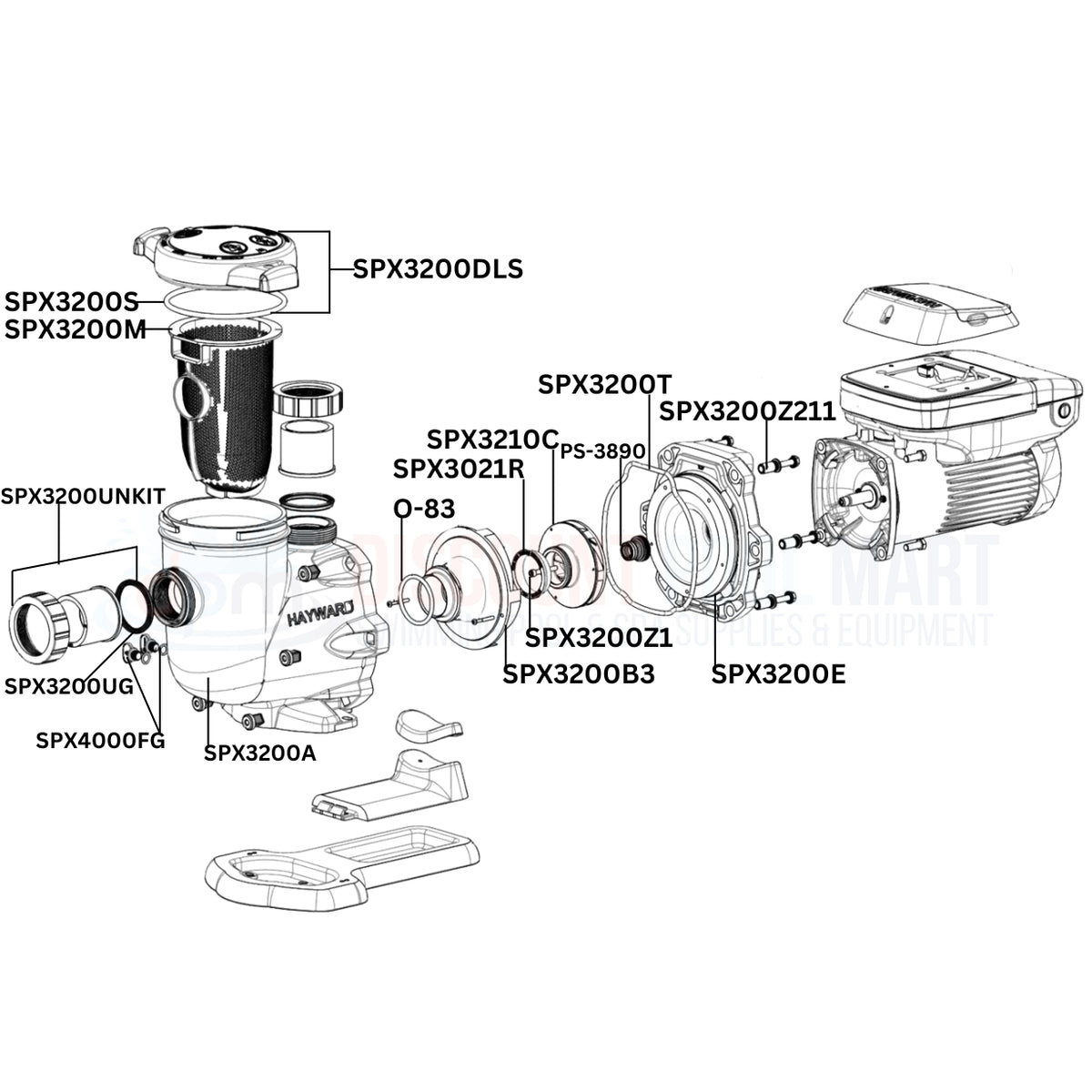

Hayward TriStar VS Variable Speed Pump Replacement Parts Diagram
Interactive parts diagram
30 parts · 2 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.
Scroll or pinch to zoom · drag to move
-
-
Original (OEM) Hayward Union Connector Kit$59.99
-
-
-
Original (OEM) Hayward Union Gasket For Hayward Pumps and Filters | 2 Pack$12.99
-
-
-
Original (OEM) Hayward Tristar & EcoStar Pump Housing$349.99
-
-
-
Original (OEM) Hayward Strainer Cover For TriStar and EcoStar$94.99
-
-
-
Original (OEM) Hayward Strainer Cover O-Ring For TriStar and EcoStar$17.99
-
-
-
Original (OEM) Hayward Strainer Basket For TriStar and EcoStar$21.99
-
AftermarketSave 22% Swimables Hayward TriStar Pump Basket | SPX3200M$16.99
-
-
-
Not sold online Hayward diffuser screw (SPX3200Z8)
-
-
-
$3.99
-
-
-
Original (OEM) Hayward Diffuser For TriStar and EcoStar Pumps$59.99
-
-
-
Original (OEM) Hayward Impeller Screw For TriStar and EcoStar$8.99
-
-
-
Original (OEM) Hayward Impeller Ring For TriStar and EcoStar$6.99
-
-
Pump model
-
Original (OEM) Hayward Impeller With Screw For TriStar | 1HP$49.99
-

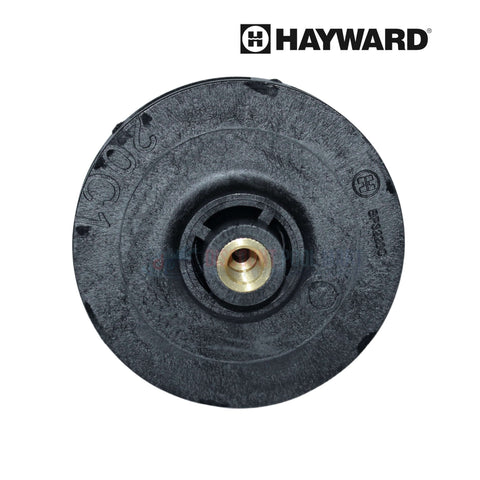

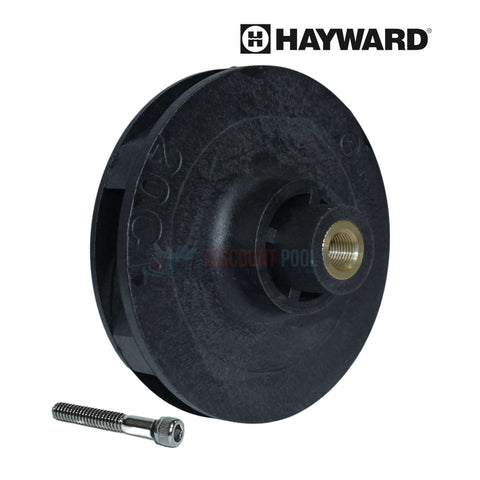

Original (OEM) Hayward Impeller With Screw For TriStar & EcoStar | 2HP$59.99
-
-
-
Original (OEM) Hayward Pump Shaft Seal Assembly$39.99Notify me
-
-
-
Original (OEM) Hayward Housing O-Ring For TriStar and EcoStar$13.99
-
AftermarketSave 28% Aladdin Housing O-Ring For Hayward TriStar and EcoStar Pumps | SPX3200T$9.99
-
-
-
Original (OEM) Hayward Seal Plate For TriStar and EcoStar Pumps$62.99
-
-
-
$27.99
-
-
-
Not sold online Hayward housing bolt (SPX3200Z3)
-
-
-
Not sold online Hayward motor bolt (SPX3200Z5)
-
-
-
Original (OEM) Hayward Drain Plug & O-Ring For Pumps & Heaters$5.99Notify me
-
-
-
Not sold online Hayward motor support bracket (SPX3200GA)
-
-
-
Not sold online Hayward riser base: SPX3200WF aligns with Pentair WhisperFlo inlet port, SPX3200SR with Sta-Rite pump ports
-
-
-
Not sold online Hayward adapter, motor support (SPX3200Q2)
-
-
-
Not sold online Hayward motor drive display cover, cover only (SPX3400DR4)
-
-
-
Not sold online Hayward digital control interface (SP3206VSP / SP3206VSPVR made before January 2019)
-
-
-
Not sold online Hayward digital control interface assembly (1.85 hp all; 2.7 hp made after January 2019)
-
-
-

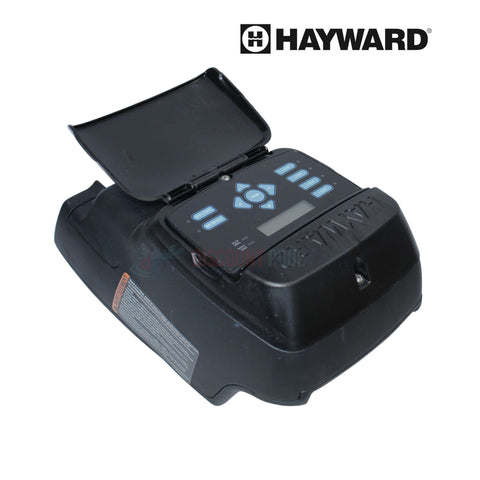

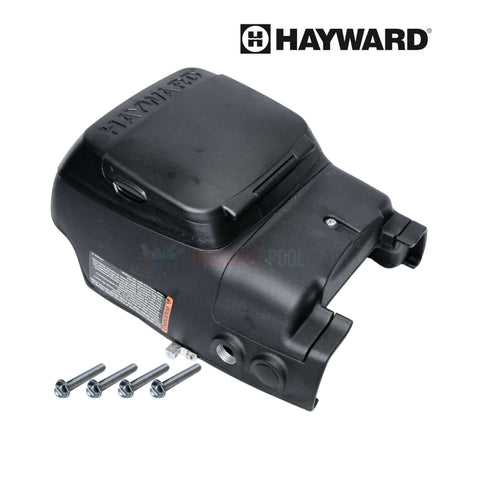

Original (OEM) Hayward Motor Drive For EcoStar and TriStar$1,199.99
-
-
-
Not sold online Hayward motor drive wiring cover (SPX3400DR2)
-
-
-

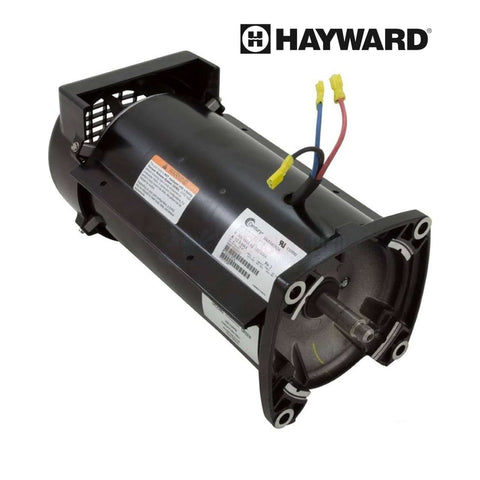

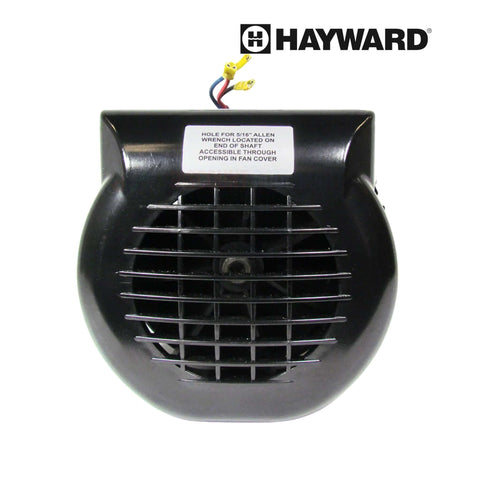

Original (OEM) Hayward EcoStar 2.7HP Variable Speed Motor$799.99
-
-
-
Original (OEM) Hayward Power End Assembly For 2.7HP TriStar VS G3 Pump$1,799.99Notify me
-
-
-
Not sold online Hayward motor fan shroud, before January 2019 (SPX3400FAN)
-
No parts match.
Don't see your part? Ask us and we'll find it.
Also fits your Hayward TriStar VS Variable Speed Pump
Not shown on the diagram, but made for this pump.
-
Original (OEM) Hayward Quick Fix Kit For EcoStar & Tristar Pumps$39.99
Fit guide
Which TriStar VS part fits your pump?
Find the model number on your pump's data label (for example SP3202VSP or SP3206VSP). Part numbers come from Hayward's TriStar VS SP3200VSP series replacement parts list.
Impeller by pump model
Motor drive & display
- Motor drive SP3206VSP
- SPX3400DR
- Motor drive, SVRS SP3206VSPVR
- SPX3400DRVR
- Display 1.85 hp all, 2.7 hp after Jan 2019
- SPX3200LCD
- Display SP3206VSP / VSPVR before Jan 2019
- SPX3400LCD
Riser base
- Pentair WhisperFlo aligns with inlet port
- SPX3200WF
- Sta-Rite ports Max-E-Pro, Max-E-Glas, Dura-Glas
- SPX3200SR
Made before or after January 2019?
Before January 2019
- Motor assembly SPX3400Z1ECM
- Motor fan shroud SPX3400FAN
- Display SPX3400LCD (SP3206VSP, SP3206VSPVR)
January 2019 and newer
- Motor and drive assembly SPX3206Z1VSPE
- Display SPX3200LCD
Hayward's H-KIT SPXHKIT100 includes the strainer cover O-ring, diffuser O-ring, shaft seal and housing O-ring (items 5, 8, 13 and 14) plus Jack's Lube.
