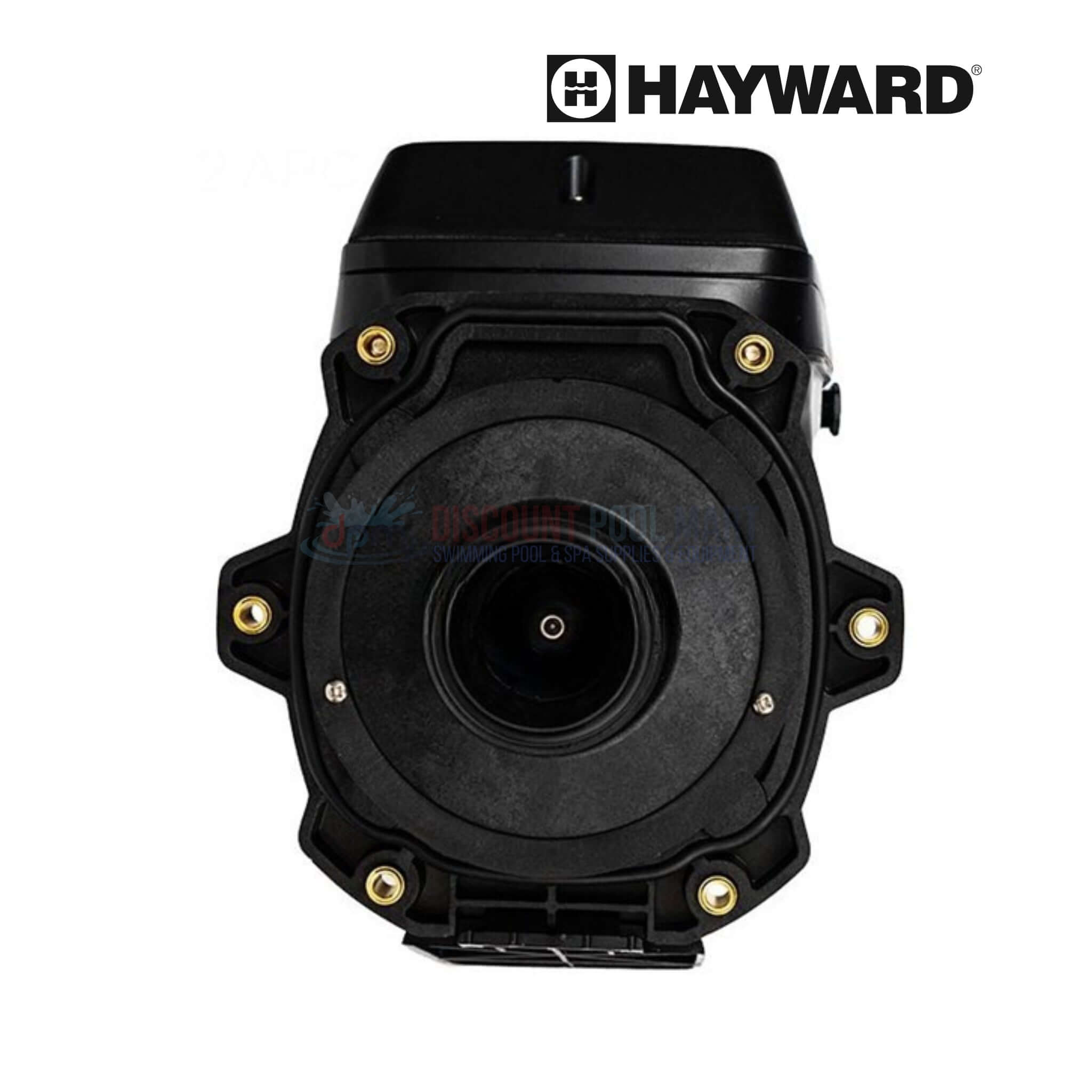

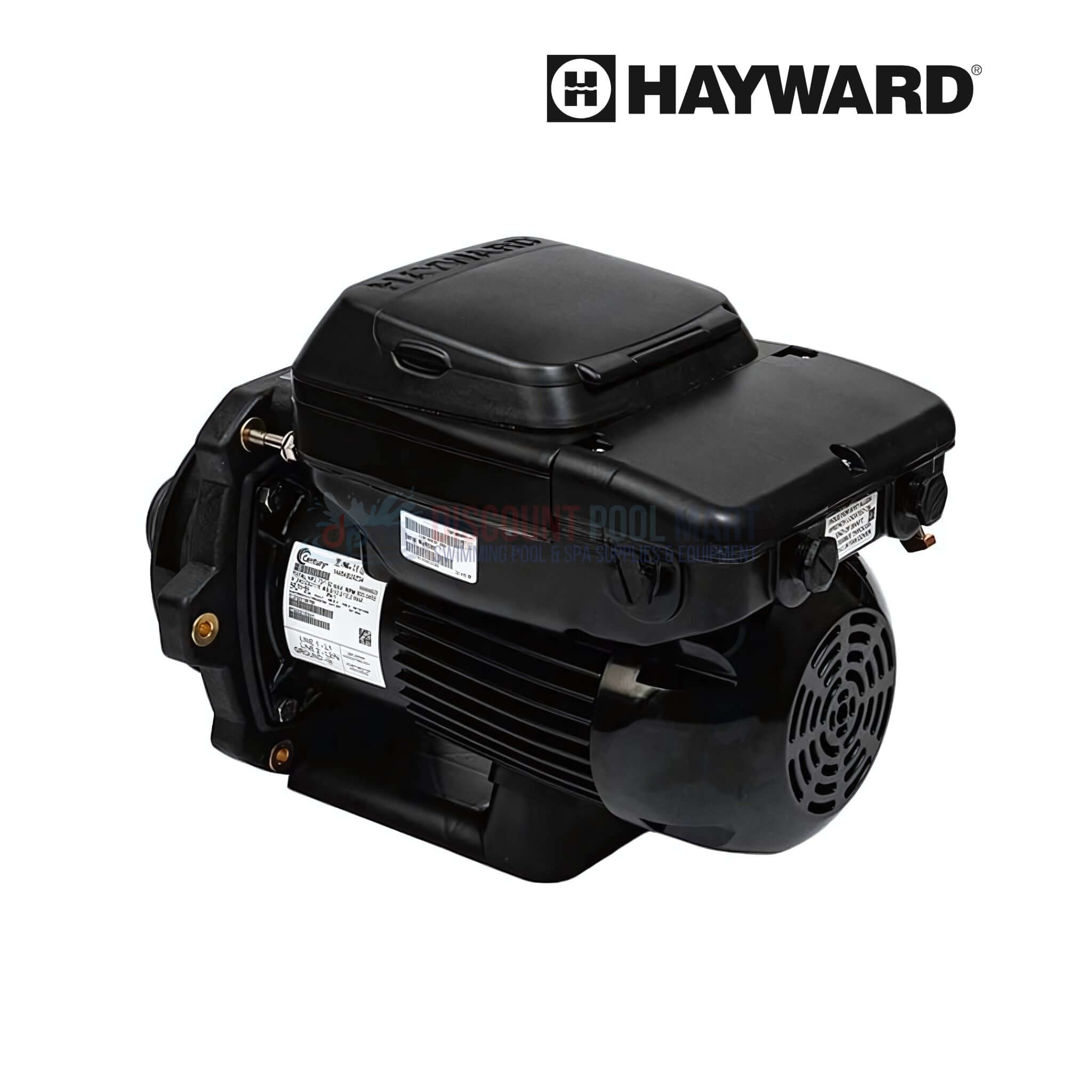

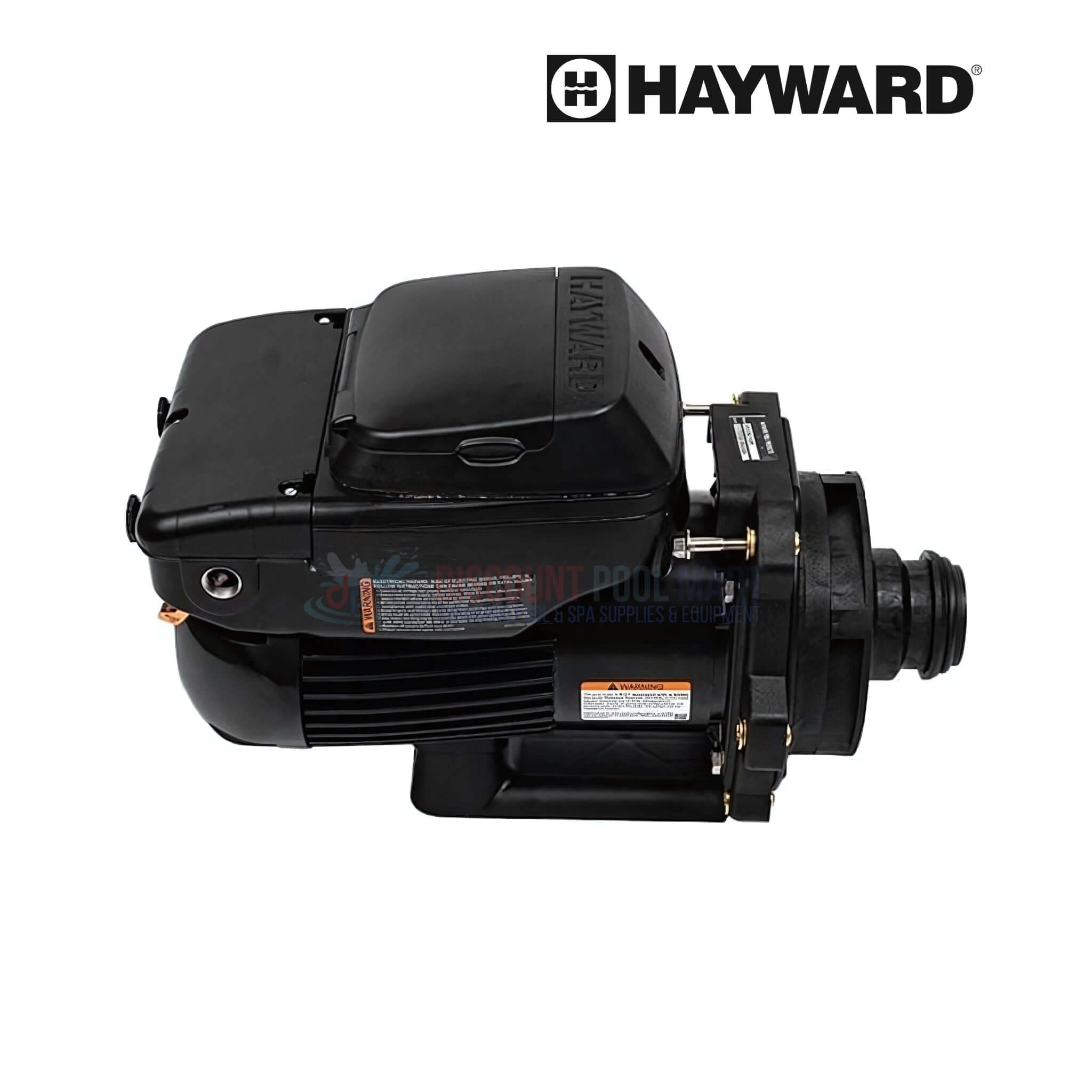

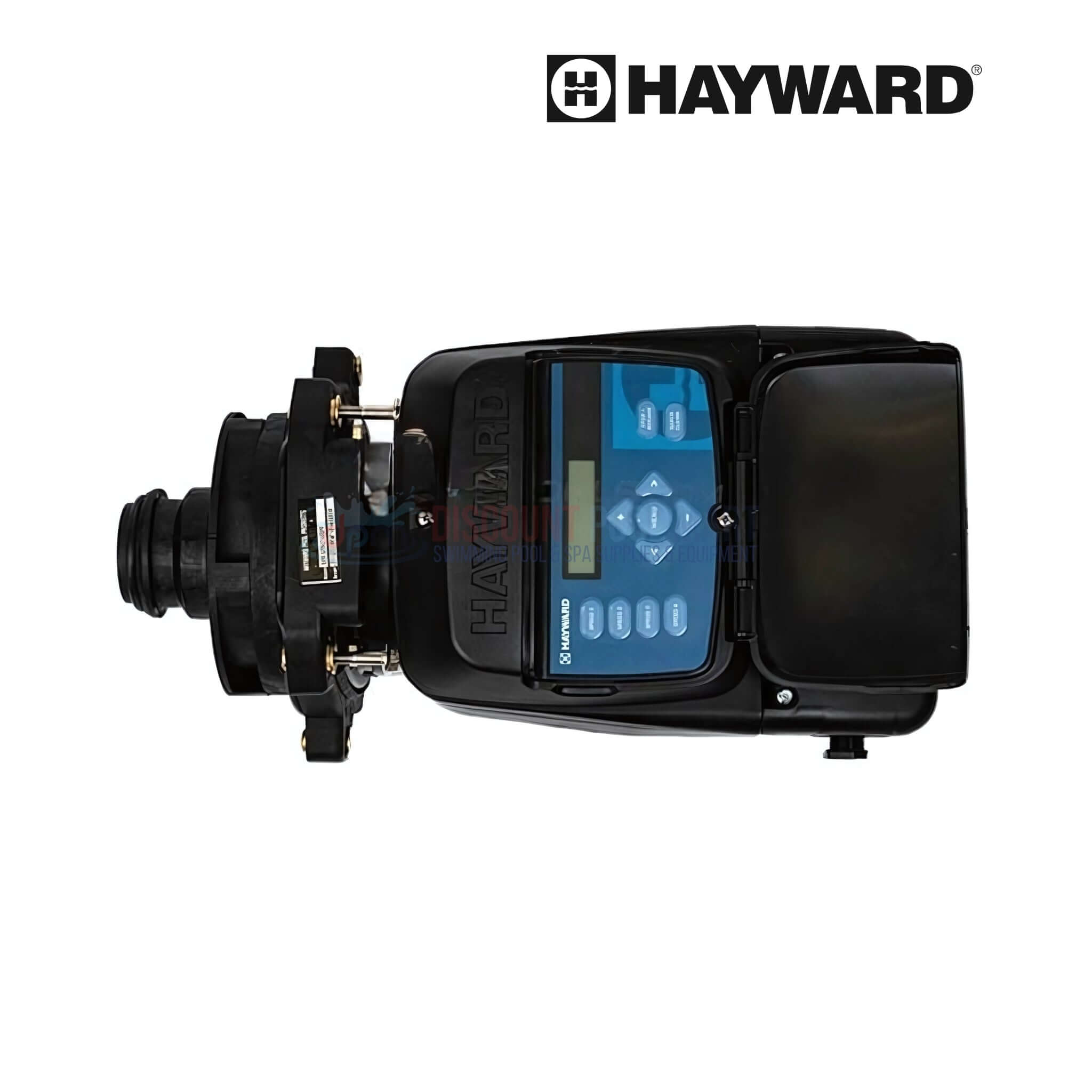

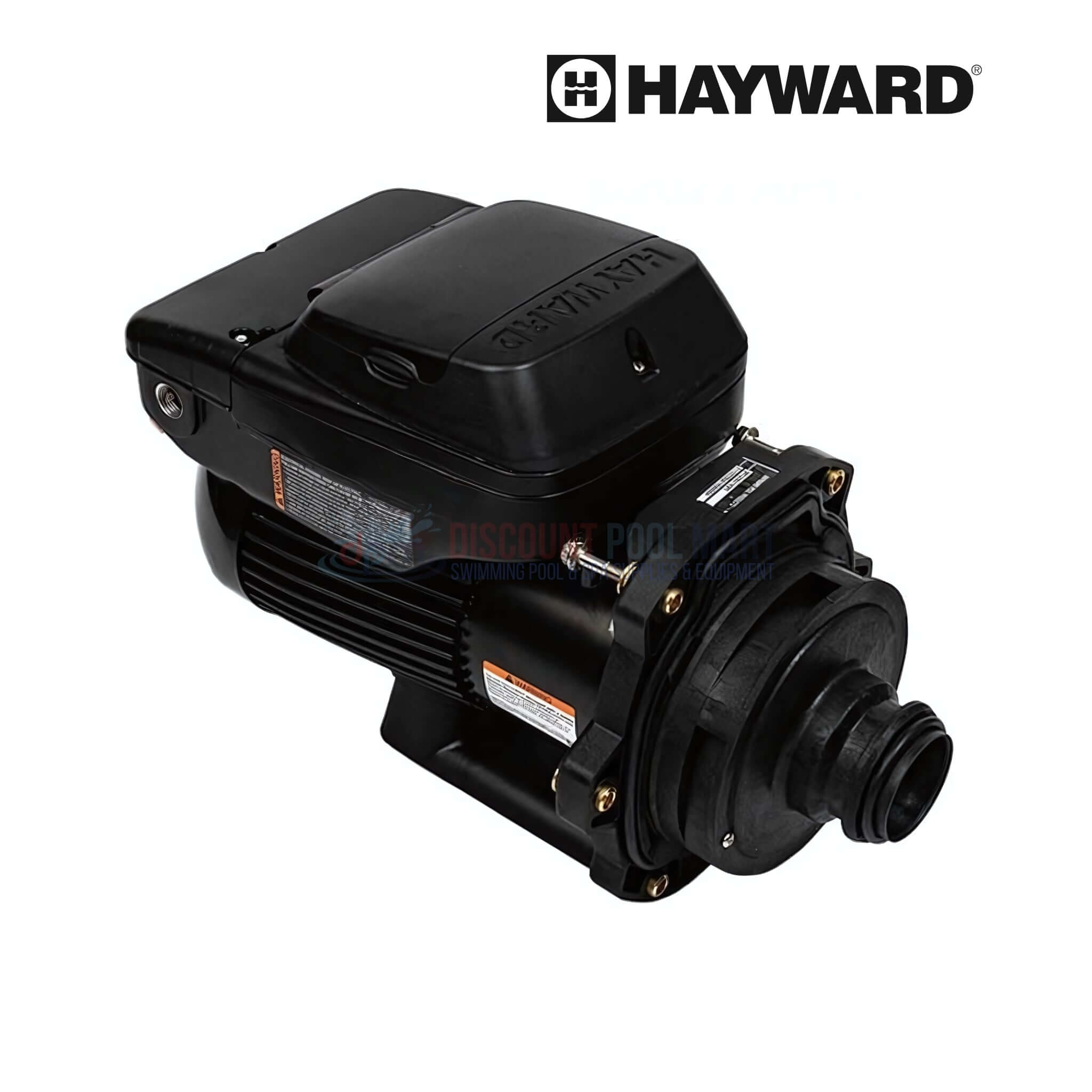

OEM Hayward SPX3206Z1VSPE Power End Assembly is a genuine replacement designed for Hayward TriStar VS 950 and EcoStar SP3400VSP pool pumps, featuring a 2.7 HP variable speed motor, integrated drive, display, and essential components including diffuser screws, O-rings, impeller screws, and a shaft seal assembly. This complete assembly enhances pump energy efficiency with potential savings up to 90% compared to traditional single-speed pumps, ensuring reliable system performance, improved water circulation, and reduced operational costs. Timely replacement of the power end assembly supports long-term pool pump efficiency and system longevity.
-
Genuine Hayward Assembly Replacement: Fits TriStar VS 950 and EcoStar SP3400VSP pool pump models with precise compatibility
-
2.7 HP Variable Speed Efficiency: Offers improved energy savings up to 90% over standard single-speed pool pump motors
-
Complete Power End Kit: Includes motor, drive, display, shaft seal assembly, O-rings, diffuser, impeller screws, and hardware
-
Boosts Water Circulation and Reliability: Supports consistent pump operation while minimizing energy consumption and wear
-
Essential System Upgrade: Helps maintain efficient pump performance and extends the operational life of your pool system
- (1) Motor
- (1) Drive
- (1) Display
- (1) SPX3200Z8 - Diffuser Screw
- (1) SPX4000Z1 - Diffuser O-Ring
- (1) SPX3200B3 - Diffuser
- (1) SPX3200Z1 - Impeller Screw
- (1) SPX3021R - Impeller Ring
- (1) SPX3220C - Impeller w/ Impeller Screw
- (1) SPX3200SA - Shaft Seal Assembly
- (1) SPX3200T - Housing O-Ring
- (1) SPX3200E - Seal Plate
- (4) SPX3200Z5 - Motor Bolts
- Hayward Tristar VS 950 Pumps
