Jandy VS FloPro DV2A Variable Speed Pump Replacement Parts Diagram

Interactive parts diagram

30 parts · 2 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

    • Not sold online Jandy motor and drive for VS FloPro: 1.85 HP R0856200, 2.7 HP R0816800, 3.8 HP R0937400 R0816800Call us and we'll get it for you.
  1. Horsepower
  2. Horsepower
  3. Horsepower
    • Not sold online Jandy diffuser O-ring, R0622000 R0622000Call us and we'll get it for you.
    • Not sold online Jandy motor mounting foot for FloPro, R0479900 R0479900Call us and we'll get it for you.
    • Not sold online Jandy backplate O-ring for FloPro, R0480300 R0480300Call us and we'll get it for you.
    • Not sold online Jandy tailpiece O-ring for FloPro, R0337600 (2 needed) R0337600Call us and we'll get it for you.
    • Not sold online Jandy backplate hardware kit for FloPro, R0480500 R0480500Call us and we'll get it for you.
    • Not sold online Jandy motor mounting bolts and washers, R0446700 (4 needed) R0446700Call us and we'll get it for you.
    • Not sold online Jandy small adjustable base with spacers for FloPro, R0486700 R0486700Call us and we'll get it for you.
    • Not sold online Jandy impeller mounting screw with O-ring, R0515400 R0515400Call us and we'll get it for you.
    • Not sold online Jandy large adjustable base for FloPro pumps, R0546400 R0546400Call us and we'll get it for you.
    • Not sold online Jandy wiring compartment lid, gasket and screws, R0851400 R0851400Call us and we'll get it for you.
    • Not sold online Jandy RS485 access cover with retaining screw, R0851500 R0851500Call us and we'll get it for you.
    • Not sold online Jandy fan shroud with mounting screws, R0851600 R0851600Call us and we'll get it for you.
    • Not sold online Jandy wiring port plugs, R0917100 (4 needed) R0917100Call us and we'll get it for you.
    • Not sold online Jandy SpeedSet mounting kit for DV2A(S) pumps, R0925100 R0925100Call us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Also fits your Jandy VS FloPro DV2A Variable Speed Pump

Not shown on the diagram, but made for this pump.

Fit guide

Which VS FloPro part fits your pump?

Find the model on your pump label (VSFHP185DV2A, VSFHP270DV2A or VSFHP3802A; S means SpeedSet controller included). Part numbers come from Jandy's replacement parts pages in the Fluidra 2026 product catalog.

Impeller and diffuser by pump model

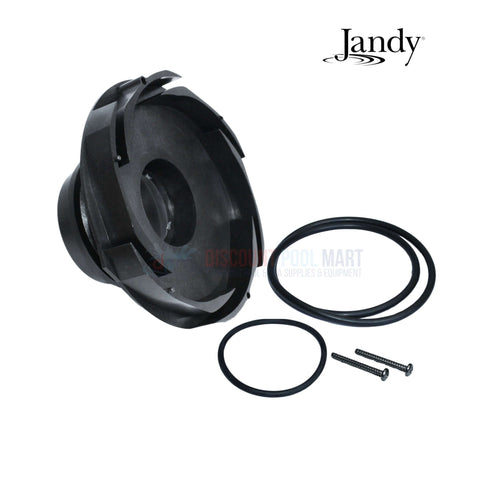

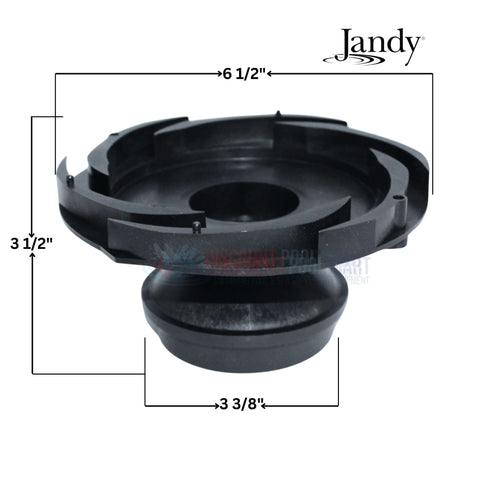

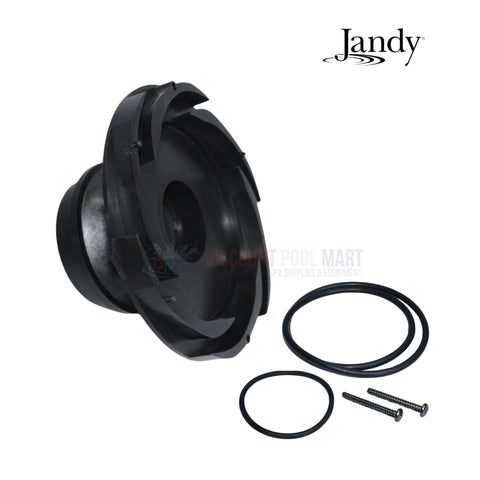

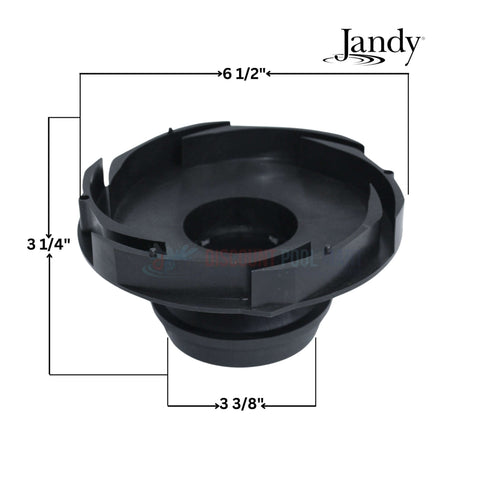

Jandy notes the R0479605 impeller and R0479701 diffuser fit the older VSFHP270AUT and VSFHP270JEP only, not the newer 2.7 HP DV2A models.

Drive only

1.85 HP DV2A
R0974401
2.7 HP DV2A
R0974400
3.8 HP 2A
R0974403

Seal & O-rings

Shaft seal all models
R0479400 U.S. Seal PS-3890
Backplate O-ring
R0480300
Tailpiece O-ring set of 2
R0337600
