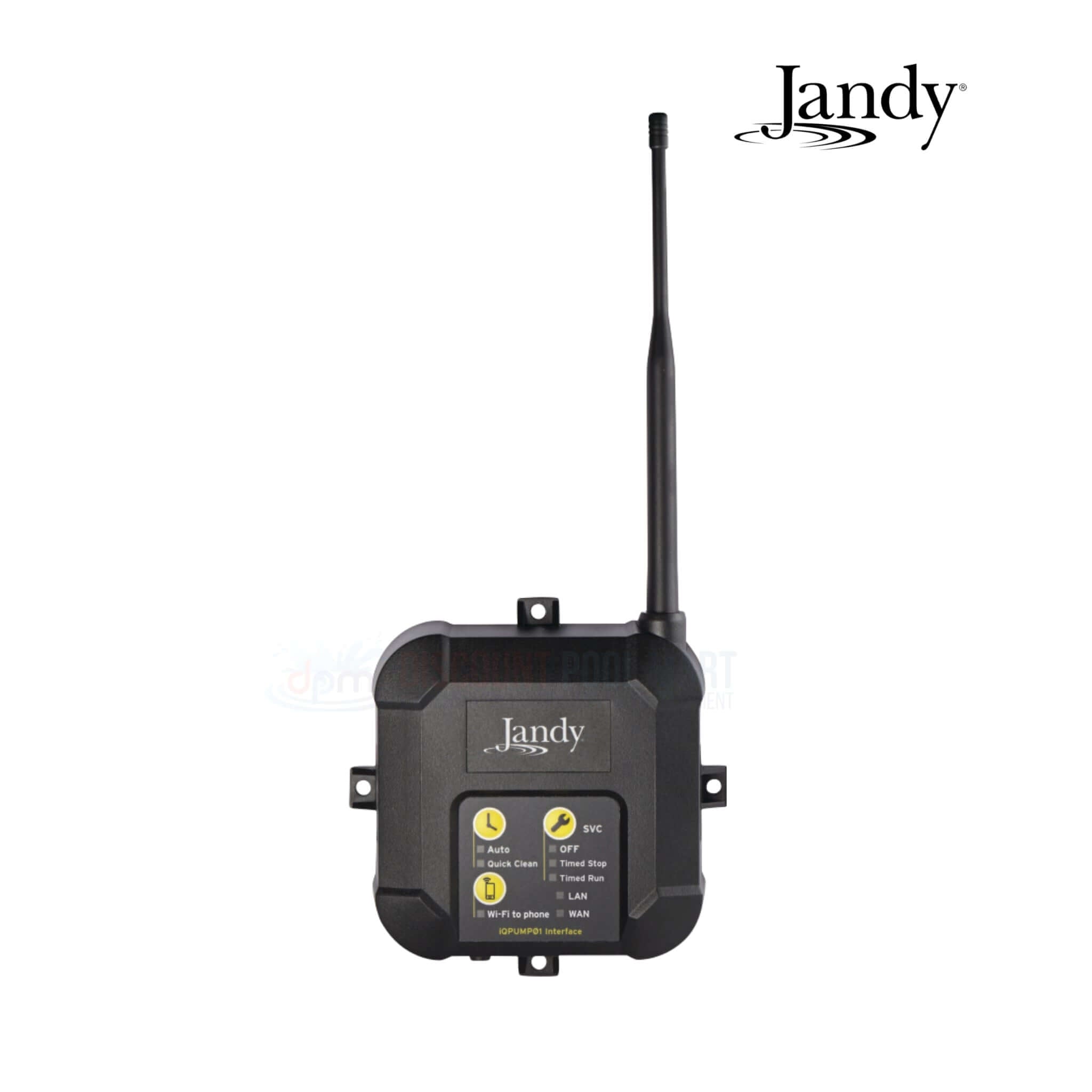

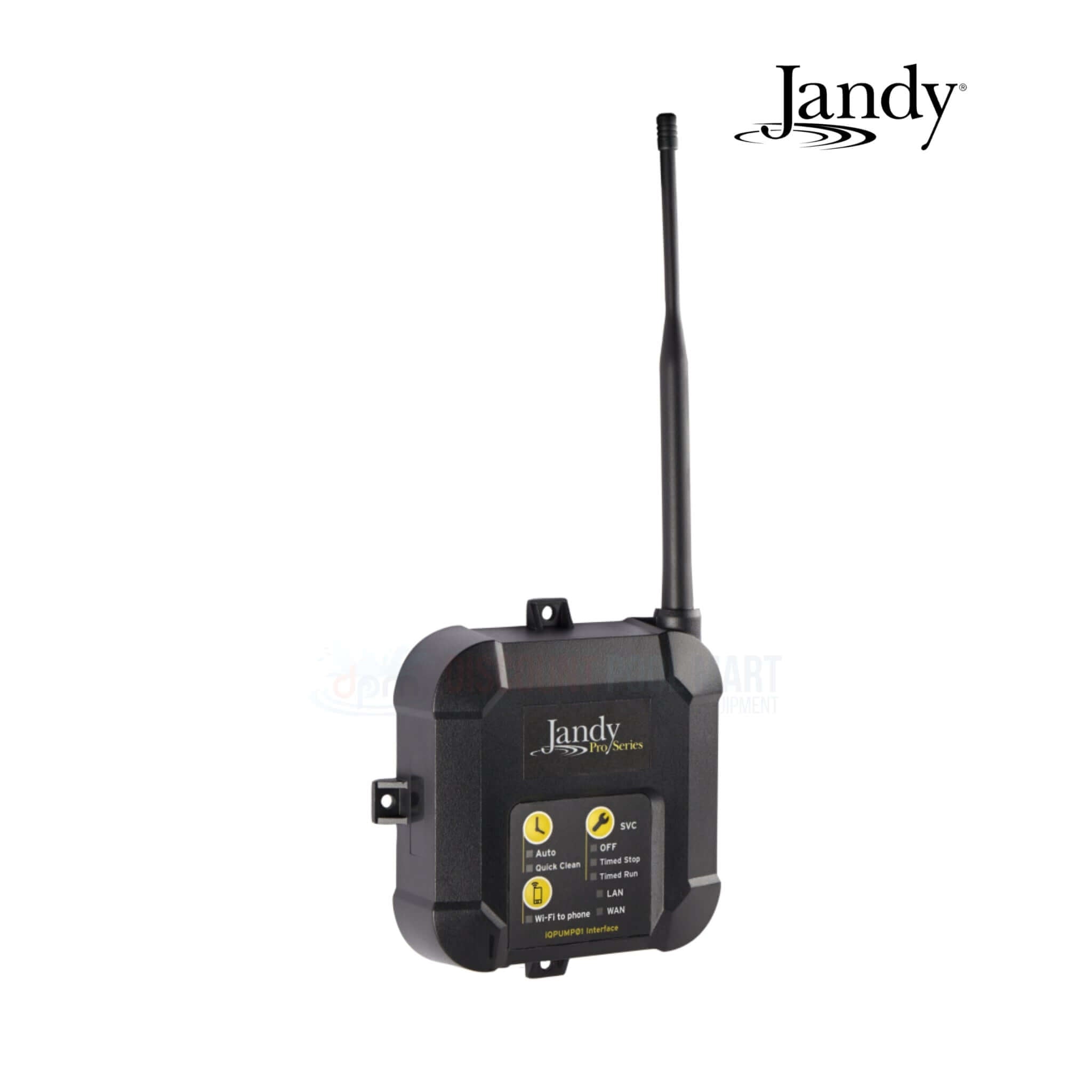

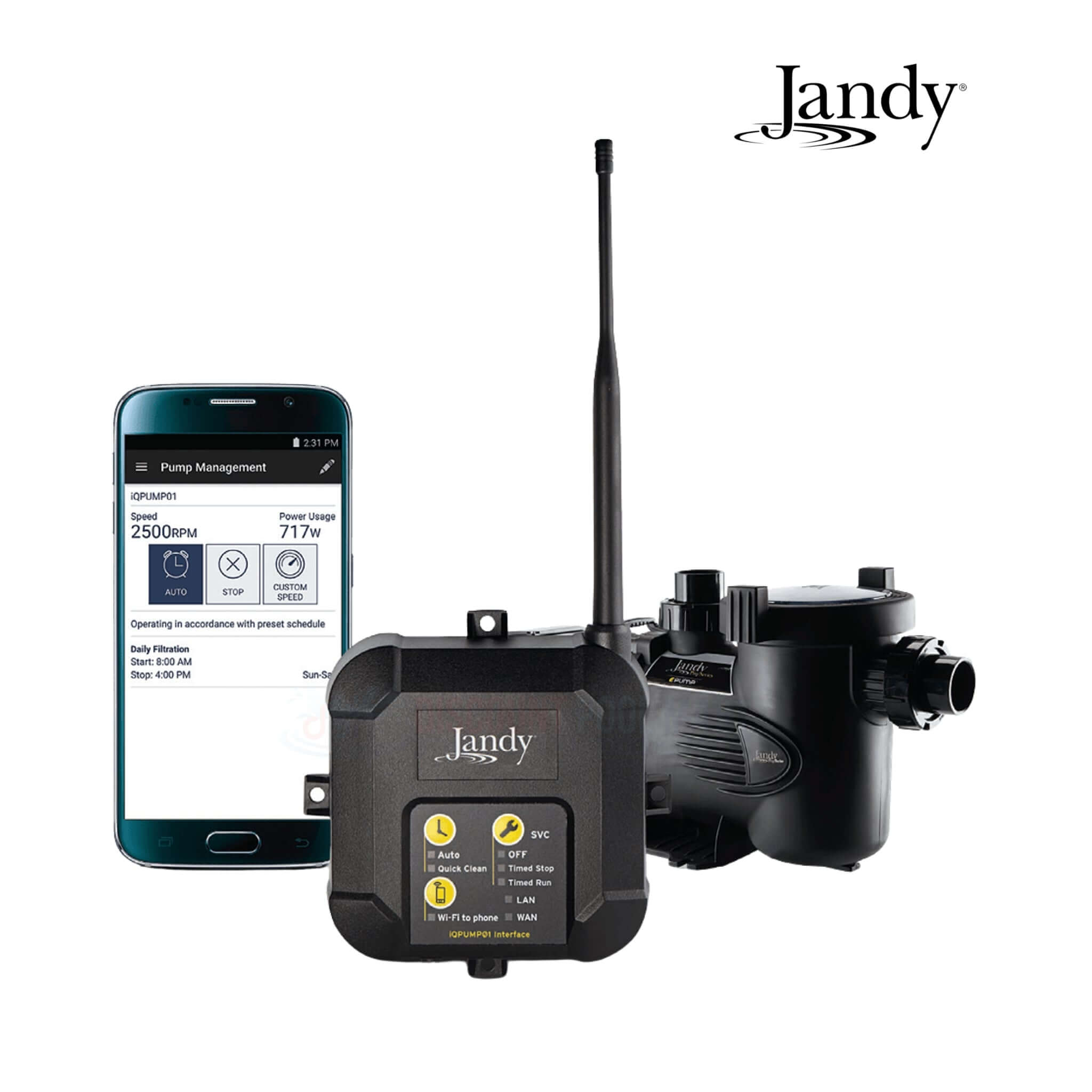

IQPUMP01 Pump Automation System

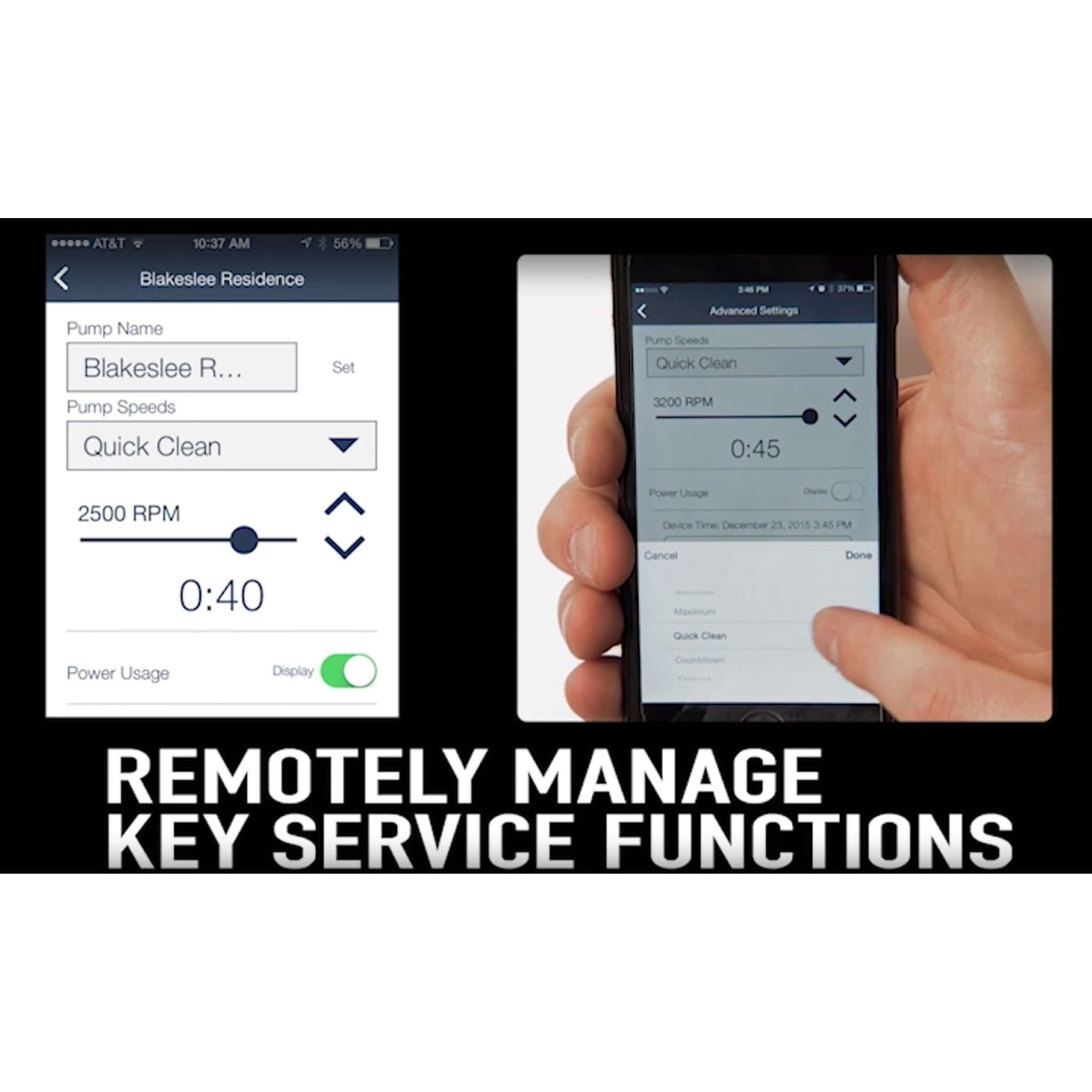

The Jandy iQPUMP01 Pool Pump Automation System is a powerful smart controller that upgrades Jandy variable-speed pumps with full mobile control. It connects directly to all Jandy Pro Series variable-speed models and does not require a JEP-R interface or full automation system. Built-in Wi-Fi hotspot technology allows for quick and easy setup on-site—even in locations without internet access. Once connected to the iAquaLink smartphone app, users can program pump cycles, manage over 10 daily schedules, and access key functions like Quick Clean, Timed Run/Stop, and freeze protection from any iOS or Android device.

Smart scheduling allows pumps to run during off-peak hours and at optimized RPMs, helping to reduce energy costs significantly. An integrated auxiliary relay enables control of a secondary device such as a booster pump or salt chlorinator. For added convenience, the unit features an onboard interface with simple button controls for Quick Clean,

Timed Run, Timed Stop, Wi-Fi setup, and Auto mode—no phone required. Designed for both pool professionals and homeowners, the iQPUMP01 simplifies pump programming, reduces on-site service calls, and maximizes energy efficiency.

Key Features
-
Wi-Fi-Enabled Smart Control: Built-in Wi-Fi hotspot allows for instant setup and mobile pump control—even in locations without home internet—making it ideal for both remote and standard installations.
-
Seamless App Integration with iAquaLink: Connects directly to the iAquaLink app for full access to pump features, including over 10 programmable daily schedules, Quick Clean, Timed Run/Stop, and freeze protection, all from your smartphone or tablet.
-
No Additional Interface Required: Works with all Jandy Pro Series variable-speed pumps without needing a separate JEP-R controller or full automation system—streamlining installation and reducing hardware costs.
-
Auxiliary Relay Included: Integrated relay allows the controller to operate a second device, such as a booster pump or salt chlorinator, from the same interface—enhancing flexibility and system efficiency.
-
Onboard Manual Controls: Features dedicated buttons for Quick Clean, Timed Run, Timed Stop, Auto mode, and Wi-Fi setup, allowing for full functionality without a mobile device—ideal for service professionals and backup control.
