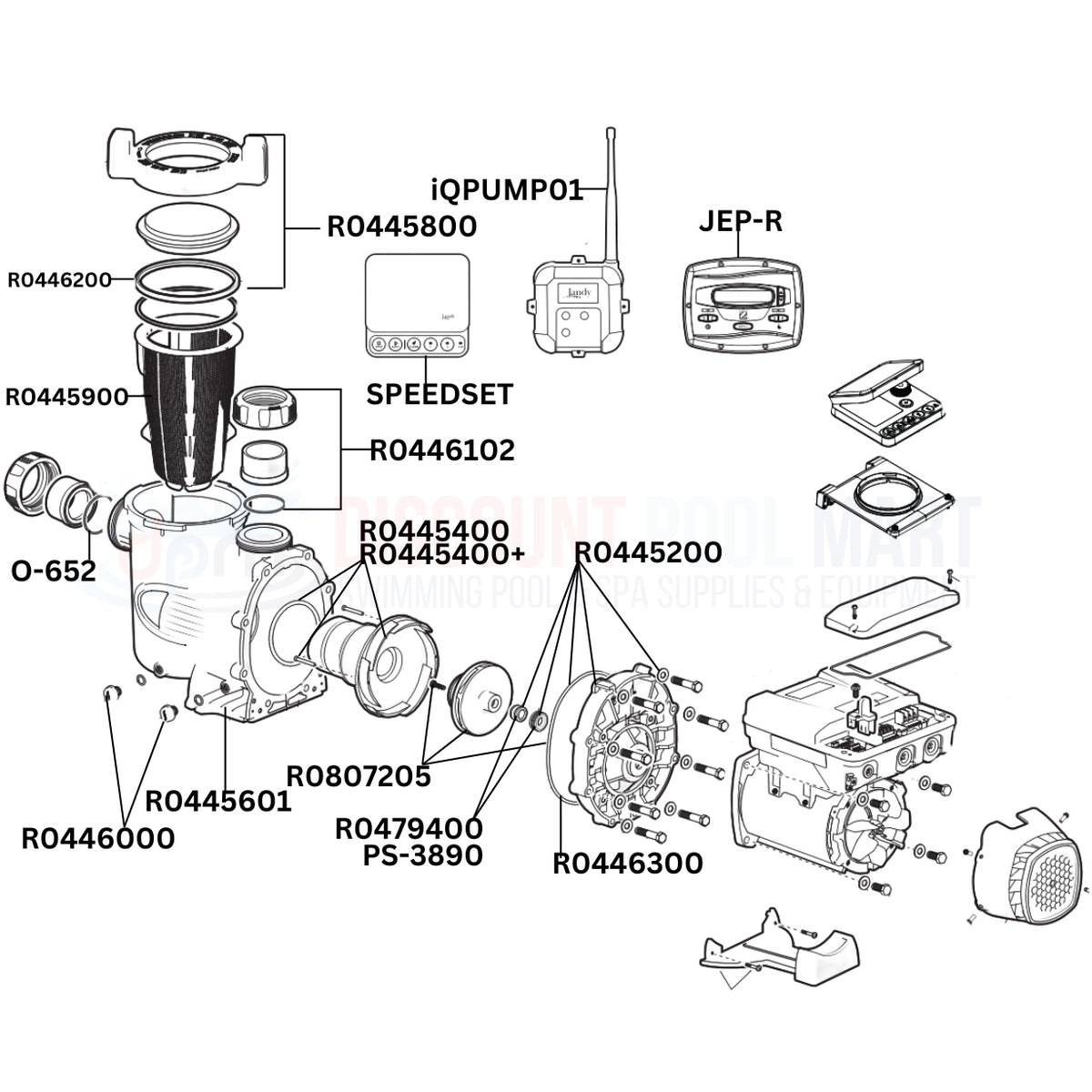

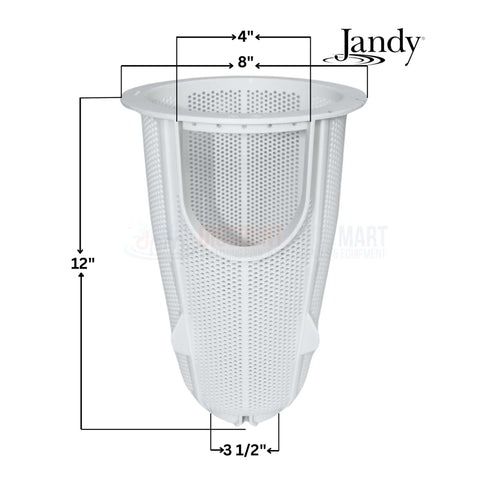

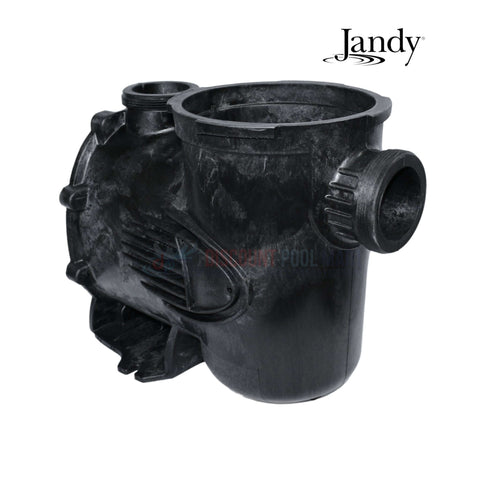

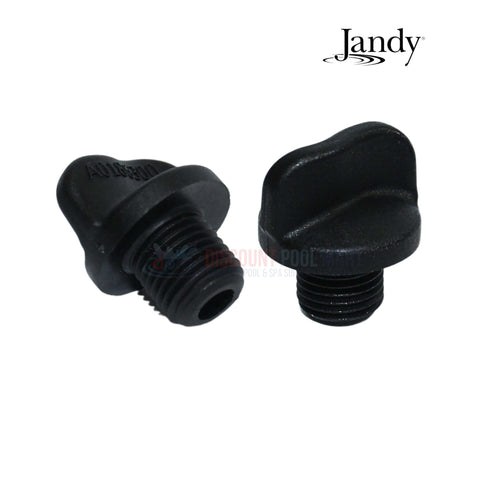

Jandy ePump 3.8 HP Variable Speed Pump Replacement Parts Diagram

Interactive parts diagram

29 parts · 2 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

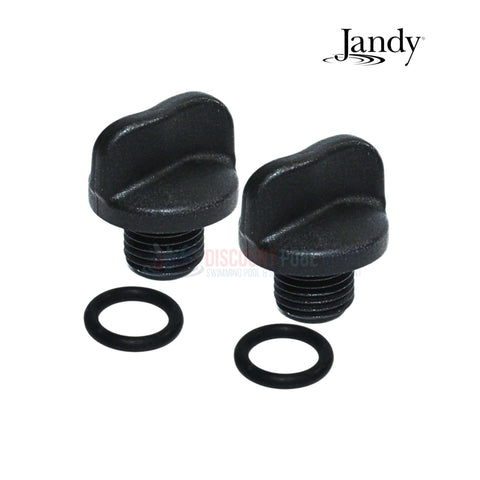

    • Not sold online Jandy motor and drive, 3.8 HP 2A models, R0937400 R0937400Call us and we'll get it for you.
    • Not sold online Jandy VS drive only, 3.8 HP 2A models, R0974403 R0974403Call us and we'll get it for you.
    • Not sold online Jandy impeller screw with O-ring, self-sealing, R0515400 R0515400Call us and we'll get it for you.

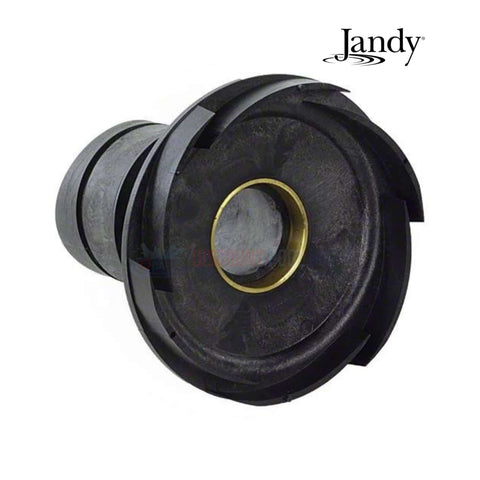

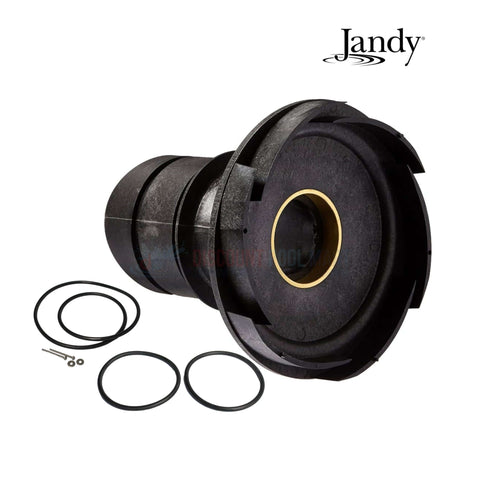

    • Not sold online Jandy diffuser O-ring, R0622000 R0622000Call us and we'll get it for you.
    • Not sold online Jandy motor foot and mounting screws, R0445700 R0445700Call us and we'll get it for you.
    • Not sold online Jandy blue pressure test O-ring, R0479000 R0479000Call us and we'll get it for you.

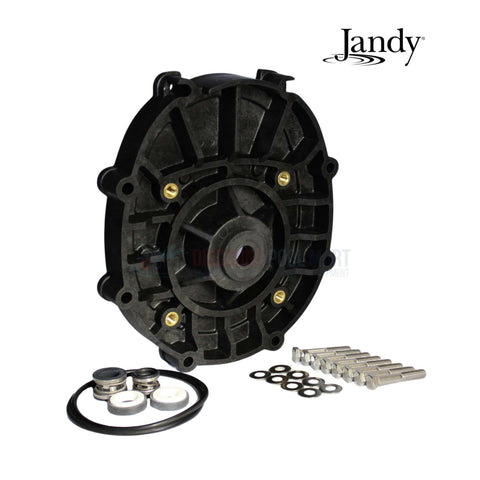

    • Not sold online Jandy backplate bolts and washers, R0446600 (8 needed) R0446600Call us and we'll get it for you.
    • Not sold online Jandy motor mounting bolts and washers, R0446700 (4 needed) R0446700Call us and we'll get it for you.
    • Not sold online Jandy wiring compartment lid, gasket and screws, R0851400 R0851400Call us and we'll get it for you.
    • Not sold online Jandy RS485 access cover with retaining screw, R0851500 R0851500Call us and we'll get it for you.
    • Not sold online Jandy fan shroud with mounting screws, R0851600 R0851600Call us and we'll get it for you.
    • Not sold online Jandy wiring port plugs, R0917100 (4 needed) R0917100Call us and we'll get it for you.
    • Not sold online Jandy SpeedSet mounting kit for DV2A(S) pumps, R0925100 R0925100Call us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Fit guide

Parts that differ on the 3.8 HP ePump

Find the model on your pump label (VSSHP220DV2A, VSSHP270DV2A or VSSHP3802A; an S at the end means SpeedSet controller included). Part numbers come from Jandy's replacement parts pages in the Fluidra 2026 product catalog.

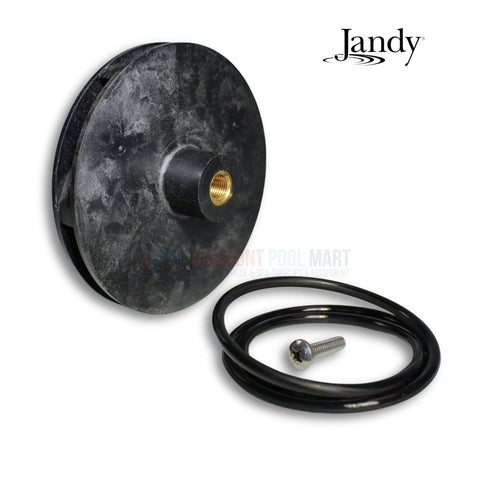

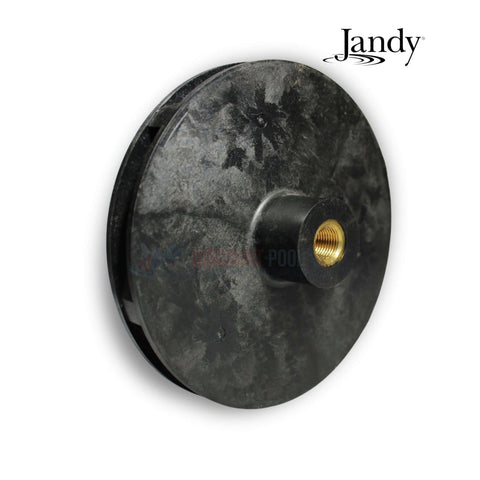

Impeller by pump model

Impeller kits include the screw and backplate O-ring.

Parts that change with HP

Union kit 2.2 / 2.7 HP
R0446101 2" × 2½"

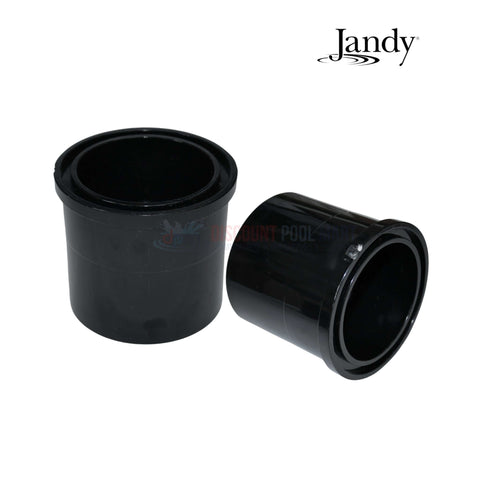

Union kit 3.8 HP
R0446102 2½" × 3"
Drive only 2.7 HP DV2A
R0974400
Drive only 2.2 / 3.8 HP
R0974402 / R0974403

Seal & O-rings

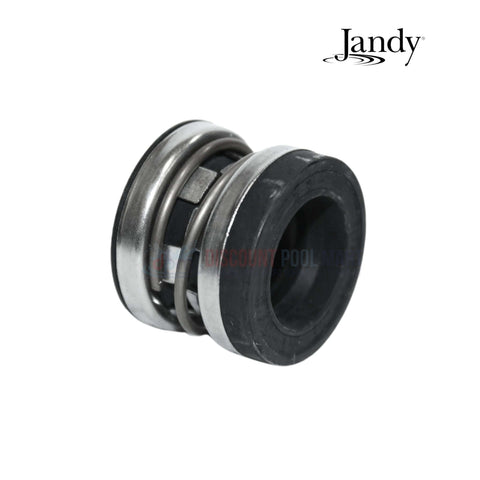

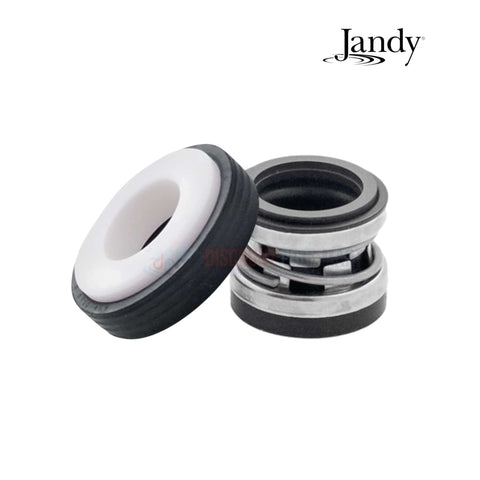

Shaft seal all models
R0479400 U.S. Seal PS-3890

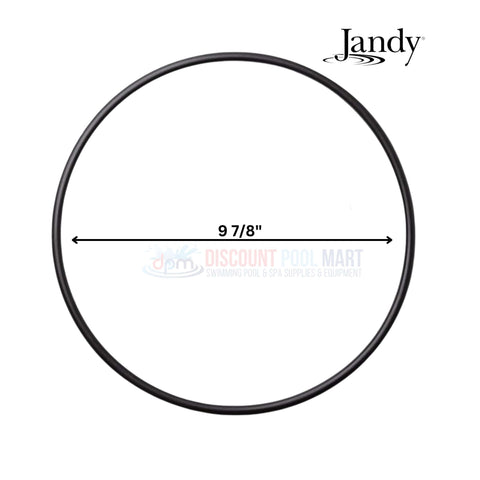

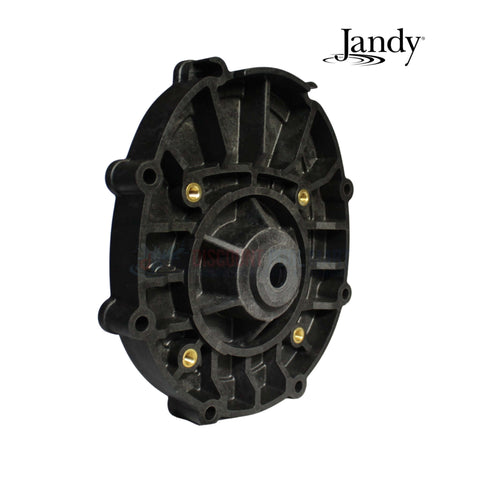

Backplate O-ring
R0446300 Aladdin O-521

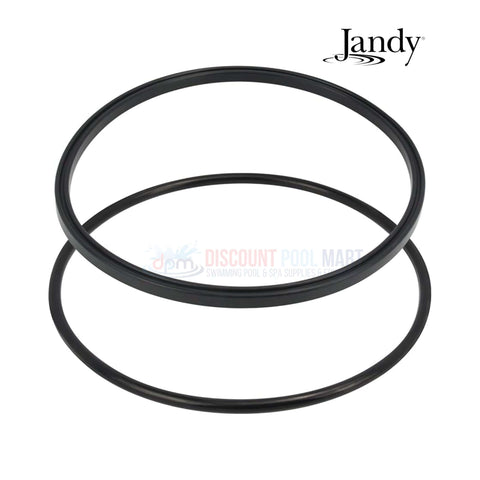

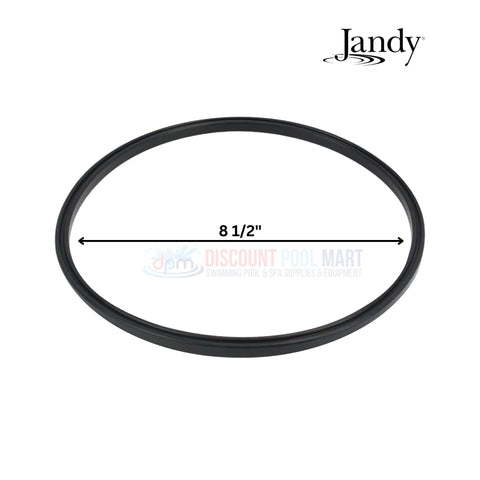

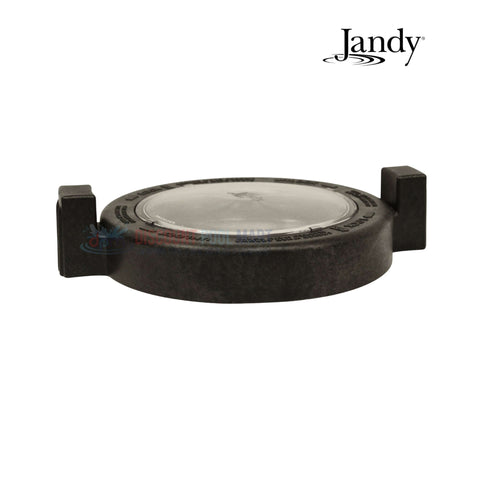

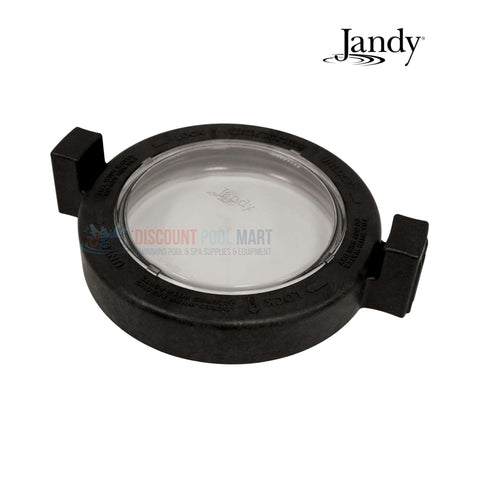

Lid seal
R0446200

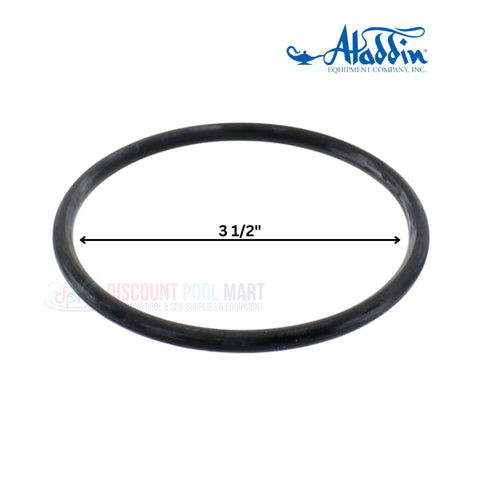

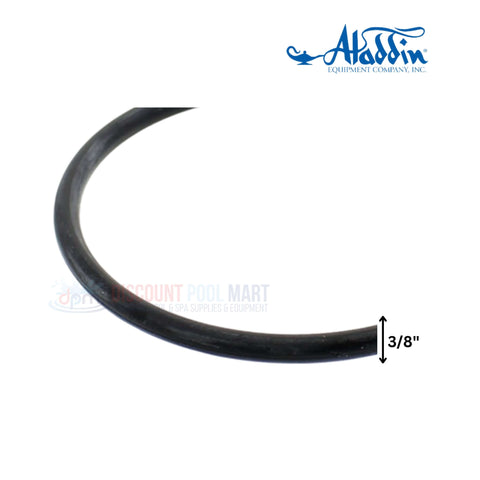

Tailpiece O-ring set of 2
R0446400 Aladdin O-652
