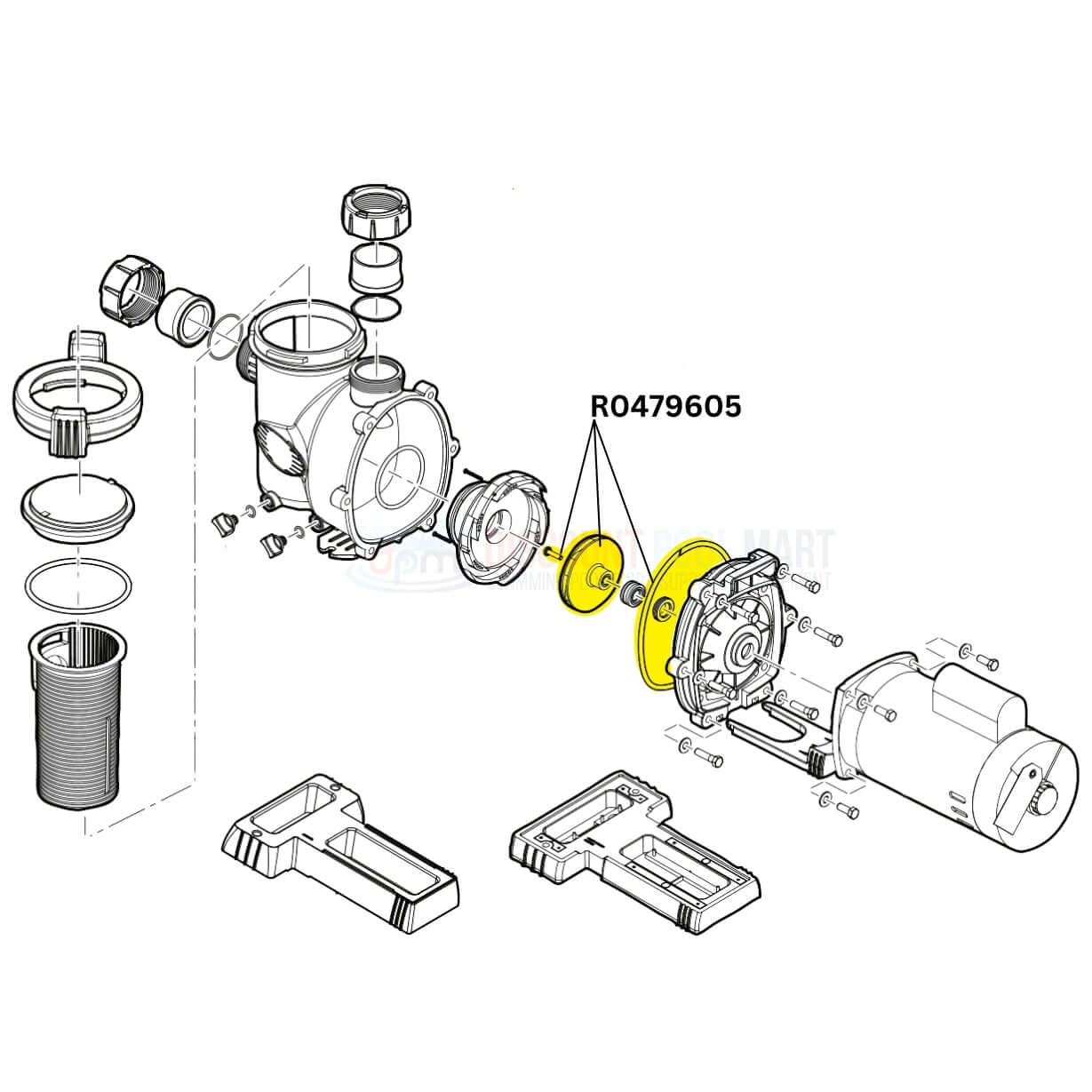

On the Jandy FloPro FHPM Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy FloPro FHPM Single Speed Pump

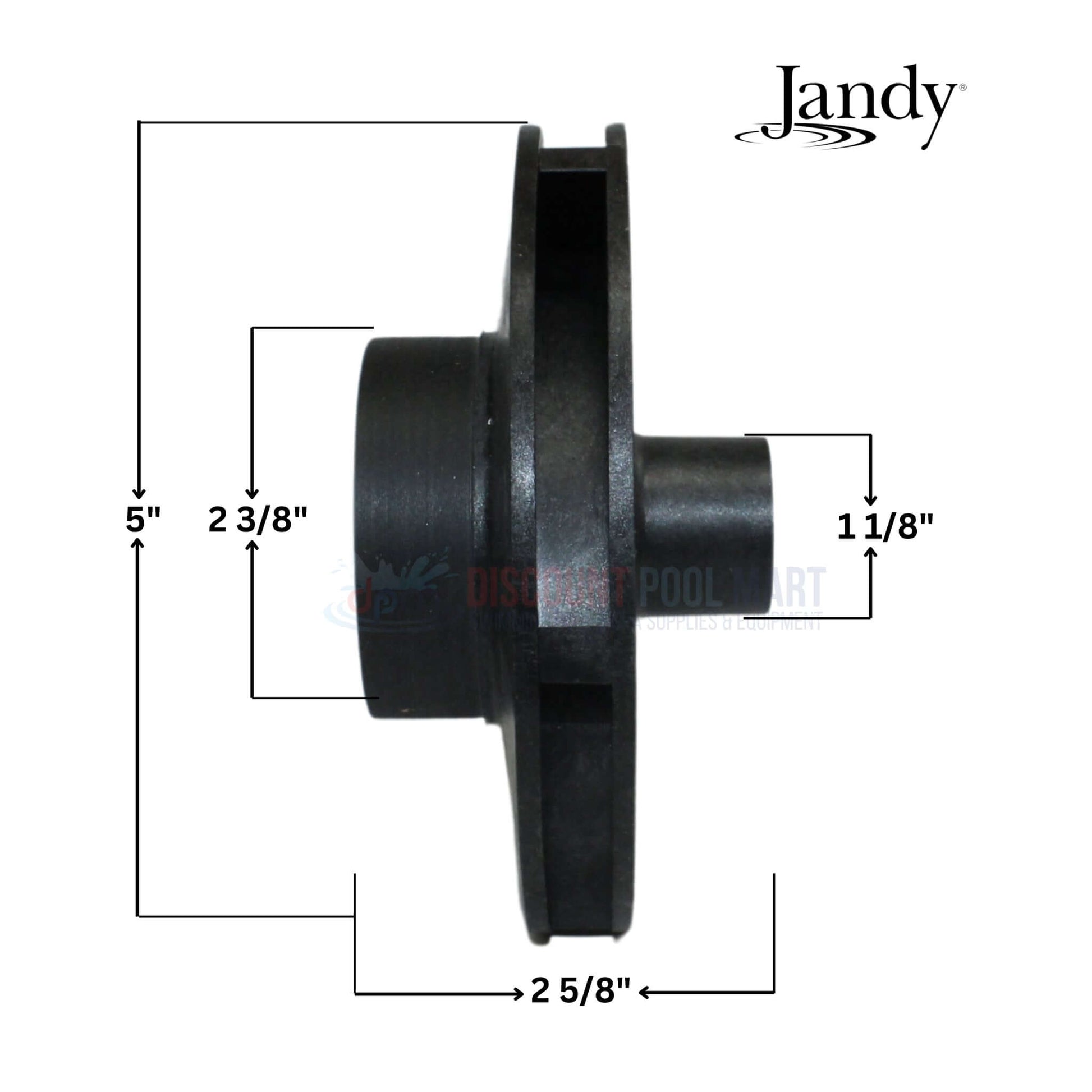

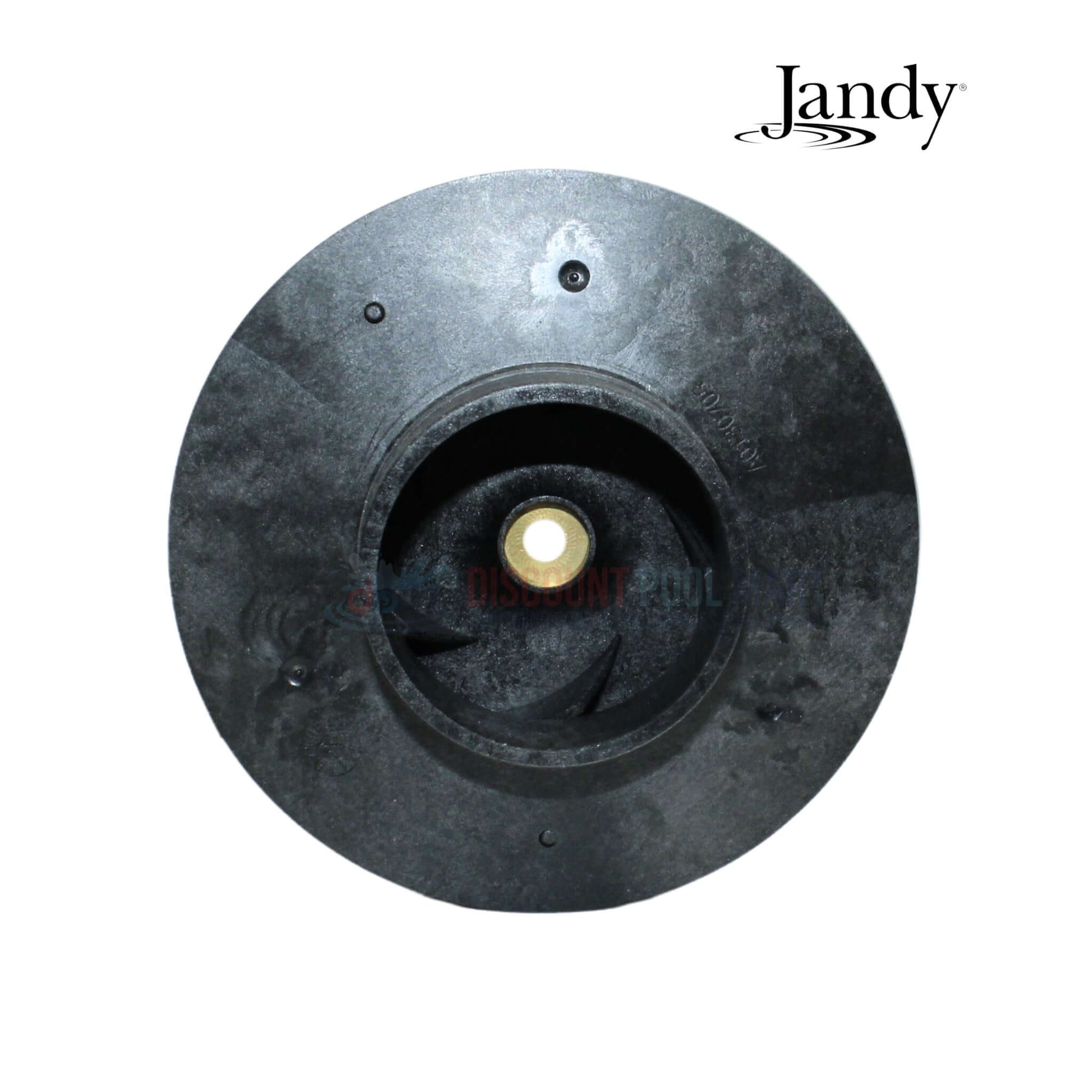

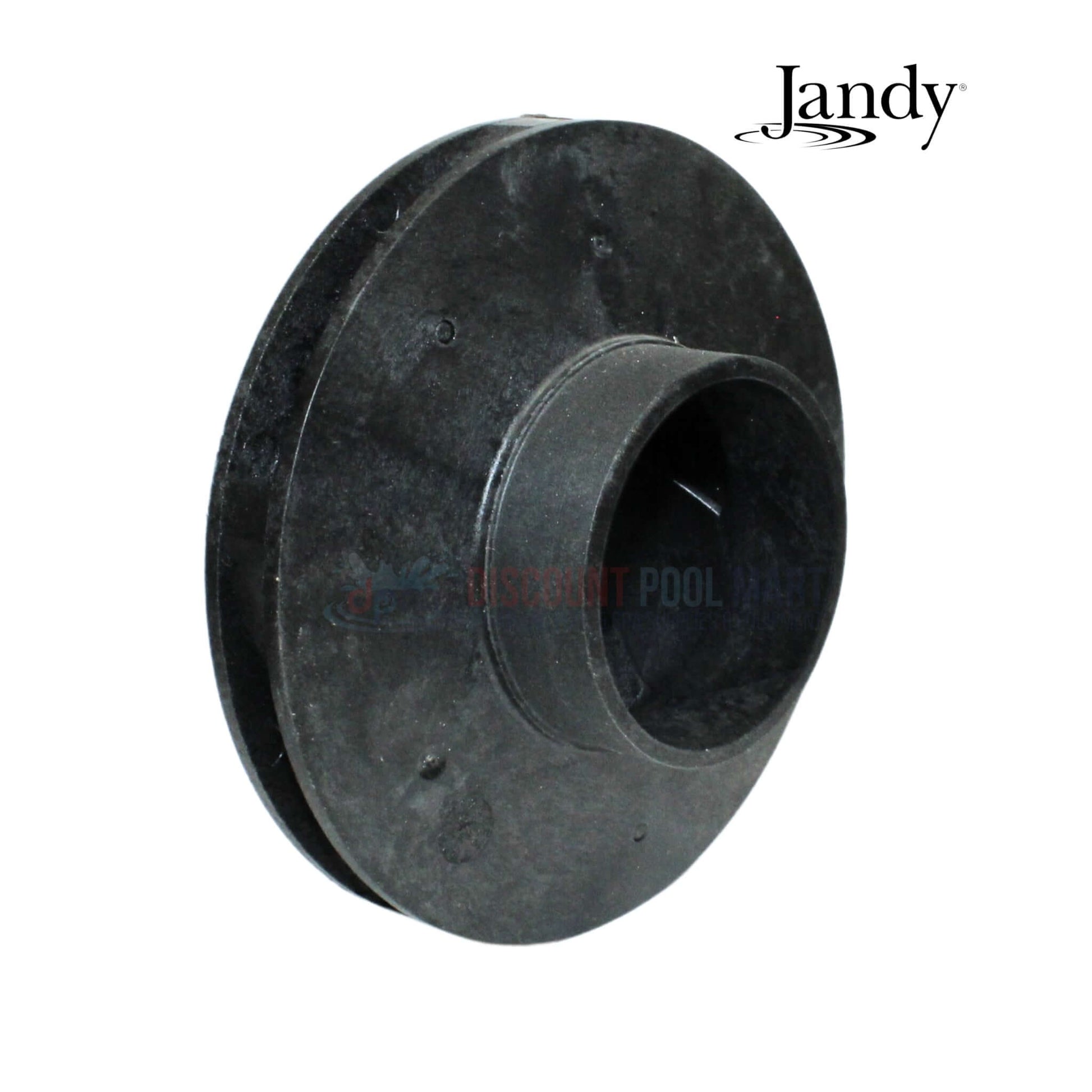

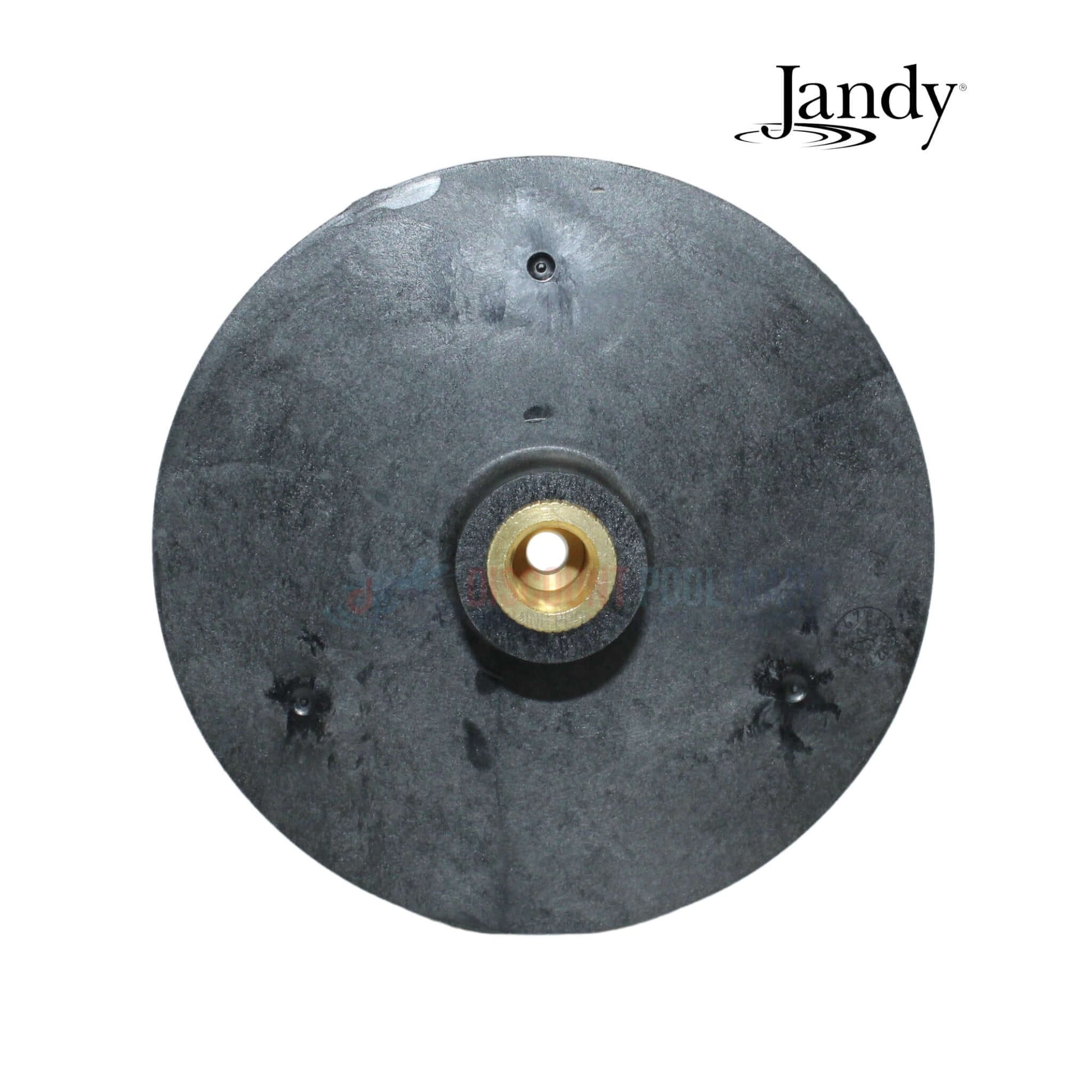

OEM Jandy Impeller and Screw Kit with O-Ring R0479605 is a replacement part engineered for use with Jandy FloPro FHPM Series 2.5 HP pumps. This kit includes a 2.5 HP impeller, an impeller screw, and a backplate O-ring, all designed to restore proper sealing and maintain water flow efficiency. Built from high-quality materials and crafted to OEM specifications, this component supports dependable performance and long-term pump operation. It’s a vital part for maintaining flow consistency and protecting your pool’s circulation system.
-
Precise Model Fit: Made specifically for 2.5 HP Jandy FloPro FHPM pumps to ensure proper alignment and high-performance operation
-
Complete OEM Kit: Contains a 2.5 HP impeller, screw, and backplate O-ring—everything required for a complete and effective repair
-
Promotes Steady Circulation: Helps maintain strong, consistent water flow and pressure through the pump for efficient system performance
-
Built for Longevity: Constructed from robust, wear-resistant materials designed to handle regular use and chemical exposure
-
Straightforward Installation: Easy to install and replace during routine maintenance to extend the service life of your pool pump

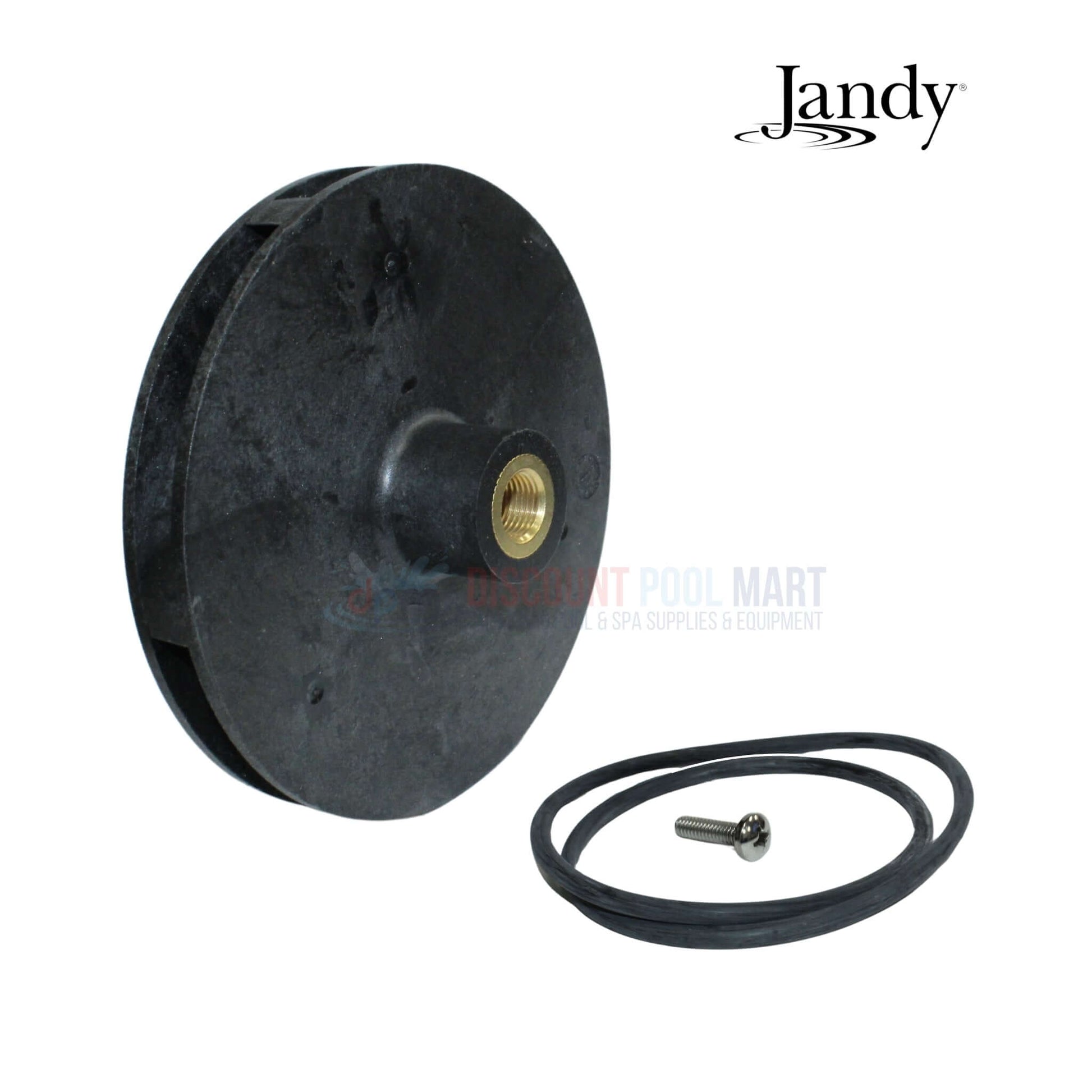

- (1) Jandy Impellers
- (1) Impeller Screw
- (1) Backplate O-Ring
- Jandy FloPro FHPM Series 2.5HP Pumps
