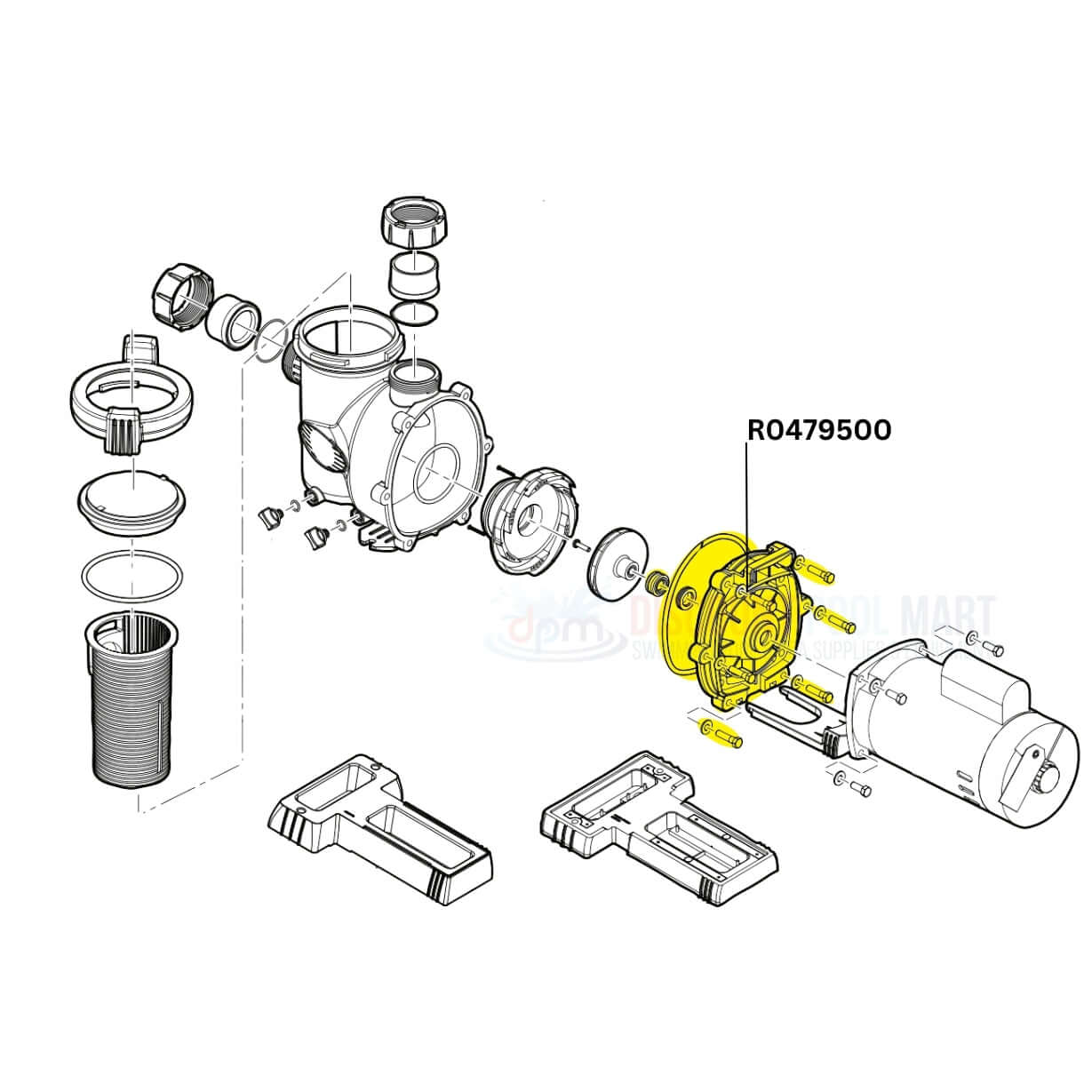

On the Jandy FloPro FHPM Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy FloPro FHPM Single Speed Pump

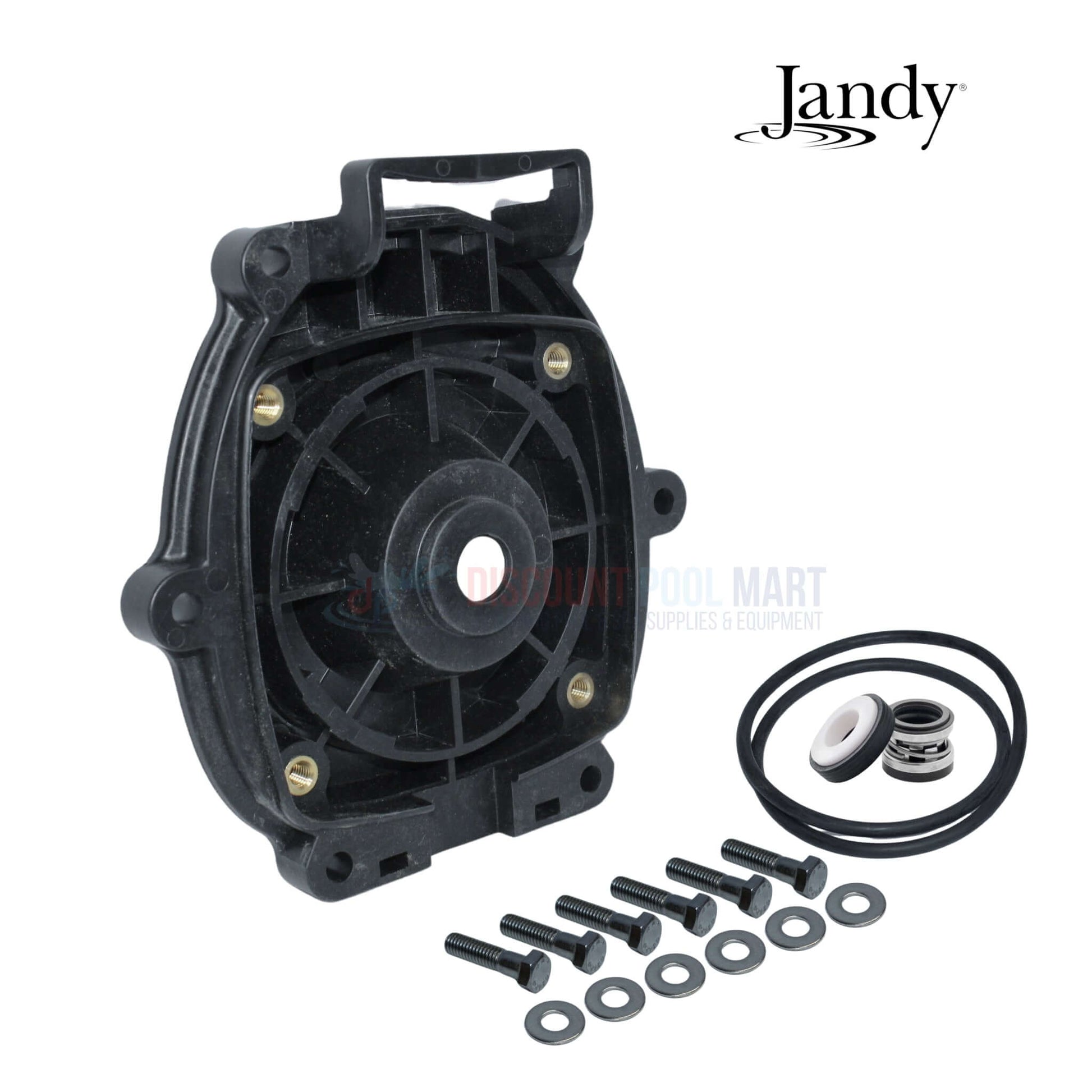

OEM Jandy Backplate Kit R0479500 is a complete replacement set designed for Jandy FloPro FHPM pumps, providing all the essential components to restore system function and efficiency. This kit includes the backplate, carbon and ceramic mechanical seals, backplate O-ring, and six bolts with washers to ensure secure installation and leak prevention. Built to meet OEM specifications, this durable kit supports long-term performance in demanding pool environments. It's an ideal choice for scheduled maintenance or full pump rebuilds.
-
All-In-One Repair Kit: Comes with backplate, both mechanical seals, O-ring, and six bolts with washers for a complete and effective pump rebuild
-
Restores Peak Performance: Helps your FloPro pump maintain strong water circulation and sealing performance by replacing key components
-
Built to Withstand Use: Manufactured from durable materials to handle exposure to water pressure, heat, and pool chemicals
-
Simplifies Installation: Includes everything needed for a straightforward installation that minimizes system downtime
-
Preserves System Health: Prevents leaks and system stress by ensuring internal components are sealed and supported correctly
-

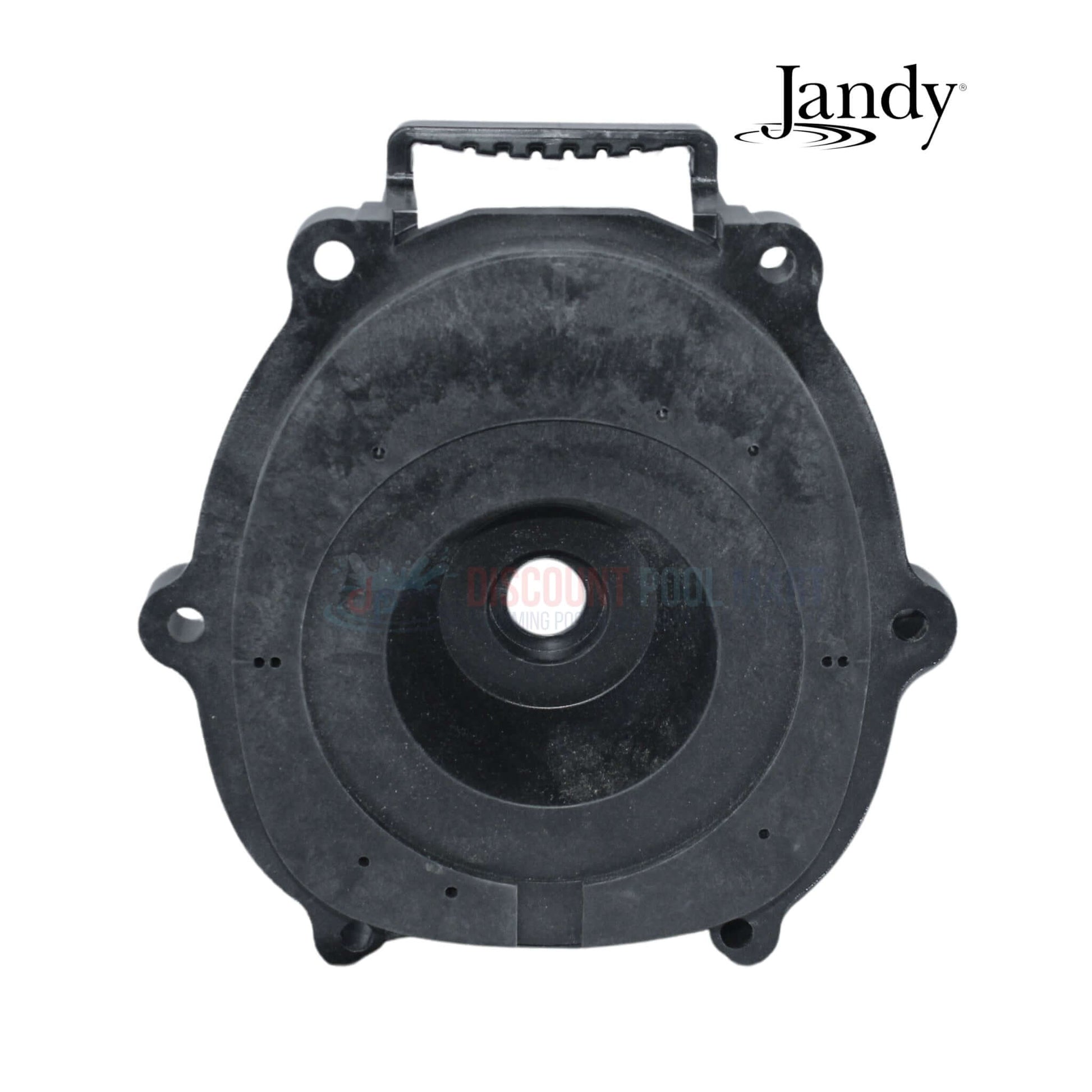

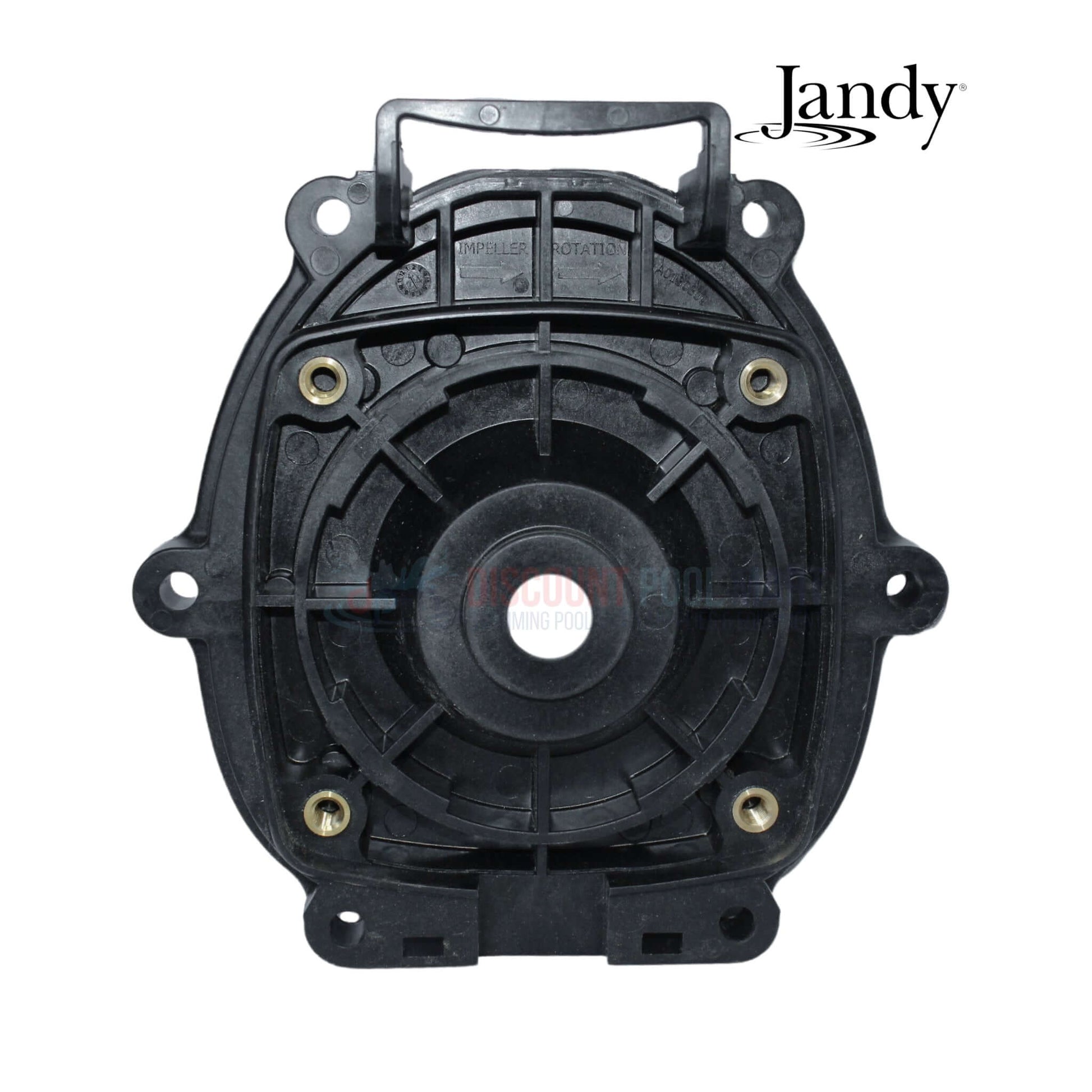

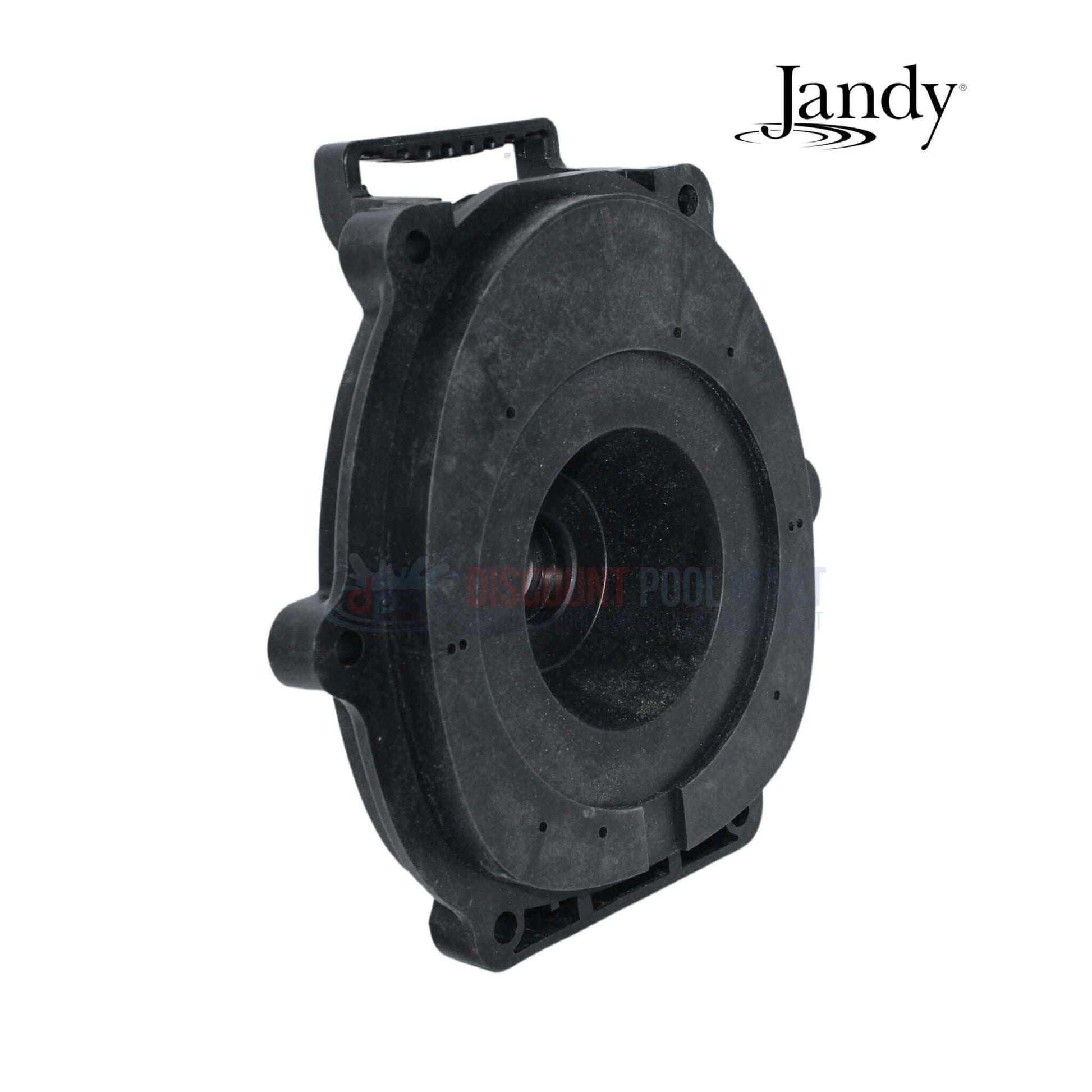

(1) Backplate

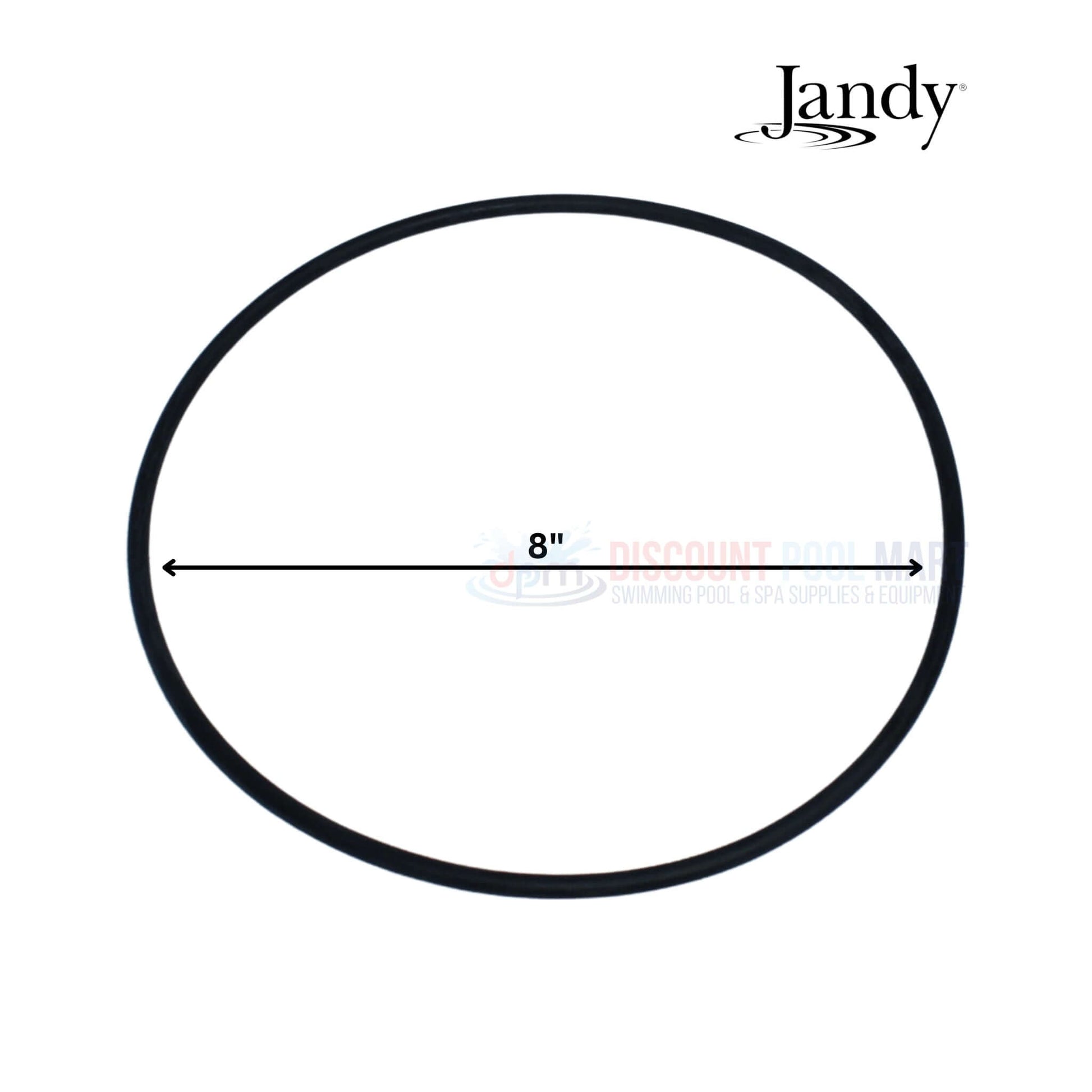

- (1) Backplate O-Ring

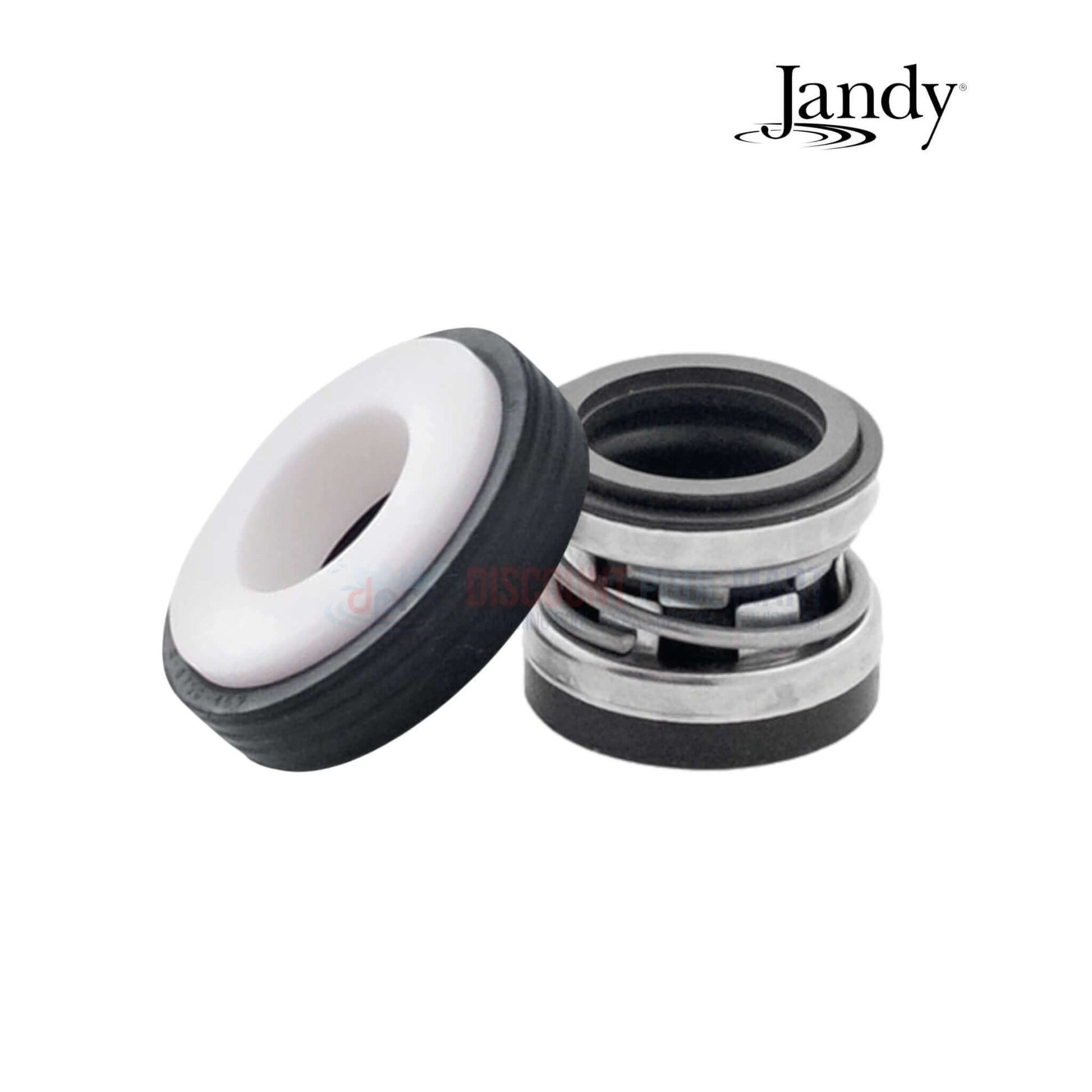

- (1) Mechanical Seal Assembly

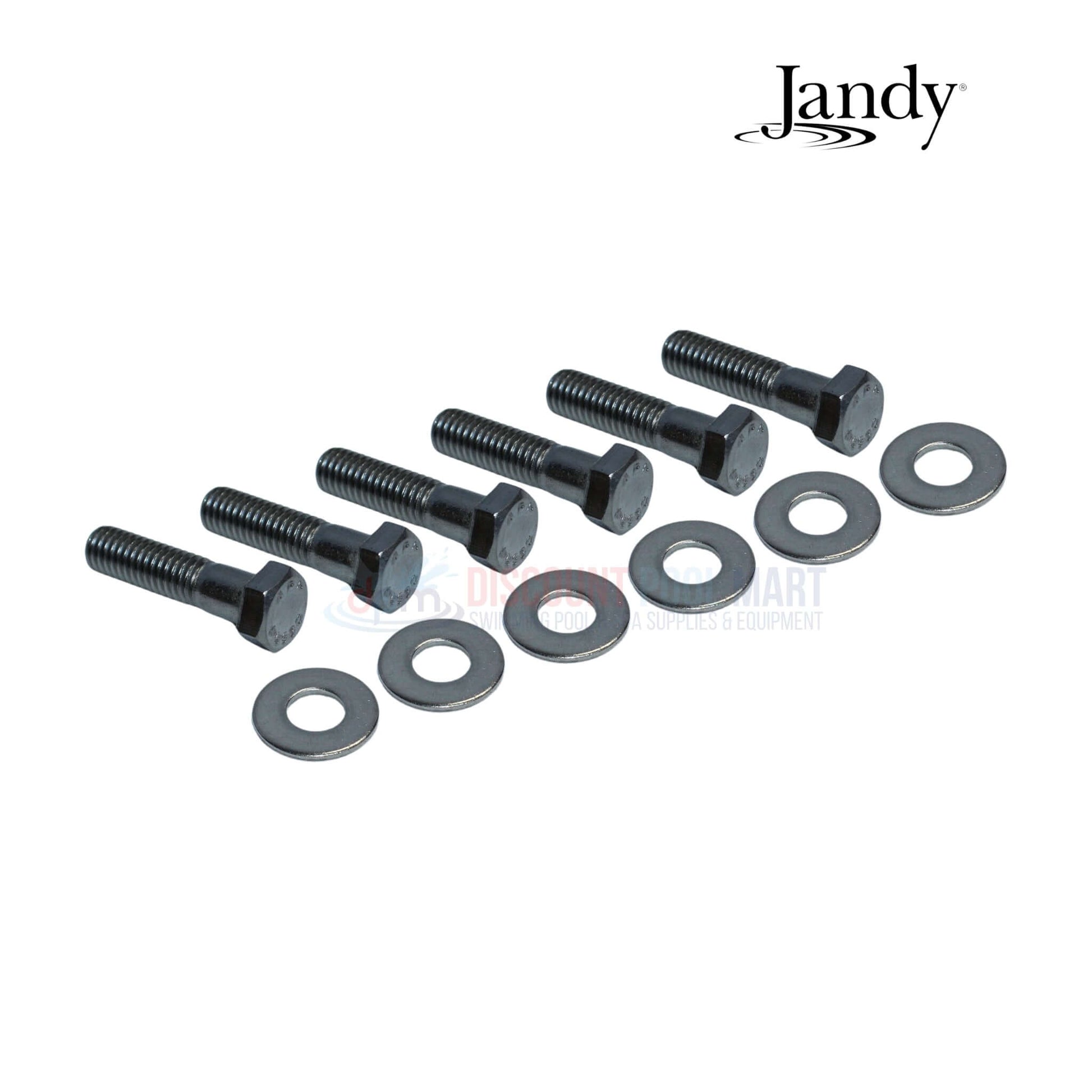

- (6) Bolts
- (6) Washers
- Jandy FloPro FHPM Series Pumps
