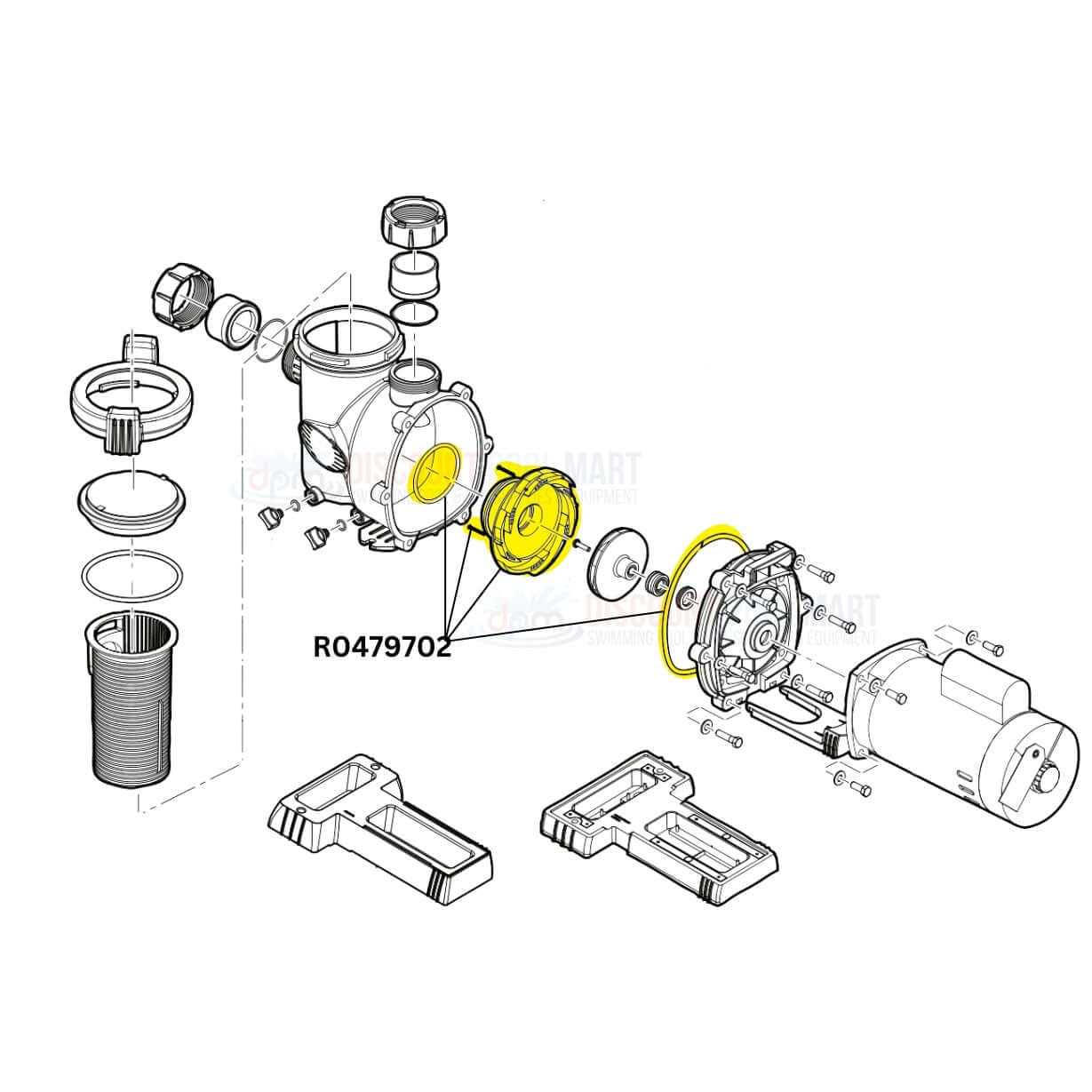

On the Jandy FloPro FHPM Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy FloPro FHPM Single Speed Pump

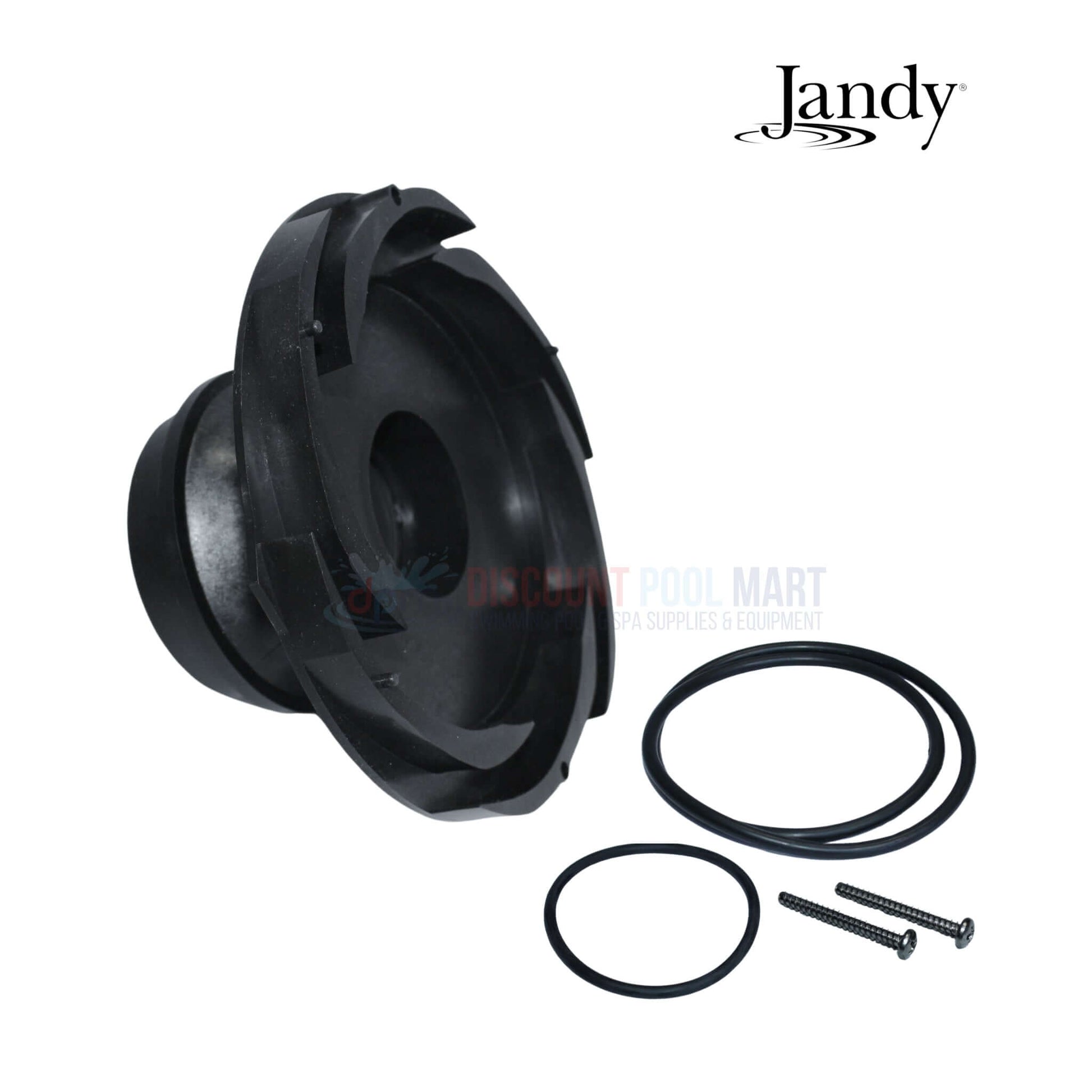

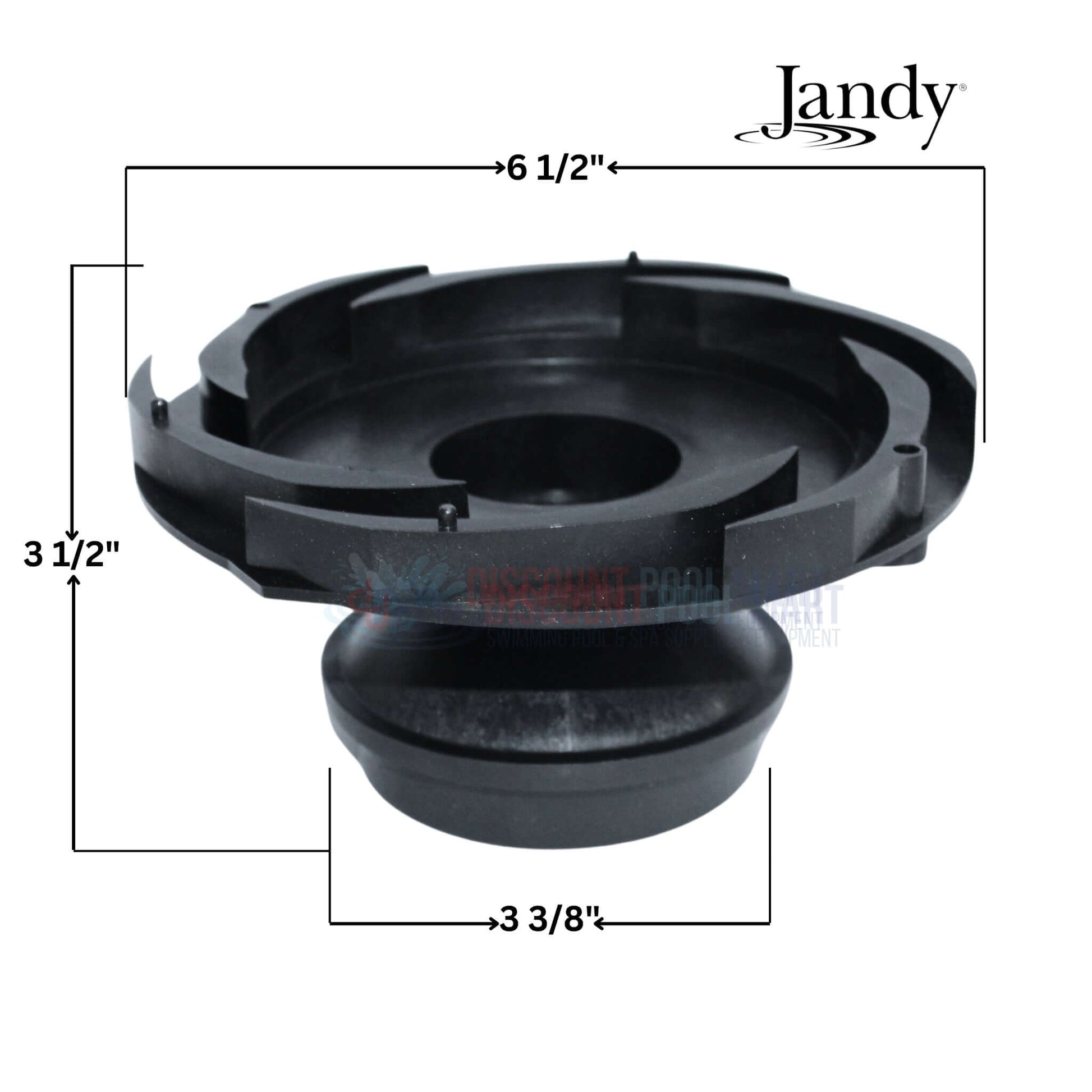

OEM Jandy Diffuser with O-Ring and Screw R0479702 is a replacement kit engineered for Jandy FloPro FHPM series pumps rated between 0.75 HP and 1 HP. This kit includes the diffuser, diffuser O-ring, backplate O-ring, and two mounting screws to ensure tight sealing and consistent water flow. Built to OEM specifications, it helps protect internal components from wear and supports reliable pump operation. Compatible with a range of FloPro models, this essential kit ensures your pool system stays leak-free and operating efficiently during regular maintenance or repair.
-
Restores Flow Efficiency: Maintains steady water circulation and pressure in smaller FloPro pumps, improving energy use and overall performance
-
Complete Repair Kit: Includes diffuser, O-ring for both the diffuser and backplate, and two screws—everything needed for a secure replacement
-
Long-Term Durability: Helps minimize internal wear by providing a tight seal that prevents leaks and water intrusion during operation
-
Flexible Model Fit: Compatible with multiple 0.75 to 1 HP FloPro FHPM models, making it ideal for servicing a variety of pump setups
-
Reliable System Operation: Keeps your pool system functioning smoothly by preserving pump integrity and supporting proper filtration cycles
- (1) Diffuser
- (1) Backplate O-Ring
- (1) Diffuser O-ring
- (2) Screws
- Jandy FloPro FHPM 0.75HP Pumps
- Jandy FloPro FHPM 1HP Pumps
