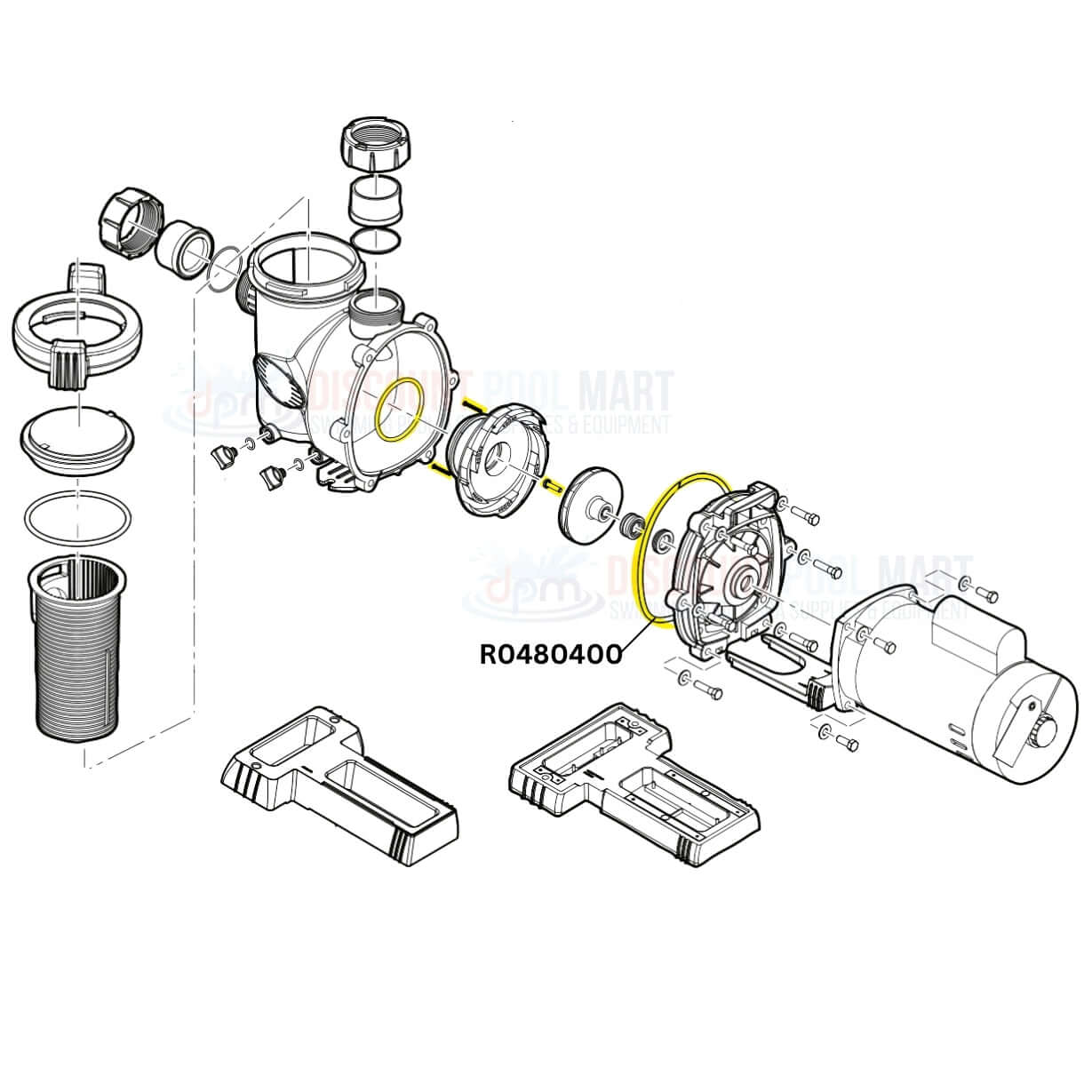

On the Jandy FloPro FHPM Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy FloPro FHPM Single Speed Pump

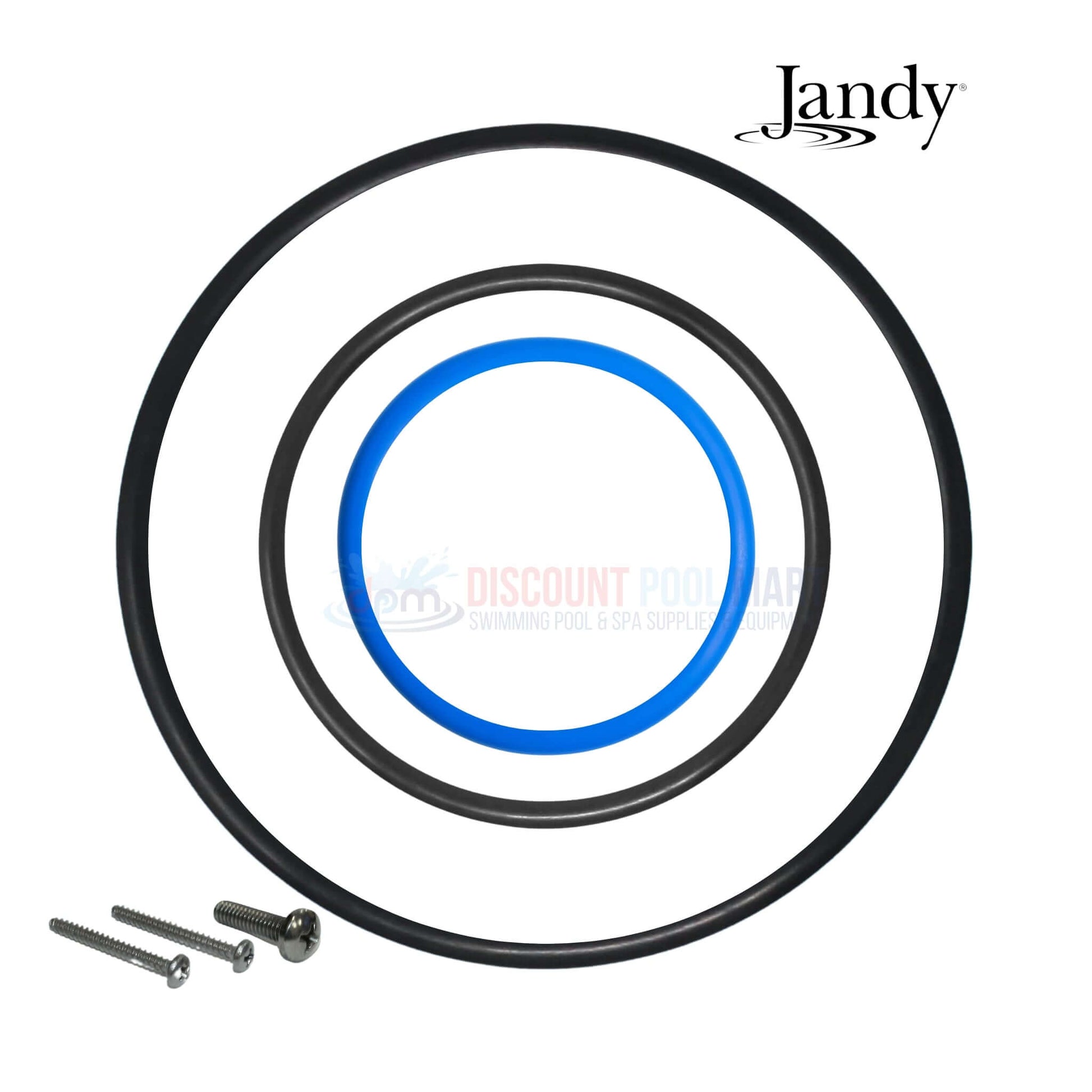

OEM Jandy Diffuser and Impeller Hardware and O-Ring Kit R0480400 is a complete maintenance set tailored for Jandy FloPro and VS FloPro pumps, including FHPM and VS-FHP1.0 models. This OEM kit includes a diffuser O-ring, backplate O-ring, two diffuser screws, and an impeller screw with O-ring to support secure, leak-free assembly. Designed to restore proper pump function and prevent wear-related failures, this kit is essential for routine upkeep. It helps maintain the reliability and water flow performance of your pool’s circulation system.
-
Full Maintenance Set: Contains key components to maintain pump performance, including diffuser and backplate O-rings, diffuser screws, and an impeller screw with O-ring
-
Critical Parts Included: Ensures a secure pump assembly with all necessary hardware to restore and maintain seal integrity
-
FloPro Series Compatible: Specifically designed for Jandy FHPM and VS-FHP1.0 models in the FloPro and VS FloPro lines
-
Leak Prevention Focus: Helps reduce risk of water leakage and component stress, contributing to consistent flow and system reliability
-
Maintenance-Ready Solution: Ideal for regular servicing, enabling proactive care that helps extend pump life and reduce downtime

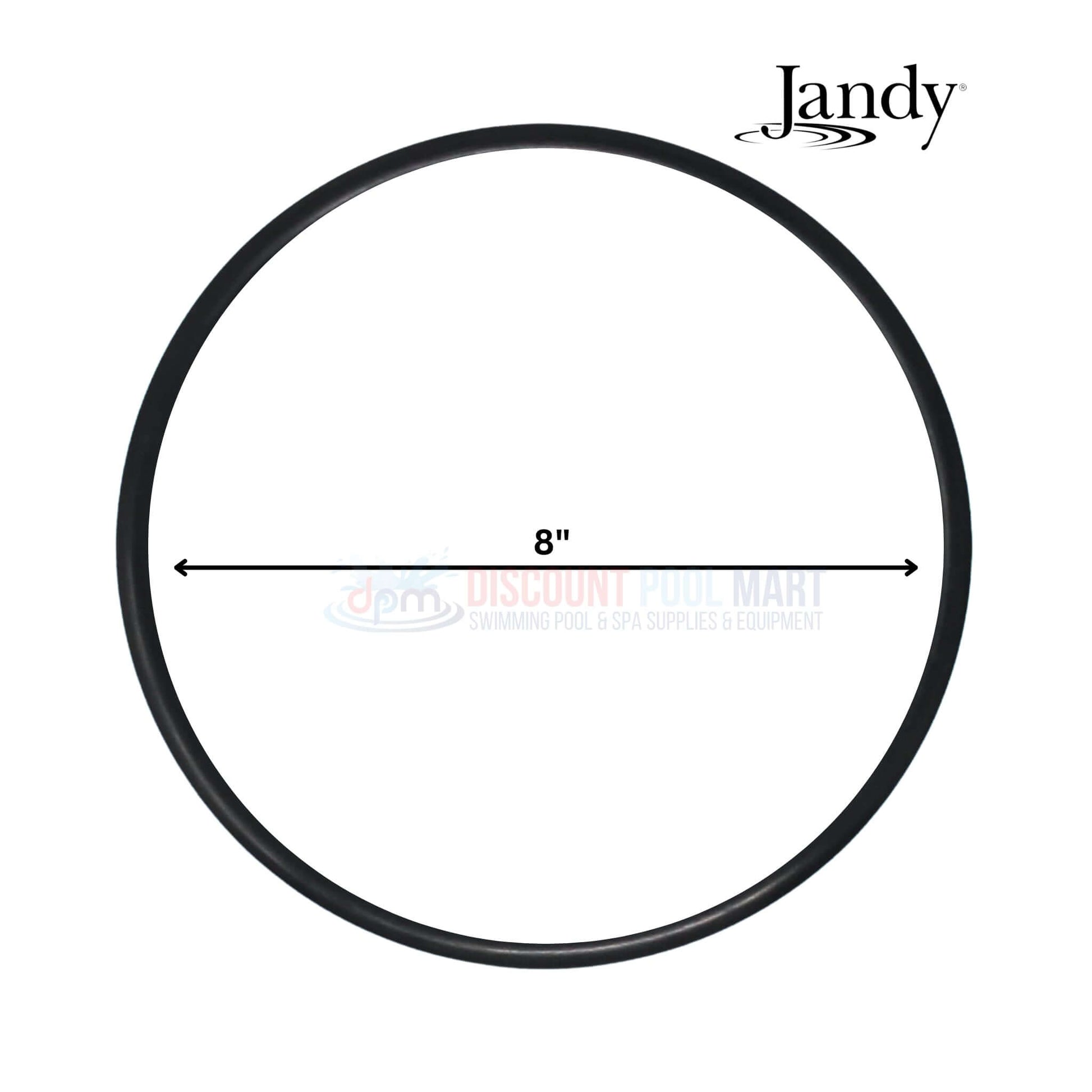

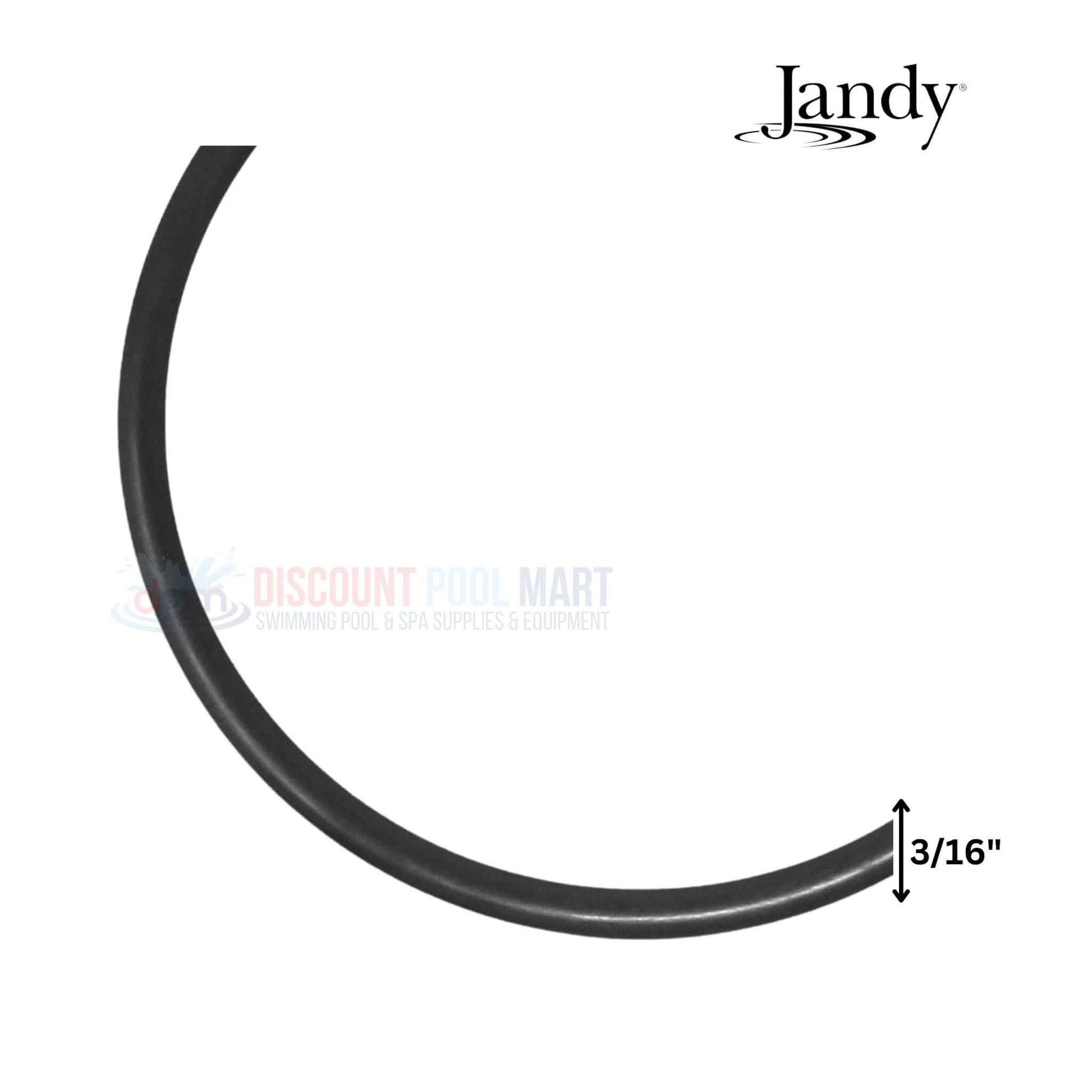

- (1) Backplate O-Ring

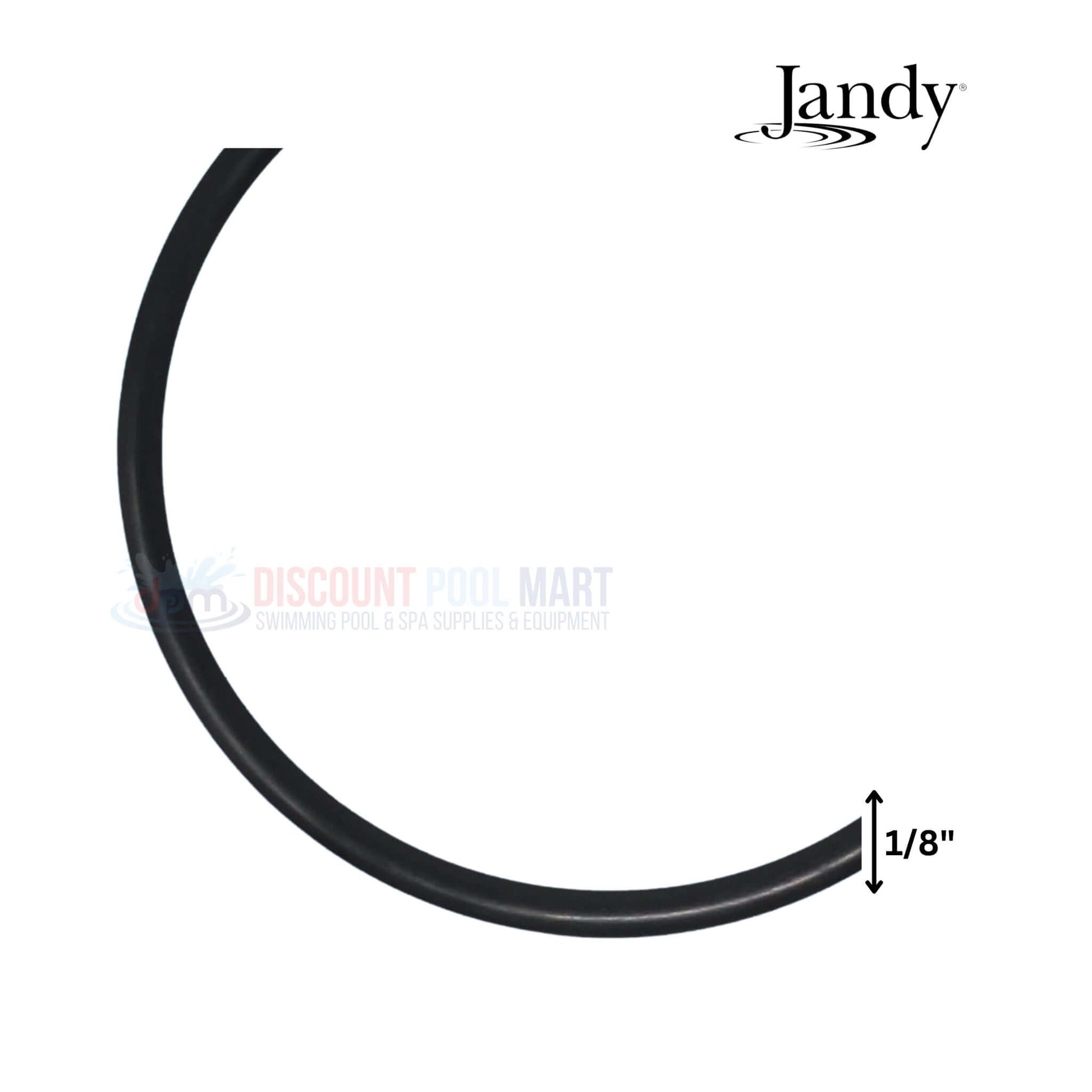

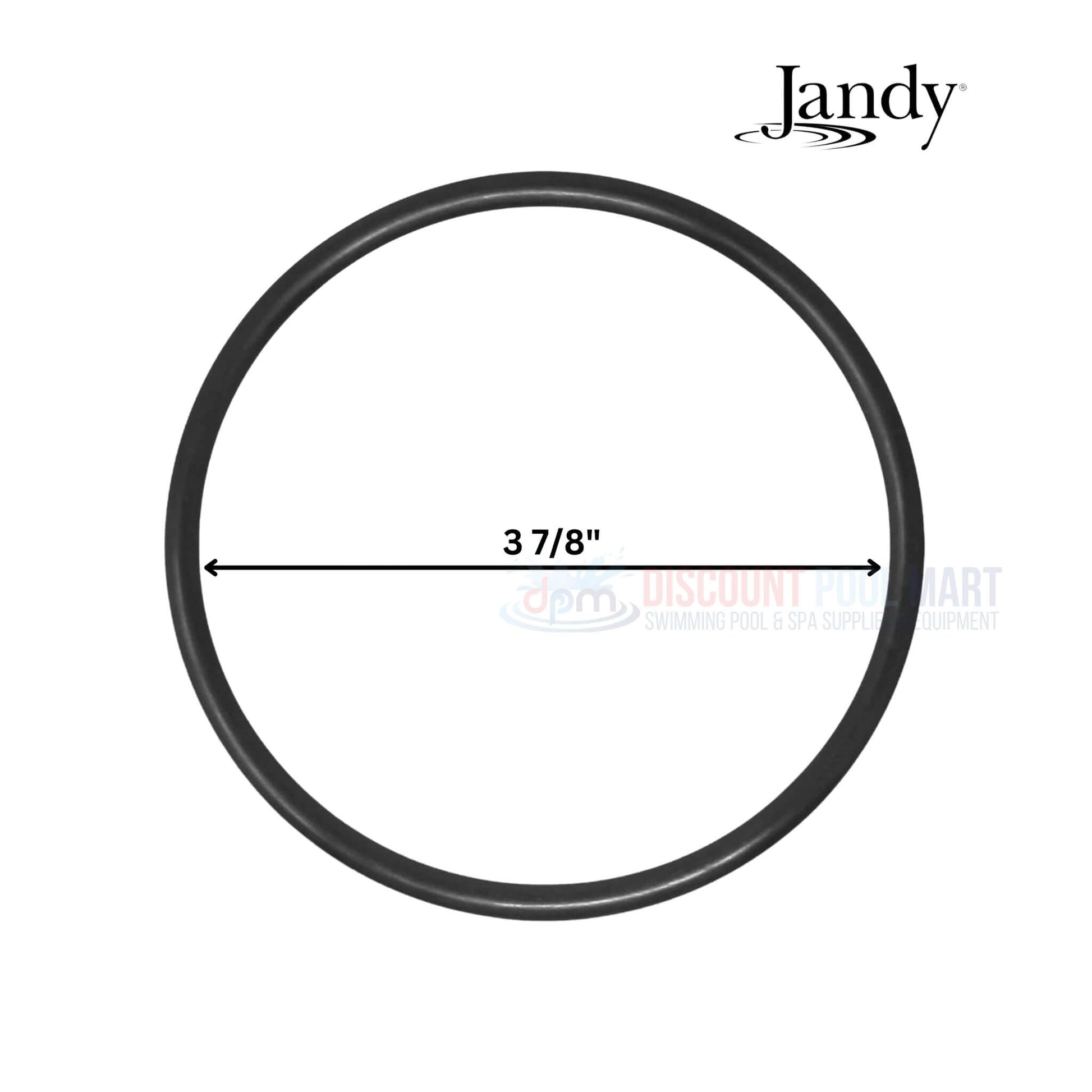

- (1) Diffuser O-Ring

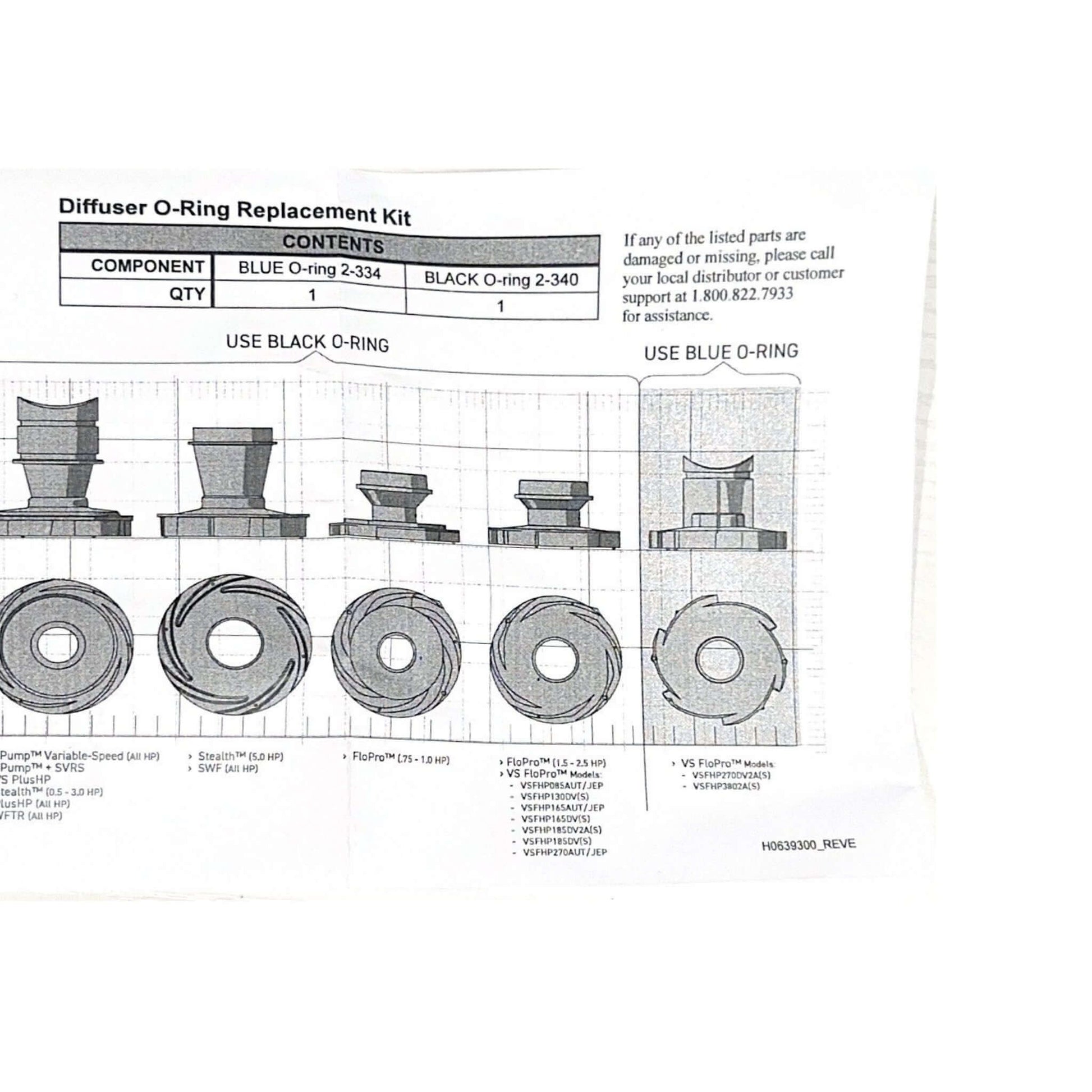

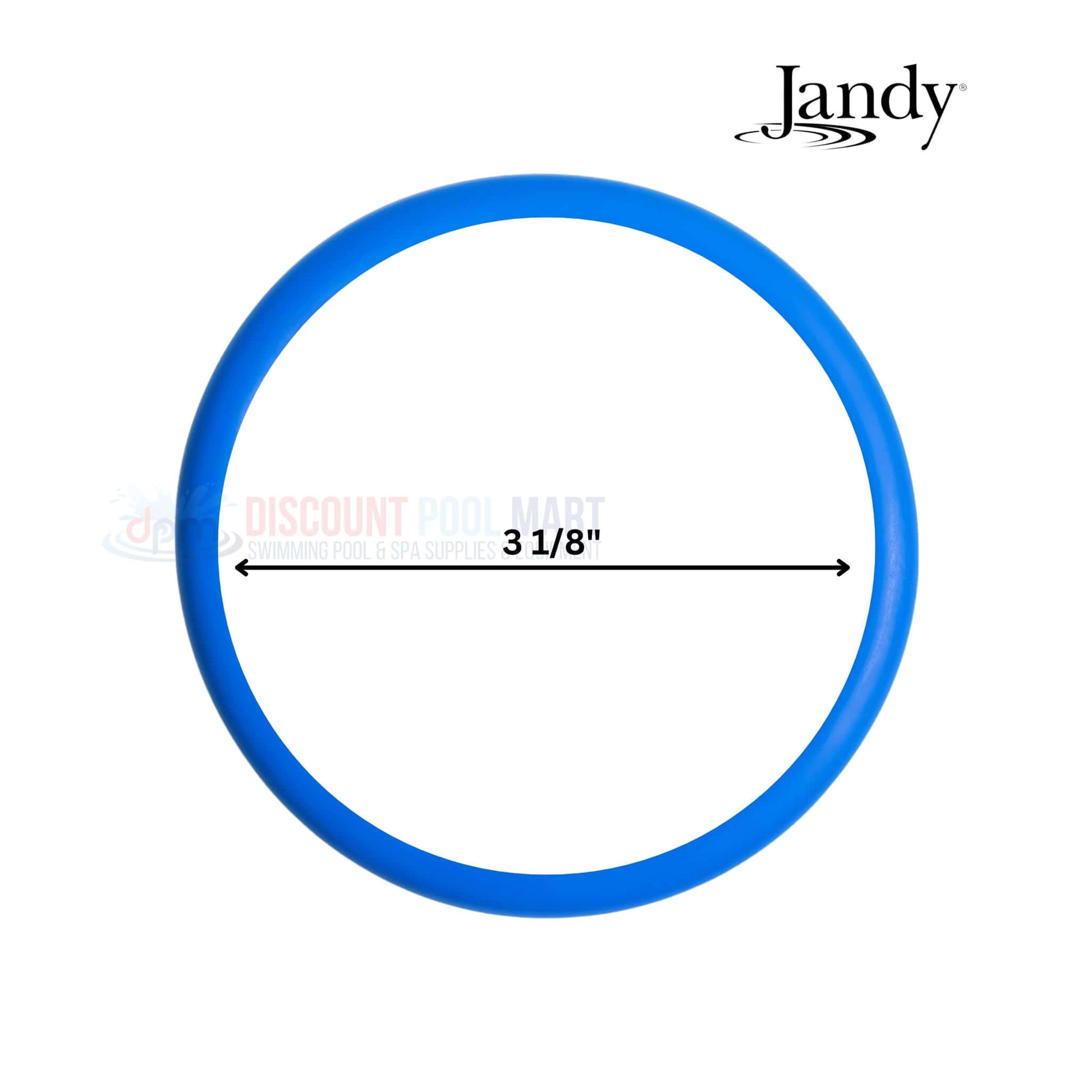

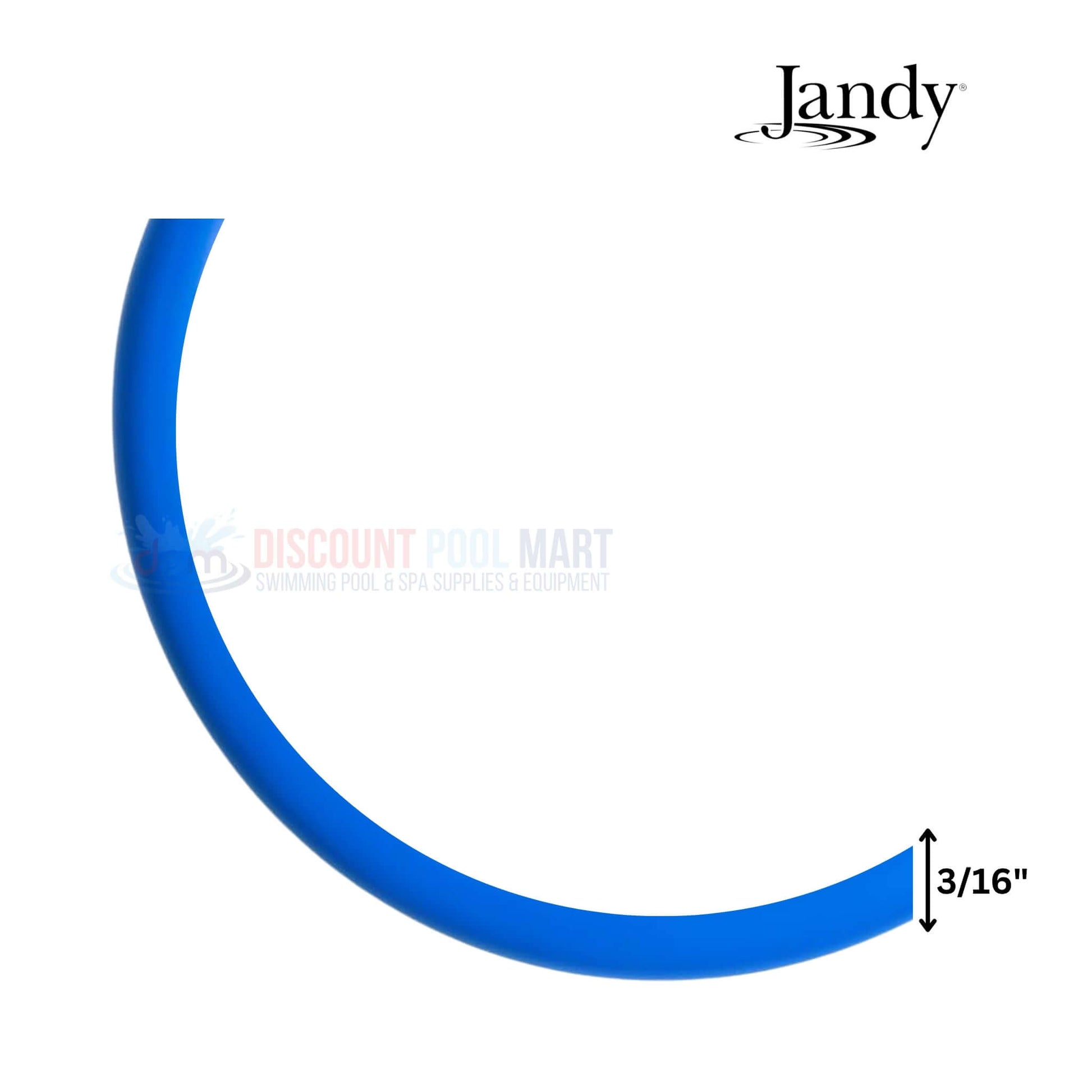

- (1) Blue Diffuser O-Ring (For VS FloPro Models VSFHP270DV2A and VSFHP3802A, please see attached chart)
- (1) Impeller Bolt
- (2) Diffuser Bolts

- Jandy FloPro FHPM Series Pumps
- Kamdu FloPro VS Pumps
