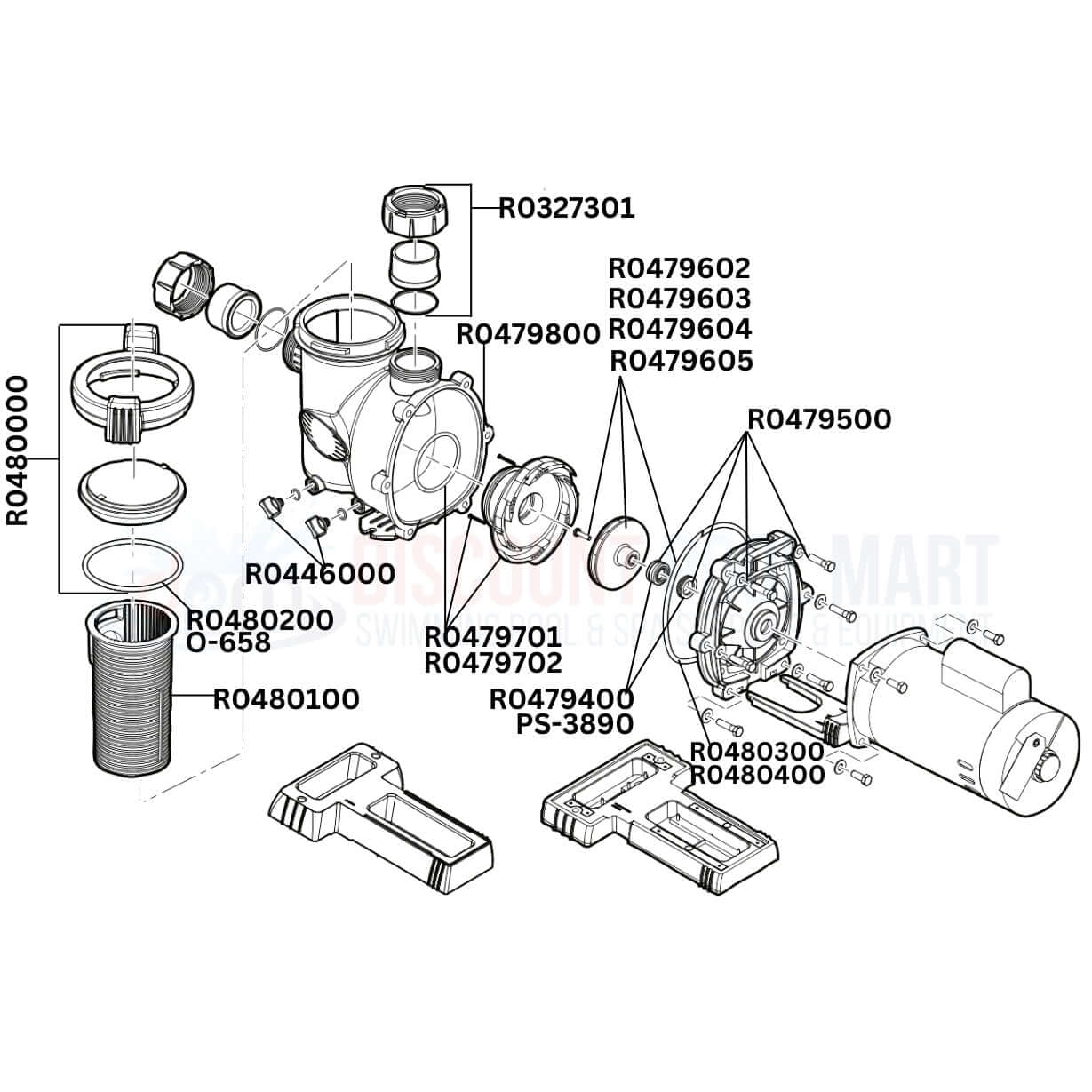

On the Jandy FloPro FHPM Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy FloPro FHPM Single Speed Pump

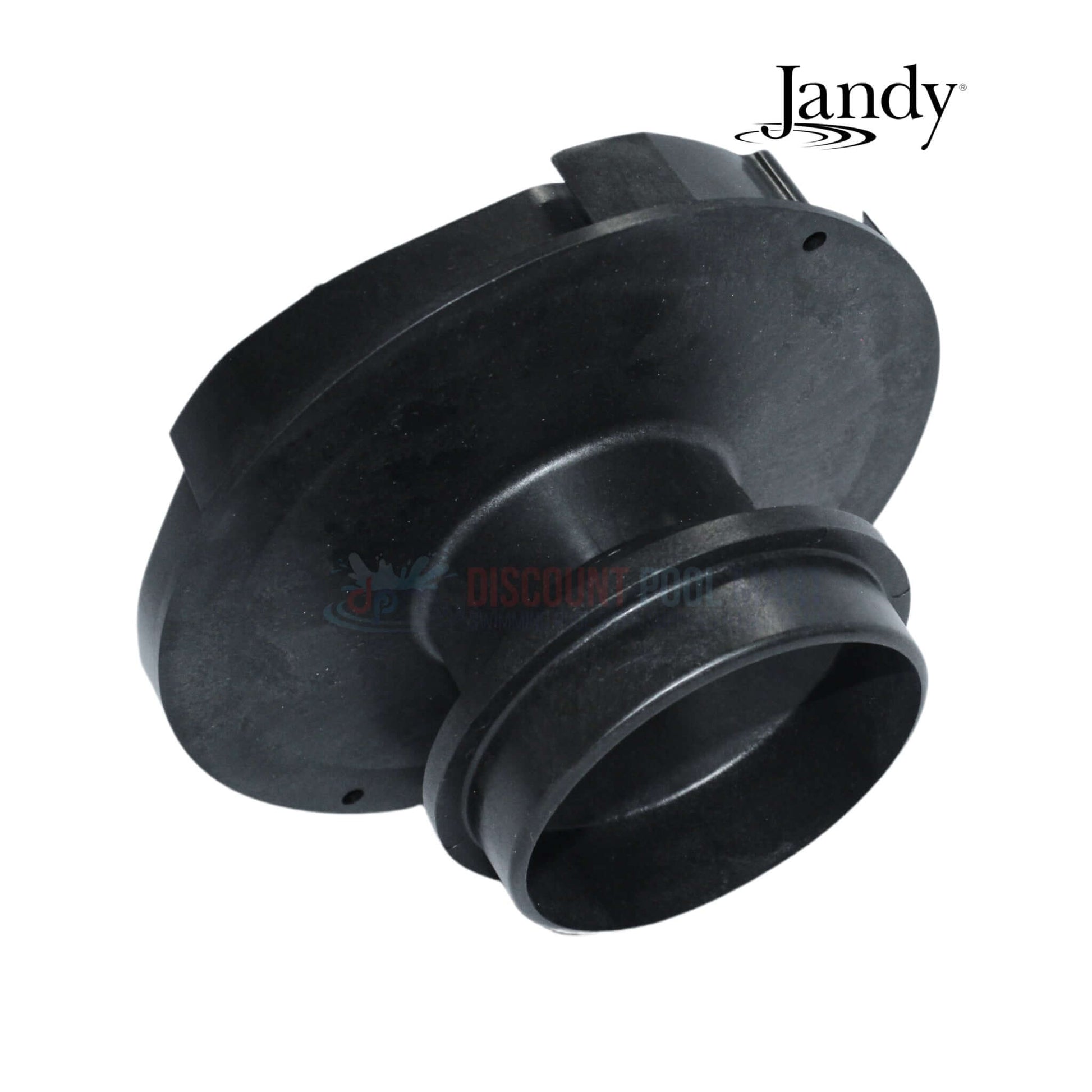

OEM Jandy Diffuser with O-Ring and Screw R0479701 is a critical replacement part designed for Jandy FloPro FHPM pumps ranging from 1.5 HP to 2.5 HP. The kit includes the diffuser, diffuser O-ring, backplate O-ring, and two mounting screws—key components that ensure leak prevention and maintain internal water flow. Built to match OEM standards, this diffuser kit supports optimal circulation and helps preserve the longevity of your pump. It's a reliable solution for ongoing system maintenance and performance consistency across various FloPro models.
-
Restores Pump Performance: Designed to maintain proper flow and pressure in FloPro FHPM pumps, supporting full system efficiency and water clarity
-
All-Inclusive Hardware Kit: Includes diffuser, O-ring seals for both diffuser and backplate, and two screws for secure and leak-free assembly
-
Built for Long-Term Use: Helps reduce internal wear by preserving water tightness, promoting pump longevity and mechanical stability
-
FloPro Model Fitment: Compatible with a variety of Jandy FHPM pumps from 1.5 HP to 2.5 HP, offering broad repair utility for service techs and DIYers
-
Reliable System Operation: Maintains consistent water flow and minimizes performance disruptions caused by worn or leaking components

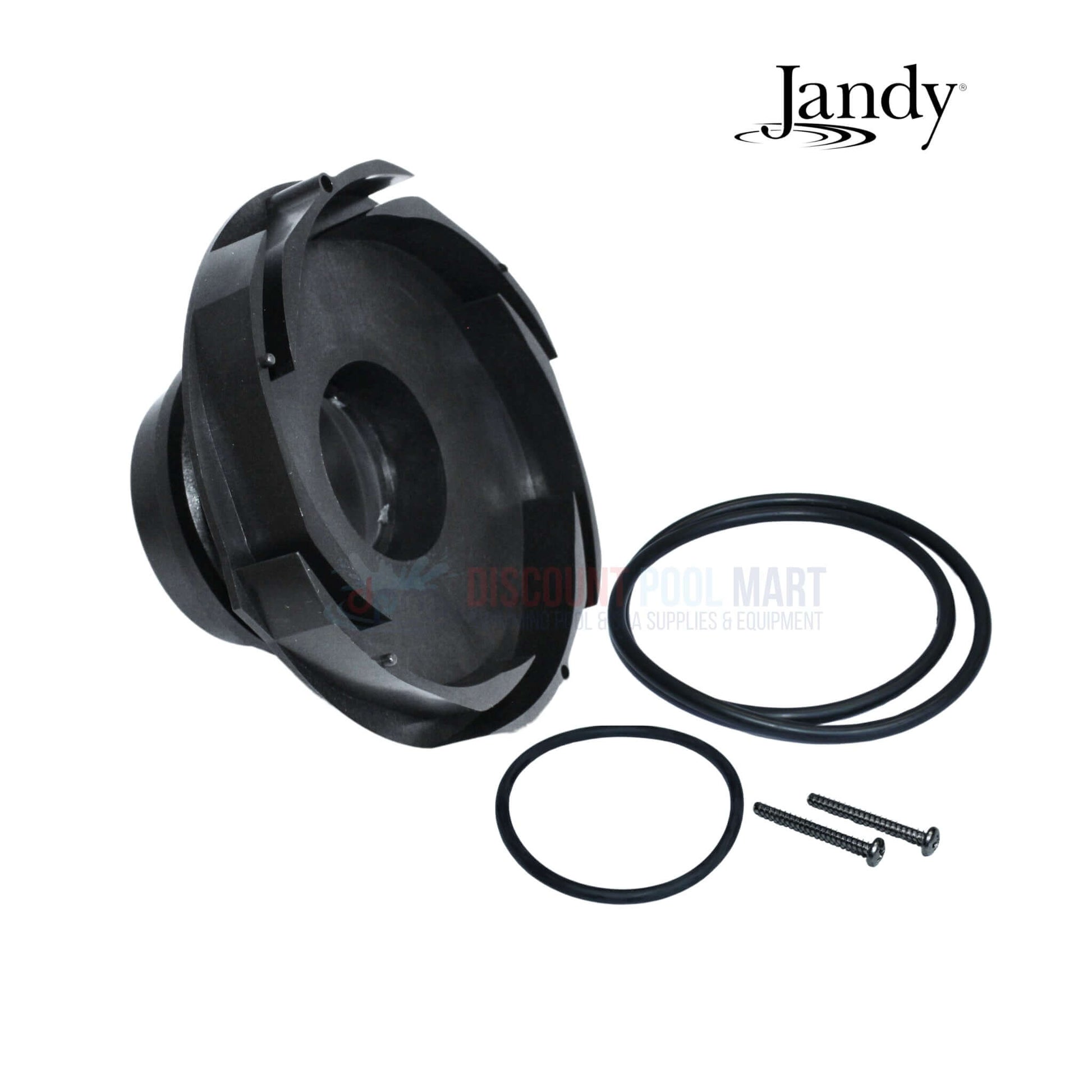

- (1) Diffuser

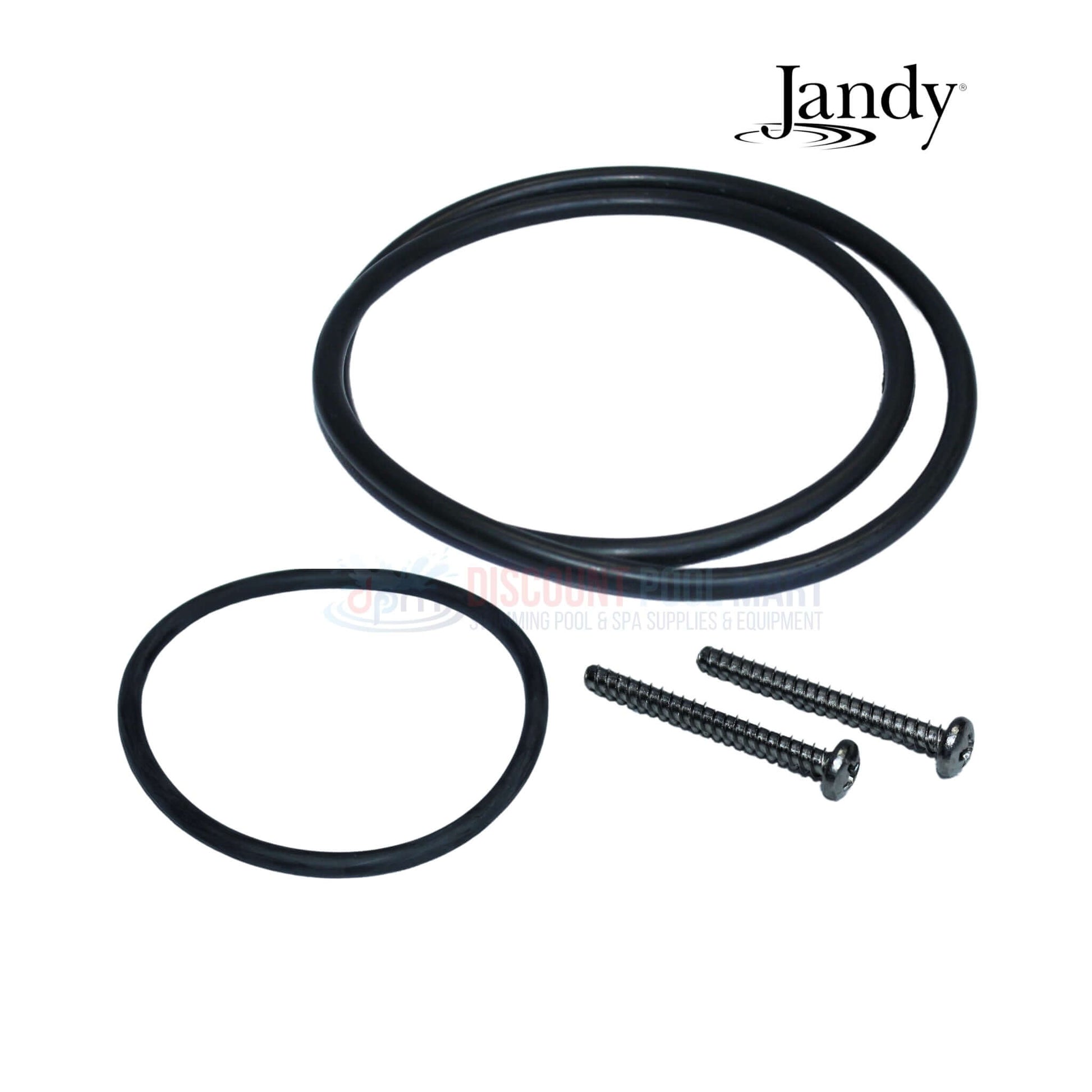

- (1) Backplate O-Ring
- (1) Diffuser O-ring
- (2) Screws
- Jandy FloPro FHPM 1.5HP Pumps
- Jandy FloPro FHPM 2HP Pumps
- Jandy FloPro FHPM 2.5HP Pumps
