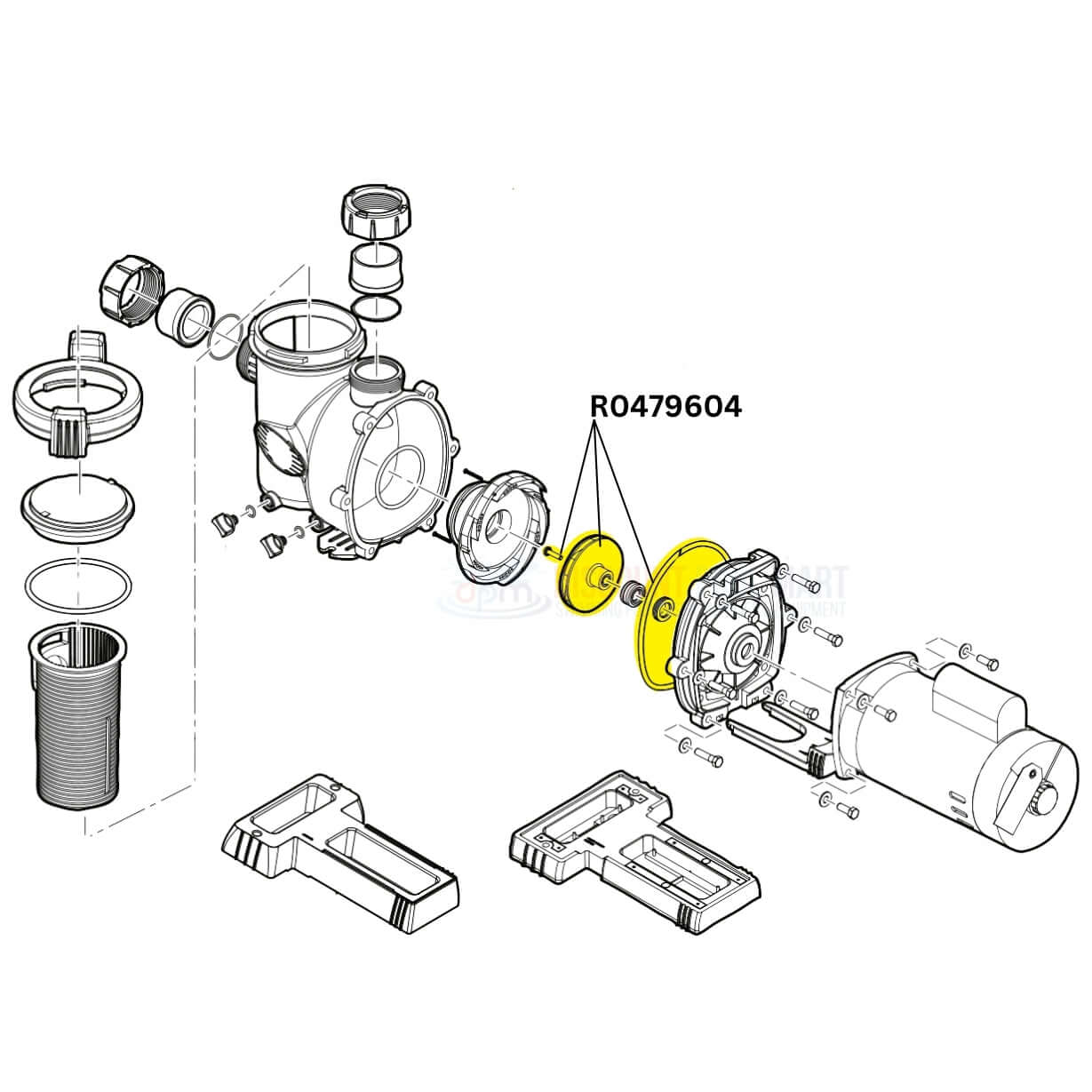

On the Jandy FloPro FHPM Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy FloPro FHPM Single Speed Pump

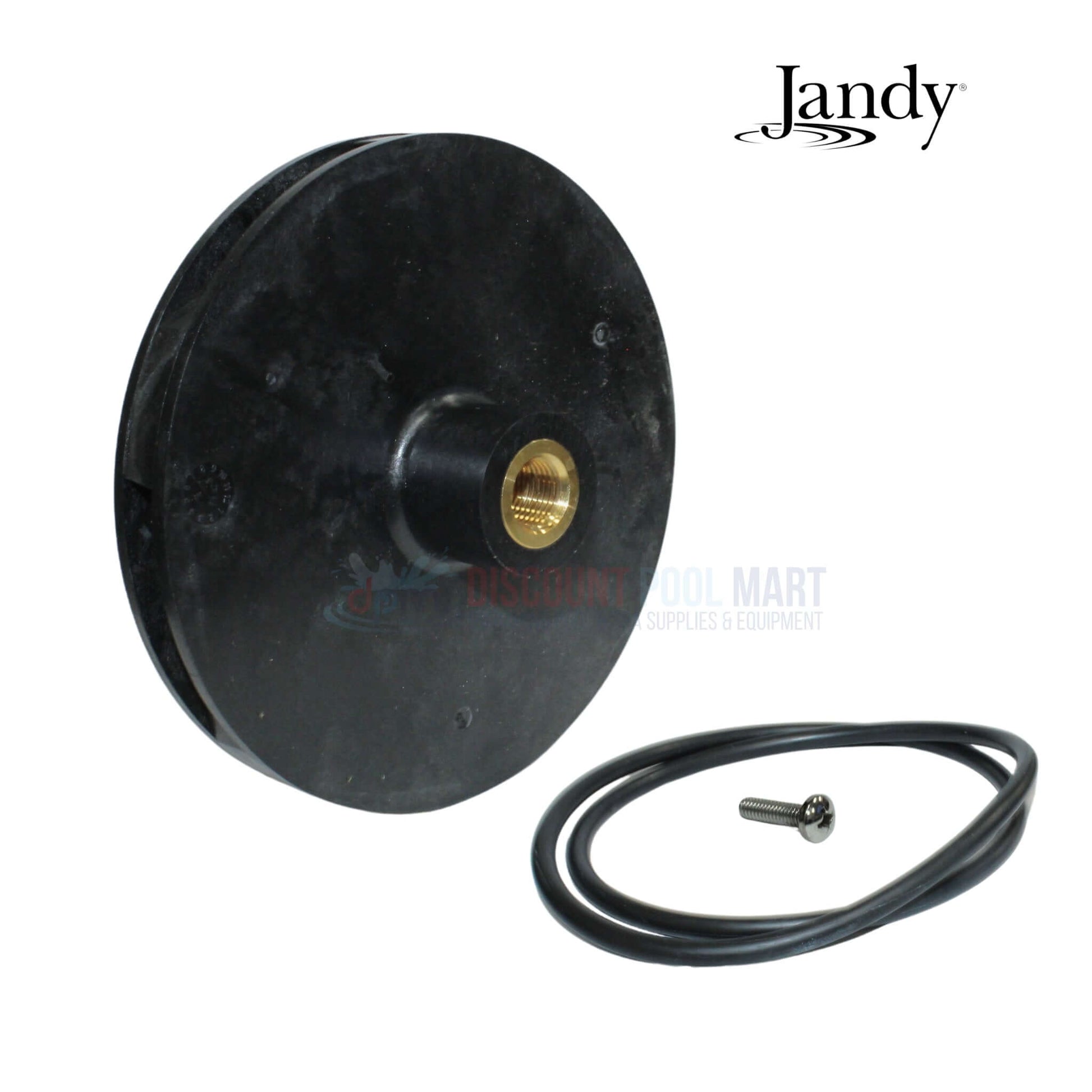

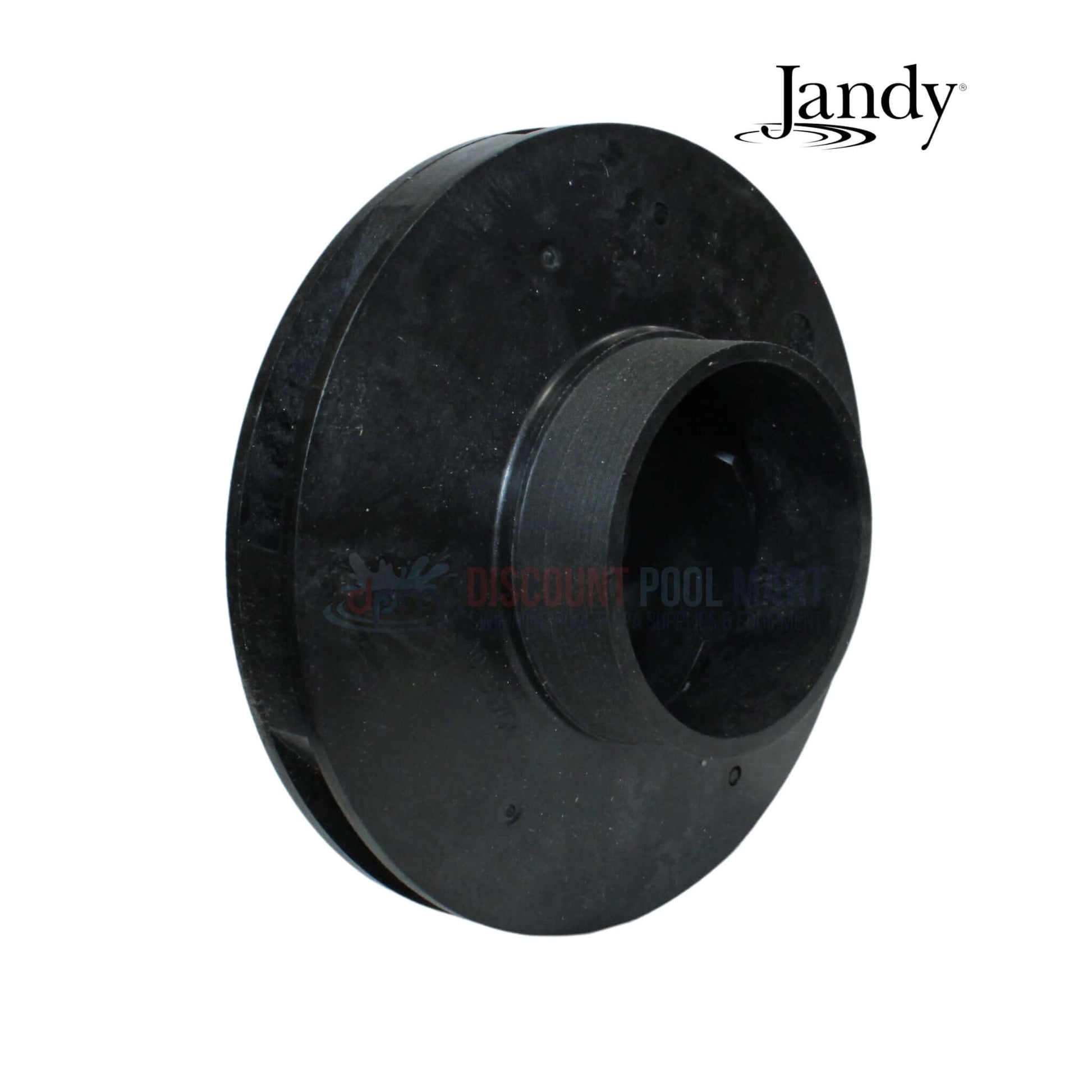

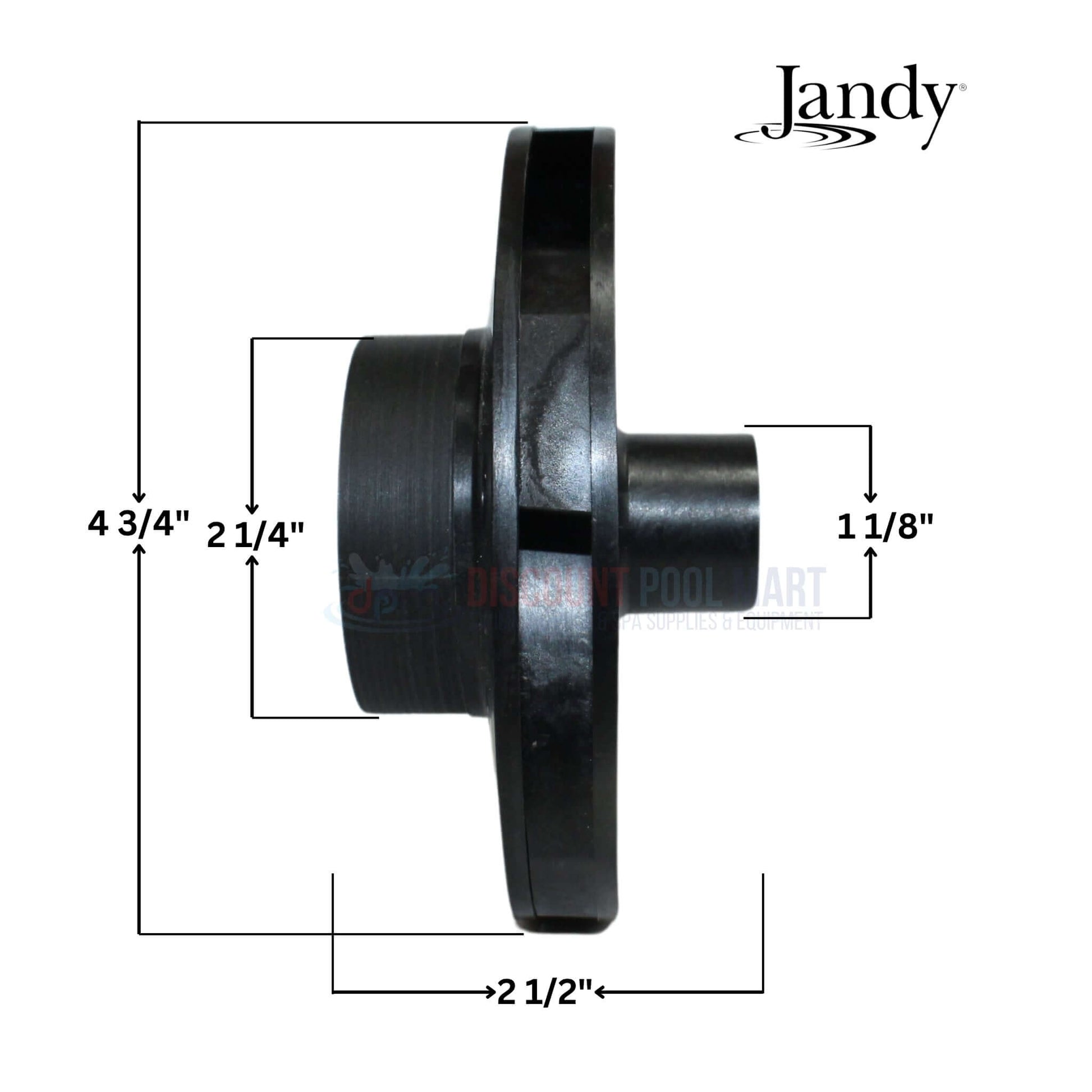

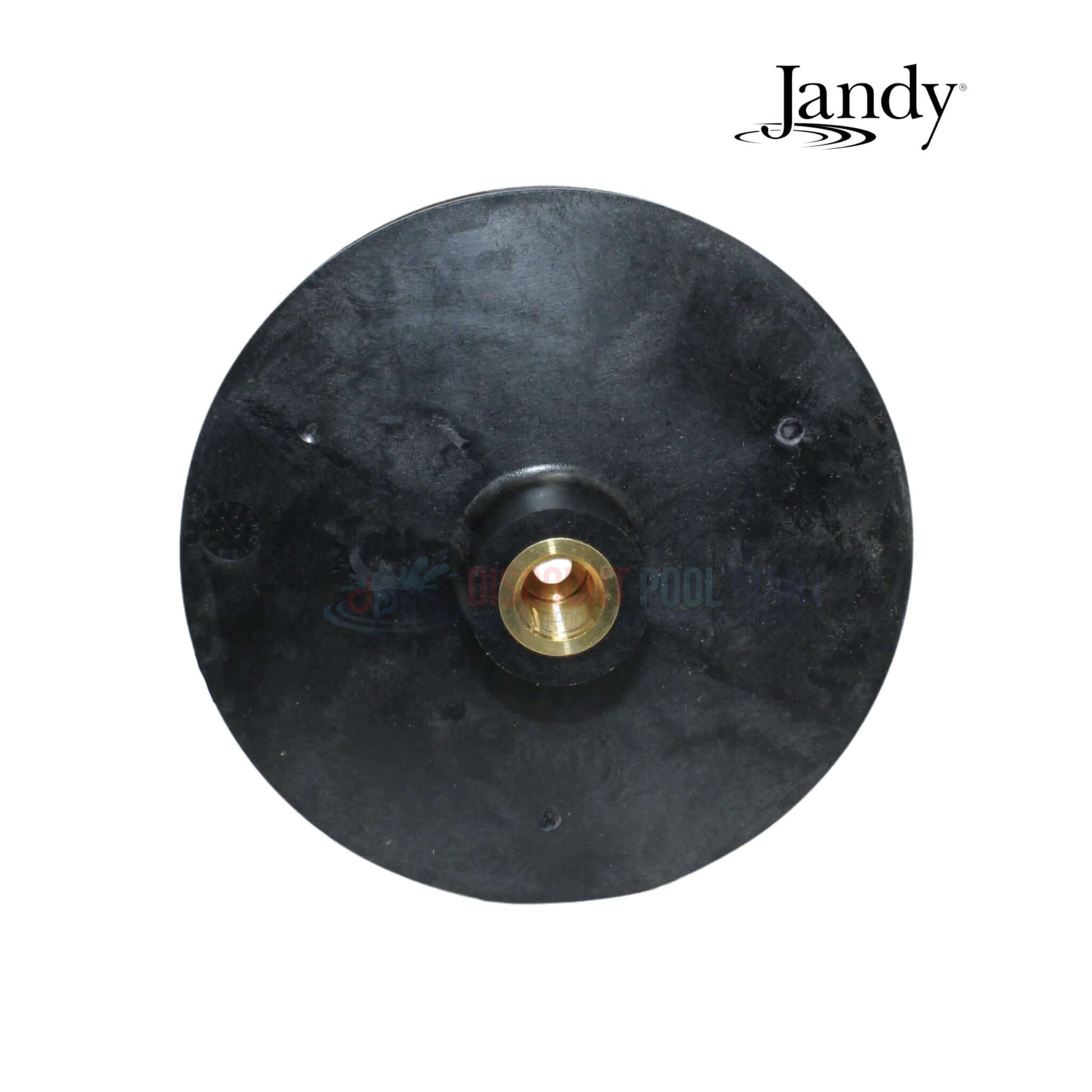

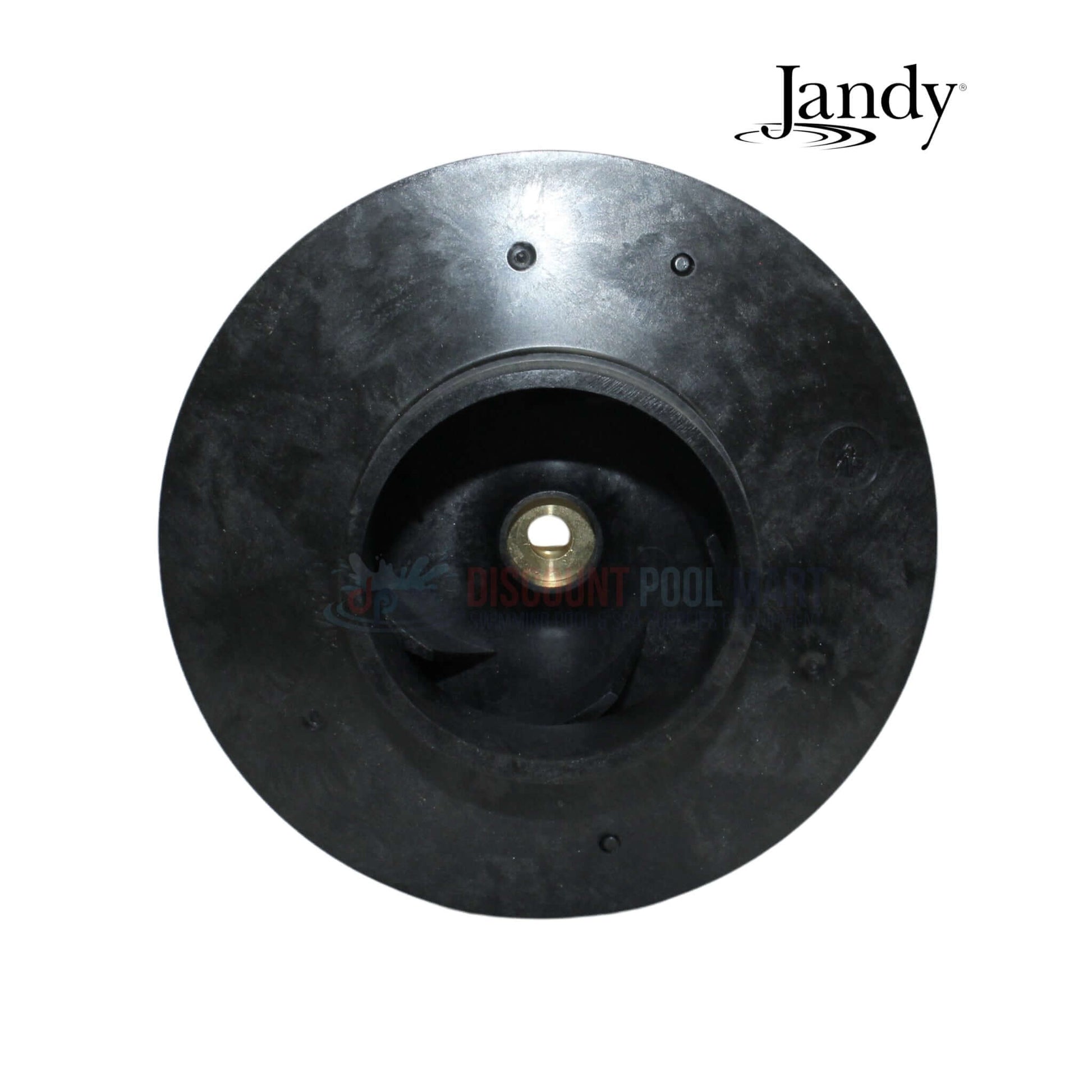

OEM Jandy Impeller and Screw Kit with O-Ring R0479604 is a genuine replacement designed for Jandy FloPro FHPM Series 2 HP pumps. The kit includes a 2 HP impeller, impeller screw, and backplate O-ring—all critical for maintaining efficient pump performance and a leak-free seal. Built to OEM specifications with high-quality materials, this component ensures durable operation and supports the longevity of your pump. It’s an essential solution for keeping your pool’s circulation system performing at its best.
-
Model-Specific Design: Tailored for 2 HP Jandy FloPro FHPM pumps to ensure proper fit, optimal sealing, and consistent performance
-
All-In-One Kit: Includes the 2 HP impeller, impeller screw, and backplate O-ring—everything needed for effective pump maintenance or repair
-
Supports Smooth Circulation: Maintains internal water flow and pressure for efficient system function and clear, balanced pool water
-
Built to Endure: Constructed from durable, wear-resistant materials that withstand constant use and pool chemical exposure
-
Quick and Simple Installation: Easy to install during maintenance, reducing downtime and extending the life of your pump system
- (1) Jandy Impellers
- (1) Impeller Screw
- (1) Backplate O-Ring
- Jandy FloPro FHPM Series 2HP Pumps
