Pentair WhisperFlo VST Pump Replacement Parts Diagram

Interactive parts diagram

31 parts · 13 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.

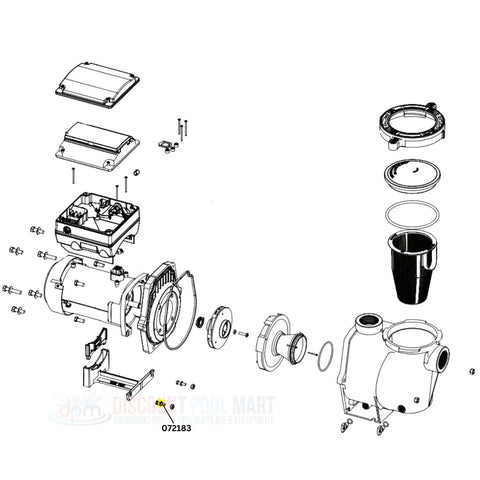

 – exploded view with numbered parts

Scroll or pinch to zoom · drag to move

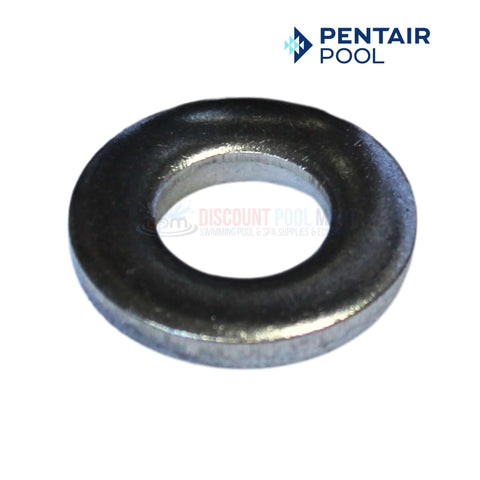

    • Not sold online Pentair washer, 3/8" x 7/8" OD, stainless (6 needed) 072184Call us and we'll get it for you.
    • Not sold online Pentair nut, 3/8"-16 hex (2 needed) 071403Call us and we'll get it for you.
    • Not sold online Pentair motor foot screw (2 needed) 071657Call us and we'll get it for you.
    • Not sold online Pentair strainer pot assembly (includes items 1-4, 10, 24 and 25) 357243Call us and we'll get it for you.
    • Not sold online Pentair motor, WhisperFlo VST 356286SCall us and we'll get it for you.
    • Not sold online Pentair motor/drive assembly, WhisperFlo VST 356289SCall us and we'll get it for you.

Don't see your part? Ask us and we'll find it.

Also fits your Pentair WhisperFlo VST Pump

Not shown on the diagram, but made for this pump.

Fit guide

Which WhisperFlo VST part fits your pump?

Part numbers come from Pentair's WhisperFlo VS and WhisperFlo VST replacement parts list. Check the manufacturing date on your pump's data label before ordering drive parts.

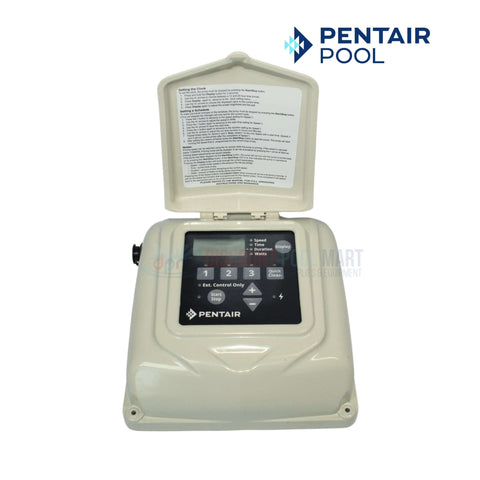

Drive cover by manufacturing date

Drive cover made before May 2025
358211
Drive cover made May 2025 or later
358215
Motor item 30
356286S
Motor/drive assembly item 31
356289S

Impeller, diffuser & seal plate

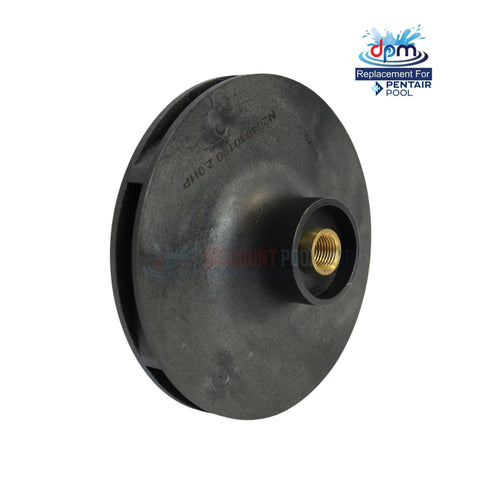

Impeller item 27

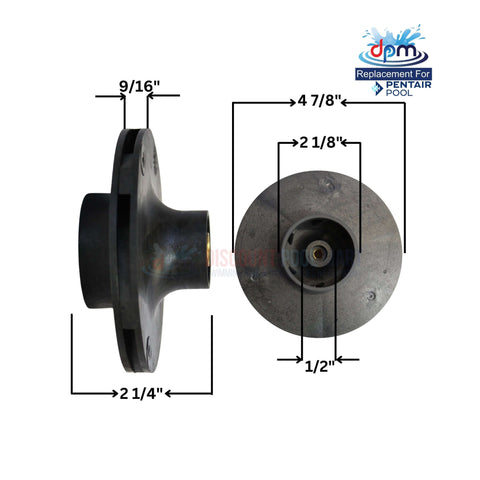

073130 PC&G PCG073130
Diffuser item 13
072927
Seal plate kit gasket and shaft seal installed
350202
Seal plate gasket item 9
357100

Shaft seal & lid

Shaft seal standard PS1000
071734S U.S. Seal PS-1000
Shaft seal ozone/salt resistant
071732S
Lid standard

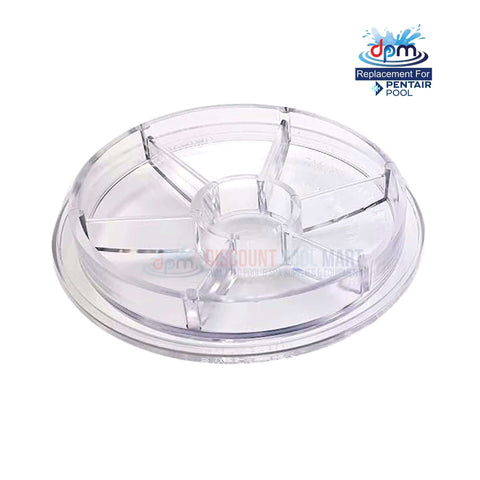

357151 Swimables SW-21-151
Lid chemical resistant
357156

Kits

Strainer pot/seal plate kit items 1-4, 9, 10, 16, 18, 21-25
357149
Strainer pot assembly items 1-4, 10, 24, 25
357243
Fluid assembly all items except 31
075455
RS-485 automation wiring kit
356324Z
