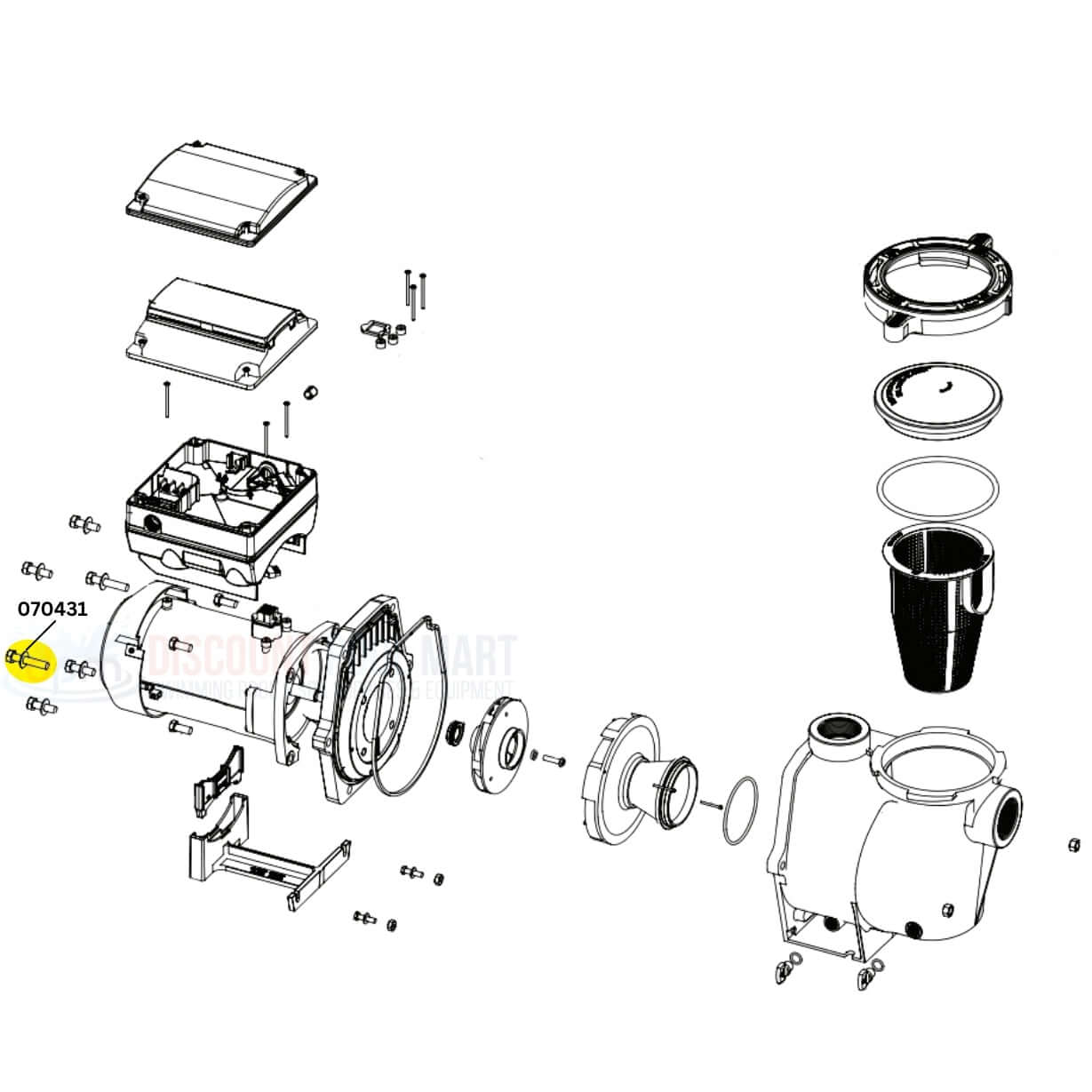

On the Pentair IntelliFlo VS Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair IntelliFlo VS Pump

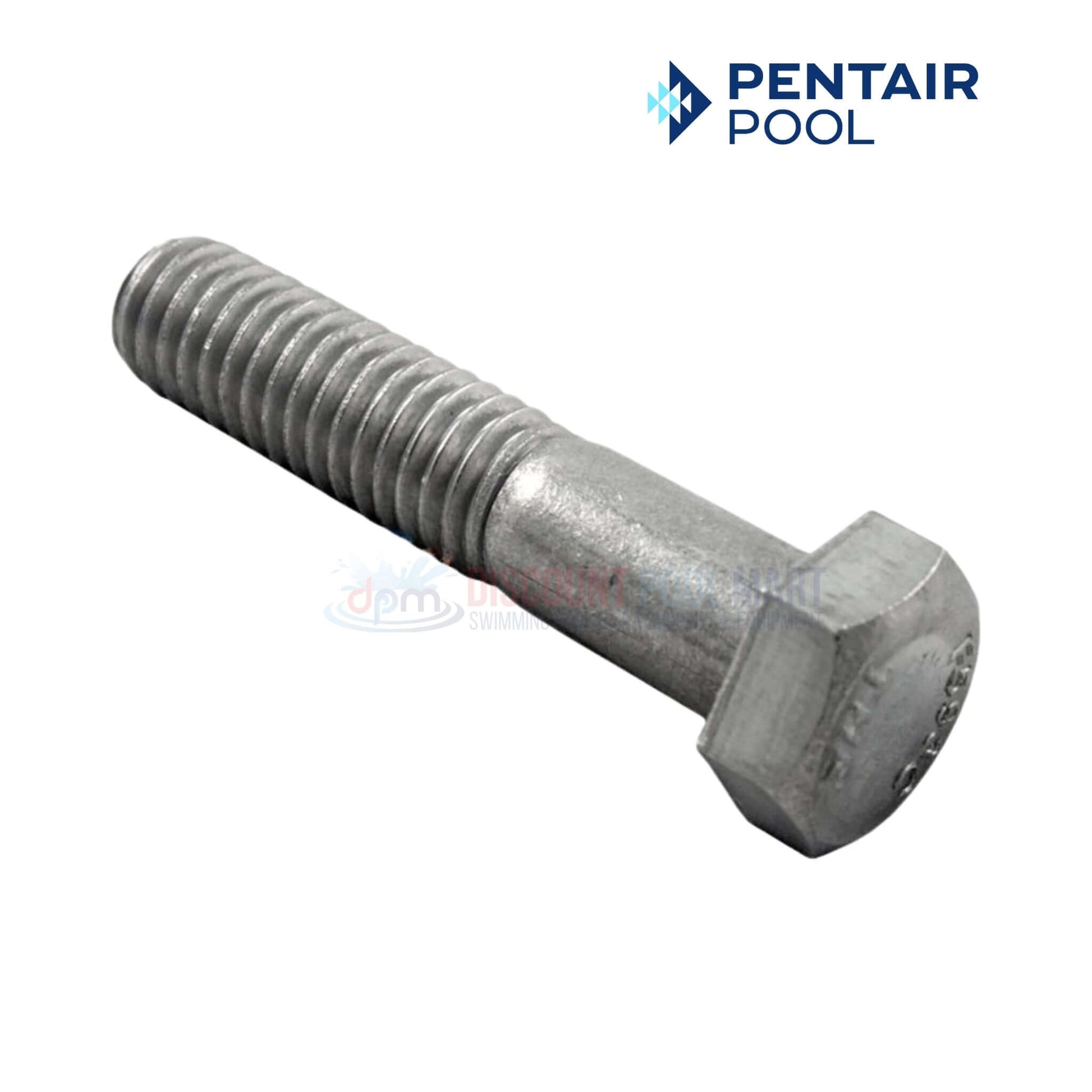

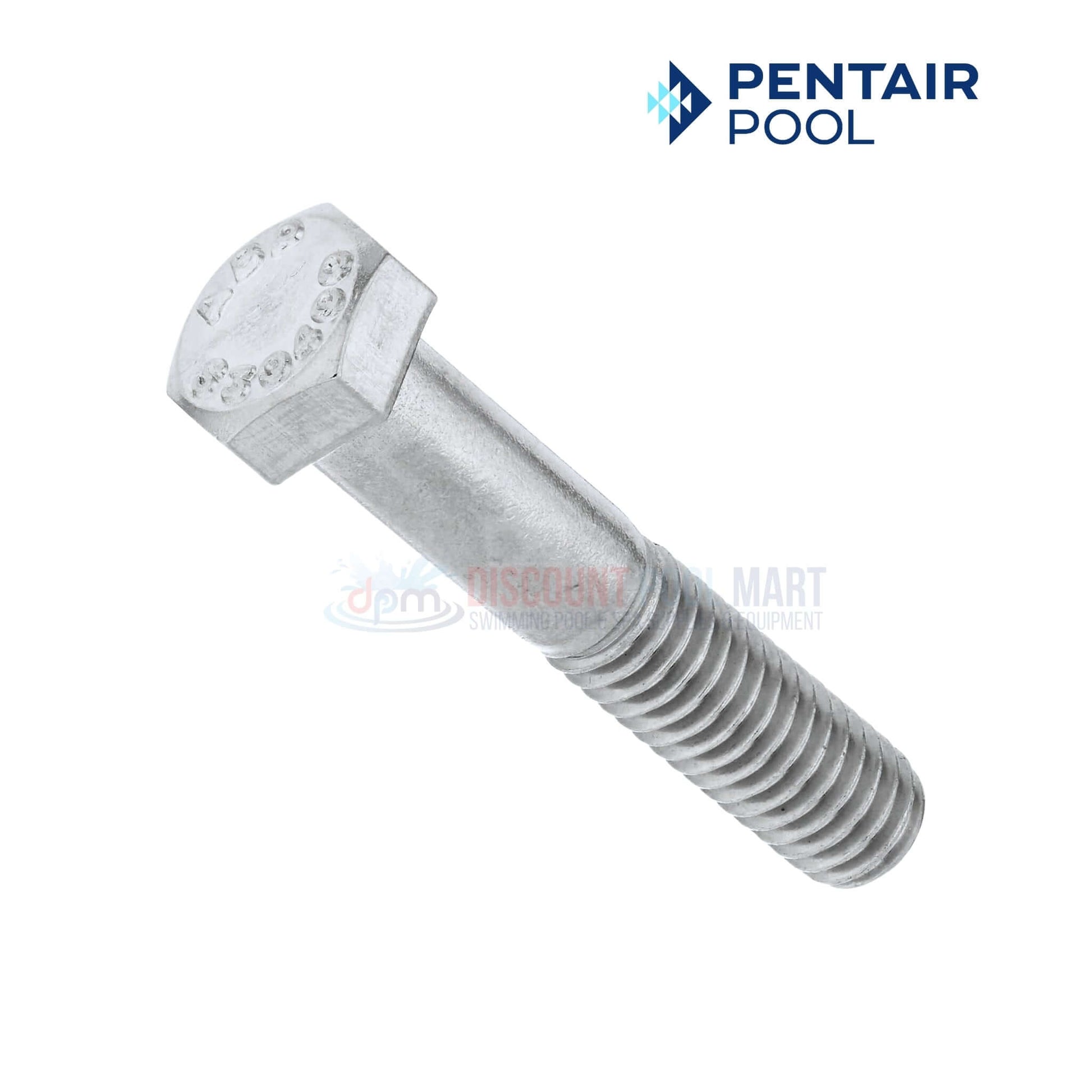

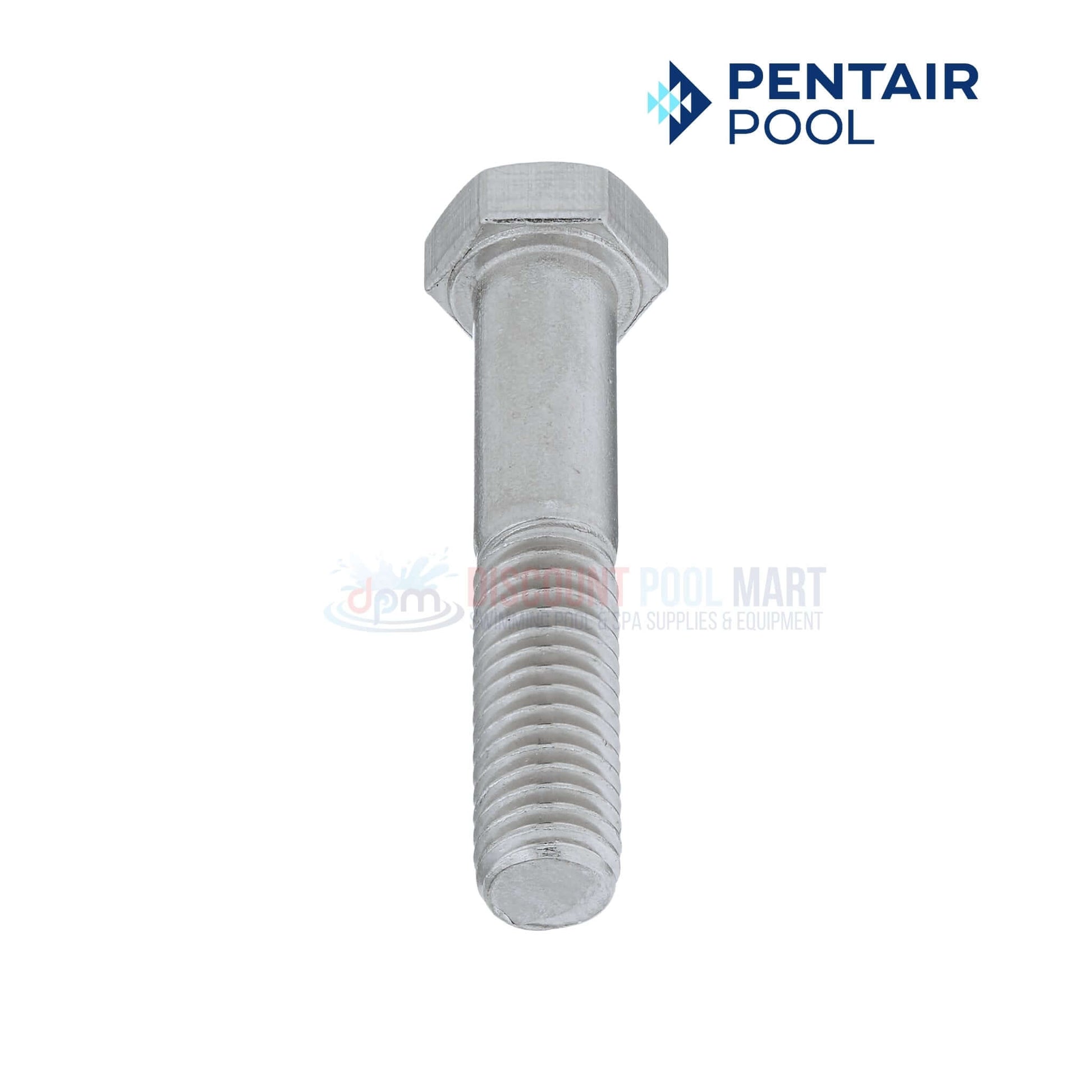

Secure your Pentair pump with the sturdy Pentair Bolt for WhisperFlo and Intelliflo systems. This hex cap bolt, sized at 3/8-16" x 2", is a crucial component for pump assembly and maintenance. With model number 070431, it's designed for a precise fit and lasting durability, ensuring a tight seal and reliable performance for your pool equipment.
- Robust Pentair Pump Security: This hex cap bolt is specifically sized to fortify Pentair pumps, ensuring a secure and steadfast assembly.
- Precise Fit & Maintenance: Model 070431 is engineered for an exact fit, marking it as an essential part of the pump's assembly and ongoing maintenance.
- Durable Design: Crafted for durability, the bolt provides a tight seal that guarantees consistent and reliable performance for your pool equipment.
- (1) Pentair 070431 Bolt
Note: You will likely require a quantity of 2 for your pump, this item comes with one singular bolt so you must purchase more if needed.
- Pentair IntelliFlo VS Pumps
- Pentair IntelliFlo VF Pumps
- Pentair IntelliFlo VS+SVRS Pumps- After 2016
- Pentair IntelliFlo Variables Speed & VS+SVRS Pumps
- Pentair IntelliFlo VSF Pumps- After 2018
- Pentair IntelliFlo 2 VST Pumps
- Pentair IntelliFlo i1 Pumps
- Pentair IntelliFlo i2 Pumps
- Pentair IntelliFlo Pumps
- Pentair WhisperFlo Pumps
- Pentair WhisperFlo VST Pumps
- Pentair Sta-Rite IntelliPro Pumps
Note: This bolt may be compatible with your pump, please check owners manual to ensure compatibility.
