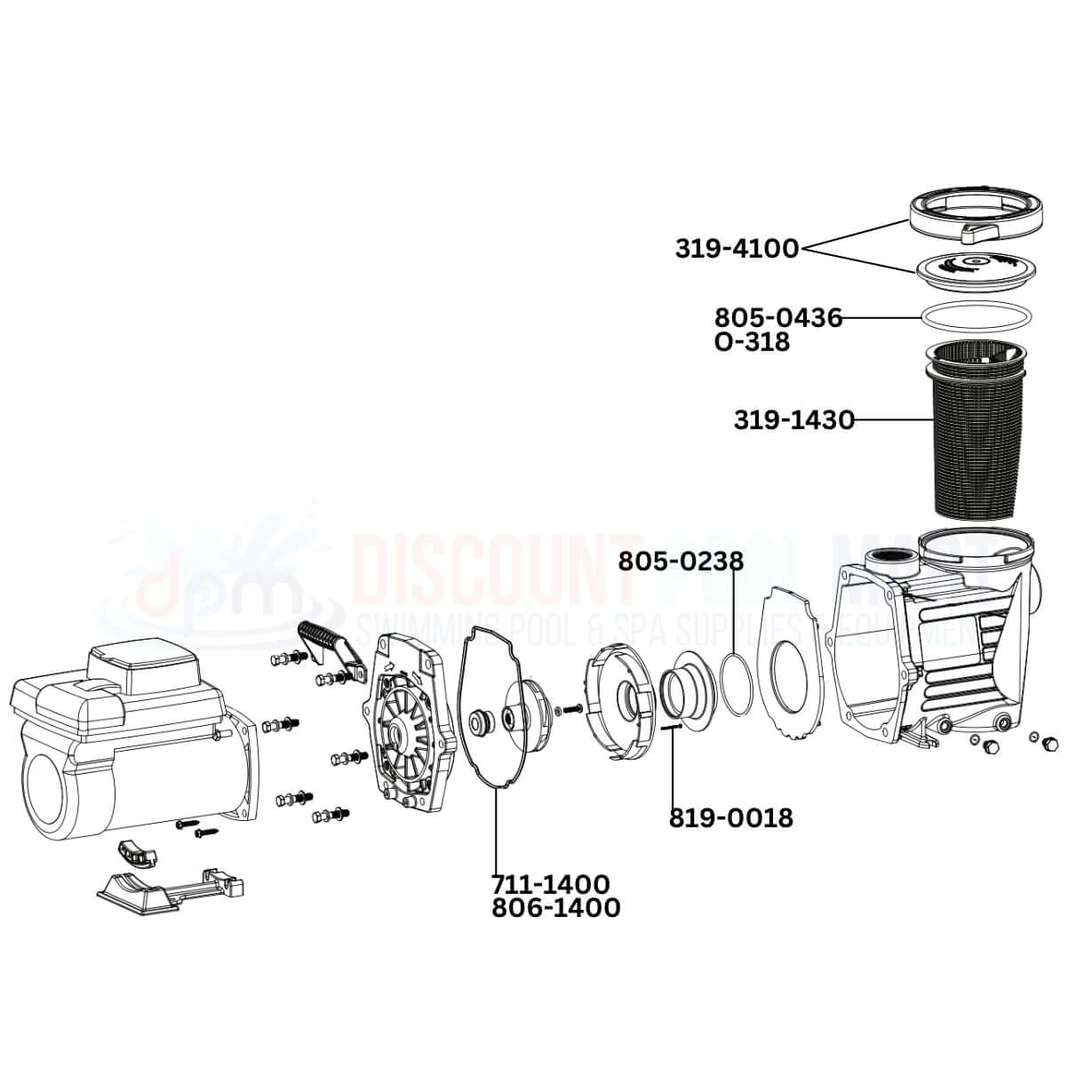

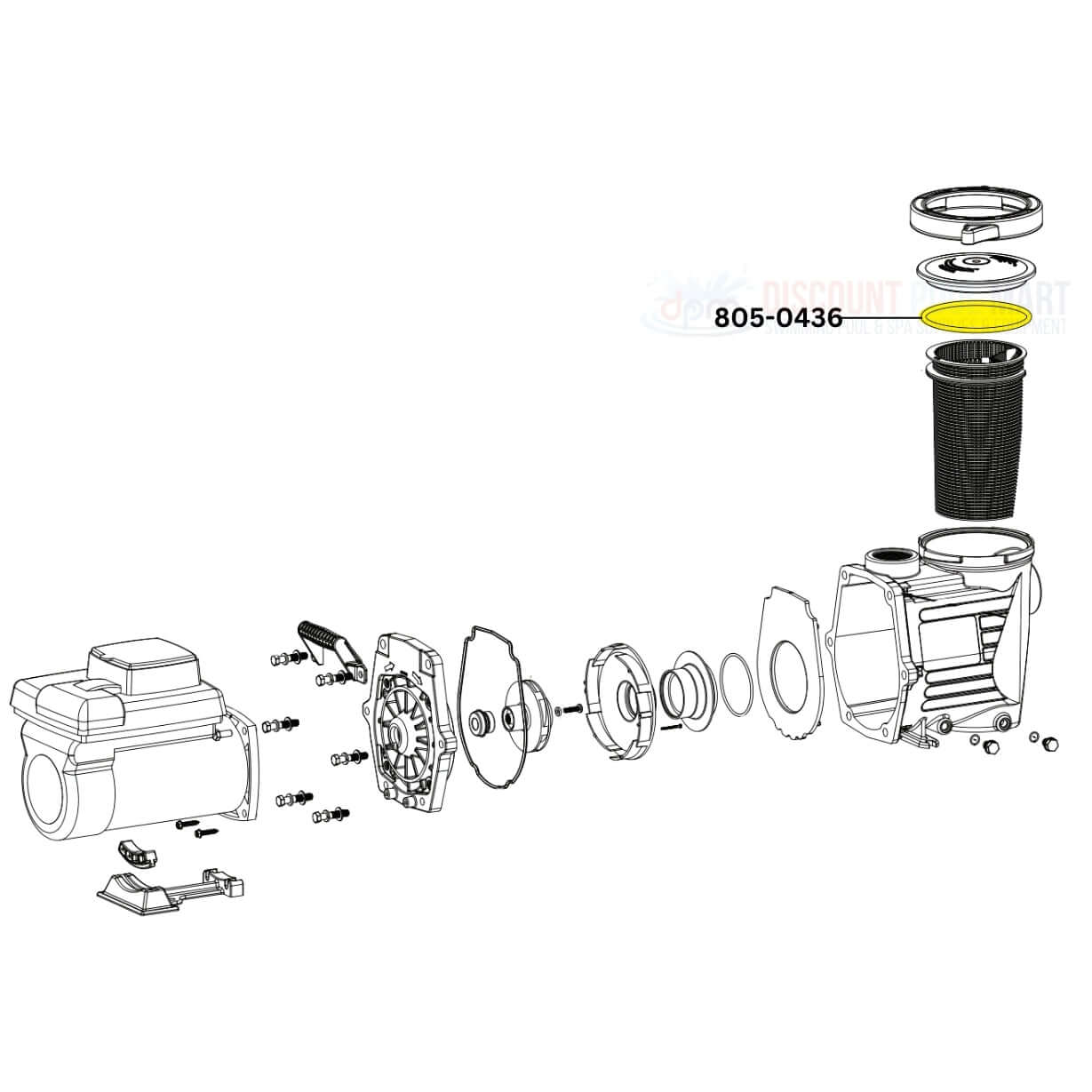

On the Pentair IntelliFlo VS Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair IntelliFlo VS Pump
OEM Waterway Trap Lid O-Ring 805-0436 is a critical seal designed for pump trap lids on multiple Pentair and Waterway pool pump models, including WhisperFlo, IntelliFlo, and Champion series. This high-performance O-ring ensures an airtight seal that prevents water leakage and supports optimal pressure within the pump housing. Manufactured from durable, chemical-resistant materials, it's a dependable solution for preserving pump efficiency and simplifying regular pool maintenance.
-
Leak-Free Operation: Ensures a tight trap lid seal to keep your pump system free from pressure loss and unwanted moisture.
-
High-Strength Construction: Built to handle regular exposure to chemicals and fluctuating pressures without degrading.
-
Wide Compatibility: Fits Pentair and Waterway models like IntelliFlo, WhisperFlo, Challenger, and Mustang pumps.
-
Efficiency Support: Replacing worn gaskets helps maintain consistent pump output and energy efficiency.
-
Easy Maintenance Upgrade: An essential part of your regular pool service toolkit for dependable filtration.
Compatible with Pentair and Waterway pumps including
- Pentair WhisperFlo Pumps
- Pentair Challenger Pumps
- Pentair IntelliFlo Pumps
- Pentair IntelliFlo VS+SVRS Pumps- After 2016
-
Pentair IntelliFlo Variables Speed & VS+SVRS Pumps
- Pentair IntelliFlo VSF Pumps- After 2018
- Waterway Champion Pumps
- Waterway EconoFlo Pumps
- Waterway VS 1.4HP Mustang Pumps
Note: This O-Ring may be compatible with your pump, please check owners manual to ensure compatibility
-

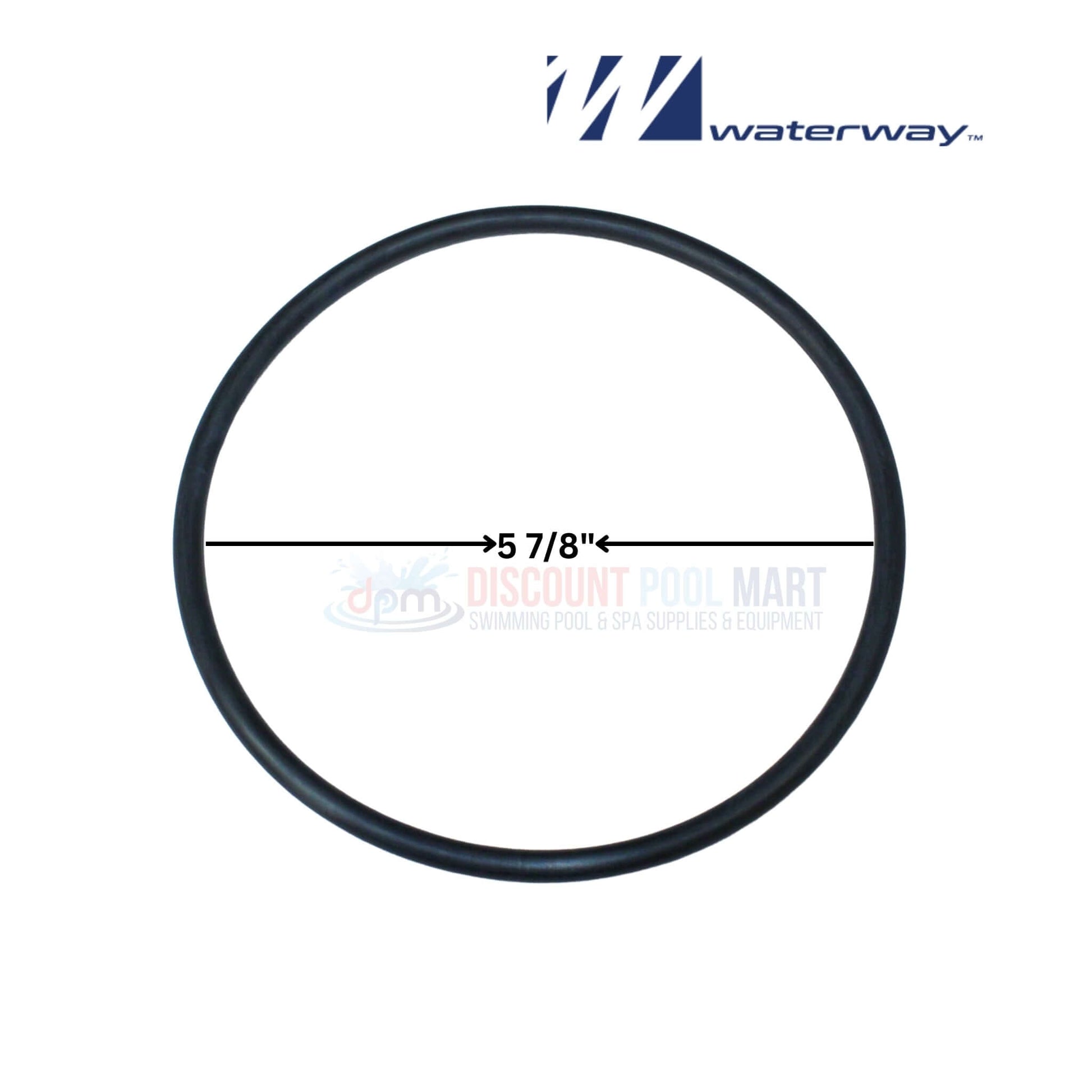

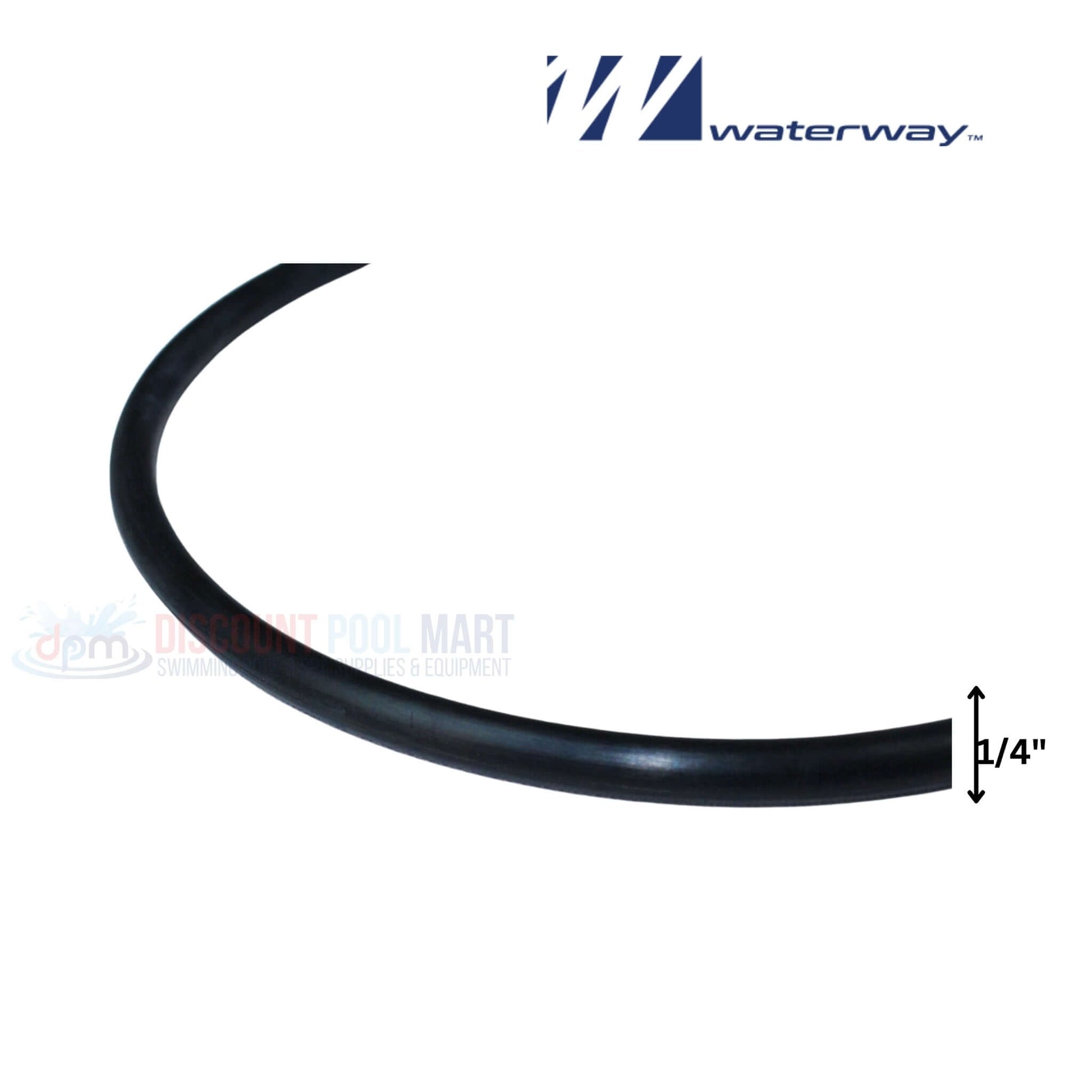

(1) Waterway 805-0436 Trap Lid O-Ring
