US Seal Premium Pump Shaft Seal Assembly | 5/8" Shaft | 071734S | PS-1000

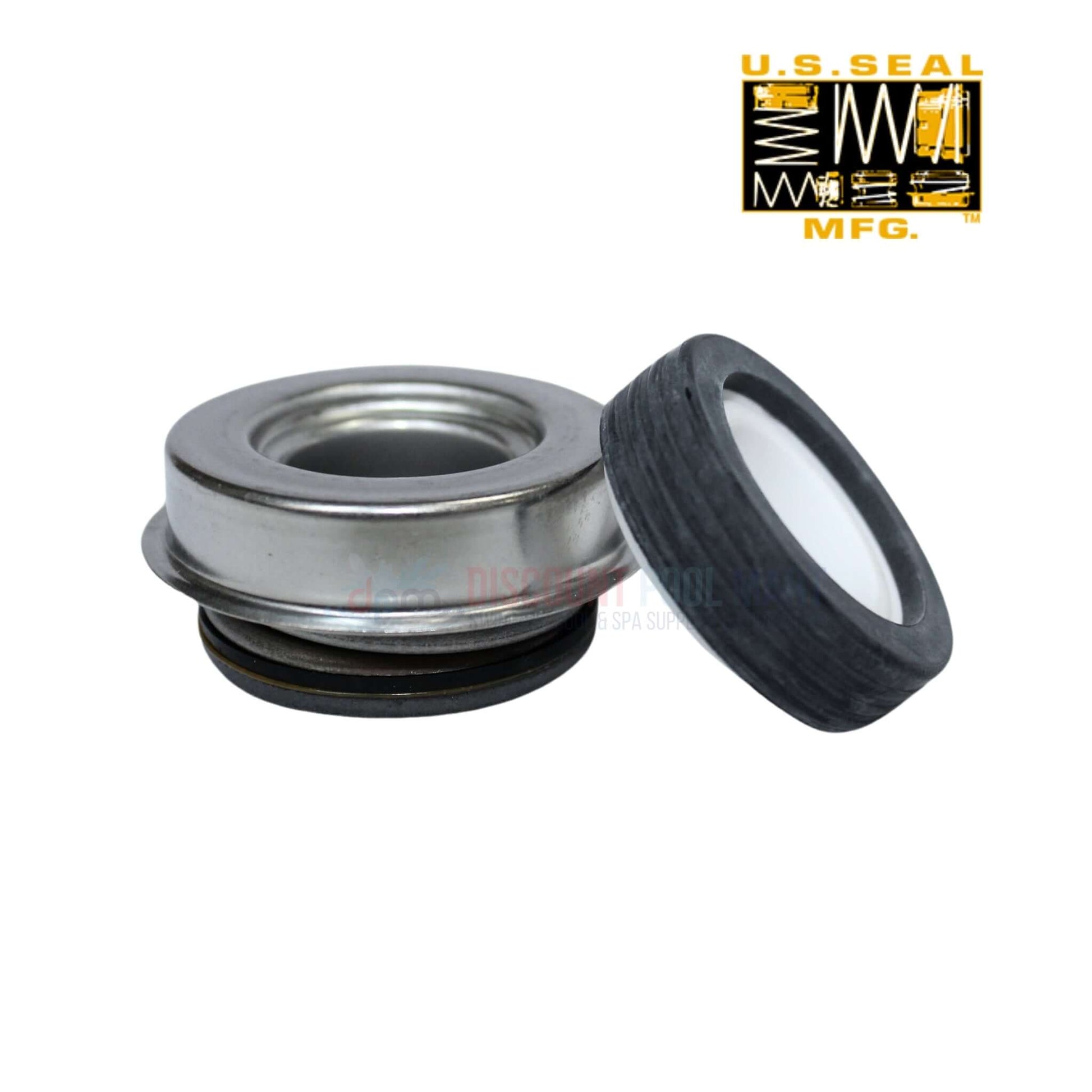

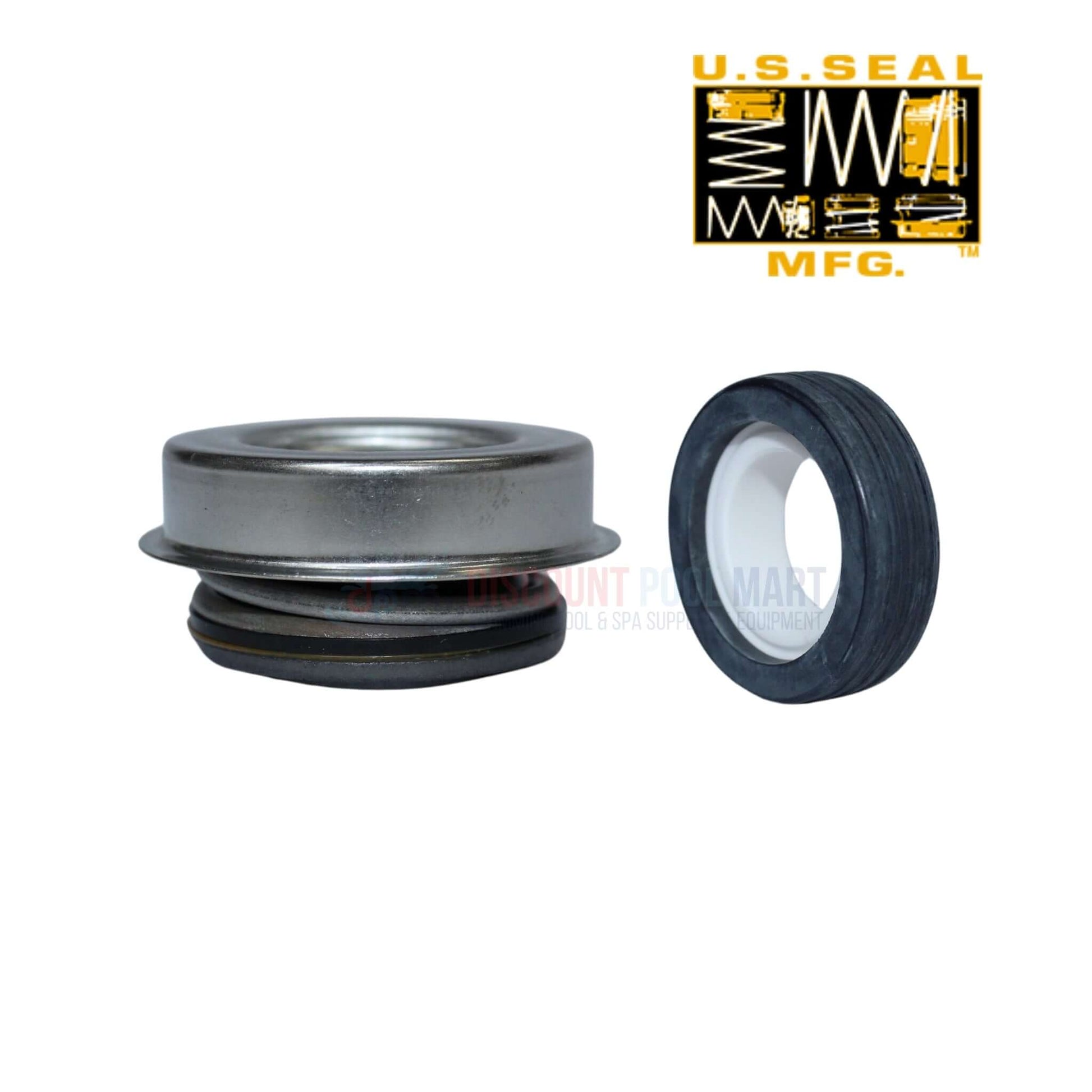

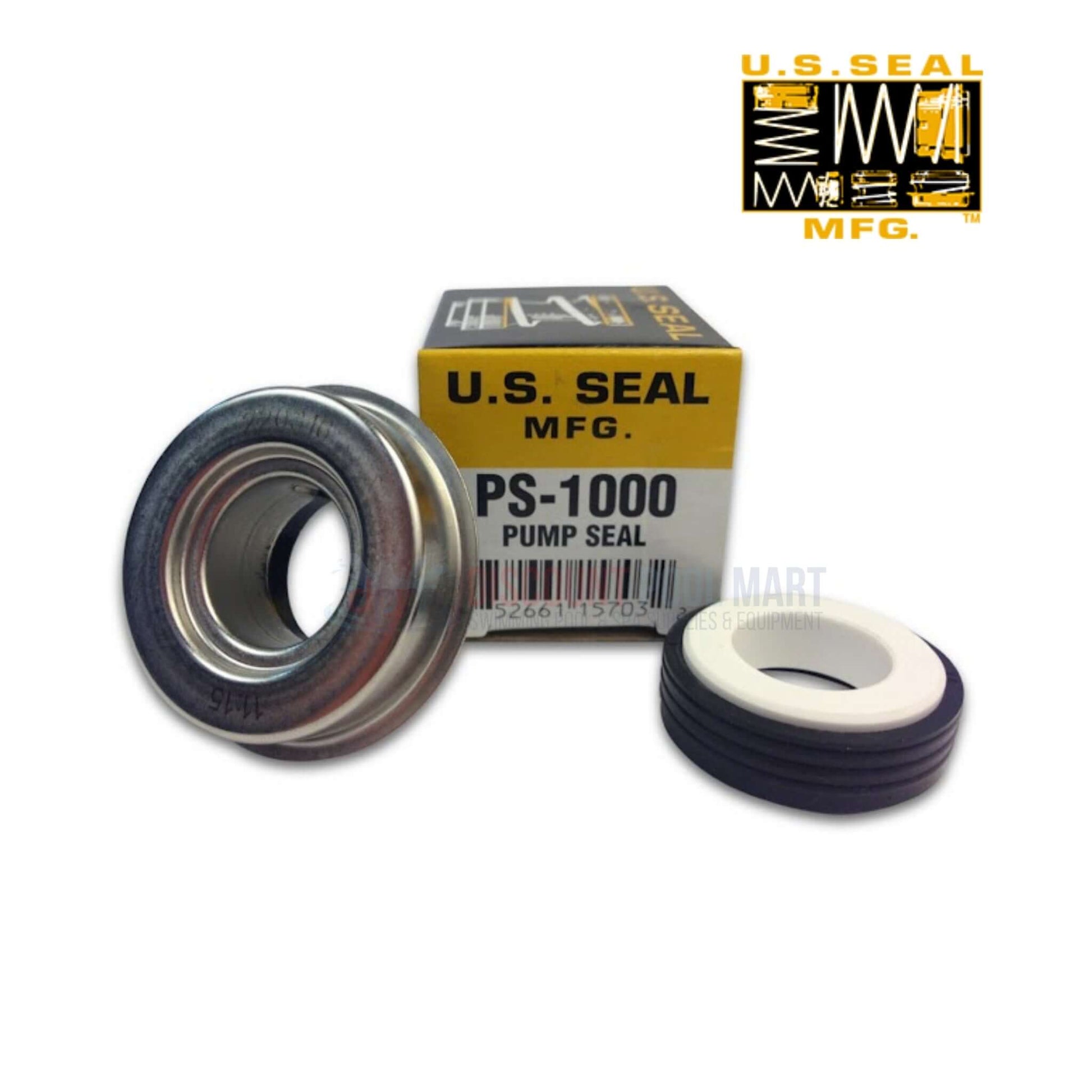

The U.S. Seal Premium Seal Assembly - PS-1000 is a highly durable and efficient mechanical seal designed specifically for pool and spa pumps. This seal assembly features a 5/8" shaft and incorporates materials such as Buna elastomers, graphitic plastic SS, and a ceramic seat, making it a reliable choice for general pool and spa applications. It is compatible with a wide range of pump models and is engineered to prevent water ingress, thereby safeguarding the pump from potential damage.

Highlights

• Seal Type: Mechanical seal designed for high durability and reliability in pool and spa pump applications.
• Material Composition: Constructed with Buna elastomers, graphitic plastic SS, and a ceramic seat to ensure robust sealing performance and longevity.
• Application Suitability: Ideal for general pool and spa applications, providing a strong barrier against water ingress to protect the pump.

Compatibility

• Premier 556 AB Series
• Premier 555N Series
• Wet Institute Pump
• Waterway Workman Pump
• Waterway Center Discharge Pump (Pre-2010)
• Pentair Letro Booster Pump LA01N (1997-Current)
• Polaris Booster Pump PB4-60 (Pre-1994)
• Sta-Rite HF, HHF, HPA
• Sta-Rite CF Pump
• American Products Eagle
• American Products Maxim
• American Products Ultra-Flo
• Aqua Flo A Series Pump
• Astral Astra Max
• Aqua Heat Pumps
• Aqua Heat Plus Pump
• Sonfarrel Spa Master - Side Discharge
• Sonfarrel Spa Master - Center Discharge
• Waterway Center Discharge Spa Pump
• Waterway Hi-Flo AG Side Discharge Spa Pump
• Waterway Executive 48 and 56-Frame Pump
• Polaris Pump Shaft Seals
• Waterway Pump Shaft Seals
• Sea Blue Pump Shaft Seals
• Common Replacements - Pump Shaft Seals
• Advantage Center Discharge Above Ground Pump
• Waterway Champion 56-Frame Pump
• Waterway Hi-Flo & Hi-Flo II Side Discharge Above Ground Pump
• Polaris Booster Pump PB4-60 (1994-2011)
• Premier 456 B/N Series Pump
• Premier 658 Bronze Pump
• Premier 556N Series Pump
• Premier 455 Bronze Pump
• Waterway Spa-Flo Pump
• Acura Spa Maverick
• Acura Spa Magnaflow
• Waterway Mustang/Workhorse Above Gound Pump
• Waterway Econo-Flo 2-Speed Hybrid Pump
• Waterway SMF Pump
• Waterway Econo-Flo 2-Speed Pump
• Waterway Econo-Flo VSA 2.7 Variable Speed Pump
• American Products Pump Shaft Seals
• Anthony Pump Shaft Seals
• Pentair Whisperflo Pumps
• Pentair Intelliflo Pumps
• Pentair IntelliFlo VS+SVRS Pumps- After 2016
• Pentair IntelliFlo Variables Speed & VS+SVRS Pumps

• Pentair IntelliFlo VSF Pumps- After 2018

• Aqua Flo Pump Shaft Seals
• Aqua Flo Dominator - High Head
• Aqua Flo Dominator - Medium Head
• Premier Pump Shaft Seals
• Pentair/Purex/Hydrotech Pump Shaft Seals
• Sta Rite Pump Shaft Seals
• Waterway Iron Might Circulation Pump
• Waterway SVL56 High-Flow Pump
• Waterway Power Defender 300 Variable Speed Pump
• Waterway Power Defender 270 Variable Speed Pump
• Waterway Power Defender 165 Variable Speed Pump
• Splash In Ground Pump (2" Ports)
• Pentair WhisperFlo VST Variable Speed Pump

Exclusions: Not recommended for pools or spas equipped with ozonators, bromine, or chlorine generators. For such systems, alternative seal models like PS-3865 or PS-1905 are advised.

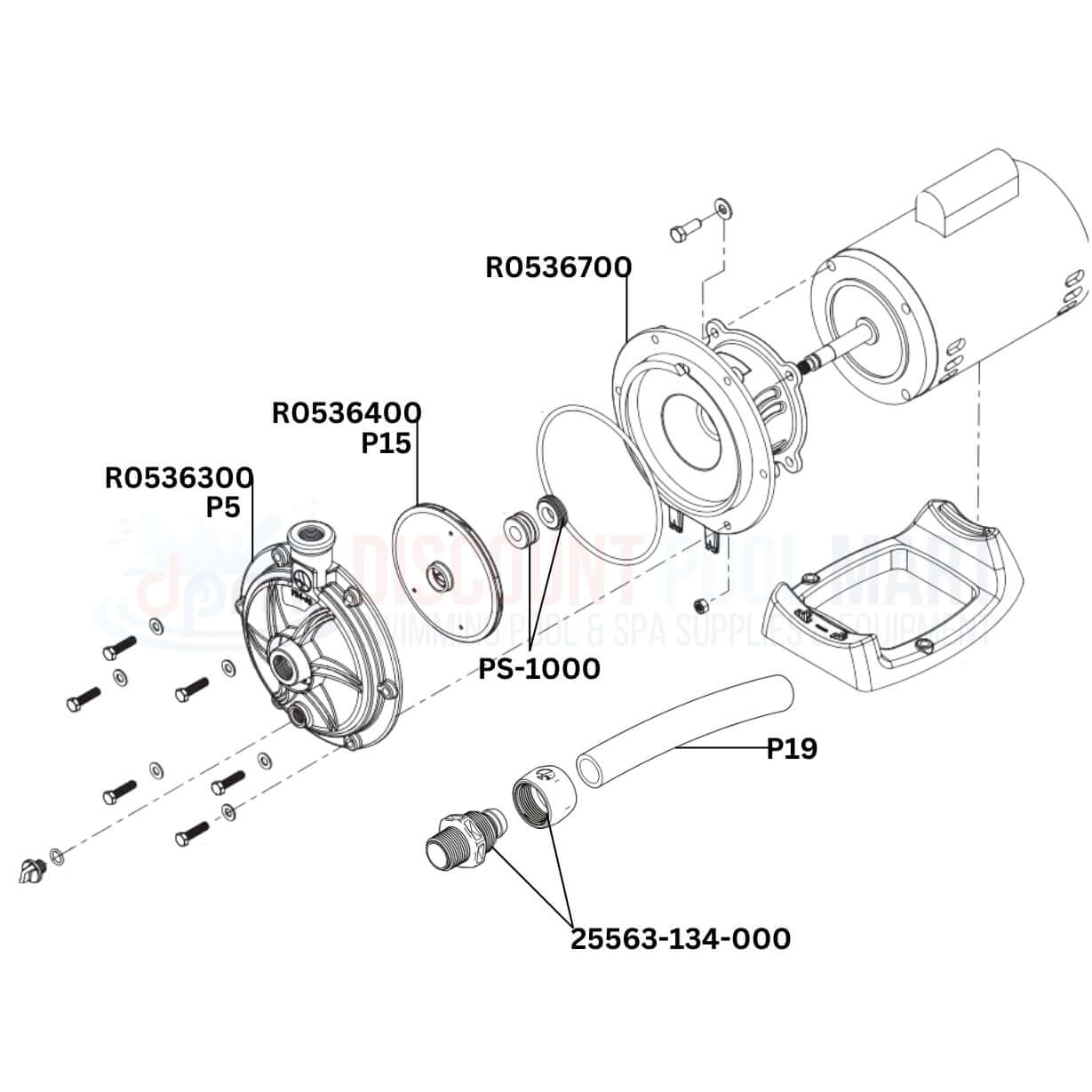

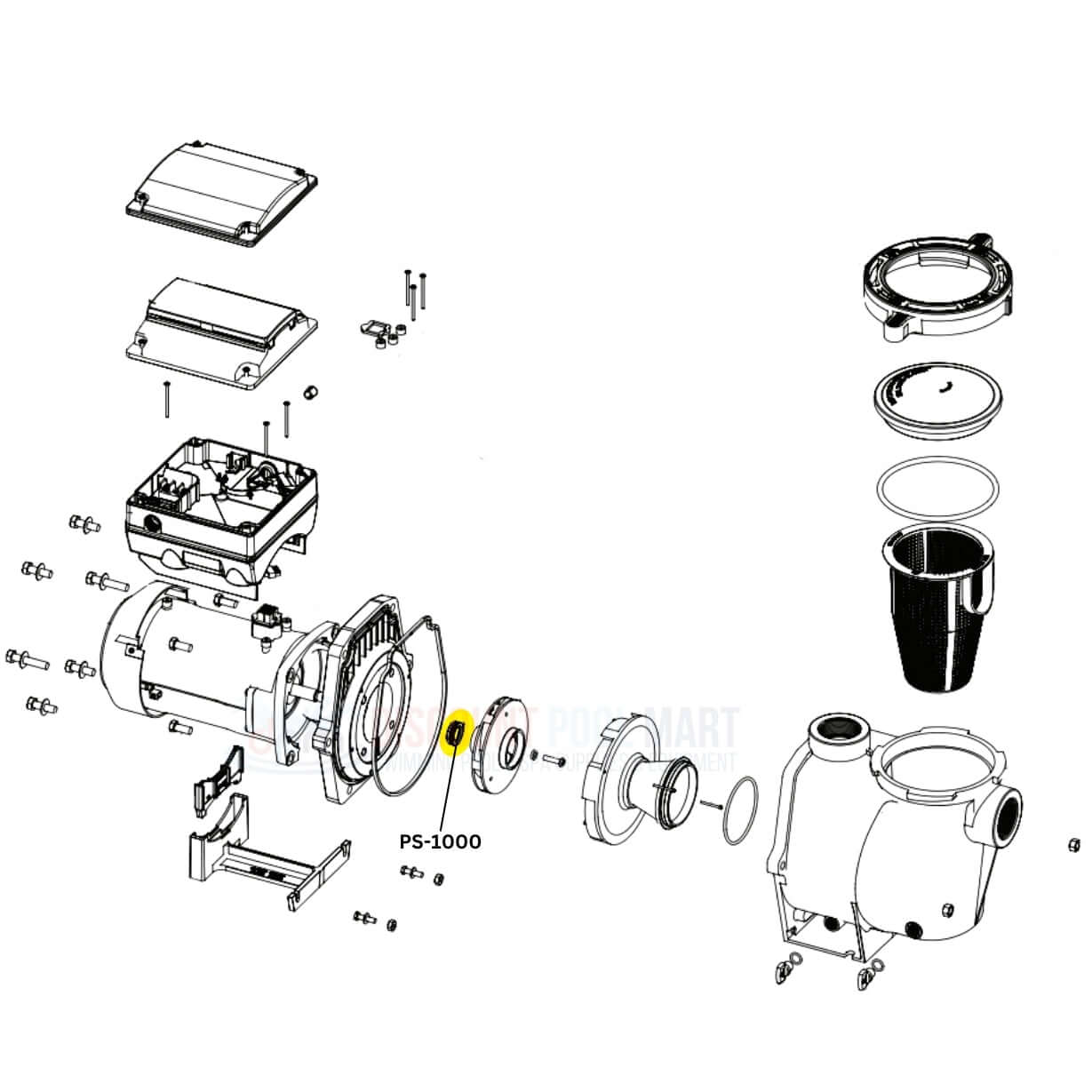

Diagram
