Pentair SuperFlo & WhisperFlo VS/VST Complete Motor Drive Assembly | 356282
Couldn't load pickup availability
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov
Found In These Collections
The Pentair SuperFlo & WhisperFlo VS/VST Complete Motor Drive Kit Assembly 356282, is an essential component for upgrading or maintaining your pool's pump system. This kit includes everything needed for a seamless installation, ensuring efficient operation and connectivity with various Pentair automation systems like EasyTouch and IntelliCenter. It's designed to enhance the pump's performance, providing variable speed capabilities that lead to significant energy savings. This kit is crucial for pool owners looking to optimize their system's efficiency and reliability.
Highlights
- Energy Efficiency: Enables variable speed functionality, significantly reducing energy consumption.
- Ease of Installation: Includes all necessary components for a straightforward installation process.
- Automation Ready: Compatible with Pentair automation systems like EasyTouch, IntelliCenter, and other major brands for seamless integration.
- Durability: Built to withstand the demanding conditions of pool environments, ensuring long-term reliability.
- Enhanced Performance: Optimizes pump performance for better flow rates and filtration efficiency.
External Control Operation
The pump can be externally controlled via digital inputs using the Digital Input Wiring Kit (P/N 353129Z - Almond) and the RS-485 Automation Wiring Kit (P/N 356324Z - Black). See External Control via Digital Inputs, page 6 or External Control via RS-485, page 5.
When connected to external controls, the pump will prioritize commands as follows:
- RS-485 > Digital Inputs > Drive Programmed Schedules Refer to your control system manual for further details on how to connect and program your pump with your control system.
General Operation Settings
- Setting the Clock and Pump Address
- Using the Default Schedule
- Programming Custom Schedules
- Program Priorities (Non-External Control)
- Priming the Pump
- Priming Adjustment
- Operating the Pump While Running
- Programming Quick Clean
- Keypad Lockout
- Factory Reset
- Operating the Pump in Flow Mode
- Flow Mode Setup and Configuration
- Adjusting Flow Setting
Compatibility
This Pentair pump drive is used for the following Pentair pump models
- Pentair Pentair Whisperflo VST Pumps
- Pentair SuperFlo VS / VST Pumps after 10-2020
- Sta-Rite SuperMax VS Pumps after 10-2020
Specifications
| Fault Code | Description |
| 21 | Communication link between HMI and motor control has been lost |
| 1A | Power Module over current detected |
| 17 | Phase Current Offset out of range |
| 16 | Phase Current Imbalance detected |
| 0F | Absolute AC under voltage detected |
| 02 | Absolute Phase current limit exceeded |
| 08 | Absolute Diode Bridge temperature limit exceeded |
| 04 | Absolute Power Module temperature limit exceeded |
| 06 | Absolute Power Factor Correction (PFC) temperature limit exceeded |
| 09 | DC bus over voltage detected |
| 0A | DC bus under voltage detected |
| 19 | Motor start failure |
| 0b | AC Voltage maximum exceeded |

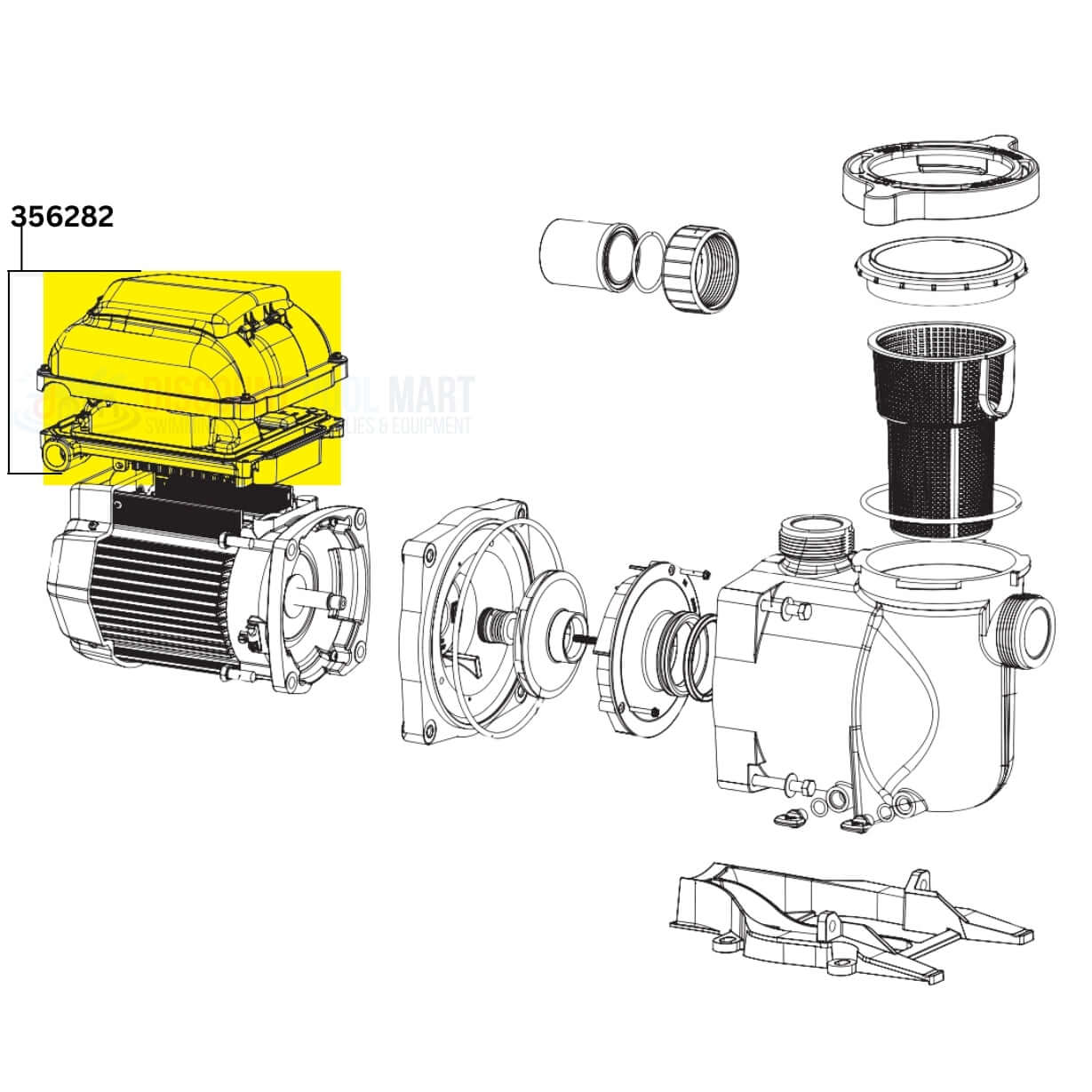

Diagram
