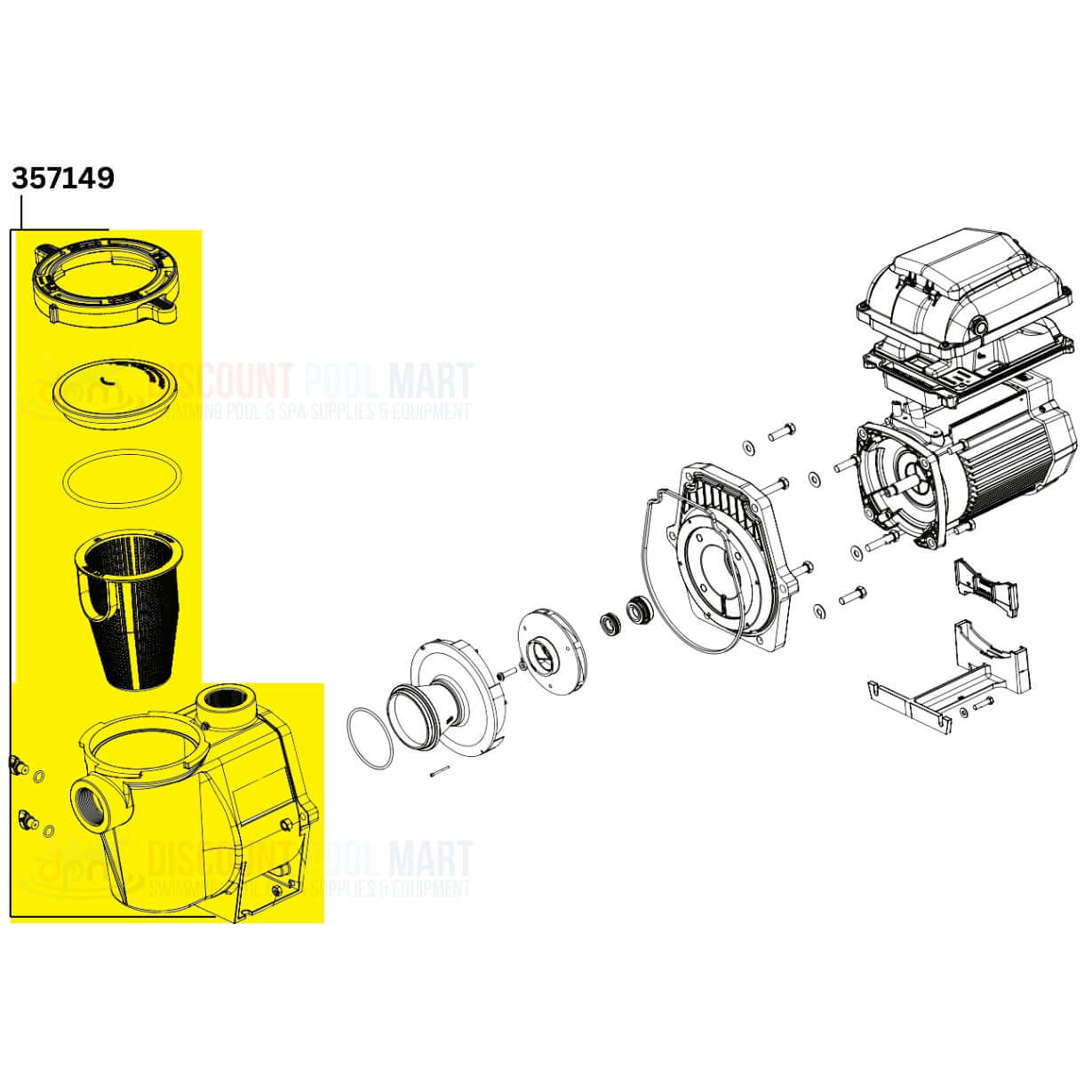

On the Pentair IntelliFlo VS Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Pentair IntelliFlo VS Pump

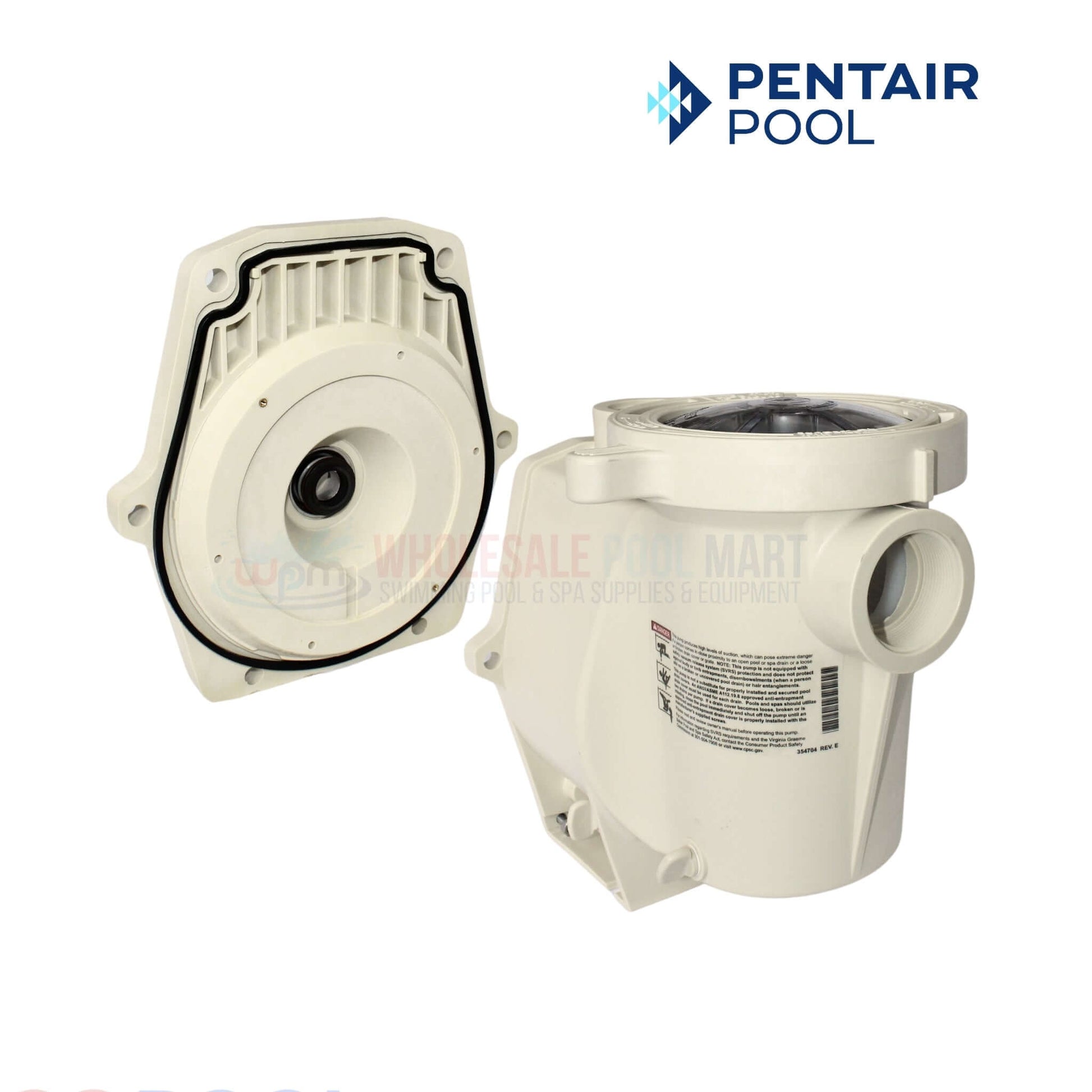

Enhance and protect your pool's circulation with the Pentair Volute Pot and Seal Plate Kit, tailored for Whisperflo and Intelliflo pumps. Part number 357149, this kit includes a carefully designed volute pot and a durable seal plate, critical for preventing leaks and maintaining efficiency. It's an investment in your pump's long-term health, ensuring consistent operation and peace of mind.
- Tailored Circulation Enhancement: This kit is specifically crafted for Whisperflo and Intelliflo pumps, improving circulation and protecting your pool system.
- Leak Prevention Components: Includes a volute pot and seal plate, pivotal in averting leaks and ensuring efficient pump operation.
- Invest in Pump Health: An essential investment designed to maintain the long-term welfare of your pump, offering consistent performance and peace of mind.
- Pentair's Seal of Quality: Manufactured to Pentair's superior standards, this kit promises the highest durability and quality.
- Perfect Engineering Fit: Precision-engineered for a flawless fit in your pump system, this kit is synonymous with dependability and efficiency.

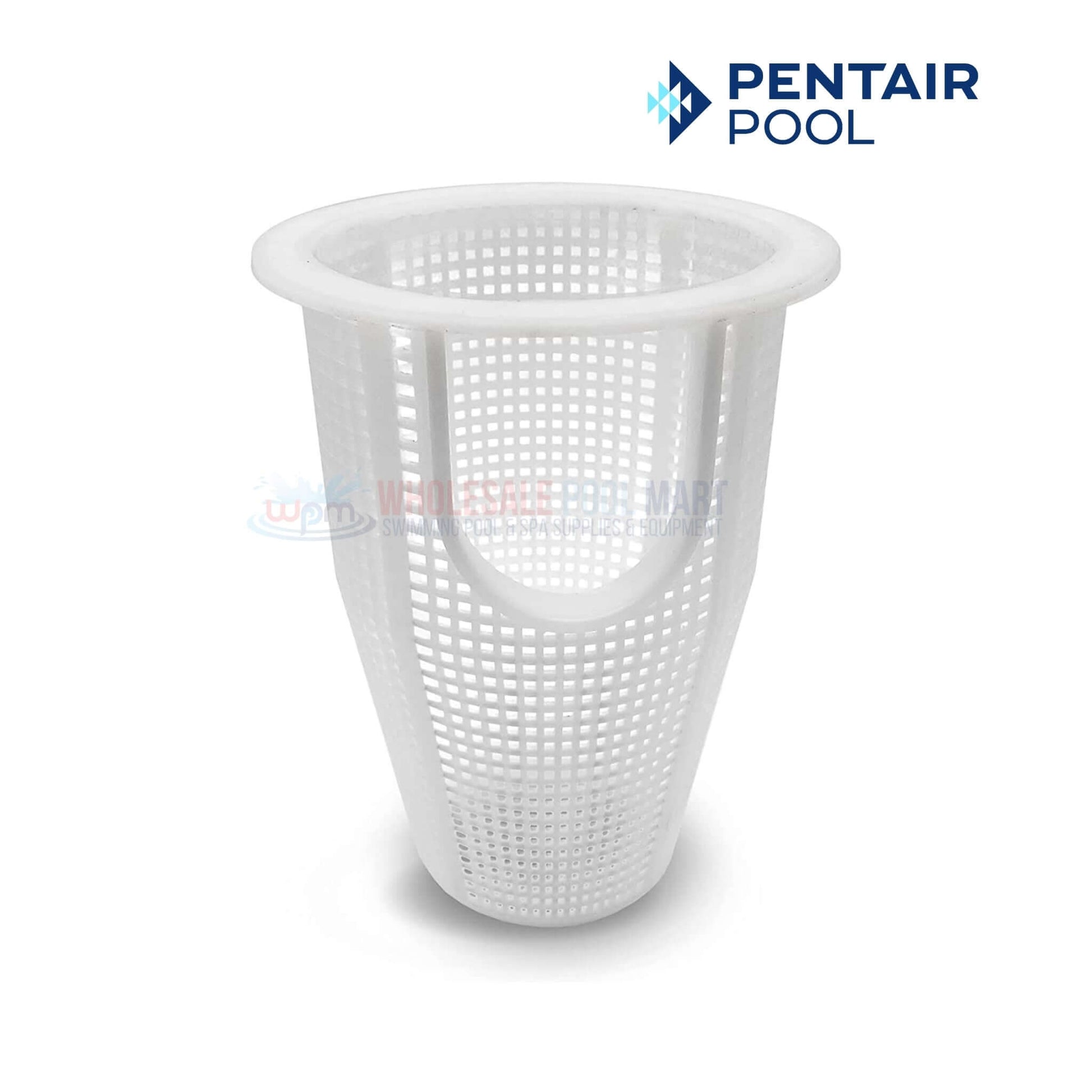

- (1) Basket 070387

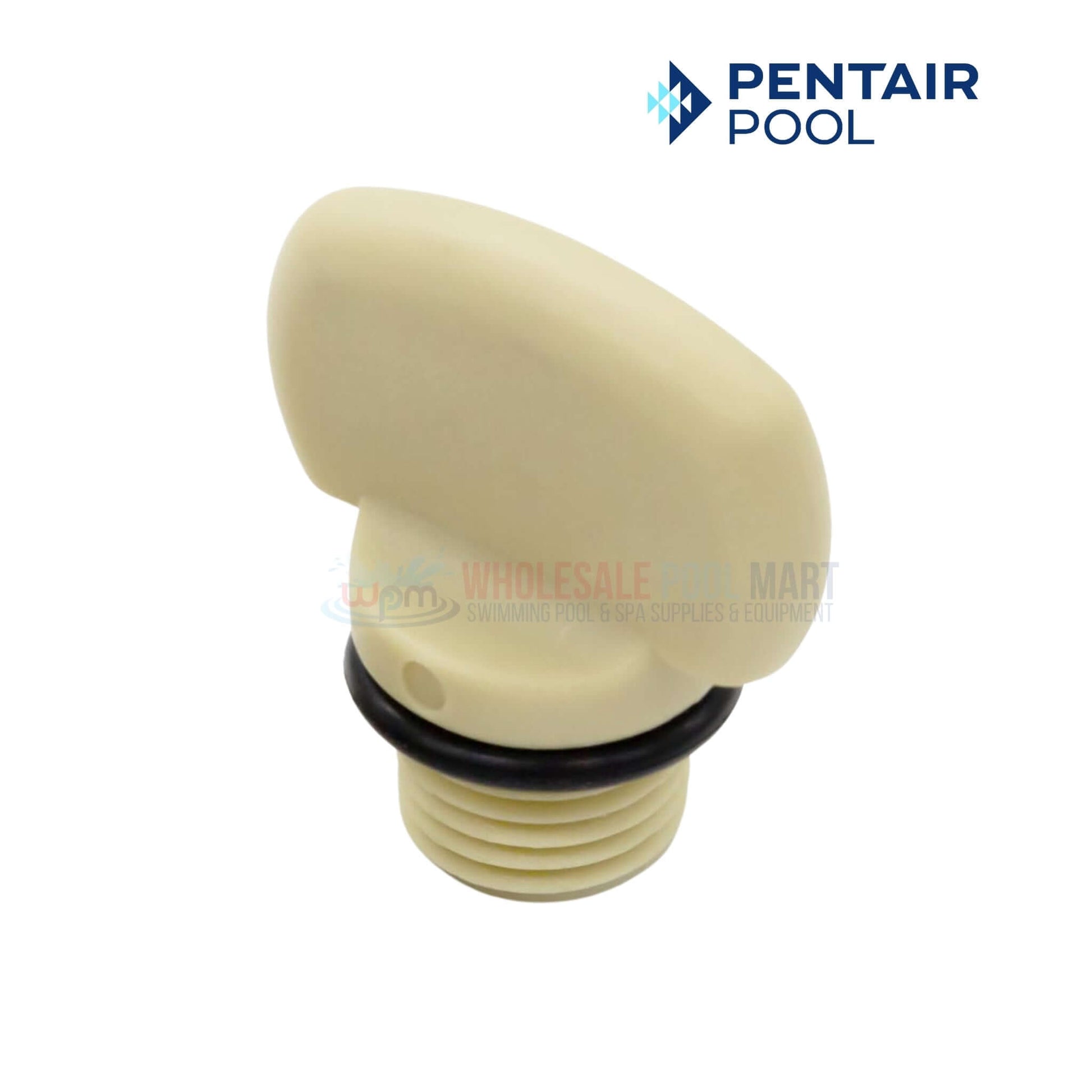

- (2) Drain Plug 071131
- (2) Drain Plug Gasket 092115

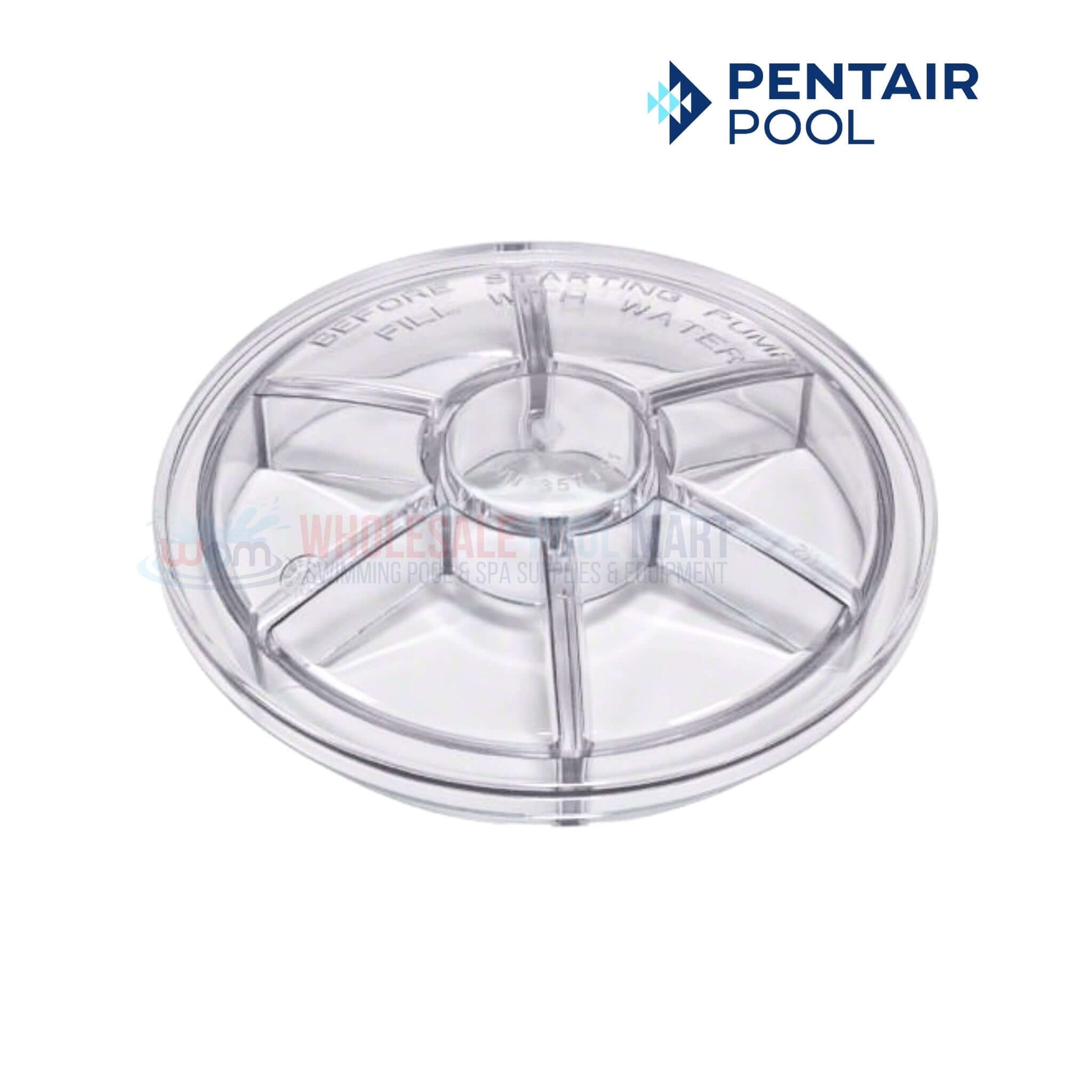

- (1) Lid 357151

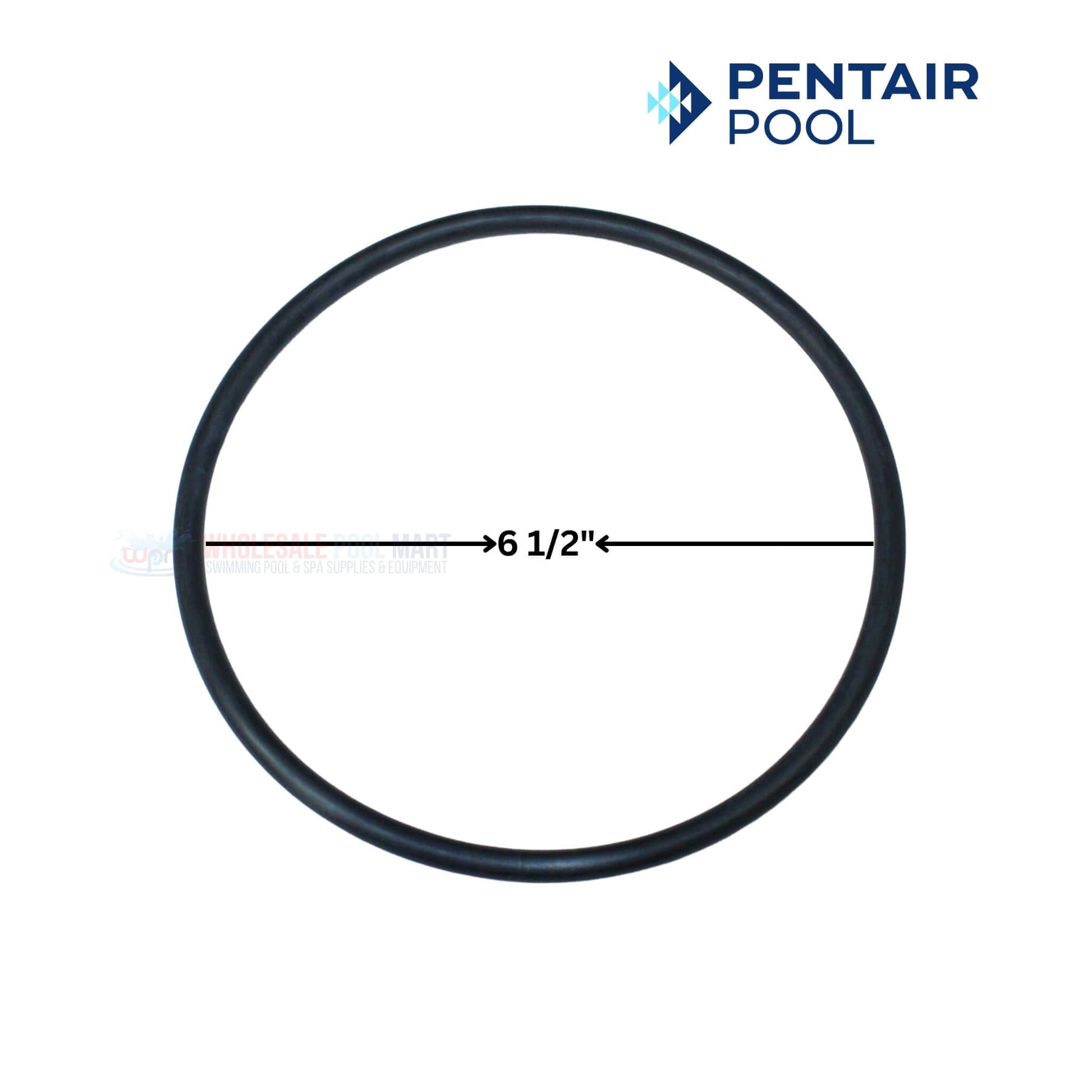

- (1) Lid O-ring 350013

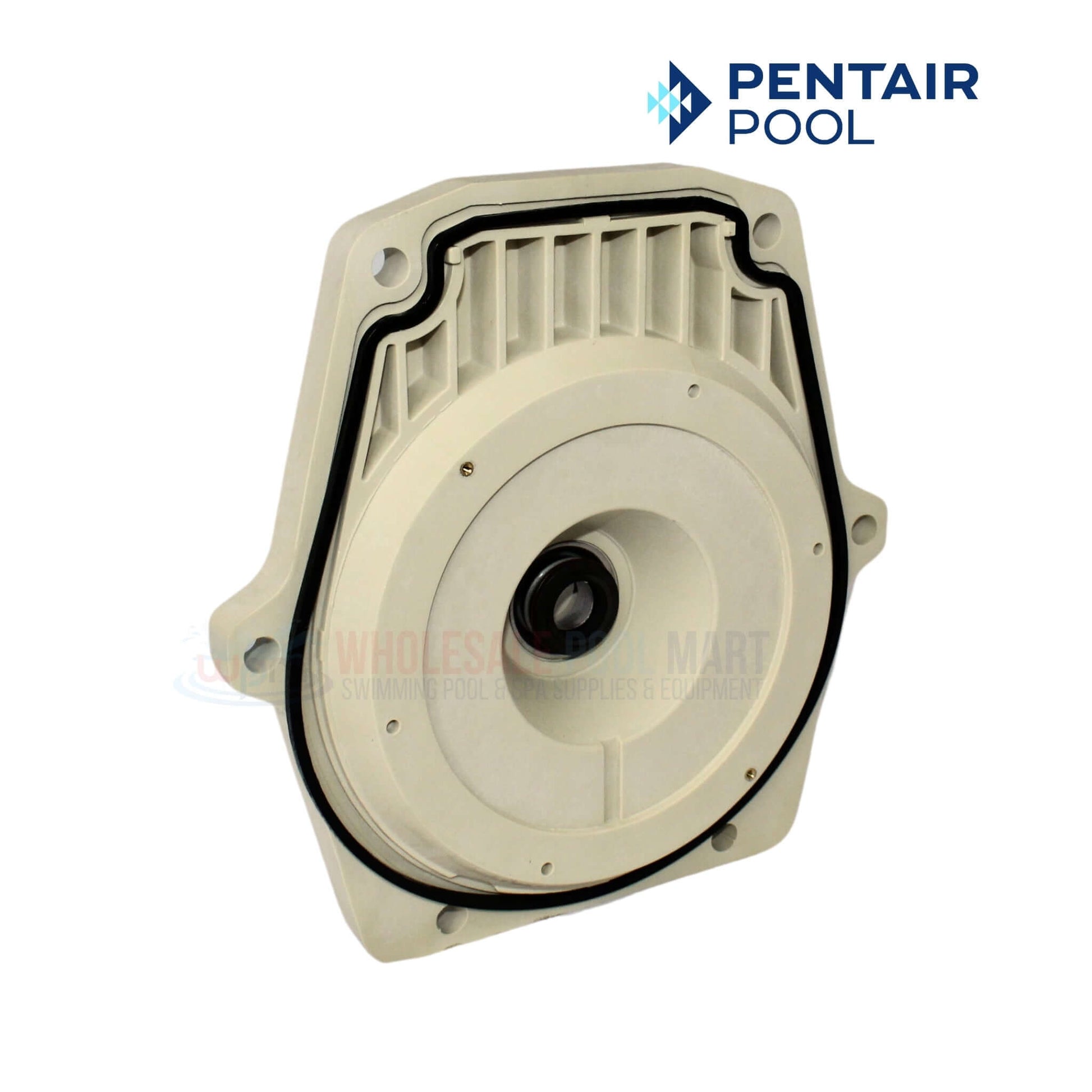

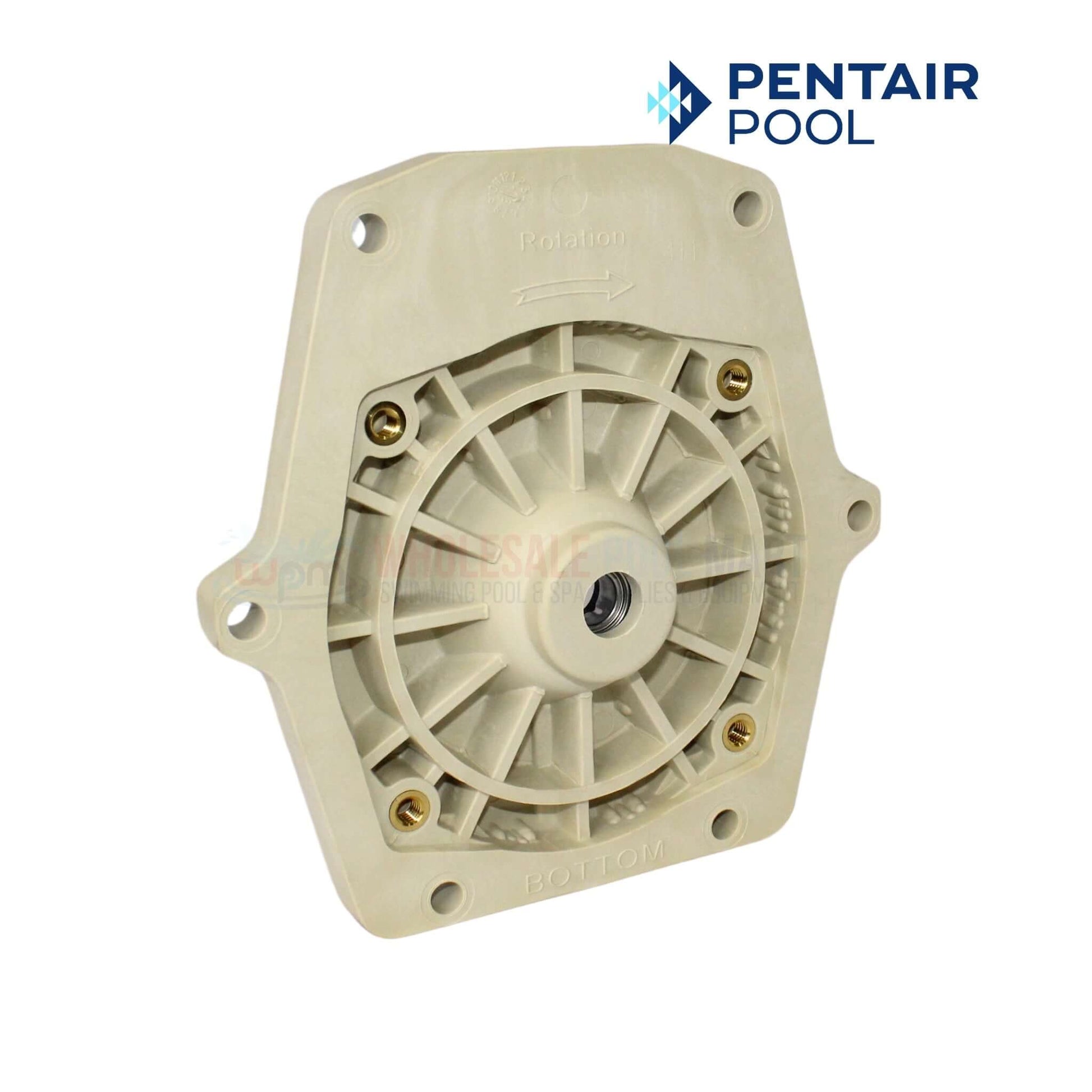

- (1) Seal Plate Kit
- (1) Seal Plate Gasket 357100 or 357102

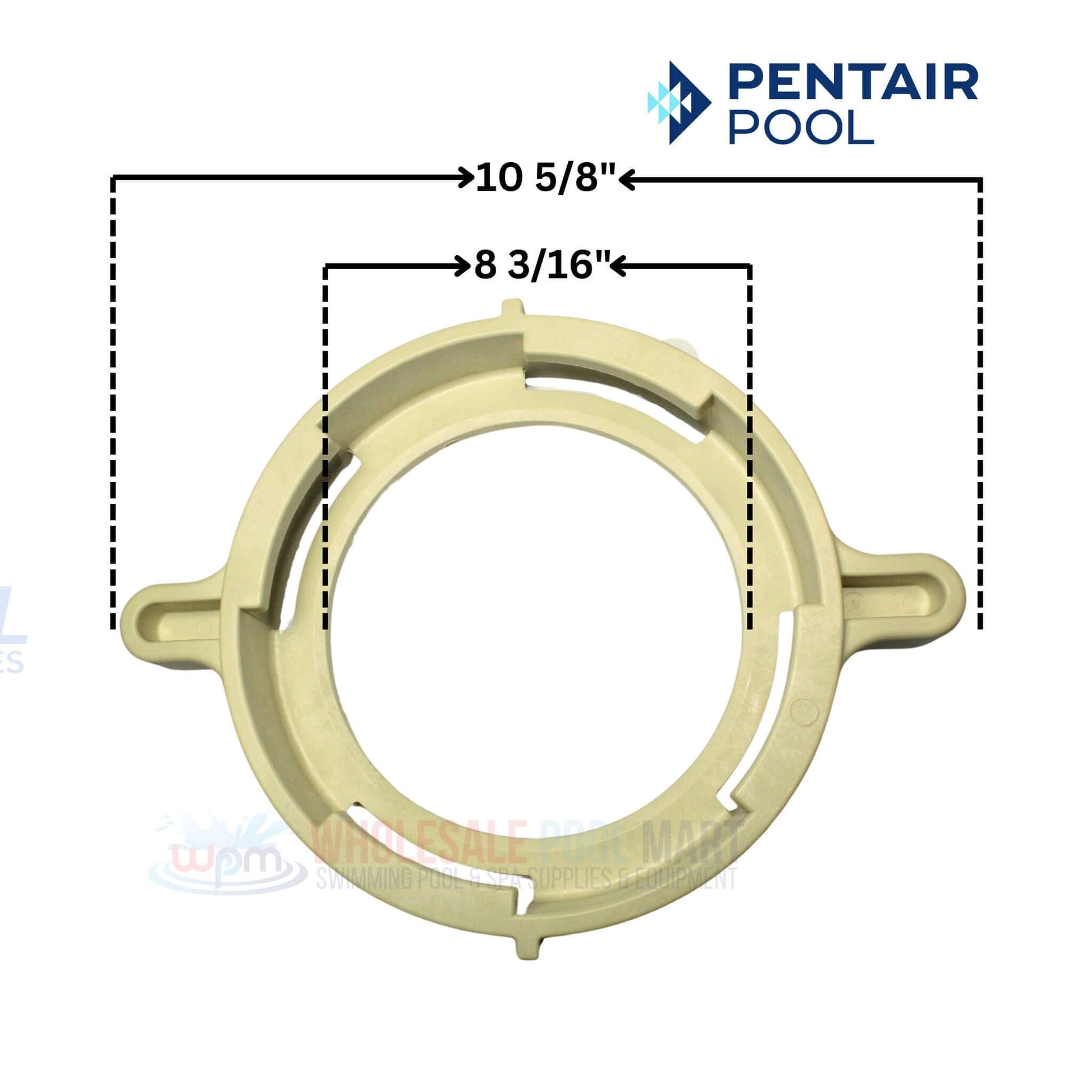

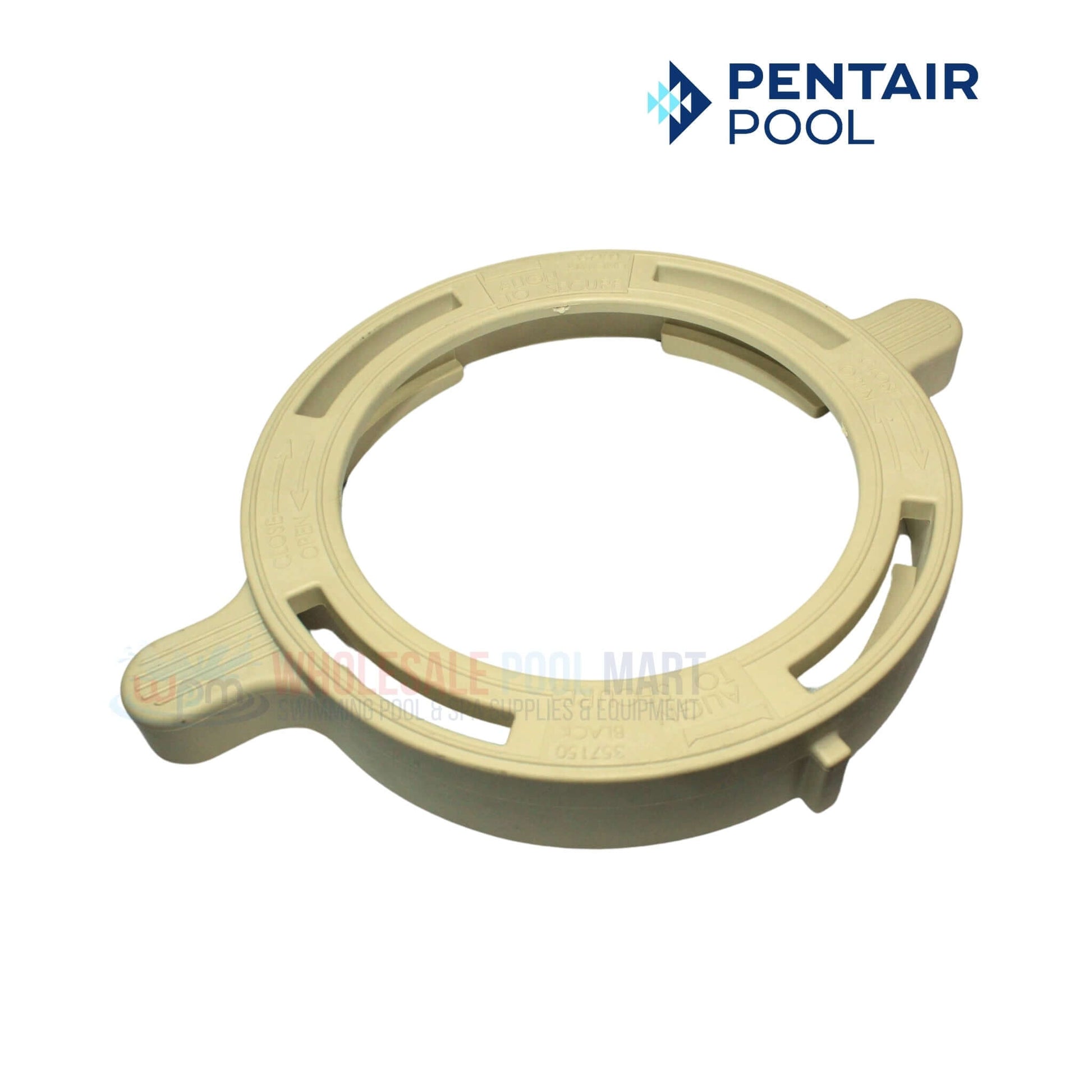

- (1) Clamp Cam and Ramp Locking Ring 357199

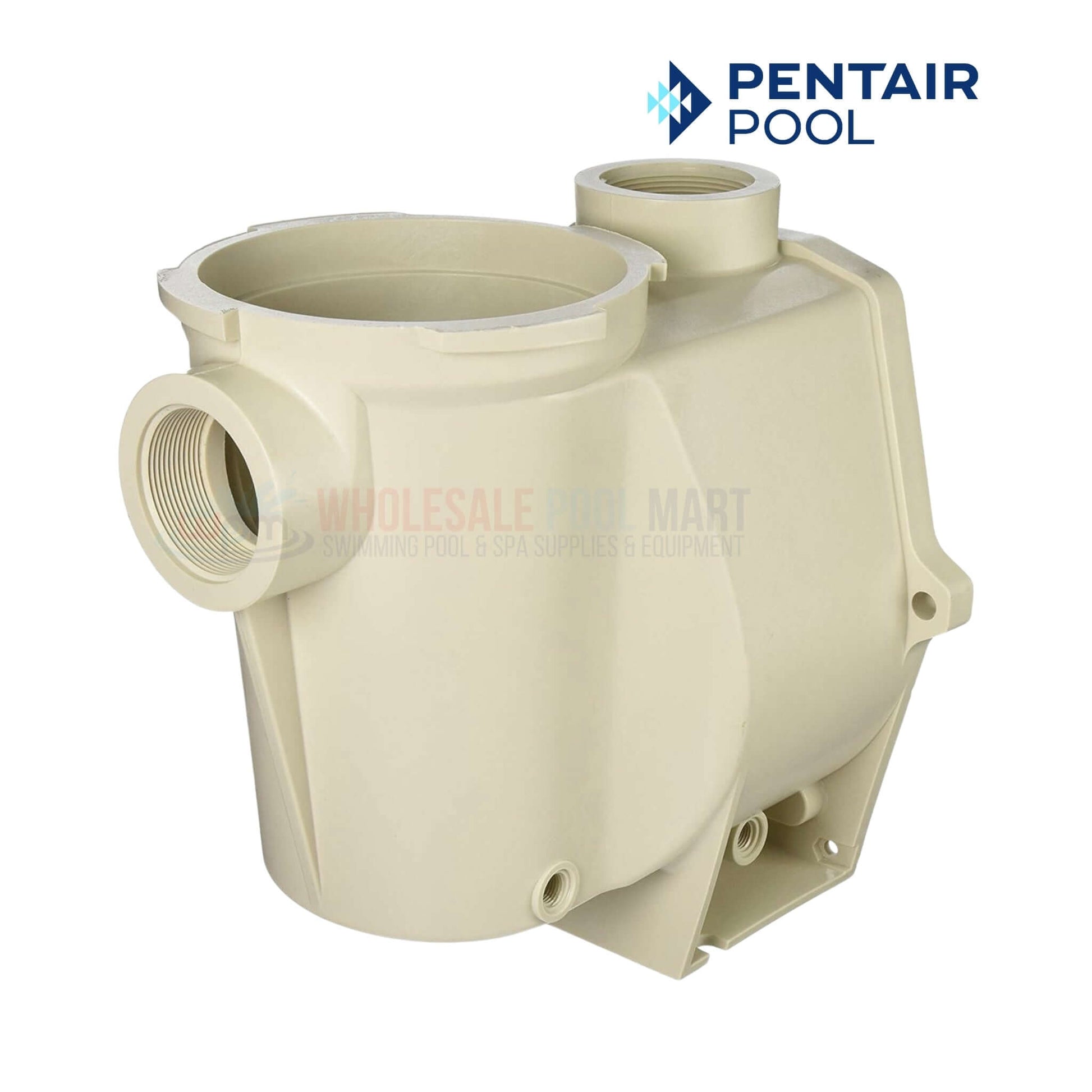

- (1) Pump Housing 350015
- (2) Pump Housing Bolts 071657

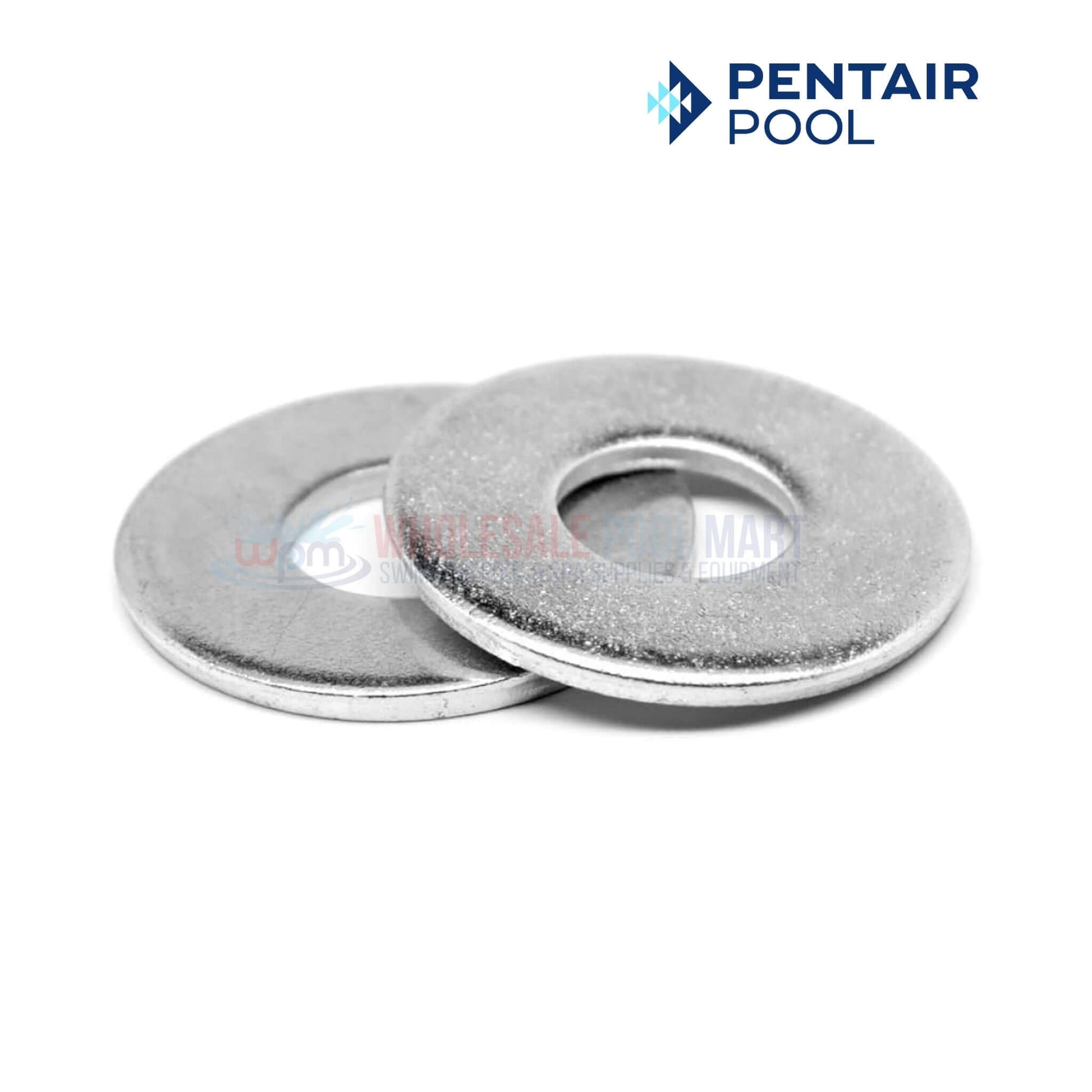

- (2) Pump Housing Washers 072186

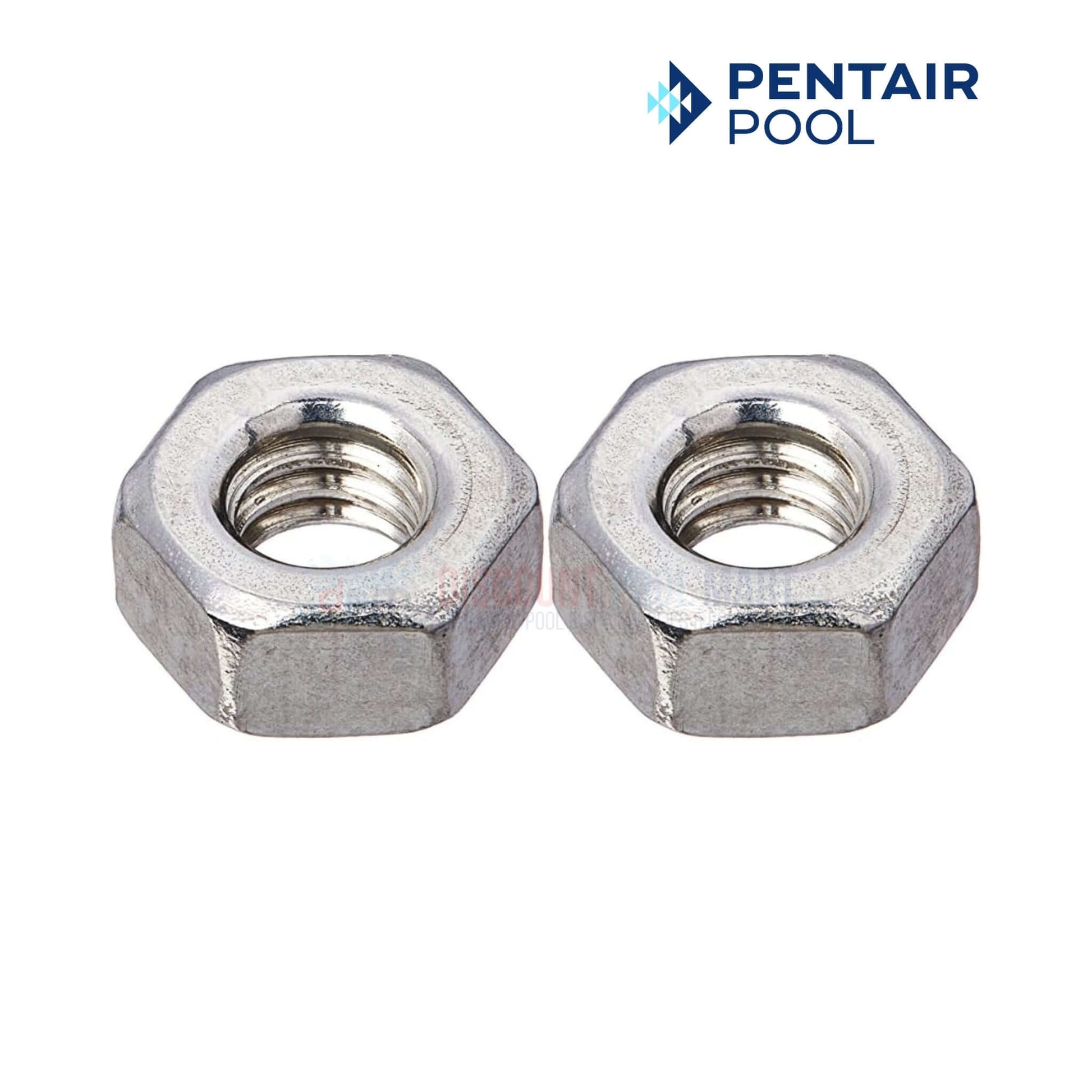

- (2) Pump Housing Nuts 071406

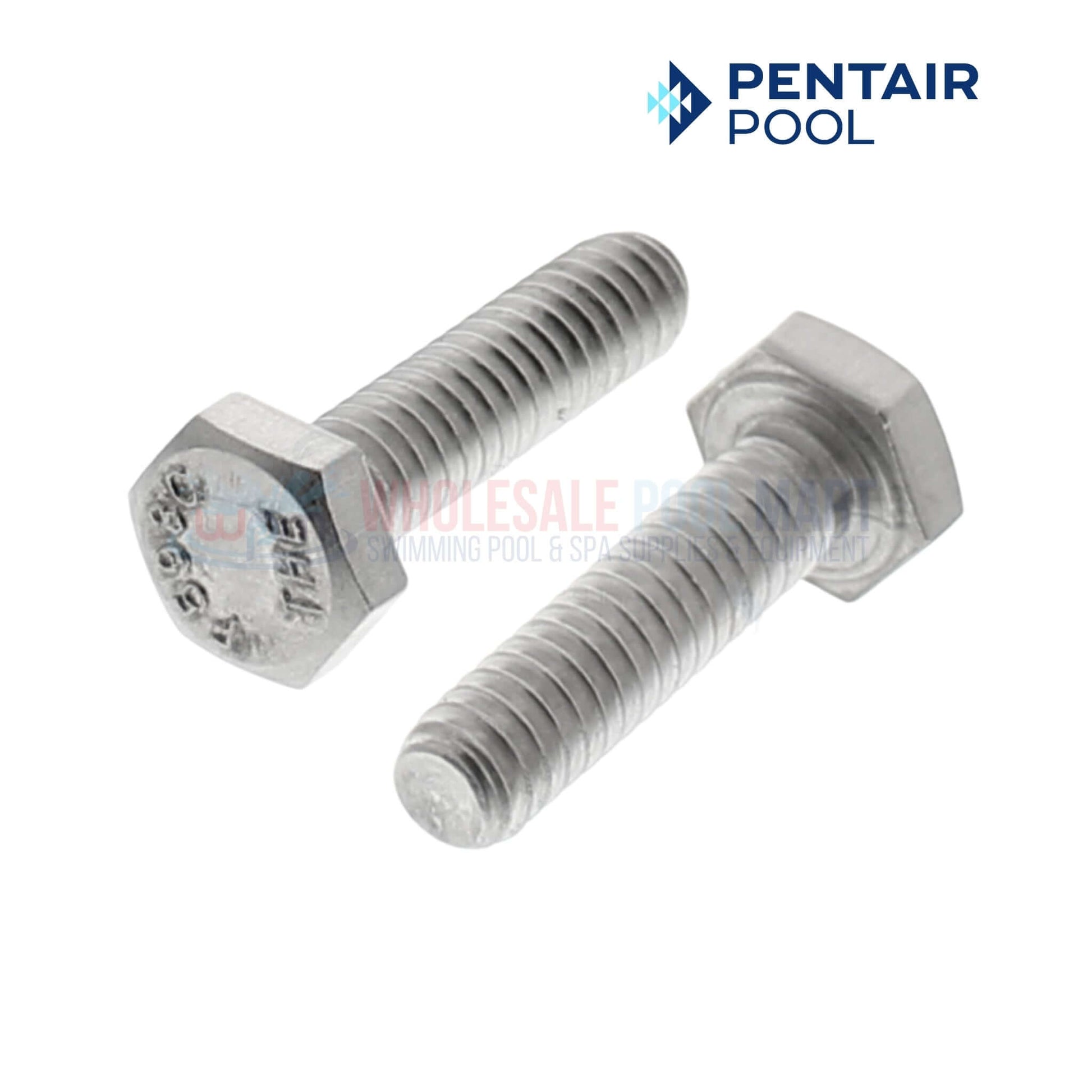

- (2) Long Seal Plate Bolts with Nuts
- (4) Short Seal Plate Bolts
- Pentair IntelliFlo VS Pumps
- Pentair IntelliFlo VF Pump
- Pentair IntelliFlo VS-SVRS Pumps
- Pentair IntelliFlo i1 Pumps
- Pentair WhisperFlo Pumps
- Pentair Whisperflo VST Pumps
Note: This Volute and Seal Plate Kit may be compatible with your pump, please check owners manual to ensure compatibility.
