Hayward Pro Series Sand Filter Replacement Parts Diagram
Interactive parts diagram
8 parts · 1 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.
Scroll or pinch to zoom · drag to move
-
Valve size
-

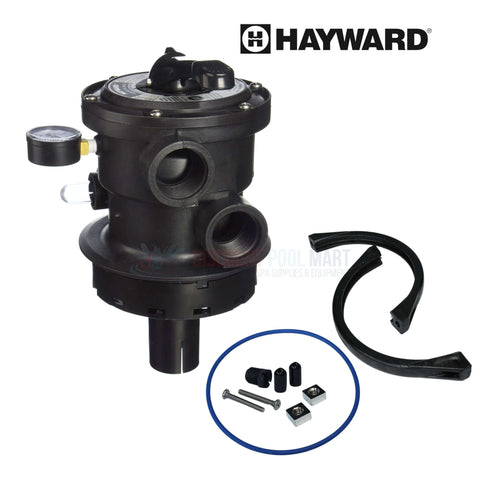

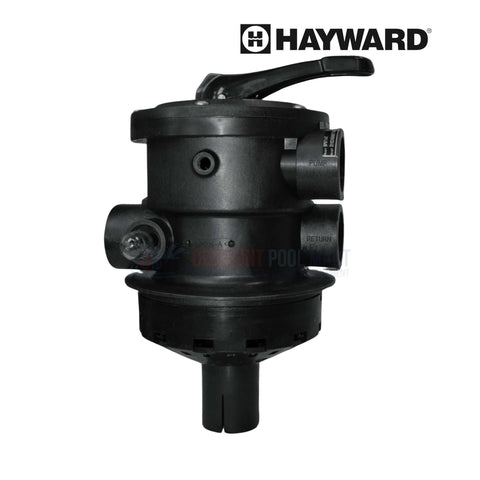

Original (OEM) Hayward Top Mount Vari-Flo Multiport Valve | 1.5"$149.99
-
Original (OEM) Hayward 2" Top Mount Vari-Flo Multiport Valve$225.99
-
-
-
Original (OEM) Hayward Valve To Tank O-Ring For Pro-Series Filters$23.99
-
-
-
$29.99
-
$29.99
-
-
Filter size
-
Original (OEM) Hayward New Style Pivot Lateral For Sand Filters$6.99
-
Original (OEM) Hayward New Style Pivot Lateral For Sand Filters$6.99
-
-
-
Original (OEM) Hayward Drain Cap Gasket & Screen For Pro Series Sand Filter$5.99
-
-
Filter size
-

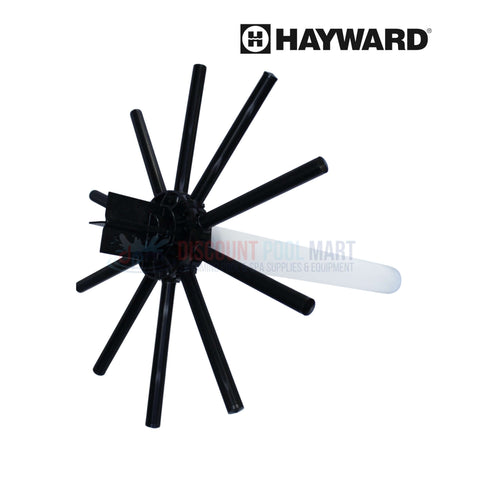

Original (OEM) SX210DA | Hayward Lateral Assembly with Center Pipe$94.99Notify me
-
Original (OEM) Hayward Lateral Assembly With Center Pipe For S220T$99.99Notify me
-
$129.99
-
$159.99Notify me
-
-
-
Not sold online Hayward pressure gauge (1 needed)
-
-
-
Not sold online Hayward filter base (skirt): SX164B for 14" and 16", SX200J for 18"-27", SX310J for 30" and 36" filters
-
No parts match.
Don't see your part? Ask us and we'll find it.
Also fits your Hayward Pro Series Sand Filter
Not shown on the diagram, but made for this pump.
-
Original (OEM) Hayward Pro Series Sand Filter Base with Screws & Washers$149.99Notify me
-
Original (OEM) Hayward Sight Glass & O-Ring For Multiport Valves$9.99
-

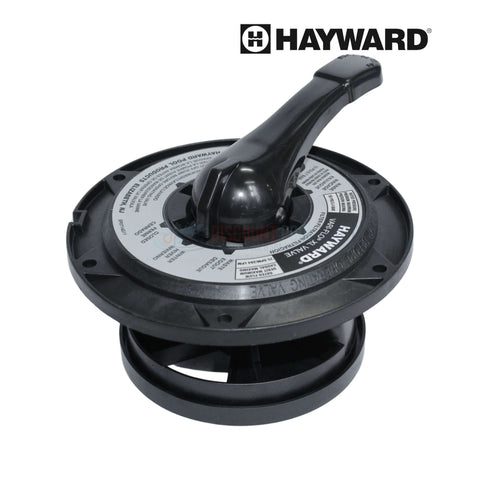

Original (OEM) Hayward Key Cover and Handle for SP0714T Valves$149.99
Fit guide
Which ProSeries part fits your sand filter?
Find the model (for example S166T, S210T, S244T or S310T2) on your filter label. The tank size in inches is in the model number. Part numbers come from Hayward's ProSeries high-rate sand filter owner's manual.

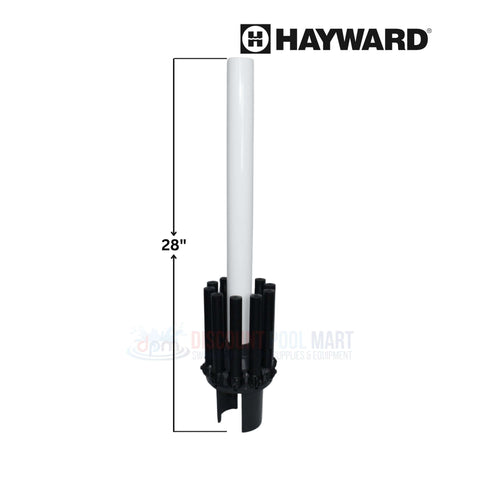

Lateral assembly by filter size
- 16"SX164DASS166T
- 18"SX180DASS180T
- 21"SX210DASS210T (older no. SX210DA); S210T2 uses SX210DA2S
- 22"SX220DASS220T (older no. SX220DA); S220T2 uses SX220DA2S
- 24"SX244DASS244T (older no. SX244DA); S244T2 uses SX244DA2XS
- 27"SX270DA2SS270T; S270T2 uses SX270DA2XS
- 31"SX310DA2SS310T2
- 36"SX360DASS360T2
Laterals (set of 10)
- 16", 18", 21", 22"
- SX200QNRPAK10
- 24", 27"
- SX240DNRPAK10
- 30", 36"
- SX310HNRPAK10
- Single lateral S180T
- SX200QN
- Single lateral S210T-S244T
- SX240DN
Single-lateral numbers are from Hayward's earlier ProSeries parts list.
