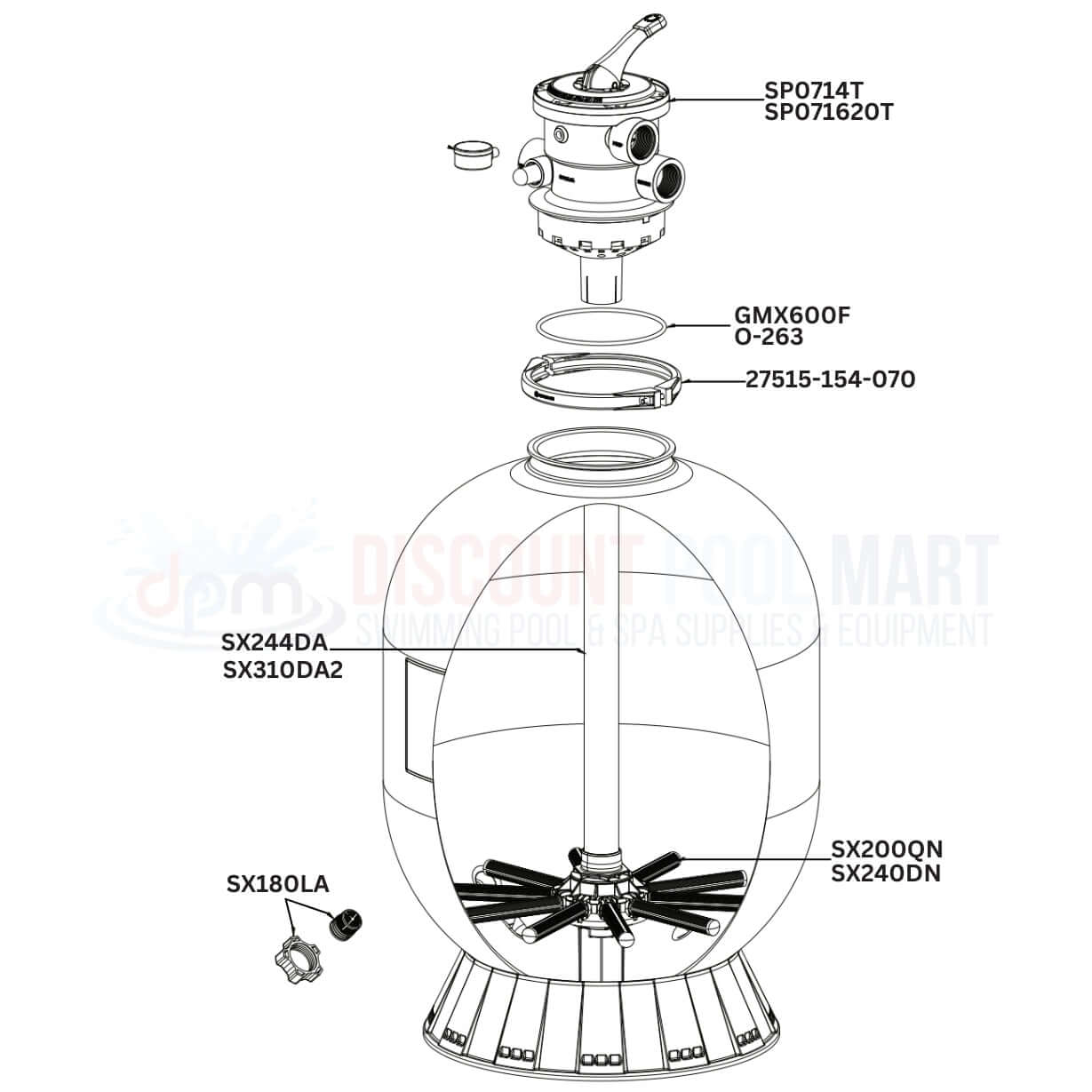

On the Hayward Pro Series Sand Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Pro Series Sand Filter

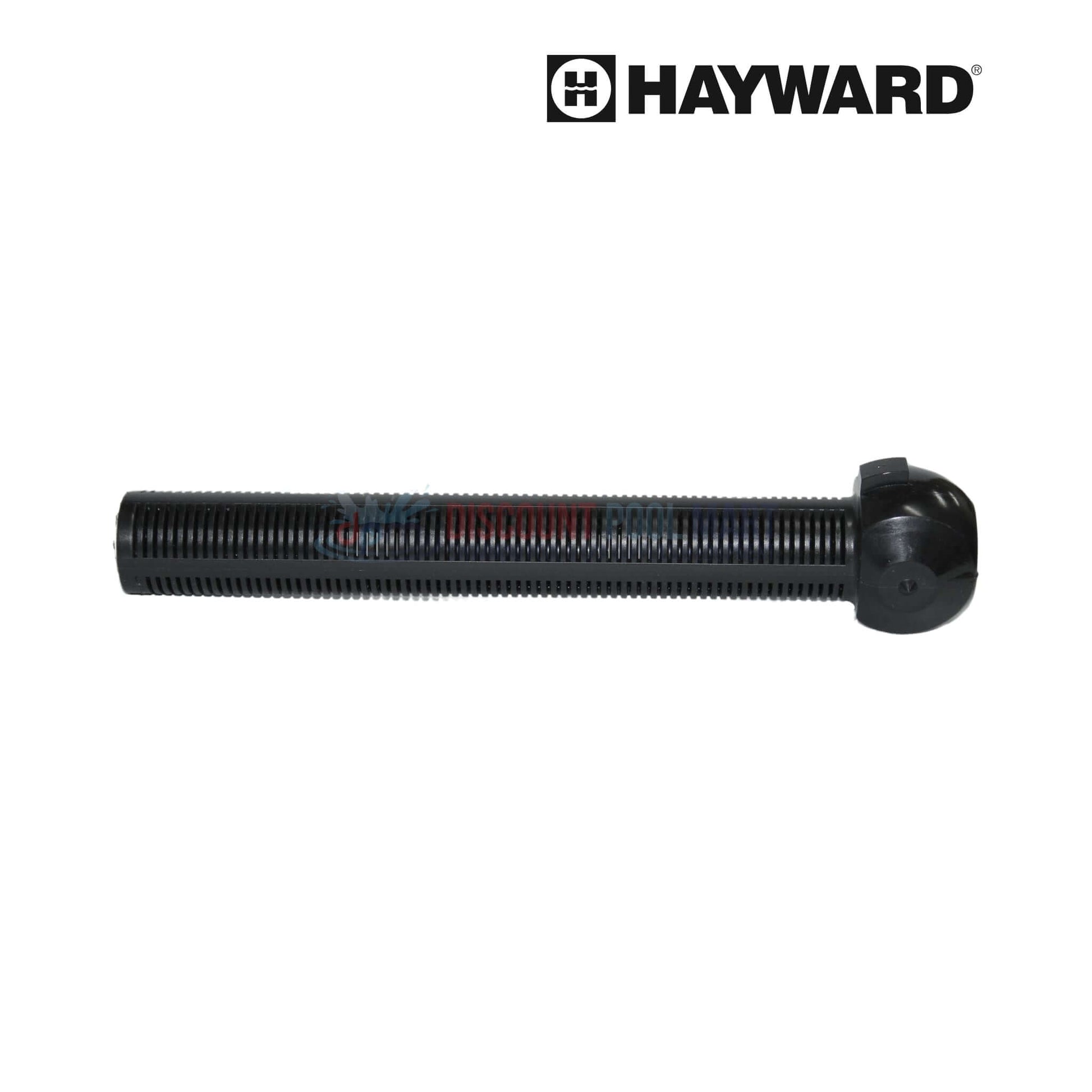

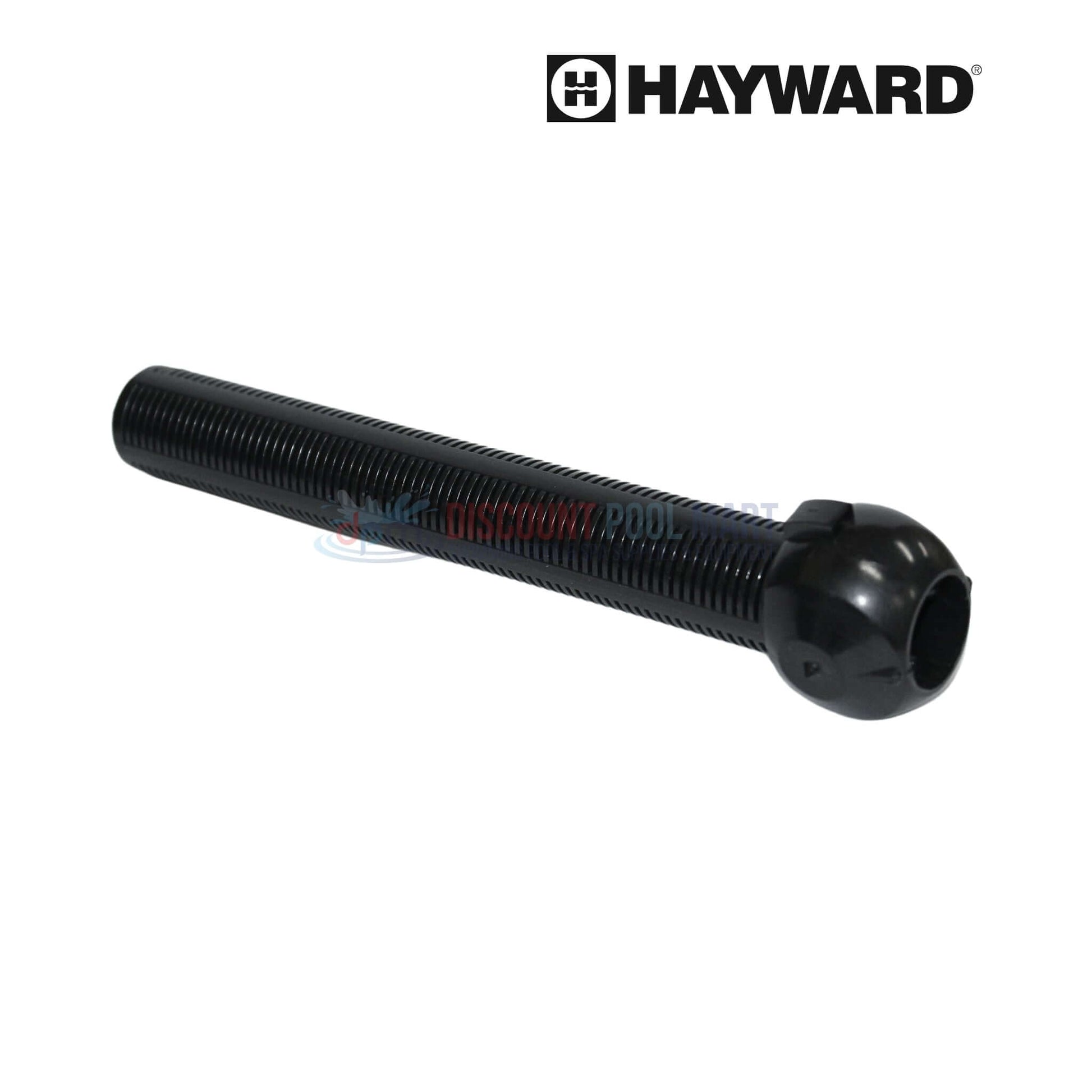

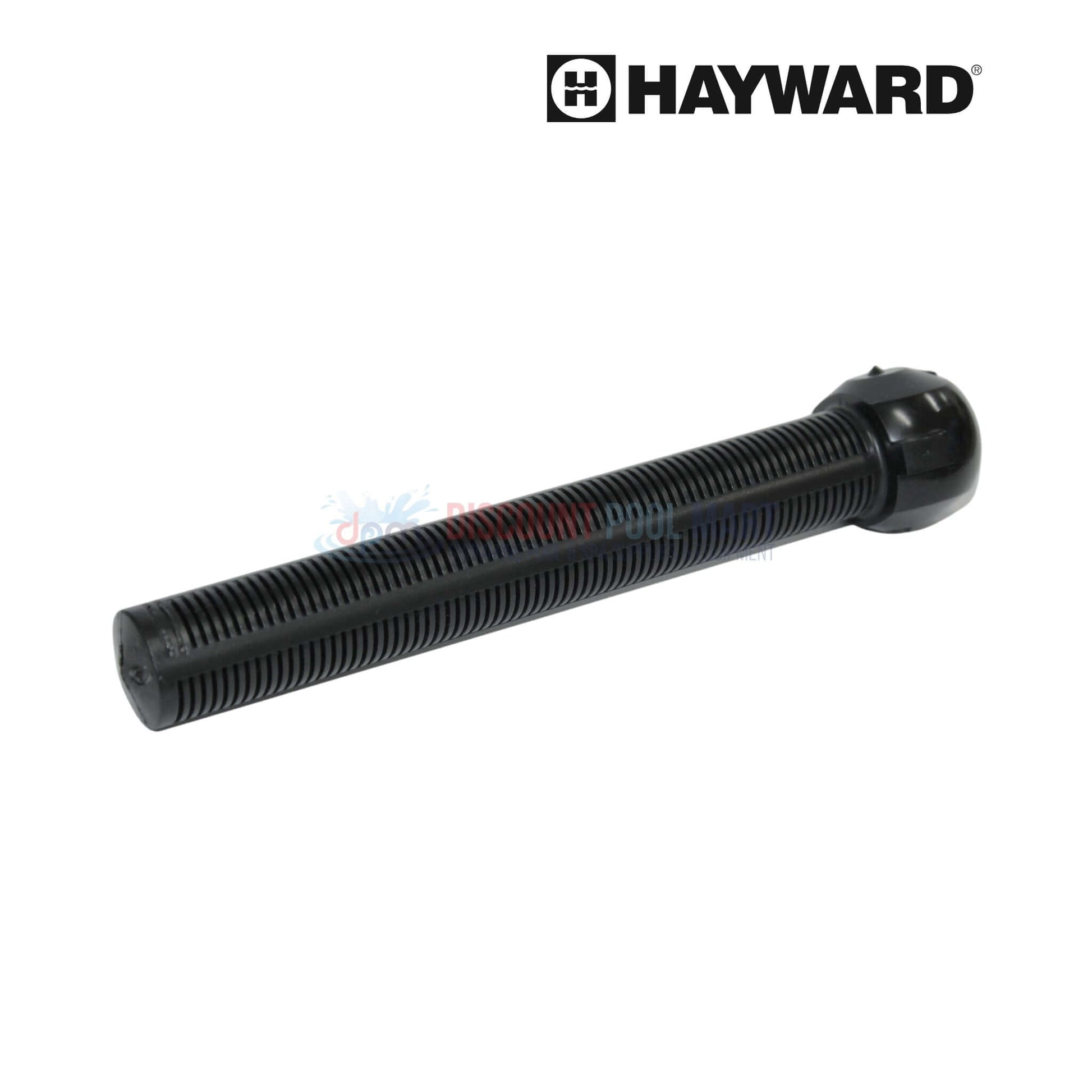

OEM Hayward Pivot Lateral SX240DN is designed for use with Hayward Pro Series sand filters such as the S220T, S230T, S244T, and S210T. Featuring a pivot ball and locking tab, this lateral installs easily into the filter hub, especially when replacing or servicing the standpipe assembly. Built to last under pool system conditions, it ensures balanced water distribution for improved filtration and supports long-term system operation by reducing uneven flow or clogging within the filter media.
-
Compatible with multiple Hayward filters: Supports models like S244T, S220T, S230T, and S210T for flexible use across various Pro Series setups
-
Swivel ball and tab connection: Simplifies installation by letting the lateral pivot into place, helping align with the hub during standpipe replacement
-
Enhances sand bed performance: Designed to promote even dispersion of water through the sand media, improving filtration consistency and clarity
-
Robust OEM-grade construction: Built from high-durability materials to withstand ongoing exposure to chemicals and pressure in pool environments
-
Extends filter life and output: Helps protect your system from uneven flow or localized clogging, maintaining optimal filtration over extended periods
- (1) Hayward SX240DN Lateral
- Hayward Sand Filter and Pro Series Models: S240, S180T, S210T, S220T, S230T, S244T, S270T, S310T2, S270T2, S310T2, S360T2, S210S, S244S, S310S
Note: This lateral may be compatible with your filter, please refer to your owners manual to ensure compatibility.
