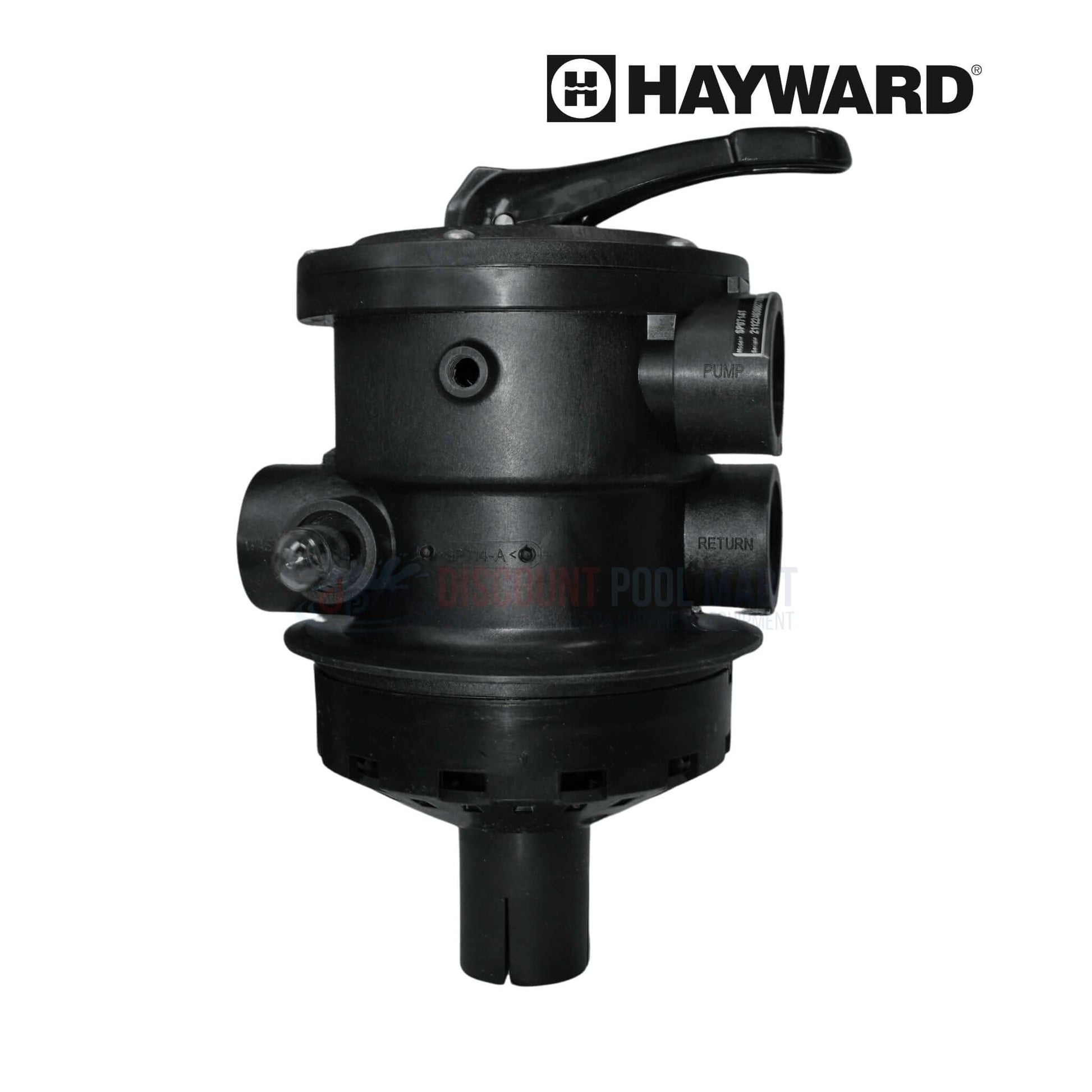

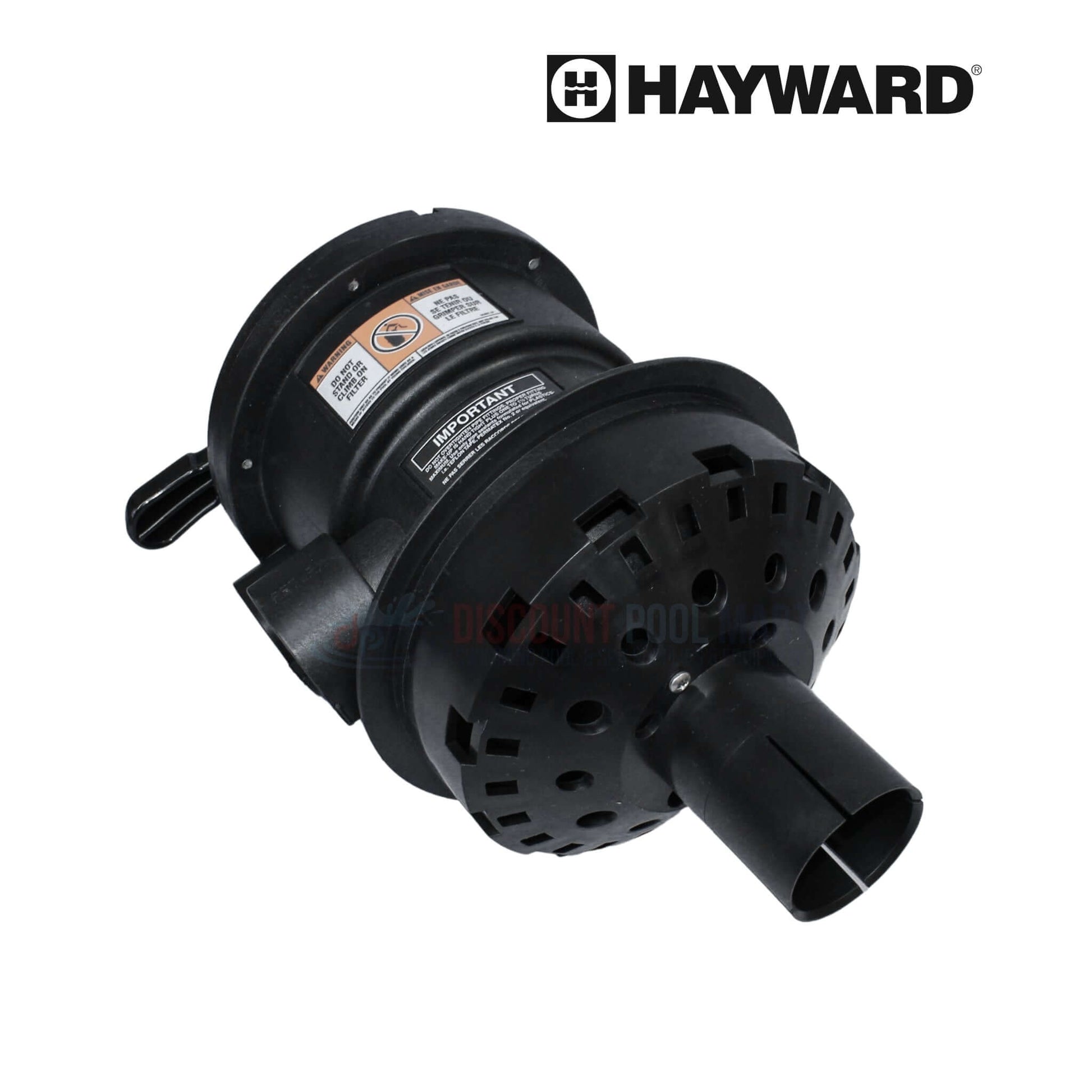

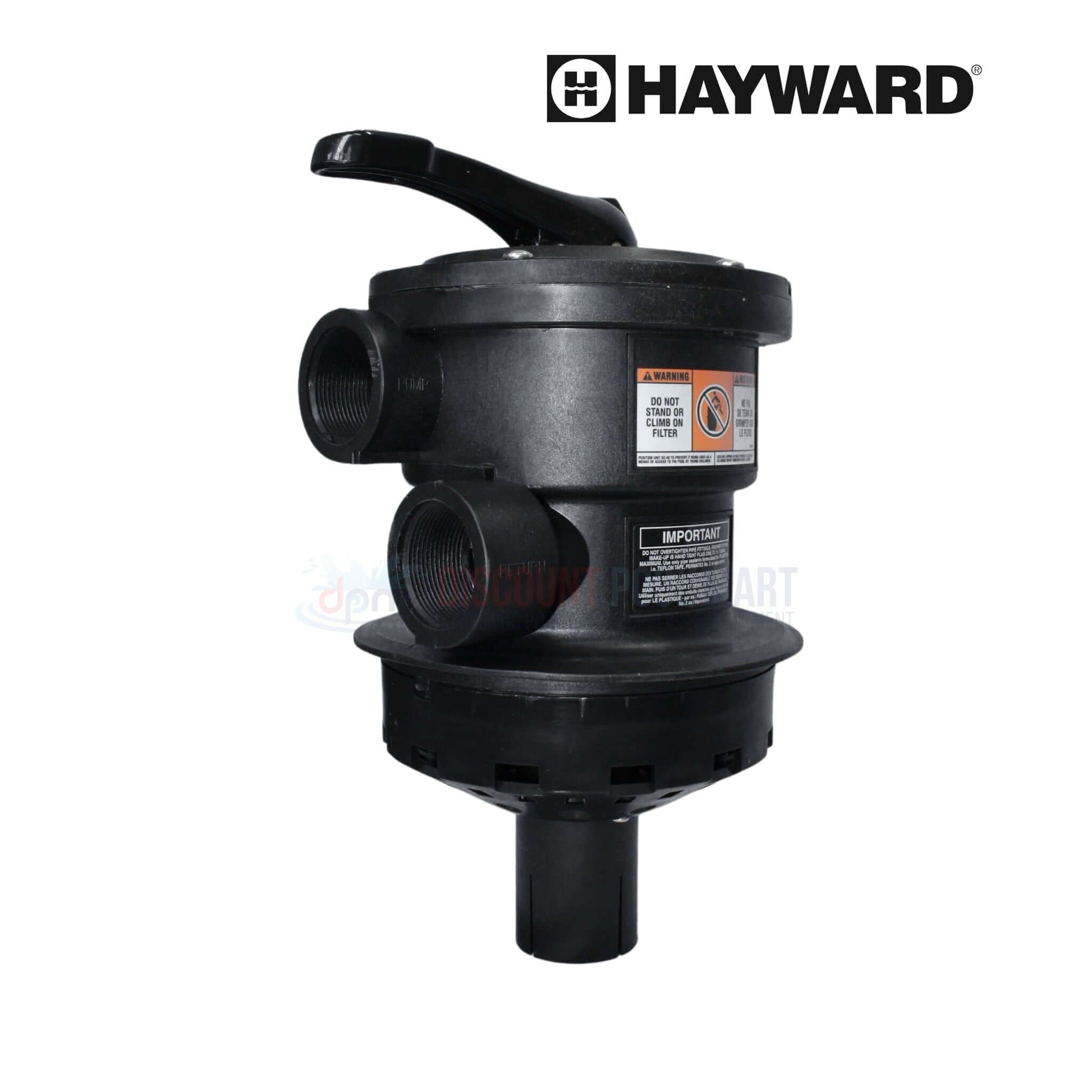

OEM Hayward SP071620T Top Mount 2 Inch Vari-Flo Valve is a complete multiport valve assembly designed for Hayward Pro Series sand filters. It features six operation settings—Filter, Backwash, Rinse, Waste, Recirculate, and Closed—providing full control over your pool’s filtration system. With a user-friendly lever handle and integrated sight glass for easy monitoring, this valve simplifies routine maintenance. The included clamp, O-ring, and pressure gauge allow for fast installation and long-term reliability, making it a convenient and durable choice for top-mount filter systems.
-

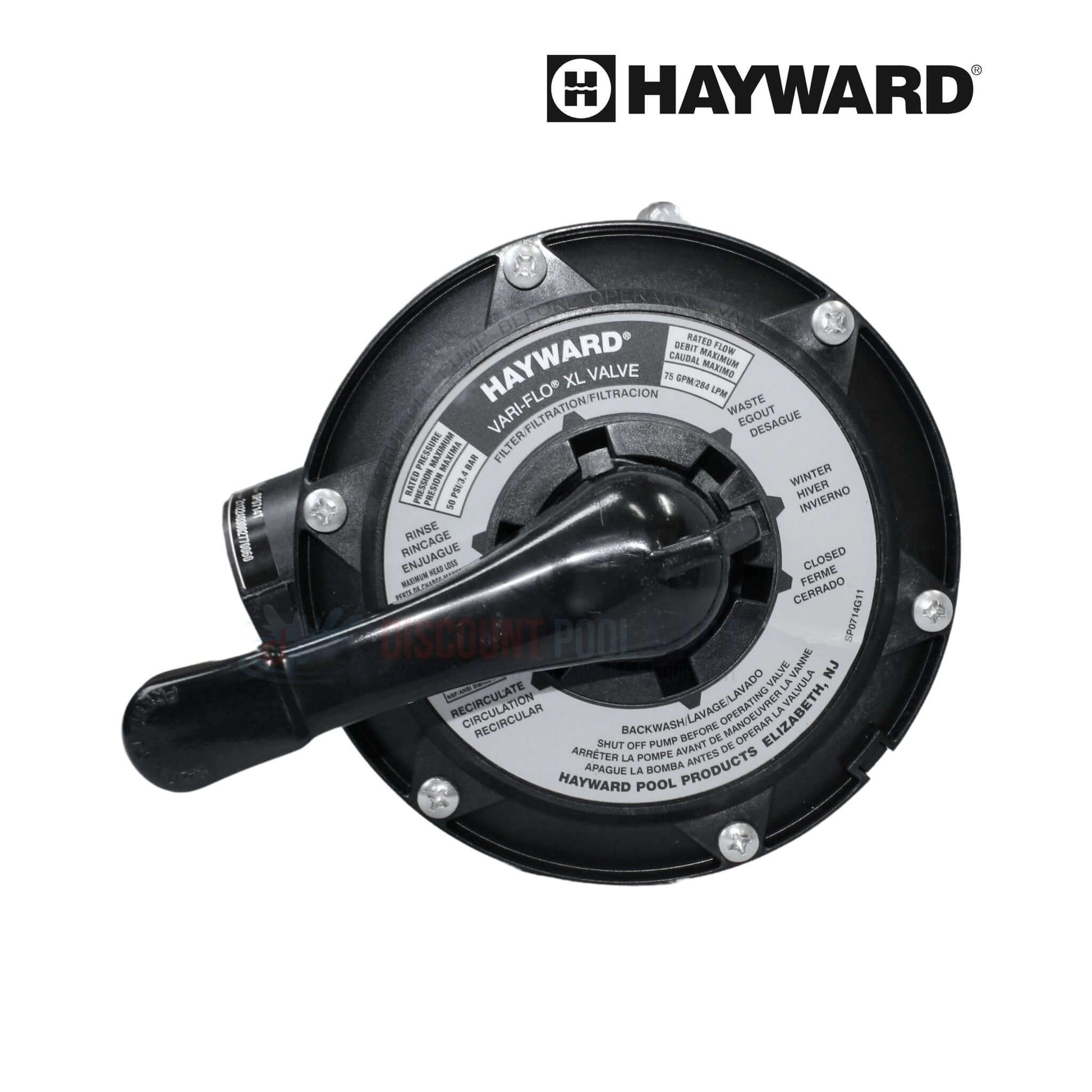

Six-Position Functionality: Offers Filter, Backwash, Rinse, Waste, Recirculate, and Closed modes for versatile pool care
-
Clear Monitoring Sight Glass: Built-in sight glass helps monitor backwash and rinse cycles to avoid guesswork during maintenance
-
Easy Top-Mount Installation: Includes clamp and O-ring for a secure, no-hassle fit onto compatible Hayward Pro Series sand filters
-
Complete OEM Assembly: Ships pre-assembled with valve, clamp, pressure gauge, and sealing hardware for immediate use
-
Built for Reliable Performance: Heavy-duty materials and Hayward engineering ensure dependable operation and long service life

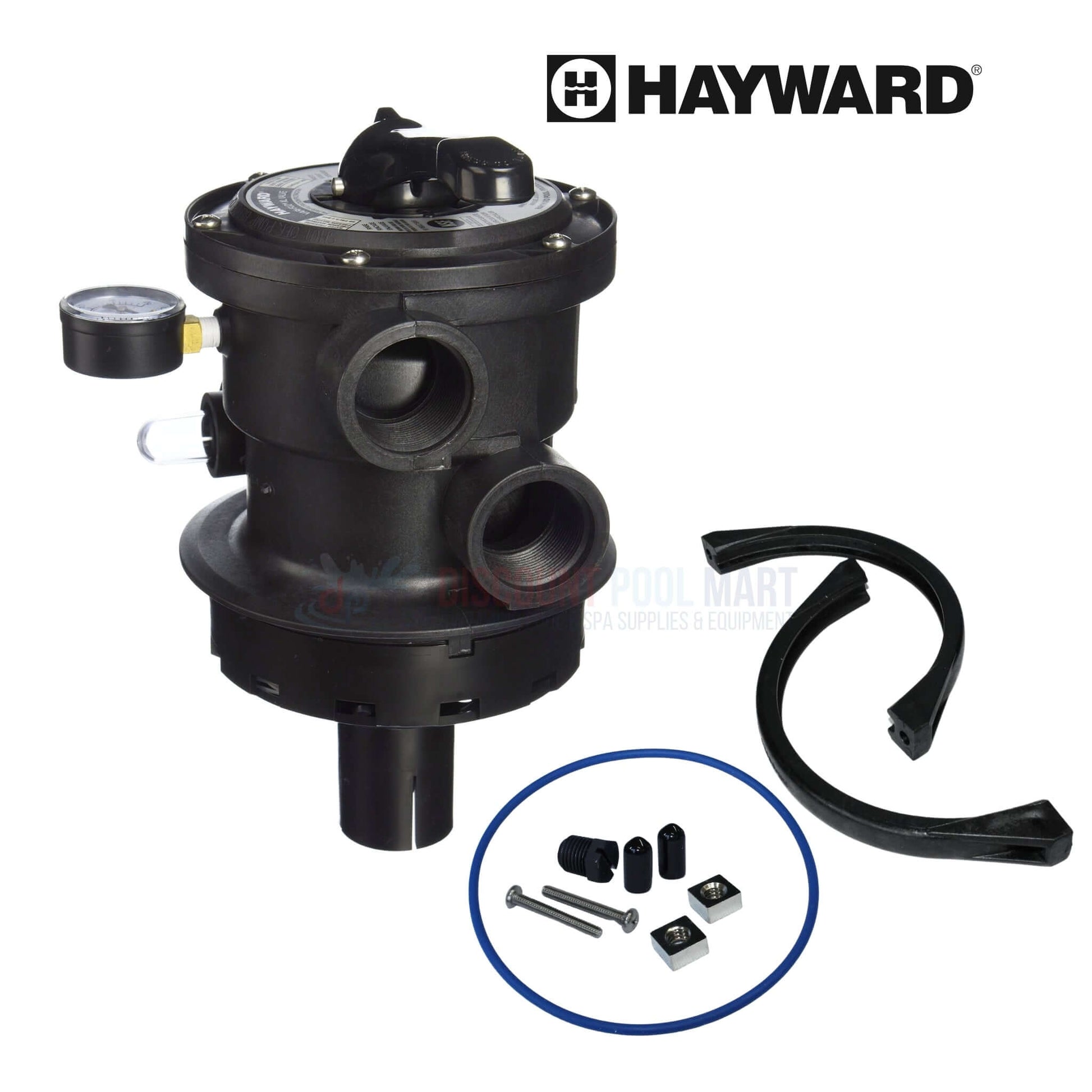

This complete multiport assembly comes pre assembled and ready to install
- (1) Complete Assembled Top Mount Vari-Flo Multiport Valve

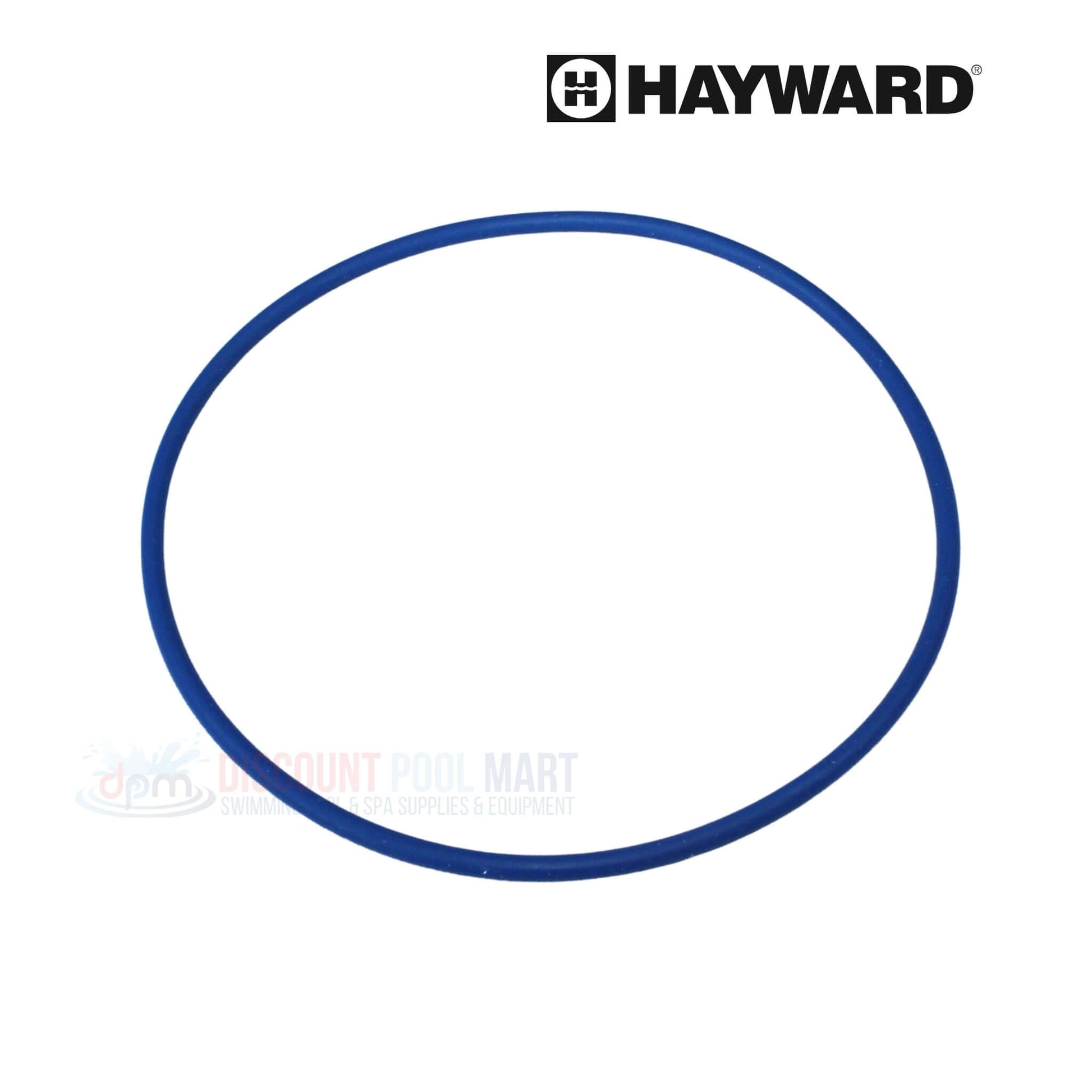

- (1) O-Ring

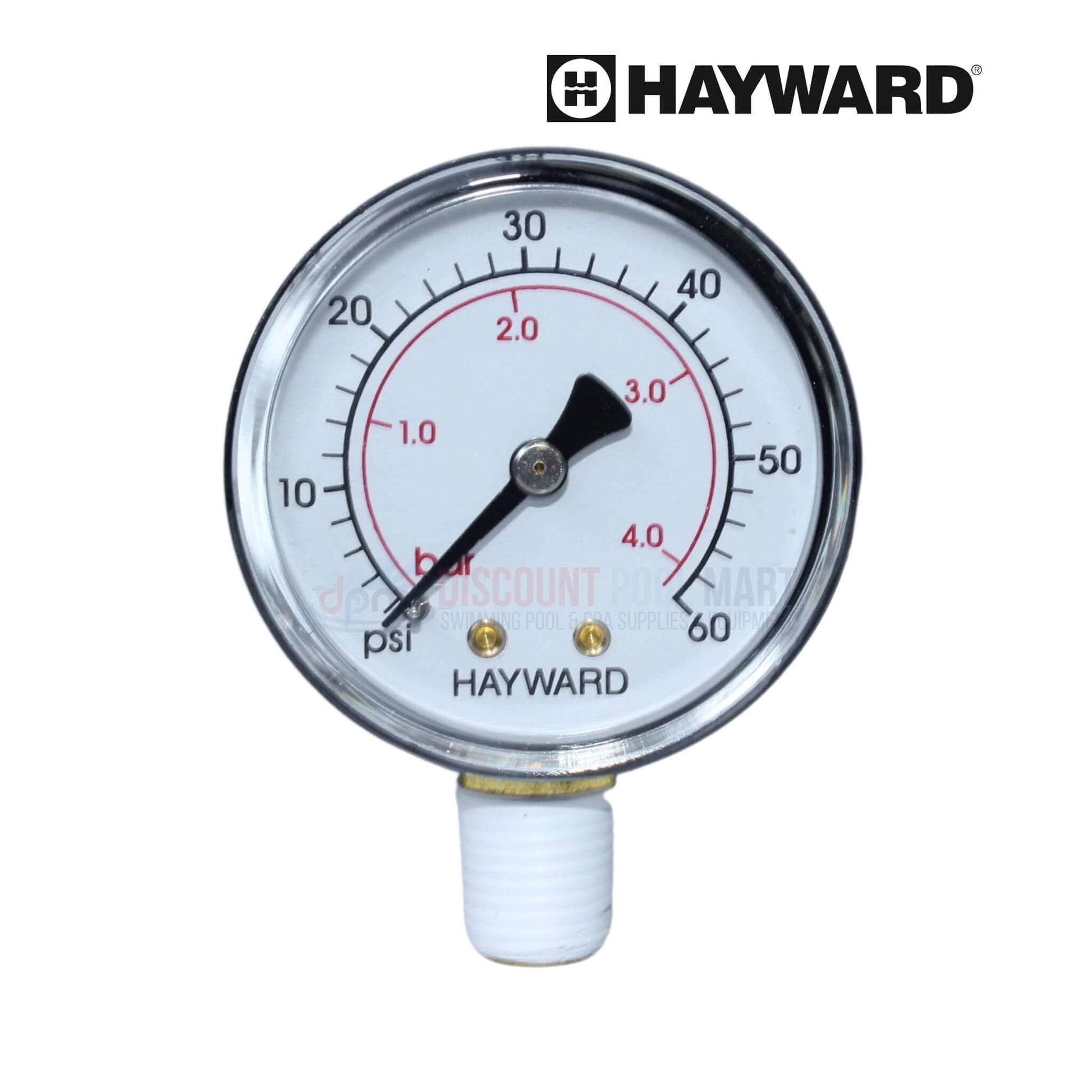

- (1) Pressure Gauge

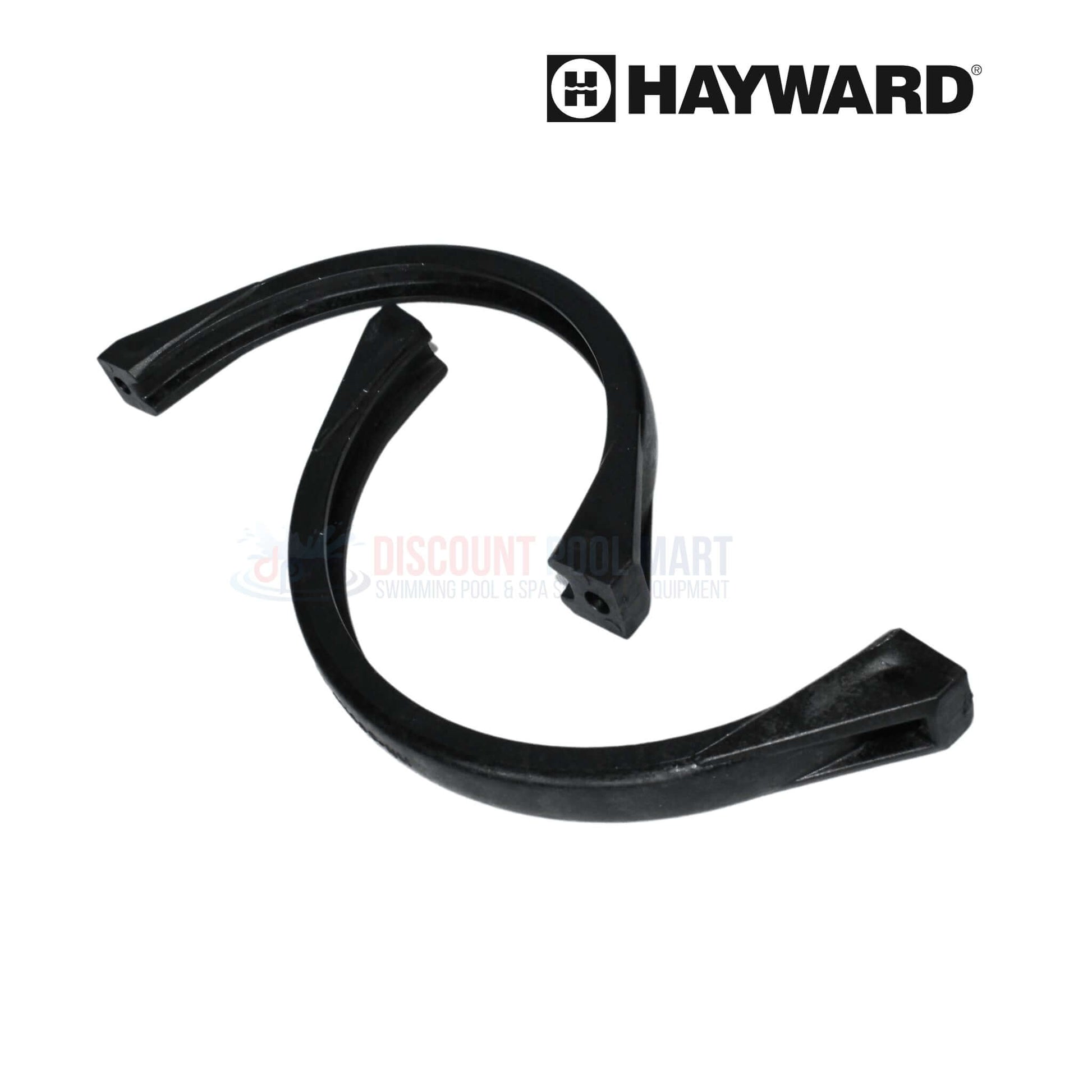

- (1) Clamps

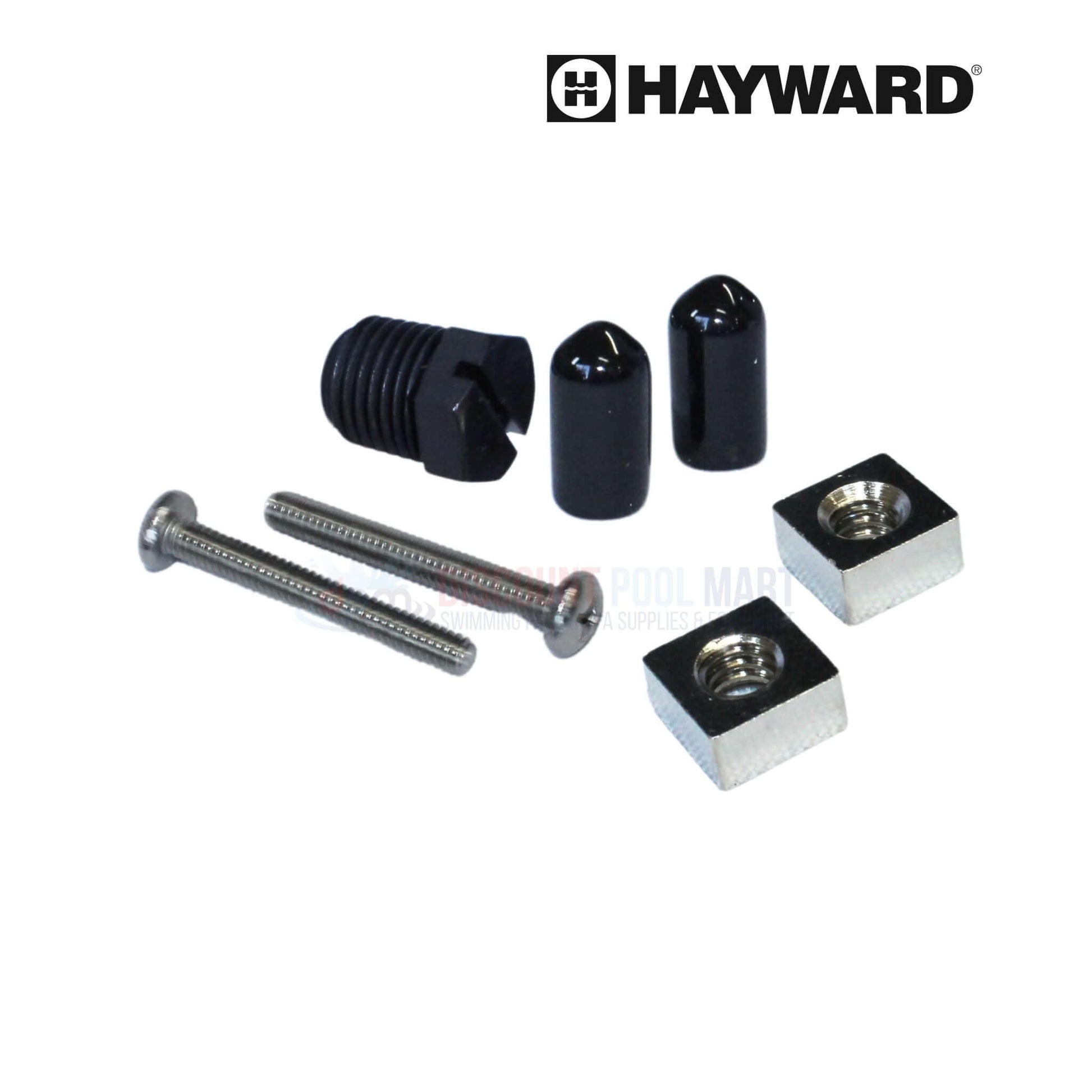

*Other parts and hardware shown in picture above
Fits The Following Hayward Pro Series Filters
- Hayward S140T
- Hayward S144T
- Hayward S164T
- Hayward S166T
- Hayward S180T
- Hayward S190T
- Hayward S210T
- Hayward S220T
- Hayward S230T
- Hayward S244T
- Hayward S270T
- Hayward VL210
Note: This top mount valve may be compatible with your 1.5 inch filter, please refer to your systems owners manual to ensure compatibility.
