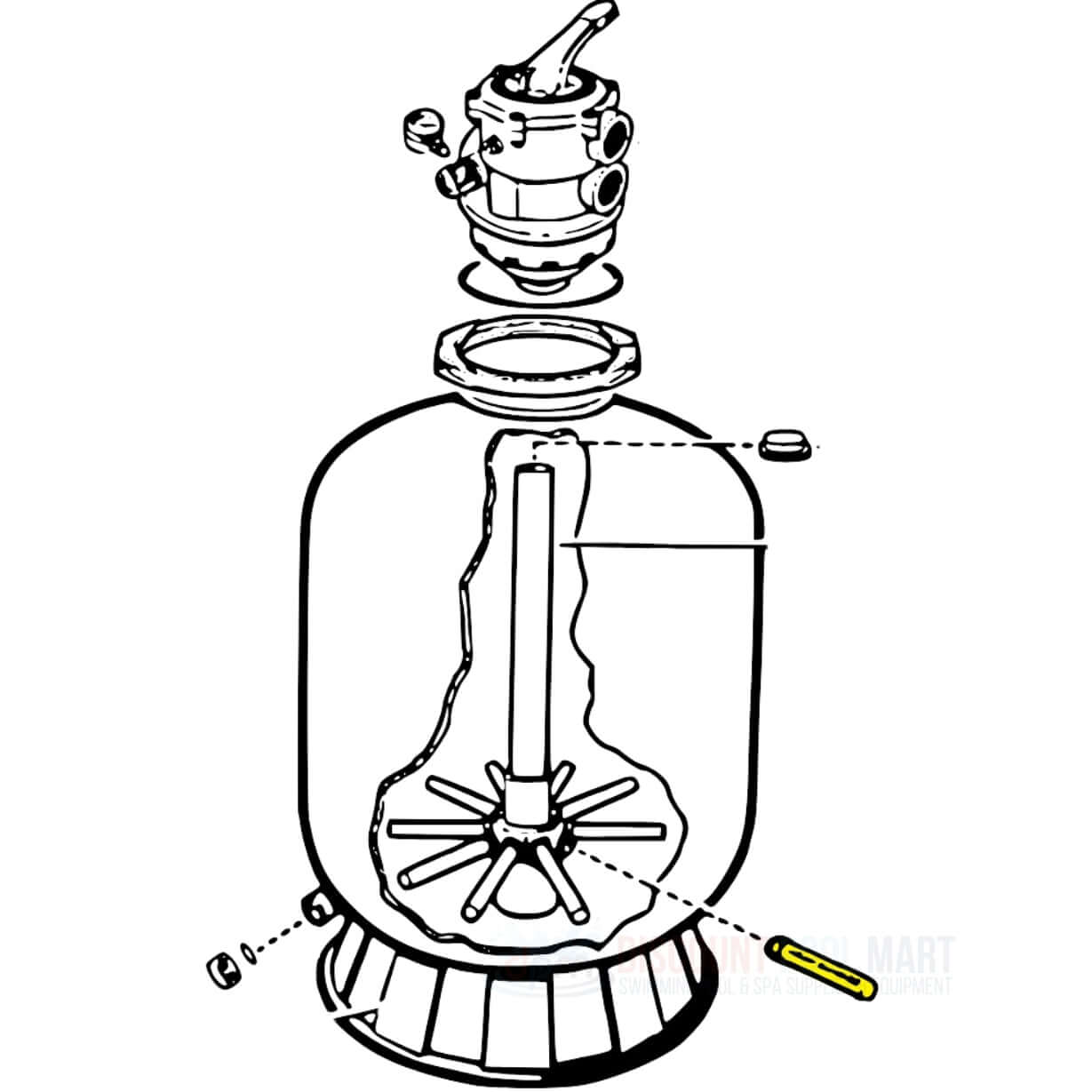

On the Hayward Pro Series Sand Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Pro Series Sand Filter

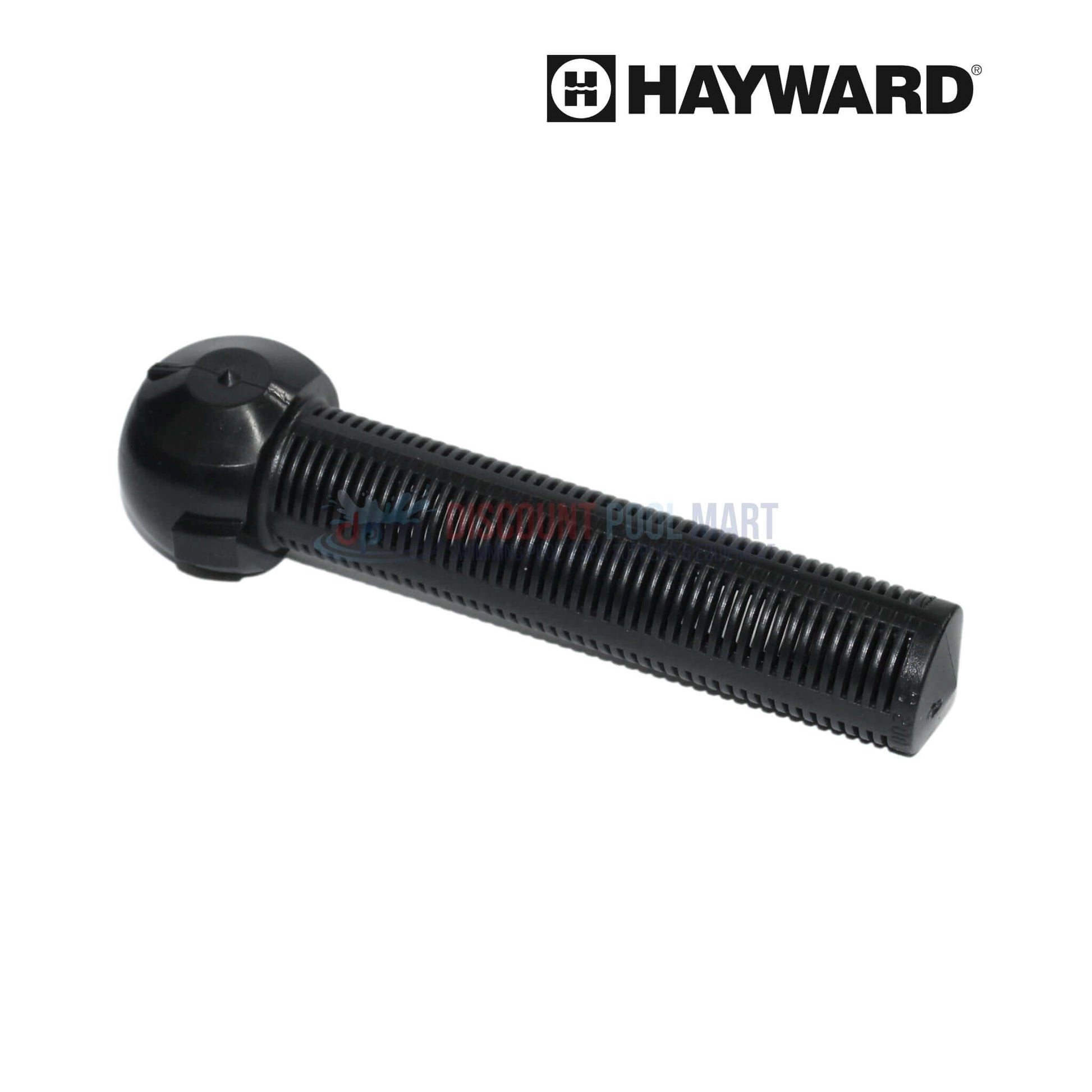

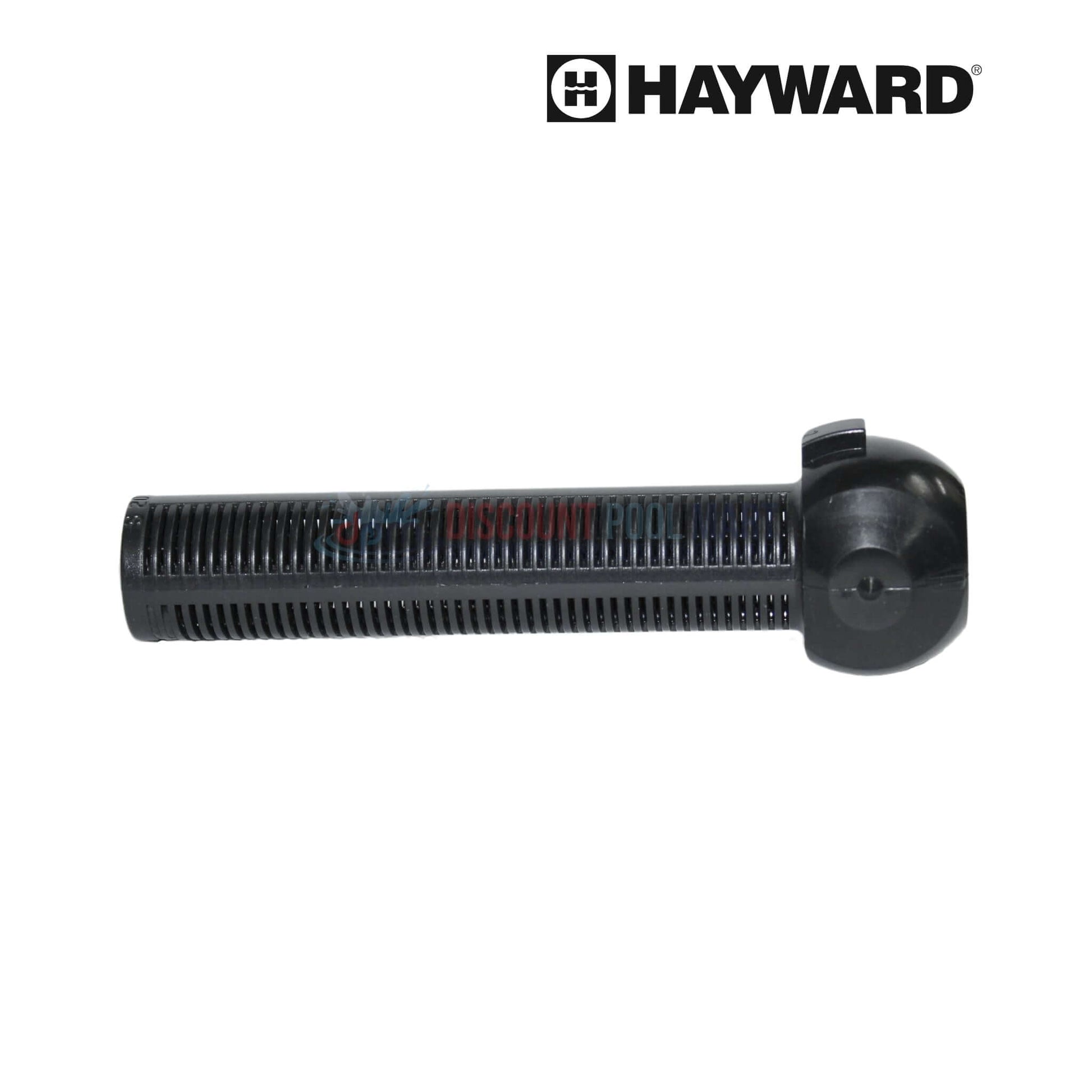

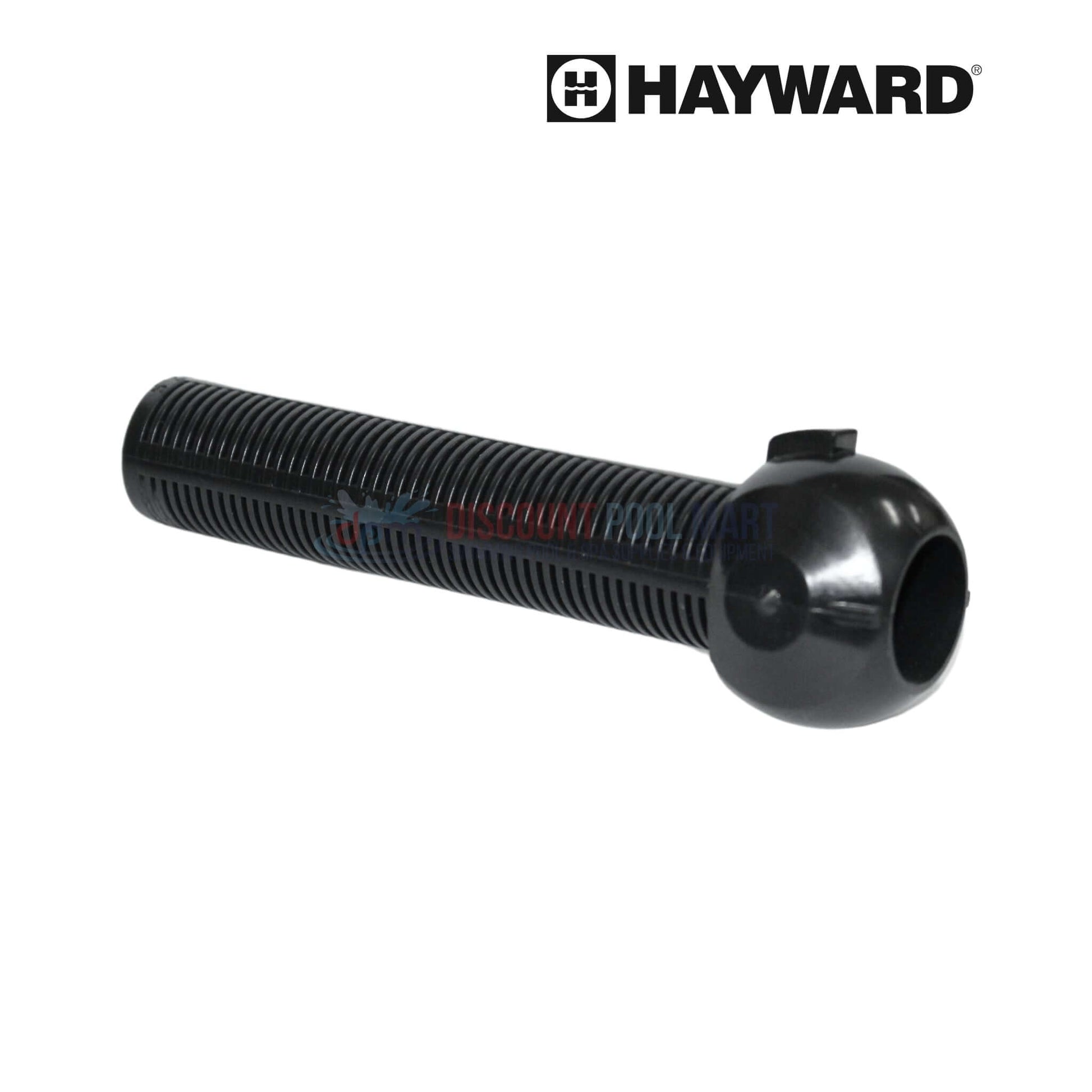

OEM Hayward SX200QN New Style Pivot Lateral is a replacement part designed for use in Hayward Pro Series sand filters, including models S166T, S180T, and S210S. This 5-inch lateral features a pivot-ball design that allows it to swivel during installation, simplifying the process of standpipe assembly replacement. By ensuring even water distribution throughout the sand bed, it enhances filtration performance and contributes to maintaining clean, clear pool water. Built for durability, this lateral helps prolong the life and effectiveness of your sand filter system.
-
Compatible with Pro Series filter models: Designed to fit Hayward S166T, S180T, S210S, and other compatible filters, ensuring reliable integration with your system
-
Pivot-ball design for smoother installs: Swiveling motion simplifies attachment to the standpipe, reducing time and effort during maintenance or replacement
-
Supports balanced water distribution: At 5 inches long, this lateral promotes uniform flow across the filter bed, improving clarity and overall filtration results
-
Extends sand filter efficiency: Helps maintain optimal system operation and prolongs the service life of internal components by minimizing uneven flow
-
Made from durable materials: Built to withstand exposure to chemicals and water pressure, ensuring consistent performance over time
- (1) Hayward SX200QN New Style Pivot Lateral
- Hayward Pro Series Sand Filter Models Pro Series: S210S, S180T, S210T, S220T, S220T2, S166T
Note: This lateral may be compatible with your filter, please refer to your owners manual to ensure compatibility.
