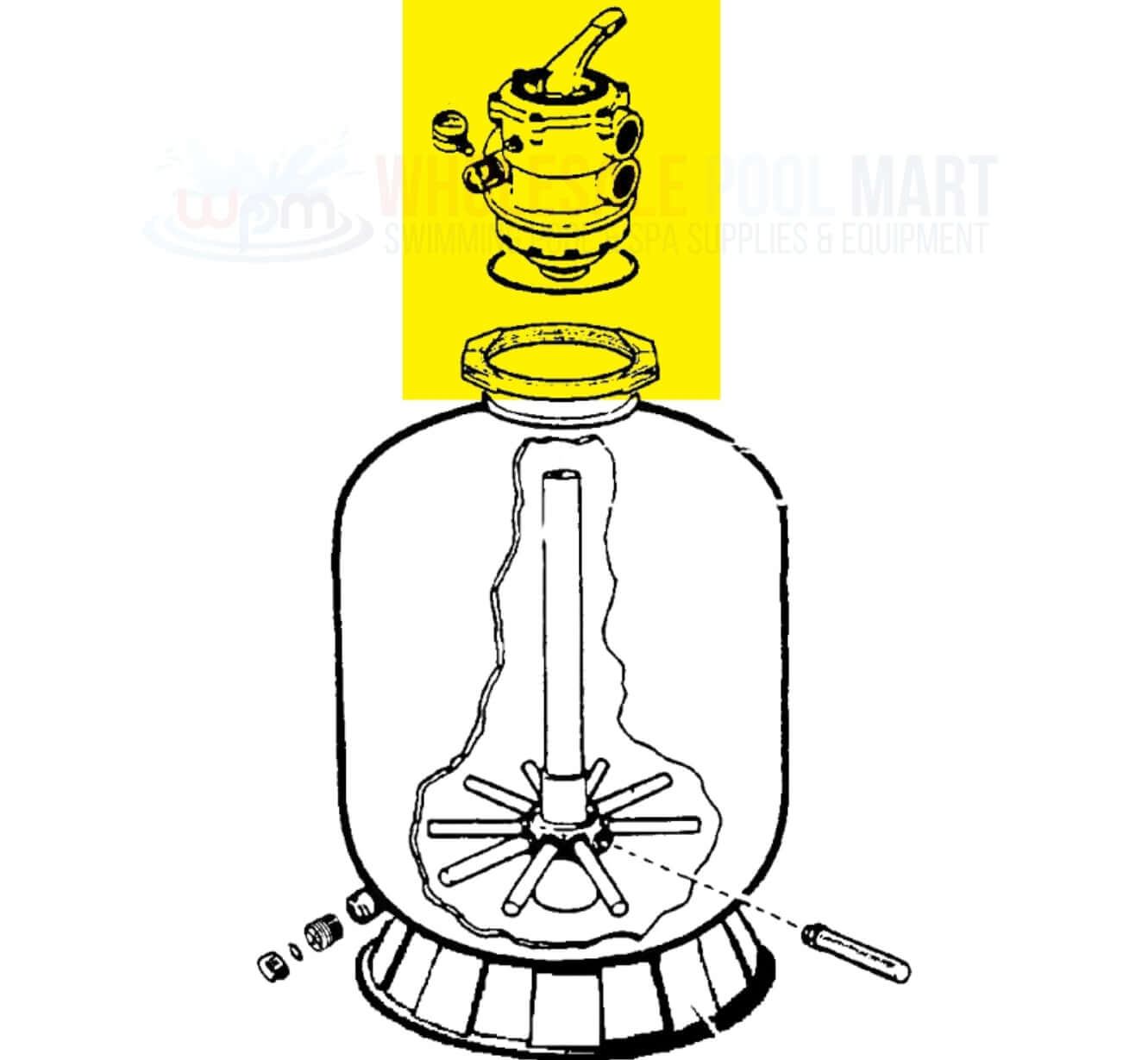

On the Hayward Pro Series Sand Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward Pro Series Sand Filter

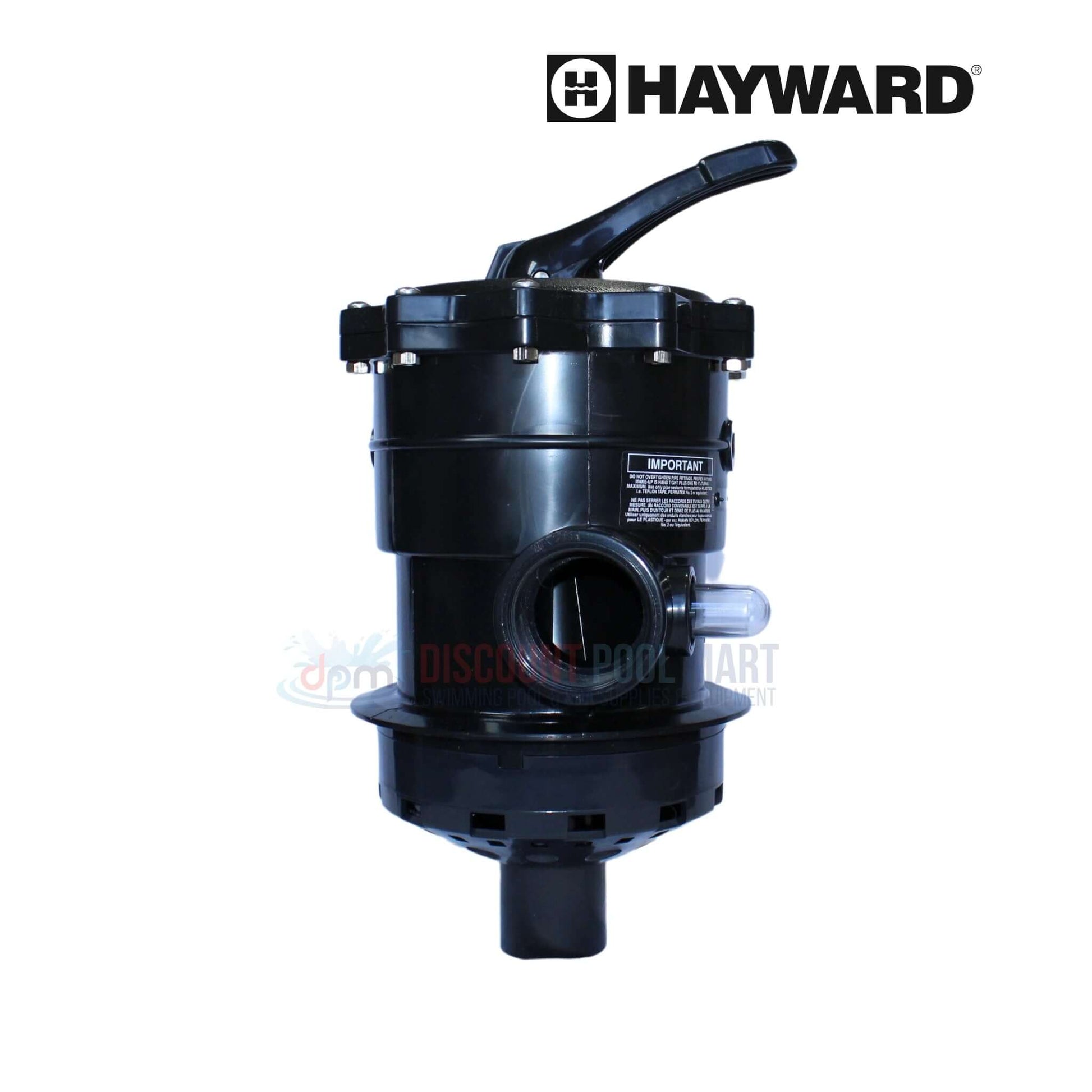

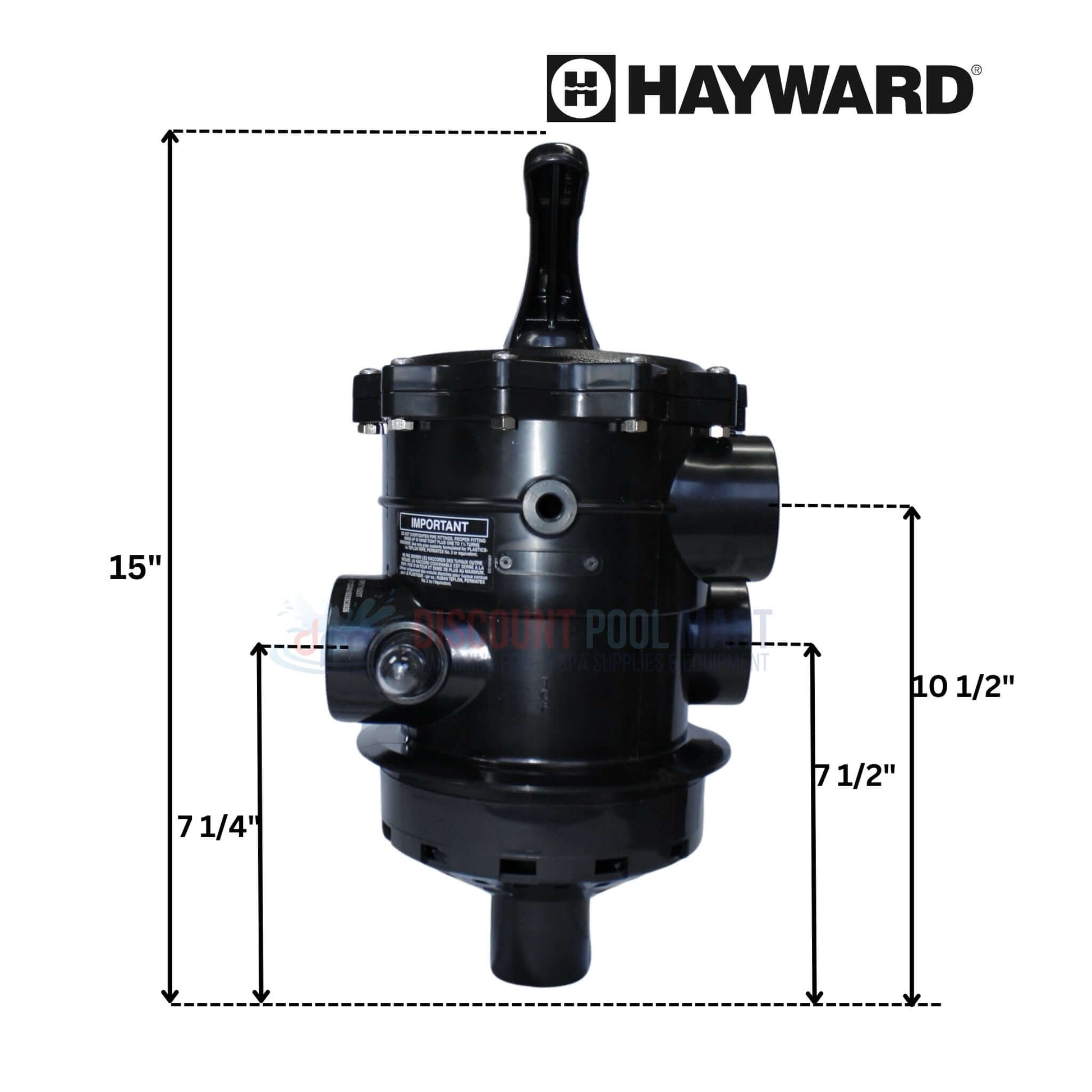

OEM Hayward SP071620T Vari-Flo XL Multiport Valve is a 2-inch, top-mount control valve engineered for use with Hayward Pro Series sand filter models S270T2, S310T2, and S360T2. This valve features six operational settings—filter, backwash, rinse, waste, recirculate, and closed—accessible via an easy-turn lever handle for smooth transitions between modes. Built from reinforced thermoplastic for chemical and UV resistance, it supports flow rates up to 150 GPM, making it ideal for high-capacity pool systems. A built-in sight glass allows for clear monitoring during backwash, and the included clamp and O-ring ensure a secure, leak-free installation.
-
Top-Mount Control for Pro Series Filters: Compatible with Hayward S270T2, S310T2, and S360T2 sand filters for precise system management
-

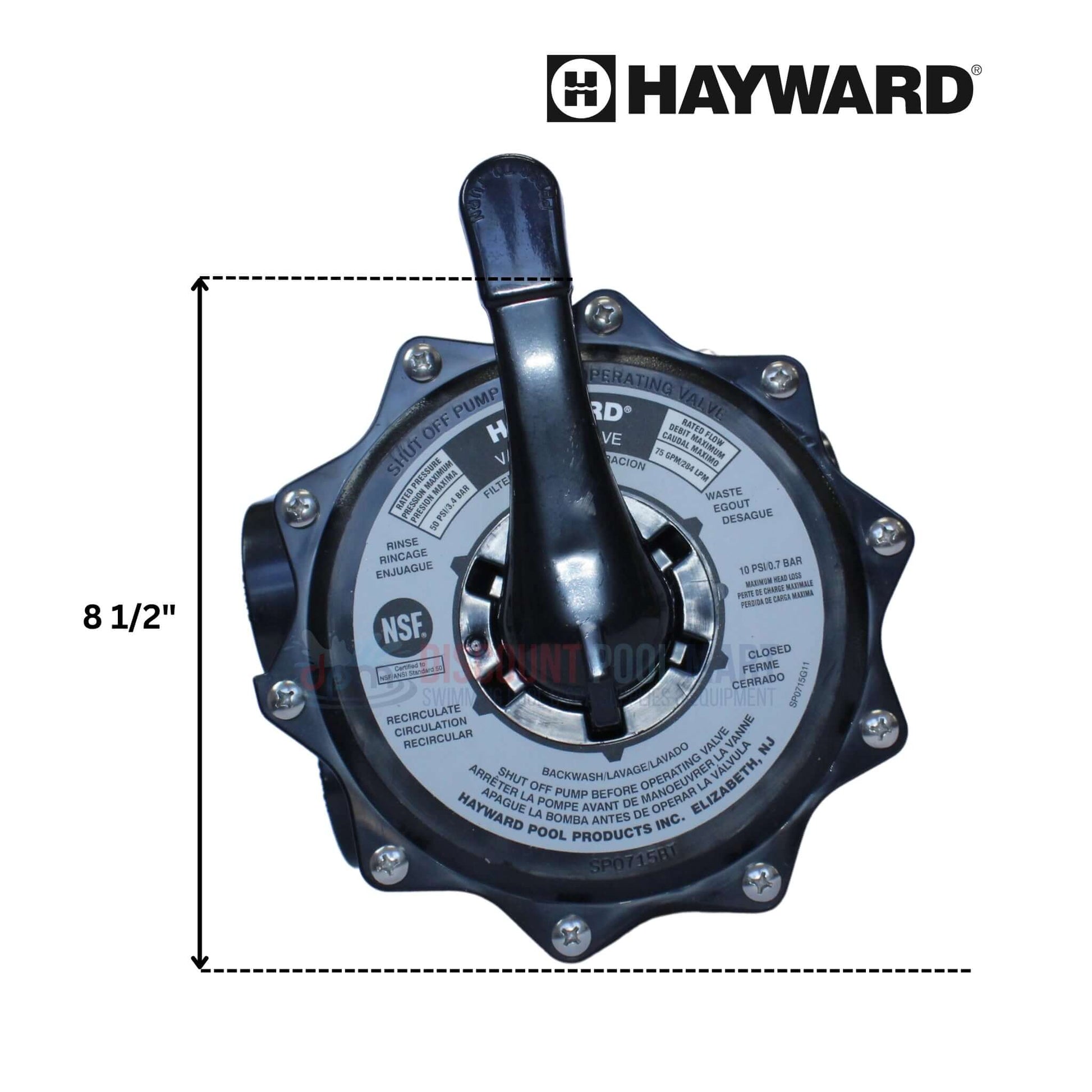

Six-Function Operation: Easily switch between filtering, backwashing, rinsing, recirculating, waste discharge, or shutdown using the handle
-
Handles Up to 150 GPM: Engineered for high-flow performance, ideal for large pool systems requiring efficient circulation and control
-
Thermoplastic Housing Resists Corrosion: Built with chemical- and UV-resistant materials to withstand harsh pool environments over time
-

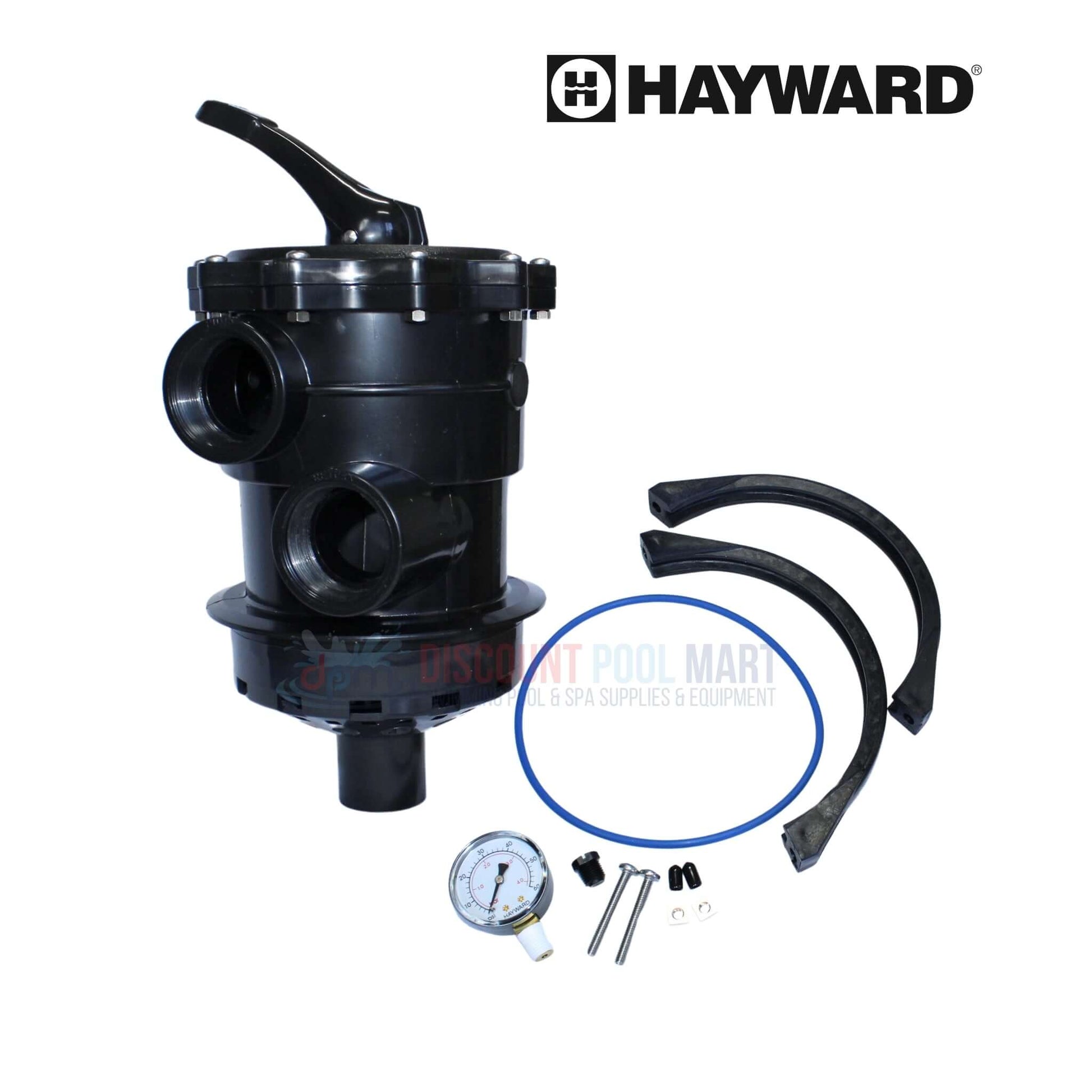

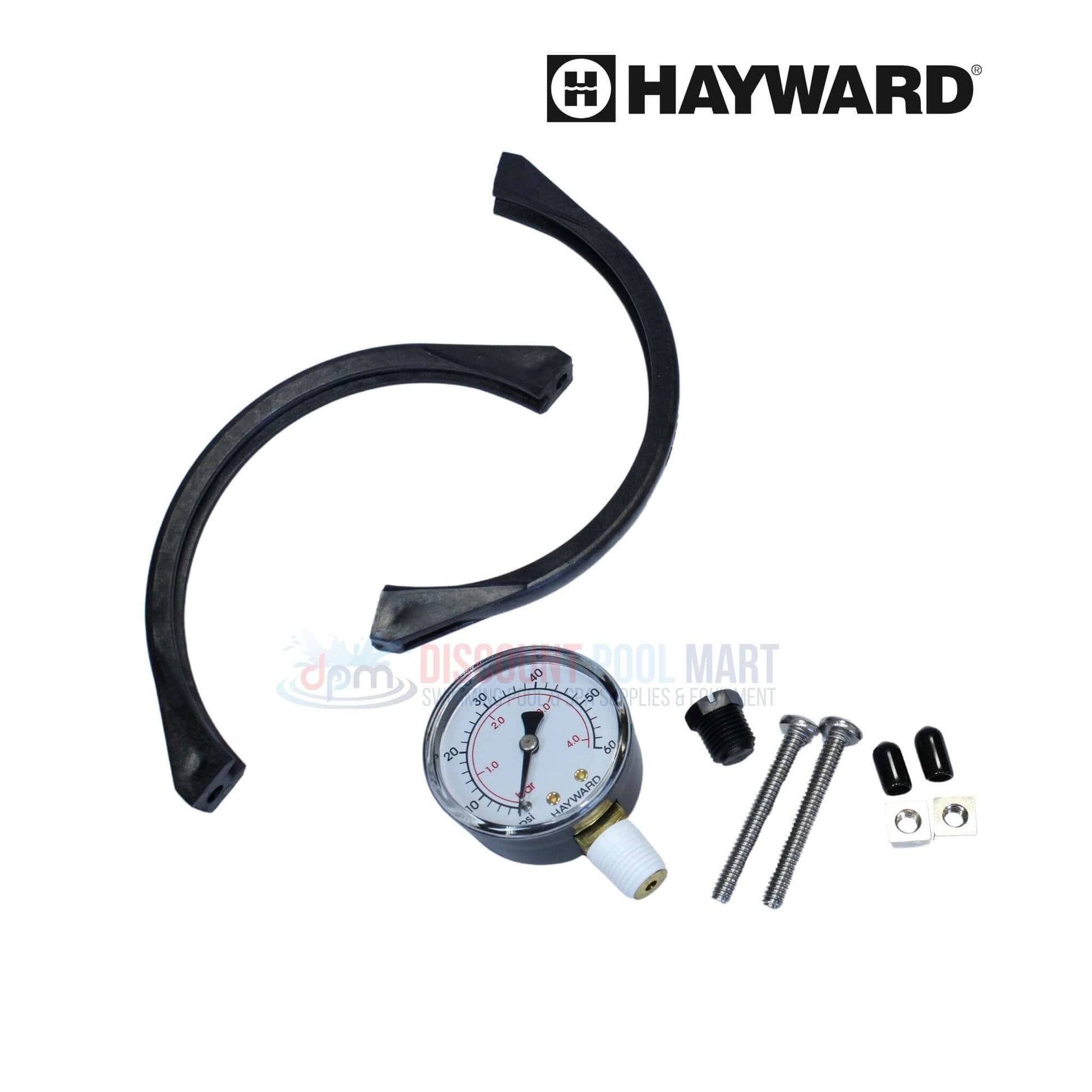

Complete Installation Kit Included: Comes with clamp, O-ring, pressure gauge, and sight glass for streamlined, leak-resistant setup
This complete multiport assembly comes pre assembled and ready to install
- (1) Complete Assembled Top Mount Vari-Flo Multiport Valve

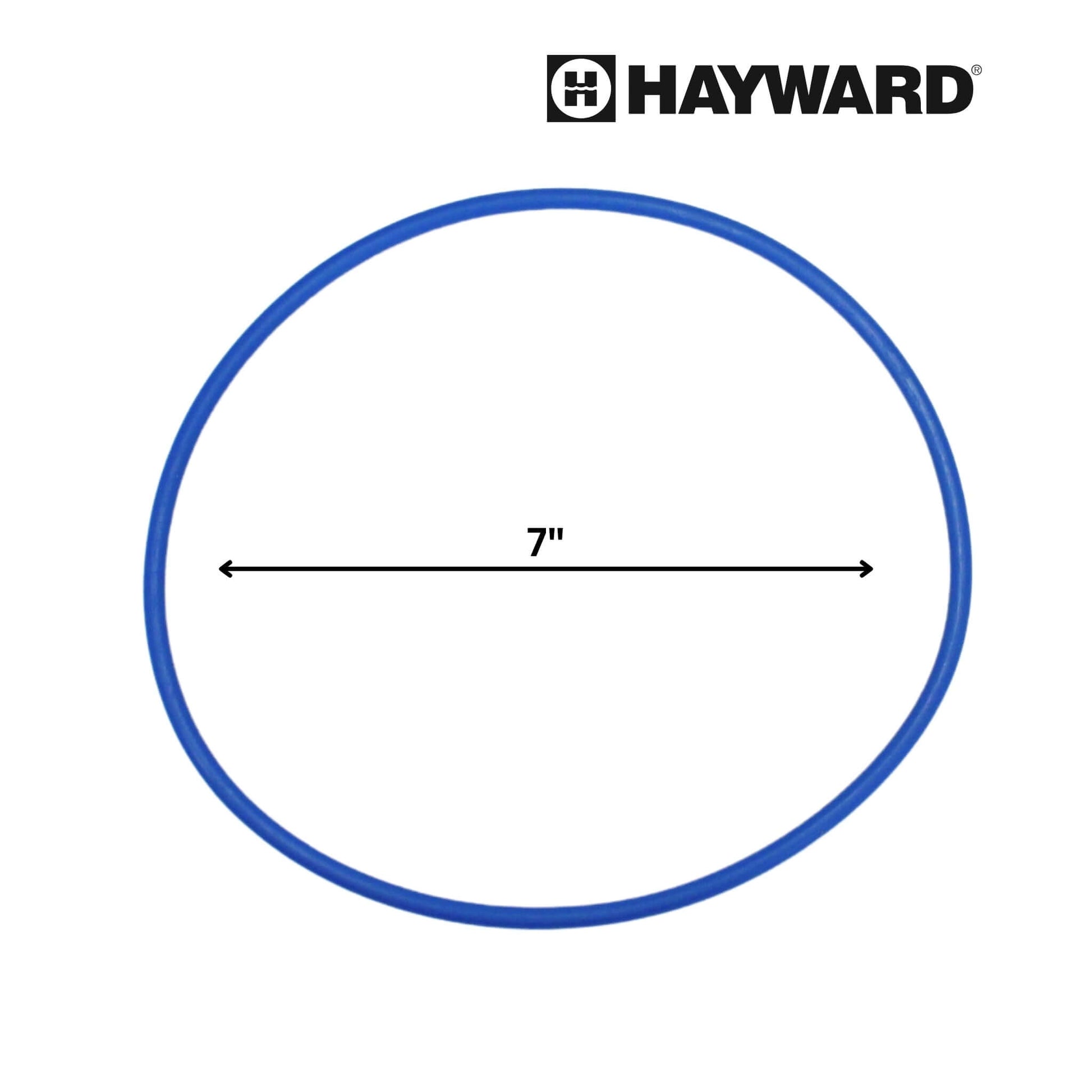

- (1) O-Ring
- (1) Pressure Gauge
- (1) Clamps
*Other parts and hardware shown in picture above
Fits The Following 2 inch Hayward Pro Series Filters:
- Hayward S220T2
- Hayward S244T2
- Hayward S270T2
- Hayward S310T2
- Hayward S360T2
Note: This top mount valve may be compatible with your 2 inch filter, please refer to your systems owners manual to ensure compatibility.
