Jandy PlusHP PHPF/PHPM Single Speed Pump Replacement Parts Diagram

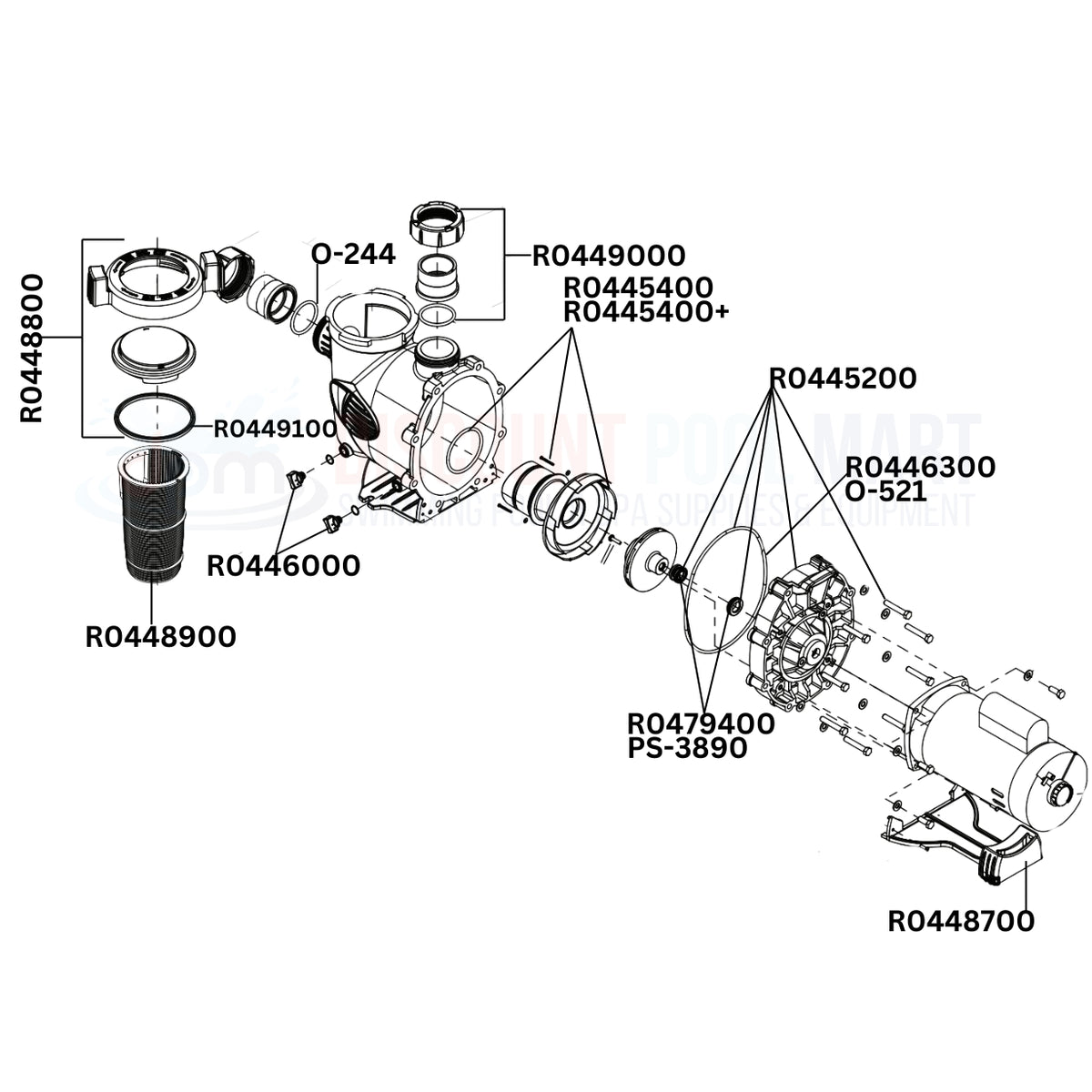

Interactive parts diagram
21 parts · 2 with cheaper aftermarket options. Tap a number on the diagram, or search by part number.
Scroll or pinch to zoom · drag to move
-
-
Not sold online Jandy PHPF/PHPM motor and hardware, by HP (for example R0445110 PHPF 1.0 HP)
-
-
-

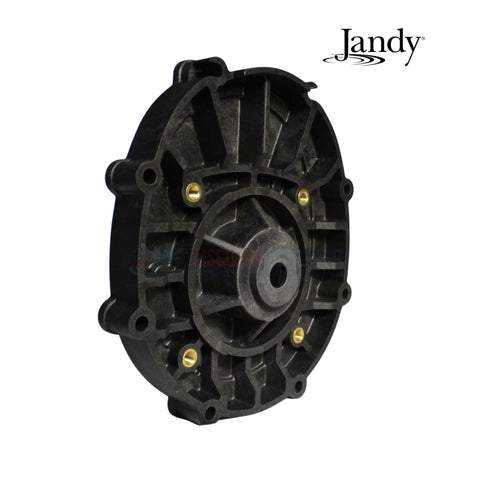

Original (OEM) Jandy Backplate Replacement Kit For SHPF and SHPM Pump$189.99
-
-
Pump model
-

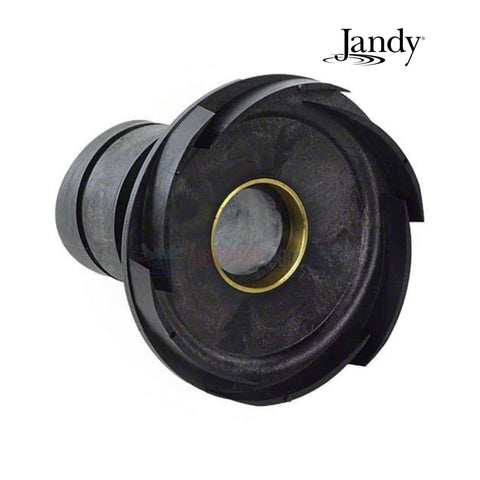

Original (OEM) Jandy R0807203 Impeller Kit | Stealth | PlusHP | 0.75 to 1HP$59.99
-
$56.99
-
Original (OEM) Jandy Impeller for ePump, PlusHP, and Stealth Pumps | 1.5HP$59.99
-
Original (OEM) Jandy Impeller for ePump, PlusHP, and Stealth Pumps$64.99
-
-
-
$69.99
-
-
-
Not sold online Jandy diffuser O-ring, R0622000
-
-
-
Original (OEM) Jandy Mechanical Shaft Seal$29.99
-
AftermarketSave 26% U.S. Seal Premium Mechanical Shaft Seal | R0479400$21.99
-
-
-

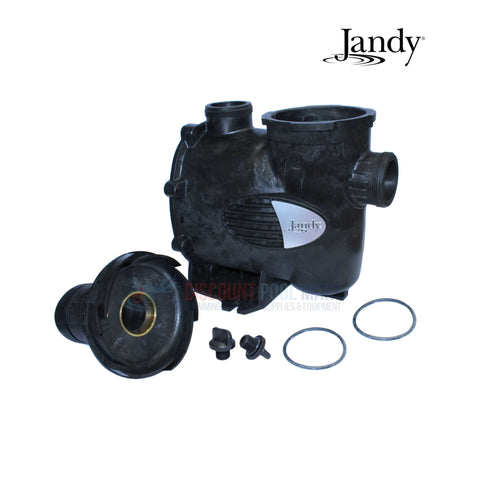

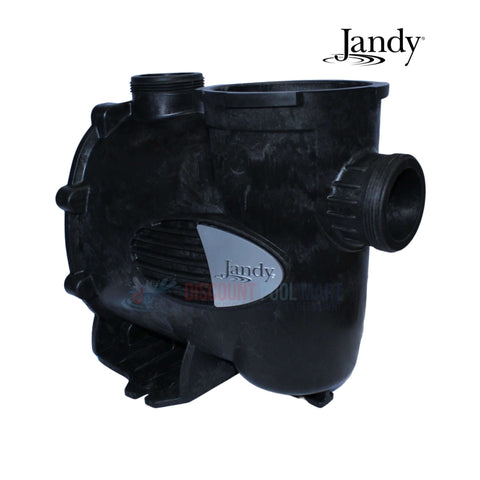

Original (OEM) Jandy Pump Body For PlusHP PHPF and PHPM Pumps$314.99
-
-
-
Not sold online Jandy motor foot and mounting screws, R0445700
-
-
-

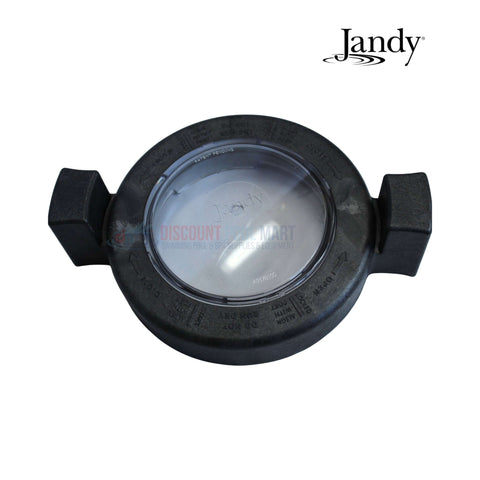

Original (OEM) Jandy Locking Ring Lid For PlusHP PHP PHPM MHPM Pumps$79.99
-
-
-

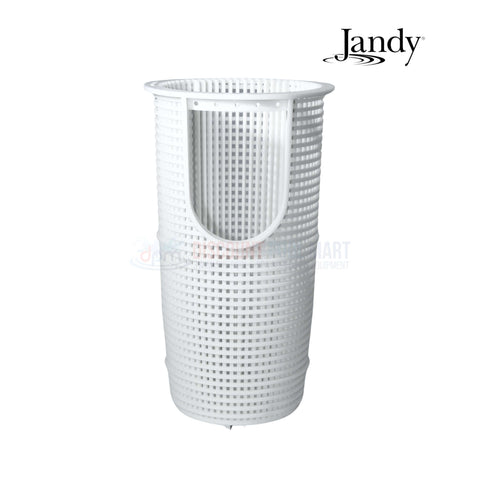

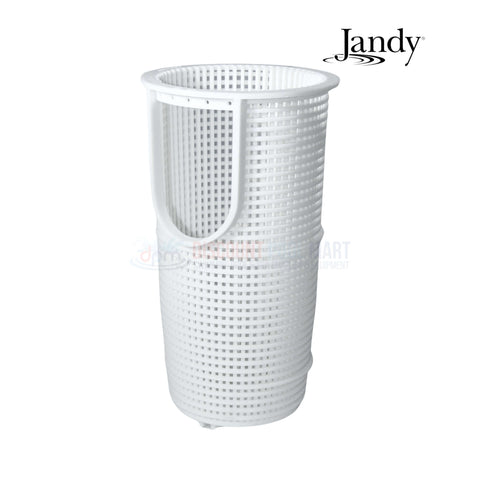

Original (OEM) Jandy Filter Basket Replacement For PlusHP Pumps$22.99
-
-
-
Original (OEM) Jandy Drain Plug With O-Ring For Pumps and Heaters | 2 Pack$13.99
-
-
-
-

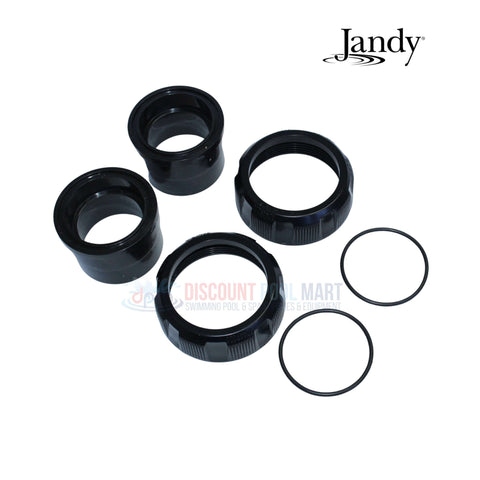

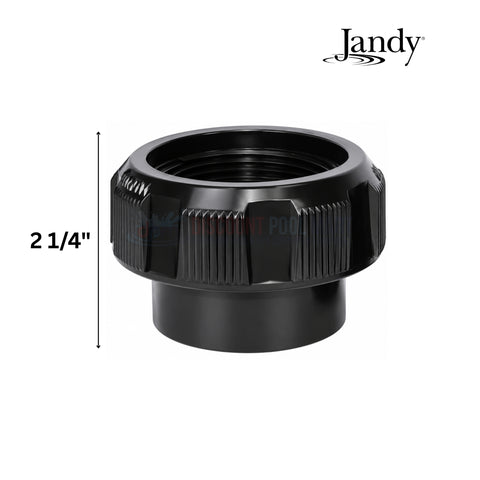

Original (OEM) Jandy Universal Half Union For DEV and DEL Filters$29.99
-
-
-
$24.99
-
-
-
Original (OEM) Jandy Backplate O-Ring for ePump and Stealth Pumps$19.99
-

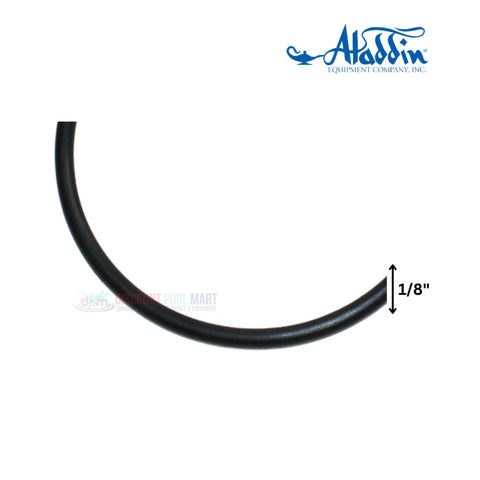

AftermarketSave 75% Aladdin Seal Plate O-Ring For Jandy Pumps | R0446300$4.99
-
-
-
Not sold online Jandy tailpiece O-ring, R0449200 (2 needed)
-
-
-
Original (OEM) Jandy Diffuser & Impeller Hardware Kit$36.99
-
-
-
Not sold online Jandy backplate bolts and washers, R0446600 (8 needed)
-
-
-
Not sold online Jandy motor mounting bolts and washers, R0446700 (4 needed)
-
-
-
Not sold online Jandy motor mounting foot screws, R0446800 (2 needed, discontinued)
-
-
-
Not sold online Jandy impeller screw with O-ring, R0515400
-
No parts match.
Don't see your part? Ask us and we'll find it.
Also fits your Jandy PlusHP PHPF/PHPM Single Speed Pump
Not shown on the diagram, but made for this pump.
-
$29.99
-
$3.99
-

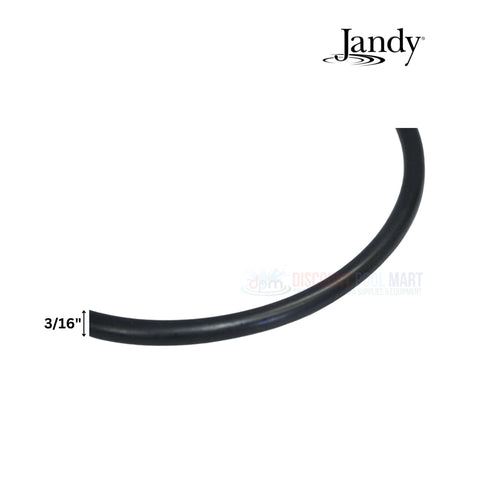

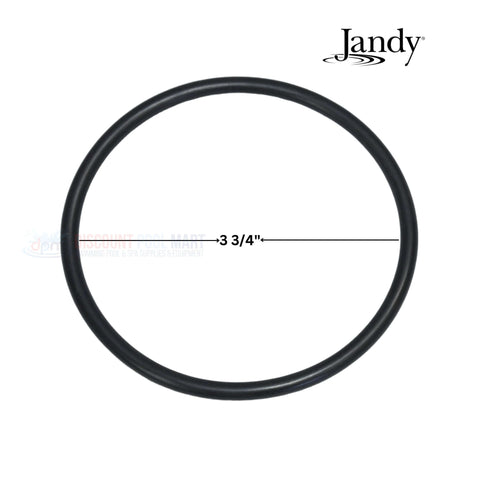

Original (OEM) Jandy Diffuser O-Ring for JHP and PHP Pumps | 0.75HP-2.5HP$2.99
Fit guide
Which PlusHP part fits your pump?
Find the model on your pump label: PHPF is full-rated, PHPM is max-rated, and the number is the horsepower. Part numbers come from Jandy's replacement parts pages in the Fluidra 2026 product catalog.
Impeller by pump model
- PHPF ½ / PHPM ¾R0807204.50 PHPF, .75 PHPM
- PHPF ¾ / PHPM 1R0807203.75 PHPF, 1.0 PHPM
- PHPF 1 / PHPM 1½R0807202single and two-speed
- PHPF 1½ / PHPM 2R0807201single and two-speed
- PHPF 2 / PHPM 2½R0807200single and two-speed
Impeller kits include the screw and backplate O-ring.
Shaft seal by serial number
- New style serial P08FF0001 and later
- R0479400 U.S. Seal PS-3890
- Old style before P08FF0001
- R0445500
Lid, unions & O-rings

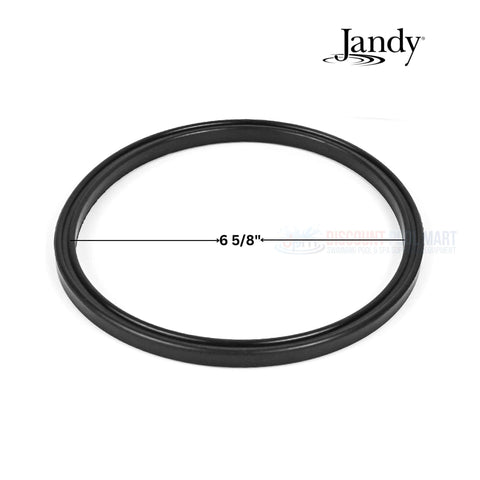

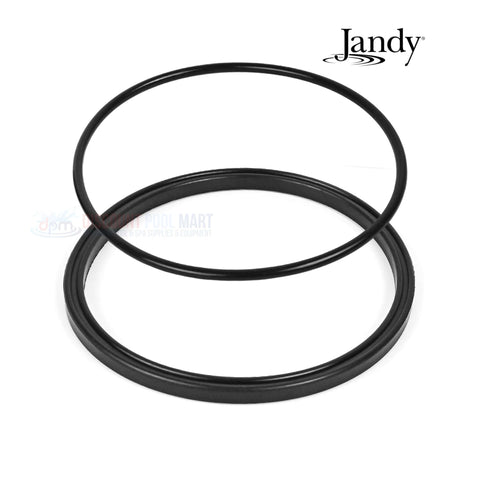

- Lid seal with O-ring
- R0449100
- Backplate O-ring
- R0446300 Aladdin O-521
- Tailpiece O-ring
- R0449200
