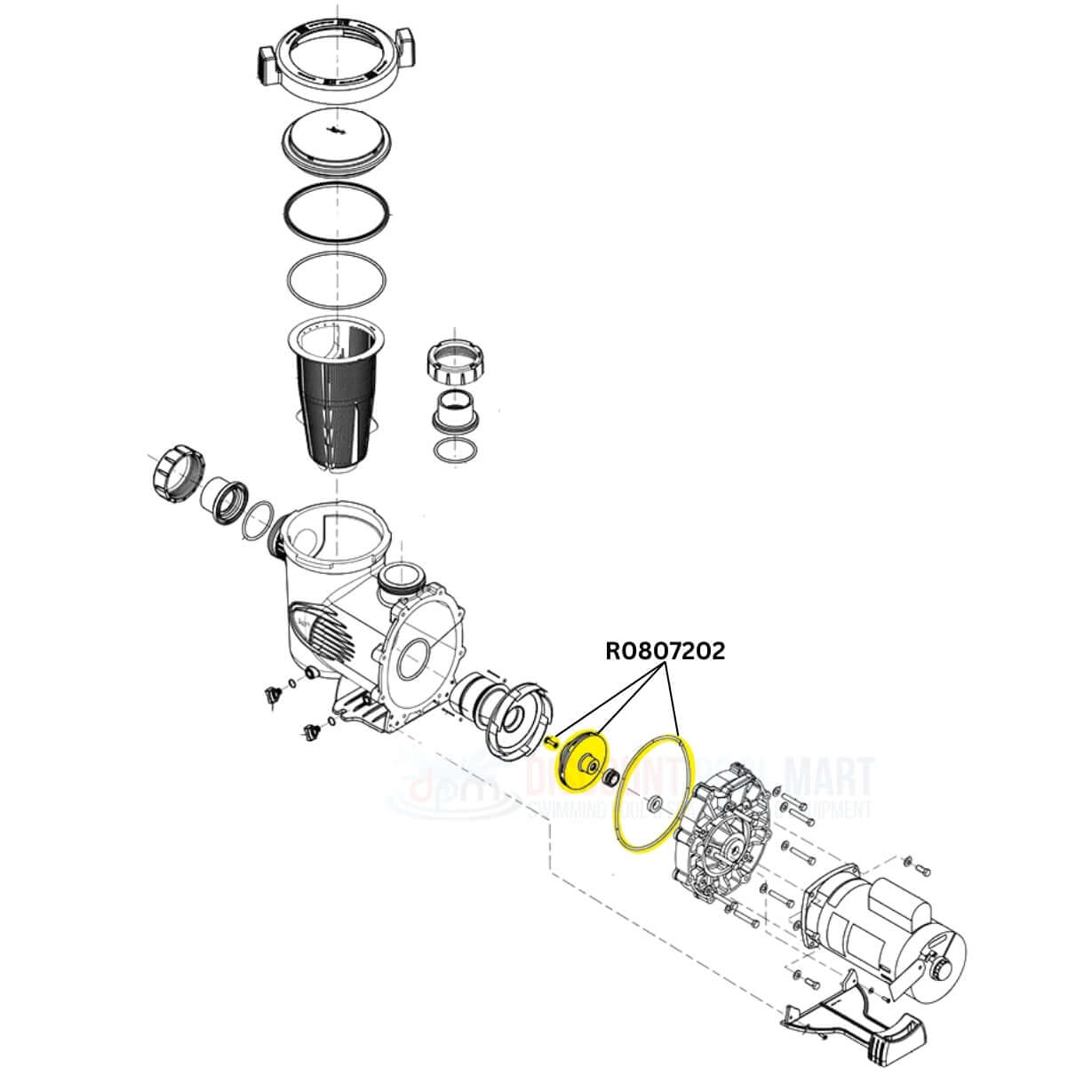

On the Jandy PlusHP PHPF/PHPM Single Speed Pump diagram
Open the full interactive diagram →
Other parts on the same Jandy PlusHP PHPF/PHPM Single Speed Pump

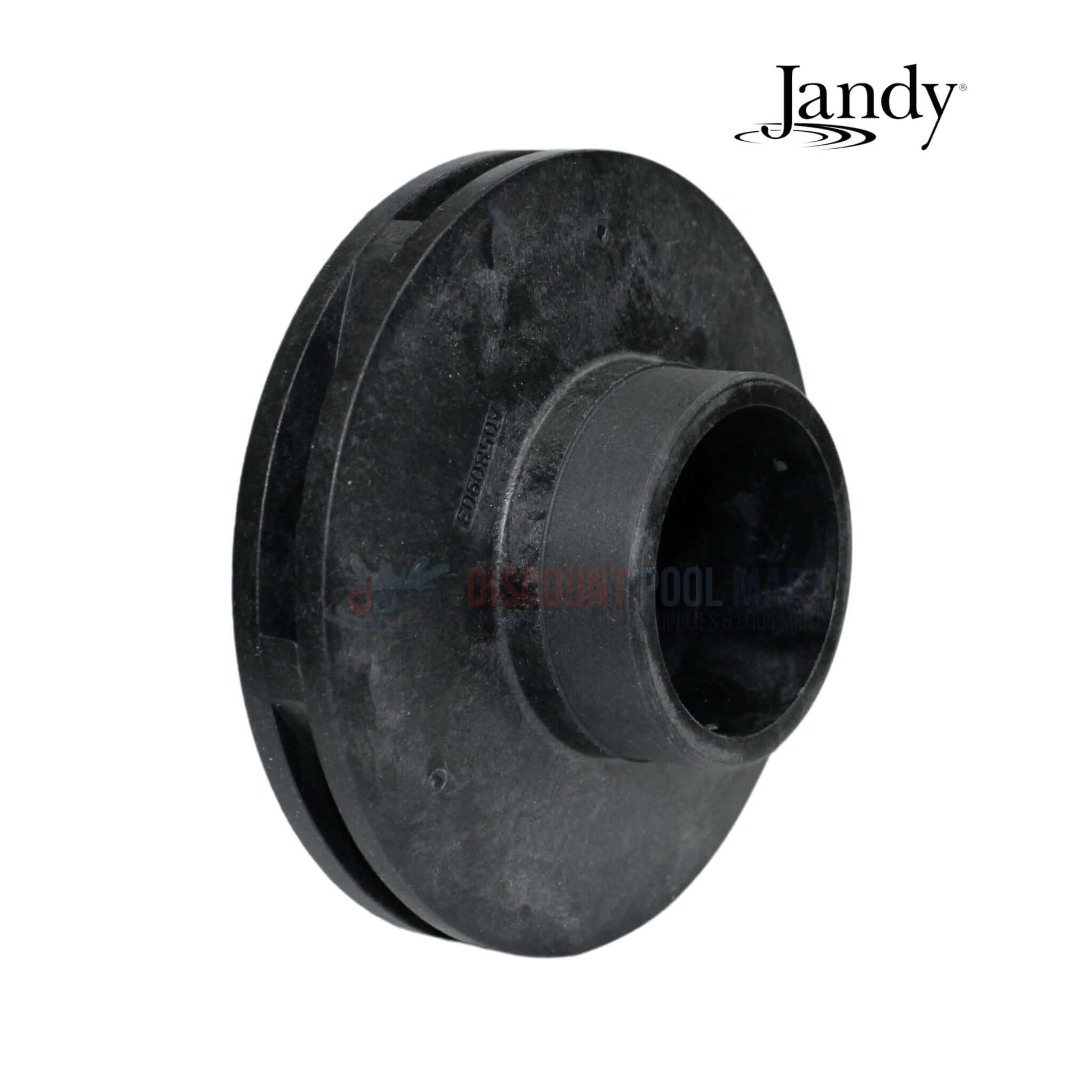

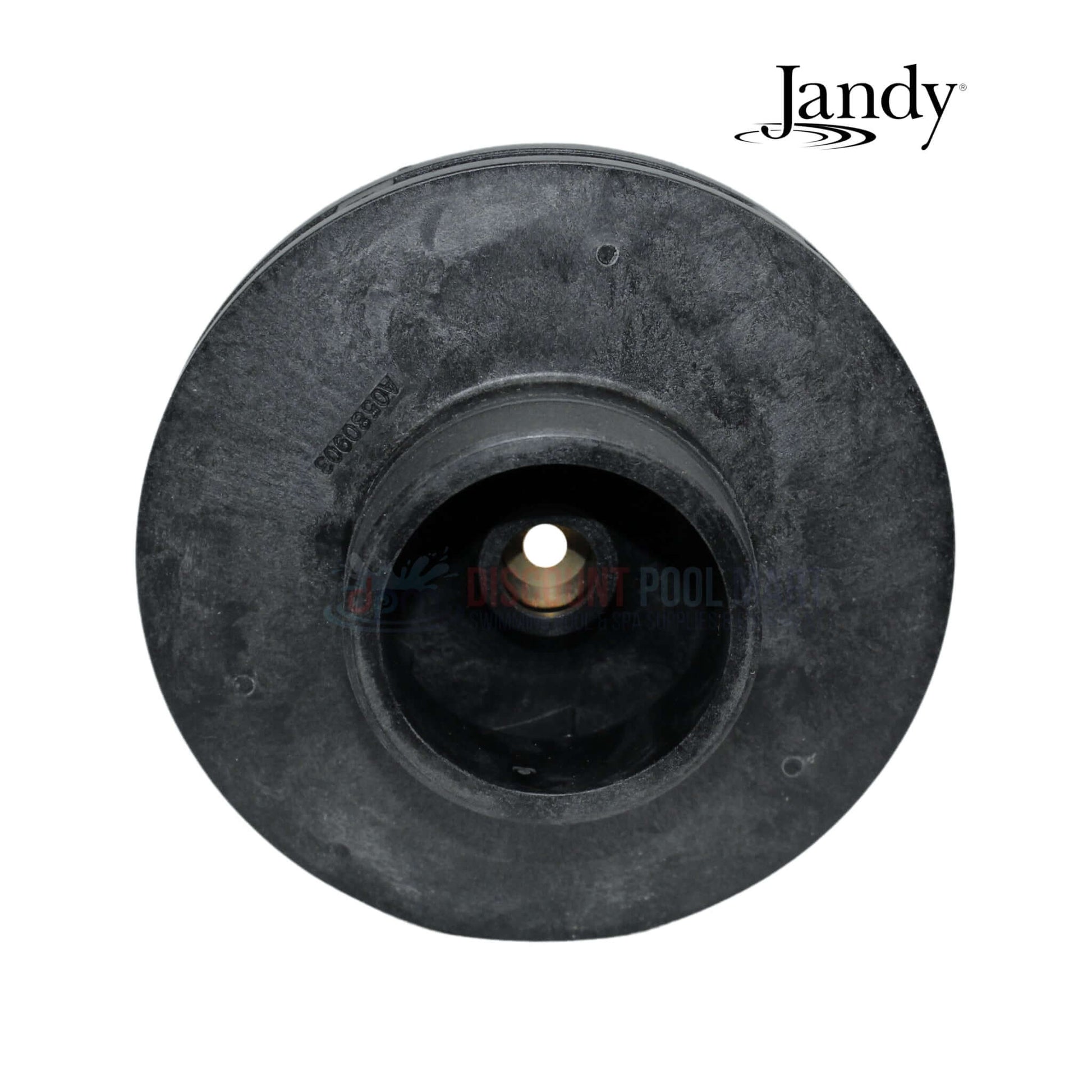

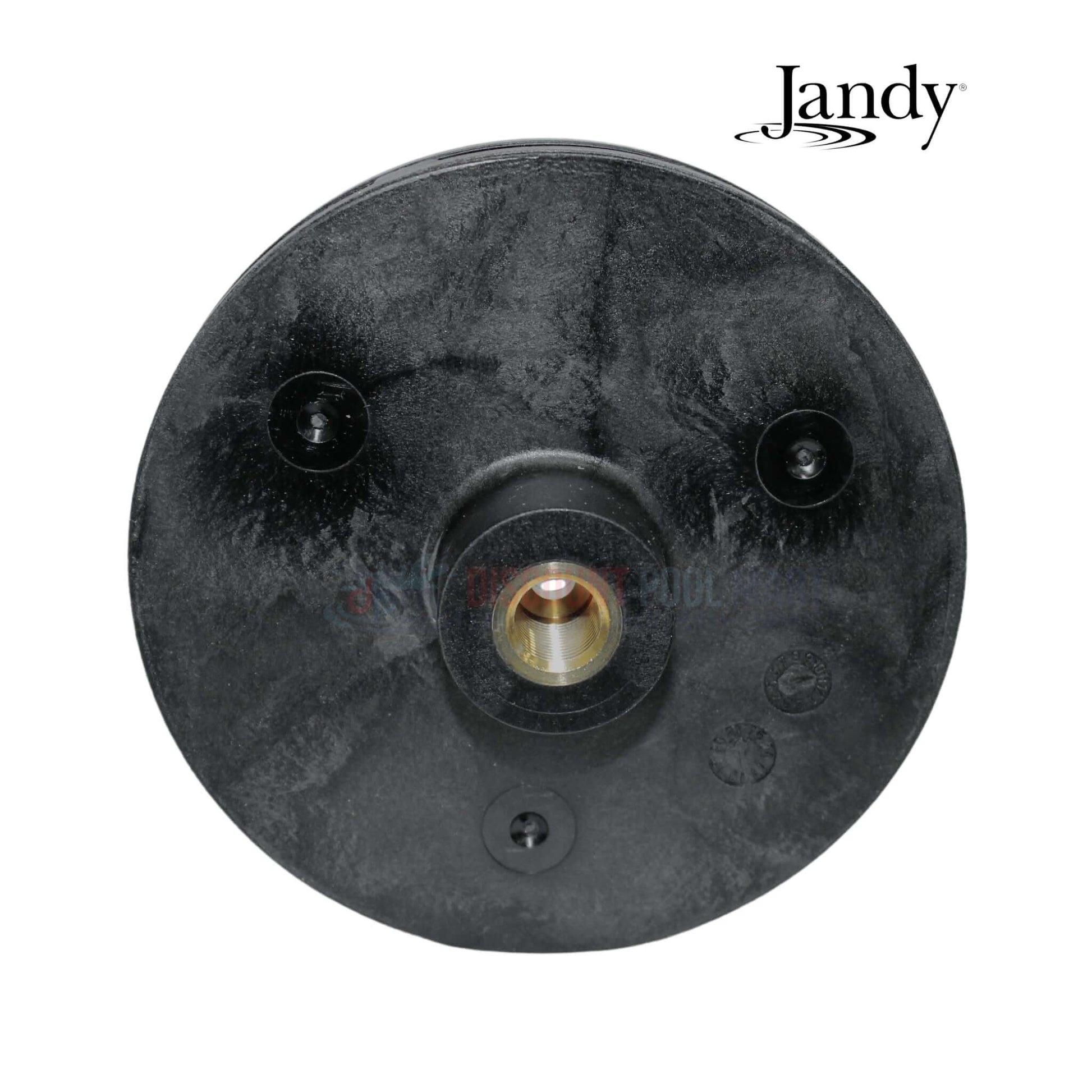

OEM Jandy Impeller Kit R0807202 is a replacement set built for 1 HP full-rate and 1.5 HP up-rated models in the Jandy Stealth (SHPF/SHPM) and PlusHP (PHPF/PHPM) pump series. This kit includes a precision impeller, O-ring, and screw, providing everything needed for proper installation and secure operation. Designed to restore strong water circulation and support overall pump performance, it helps improve system efficiency. This impeller kit ensures your pool pump remains dependable over time by reducing wear and preserving function.
-
For Stealth and PlusHP Models: Designed to fit 1 HP full-rate and 1.5 HP up-rated Jandy SHPF, SHPM, PHPF, and PHPM pumps
-
Restores Water Circulation: Supports consistent pump output and efficient system flow for optimal pool health
-

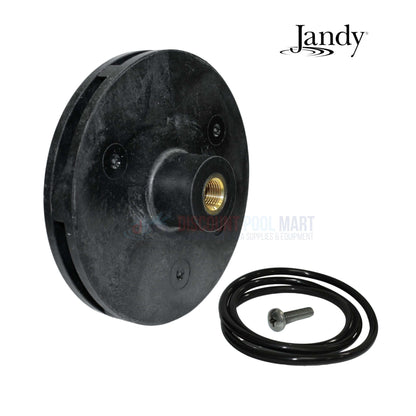

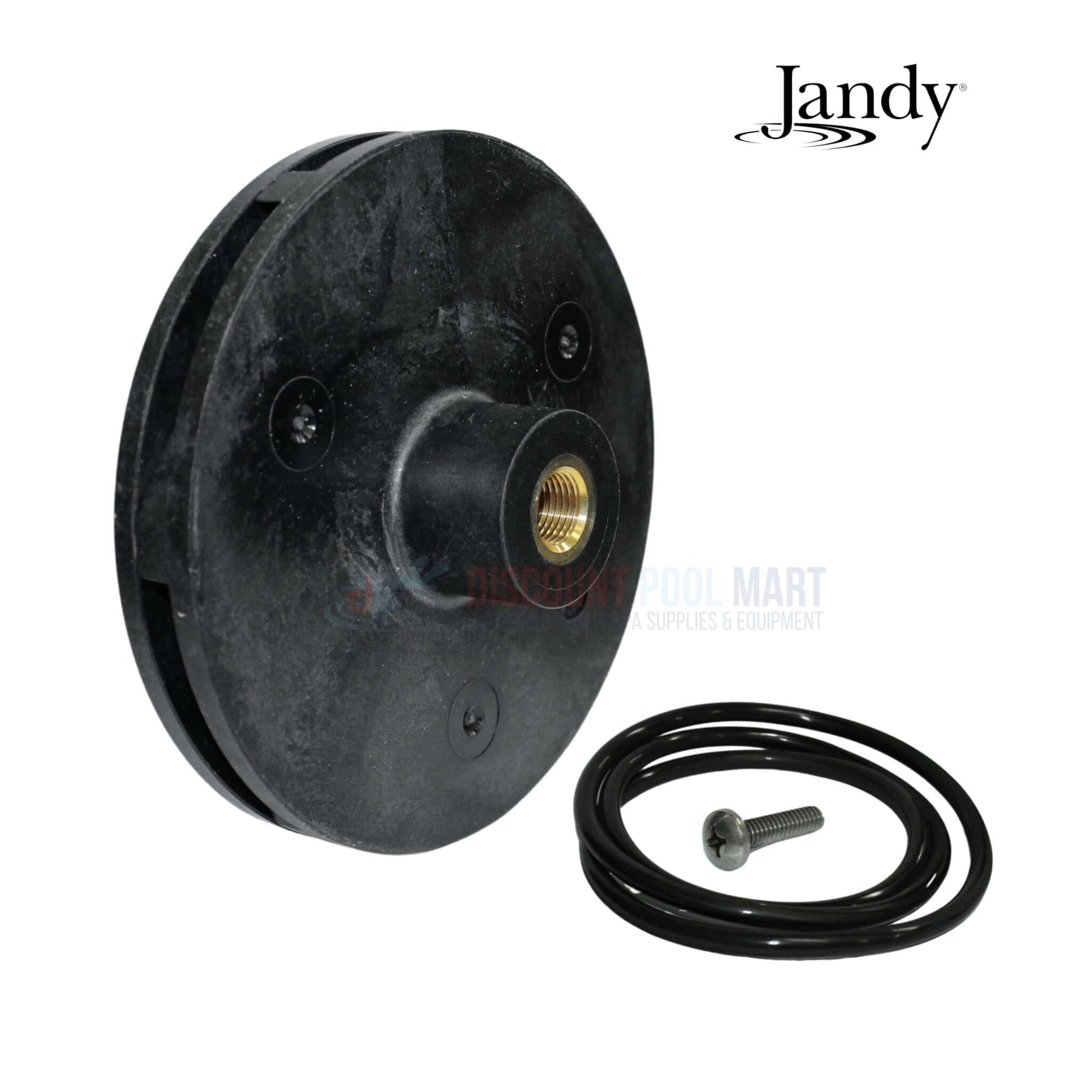

Includes Key Components: Kit comes with impeller, screw, and O-ring for a complete pump rebuild solution
-
Helps Prevent Premature Wear: Improves water movement and minimizes stress on internal components
-
Promotes Pump Longevity: Ensures reliable long-term operation by maintaining smooth hydraulic performance

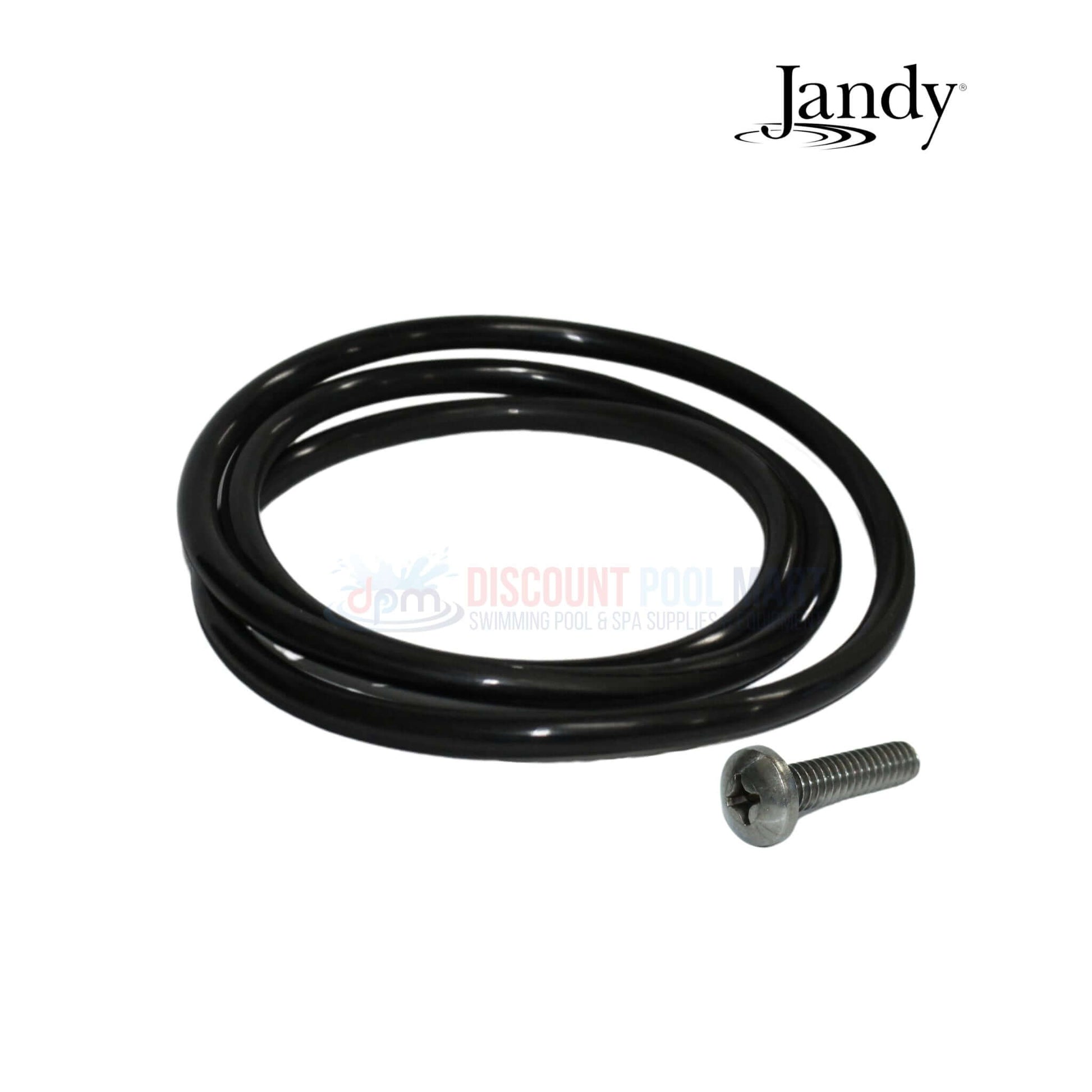

Includes
- (1) Impeller
- (1) O-Ring
- (1) Screw
- Jandy Stealth SHPF Series Pumps
- Jandy Stealth SHPM Series Pumps
- Jandy PlusHP PHPF Series Pumps
- Jandy PlusHP PHPM Series Pumps
