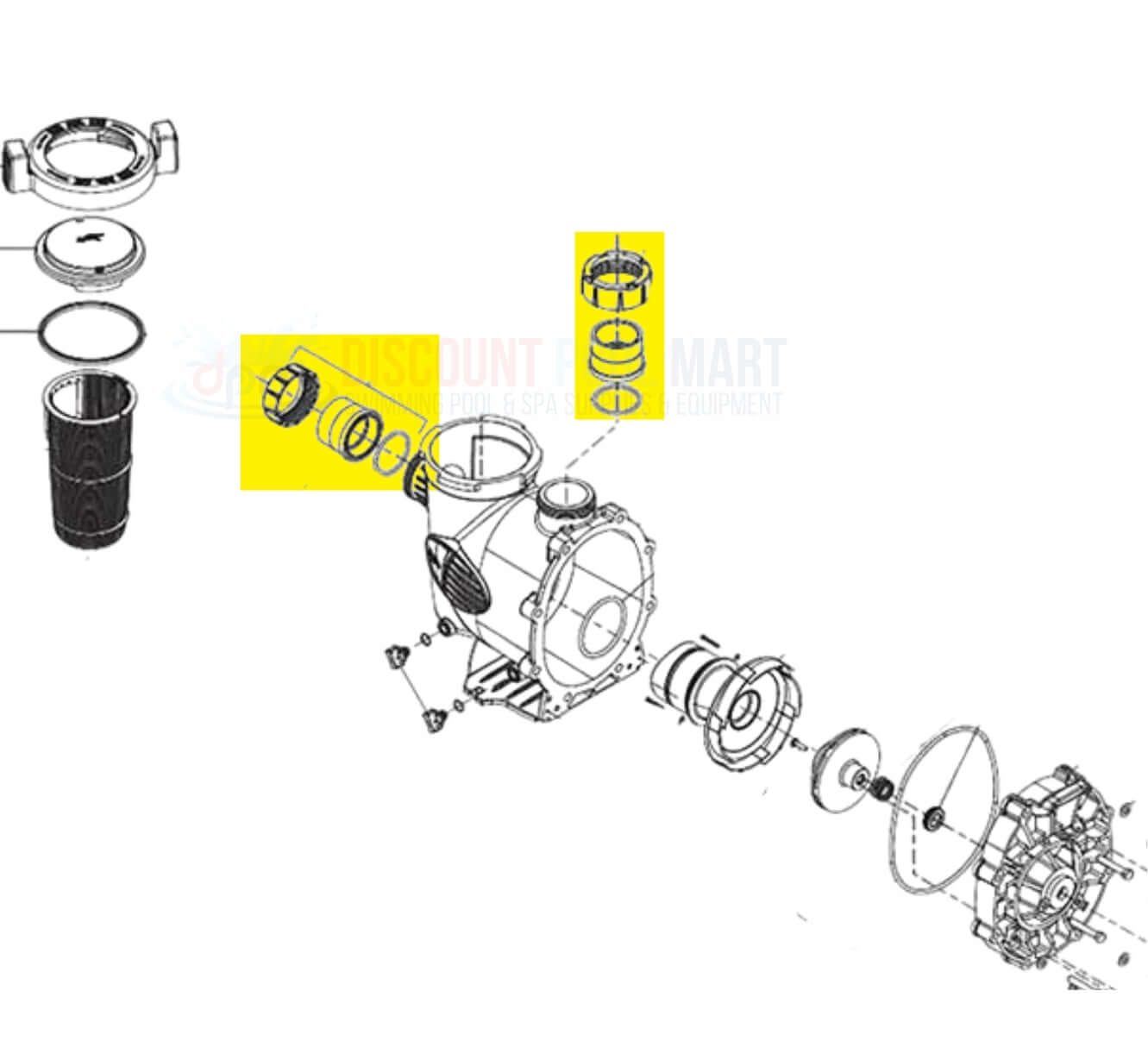

On the Jandy PlusHP PHPF/PHPM Single Speed Pump diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy PlusHP PHPF/PHPM Single Speed Pump

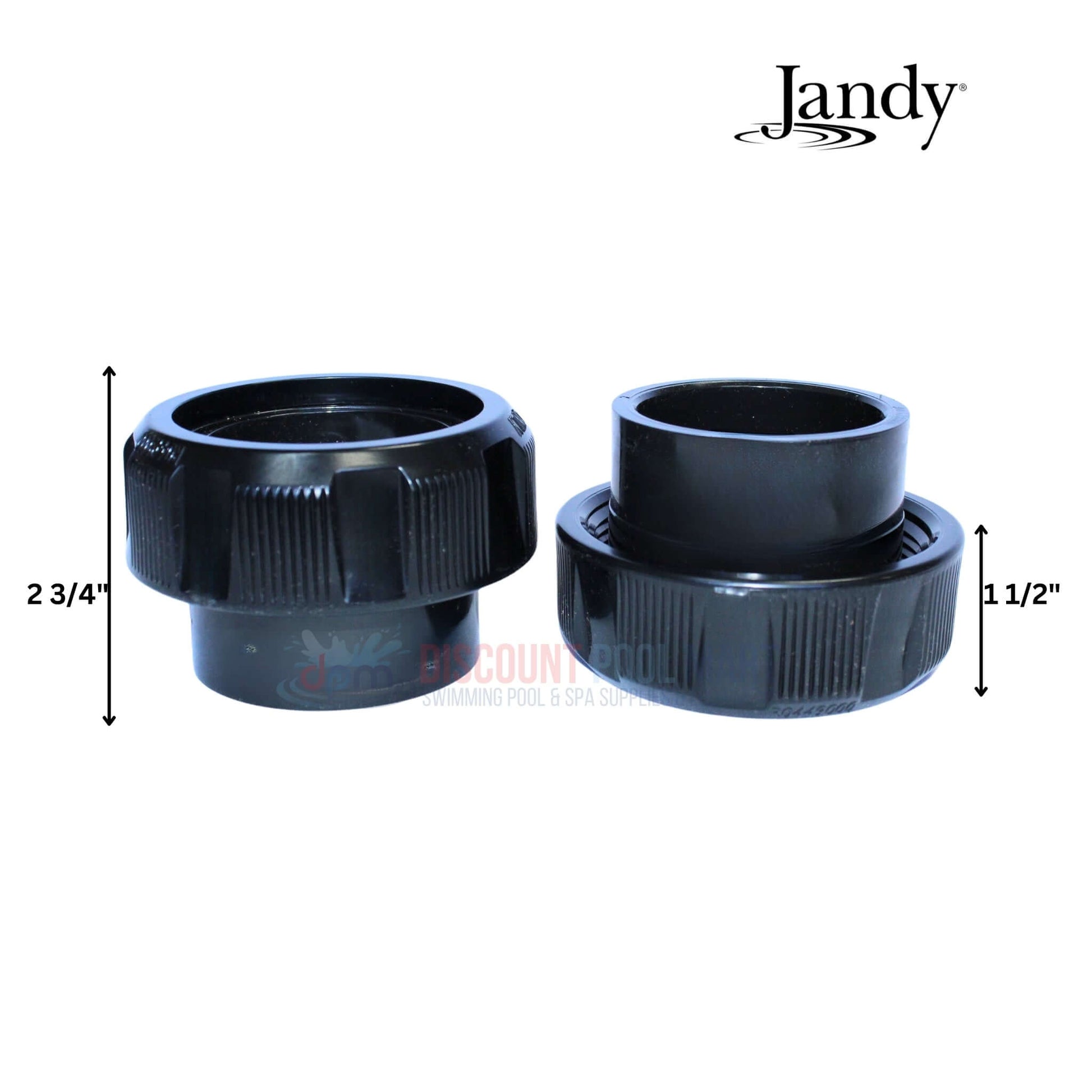

OEM Jandy Union Tail Piece Kit is specifically engineered for Jandy PlusHP PHPF and PHPM pumps, providing a secure 2" by 2.5" connection to ensure consistent water flow between the pump and heater. This set includes two precision-molded union assemblies designed for fast, leak-resistant installation. Built for durability and performance, these tail pieces simplify routine maintenance and upgrades, making them an ideal solution for restoring system integrity and improving circulation efficiency in your pool setup.
-
Exact Fit for PlusHP Pumps: Tailored for Jandy PHPF and PHPM models, offering a precise and reliable connection for pump-to-heater installations
-
Leak-Resistant Assembly: Ensures a tight seal that minimizes water loss and supports uninterrupted flow through the system
-

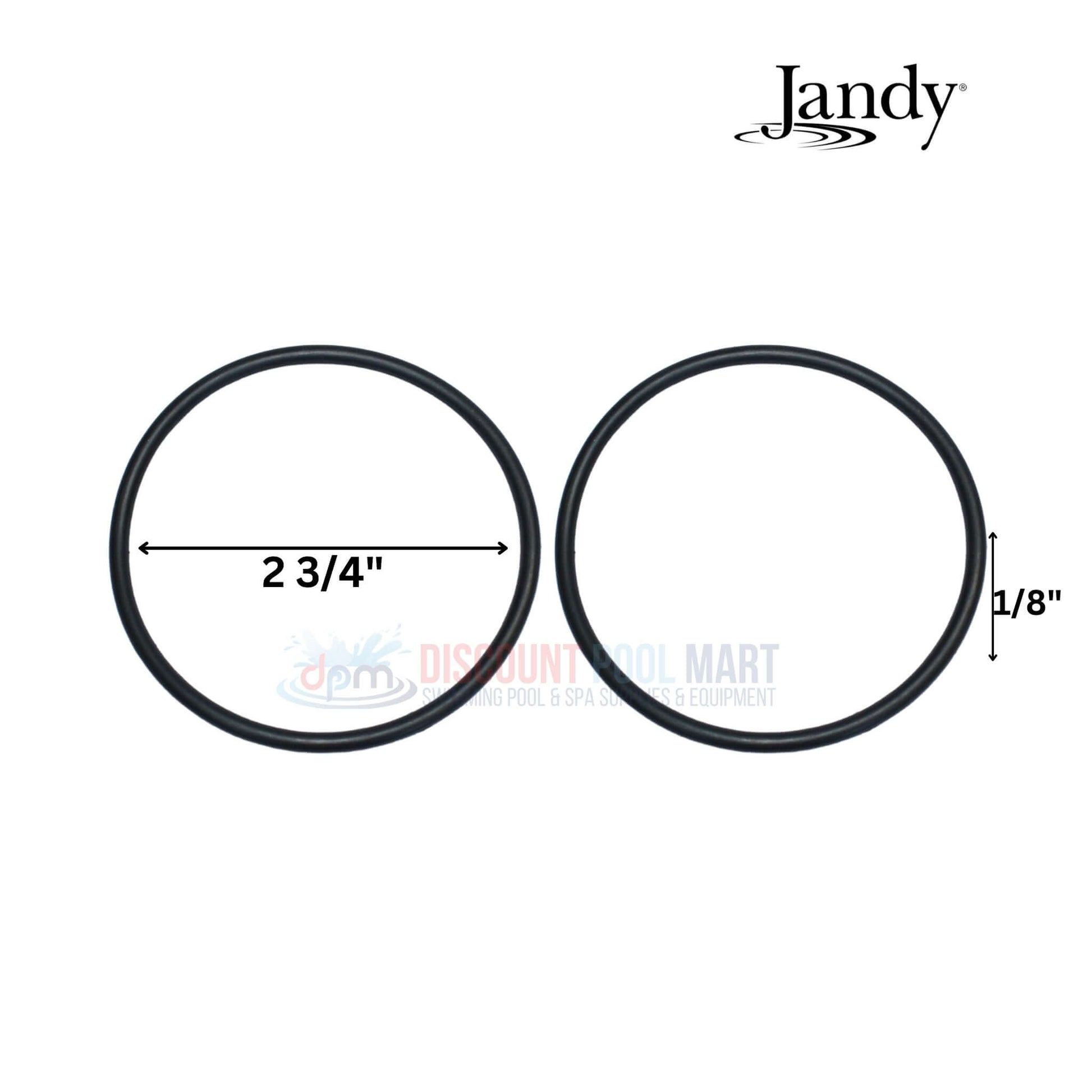

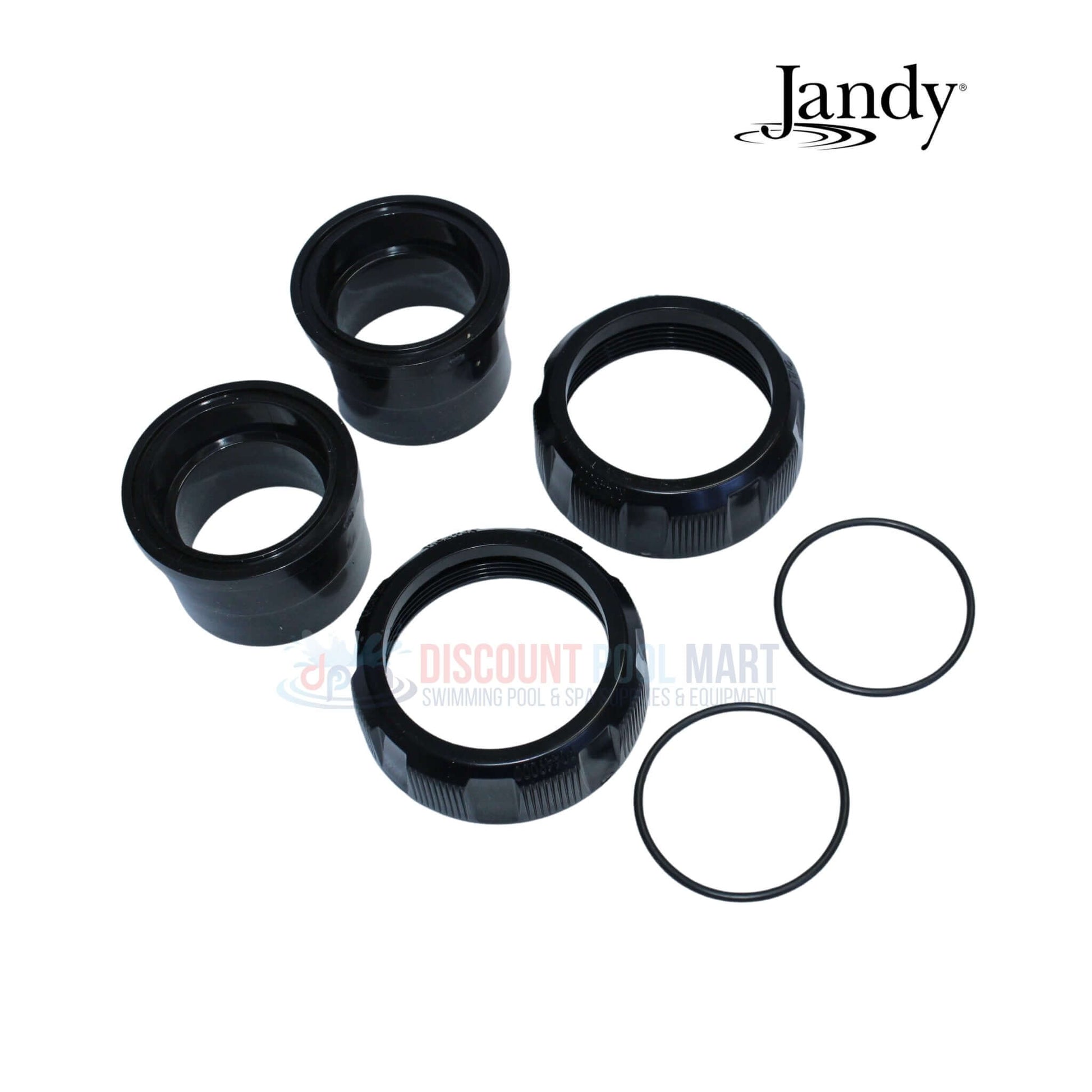

Includes Two Union Pieces: Convenient kit provides a complete set for quick installation or replacement of worn connections
-
Built for Long-Term Use: Made from strong, pool-grade materials that withstand pressure and chemical exposure
-
Streamlined Upgrade Process: Simplifies pool equipment servicing by reducing installation time and improving connection stability
- Jandy PlusHP PHPF Pumps
- Jandy PlusHP PHPM Pumps
