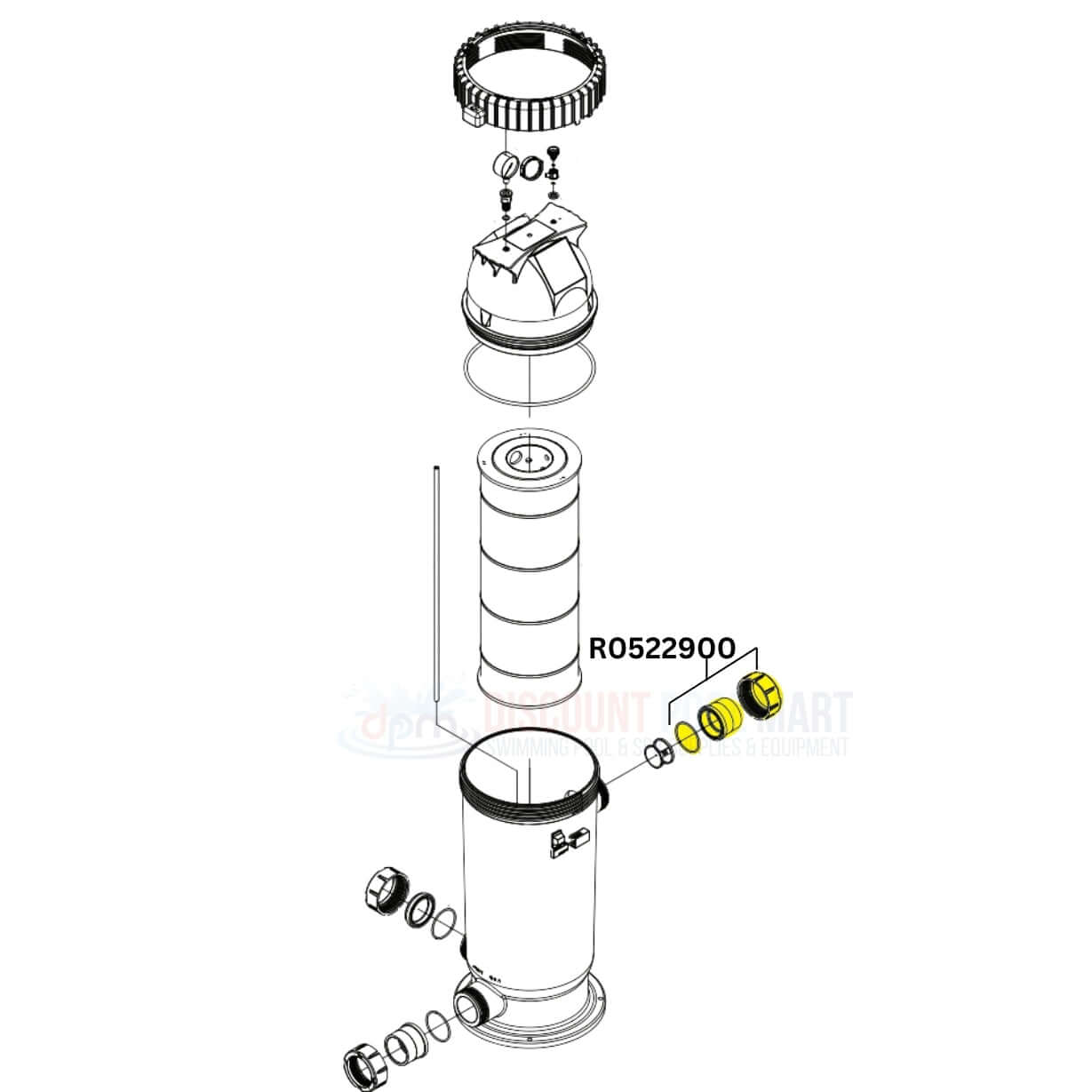

On the Jandy CS Series Cartridge Filter diagram
This part
Open the full interactive diagram →
Other parts on the same Jandy CS Series Cartridge Filter
OEM Jandy Pool Filter Universal Half Union and Drain Plug Cap is a dependable replacement solution engineered for use with a variety of Jandy pool and spa filtration systems. This all-in-one kit includes a universal half union and a matching drain plug cap, simplifying the replacement of key components that support your system’s function. Made from heavy-duty materials, the parts are built to endure chemical exposure and outdoor elements. Ensuring a secure seal and proper fit, this kit is essential for sustaining the performance and leak prevention of your pool filter system.
-
Universal Fit Across Models: Works with a wide selection of Jandy pool and spa filters, providing flexible application across systems
-
All-In-One Convenience: Comes with both essential parts in one kit to make replacements quick and cost-effective
-
Reliable Material Strength: Built to last through regular maintenance, chemical exposure, and outdoor weather conditions
-
Critical to Filter Operation: Helps maintain strong seals and prevent leaks, keeping your filtration system running efficiently
-
Streamlined Installation Process: Designed for straightforward replacement to reduce downtime and simplify upkeep

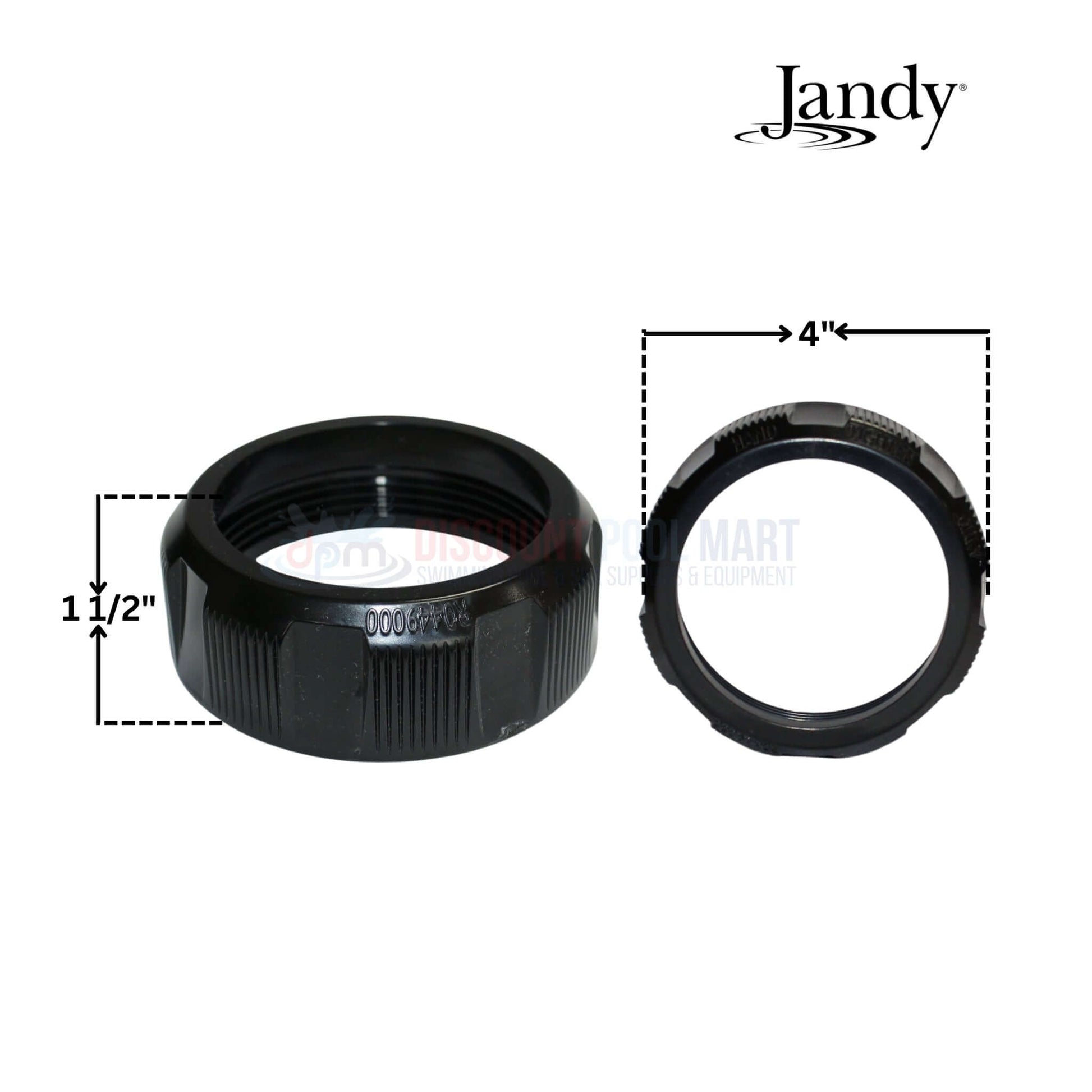

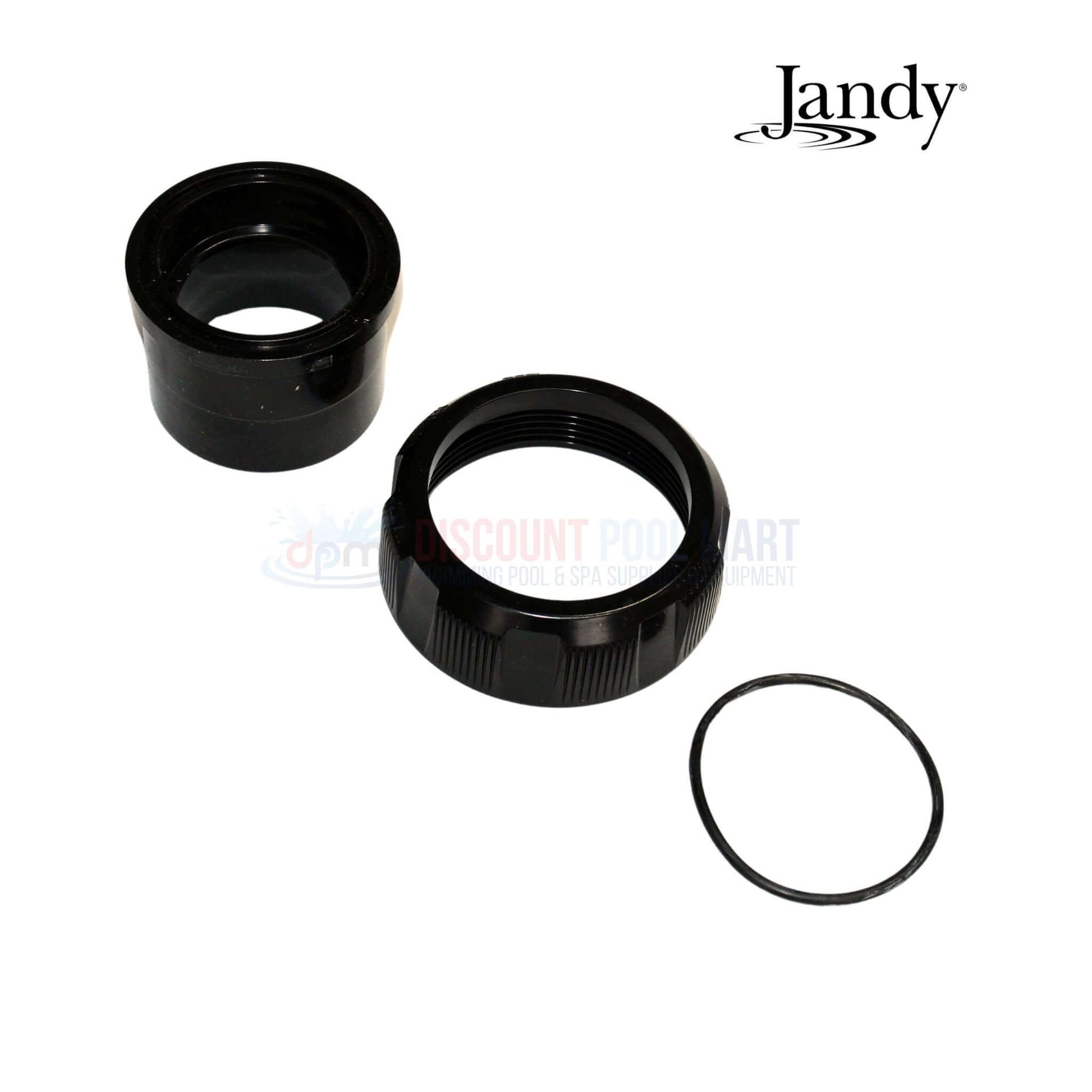

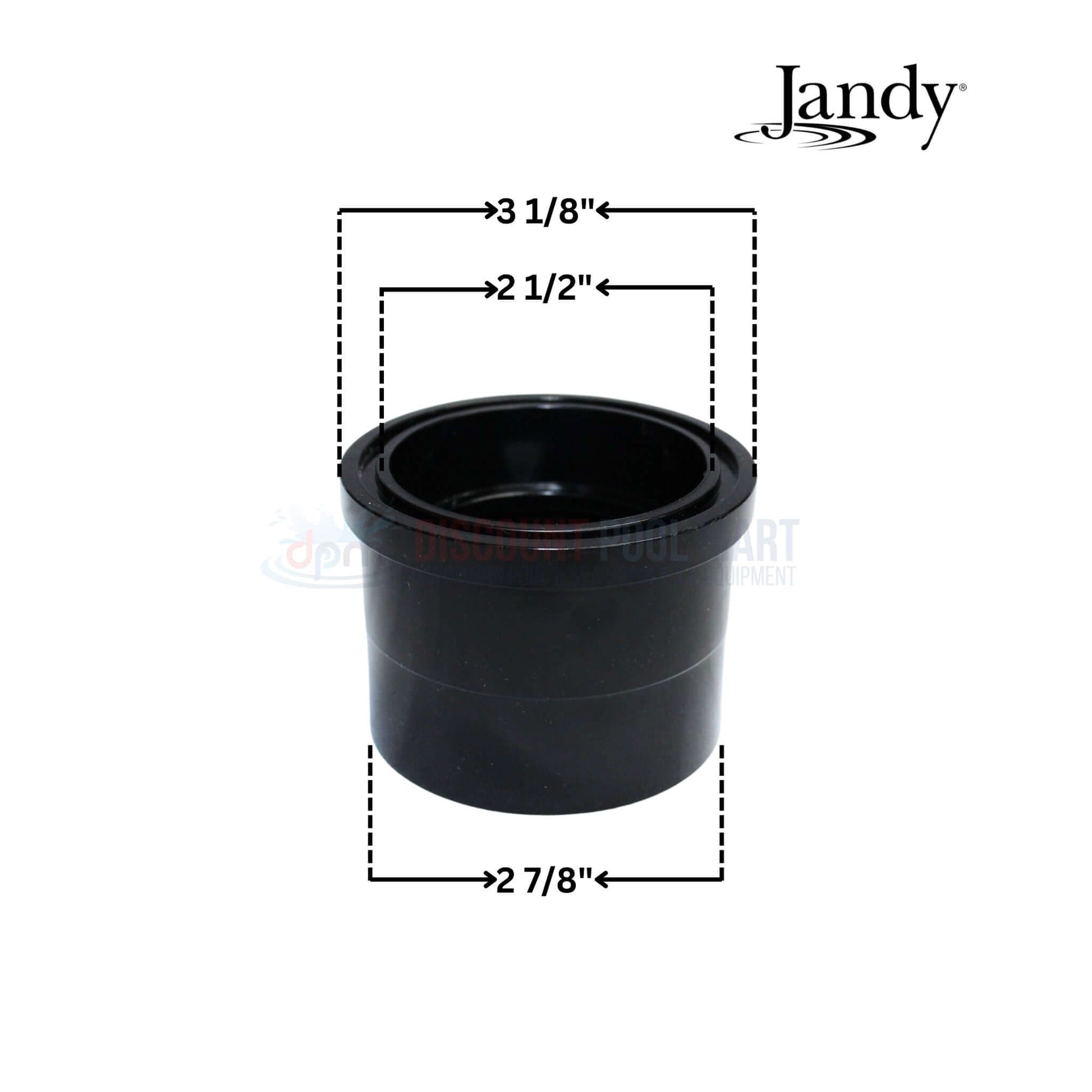

- (1) Universal Half Union

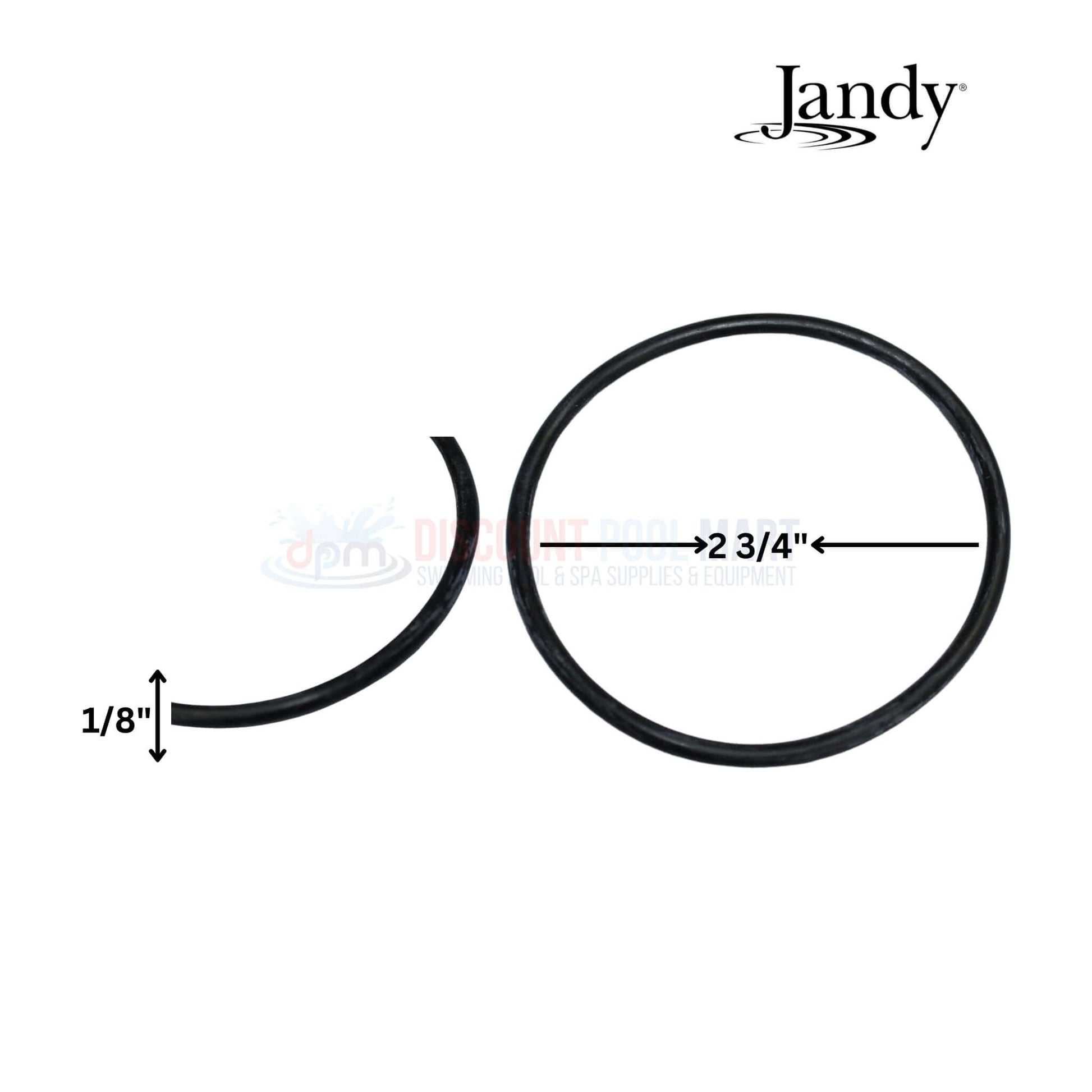

- (1) O-Ring
- Jandy DEV Series D.E. Pool and Spa Filter Models: DEV48, DEV60
- Jandy DEL Series D.E. Pool and Spa Filter Models: DEL48, DEL60
- Jandy CL series cartridge pool and spa filter models: CL340, CL460, CL580
- Jandy CV series cartridge pool and spa filter models: CV340, CV460, CV580
- Jandy CS series cartridge pool and spa filter models: CS100, CS150, CS200, CS250

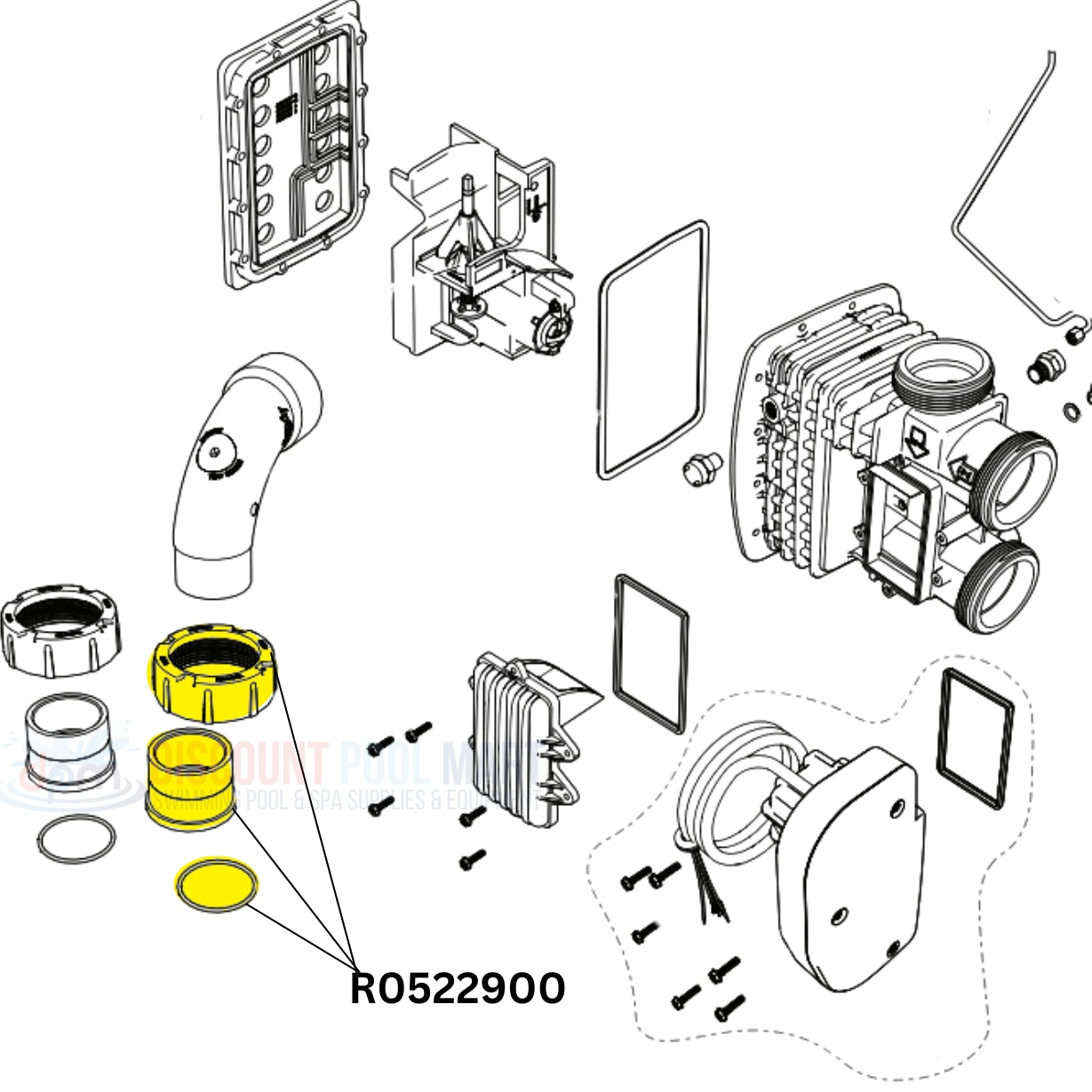

- Jandy Propane Heater Models: JXI400N, JXI400NK, JXI400NN, JXI260N, JXI260NK, JXI200N, JXI200NK Natural and JXI400P, JXI400PN, JXI400PK, JXI260P, JXI260PK, JXI200P, JXI200PK
