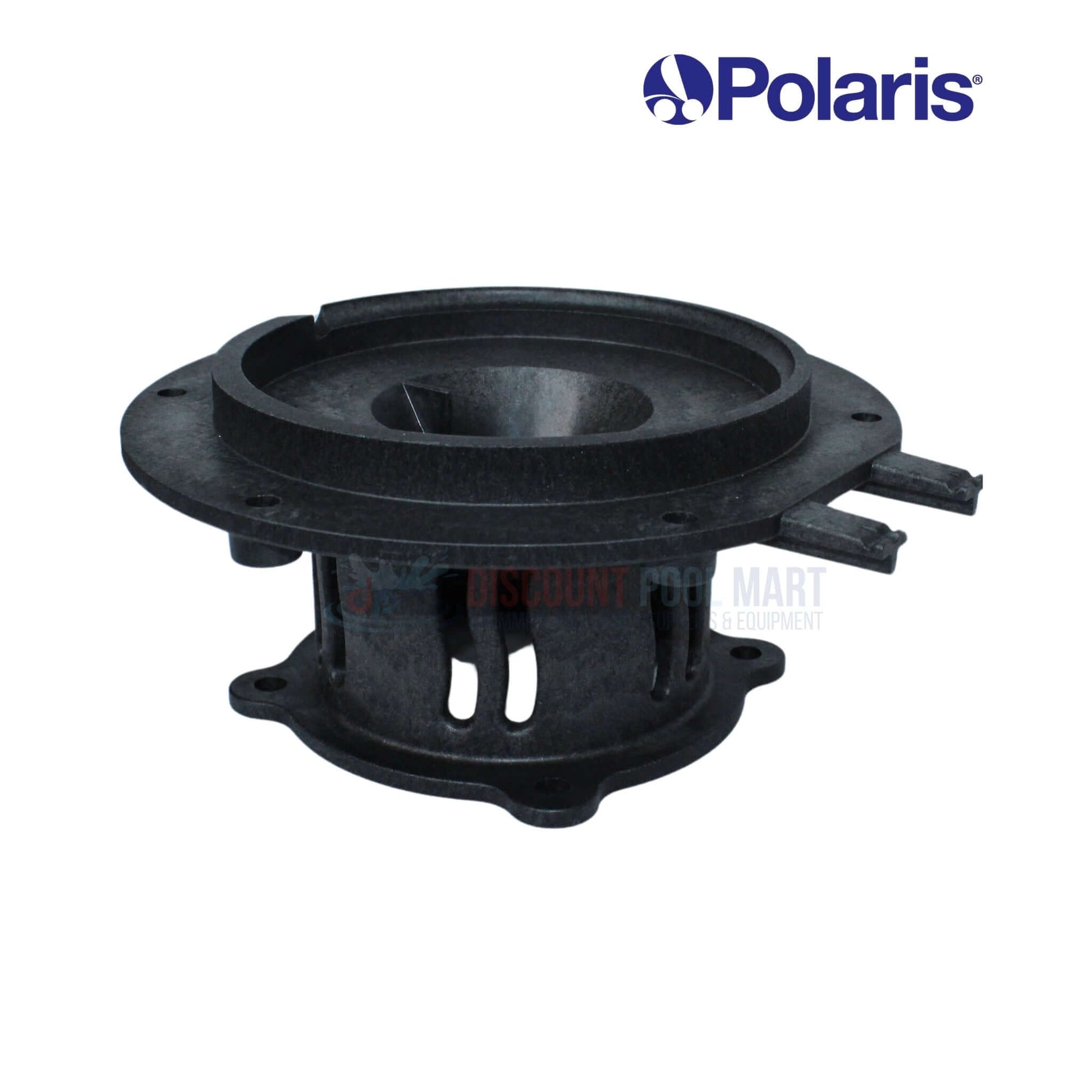

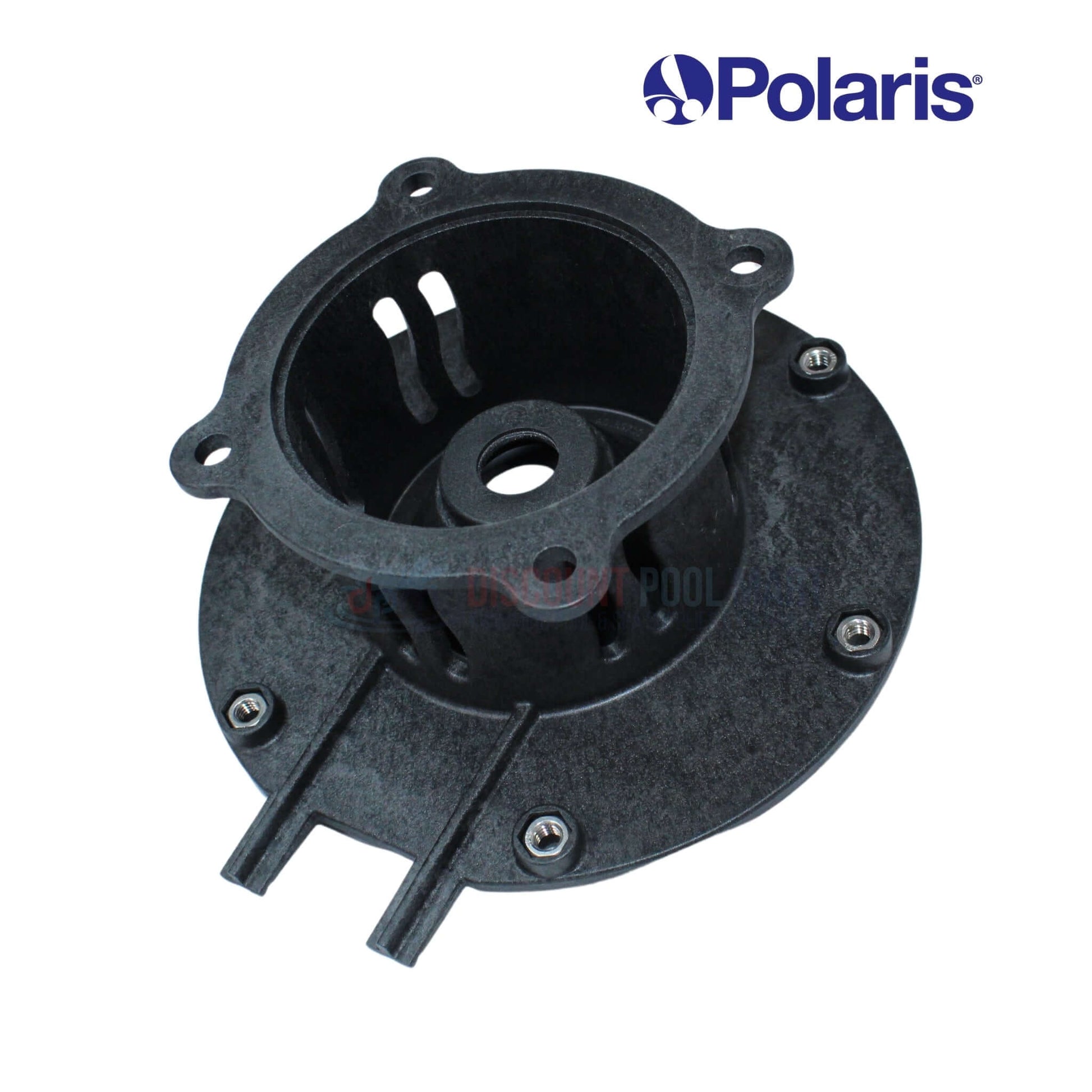

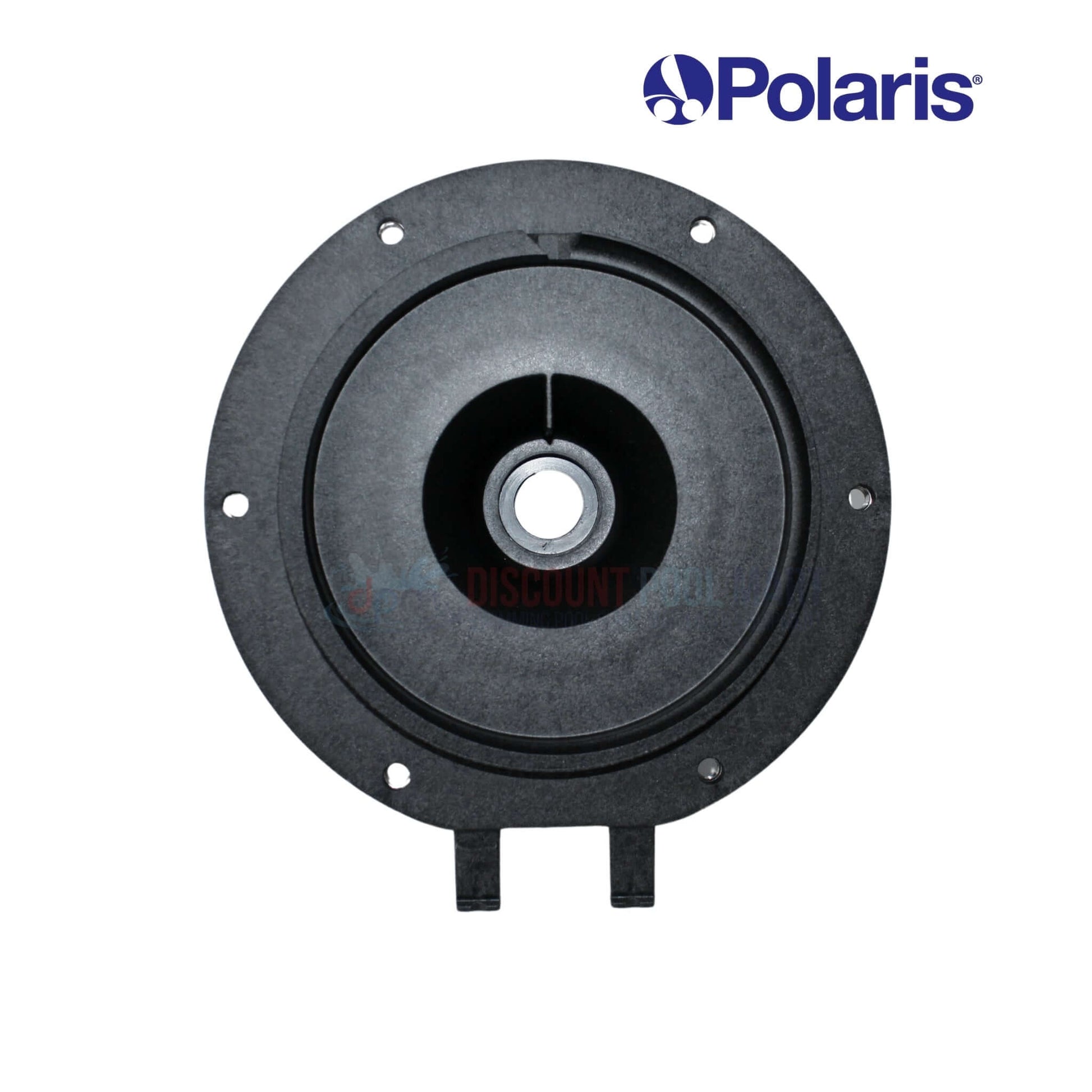

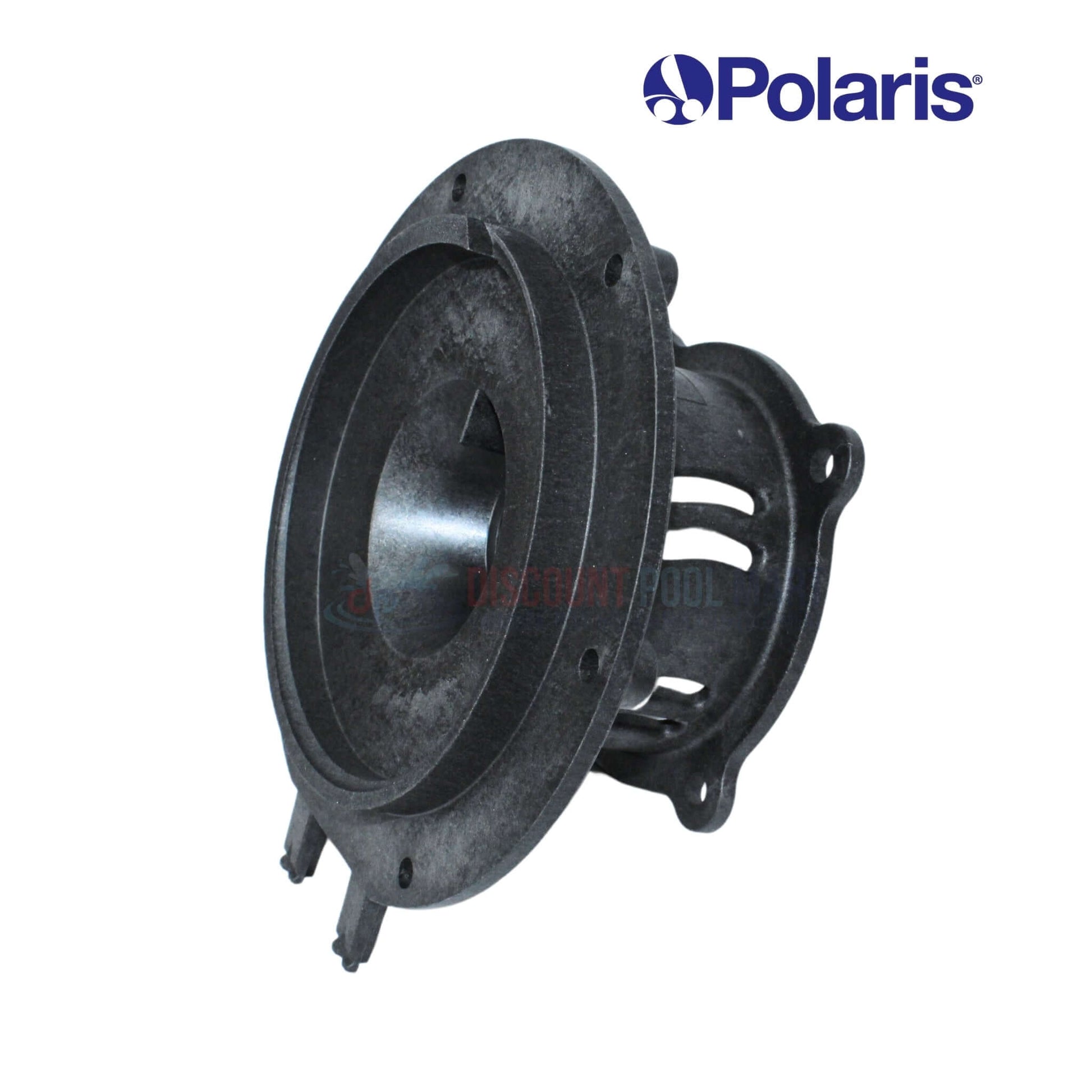

R0536700 | Polaris Backplate With Shaft Seal and O-Ring For New Style PB4-60 Booster Pumps

OEM Polaris Backplate with Shaft Seal and O-Ring R0536700 is a complete replacement kit specifically engineered for the new style PB4-60 Booster Pumps. This genuine component includes the backplate, shaft seal, and O-ring to ensure a precise fit and watertight seal for optimal pump performance. Built with durable materials, the kit enhances pump reliability while helping prevent leaks and wear over time. Installation is straightforward, making this a critical part for maintaining the functionality and extending the service life of your Polaris booster pump.

Highlights

• Engineered for PB4-60 Pumps: Designed exclusively for new style PB4-60 Booster Pumps to guarantee compatibility and peak performance.

• All-in-One Replacement Kit: Includes backplate, shaft seal, and O-ring for a complete seal restoration in one convenient package.

• Reliable Build Quality: Made from premium materials to withstand high-pressure pump operation and long-term use.

• Preserves Pump Functionality: Helps prevent leaks and performance issues, contributing to longer-lasting booster pump efficiency.

• Simple Installation Process: Easy to install and essential for keeping your Polaris booster system running smoothly and reliably.

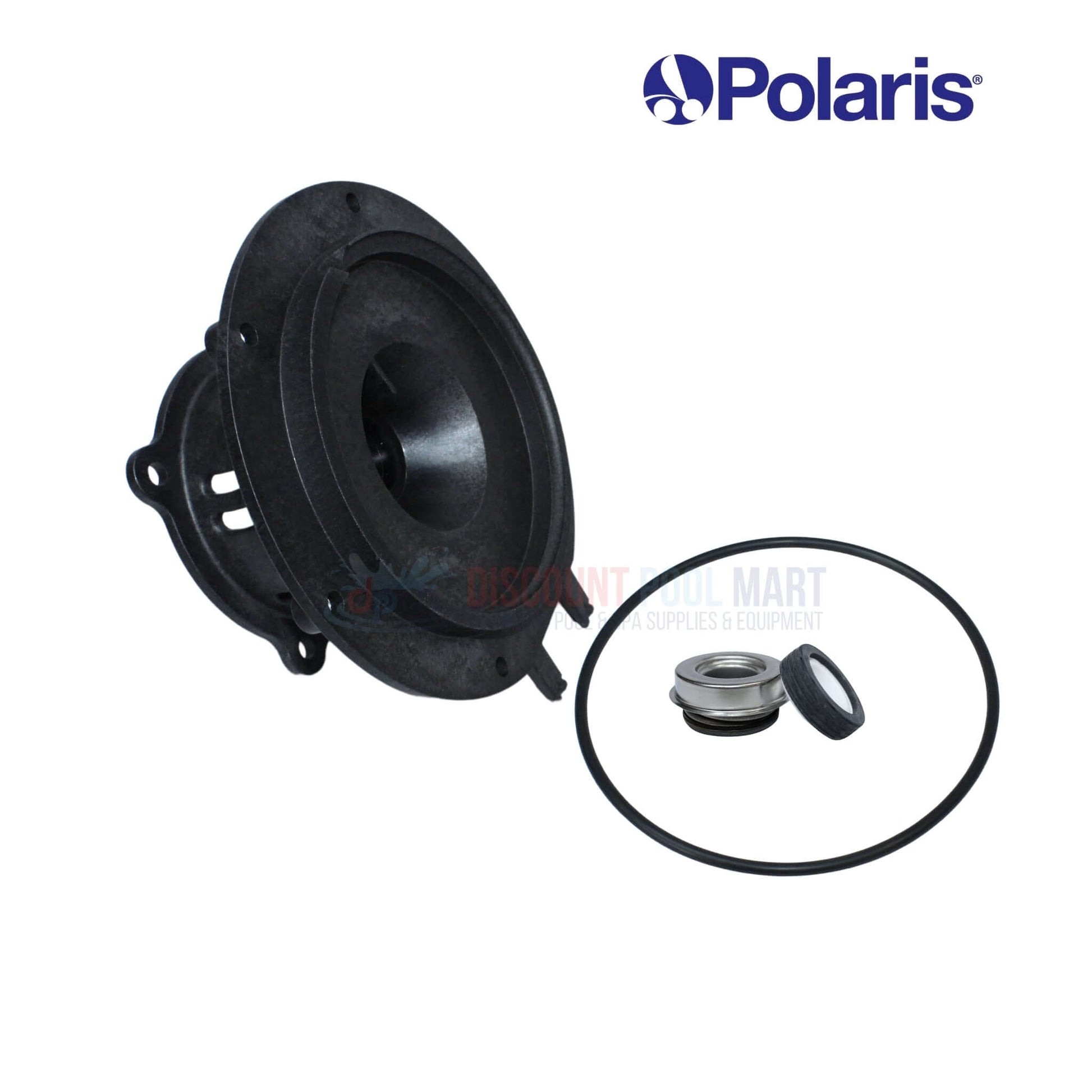

Includes

• (1) Polaris R0536700 Backplate

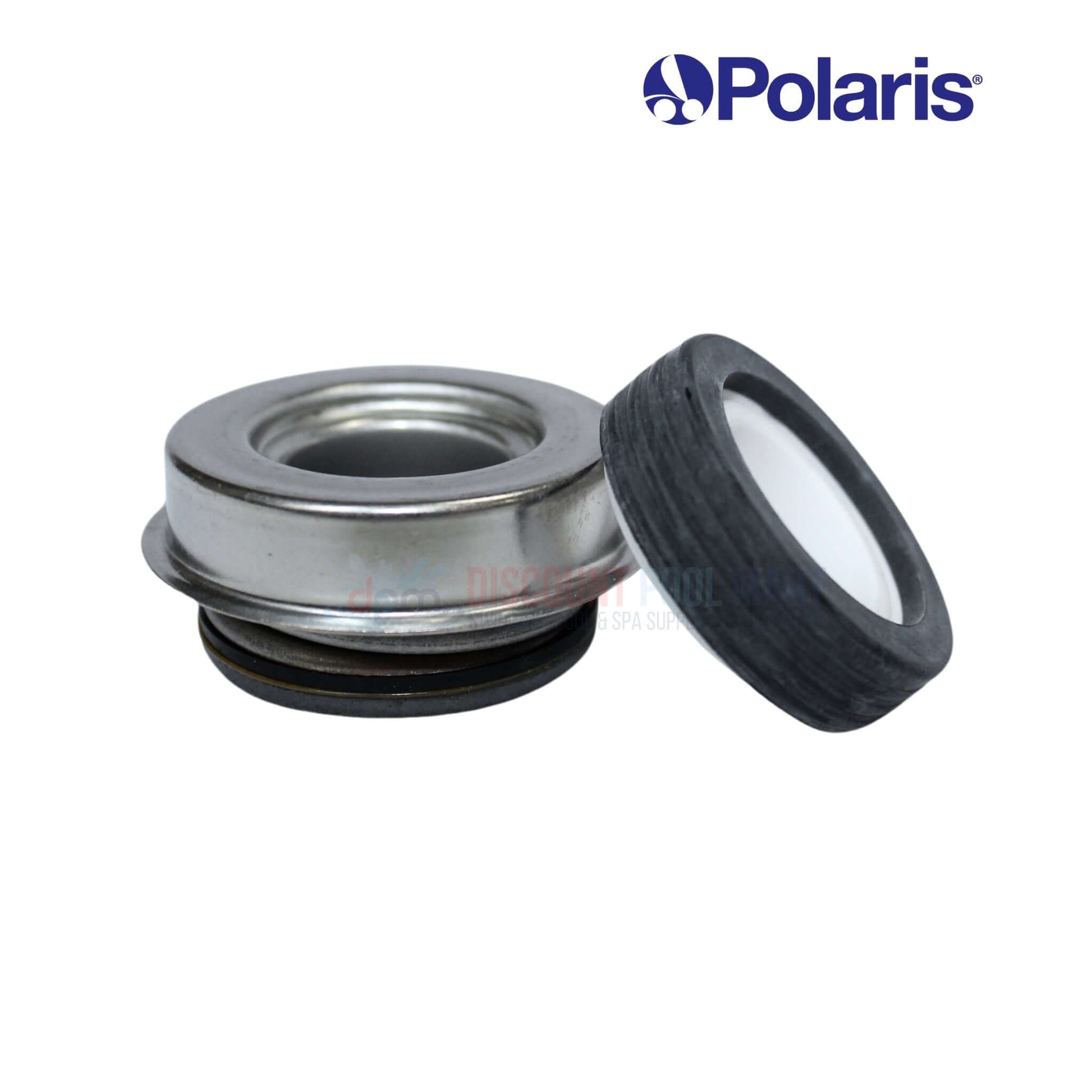

• (1) Shaft Seal

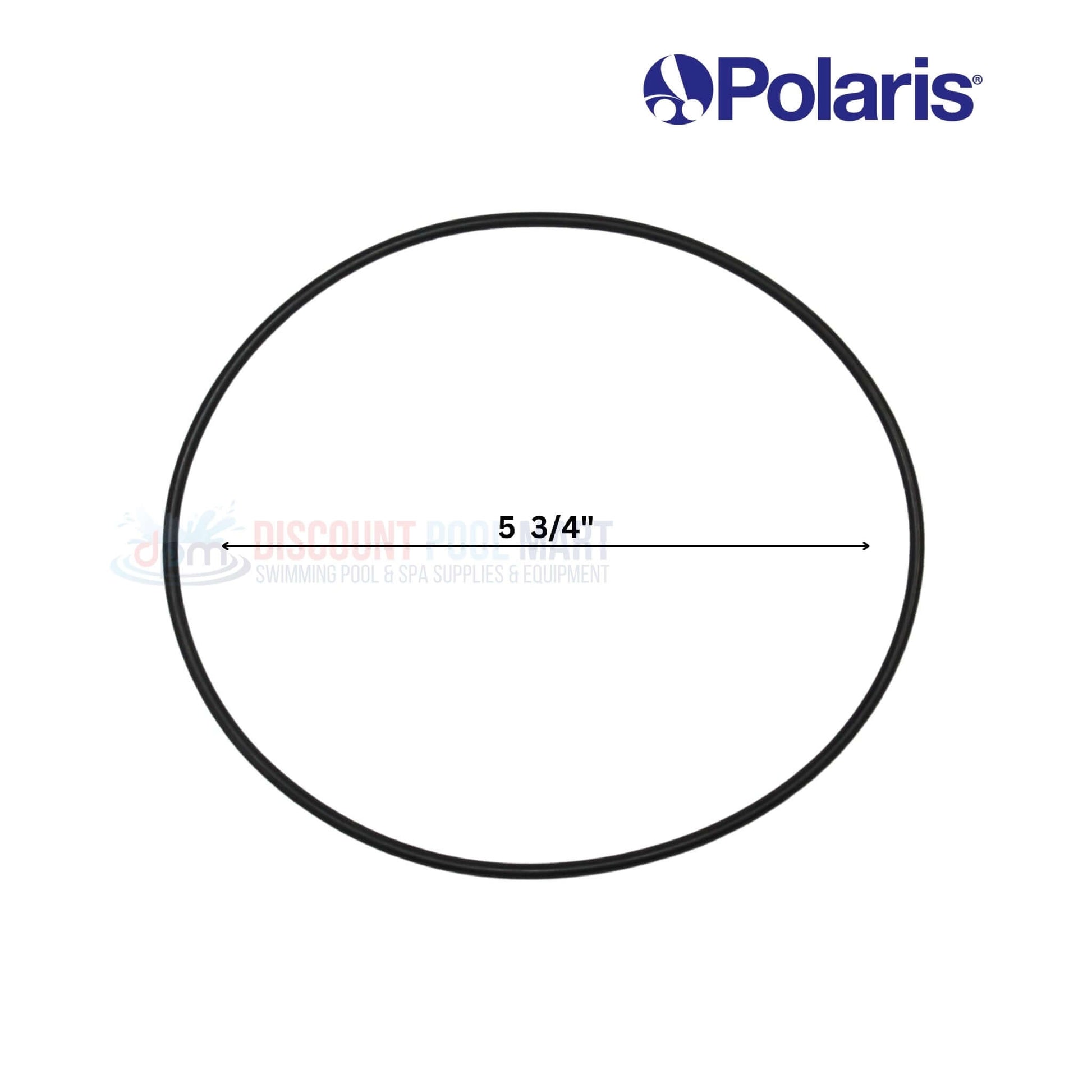

• (1) O-Ring

Installation

1. If the pump is located below water level, isolation valves must be installed on both sides of the pump
to prevent back flow of pool water during any routine or required servicing.
2. To help prevent difficulty in priming, install the suction pipe without high points (above inlet of pump - inverted “U”s in plumbing), which can trap air.
3. The piping must be well supported and not forced together where constant stress will be experienced.
4. Always use properly sized valves. Jandy® Pro Series diverter valves and ball valves typically.

5. Use the fewest fittings possible. Every additional fitting has the effect of moving the equipment farther away from the water.

Compatibility

• Polaris New Style PB4-60 Booster Pumps (Manufactured after serial number PB120111001 or 2011)

Additional Info

Backplate Kit for PB4-60 Booster Pumps

polaris booster pump backplate part r0536700

oem pb4-60 backplate shaft seal o-ring kit

polaris booster replacement plate new style

r0536700 backplate for polaris pool pump

suction-side booster pump backplate assembly

Seals and Maintains Pressure

fix leaking pb4-60 booster pump housing

prevent leaks with new shaft seal o-ring

oem backplate to restore pressure integrity

booster pump seal fix in one kit

in-store backplate solution for pb4-60 pumps

Built for Fit and Reliability

r0536700 fits new pb4-60 post 2011 models

oem part for updated booster pump assembly

backplate kit stocked locally for fast repair

high-quality polaris booster pump component

replace pump backplate in-store with oem fit

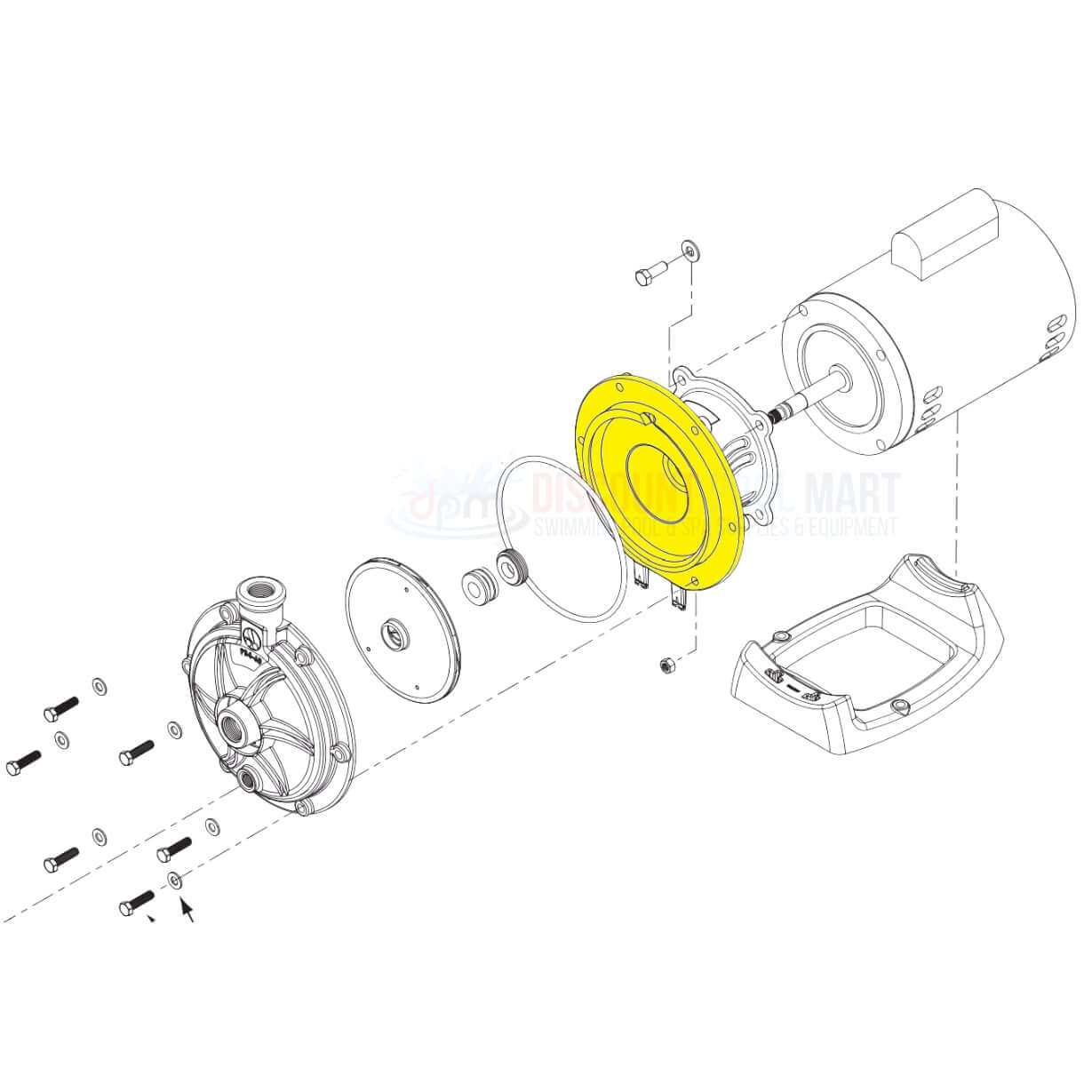

Diagram
