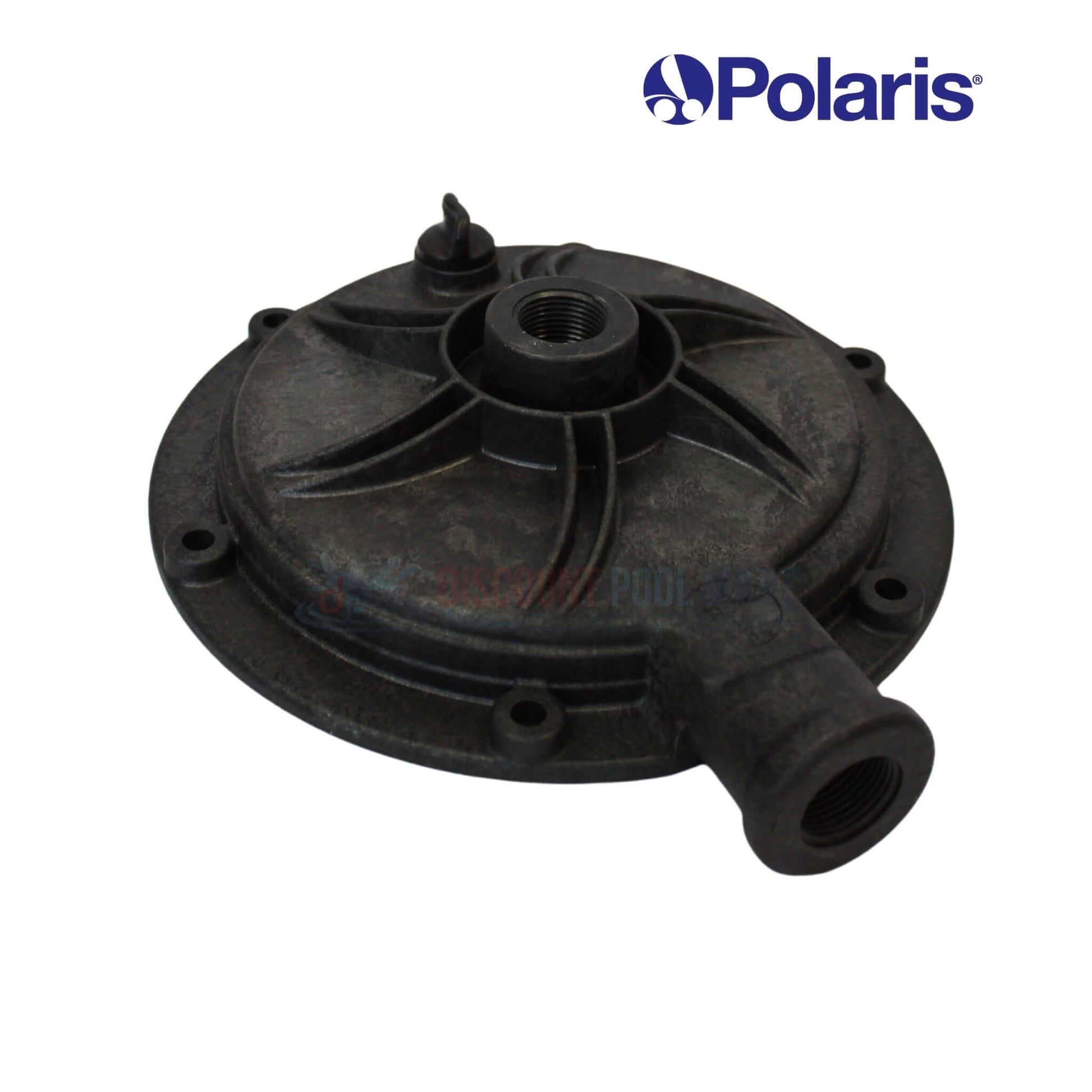

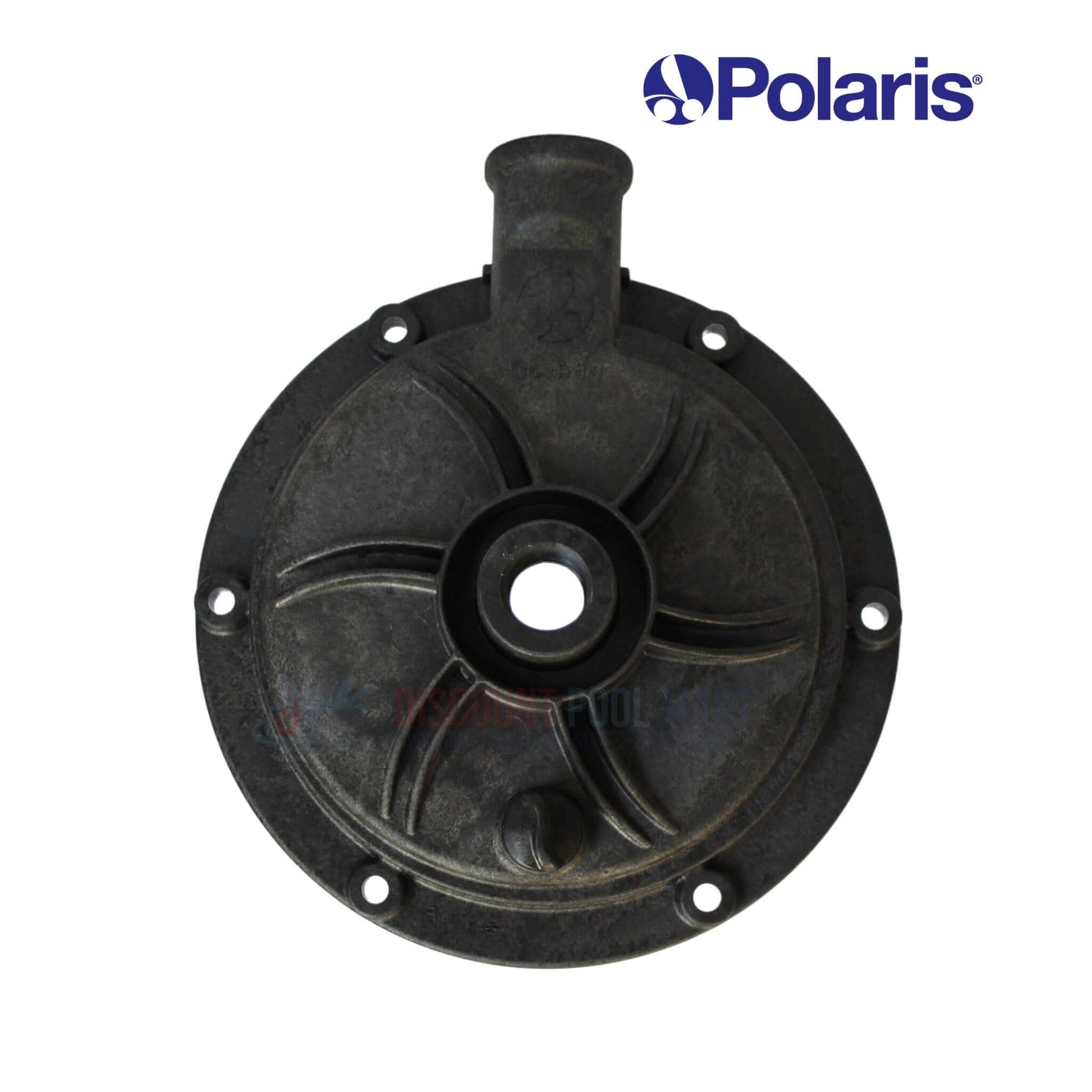

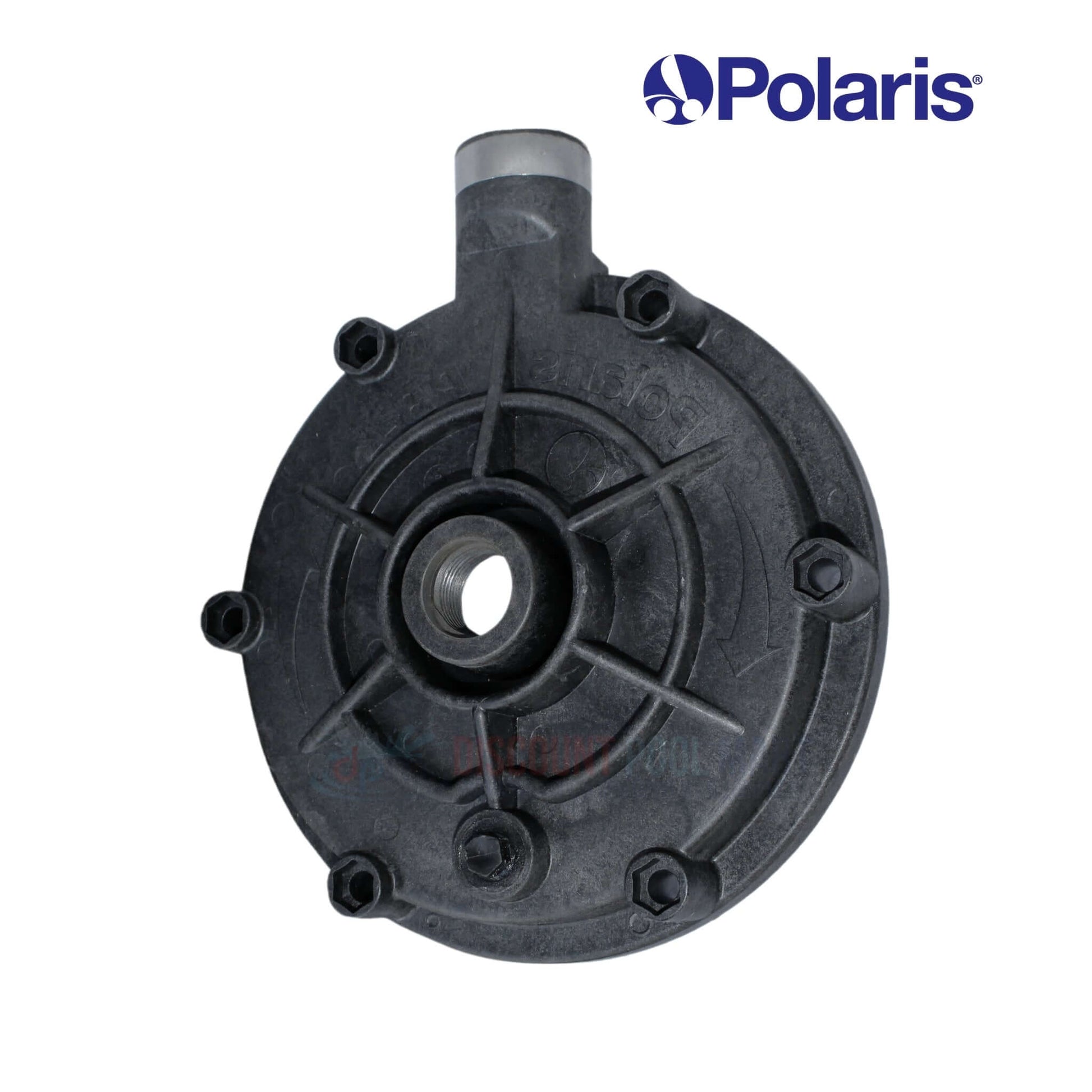

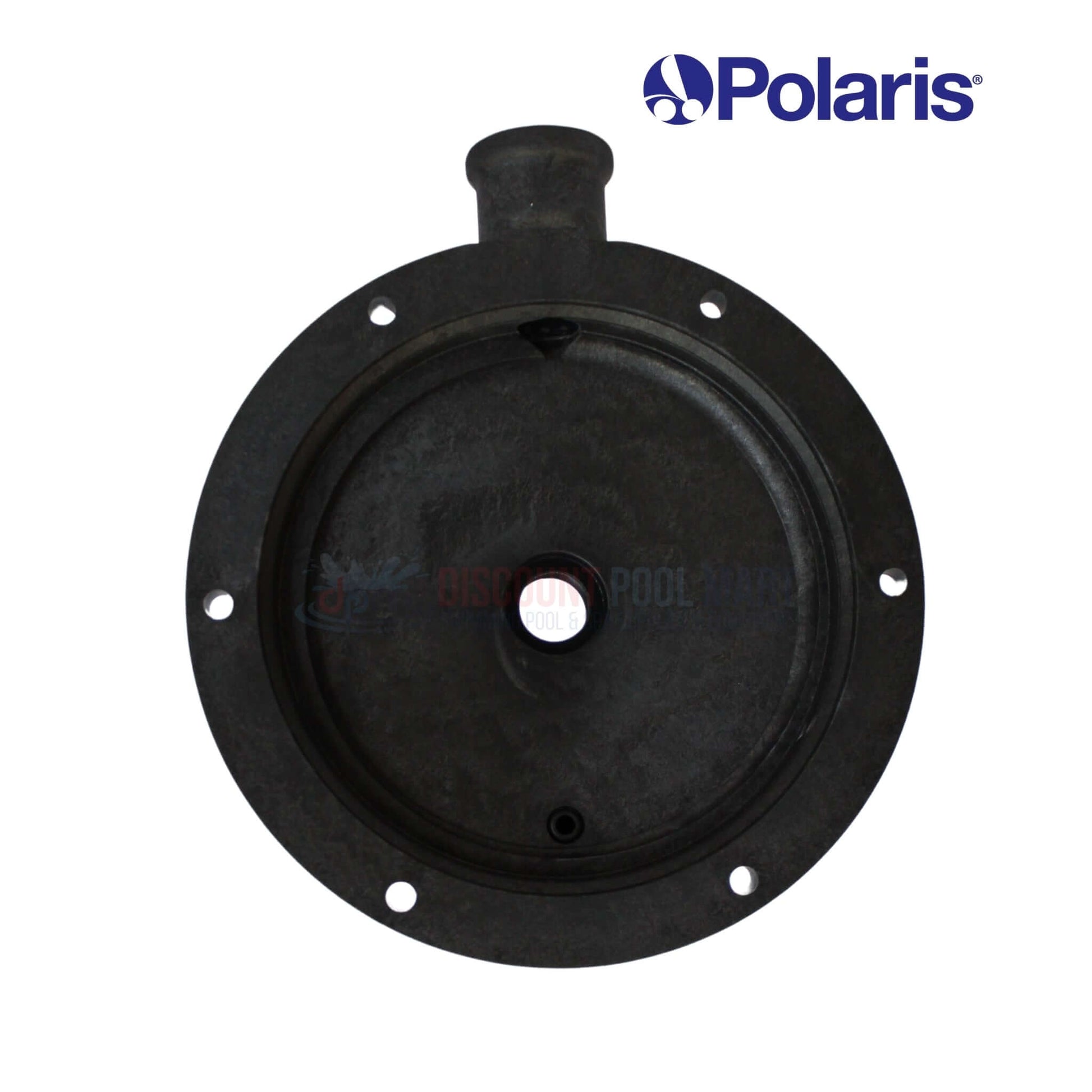

R0536300 | Polaris Volute For New Style PB4-60 Booster Pumps

OEM Polaris Volute R0536300 is a critical replacement component for the new style PB4-60 booster pumps, designed to encase the impeller and channel water efficiently through the pump system. This genuine part ensures optimal water movement for maintaining cleaner effectiveness. Made from rugged, high-grade materials, the R0536300 volute delivers long-term performance and protection. Replacing a faulty or aging volute with this updated version helps maintain pump power and water clarity in your pool system.

Highlights

• Designed for Polaris PB4-60: Tailored for compatibility with the latest PB4-60 booster pump models to ensure secure installation.

• Controls Pump Flow Direction: Effectively manages the direction of water from the impeller for enhanced pump performance.

• Constructed for Longevity: Made from durable materials capable of withstanding routine pressure and operational stress.

• Restores Reliable Operation: Maintains strong pump output and reduces the risk of pressure loss or system failure.

• Improves Cleaning Circulation: Helps your pool cleaner work effectively by preserving strong water flow throughout the system.

Installation

1. Remove quick connect fittings and flexible hose. (R0617100), (R0621000), (P19)

Loosen quick Connector nut,  pull hose free from barbed fitting, loosen barbed fitting and remove from the inlet or outlet port of the pump.
2. Install quick connect fittings and flexible hose. (R0617100), (R0621000), (P19)
• Apply 4 to 6 wraps of PTFE (Teflon®) tape to the tapered thread of the connector barb.

• Thread and tighten the tapered thread of the connector barb into the inlet or outlet port on the pump body.

• Trim the reinforced hose to the required length. Make sure the cut is clean and square. Avoid unnecessary loops or bends in the hose.

• Slide connector nut onto the trimmed end of the hose with threaded end toward the cut end of the hose.

• Apply water to connector barb to help hose slide over barbs. Push trimmed edge of hose fully onto the connector barb.

• Slide/Rotate the connector nut to the barb to engage threads correctly, do not cross thread connector nut. Tighten the connector nut until threads are no longer visible (gap about 1/8” or just less than the width of two dimes), or until it touches the barb face.

Compatibility

• Polaris Newest Style PB4-60 Booster Pumps (Manufactured after serial PB120111001 or 2011)

Additional Info

Polaris Volute for PB4-60 Pumps

polaris r0536300 volute new pb4-60 model

booster pump volute housing for impeller

oem polaris volute for in-store pump repair

water flow housing part for pb4-60 booster

replacement volute for post-2011 polaris pump

Directs Flow and Supports Performance

volute part directs water through pump

restore flow pattern in pb4-60 booster

in-store part to fix low pressure pump issues

encase impeller for stable flow control

maintain strong flow with volute replacement

High-Strength Build for Reliability

r0536300 part built for pump longevity

oem volute crafted from durable materials

stock available in-store for pb4-60 pump fix

replace damaged volute with oem housing

rugged booster pump volute for daily use

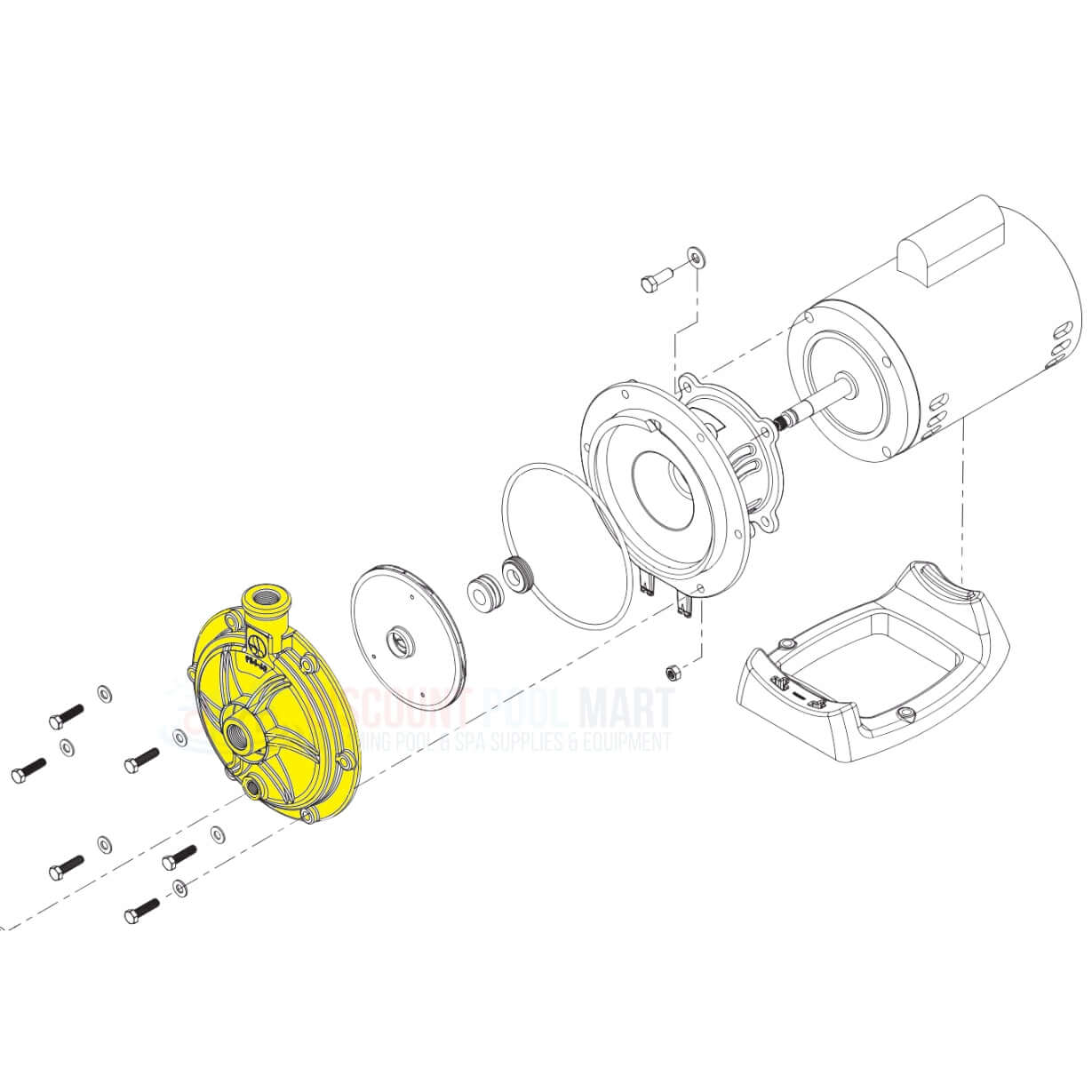

Diagram
