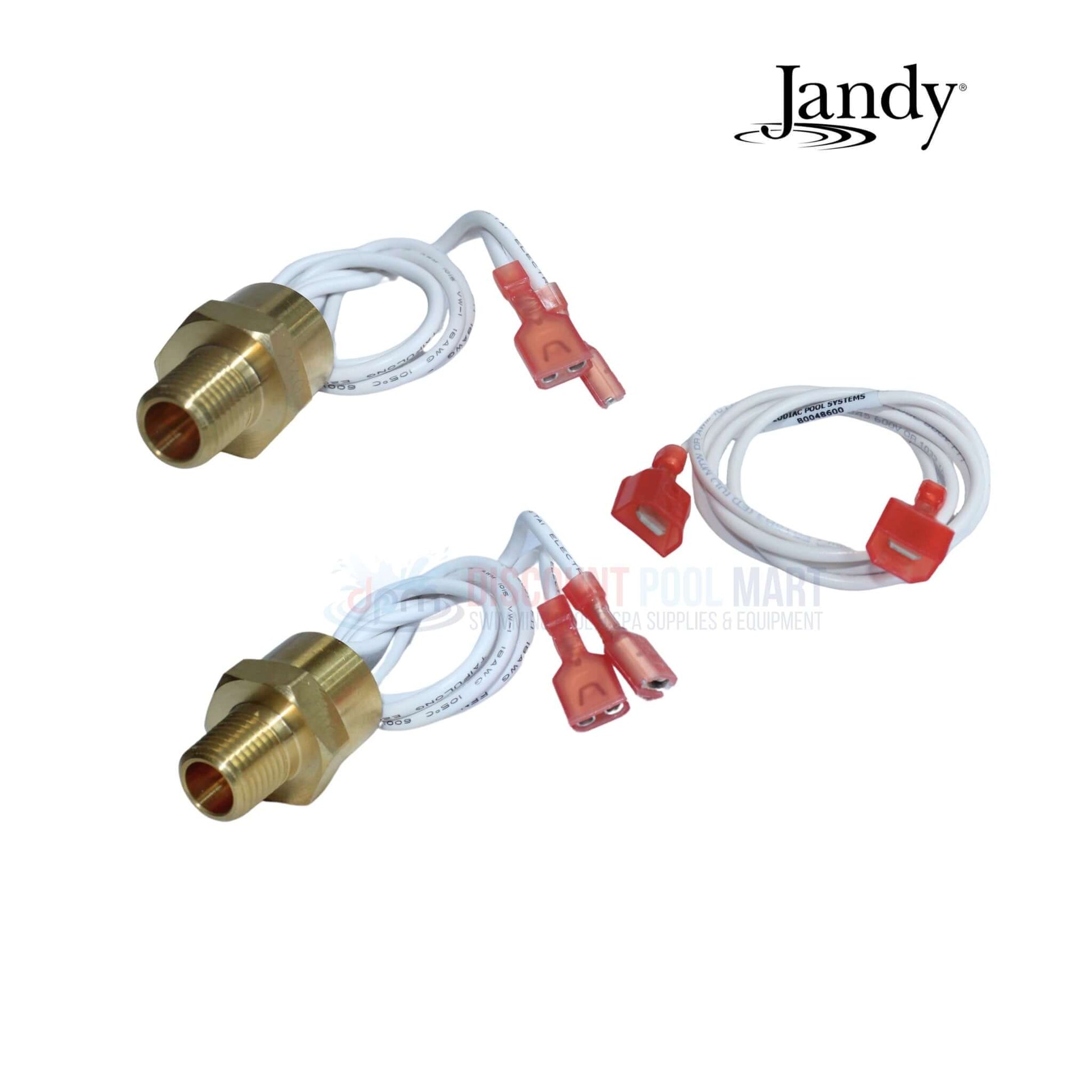

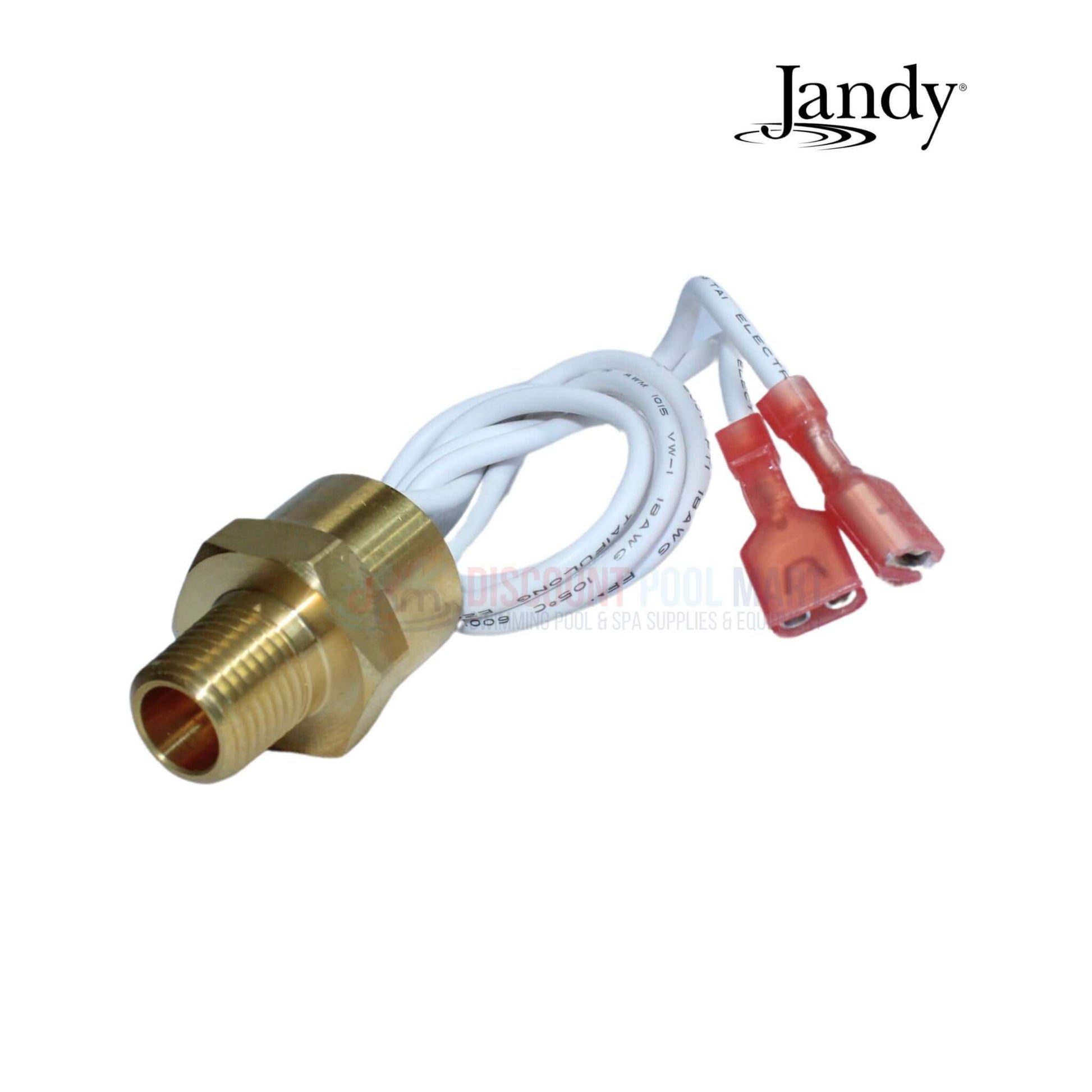

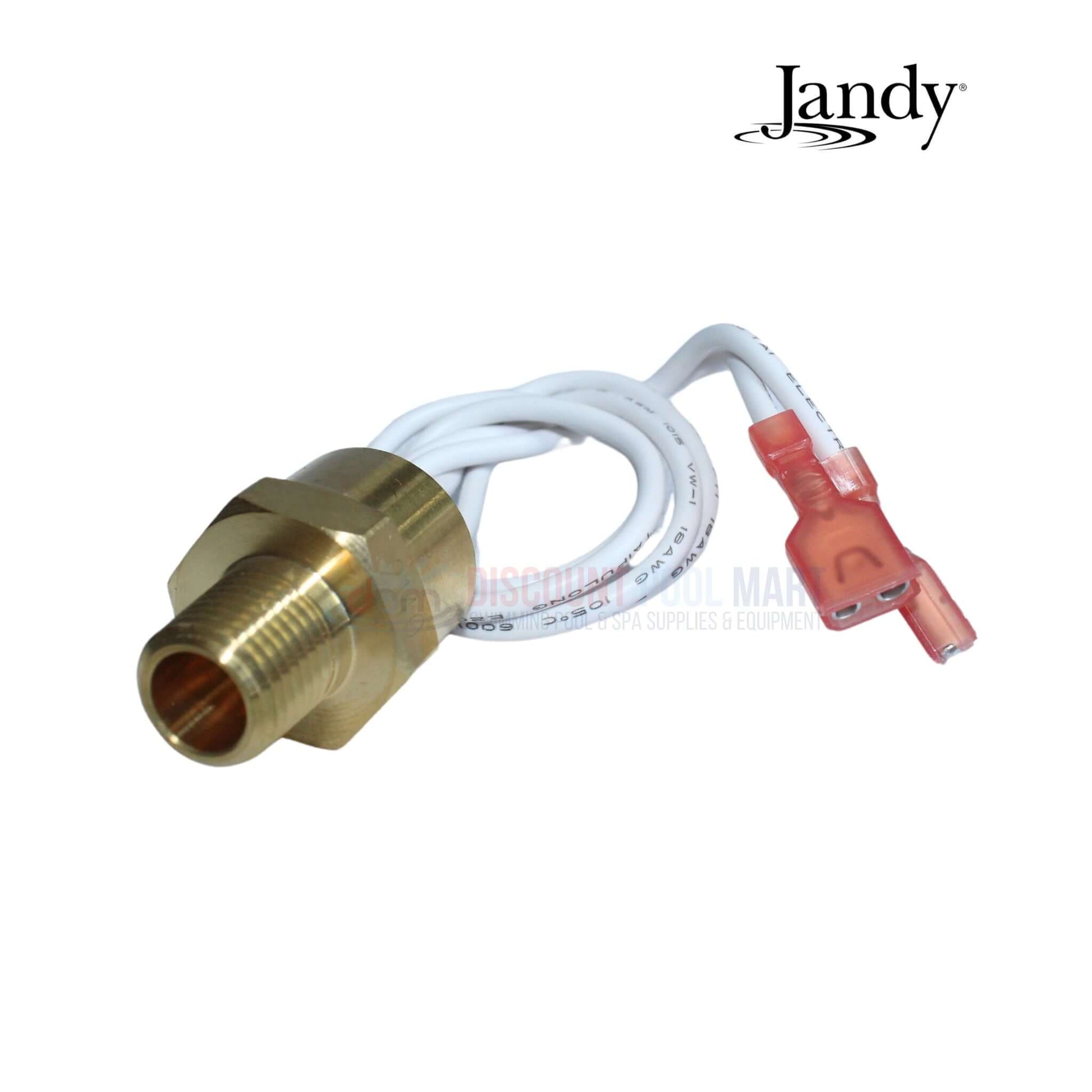

The OEM Jandy High Limit Temperature Sensor Kit for JXI Heaters, model R0592300, is a crucial safety component designed to prevent water of excessive temperatures from being discharged from the heater. It features two sensors: one at the heat exchanger first pass, set to trigger at 135°F (57°C), and one at the heat exchanger outlet, set to trigger at 150°F (65°C). If either sensor detects excessive temperature, the gas valve will close, and combustion will stop, ensuring safe operation and protecting your equipment from damage.
Note: To identify the correct part, you will need to know the model number, serial number and type of gas when applicable. This information can be found on the rating plate sticker, which is located inside the heater on the outside of the combustion chamber.
- Inspect vent for obstructions or blockages.
- Indoor installations, check vent pipe for bird, insect or rodent activity that could cause a blockage.
- Replace switches.
- Refer to qualified service personnel.
Highlights
- Crucial Safety Component: Designed to prevent the discharge of excessively hot water from the heater, ensuring safe operation of your heating system.
- Dual Sensors for Precision: Features two sensors, one at the heat exchanger first pass (135°F/57°C) and another at the heat exchanger outlet (150°F/65°C), for precise temperature monitoring.
- Automatic Safety Shutoff: If excessive temperatures are detected, the gas valve will close, and combustion will stop, preventing potential damage to your equipment.
- Protects Equipment: Helps safeguard your heater and connected systems from damage due to overheating, enhancing longevity and reliability.
- Essential for JXI Heaters: Specifically designed for JXI heaters, making it an indispensable component for optimal safety and performance.
Compatibility
- Jandy JXi Heater Models: JXi200N, JXi200NK, JXi200P, JXi200PK, JXi260N, JXi260NK, JXi260P, JXi260PK, JXi400N, JXi400NK, JXi400NN, JXi400P, JXi400PK, JXi400PN, JXi260NC, JXi260PC, JXi400NC, JXi400PC

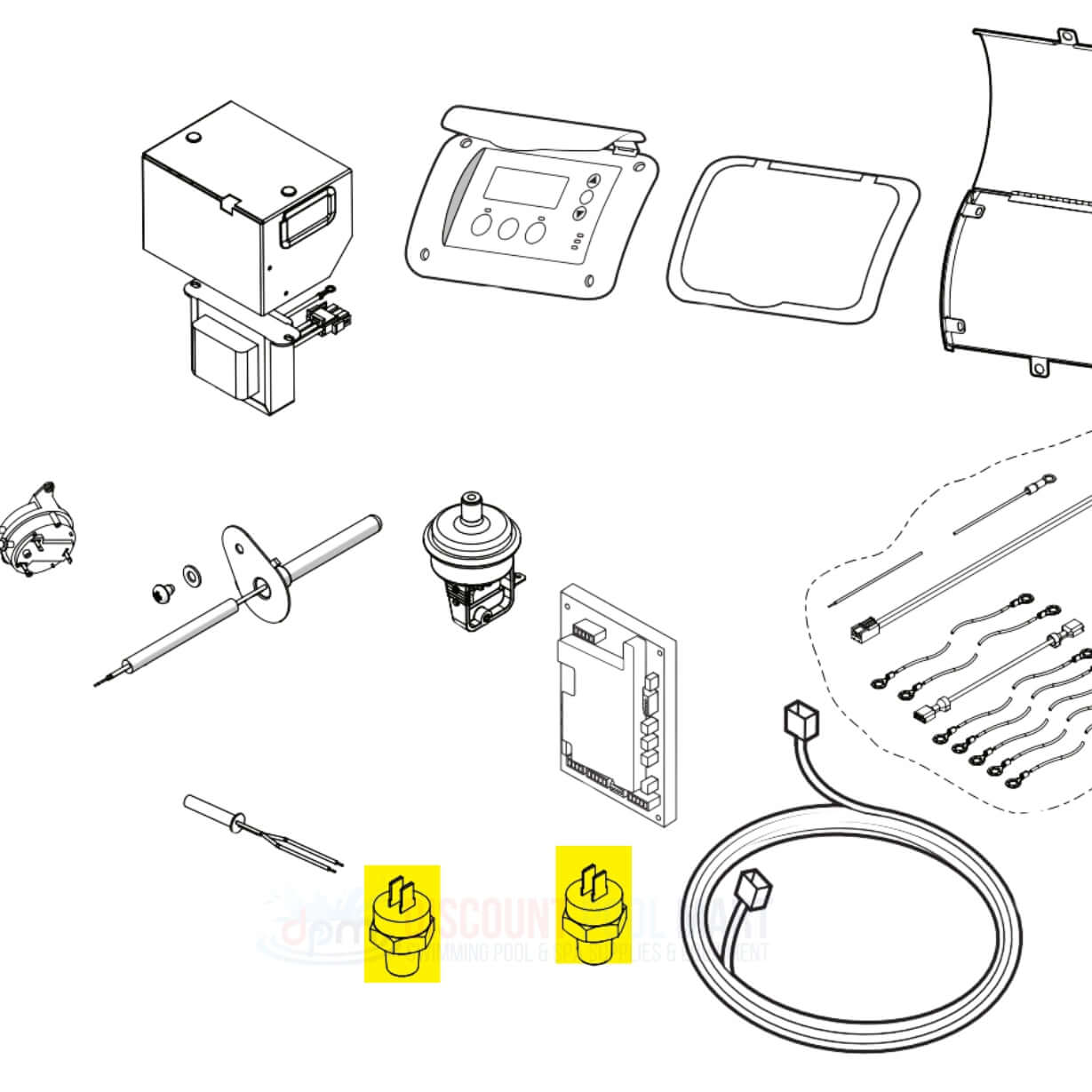

Diagram
