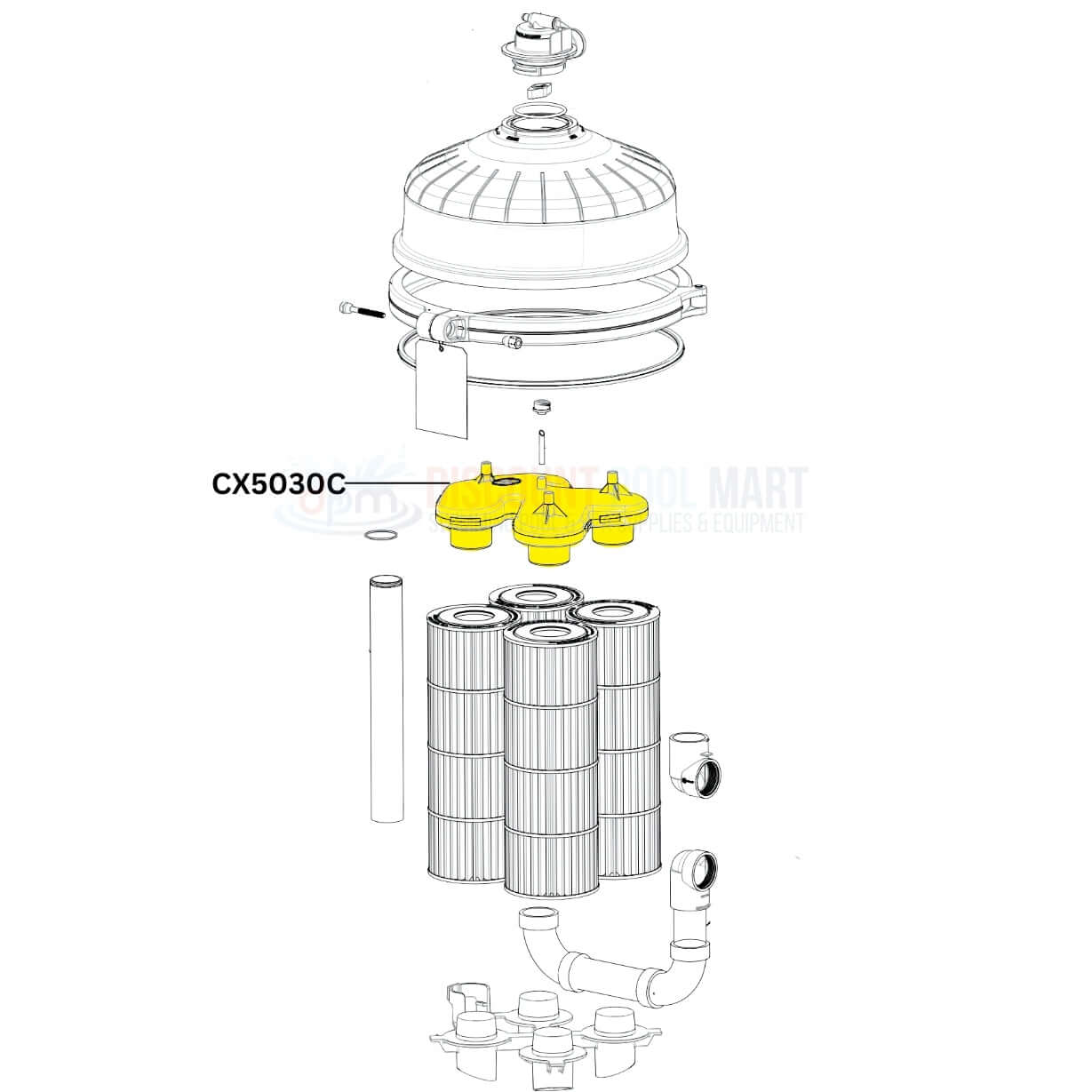

On the Hayward HCF Series Cartridge Filter HCF7030C diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward HCF Series Cartridge Filter HCF7030C

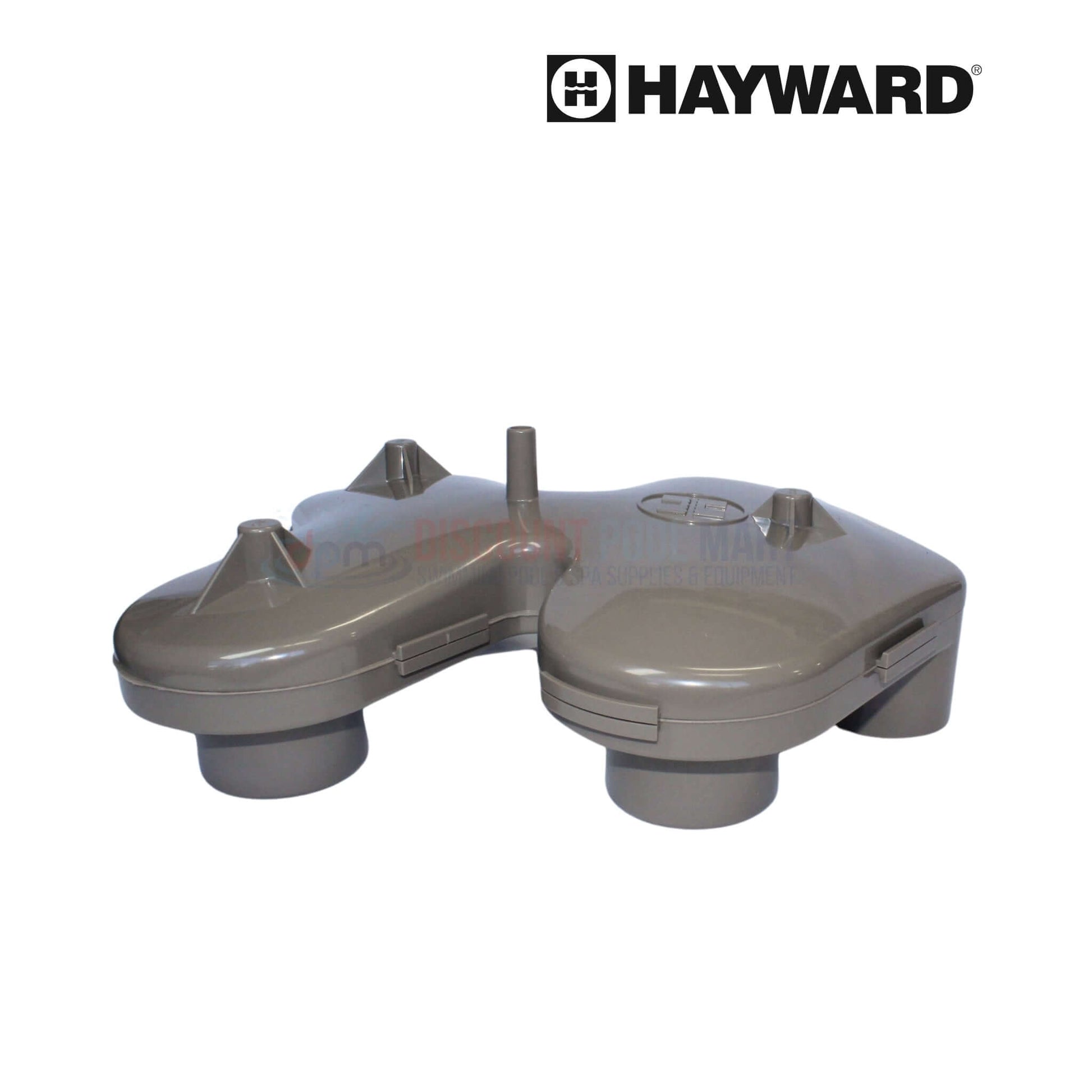

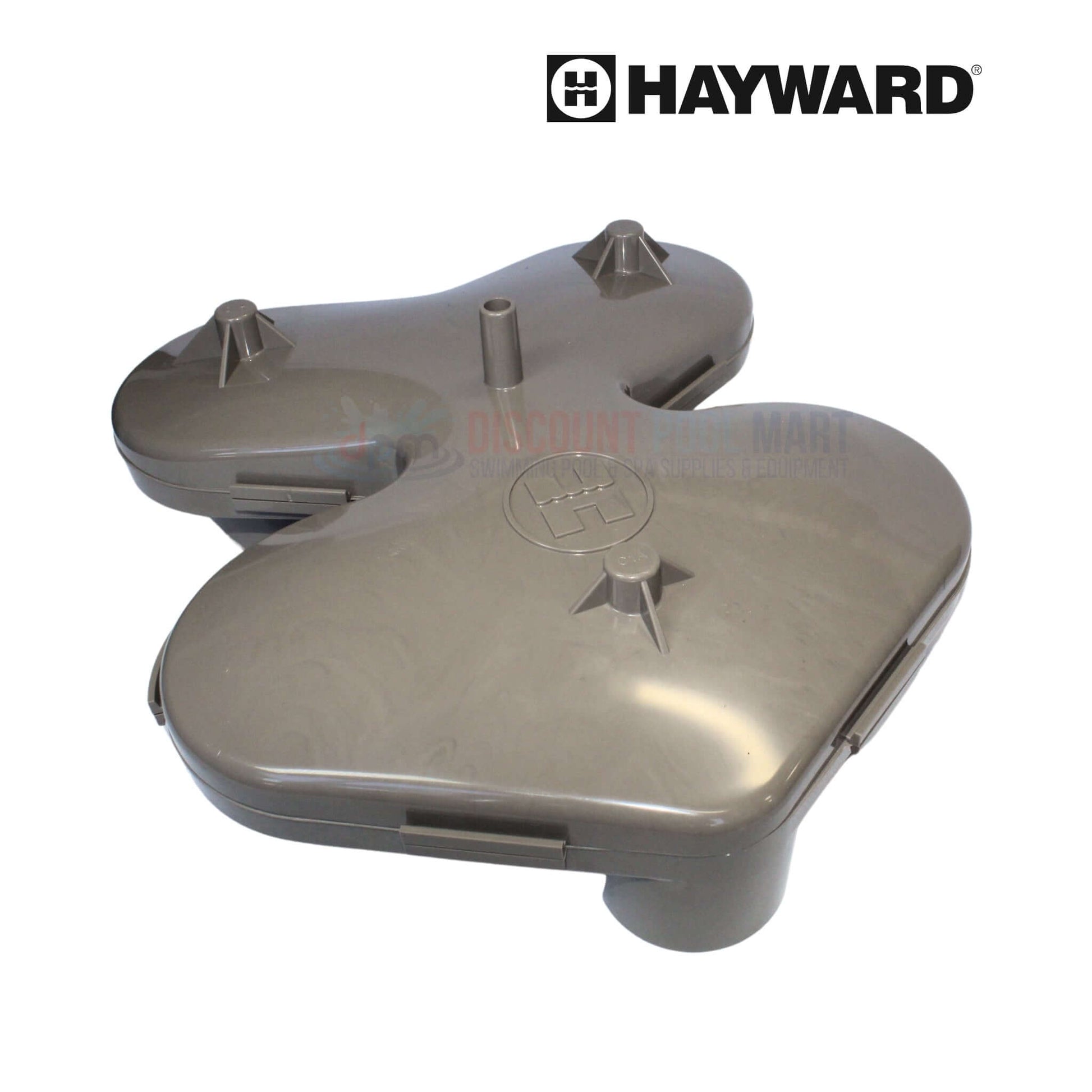

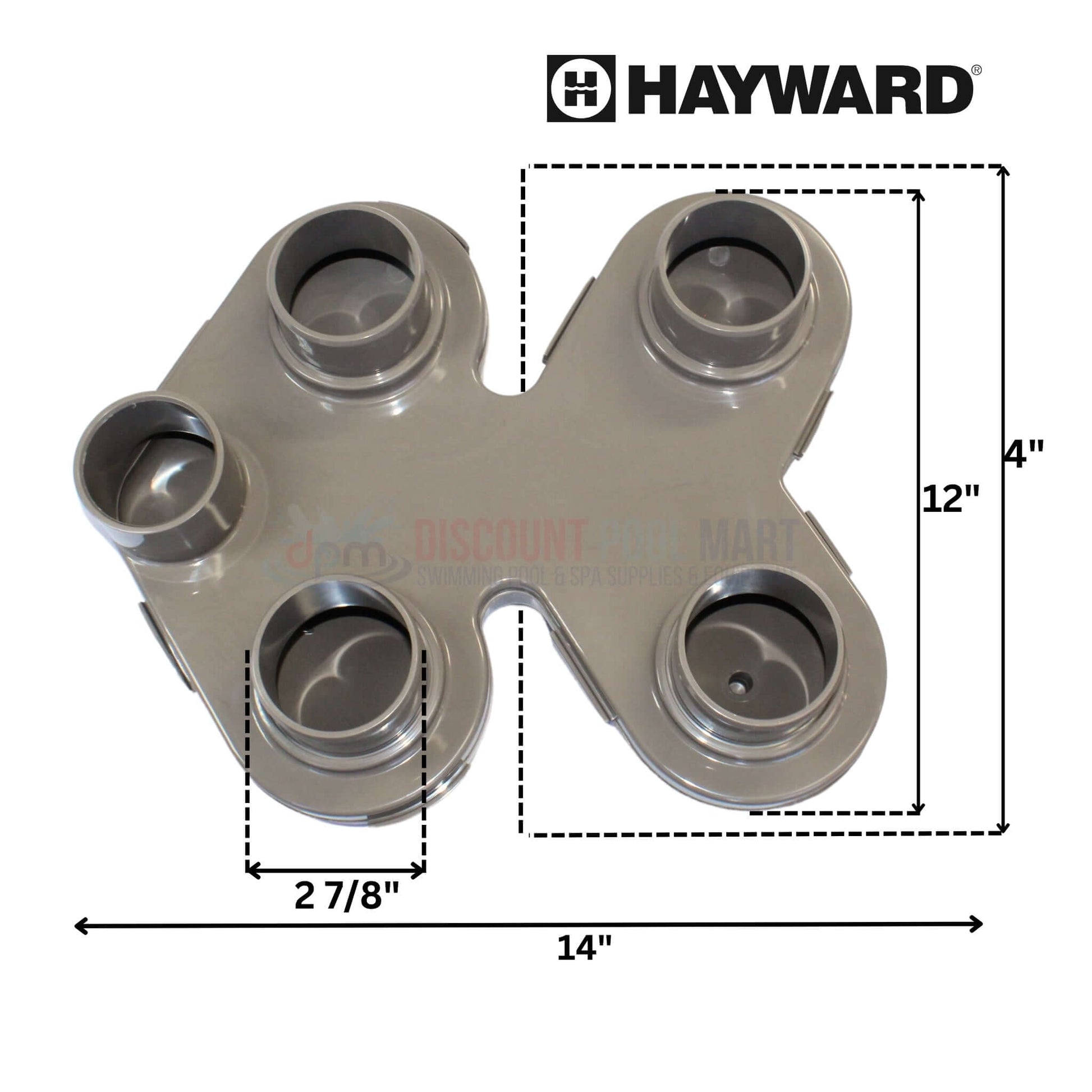

OEM Hayward CX5030C Top Manifold Assembly is a genuine replacement part designed for Hayward SwimClear cartridge filters, specifically models C5030 and C7030. This manifold secures the top of the four internal filter elements, ensuring balanced water distribution for consistent and effective filtration. Built from high-strength, chemical-resistant materials, the CX5030C is engineered to withstand continuous exposure to pool environments. Replacing a cracked or failing manifold restores filtration performance, promoting better water clarity and maintaining proper system pressure.
-
OEM Fit for Hayward SwimClear Filters: Designed to fit C5030 and C7030 models for accurate cartridge alignment and secure installation
-
Supports Four Cartridge Elements: Keeps internal elements stable and evenly spaced to maximize water filtration surface area
-
Durable Pool-Grade Construction: Built to endure chemical exposure, pressure fluctuations, and seasonal pool use
-
Restores Filter System Function: Helps maintain system pressure and water flow by preventing bypass and misalignment
-
Straightforward Replacement Process: Easily installs with compatible filter models, ideal for routine maintenance or repairs
- Hayward Swim-Clear Cartridge Filters: C5030, C7030
