CCX1000V | Hayward Manual Air Relief Valve with O-Ring
Fits these models (4)
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
Manuals & documents
- Hayward ProGrid DE Filter Owner's Manual PDF · 3.3 MB View PDF
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

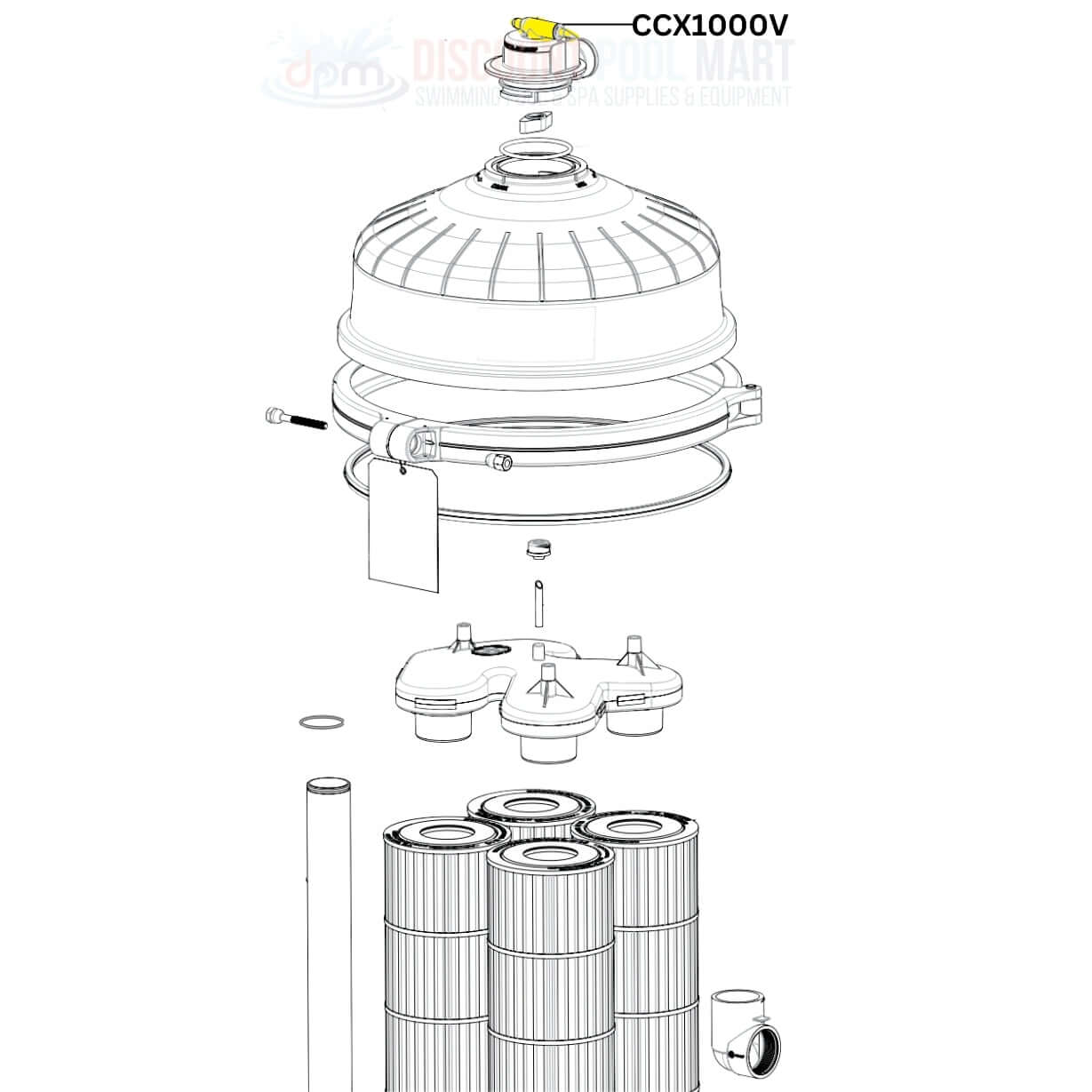

On the Hayward HCF Series Cartridge Filter HCF7030C diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward HCF Series Cartridge Filter HCF7030C

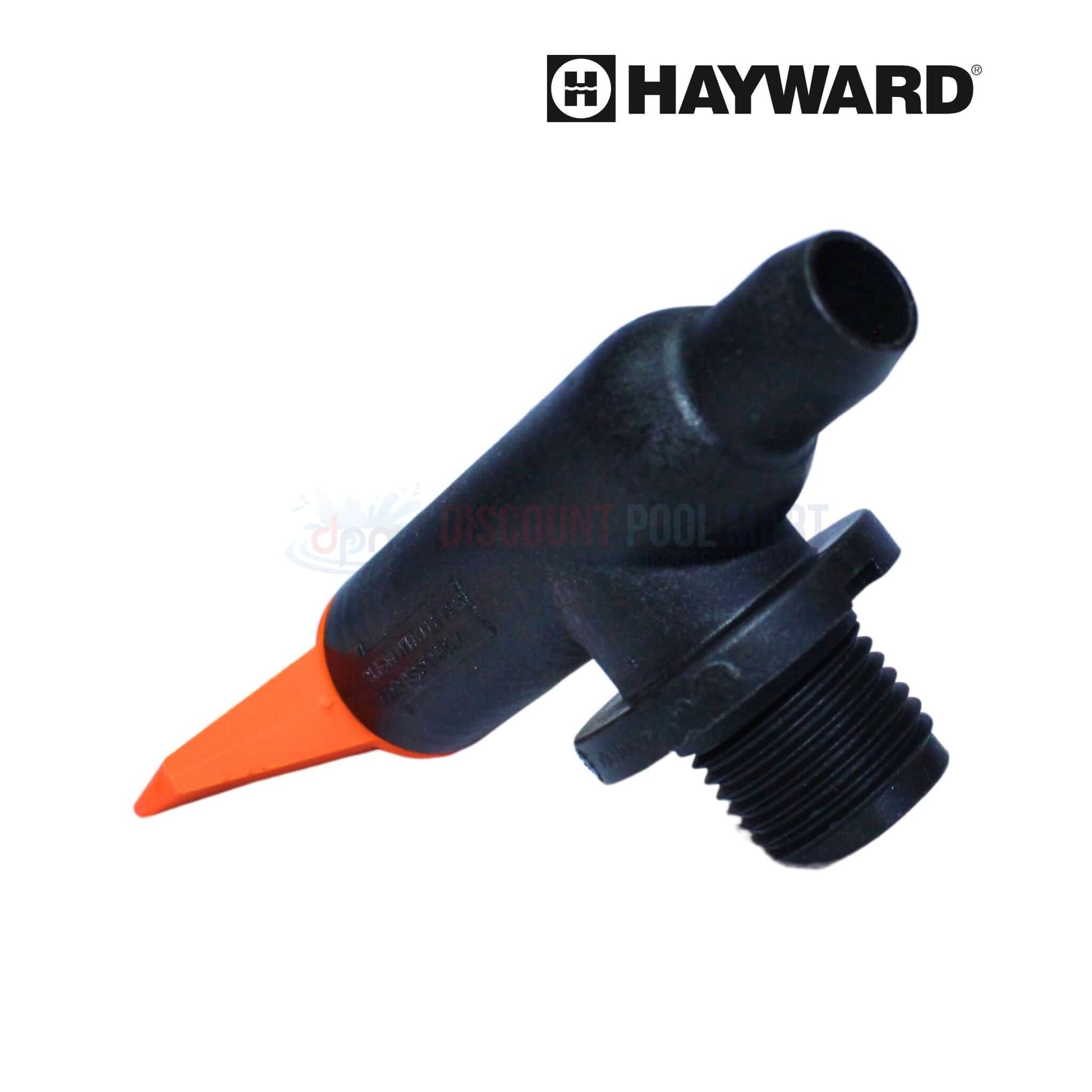

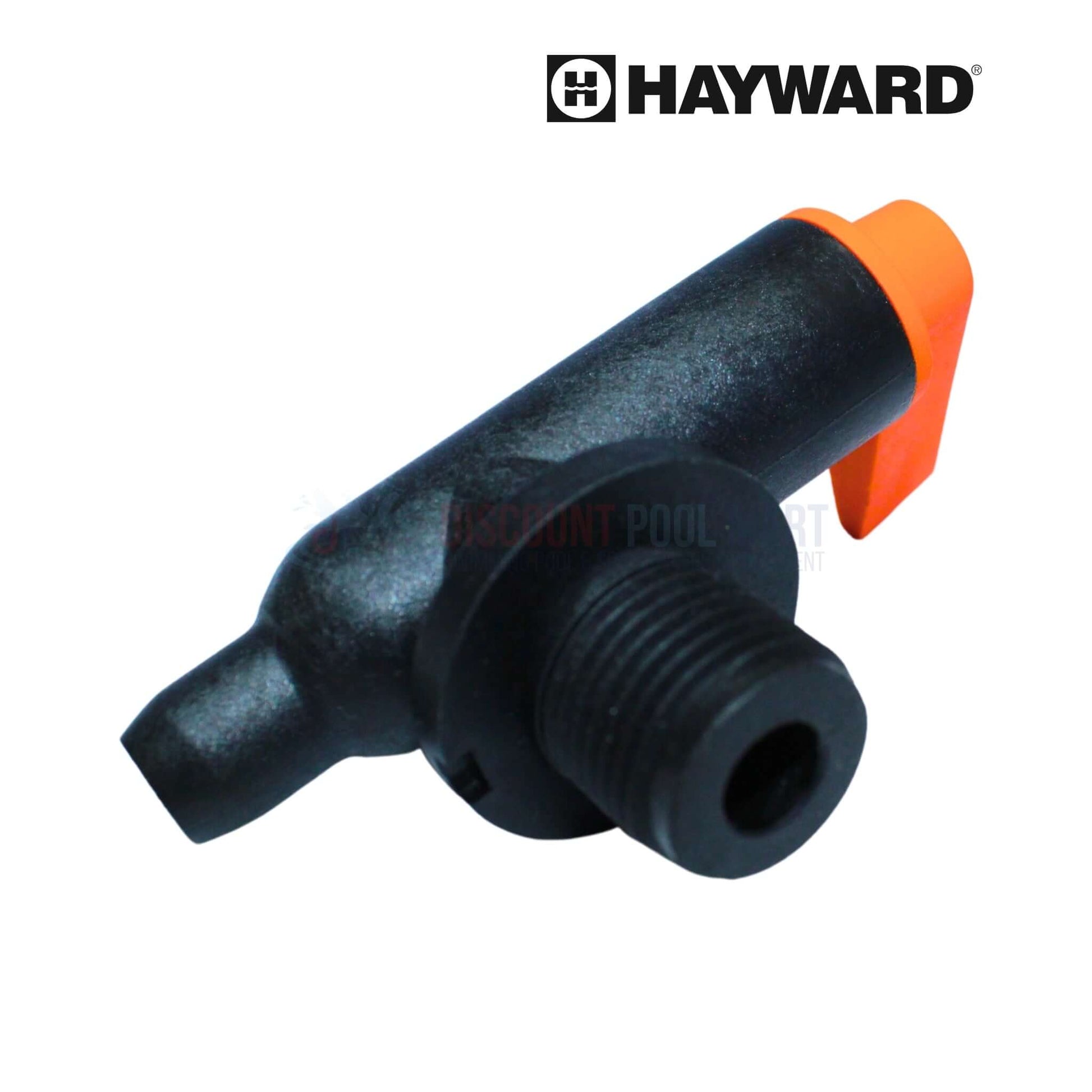

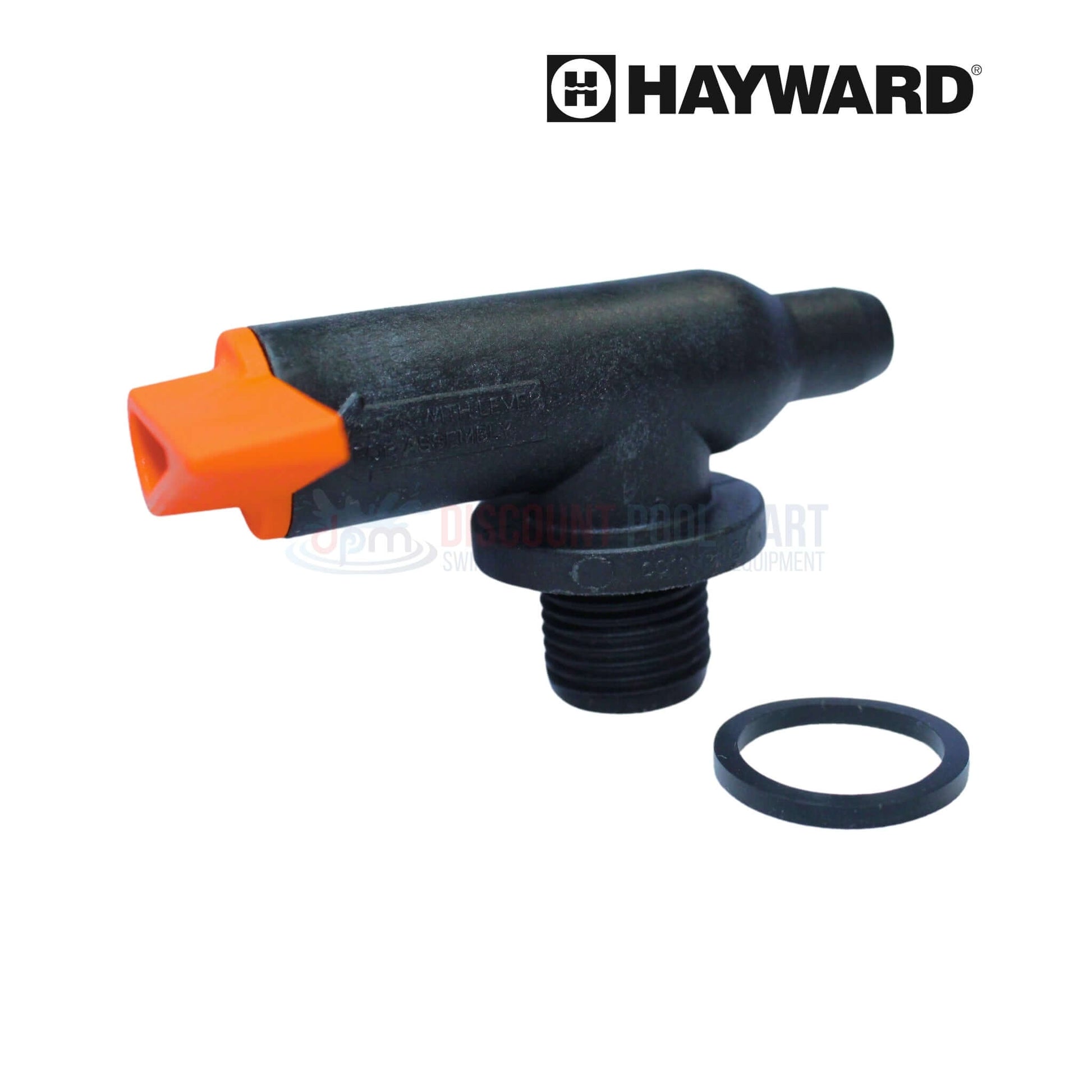

OEM Hayward CCX1000V Manual Air Relief Valve with O-Ring is a precision-engineered replacement designed for Hayward Pro-Grid DE, SwimClear cartridge, and XStream filter systems. This component allows for manual release of trapped air from the filter tank, helping maintain stable internal pressure and proper water flow. The included durable O-ring ensures a secure, leak-resistant seal to prevent water loss and sustain optimal filtration performance. Easy to install and operate, the CCX1000V is essential for preserving system reliability and extending filter lifespan.
-
OEM Valve for Hayward Filters: Compatible with Pro-Grid DE, SwimClear cartridge, and XStream systems for direct-fit installation
-
Releases Air to Stabilize Pressure: Eliminates trapped air in the filter tank to prevent airlocks and restore proper water circulation
-
Includes Leak-Resistant O-Ring: Comes with a high-quality seal to maintain a watertight connection and support consistent operation
-
Simple Manual Function: Allows for quick air purging during system start-up or scheduled maintenance
-
Essential for Filtration Efficiency: Regular use and replacement help avoid pressure disruptions and extend equipment performance
- Hayward ProGrid Vertical Grid DE Series Filter: DE2420, DE3620, DE4820, DE6020, DE7220
- Hayward SwimClear Cartridge Filter: C3030, C5030
- Hayward XStream Series Filters
Note: This may be compatible with your filter, please check owners manual to ensure compatibility.
