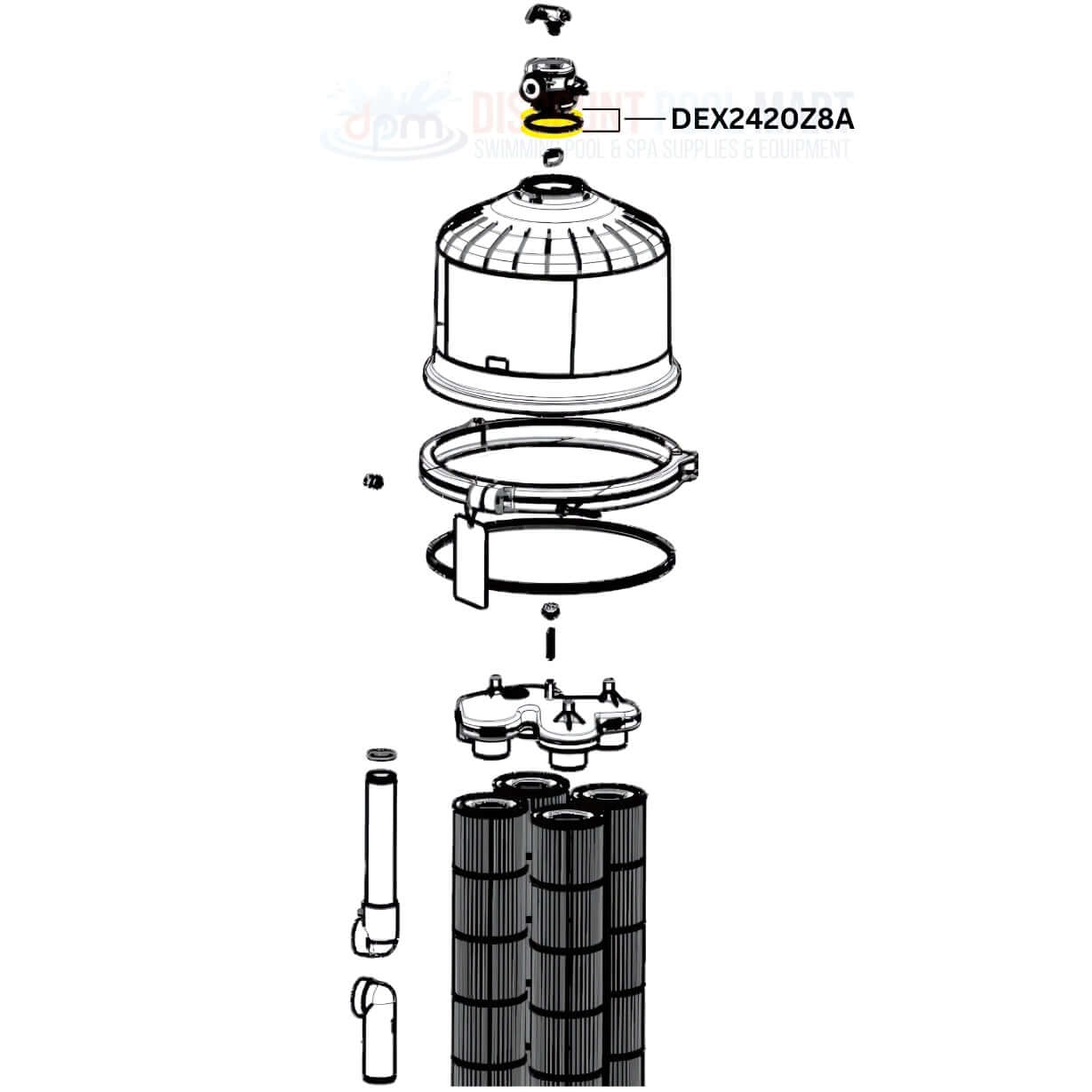

On the Hayward HCF Series Cartridge Filter HCF7030C diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward HCF Series Cartridge Filter HCF7030C
OEM Hayward DEX2420Z8A Air Relief O-Ring Kit is a genuine replacement set for the manual air relief valve assembly on Hayward Pro-Grid DE and SwimClear cartridge filters. The kit includes two durable O-rings that create a secure, leak-resistant seal, preventing air intrusion and helping maintain proper pressure throughout the filtration system. Engineered with chemical-resistant materials, these O-rings are designed for long-lasting use in demanding pool conditions. Routine replacement helps avoid performance issues and keeps your filter operating at peak efficiency.
-
OEM Seal Kit for Air Relief Valves: Designed for Hayward Pro-Grid and SwimClear filters for a precise, factory-grade fit
-

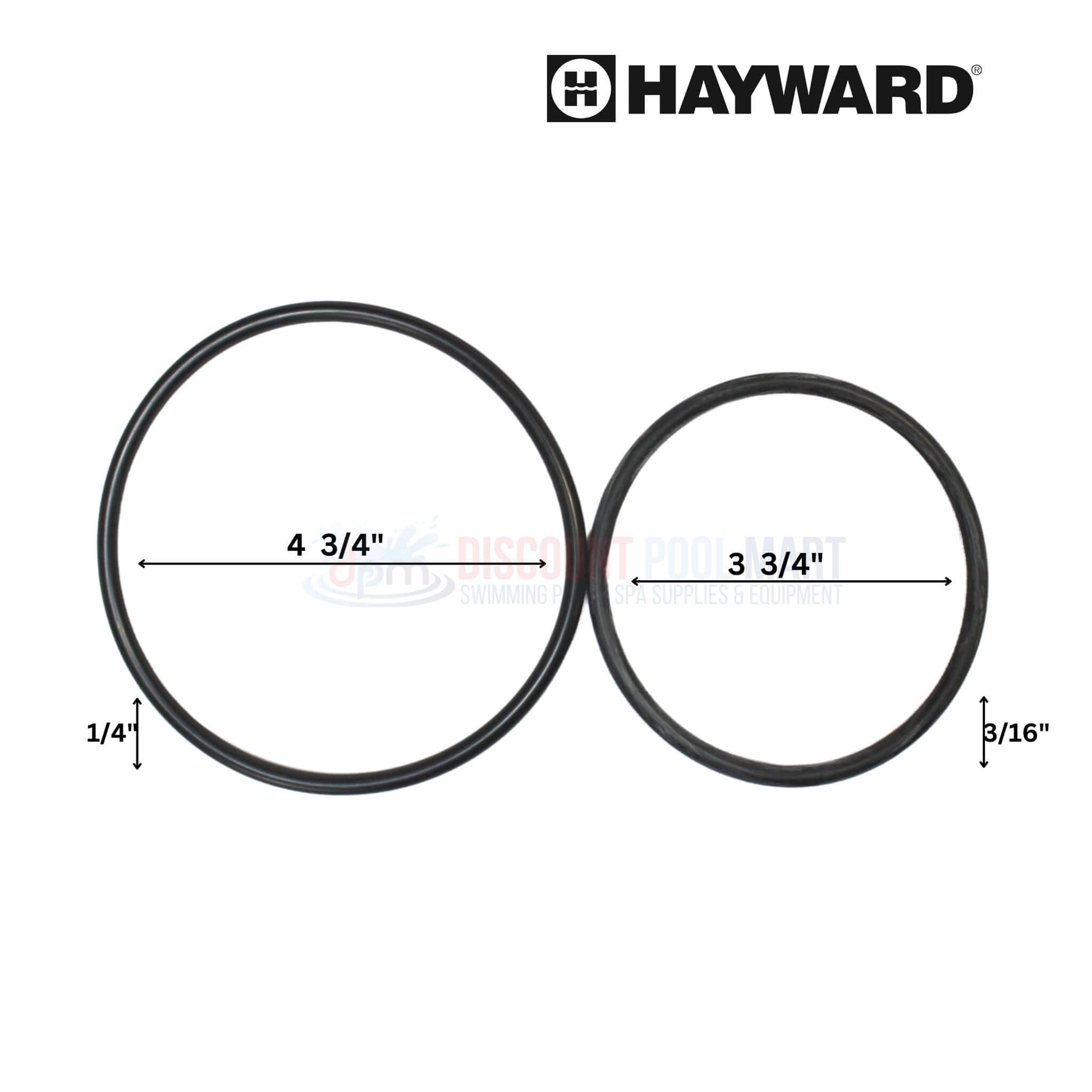

Includes Two High-Quality O-Rings: Ensures tight sealing of the manual air relief valve to prevent leaks and maintain pressure
-
Helps Maintain Filtration Efficiency: Eliminates air entry that can reduce performance or disrupt internal water flow
-
Made to Resist Pool Chemicals: Constructed from durable materials that withstand chlorine, UV exposure, and pressure changes
-
Supports Preventative Maintenance: Replacing O-rings regularly helps prolong filter life and avoid pressure-related failures
- Hayward ProGrid Vertical Grid DE Series Filter: DE2420, DE3620, DE4820, DE6020, DE7220
- Hayward SwimClear Cartridge Filter: C2030, C3030, C4030, C5030, C7030
Note: This may be compatible with your filter, please check owners manual to ensure compatibility.
