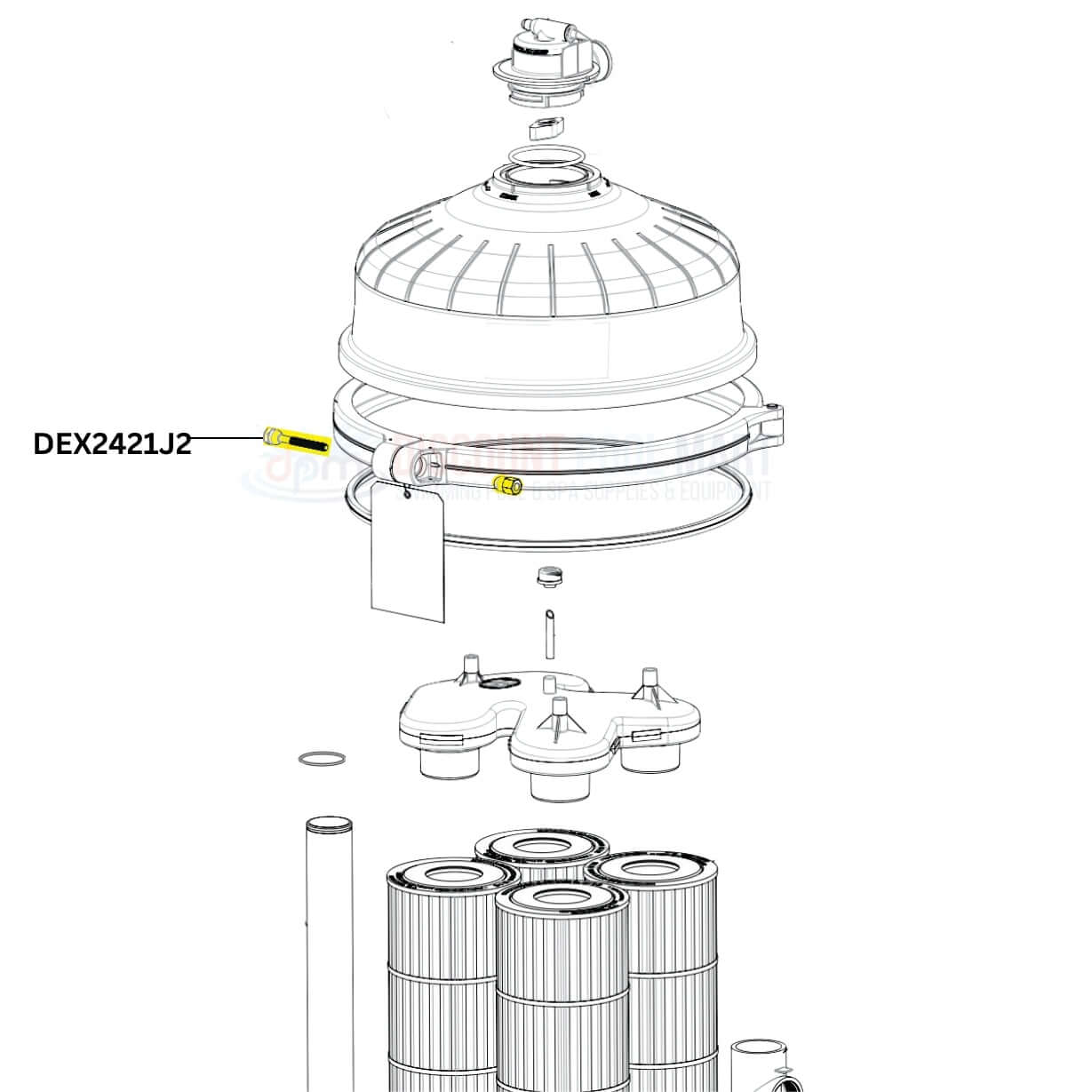

On the Hayward HCF Series Cartridge Filter HCF7030C diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward HCF Series Cartridge Filter HCF7030C

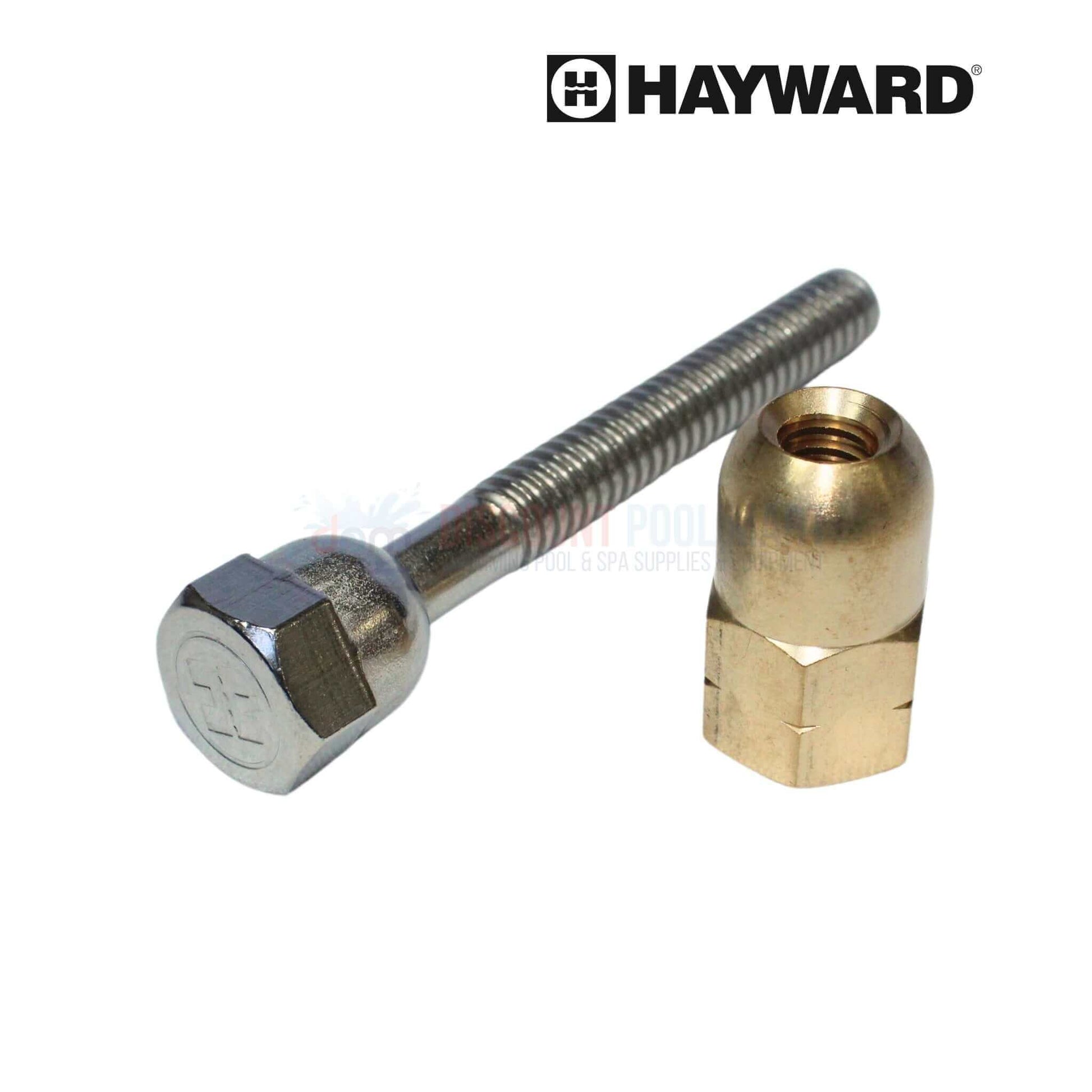

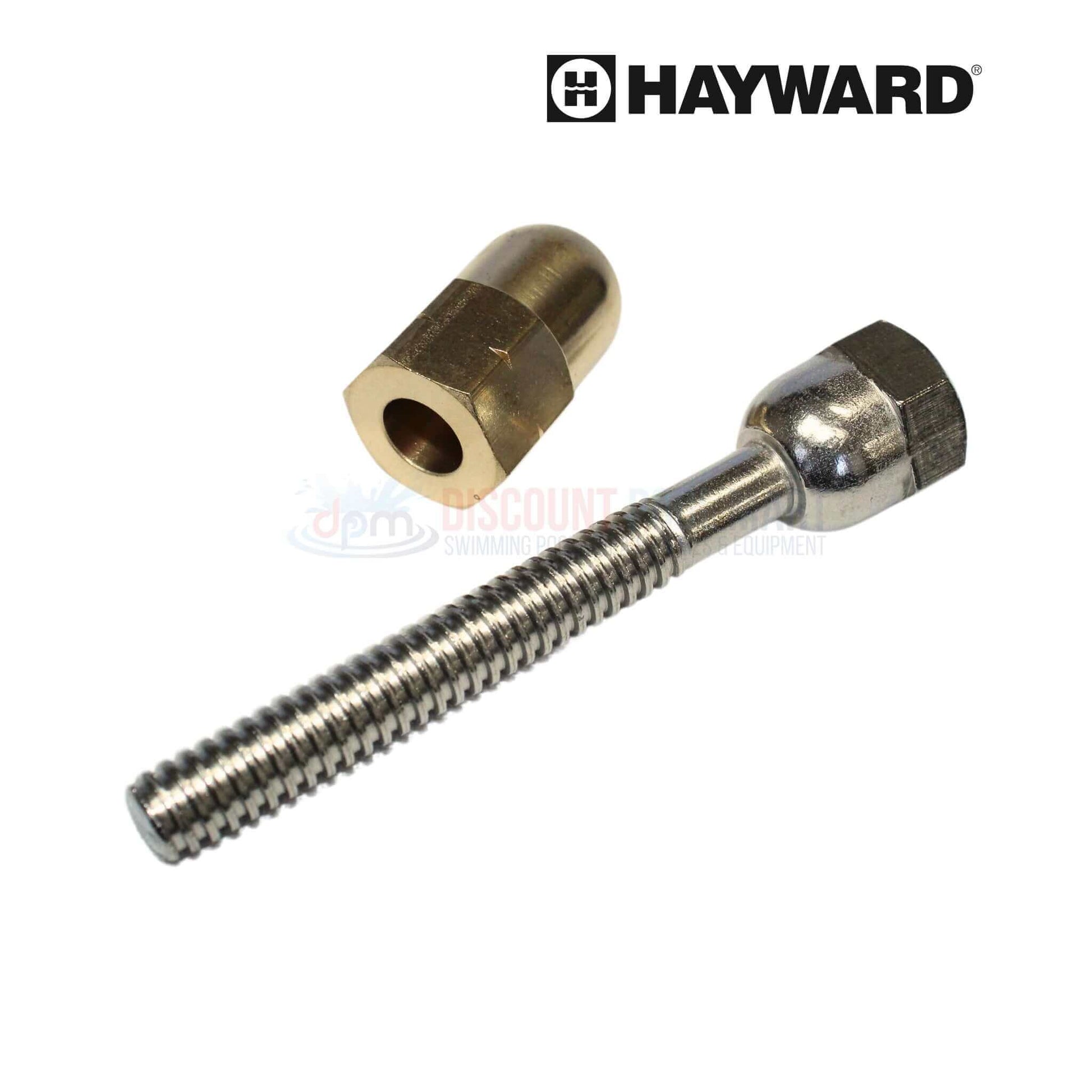

OEM Hayward DEX2421J2 Clamp Bolt and Nut is a precision-engineered replacement for Hayward Pro-Grid and SwimClear filter systems, designed to work with DEX2421JKIT clamp assemblies. This bolt and nut set ensures a secure, leak-resistant seal between the filter head and tank, critical for maintaining consistent water pressure and optimal filtration performance. Built from corrosion-resistant materials, the DEX2421J2 offers durability and reliability in demanding pool environments, making it an essential part for routine maintenance or clamp assembly replacement on DE and cartridge filter models.
-
OEM Bolt and Nut for Hayward Filters: Compatible with DEX2421JKIT clamp used on Pro-Grid DE and SwimClear cartridge filters
-
Ensures Tight, Leak-Free Seal: Keeps filter tank and head securely fastened to prevent air or water leakage during operation
-
Corrosion-Resistant Materials: Built to withstand exposure to chlorine, moisture, and outdoor elements for long-term use
-
Supports Filter System Efficiency: Maintains consistent internal pressure and water flow by keeping the filter sealed properly
-
Ideal for Maintenance or Repair: Replaces stripped or corroded hardware to restore safe, reliable clamp assembly performance
-
Hayward ProGrid and SwimClear Filter Clamp: DEX2421JKIT
- Hayward ProGrid DE Filter: de2420, de3620, de4820, de6020, de7220
- Hayward SwimClear Cartridge Filter: c2020, c3020, c4020, c5020
Note: This may be compatible with your filter, please check owners manual to ensure compatibility.
