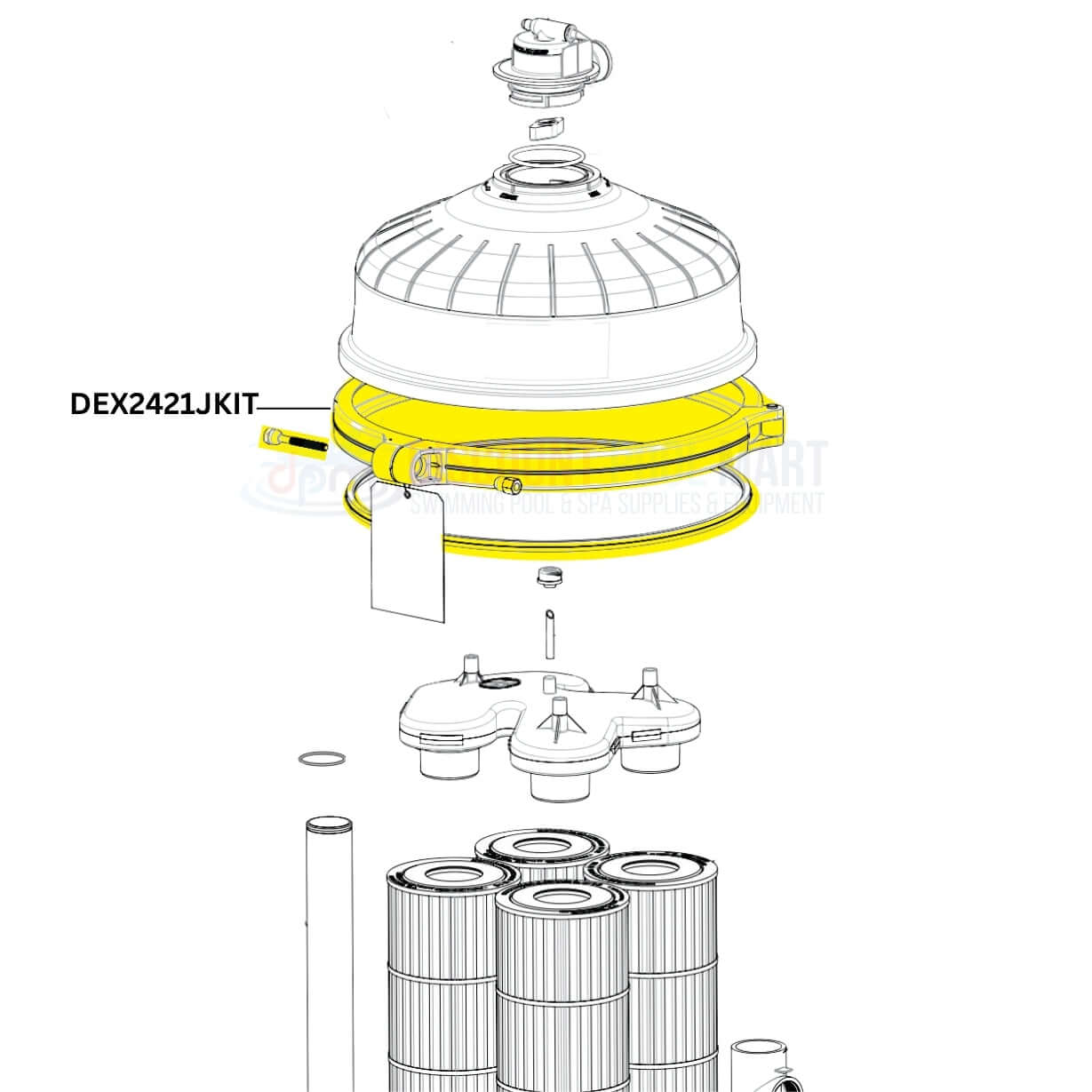

On the Hayward HCF Series Cartridge Filter HCF7030C diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward HCF Series Cartridge Filter HCF7030C

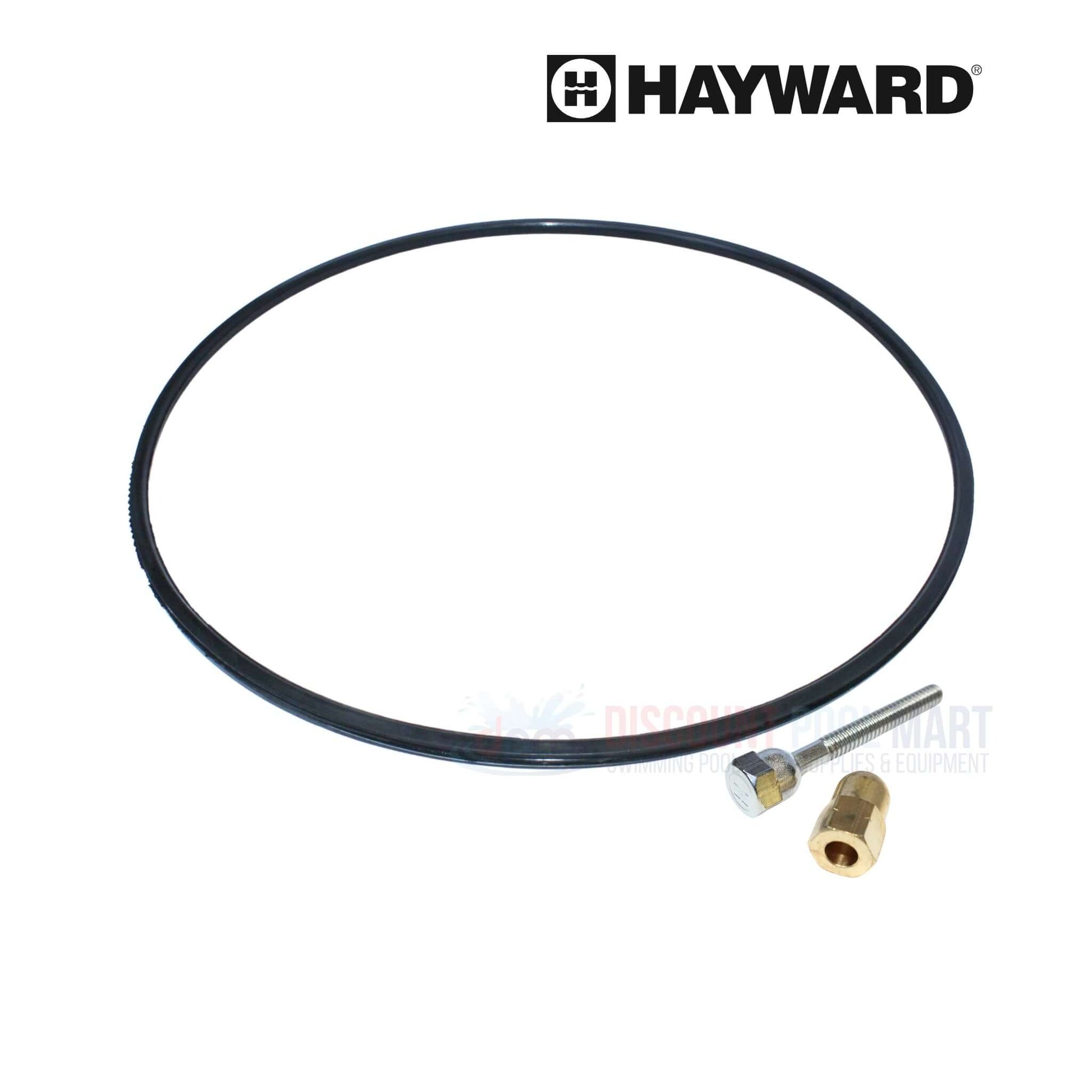

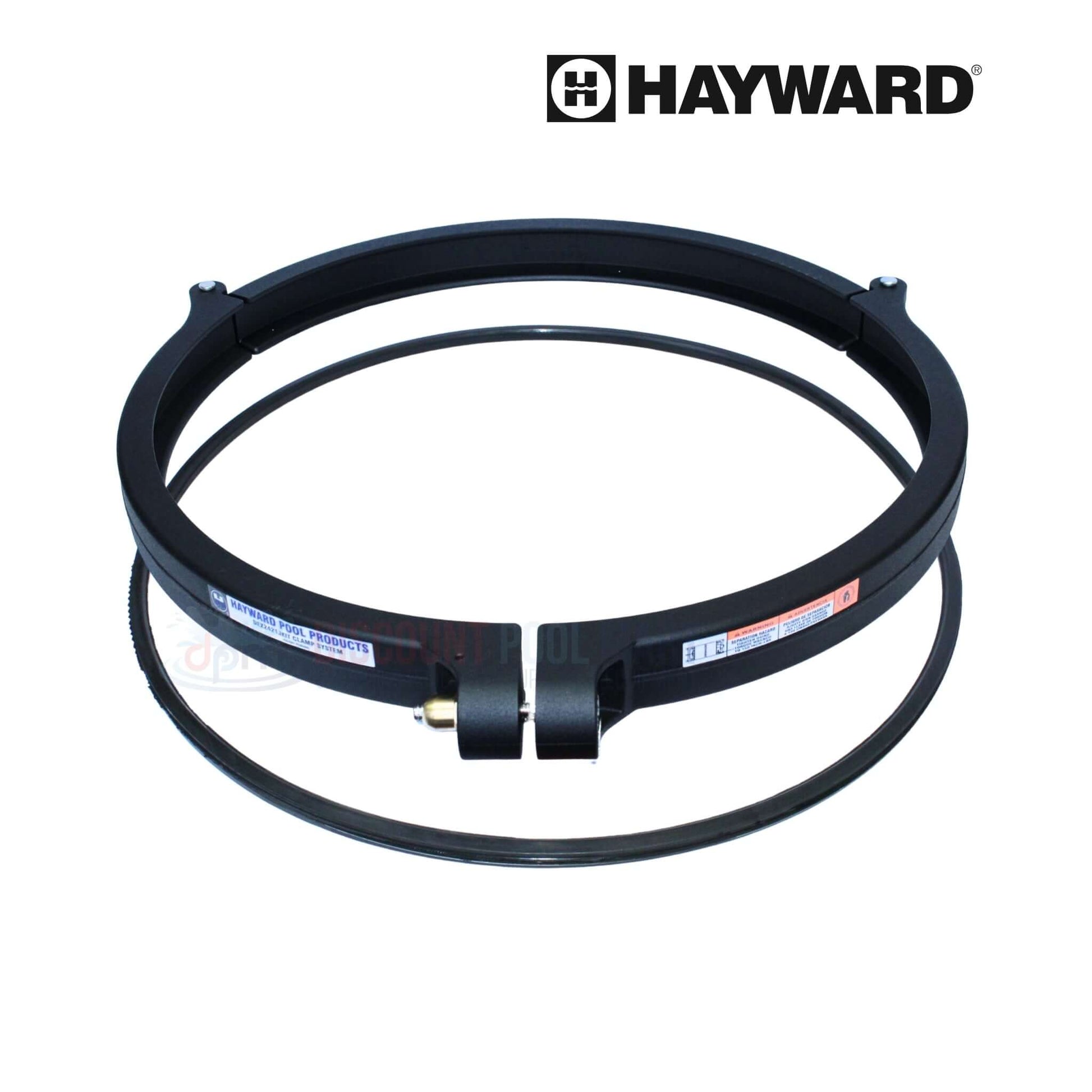

OEM Hayward DEX2421JKIT Filter Clamp Assembly is a complete replacement kit for Hayward Pro-Grid DE and SwimClear cartridge filters manufactured after 2007. This assembly ensures a secure, leak-free connection between the upper and lower halves of the filter tank, helping maintain consistent pressure and filtration efficiency. Built from corrosion-resistant materials, it is designed for durability in harsh pool environments. The kit includes a clamp ring, bolt, nut, metal-reinforced tank seal, hang tag, and identification labels—offering everything needed for a straightforward, OEM-grade installation.
-
Fits Post-2007 Hayward Filters: Designed for Pro-Grid DE2420–DE7220 and SwimClear C2020–C5520 models for a direct, secure fit
-
Complete Clamp Kit Included: Comes with clamp ring, bolt, nut, tank seal, warning tag, and labels for full replacement
-
Creates Leak-Free Tank Seal: Maintains internal pressure and prevents leaks by securing the upper and lower tank sections
-
Durable, Pool-Ready Materials: Constructed to withstand chlorine, UV exposure, and pressure fluctuations over time
-
Essential for System Maintenance: Regular inspection and replacement ensure reliable filtration and system longevity
- (1) Filter Body Clamp
- (1) Clamp Nut
- (1) Clamp Bolt
- (1) Warning Hang Tag
- Metal Reinforced Seal and Labels
- Hayward ProGrid Vertical Grid DE Series Filter: DE2420, DE3620, DE4820, DE6020, DE7220
-
Hayward SwimClear Cartridge Filters: C2020, 2025, 3020, 3025, 4020, 4025, 5020, 5025, 5520
Note: For New Style filters manufactured after 2007
