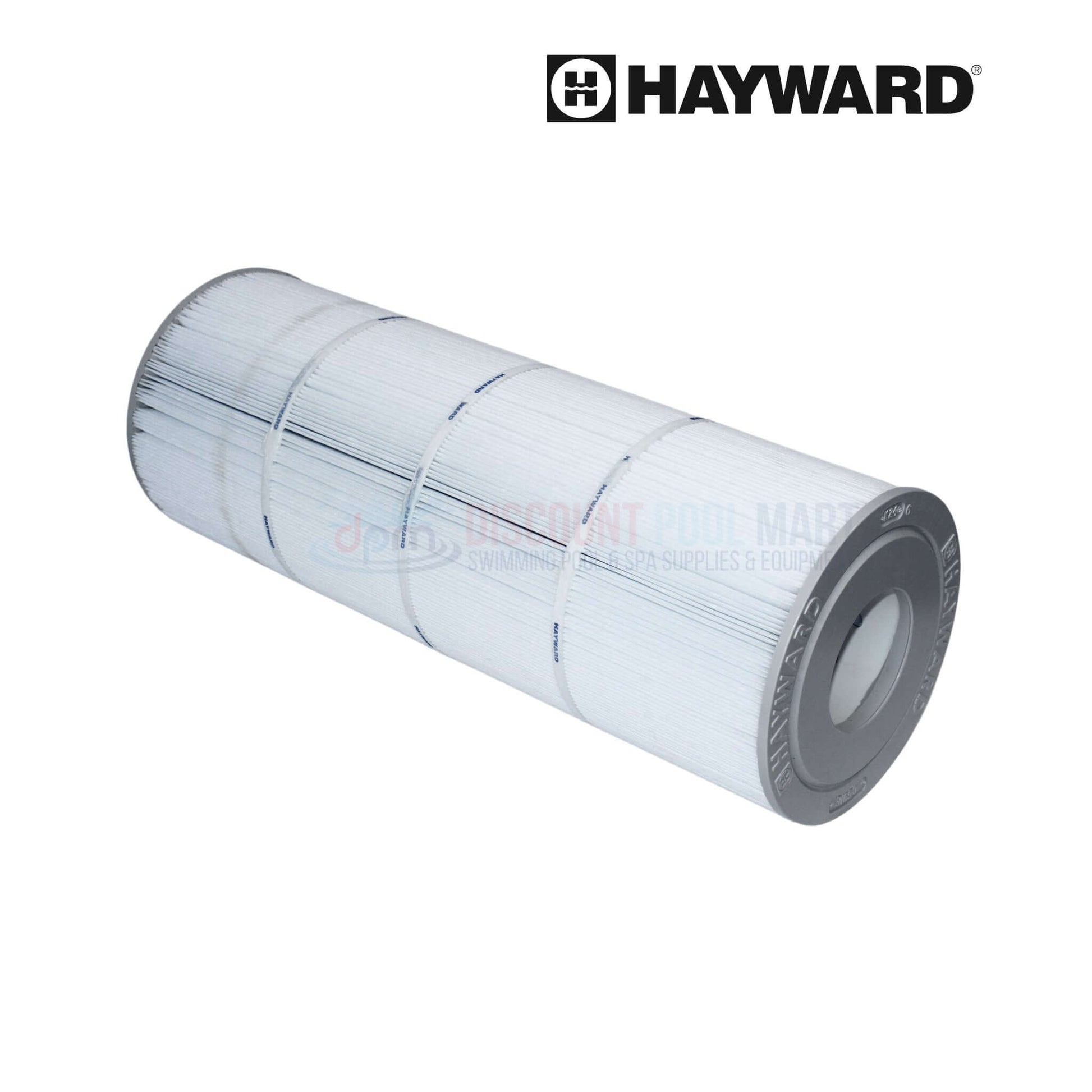

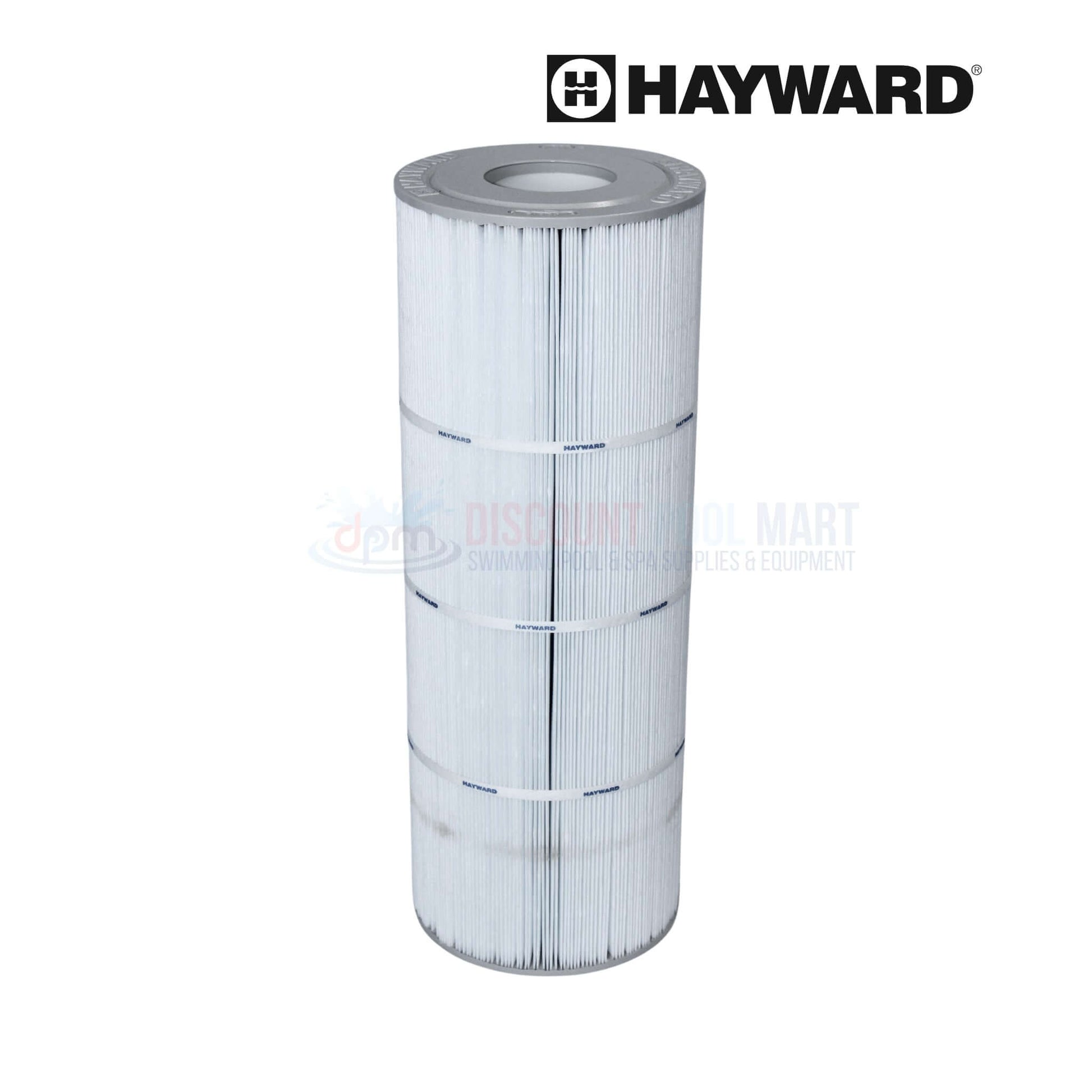

The Hayward CX591XRE is a genuine replacement filter cartridge designed specifically for the Hayward SwimClear C7030 cartridge filter system. Each cartridge offers 87 square feet of filtration area, and the C7030 filter requires four of these cartridges to operate effectively. Constructed with reinforced polyester pleated material and molded end caps, the CX591XRE ensures maximum hydraulic efficiency, exceptional debris removal, and extended durability. Its precision-engineered extruded core design promotes optimal water flow while reducing energy costs. Measuring approximately 19-inches in length and 7 inches in diameter, with 3-inch openings on both ends, this cartridge is NSF certified, guaranteeing high-quality performance and compatibility with Hayward systems.
-
OEM Replacement for Hayward C7030: Designed specifically for the Hayward SwimClear C7030 cartridge filter system.
-

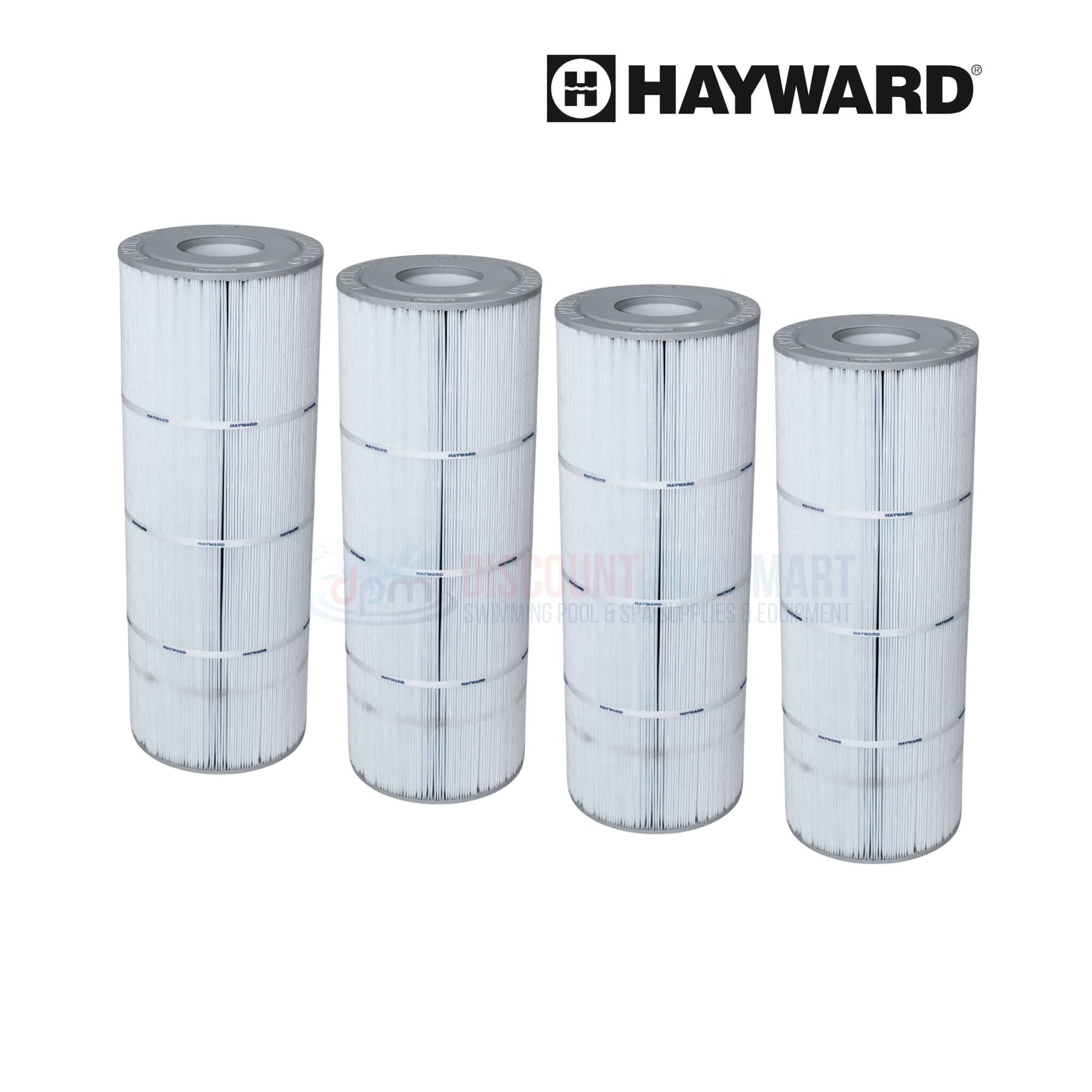

High Filtration Capacity: Each cartridge provides 87 sq. ft. of surface area; four cartridges required per system.
-
Durable Pleated Polyester Material: Reinforced media ensures long-lasting performance and superior debris capture.
-
Precision Extruded Core: Maximizes water flow and improves hydraulic efficiency to reduce energy consumption.
-

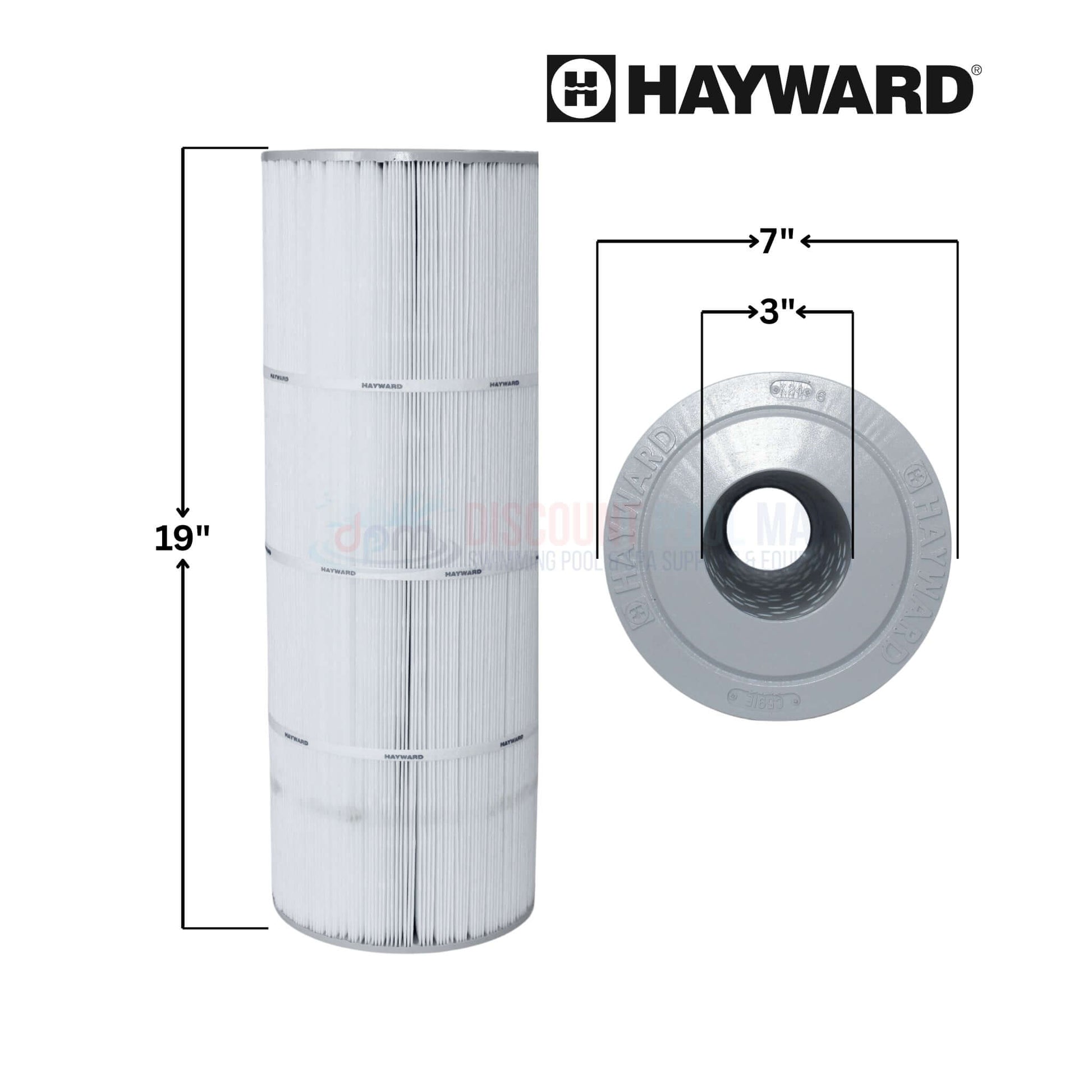

Exact Dimensions: Measures approximately 19" long x 7" diameter with 3" open ends for a perfect fit.
-
NSF Certified: Meets rigorous quality standards for pool and spa filtration systems.
-
Easy Installation: Drop-in design makes replacement quick and hassle-free.
