PVXH011SA | Hayward AquaNaut Steering Bracket Roller
Fits these models (9)
+5 more models
Pickup, delivery and shipping times are estimates, not guarantees.
Couldn't load pickup availability
● 163 in stock30-day returns Secure checkout
Have a question about this part?
Ask about fit, specs or shipping and get an instant answer.
Goes with this part
CA P65 Warning: Cancer and reproductive harm. www.p65warnings.ca.gov

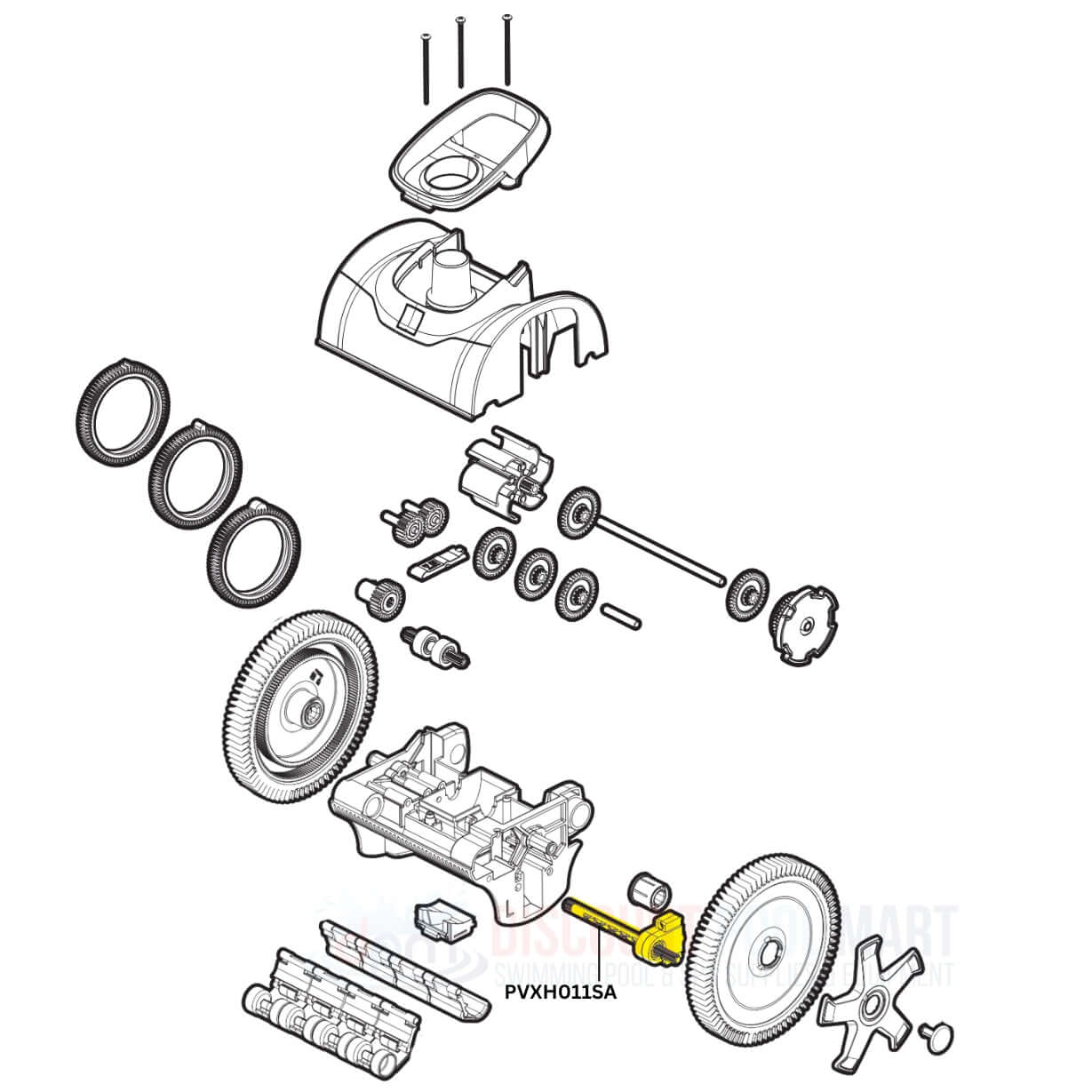

On the Hayward AquaNaut 200 & 250 Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward AquaNaut 200 & 250 Cleaner
OEM Hayward PVXH011SA Steering Bracket Roller is a genuine replacement component designed to restore navigation precision for Hayward AquaNaut 200, 250, 400, 450, and Poolvergnuegen 2- and 4-wheel pool cleaners. This mechanism enhances maneuverability by triggering the cleaner's reverse cycle, allowing it to change direction and avoid obstacles like steps and drains. The integrated black roller interfaces with wheel hub gears while the reverse actuator rotates with the cam, ensuring consistent turning and improved coverage. Built from high-strength, pool-grade materials, the PVXH011SA supports long-term cleaner efficiency and reliability.
-
OEM Steering Mechanism Replacement: Designed to fit AquaNaut and Poolvergnuegen 2- and 4-wheel models for accurate directional control
-
Enables Reverse Movement Functionality: Engages the gear hub to trigger back-up mode and help the cleaner escape tight corners and obstructions
-

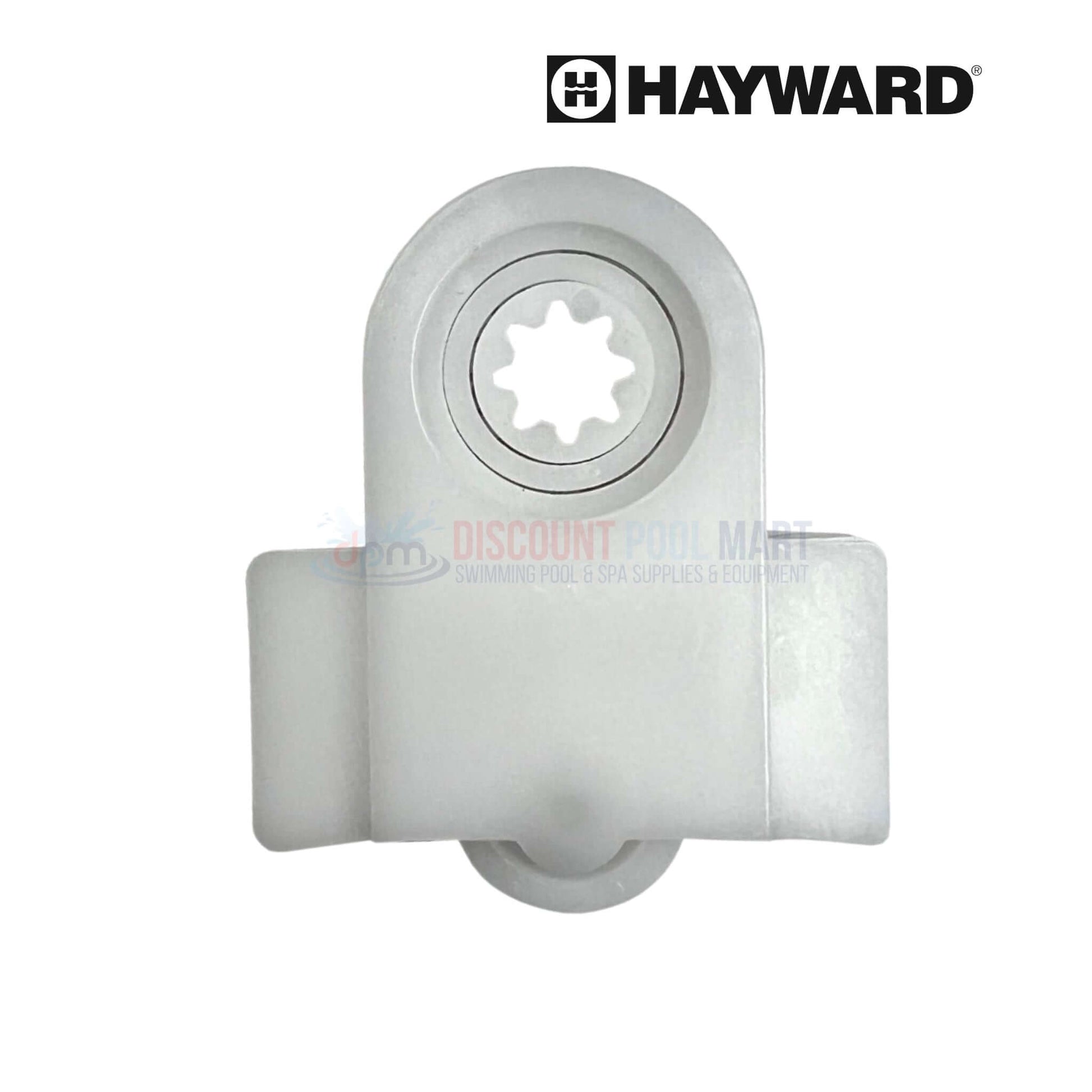

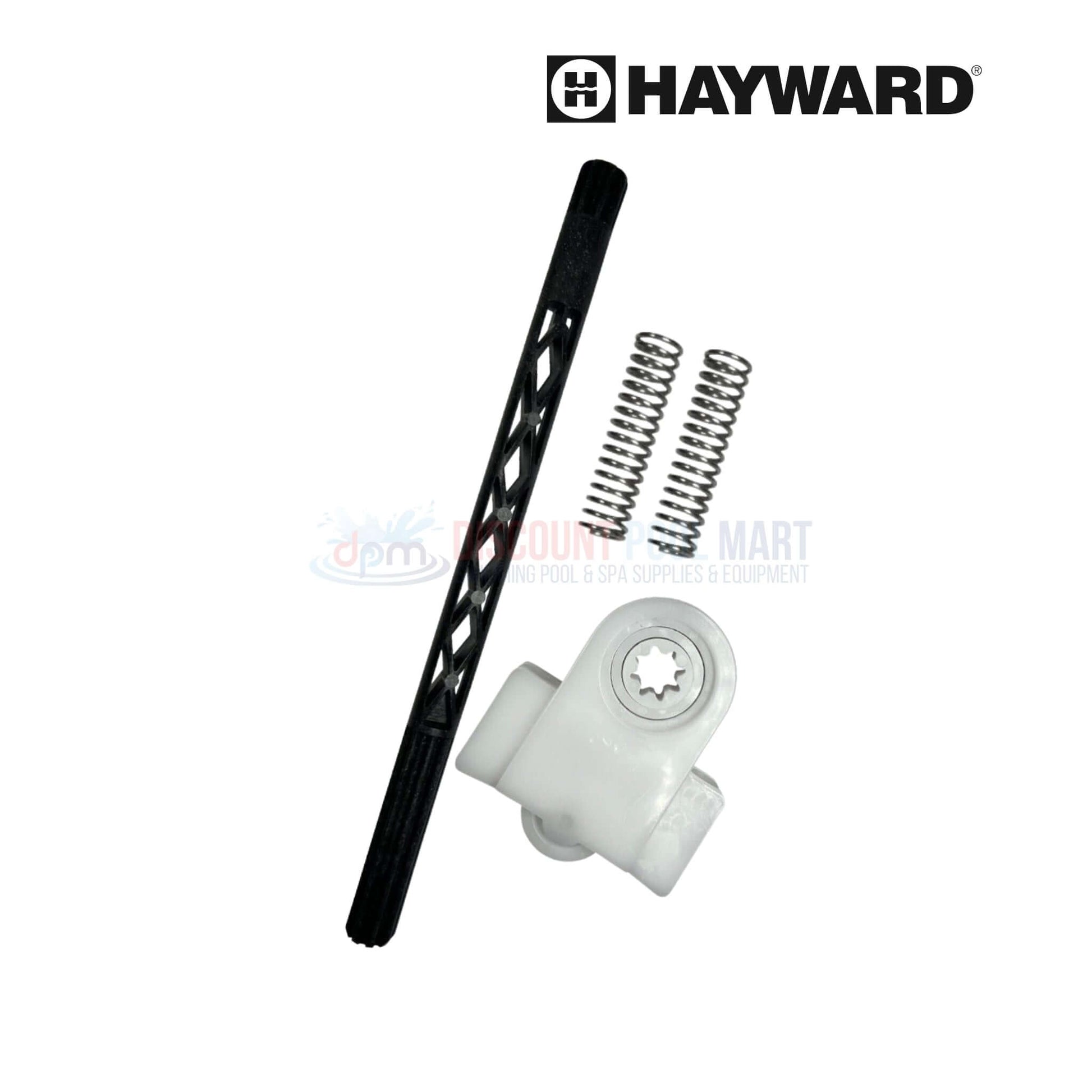

Black Roller and White Cam Assembly: Works in sync to rotate the cam and drive gear engagement during steering sequences
-
Constructed for Pool Environments: Resistant to UV, chemicals, and wear from continuous in-water operation
-
Restores Coverage and Maneuverability: Replacing a worn steering bracket improves overall cleaner performance and pathing
- Poolvergnuegen The Pool-Cleaner 2-Wheel Cleaners: 896584000-013, PBS20JST, W3PVS20JST
- Poolvergnuegen The Pool-Cleaner 4-Wheel Cleaners: 896584000-020, PBS40JST, W3PVS40JST
- Hayward Aquanaut 2-Wheel: PHS21CST, PHS21CSV, W3PHS21CST, PBS22CST
- Hayward Aquanaut 4-Wheel: PHS41CST, PHS41CSV, W3PHS41CST, PBS42CST
-
Hayward Aquanaut Cleaner Models: 200, 250, 400, 450
This replacement steering bracket roller assembly may be compatible with many other models as well, please check your cleaner's manual to ensure this replacement is right for your vacuum.
