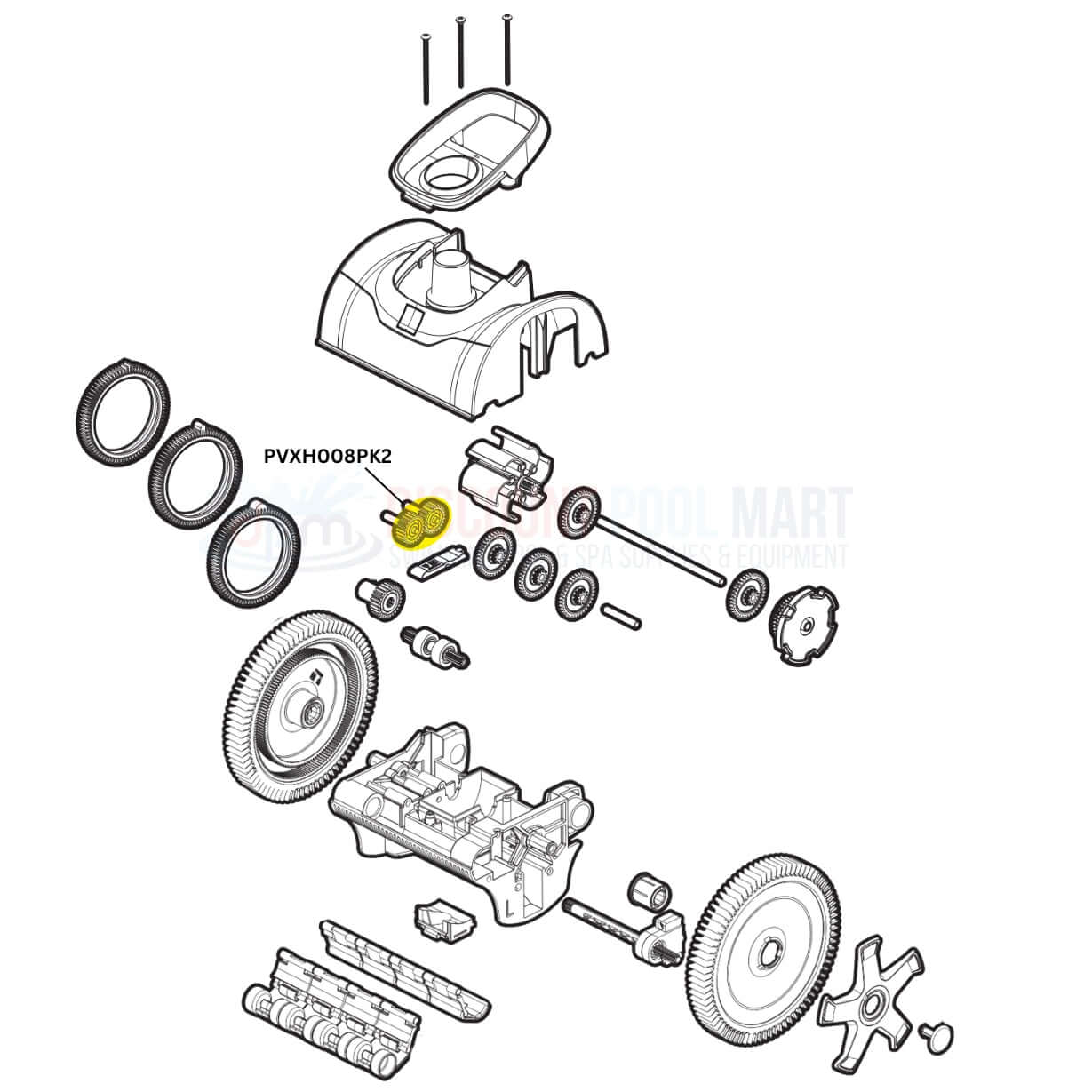

On the Hayward AquaNaut 200 & 250 Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward AquaNaut 200 & 250 Cleaner

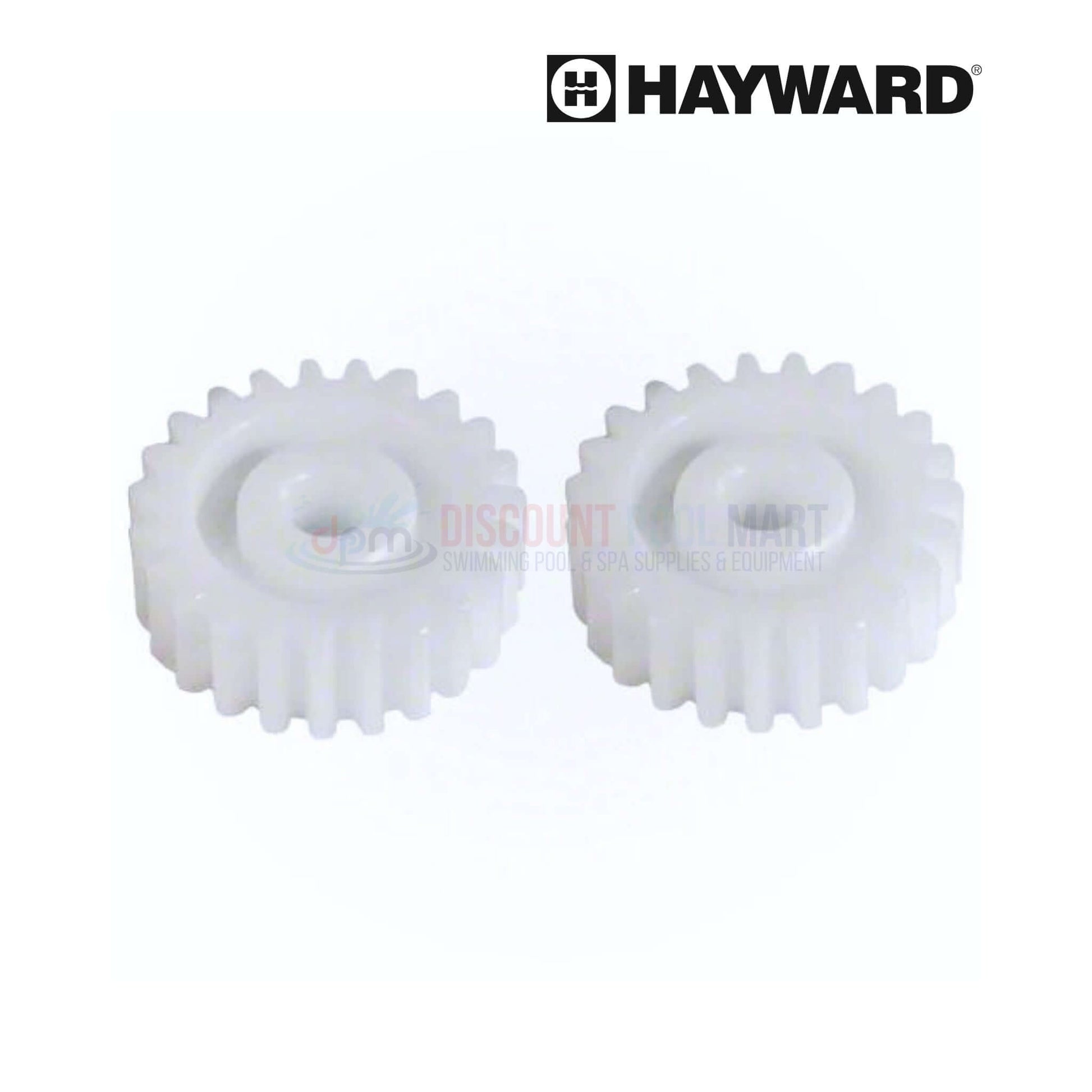

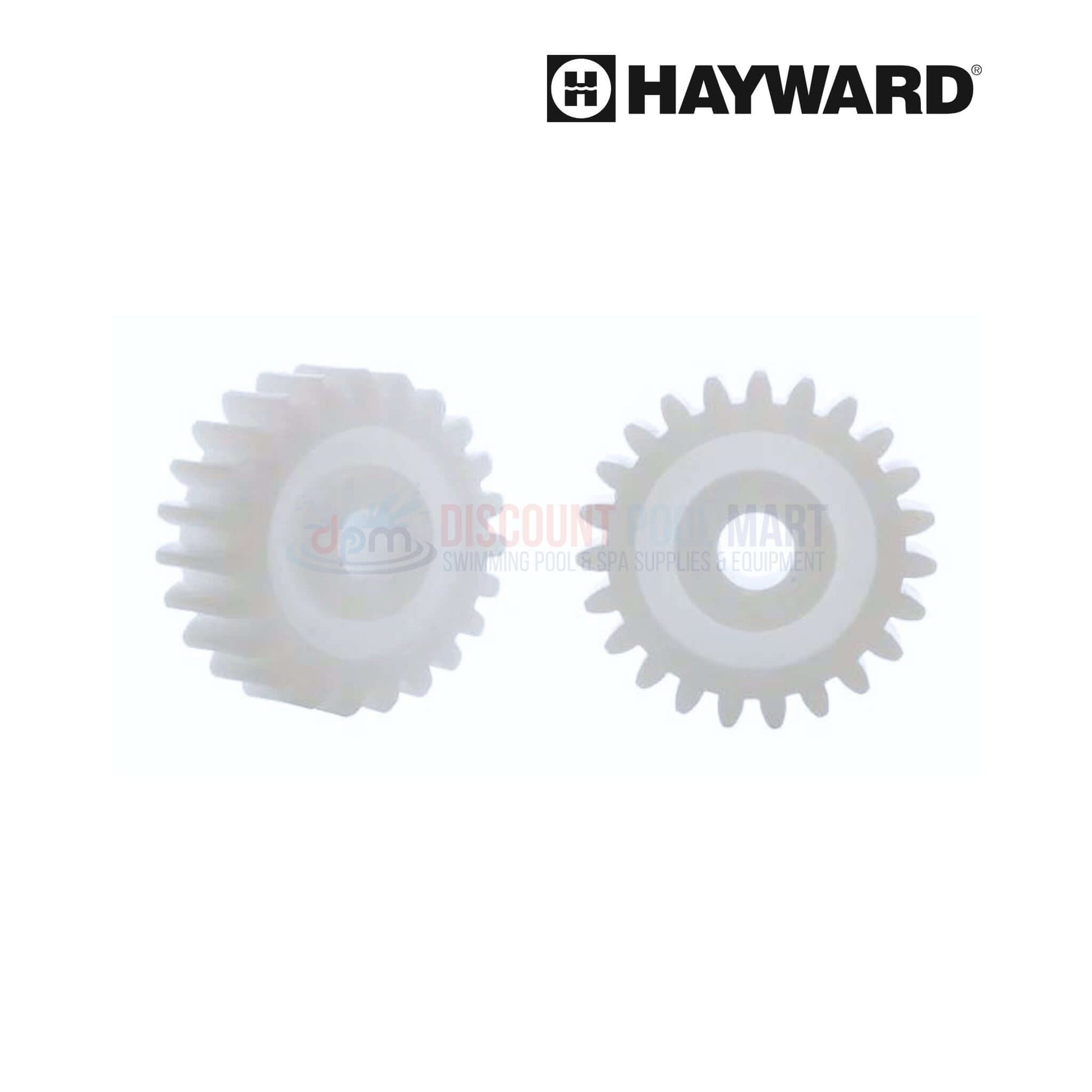

OEM Hayward Small Drive Gear 2-Pack PVXH008PK2 is a precision replacement set designed for AquaNaut 200, 250, 400, 450 and Poolvergnuegen 2- and 4-wheel suction pool cleaners. These gears serve a critical role in the drive system by transferring power from the turbine to the steering mechanism, enabling smooth turns, reliable movement, and accurate directional changes. Engineered for durability, the components are built to endure repeated use and exposure to pool chemicals. Replacing worn drive gears restores internal motion and ensures your cleaner continues to operate with consistent efficiency across all pool surfaces.
-
OEM Hayward Drive Gears: Designed for AquaNaut and Poolvergnuegen 2- and 4-wheel cleaners to match original gear dimensions and tolerances.
-
Enables Power Transfer: Connects the internal turbine to steering gears, translating water flow into precise movement and directional control.
-
Improves Debris Collection: Assists with maintaining tight steering cycles for efficient surface coverage and uninterrupted cleaning.
-
Durable Engineering: Constructed from reinforced materials that resist chlorine degradation, impact damage, and daily mechanical wear.
-
Two-Gear Set Included: Includes both small drive gears needed to refresh the internal drivetrain and keep your cleaner running reliably.
- Poolvergnuengen The Pool-Cleaner 2-Wheel Cleaners: 896584000-013, PBS20JST, W3PVS20JST
- Poolvergnuengen The Pool-Cleaner 4-Wheel Cleaners: 896584000-020, PBS40JST, W3PVS40JST
- Hayward Aquanaut 2-Wheel: PHS21CST, PHS21CSV, W3PHS21CST, PBS22CST
- Hayward Aquanaut 4-Wheel: PHS41CST, PHS41CSV, W3PHS41CST, PBS42CST
- Hayward AquaNaut Cleaner Models: 200, 250, 400, 450
This large drive gear replacement may be compatible with many other models as well, please check your cleaner's manual to ensure this replacement is right for your vacuum.
