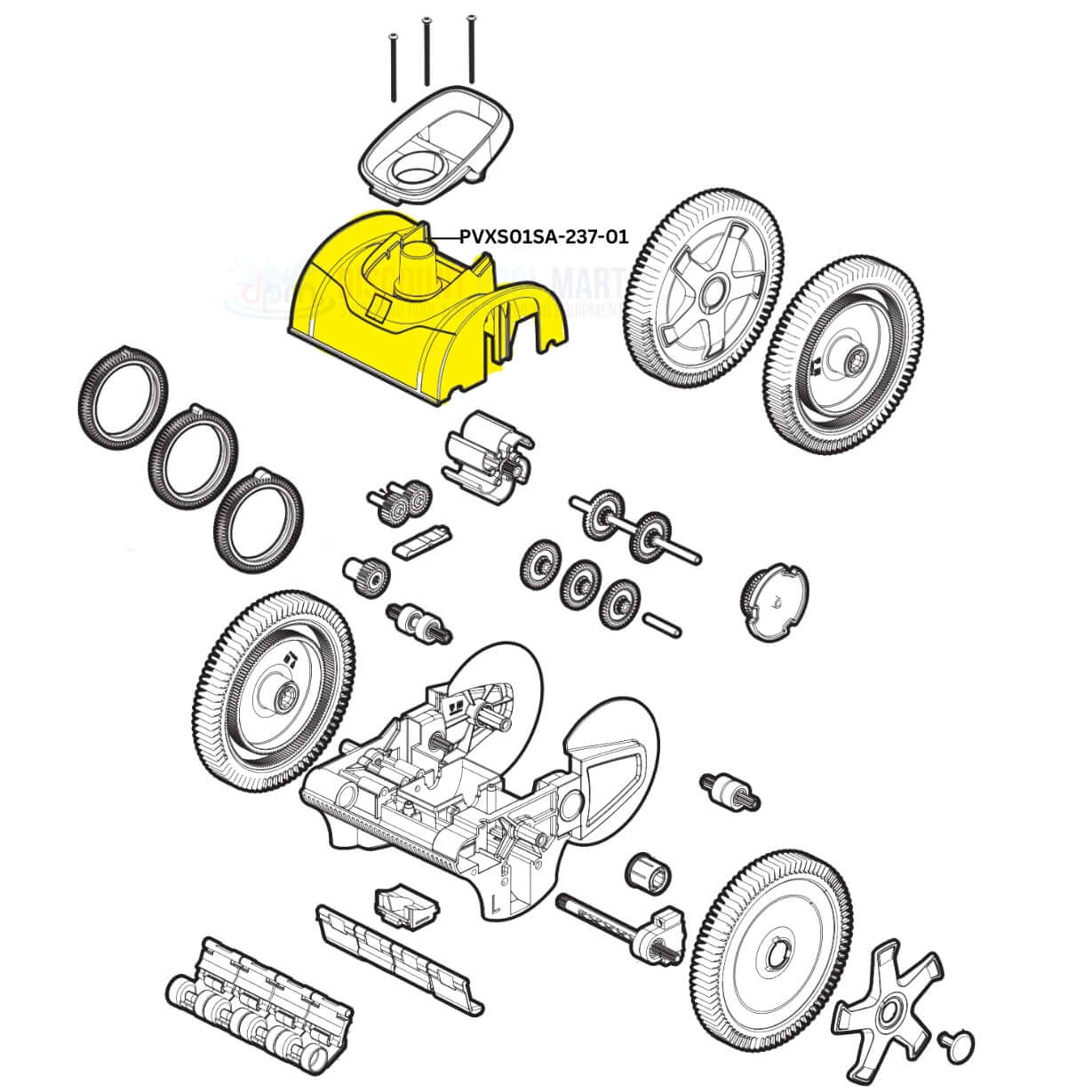

On the Hayward AquaNaut 200 & 250 Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward AquaNaut 200 & 250 Cleaner

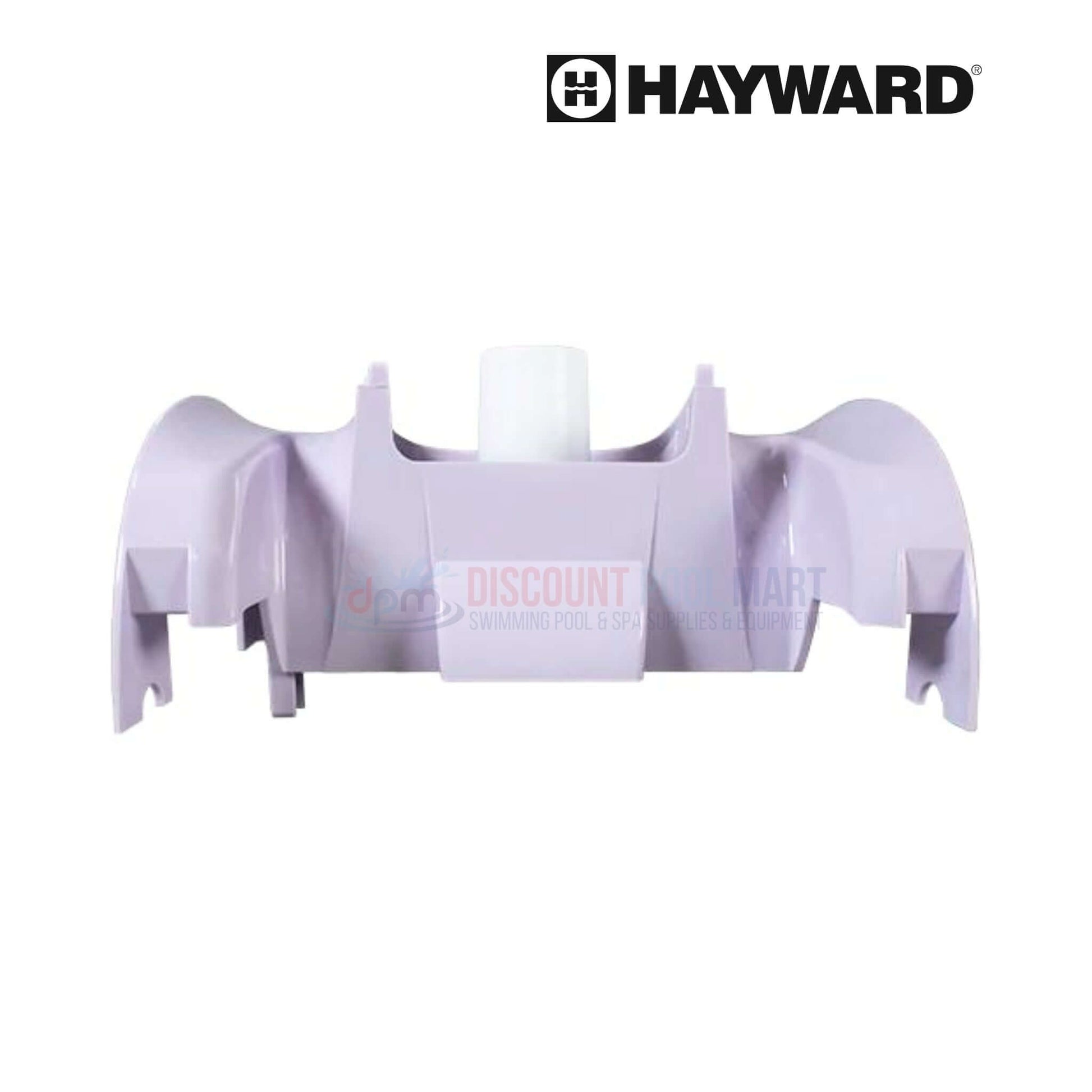

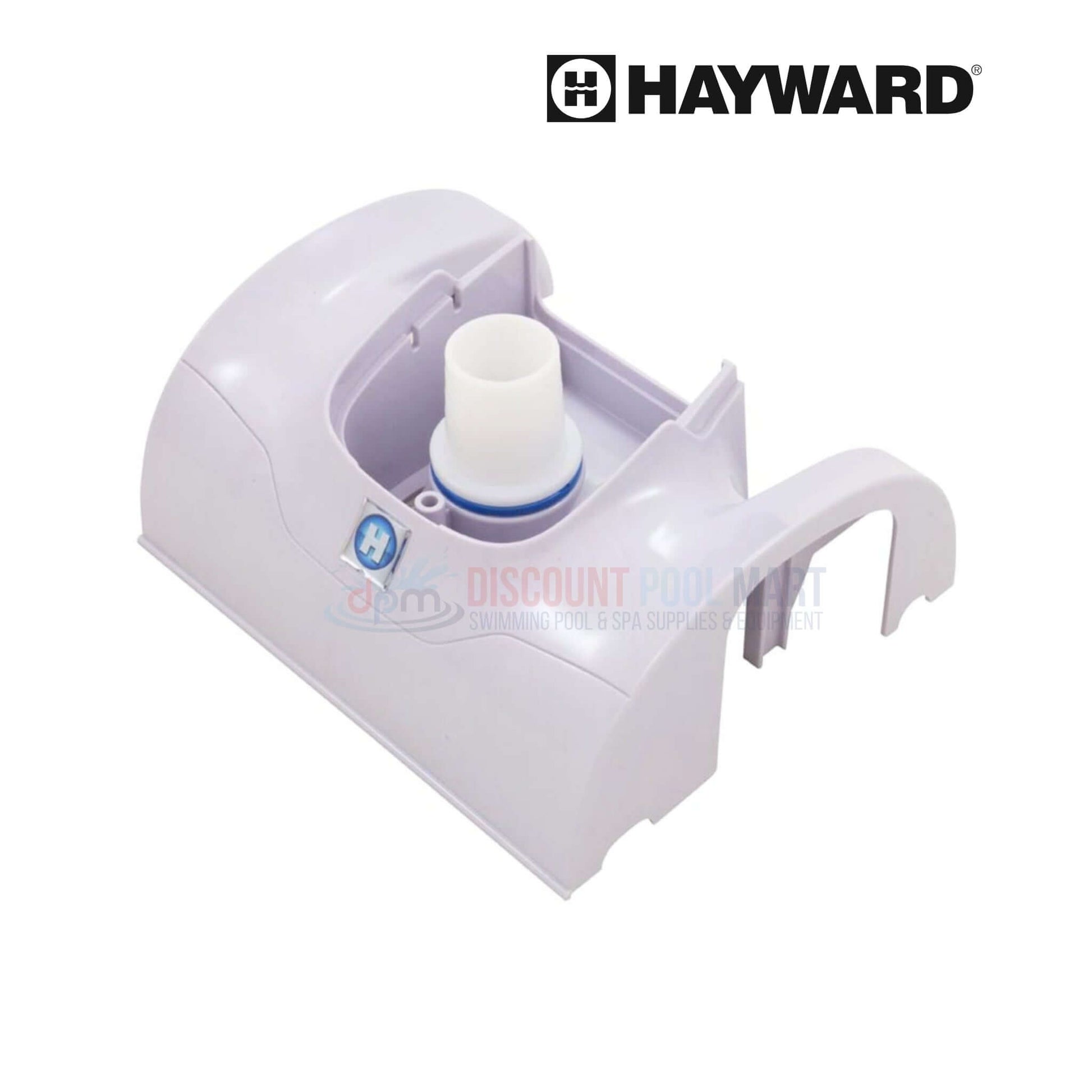

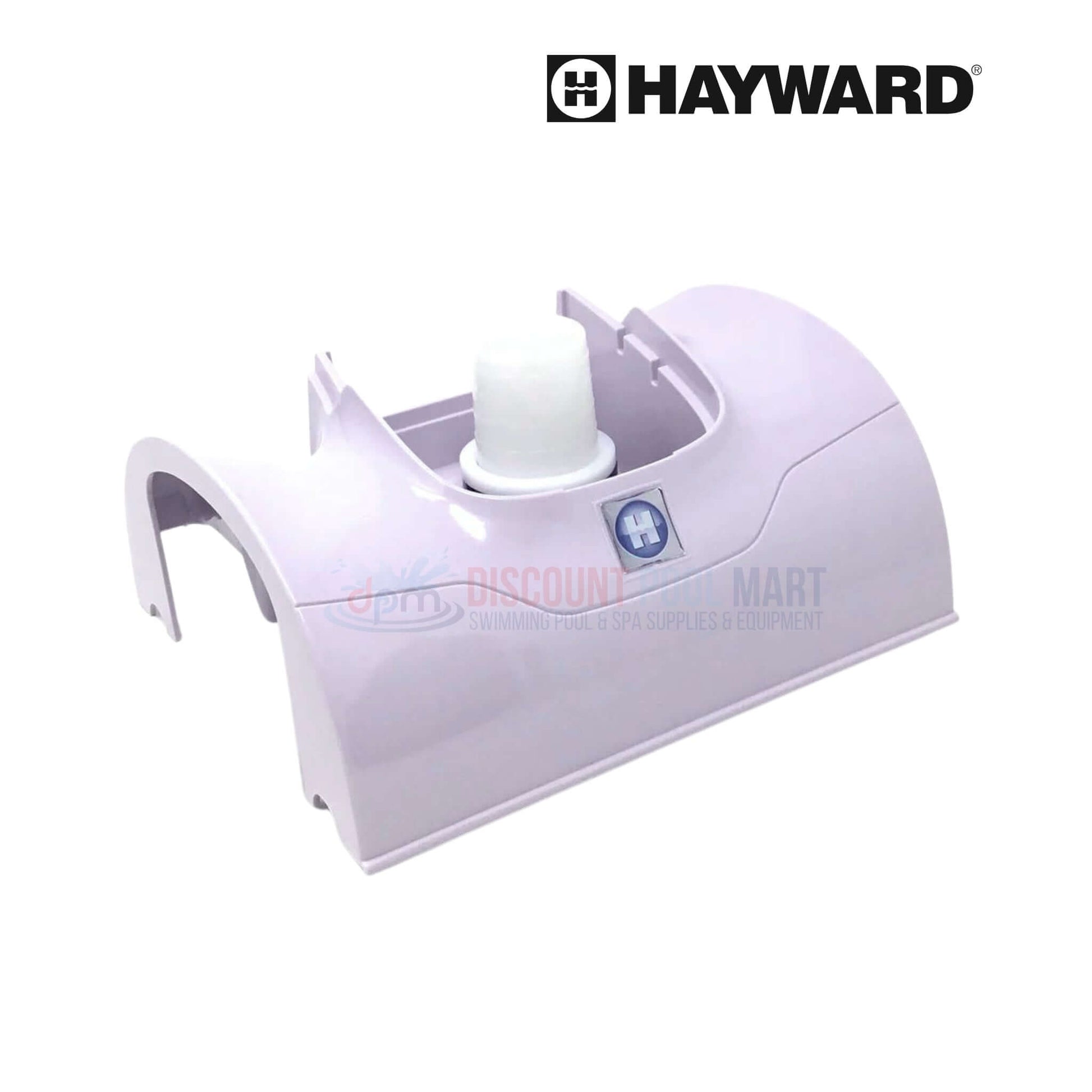

The OEM Hayward Upper Body Assembly PVXS01SA-237-01 is a high-quality replacement component engineered for Aquanaut 200 and 400 suction pool cleaners. This robust upper body structure houses and secures the cleaner's internal components, contributing to overall durability and optimal performance. Manufactured from long-lasting, pool-grade materials, it offers seamless integration with your existing unit. Whether used for routine maintenance or as a replacement for damaged parts, this assembly ensures consistent operation and extends the cleaner’s functional life.
-
Designed for Aquanaut 200 and 400: Precision-fit for Hayward Aquanaut models, providing a reliable and accurate replacement
-
Supports Internal Component Alignment: Secures internal systems in place to maintain proper cleaner function and durability
-
Durable Pool-Grade Materials: Built to withstand exposure to chlorine, UV rays, and daily pool use without cracking or fading
-
Restores Cleaner Stability: Provides the core structural shell that supports balanced movement and steady suction
-
Quick, Seamless Installation: Installs easily during repairs or maintenance with minimal effort and perfect compatibility
- Hayward Aquanaut Cleaner Models: 200 and 400
Note: This upper body assembly may be compatible with your cleaner, please refer to your systems owners manual to ensure compatibility.
