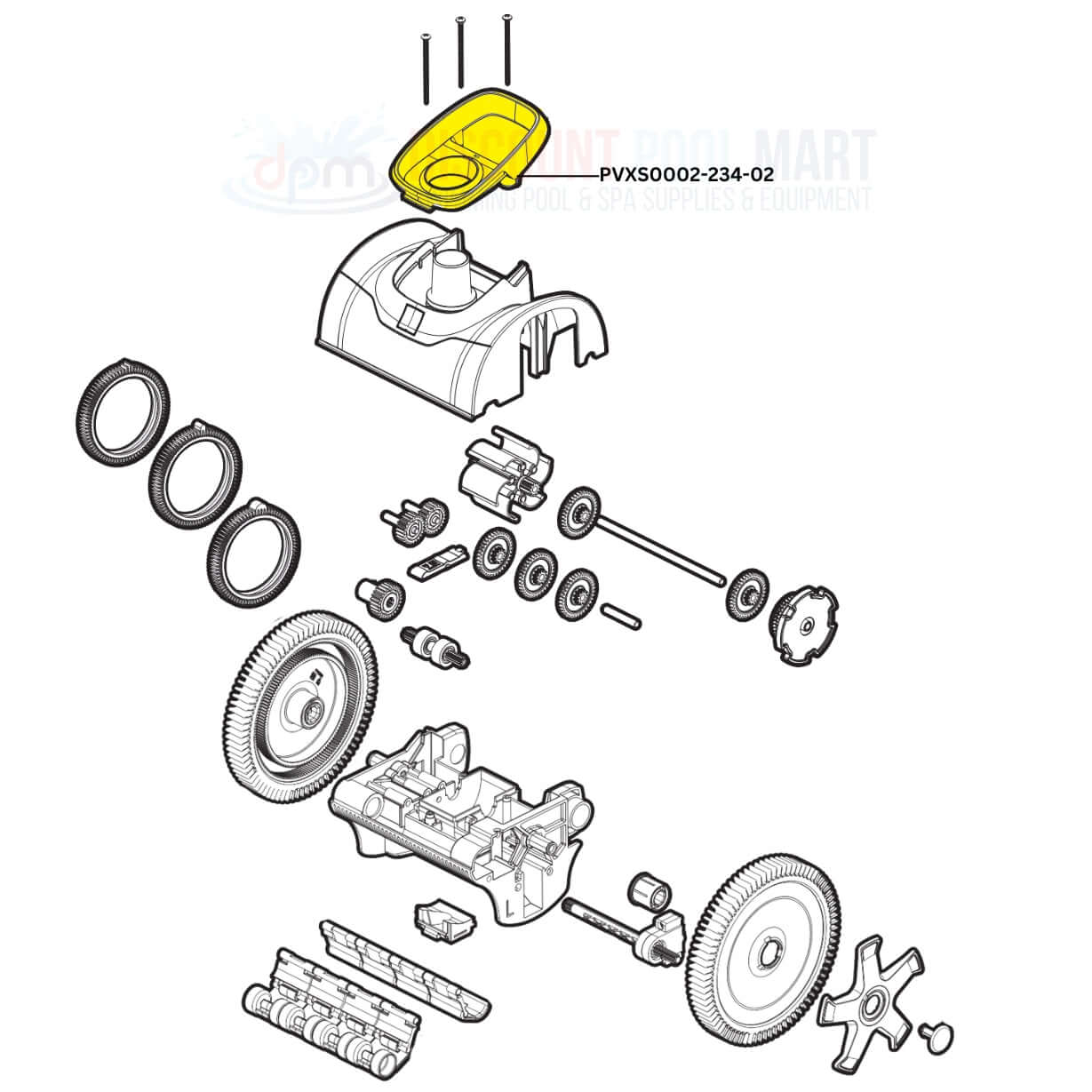

On the Hayward AquaNaut 400 & 450 Cleaner diagram
This part
Open the full interactive diagram →
Other parts on the same Hayward AquaNaut 400 & 450 Cleaner

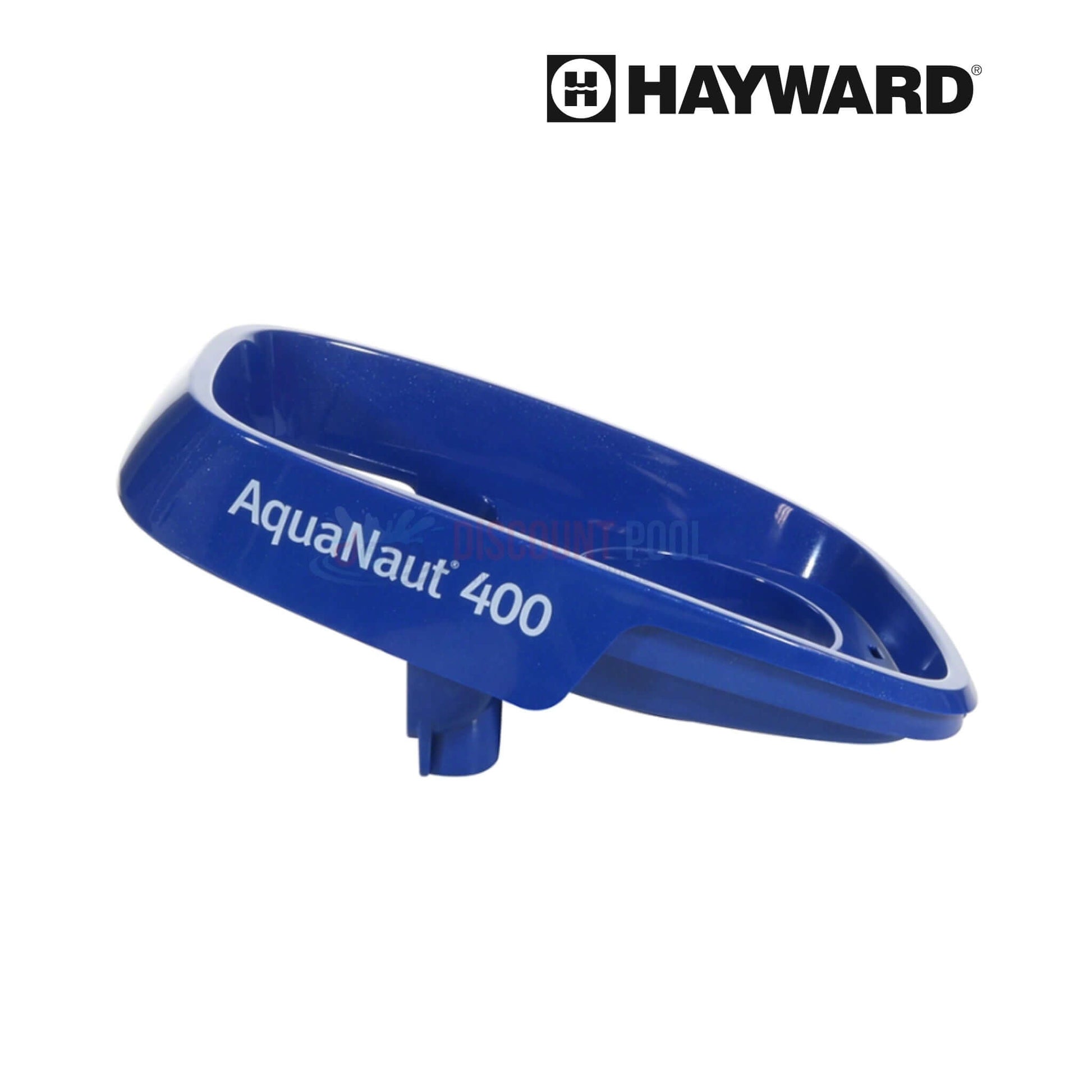

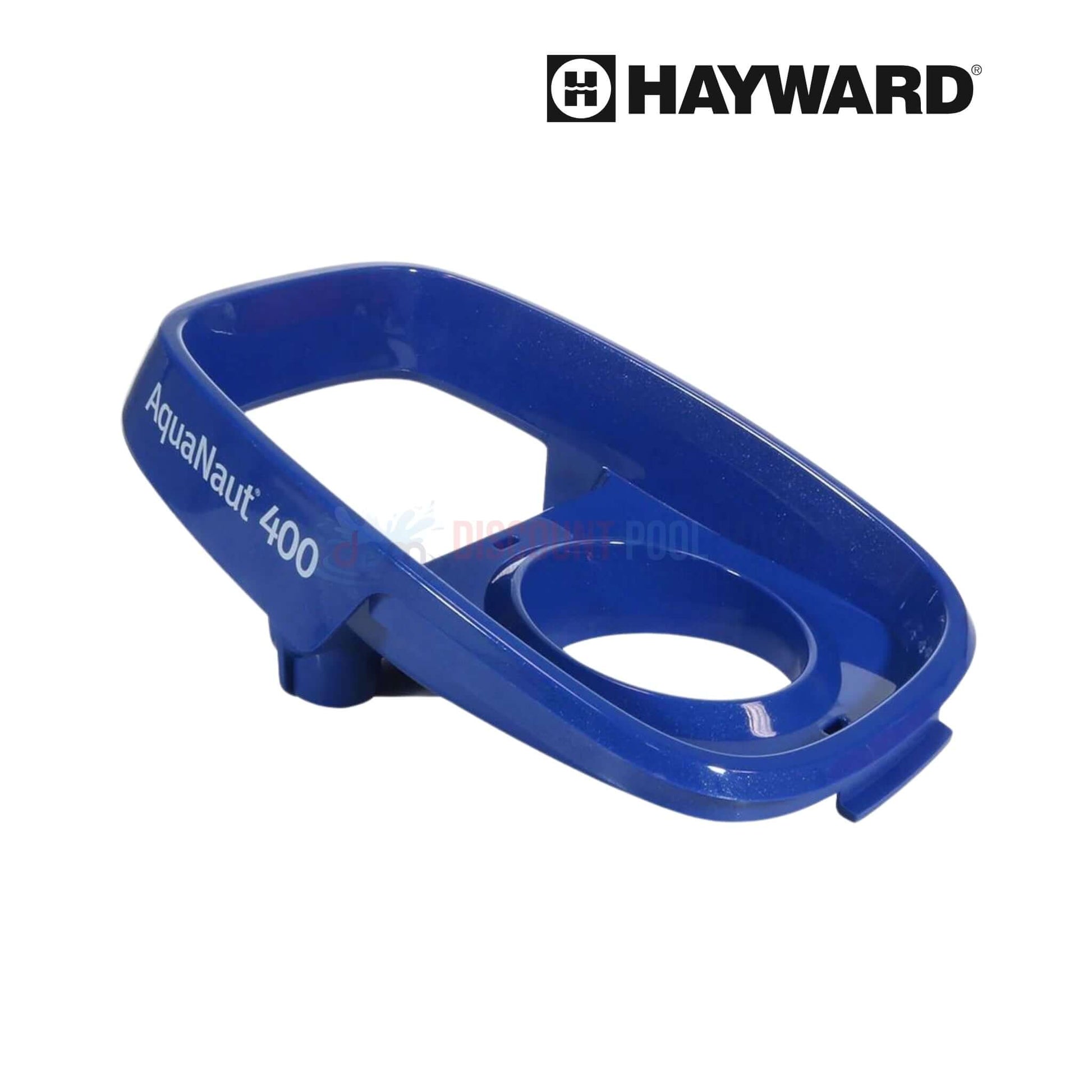

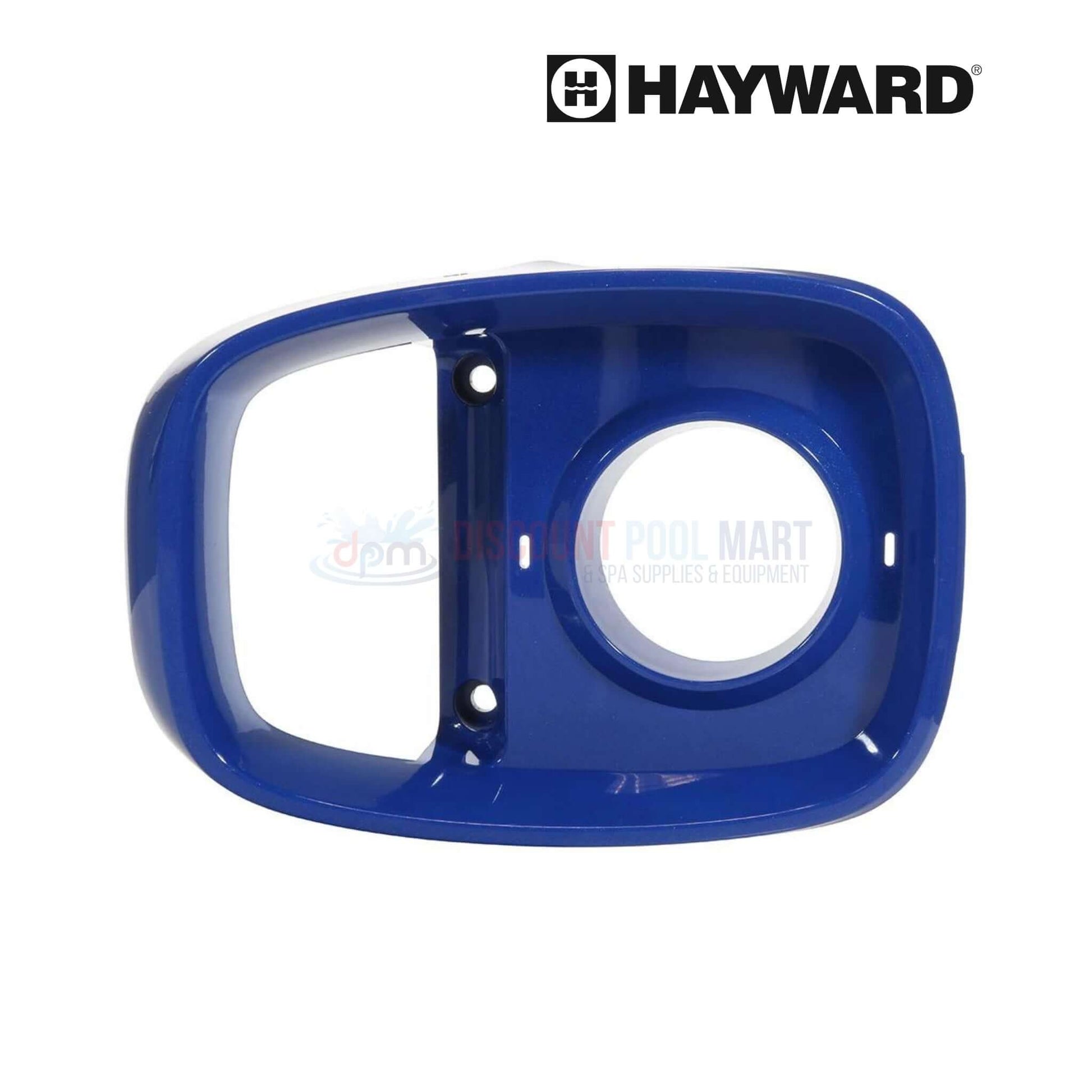

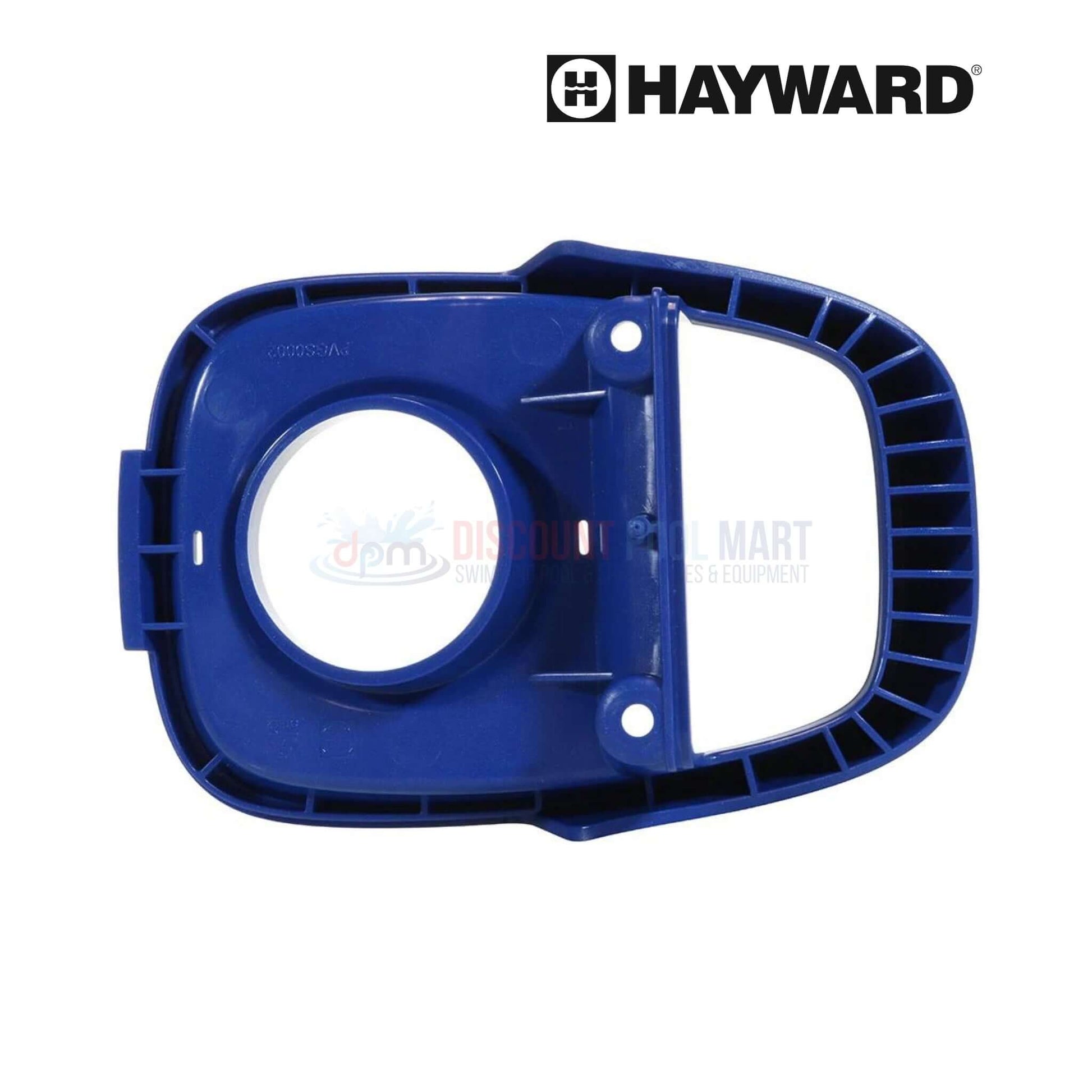

OEM Hayward Handle PVXS0002-234-02 is a genuine replacement component made for the AquaNaut 400 4-wheel suction-side pool cleaner. This metallic blue handle is crafted from durable, UV-resistant plastic and includes the Hayward logo for a clean, factory-original look. Designed to provide a reliable grip, it attaches to the cleaner's upper body using two of the three main housing screws. Replacing a cracked, faded, or missing handle helps ensure safe lifting and maintains the cleaner’s original aesthetic and functional integrity.
-
OEM Hayward Handle: Engineered for AquaNaut 400 4-wheel models to match original dimensions, materials, and branding.
-
UV-Resistant Material: Constructed from strong plastic formulated to withstand chlorine exposure, sun damage, and repeated handling.
-
Metallic Blue Appearance: Matches the cleaner’s original finish and includes the Hayward logo for a consistent, factory look.
-
Simple Installation Method: Fastens to the cleaner using two of the upper housing screws, with no additional hardware required.
-
Restores Safe Handling: Replaces worn handles to ensure safe and stable lifting while improving the unit’s visual appearance.
- Hayward AquanNaut 4-Wheel Cleaners: PHS41CST, PHS41CSV, W3PHS41CST, PBS42CST
